Occurrence and transformation of veterinary pharmaceuticals and biocides in manure: a literature review

Environmental Sciences EuropeBridging Science and Regulation at the Regional and European Level201628:23

https://doi.org/10.1186/s12302-016-0091-8

Received: 6 May 2016

Accepted: 12 September 2016

Published: 26 September 2016

Abstract

The spread of veterinary medicinal products (VMPs) and biocides via manure onto agriculturally used areas represents a very important emission into the environment for these product groups. Within this literature study, publicly available transformation studies with liquid manure are summarized. Transformation studies were evaluated regarding the transformation fate of tested substances, the origin and characteristics of used manure, the experimental setup, and the measured parameters. As main topics within the 42 evaluated transformation studies, the high dependency of transformation on temperature, redox potential, dry matter content, and other parameters is reported. Test duration throughout the studies ranged from 2 to 374 days and study temperature ranged from 5 to 55 °C. Only seven publications gave information on the redox potential of the manure. Further, the characterization of the matrix in many cases was inadequate due to missing parameters such as dry matter content or pH. Only three publications studied transformation of biocides. To allow for a consistent assessment of studies within the registration process, a harmonized internationally accepted and validated test method is needed. Additionally, monitoring data of VMPs in manure were collected from literature and evaluated regarding the origin and characteristics of the manure, the minimum/maximum found concentrations, and the percentage of identified compounds. Within the 27 evaluated publications, 1568 manure samples were analyzed and 39 different active substances for VMPs and 11 metabolites and transformation products of VMPs could be found in manure. Most often, the samples were analyzed for sulfonamides, tetracyclines, and fluoroquinolones. Not one study searched for biocides or worked with a non-target approach. For sulfadiazine and chlortetracycline, concentrations exceeding the predicted environmental concentrations were found.

Keywords

Veterinary medicinesDrugPharmaceuticalsBiocidesManureSlurryTransformationDissipationDegradationMonitoring

Background

Veterinary medicinal products (VMPs) are excreted by the treated animals in the form of unchanged parent substances and metabolized compounds. The excrements from stabled animals in Europe and North America are collected and stored mainly as liquid or solid manure before they are used as fertilizers on arable land and grassland. Biocides, which are used for the disinfection of stables, end up in the stored animal excrements. Via manure application in agriculture, veterinary medicines and biocides are released into the environment and consequently affect soil and water quality.

Depending on boundary conditions such as storage temperature, dry matter content, feeding of the animals, and availability of electron acceptors, the pharmaceuticals and biocides can be further transformed in the liquid manure. Besides transformation, other processes such as volatilization, sorption, and the formation of non-extractable residues (NER) can occur and contribute to the dissipation of the active ingredients.

Transformation products may also persist in environmental matrices and can be ecotoxic. For tetracyclines, transformation products like epimers, isomers, and anhydro-compounds were detected [5, 31]. Metabolites of sulfadiazine show transformation back to the parent compound [26]. Transformation processes are influenced by the composition of matrix, temperature, pH value, microbiology, as well as aerobic or anaerobic conditions. Compounds could adsorb to the matrix depending on its sorption capacity. The higher the dry matter content in liquid manure, the higher the number of sorption sites [35].

Generally, the transformation under aerobic conditions occurs faster than the transformation under anaerobic conditions. Also high temperatures promote the degradation of compounds in liquid manure. During manure storage in manure tanks, which is most common in Europe, the storage conditions are anaerobic. In North America, manure is often stored in lagoons because of the large amounts of manure that accumulates in large-scale concentrated animal feeding operations (CAFOs). The outdoor lagoon storage is distinguished by more aerobic conditions on the large lagoon water surface but also by anaerobic conditions in deeper layers. Composting the separated manure under aerobic conditions is a favored treatment of manure in Asia. Concluding, the transformation process of compounds is affected largely by the storage practice of manure.

There is increasing research activity regarding the transformation of single substances under laboratory conditions. Current guidance, e.g., the “guideline on determining the fate of veterinary medicinal products in manure” [19], takes transformation of VMPs and biocides in manure into account. However, there is no standardized experimental test protocol available to examine the transformation of veterinary medicinal products (VMPs) and biocides in liquid manure. The EMA guideline on transformation in manure [19] only contains basic regulatory requirements. To allow for a consistent assessment of studies within regulatory frameworks, a harmonized internationally accepted and validated test method is needed. The present review paper brings the initial situation assessment which might serve as a basis for further exploitation toward the formulation of the guideline.

This literature study first provides a survey on monitoring data of VMPs and biocides in liquid manure and secondly presents studies on transformation processes in liquid manure. The objective of this review is to consider the following questions: Which compounds are found in liquid manure? Which compounds are investigated? Which methods and analytical techniques are used and which factors have been identified affecting the transformation process in liquid manure?

Methods

The search engines and databases such as “Google Scholar” and “ISI Web of Knowledge” were used. Categorized search items are shown in Table 1. For Boolean search, the most relevant keywords from the first and the second category were combined with one of the keywords of categories 3–6.
Table 1

List of categorized keywords

1

2

3

4

5

6

Manure

Transformation

Veterinary

Medicine

Biocide

Tetracycline

Slurry

Metabolism



Drug

Pesticide

Sulfonamide

Feces

Catabolism



Pharmaceutical

Disinfectant

Antibiotic

Faeces

Anabolism



Antiparasitic

Lagoon

Degradation




Decomposition




Dissipation




Fate




Reaction




Conversion




Management



International publications from the year 2000 to date were considered. In addition, cross-references of the found publications were evaluated. Further, relevant German authorities and organizations (German Federal State Ministries and Departments, private associations) were asked for reports on related topics.

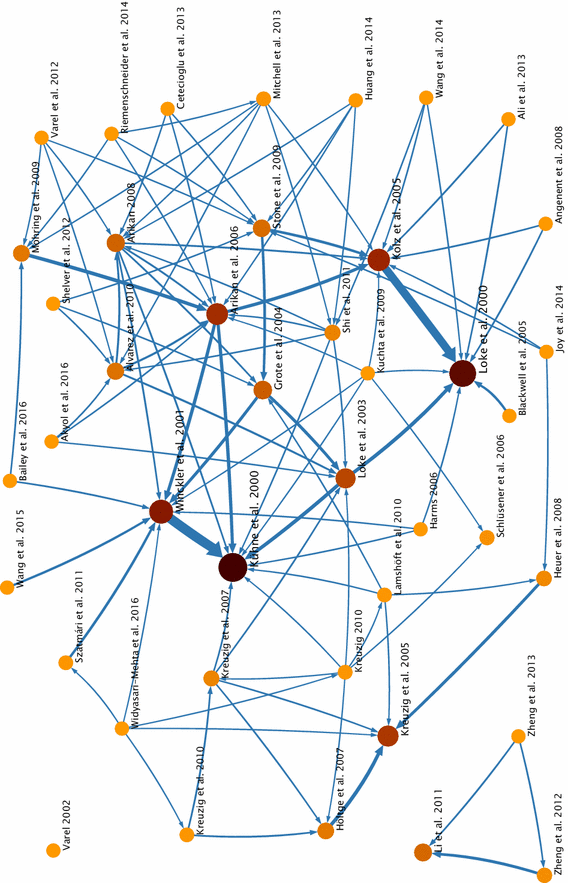

By this means, 668 individual publications were obtained, 27 of which were found to measure or monitor the occurrence of VMPs in liquid manure. Examined substances, determined concentrations, origin of the manure, and further parameters were listed. From 668 records, 42 publications deal explicitly with transformation of veterinary medicinal products and biocides in manure. These citations were evaluated systematically, considering specific parameters such as investigated compounds and substance amounts, characterization of matrices, transformation products, methodology, and chemical analysis of the studies. Liquid manure generally is defined in the following way: “Liquid manure that is the predominant type of manure in Europe and North America is a mixture of urine, faces and water used to clean the stables and may also contain bedding material. Typical dry matter contents for pig and cattle manure have been found to be 5 and 10 %, respectively” [74]. Since many studies do not report the dry matter content of the analyzed manure or do not follow the common definition of liquid manure, only those transformation studies were excluded from this literature review, that clearly work with stable manure from manure heaps.

Occurrence of veterinary medicines and biocides in manure

The monitoring data tables (Tables 2, 3, 4, 5) summarize the results of 27 different publications measuring active ingredients of veterinary medicinal products in manure from the year 2000 until today. The analyses were conducted in North America (Canada), in Europe (Austria, Czech Republic, Denmark, Germany, Italy, Switzerland), and in Asia (China, Japan). Although the results give only information on specific locations, the ubiquitous occurrence of active ingredients in manure is demonstrated. It can be assumed that whenever veterinary medicinal products are used, portions of these will be found in the manure.
Table 2

Sulfonamides and their metabolites and transformation products found in manure

Substance

Reference

Matrix

Origin

Min

Max

Unit

Dry matter content, comments or quotation

n

n positive

% positive

Sulfachloropyridazine

[28]

Pig and poultry manure

China

0.340

3.660

mg/kg (dw)

“Liquid swine manure” (ns)

6

2

33

[79]

Pig, cattle and poultry manure

China

0.090

3.510

mg/kg (dw)

(ns)

143

7

5

Sulfadiazine

[20]

Pig manure

Germany (NI)

0.700

235.100

mg/kg (ww)

0.5–16.8 % (mean 5 %)

344

100

29

[23]

Pig manure

Germany

3.500

11.300

mg/kg (dw)

9.6–9.8 %

3

2

67

[25]

Pig manure

Germany (BY)

0.100

5.000

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

19

5

[28]

Pig and poultry manure

China

0.160

0.780

mg/kg (dw)

“Liquid swine manure” (ns)

6

2

33

[31]

Pig manure

Denmark

0.630

2.100

mg/kg (dw)

2.8–13.4 %

6

2

33

[55]

(ns)

Germany

0.011

0.080

mg/kg (ns)

“Liquid manure” (ns)

4

2

50

[56]

Pig and cattle manure

Germany (NW)

0.650

mg/kg (dw)

Liquid and stable manure (ns)

34

5

15

[77]

Pig manure

Germany

0.700

35.300

mg/kg (ww)

0.7–16.11 %

176

86

49

[79]

Pig, cattle and poultry manure

China

0.020

3.120

mg/kg (dw)

(ns)

143

14

10

4-Hydroxy-sulfadiazine

[56]

Pig and cattle manure

Germany (NW)

9.050

mg/kg (dw)

Liquid and stable manure (ns)

34

8

24

N4-Acetyl-sulfadiazine

[25]

Pig manure

Germany (BY)

not quantified

0.2–17.3 % (mean 3.7 %)

380

19

5

[55]

(ns)

Germany

0.010

0.270

mg/kg (ns)

“Liquid manure” (ns)

4

2

50

[56]

Pig and cattle manure

Germany (NW)

0.150

mg/kg (dw)

Liquid and stable manure (ns)

34

6

18

Sulfadimethoxine

[25]

Pig manure

Germany (BY)

0.050

0.600

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

5

1

[54]

Pig manure

China

0.120

1.255

mg/kg (dw)

(ns)

126

3

2

Sulfadimidine

[48]

Pig manure

Austria

<20

mg/kg (dw)

“Liquid manure” (ns)

30

18

60

[8]

Cattle manure

Canada

9.990

mg/kg (dw)

24.4–44.4 % (mean 37 %)

6

4

67

[13]

Pig manure

Switzerland

14.400

mg/L (ww)

“In the supernatant” (water phase) (ns)

1

1

100

[15]

Pig manure

Germany

1.000

1.100

mg/kg (ww)

(ns)

2

2

100

[15]

Cattle manure

Germany

<0.1

<0.1

mg/kg (ww)

(ns)

2

2

100

[20]

Pig manure

Germany (NI)

0.700

167.000

mg/kg (ww)

0.5–16.8 % (mean 5 %)

344

183

53

[23]

Pig manure

Germany

7.200

mg/kg (dw)

9.6–9.8 %

3

1

33

[54]

Pig manure

China

0.011

28.700

mg/kg (dw)

(ns)

126

65

52

[56]

Pig and cattle manure

Germany (NW)

7.040

mg/kg (dw)

Liquid and stable manure (ns)

34

6

18

[58]

Pig manure

Germany

0.130

20.000

mg/kg (dw)

1.2–28 %

30

18

60

[75]

Pig manure

Germany (BY)

0.140

1.700

mg/L (ww)

1–2 %

8

8

100

[77]

Pig manure

Germany

0.700

167.000

mg/kg (ww)

0.7–16.13 %

176

85

48

[79]

Pig, cattle and poultry manure

China

0.060

6.040

mg/kg (dw)

(ns)

143

17

12

[22]

Pig and cattle manure

Switzerland

0.130

8.700

mg/kg (ww)

1.1–3.7 %

6

6

100

[25]

Pig manure

Germany (BY)

0.050

38.000

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

181

48

[55]

(ns)

Germany

0.011

0.062

mg/kg (ns)

“Liquid manure” (ns)

4

2

50

N4-Acetyl-sulfadimidine

[22]

Pig and cattle manure

Switzerland

<0.1

2.600

mg/kg (ww)

1.1–3.7 %

6

5

83

[25]

Pig manure

Germany (BY)

0.050

27.000

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

117

31

[75]

Pig manure

Germany (BY)

0.120

1.000

mg/L (ww)

1–2 %

8

8

100

Sulfadoxine

[28]

Pig and poultry manure

China

0.350

0.710

mg/kg (dw)

“Liquid swine manure” (ns)

6

3

50

[31]

Pig manure

Denmark

0.015

0.220

mg/kg (dw)

2.8–13.4 %

6

3

50

Sulfaguanidine

[79]

Pig, cattle and poultry manure

China

0.010

1.550

mg/kg (dw)

(ns)

143

27

19

Sulfamerazine

[25]

Pig manure

Germany (BY)

0.700

0.900

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

7

2

[79]

Pig, cattle and poultry manure

China

0.090

0.660

mg/kg (dw)

(ns)

143

6

4

N4-Acetyl-Sulfamerazine

[25]

Pig manure

Germany (BY)

not quantified

0.2–17.3 % (mean 3.7 %)

380

5

1

Sulfamethizole

[54]

Pig manure

China

0.052

2.422

mg/kg (dw)

(ns)

126

35

28

Sulfamethoxazole

[25]

Pig manure

Germany (BY)

0.050

0.050

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

3

1

[28]

Pig and poultry manure

China

0.340

1.290

mg/kg (dw)

“Liquid swine manure” (ns)

6

2

33

[51]

Pig manure

Japan

0.002

0.035

mg/kg (ns)

(ns)

5

4

80

[51]

Cattle manure after fermentation

Japan

0.010

mg/kg (ns)

(ns)

8

1

13

[54]

Pig manure

China

0.137

0.639

mg/kg (dw)

(ns)

126

6

5

[58]

Pig manure

Germany

<0.1

2.400

mg/kg (dw)

1.2–28 %

30

2

7

[79]

Pig, cattle and poultry manure

China

0.120

2.800

mg/kg (dw)

(ns)

143

7

5

Sulfamethoxypyridazine

[56]

Pig and cattle manure

Germany (NW)

0.020

mg/kg (dw)

Liquid and stable manure (ns)

34

4

12

Sulfamonomethoxine

[51]

Pig manure

Japan

0.210

mg/kg (ns)

(ns)

5

1

20

[51]

Cattle manure after fermentation

Japan

0.022

mg/kg (ns)

(ns)

8

1

13

[79]

Pig, cattle and poultry manure

China

0.060

4.080

mg/kg (dw)

(ns)

143

39

27

Sulfanilamide

[79]

Pig, cattle and poultry manure

China

0.020

1.590

mg/kg (dw)

(ns)

143

5

3

Sulfaquinoxaline

[56]

Pig and cattle manure

Germany (NW)

0.670

mg/kg (dw)

Liquid and stable manure (ns)

34

3

9

Sulfathiazole

[22]

Pig and cattle manure

Switzerland

0.100

12.400

mg/kg (ww)

1.1–3.7 %

6

4

67

[25]

Pig manure

Germany (BY)

0.050

0.100

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

5

1

[54]

Pig manure

China

0.312



mg/kg (dw)

(ns)

126

1

1

dw dry weight, ww wet weight, ns not specified

Table 3

Tetracyclines and their metabolites and transformation products found in manure

Substance

Reference

Matrix

Origin

Min

Max

Unit

Dry matter content, comments or quotation

n

n positive

% positive

Chlortetracycline

[48]

Pig manure

Austria

0.100

46.000

mg/kg (dw)

“Liquid manure” (ns)

30

17

57

[20]

Pig manure

Germany (NI)

1.100

330.700

mg/kg (ww)

0.5–16.8 % (mean 5 %)

344

44

13

[24]

Pig manure

Germany

0.090

0.100

mg/kg (ww)

(ns)

2

2

100

[23]

Pig manure

Germany

0.900

1.000

mg/kg (dw)

9.6–9.8 %

3

2

67

[25]

Pig manure

Germany (BY)

0.100

50.800

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

140

37

[28]

Pig and poultry manure

China

0.150

14.700

mg/kg (dw)

“Liquid swine manure” (ns)

6

4

67

[31]

Pig manure

Denmark

1.100

15.700

mg/kg (dw)

2.8–13.4 %

6

5

83

[51]

Pig manure

Japan

0.240

0.280

mg/kg (ns)

(ns)

5

2

40

[51]

Cattle manure after fermentation

Japan

0.001

mg/kg (ns)

(ns)

8

1

13

[54]

Pig manure

China

0.053

764.407

mg/kg (dw)

(ns)

126

122

97

[56]

Pig and cattle manure

Germany (NW)

3.600

mg/kg (dw)

Liquid and stable manure (ns)

34

7

21

[58]

Pig manure

Germany

0.100

46.000

mg/kg (dw)

1.2–28 %

30

17

57

[66]

Pig manure

Czech Republic

5.880

mg/kg (ns)

“Liquid hog manure” (ns)

5

1

20

[75]

Pig manure

Germany (BY)

0.600

2.000

mg/L (ww)

1–2 %

3

3

100

[77]

Pig manure

Germany

1.100

25.700

mg/kg (ww)

0.7–16.1 %

176

18

10

[79]

Pig, cattle and poultry manure

China

0.160

27.590

mg/kg (dw)

(ns)

143

72

50

Epi-chlortetracycline

[31]

Pig manure

Denmark

1.700

14.100

mg/kg (dw)

2.8–13.4 %

6

5

83

Doxycycline

[25]

Pig manure

Germany (BY)

0.100

0.700

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

5

1

[31]

Pig manure

Denmark

0.550

3.100

mg/kg (dw)

2.8–13.4 %

6

6

100

[66]

Pig manure

Czech Republic

0.990

mg/kg (ns)

“Liquid hog manure” (ns)

5

1

20

[79]

Pig, cattle and poultry manure

China

0.230

13.500

mg/kg (dw)

(ns)

143

21

15

Metacycline

[79]

Pig, cattle and poultry manure

China

0.140

5.860

mg/kg (dw)

(ns)

143

50

35

Oxytetracycline

[48]

Pig manure

Austria

0.290

29.000

mg/kg (dw)

“Liquid manure” (ns)

30

22

73

[43]

Cattle manure

Italy

19.000

mg/kg (ns)

“Heap” (ns)

1

1

100

[20]

Pig manure

Germany (NI)

1.600

136.200

mg/kg (ww)

0.5–16.8 % (mean 5 %)

344

10

3

[25]

Pig manure

Germany (BY)

0.100

0.900

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

16

4

[31]

Pig manure

Denmark

0.048

1.500

mg/kg (dw)

2.8–13.4 %

6

3

50

[51]

Pig manure

Japan

0.013

mg/kg (ns)

(ns)

5

1

20

[51]

Cattle manure after fermentation

Japan

0.001

mg/kg (ns)

(ns)

8

1

13

[54]

Pig manure

China

0.044

172.874

mg/kg (dw)

(ns)

126

114

90

[56]

Pig and cattle manure

Germany (NW)

1.490

mg/kg (dw)

Liquid and stable manure (ns)

34

5

15

[58]

Pig manure

Germany

0.210

29.000

mg/kg (dw)

1.2–28 %

30

22

73

[77]

Pig manure

Germany

1.600

136.200

mg/kg (ww)

0.7–16.9 %

176

9

5

[79]

Pig, cattle and poultry manure

China

0.150

59.590

mg/kg (dw)

(ns)

143

50

35

[33]

Cattle manure

Turkey

0.060

mg/kg (ns)

(ns)

1

1

100

Epi-oxytetracycline

[31]

Pig manure

Denmark

0.330

0.450

mg/kg (dw)

2.8–13.4 %

6

2

33

Tetracycline

[48]

Pig manure

Austria

0.360

23.000

mg/kg (dw)

“Liquid manure” (ns)

30

22

73

[24]

Pig manure

Germany

3.200

4.000

mg/kg (ww)

(ns)

2

2

100

[23]

Pig manure

Germany

14.100

41.200

mg/kg (dw)

9.6–9.8 %

3

3

100

[25]

Pig manure

Germany (BY)

0.100

46.000

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

111

29

[28]

Pig and poultry manure

China

0.180

0.840

mg/kg (dw)

“Liquid swine manure” (ns)

6

4

67

[31]

Pig manure

Denmark

0.091

1.600

mg/kg (dw)

2.8–13.4 %

6

5

83

[51]

Pig manure

Japan

0.005

0.015

mg/kg (ns)

(ns)

5

3

60

[51]

Cattle manure after fermentation

Japan

0.001

mg/kg (ns)

(ns)

8

2

25

[54]

Pig manure

China

0.037

19.417

mg/kg (dw)

(ns)

126

107

85

[56]

Pig and cattle manure

Germany (NW)

2.450

mg/kg (dw)

Liquid and stable manure (ns)

34

12

35

[58]

Pig manure

Germany

0.360

23.000

mg/kg (dw)

1.2–28 %

30

22

73

[78]

Pig manure

Germany (NW)

0.600

66.000

mg/L (ww)

“Pig slurry” (ns)

181

43

24

[77]

Pig manure

Germany

0.900

43.100

mg/kg (ww)

0.7–16.8 %

176

87

49

[20]

Pig manure

Germany (NI)

0.700

45.700

mg/kg (ww)

0.5–16.8 % (mean 5 %)

344

152

44

Epi-tetracycline

[31]

Pig manure

Denmark

0.061

0.990

mg/kg (dw)

2.8–13.4 %

6

5

83

dw dry weight, ww wet weight, ns not specified

Table 4

Fluorchinolones found in manure

Substance

Reference

Matrix

Origin

Min

Max

Unit

Dry matter content, comments or quotation

n

n positive

% positive

Ciprofloxacin

[51]

Pig manure

Japan

0.006

mg/kg (ns)

(ns)

5

1

20

[51]

Cattle manure after fermentation

Japan

0.002

0.012

mg/kg (ns)

(ns)

8

4

50

[56]

Pig and cattle manure

Germany (NW)

0.070

mg/kg (dw)

Liquid and stable manure (ns)

34

3

9

[58]

Pig manure

Germany

0.180

0.620

mg/kg (dw)

1.2–28 %

30

4

13

[75]

Pig manure

Germany (BY)

0.005

0.028

mg/L (ww)

1–2 %

5

5

100

[79]

Pig, cattle and poultry manure

China

0.490

45.590

mg/kg (dw)

(ns)

143

44

31

Danofloxacin

[56]

Pig and cattle manure

Germany (NW)



0.050

mg/kg (dw)

Liquid and stable manure (ns)

34

1

3

[79]

Pig, cattle and poultry manure

China

0.080

3.060

mg/kg (dw)

(ns)

143

39

27

Difloxacin

[79]

Pig, cattle and poultry manure

China

0.410

12.380

mg/kg (dw)

(ns)

143

8

6

Enrofloxacin

[48]

Pig manure

Austria

0.130

0.750

mg/kg (dw)

“Liquid manure” (ns)

[56]

Pig and cattle manure

Germany (NW)



0.550

mg/kg (dw)

Liquid and stable manure (ns)

34

5

15

[58]

Pig manure

Germany

0.130

0.750

mg/kg (dw)

1.2–28 %

30

5

17

[75]

Pig manure

Germany (BY)

0.050

0.116

mg/L (ww)

1–2 %

5

5

100

[79]

Pig, cattle and poultry manure

China

0.330

1420.760

mg/kg (dw)

(ns)

143

67

47

Fleroxacin

[79]

Pig, cattle and poultry manure

China

0.760

99.430

mg/kg (dw)

(ns)

143

35

24

Levofloxacin

[51]

Pig manure

Japan

0.003

mg/kg (ns)

(ns)

5

1

20

[51]

Cattle manure after fermentation

Japan

0.001

0.002

mg/kg (ns)

(ns)

8

2

25

Lomefloxacin

[79]

Pig, cattle and poultry manure

China

0.610

44.160

mg/kg (dw)

(ns)

143

45

31

Marbofloxacin

[56]

Pig and cattle manure

Germany (NW)

0.050

mg/kg (dw)

Liquid and stable manure (ns)

34

3

9

Norfloxacin

[79]

Pig, cattle and poultry manure

China

0.560

225.450

mg/kg (dw)

(ns)

143

37

26

Ofloxacin

[28]

Pig and poultry manure

China

0.450

3.870

mg/kg (dw)

“Liquid swine manure” (ns)

6

2

33

Orbifloxacin

[56]

Pig and cattle manure

Germany (NW)

0.020

mg/kg (dw)

Liquid and stable manure (ns)

34

1

3

Sarafloxacin

[56]

Pig and cattle manure

Germany (NW)

0.060

mg/kg (dw)

Liquid and stable manure (ns)

34

1

3

dw dry weight, ww wet weight, ns not specified

Table 5

Other veterinary medicines and its metabolites and transformation products found in manure

Substance

Reference

Matrix

Origin

Min

Max

Unit

Dry matter content, comments or quotation

n

n positive

% positive

Flubendazole

[75]

Pig manure

Germany (BY)

0.020

0.056

mg/L (ww)

1–2 %

7

7

100

Amino-flubendazole

[75]

Pig manure

Germany (BY)

0.032

0.110

mg/L (ww)

1–2 %

7

7

100

Hydroxy-flubendazole

[75]

Pig manure

Germany (BY)

0.018

0.075

mg/L (ww)

1–2 %

7

7

100

Lincomycin

[39]

Pig manure

Canada

2.520

9.780

mg/L (ww)

mean 2.4 %

5

5

100

Salinomycin

[60]

Pig manure

Germany

0.011

mg/kg (ns)

5 %

4

1

25

Spectinomycin

[39]

Pig manure

Canada

0.173

0.686

mg/L (ww)

mean 2.4 %

5

5

100

Tiamulin

[25]

Pig manure

Germany (BY)

0.500

mg/kg (ww)

0.2–17.3 % (mean 3.7 %)

380

1

<1

[54]

Pig manure

China

0.076

0.169

mg/kg (dw)

(ns)

126

6

5

[60]

Pig manure

Germany

0.043

mg/kg (ns)

5 %

4

1

25

Toltrazuril

[53]

Pig manure

Denmark

0.114

mg/kg (dw)

“Manure from a slurry storage tank” (ns)

1

1

100

Toltrazuril sulfone

[53]

Pig manure

Denmark

0.085

mg/kg (dw)

“Manure from a slurry storage tank” (ns)

1

1

100

Toltrazuril sulfoxide

[53]

Pig manure

Denmark

0.007

mg/kg (dw)

“Manure from a slurry storage tank” (ns)

1

1

100

Trimethoprim

[22]

Pig and cattle manure

Switzerland

<0.1

<0.1

mg/kg (ww)

1.1–3.7 %

6

1

17

[56]

Pig and cattle manure

Germany (NW)

0.050

mg/kg (dw)

Liquid and stable manure (ns)

34

1

3

Tylosin

[43]

Cattle manure

Italy

<0.25

mg/kg (ns)

“Heap” (ns)

1

1

100

[63]

Pig manure

Canada

0.030

0.543

mg/kg (dw)

(ns)

[75]

Pig manure

Germany (BY)

0.130

0.320

mg/L (ww)

1–2 %

8

8

100

dw dry weight, ww wet weight, ns not specified

In some studies, a lot of samples were taken covering a large number of different manures—up to 380 samples in Harms [25]—and in other studies only individual manures were sampled after medication. In 19 studies, only pig manure was analyzed, whereas three studies worked with cattle manure and four studies worked with pig, cattle, or poultry manure. One publication does not specify the origin of the analyzed manure.

Manure and liquid manure samples with different dry matter contents are considered in this literature study (range 0.2–44.4 %). Sixteen of 27 studies do not specify dry matter content as a basic parameter. Twelve of 27 studies report concentrations of substances in manure in mg/kg dry weight (dw), 10 of 27 studies work with mg/kg wet weight (ww), and five studies do not specify (ns) whether they calculated concentrations on the basis of dry or wet weight. Because of this, it is difficult to compare the found concentrations of the single active substances. The lowest values are found at the µg/kg order of magnitude—often restricted by the limit of detection (LOD) of the analytical method.

Among all the reviewed literature, 39 different active substances of VMPs were found in manure. Moreover, 11 metabolites and transformation products of active substances were identified. For this, 1568 manure samples were analyzed within the 27 publications. Mainly, the samples were analyzed for sulfonamides, tetracyclines, and fluoroquinolones. None of the studies worked with a non-target approach or searched for biocides. By far, the most frequently found single active substances are sulfadimidine (599 positive), tetracycline (575 positive), and chlortetracycline (457 positive). There are six publications each of which analyzed more than 100 manure samples. All of these are from Chinese or German institutes. The active substances with the highest percentage of positive findings (>50 %) within these six publications are chlortetracycline, oxytetracycline, tetracycline, and sulfadimidine.

The 15 highest concentrations were found in pig manure from Germany or China. The highest concentration was 1420.76 mg/kg (dw) of enrofloxacin, found in poultry manure from China, followed by 764.407 mg/kg (dw) chlortetracycline in pig manure from China and 330.7 mg/kg (ww) in pig manure from Germany. Further, very high values were found for other sulfonamides, tetracyclines, and fluorchinolones.

More recently, Berendsen et al. [10] developed a comprehensive method for the analysis of 44 antibiotic compounds in animal feces by liquid chromatography coupled with tandem mass spectrometry (LC–MS/MS). As the study analyzed animal feces and not liquid manure, this study was not taken into account for Tables 25, although the measured VMPs will obviously end up in liquid manure. In 34 % of the samples, more than one antibiotic was detected.

Predicted environmental concentrations vs. measured environmental concentrations

With the summarized measured environmental concentrations (MECs) in Tables 25, it is possible to compare them with predicted environmental concentrations (PECs) in liquid manure as they are calculated for an environmental risk assessment of VMPs according to the EMA guidance [18]. With this analysis, the concept of PECs can be evaluated, since MECs are not relevant for the environmental risk assessment of VMPs. The guideline works with concentrations relating to the wet weight (mg/kg) and the nitrogen content of the manure, so that PECs in manure are given by
$${\text{PEC}}_{\text{ww manure}} = \frac{{D \times {\text{Ad}} \times {\text{Bw}} \times {\text{Fh}}}}{\text{Ns}} \times \frac{{N_{\text{total}} }}{1000 }$$
with PECww manure being the predicted environmental concentration in manure (mg/kgwet manure), D the daily dose of the active ingredient (mg/kgbw day), Ad the number of days of treatment (day), Bw the animal body weight (kgbw), Fh the fraction of herd treated (value between 0 and 1), Ns the nitrogen produced during storage time (kg N), and N total the nitrogen content of the specific manure (kg N/kgwet manure).

The default values for Bw, Fh, and Ns are given within the EMA guideline [18], with respect to the type of animal (calf, dairy cow, cattle 0–1 year or >2 years, weaner pig, fattening pig, sow). Unfortunately, the exact animal type cannot often be deduced from the 27 publications, so that the simplified min./max. values of the term Bw/Ns of the whole species cattle or pig were used for the calculation of min./max. PECww manure values. For cattle, this results in minimum and maximum values of Bw/Ns of 28.33 and 56 kgbw/(kg N), respectively. For pigs, these values lie between 34.21 and 37.88 kgbw/(kg N).

The recommended daily doses (D) and the number of days of animal treatment (Ad) for specific products are given under point 4.9, in the summary of product characteristics (SPC). These parameters are, e.g., accessible via the product databases of the Veterinary Medicines Directorate of the United Kingdom [71] or via the drug information portal of the German Federal Ministry of Health [12]. All registered VMPs containing the frequently found active ingredients such as chlortetracycline, oxytetracycline, tetracycline, sulfadimidine, and sulfadiazine were chosen for consideration of PECww manure values (oral or subcutaneous administration). For this, the minimum and maximum values of D × Ad were used for min./max. calculation of PECww manure (Table 6). The fraction of herd treated (Fh) was set to 1 [18].
Table 6

Predicted environmental concentrations and measured environmental concentrations in manure as given in Tables 25 (PECww manure and MECww manure) of the five most frequently monitored and found VMPs in (liquid) manure

Active ingredient (number of registered products considered)

Species

Min.–max. PECww manure (mg/kgww)

Highest MECsww manure (mg/kgww)

Chlortetracycline (19)

Cattle

10.9–24.9



Pig

4.0–154.7

330.7, 764.4

Oxytetracycline (30)

Cattle

0.49–44.5



Pig

0.48–182

136.2

Tetracycline (8)

Cattle

10.9–72.8



Pig

31.7–216.6

66.0

Sulfadimidine (19)

Cattle

4.4–124.6



Pig

3.2–254.8

167.0

Sulfadiazine (21)

Cattle

1.6–22.3



Pig

1.0–45.5

235.1

Among the MECsww manure, only those for which the concentrations in liquid manure were clearly given as mg/kgwet weight were considered

MECsww manure exceeding the max. PECww manure are italicized

Unfortunately, only very few of the monitoring studies report the nitrogen content of the analyzed manures. Additionally, the exact animal type is also very often not given within the 27 publications, as mentioned before. For this, minimum and maximum nitrogen contents of the different liquid manure types (N total) were taken from secondary literature. Cattle liquid manure has a total nitrogen content between 3.2 and 4.7 g/L, whereas the nitrogen content of pig liquid manure ranges between 2.8 and 6.5 g/L [46]. For dry matter content below 25 %, a density of 1 g/mL can be assumed for liquid manure [7] so that nitrogen content can also be given as g/kg. PECdw manure values have not been calculated (dw: dry weight), as theoretical dry matter content of liquid manure is subject to a further high variability. Although the concentrations related to the dry weight of manure are generally more reliable than those given as wet weight concentrations.

The estimated PECsww manure are based on the total residue approach, i.e., metabolism of the VMPs was not taken into account. Moreover, it is concerning that for liquid manure from pigs, two publications reveal MECs of chlortetracycline, exceeding the highly conservative maximum PECww manure by a factor of two and five. Several further publications report MECsww manure for chlortetracycline, which exceed the minimum PECww manure. Also for sulfadiazine one MECww manure exceeded the max. PECww manure. For sulfadimidine, tetracycline, and oxytetracycline, MECs are in the same order of magnitude as the calculated PECww manure. Considering injection products, the PECww manure is also exceeded by the highest MEC for oxytetracycline in Table 3.

Transformation of VMPs and biocides in liquid manure

The focus of this literature research was on transformation studies using liquid manure and manure from lagoons. Liquid manure is the substrate found in manure tanks, which consists of urine, feces, and sometimes bedding material and water from cleaning the stables. It is important to note the difference to dung or excrements, which are distinguished from manure by being directly excreted and not collected and stored for longer time periods during which anaerobic conditions develop [74]. In this review, also some studies using excrements and related matrices were included in order to get a comprehensive picture of available methods.

To study the environmental fate of VMPs, many different studies can be found, using mixtures of soil and manure or test systems containing additional plants. These are not considered for the survey. Studies on solid manure (mainly conducted at Asian institutions) are also not considered in this review as the composition of this material is considerably more variable than the composition of liquid manure, which results in e.g., wide ranges of oxygen availability. Compared to solid manure, liquid manure exhibits a more homogeneous composition. This type of manure was considered primarily, as it has been found to be the predominant type of manure in the EU countries and North America [74]. Generally, the research on the transformation of pharmaceuticals in manure focuses on North America, Europe, and Asia. There are some studies working on manure treatment technologies and some studies working on the effects of VMPs on biogas production without studying transformation. Those studies are also not considered here.

A limited number of 42 relevant studies dealing with the transformation of VMPs and biocides in liquid manure could be found. These studies are assorted in Tables 7 and 8, together with information on their experimental design. On the whole, there are only scarce data on the transformation of veterinary medicinal products. Especially on the transformation of biocides only three publications were found. However, there is an increasing publication rate worldwide, which reflects the interest in and relevance of this research field.
Table 7

Studies on the transformation of VMPs and biocides in liquid manure and similar matrices (excrements, biosolids, etc., as specified in the second last column)

Author (Year)

Substances

Substance class

TP

Initial concentration

DT50

Mineralization

Manure (type and source)

Dry matter

Akyol et al. (2016) [1]

Oxytetracycline

Tetracycline

+

1.51–2.57 mg/L

13–17 days

nd

Cattle (medicated, mixed excrements)

4.0, 5.5 %

Ali et al. (2013) [2]

Tylosin

Macrolide

160 mg/L

nd (highly pH and Eh dependant)

nd

Cattle (spiked, mixed lagoon sediment)

2.7 %

Álvarez et al. (2010) [3]

Oxytetracycline (OTC), Chlortetracycline (CTC)

Tetracycline

+

10, 50, 100 mg/L

15.4–12.0 (OTC), 4.1–3.2 (CTC) days

nd

Pig (spiked, tank)

nd

Angenent et al. (2008) [4]

Tylosin A

Macrolide

+

5.8 mg/L (measured)

2.49 h

nd

Pig (spiked, tank/ASBR)

nd

Arikan (2008) [5]

Chlortetracycline

Tetracycline

+

1.0 and 5.9 mg/L (buffer extraction, pH 4)

18 days

nd

Pig (medicated, mixed excrements)

5 %

Arikan et al. (2006) [6]

Oxytetracycline

Tetracycline

+

9.8 mg/L

56 days

nd

Cattle (medicated, mixed excrements)

5 %

Bailey et al. (2016) [9]

Sulfadiazine, sulfadimidine, sulfamethoxazole, tetracycline

Sulfonamide, tetracycline

Each 10 mg/L

nd

nd

Cattle (medicated, mixed excrements)

5, 10, 15 %

Blackwell et al. (2005) [11]

Oxytetracycline (OTC), sulfachloropyridazine (SCP)

Tetracycline, sulfonamide

19.2 (OTC), 26.1 (SCP) mg/L

79 (OTC), 127 (SCP) days

nd

Pig (spiked, tank)

2 %

Cetecioglu et al. (2013) [14]

Tetracycline

Tetracycline

Gradient: 1.65, 5.7, 8.5 mg/L

nd

nd

Synthetic (spiked, ASBR)

nd

Grote et al. (2004) [21]

Chlortetracycline (CTC), sulfadiazine (SDZ), trimethoprim (TMP)

Tetracycline, sulfonamide

+

Up to: 87.5 (CTC), 498.9 (SDZ), 15.8 (TMP) mg/kg

nd

nd

Pig (medicated, “barrels”)

nd

Harms (2006) [25]

20 different substances

Tetracycline, sulfonamide, and others

Numerous, many not given

nd

nd

Pig (medicated and spiked, tank)

nd

Heuer et al. (2008) [26]

Sulfadiazine (14C)

Sulfonamide

+

>80 mg/kg

nd (DT50 not reached)

<1 %

Pig (medicated, mixed excrements)

6 %

Höltge and Kreuzig (2007) [27]

Sulfamethoxazole, acetyl-sulfamethoxazole (each 14C)

Sulfonamide and metabolite

+

3 mg/kg

nd

≤1 %

Cattle (spiked, mixed excrements)

13 %

Huang et al. (2014) [29]

Chlortetracycline

Tetracycline

0.55 mg/g

nd

nd

Pig (medicated, spiked, mixed excrements)

nd

Joy et al. (2014) [32]

Bacitracin (BAC), chlortetracycline (CTC), tylosin (TYL)

Polypeptide antibiotic, tetracycline, macrolide

+

50 (BAC), 300 (CTC), 10 (TYL) mg/kg

1.9 (BAC), 1 (CTC), 9.7 (TYL) d

nd

Pig (medicated, mixed excrements)

0.84(BAC), 0.37(CTC), 0.89(TYL) %

Kolz et al. (2005) [34]

Tylosin

Macrolide

+

20 and 195 mg/L

DT90: 40–500 h

nd

Pig (spiked, lagoon water)

1.5, 3.6 %

Kreuzig (2010) [35]

Erythromycin (ERY), sulfamethoxazole (SMZ), cyanamidea (CYN), imazalila (IMZ), (each 14C)

Macrolide, sulfonamide, biocide, imidazole

Only absolute radioactivity given; 0.1–0.2 MBq

nd

<0.1 % (ERY, SMZ); 28 % (CYN); nd for (IMZ)

Pig, cattle (spiked, mixed excrements)

2.5, 5, 10 %

Kreuzig and Höltge (2005) [38]

Sulfadiazine (14C)

Sulfonamide

500 µg/kg

17 days

1 %

Cattle (spiked, mixed excrements)

13 %

Kreuzig et al. (2007) [36]

Fenbendazole (FEN), flubendazole (FLU), (each 14C)

Benzimidazole

+

200 (FEN), 2500 (FLU) µg/kg

nd (DT50 not reached)

<0.6 %

Pig (spiked, mixed excrements)

3–13 %

Kreuzig et al. (2010) [37]

Imazalila (14C)

Imidazole

+

4.3 and 4.5 mg/kg

>177 days

0.1 %

Pig, cattle (spiked, mixed excrements)

2.5, 5, 10 %

Kuchta and Cessna (2009) [39]

Lincomycin (LIN), spectinomycin (SPN)

Antimicrobial

38.7 (LIN), 387 (SPN) µg/L

nd

nd

Pig (spiked, lagoon water)

nd

Kühne et al. (2000) [40]

Tetracycline

Tetracycline

+

200 mg/L

9 days

nd

Pig (spiked, tank)

nd

Lamshöft et al. (2010) [41]

Difloxacin (DIF), sulfadiazine (SDZ), (each 14C)

Fluoroquinolone, sulfonamide

+

17.1 ± 0.4 (DIF), 156.0 ± 4.2 (SDZ) mg/L

nd (DT50 not reached)

0.2 % (DIF), 0.5 % (SDZ)

Pig (medicated, mixed excrements)

3.3–6 %

Li et al. (2011) [42]

Ceftiofur

β-Lactam antibiotic

+

19.1 µmol/L

1.7–41 (highly dependant on T and dilution ratio with water)

nd

Cattle (spiked, “water from farm”)

1.1 %

Loke et al. (2003) [45]

Oxytetracycline

Tetracycline

+

2 and 30 mg/L

nd

nd

Pig (spiked, tank)

nd

Loke et al. (2000) [44]

Tylosin A

Macrolide

+

5 mg/L

<2 days

nd

Pig (spiked, tank)

nd

Mitchell et al. (2013) [49]

Ampicillin, florfenicol, sulfadimidine, tylosin

β-Lactam antibiotic, amphenicol, sulfonamide, macrolide

+

Each 0.001–1.0 mM/L

nd

nd

Cattle (spiked, mixed excrements)

3–6 %

Mohring et al. (2009) [50]

8 Sulfonamides

Sulfonamide

+

2–14 mg/kg

nd

nd

Pig (spiked, biogas plant)

15.2 %

Riemenschneider et al. (2014) [57]

Colistin

Polypeptide antibiotic

1, 2, 5, 500 mg/kg

nd

nd

Pig and cattle (spiked, biogas plant)

3–4 %

Schlüsener et al. (2006) [59]

Erythromycin, roxithromycin, salinomycin, tiamulin

Macrolide, ionophore, pleuromutilin

+

2 mg/kg

6–>180 days

nd

Pig (spiked, tank)

nd

Shelver and Varel (2012) [61]

Chlortetracycline

Tetracycline

+

>100 and >300 ng/L (only given in figures)

>21 days at 22 °C, <5 days at 38 and 55 °C

nd

Pig (medicated, mixed excrements)

nd

Shi et al. (2011) [62]

Tetracycline, sulfamethoxydiazine

Tetracycline, sulfonamide

Each 25 and 50 mg/L

<12 h

nd

Pig (spiked, mixed excrements)

10 %

Stone et al. (2009) [64]

Chlortetracycline (CTC), tylosin (TYL)

Tetracycline, macrolide

+

28 (CTC), 1.1 (TYL) mg/L

nd

nd

Pig (medicated, manure)

nd

Szatmári et al. (2011) [65]

Doxycycline

Tetracycline

61.57 ± 14.26 mg/kg

53 days

nd

Pig (medicated, manure)

nd

Varel (2002) [67]

Carvacrola, thymola

Terpenoid

Each 6.7–16.75 mmol/L

nd

nd

Pig (spiked, mixed excrements)

nd

Varel et al. (2012) [68]

Chlortetracycline (CTC), monensin (MON)

Tetracycline, ionophores

5.9–8.3 (CTC), 0.3–0.74 (MON) mg/L

nd (DT50 not reached for MON)

nd

Pig, cattle (medicated, seed slurry and manure)

4 %

Wang et al. (2014) [72]

Tylosin

Macrolide

12 mg/kg

nd

nd

Pig (medicated, spiked, mixed excrements)

nd

Wang et al. (2015) [73]

Oxytetracycline

Tetracycline

+

3746.39 mg/kg

9.04 and 9.65 days

nd

Pig (medicated, spiked, mixed excrements)

22 %

Widyasari-Mehta et al. (2016) [76]

Doxycycline

Tetracycline

+

51 and 20 mg/kg

120 and 91 days

nd

Pig (spiked, tank, biogas plant)

1.8 %

Winckler and Grafe (2001) [78]

Tetracycline

Tetracycline

20 and 100 mg/L

55–105 days

nd

Pig (spiked, tank)

nd

Zheng et al. (2012) [80]

17-β-Estradiol, 17-α-estradiol, estrone

Hormone

+

Each 5 mg/L

nd

nd

Cattle (spiked, lagoon water)

nd

Zheng et al. (2013) [81]

17α-Estradiol-3-sulfate

Conjugate of a hormone

+

5 mg/L

23–724 days

nd

Cattle (spiked, lagoon water)

1.2 %

TP transformation products considered, nd not determined or not defined, DT 50 disappearance time 50 %

aBiocides

Table 8

Studies on the transformation of VMPs and biocides in liquid manure

Author (Year)

Focus and parameters

Setup

Amount of manure

Preconditioning/acclimatization

Replicates

Study-T (°C)

Eh (mV)

Study duration (days)

Akyol et al. (2016) [1]

Biogas production, abundance of bacteria (log copy number/100 ng cDNA)

1-L batch digesters continuously stirred

600 mL + 60 mL inoculum from laboratory digester

nd

1 + control

55

nd

20

Ali et al. (2013) [2]

pH and Eh

2.3-L erlenmeyer flask, continuously stirred and flushed with N2/O2 for different Eh (Fig. 5)

150 g wet lagoon sediment + 1.5 L 0.01 M CaCl2

1 week for stabilization of pH and Eh

1

25

(−100), (0), (250), (350)

20

Álvarez et al. (2010) [3]

Biogas composition, pressure, sorption

500-mL glass flasks with coiled butyl rubber stoppers

385 mL + inoculum (granular biomass from an anaerobic internal circulation digester)

Basal medium: cysteine (0.5 g/L), NaHCO3 (5 g/L), pH 7.0–7.2; flushing with N2, 1.2 mL Na2S (20 g/L) (reducing agent)

2

35

nd

21

Angenent et al. (2008) [4]

Antibiotic resistance, methane production, volatile solids removal, VFA

Manure taken from ASBR effluent, 5-mL capped glass serum vials

1 mL

249 days of ASBR operation

1

25

nd

2

Arikan (2008) [5]

Sorption, pH, total solids, volatile solids, total alkalinity, NH4-N, COD

1-L batch laboratory digester

800 mL manure + 200 mL inoculum from a dairy manure digester

nd

3

35

nd

33

Arikan et al. (2006) [6]

Biogas production, total solids, total alkalinity, total N, total P

1.225-L batch laboratory digester

1 L manure + 225 mL inoculum from a dairy manure digester

nd

3

35

nd

64

Bailey et al. (2016) [9]

liquid–solid distribution (Kd)

15-mL polypropylene centrifuge tubes

3.3–10 g

14 days at 23 °C

3

23

nd

28

Blackwell et al. (2005) [11]

Exposure assessment, organic carbon, dry matter, available P and N

Closed bottle test, tightly capped and stored without agitation

200 mL

nd

3

20

nd

40

Cetecioglu et al. (2013) [14]

Synthetic manure, COD, biogas production

ASBR, concentration influent and effluent, sludge

1 L

150 days of ASBR operation

1

35

nd

155

Grote et al. (2004) [21]

Metabolism, transformation

Outdoor realistic conditions with continuous influent of contaminated manure

“Barrels”

nd

1

Outdoor

nd

240 + 210

Harms (2006) [25]

Transformation

nd

nd

nd

nd

−20, 7, RT

nd

112, 224

Heuer et al. (2008) [26]

Bacterial community

nd

nd

nd

1

20

nd

172

Höltge and Kreuzig (2007) [27]

Transformation, NER

300-mL flasks, glass stoppers with inlet and outlet valves, 14CO2 trap

50 g

7 days

3

20

nd

72

Huang et al. (2014) [29]

Biogas production, N-total, COD, pH

1.3-L laboratory model anaerobic three-neck glass reactor

<1300 mL

15 days until equilibrium of biogas production in reactor

3

20

nd

28

Joy et al. (2014) [32]

Antibiotic resistance genes (ARGs)

100-mL glass amber wide mouth

75 g

Sparged for 5 min with nitrogen

2

37

nd

40

Kolz et al. (2005) [34]

Aerobic vs anaerobic, sorption, pH, total solids, N, TOC, P

Amber glass vials with teflon-lined caps, headspace filled with He

20 mL

“Homogenized stored in glass jars at 4 °C until use”

3

22

(−10) to (−160)

3

Kreuzig (2010) [35]

T, Eh, dry matter, O2, N-total, NH4-N, TOC, BOD

300-mL flasks, glass stoppers with inlet and outlet valves, 14CO2 trap

50 g

nd

2

5, 10, 20

(− 80)

30, 100, 177

Kreuzig and Höltge (2005) [38]

Transformation, NER

300-mL flasks, glass stoppers with inlet and outlet valves, 14CO2 trap

50 g

nd

2

20

nd

102

Kreuzig et al. (2007) [36]

Manure-soil mixtures, transformation, NER

300-mL flasks, glass stoppers with inlet and outlet valves, 14CO2 trap

50 g

nd

2

20

nd

102

Kreuzig et al. (2010) [37]

Manure-soil mixtures, transformation, NER, biocides

300-mL flasks, glass stoppers with inlet and outlet valves, 14CO2 trap

50 g

nd

2

20

(<120)

177

Kuchta and Cessna (2009) [39]

Sorption, liquid–solid distribution after centrifugation

20-L stainless steel storage container with clipdown cover

15.5 L

nd

2

20

nd

160

Kühne et al. (2000) [40]

Transformation

Vacuum desiccator (Fig. 6)

1 L

nd

2

RT

nd

8

Lamshöft et al. (2010) [41]

T, Eh, dry mass, pH, BOD, COD, total carbon, conductivity

300-mL flasks with 14CO2 trap

50 g

“The manure was allowed to attain room temperature”

3

10, 20

(− 280) to (− 329)

150

Li et al. (2011) [42]

TOC, conductivity, pH, P, NH4-N, Cl, Br, NO3, Na, K, Ca, Fe, Mg, Al, Si, Cu, Zn

Amber 250-mL bottles with teflon-lined caps served as reactors

<250 mL

nd

3

15, 25, 35, 45

nd

72

Loke et al. (2003) [45]

pH, Eh via indicator, freely dissolved fraction

According to ISO 11734 [30], 1-L bottles; titanium(III)citrate as reducing agent

525.0 mL mineral medium, 50.0 mL manure, 100.0 mL stock solution

<2 weeks storage at 4 °C

4

21

nd

180

Loke et al. (2000) [44]

Transformation, filtered vs non-filtered

According to ISO 11734 [30], volumes × 50, 680 mL

680 mL (water with 6.4 % manure)

1 mm sieved, N2 bubbled through manure, stored at 4 and −20 °C before usage

4

20

nd

7

Mitchell et al. (2013) [49]

pH, CH4, CO2 inhibition, total solids (TS) and VSS

300-mL glass serum bottles fitted with rubber septum, headspace filled with N2, inoculum used

200 mL

nd

3

37

nd

40

Mohring et al. (2009) [50]

Biogas production, pH

5-L fermentors (Bigatec, Rheinberg, Germany), German VDI 4630 guideline, DIN 38414 part 8, control experiments in 500-mL flasks

1.89 kg manure, 1.89 L water, 0.42 kg inoculum

nd

2

37

nd

34

Riemenschneider et al. (2014) [57]

Biogas production, batch experiment and continuous feeding experiment

20-L laboratory-scale reactor

15 kg

nd

2

38

nd

44

Schlüsener et al. (2006) [59]

Transformation

Erlenmeyer flasks closed with a fermenting tube

100 g

nd

1

20

nd

180

Shelver and Varel (2012) [61]

pH, transformation

2-L digester flasks

nd

nd

3

22, 38, 55

nd

28

Shi et al. (2011) [62]

Methane production, pH, total solids

1-L digester with gas absorbing bottle and collector bottle (Fig. 7)

1 L (including 100 g dry manure, 100 mL inoculum)

nd

3

25

nd

20

Stone et al. (2009) [64]

CH4, CO2, volatile fatty acids, pH, Alkalinity, COD, VSS, VFA, hydrogenotrophic methanogens, acetoclastic methanogens

120-mL batch reactors, butyl rubber stoppers, headspace N2 purged

50 g

105 days at 4 °C

3

10–20 (gradient)

nd

216

Szatmári et al. (2011) [65]

Transformation

300-mL BOD bottles as used in closed bottle tests; referring to VICH [70]

<300 mL

nd

nd

20

nd

112

Varel (2002) [67]

Odor, total gas, VFA, l-lactate, pH

1-L Erlenmeyer flasks, N2-gas, rubber stopper

500 mL (feces, urine, distilled water; 50:35:15)

nd

2

25

nd

62

Varel et al. (2012) [68]

Odor, pH, VFA, aromatic fermentation products, methane, coliforms

2-L Erlenmeyer flasks with rubber stopper

600 mL (1:1 seed slurry and fresh manure)

Establishing “seed slurry” over 2–5 months for stabilization of pH, methane and VFA production

2

22, 38, 55

nd

25, 28

Wang et al. (2014) [72]

Biogas production, Shannon’s diversity index (H’), N-total, COD, pH

1.3-L laboratory model anaerobic three-neck glass reactor

<1300 mL

Until equilibrium of biogas production in reactor

3

20

nd

15

Wang et al. (2015) [73]

Transformation products, total N, abundance of Bacillus cereus

3-L open beaker

1200 g

7 days at 23.2 °C

3

23.2

nd

40

Widyasari-Mehta et al. (2016) [76]

Non-extractable residues, redox potential, pH

300-mL flasks, glass stoppers with inlet and outlet valves, CO2 trap

75 g

nd

2

20

(−189) to (−21), (−274)

170

Winckler and Grafe (2001) [78]

T, transformation

500-L tanks

295 L

nd

4

8

48

Zheng et al. (2012) [80]

T, transformation

250-mL glass bottles with teflon-lined screw caps, glovebox, Na2S, N2

<250 mL

1 day preconditioning

3

35

(− 277)

52

Zheng et al. (2013) [81]

T, transformation

250-mL glass bottles with teflon-lined screw caps, glovebox, Na2S, N2

<250 mL

1 day preconditioning

3

15, 25, 35, 45

nd

65

nd not determined or not defined

Citation map

The following citation map (Fig. 1) provides a visualization of the interconnection of the authors/working groups by generating a network and visualizing their respective impact in this field of research. Each node represents one publication. The darker and the bigger the node, the more often the publication is cited. The arrows show who cites whom, and their thicknesses correlate with the citation flow indicating established thematic clusters. Only three publications are completely left out citing each other, owed to dealing with hormones and lagoon water. One isolated work of Varel [67] considers deliberate application of (natural) biocides to manure. This was to stop microbial activity and prevent “odor emissions” during the storage of manure. One cluster is implied on the left of this network, showing all the seven publications, which used 14C-labeled compounds, all originating from Germany (working groups Kreuzig and Spiteller). The most often cited publications within the community network of the 42 papers are from Arikan et al. [6], Kolz et al. [34], Kühne et al. [40], Loke et al. [44], and Winckler and Grafe [78]. This is partly explainable by the relatively early dating of these publications.
Fig. 1

Citation map (generated via http://www.mapequation.org, Edler and Rosvall [17]); each knot represents one publication, and each arrow visualizes the citation flow

Studied substance classes

Equivalent to the application practice in livestock breeding, mainly tetracyclines (20 of 42 studies), sulfonamides (12 of 42 studies), and macrolides (10 of 42 studies) are considered. There are only a few studies with parasiticides. For biocides, only three publications were found [35, 37, 67]. Within 2 of 42 studies, transformation of excreted hormones was investigated. Although they are not about VMPs, these publications are also considered because they are well documented (e.g., measured redox potential) and conducted similar to transformation studies with VMPs.

Chemical analysis

As already mentioned with regard to the citation map, seven studies used 14C-labeled test substances. By this, a mass balance of the experiment considering transformation, mineralization, volatilization, and the formation of non-extractable residues is possible. The methods used are radio thin-layer chromatography (RTLC), oxidizers for solid samples, and liquid scintillation counting (LSC). Only Heuer et al. [26] and Lamshöft et al. [41] further used LC–MS techniques in combination with radio techniques, an approach that will be inevitable in future studies to gain maximum information out of transformation studies in terms of transformation product identification and quantification.

Most of the studies worked with unlabeled substances and used LC–MS/MS for detection and quantification of the VMPs and biocides and their transformation products (24 publications). Some of them combined UV–Vis/diode array detector (DAD) methods with MS methods (4 publications). For example, Schlüsener et al. [59] used HR-MS (high-resolution mass spectrometry) for further salinomycin transformation product identification. Within nine publications, only UV–Vis/DAD detection methods were used. The GC (gas chromatography) method was applied only by Varel [67] for the detection of the terpenoids carvacrol and thymol. Additionally, Varel et al. [68] applied an ELISA method (enzyme-linked immunosorbent assay) for the detection of chlortetracycline.

Metabolites and transformation products

With regard to VMPs, it is important to distinguish between metabolites, which may be formed in the treated animal, and transformation products, which may be formed from excreted parent compounds and metabolites in the environment.

Transformation products or metabolites were determined in 26 studies. This implies sophisticated methodology by liquid chromatography coupled to preferably tandem mass spectrometry or high-resolution mass spectrometry (LC–MS/MS or LC–HR-MS). For specific applications, HPLC (high-performance liquid chromatography) with UV (ultraviolet) detection may be sufficient [78]. Due to missing reference substances, transformation products are often determined only qualitatively.

For example, Arikan [5] studied in detail the fate of chlortetracycline (CTC) during anaerobic digestion of manure from medicated calves. The CTC concentration decreased about 75 % and the concentration of the CTC epimer, 4-epi-chlortetracycline, declined roughly 33 % during the 33-day experiment. The CTC metabolite iso-chlortetracycline increased twofold in concentration. Referring to a higher water solubility, the authors concluded a possible occurrence of metabolites of CTC in water bodies. Also Mitchell et al. [49] stated that solid and liquid effluents from anaerobic digestion treatment containing antibiotic transformation products could represent an environmental concern.

For example, in the study by Heuer et al. [26], the concentration of sulfadiazine (SDZ) increased by 42 % during the storage of manure due to deacetylation of the metabolite N-acetyl-SDZ. Basically, the same was determined by Lamshöft et al. [41] who state that environmental effects may be underestimated, if the parent compound alone was considered for the environmental risk assessment.

Source of manure

There are different approaches on the application of the test substance to manure in respect of transformation studies. Contaminated manure can be obtained by sampling a tank containing the manure from previously medicated animals. If metabolites are of concern, a more realistic scenario can thus be studied. The deacetylation of the metabolite N-acetyl-sulfadiazine in manure, after excretion back to the parent compound sulfadiazine, is a well-studied example [26, 41]. Further, VMPs influence the microbial community structure and thus its own transformation fate in manure. The same applies to the effect of biocides on microbial community. Considering analytical method development, using medicated manure makes it difficult if not impossible to determine the recovery rates of the analytes out of the excreted and then aged manure. At this point, only radioactive methods can provide a valid survey on parent compound excretion and distribution. In the literature under study, only Heuer et al. [26] and Lamshöft et al. [41] worked with radioactive labeled VMPs and medicated manure (14C-sulfadiazine, 14C-difloxacin). Overall, 16 out of 42 studies were conducted with medicated manure. Additionally, three studies worked with both medicated and spiked manure [29, 72, 73].

In general, spiking manure in laboratory scale is a much more reproducible way of generating contaminated manure and the only way to conduct transformation studies of biocides. By this approach, it is possible to determine recovery rates with unlabeled compounds and to study sorption processes. Nevertheless, Huang et al. [29] report that methane production of manure spiked with chlortetracycline (0.55 mg/kg dw) was reduced by 12 % compared to manure of treated animals with the same chlortetracycline concentration. Further, Wang et al. [72] found a lower diversity index of methanogenic archaea in manure of animals treated with tylosin compared to manure spiked with tylosin at the same concentration. Wang et al. [73] also found differences between spiked manure and manure from treated animals in terms of the abundance of oxytetracycline-degrading Bacillus cereus and transformation products of oxytetracycline.

Generally, liquid manure is an anaerobic liquid medium. Samplings taken directly from a tank at a farm represent the most reliable source of liquid manure. By this approach, a microbial community, typical for authentic storage tanks, is used in the transformation experiment, which is not the case if excrements are sampled from diverse animals and mixed afterwards in order to obtain a manure-like medium. Ten out of 42 studies worked with liquid manure taken out of a bigger tank at a farm. In contrast to this, 22 publications report a procedure of mixing more or less fresh excrements with water and in some cases with an inoculum to produce liquid manure on a laboratory scale. Out of these 22, only Varel et al. [68] describe a well-documented procedure of generating a “seed manure” over a time period of 2–5 months to then mix it with fresh manure in order to preserve a reproducible artificial liquid manure.

Four studies worked with lagoon water, which mainly differs from liquid manure in its lower dry matter content of 1.2–3.6 %. Additionally, Li et al. [42] used “recycled water derived from a beef farm.” Within one publication, lagoon sediment was mixed with water down to a dry matter content of 2.7 % [2]. Cetecioglu et al. [14] and Angenent et al. [4] took manure for transformation experiments out of a continuously running anaerobic sequencing batch reactor (ASBR), whereas Mohring et al. [50] and Riemenschneider et al. [57] took it directly out of a biogas plant.

Matrix characteristics and sorption to suspended solids

From the 42 studies under investigation, 10 used cattle manure featuring dry matter contents from 1.1 up to 15 %. Three studies used both pig and cattle manure. One study relied on a synthetic matrix–water mixture—including volatile fatty acids, glucose, and starch—to approximate properties of liquid manure [14]. Within the remaining 28 studies, pig manure with dry matter contents from 2 up to 22 % was used. Comparing the results is complicated due to the differing dry matter contents. Kreuzig [35] emphasizes substance-specific interactions with the different pig or cattle manure matrices. He further mentions that the dry substance content of manure can be one of the most relevant factors affecting the transformation of VMPs and biocides. In a study on the stability of tylosin A in manure, Loke et al. [44] could not clarify whether the decrease in the concentration of this compound is caused by sorption or abiotic or biotic chemical degradation. Similarly, Shi et al. [62] could not explain whether the rapid disappearance of the investigated antibiotics tetracycline and sulfamethoxydiazine could be due to their adsorption onto solid materials or degradation by microorganisms. In another study, Loke et al. [45] stated that very low free concentrations of oxytetracycline and metabolites in an anaerobic degradation experiment are due to the high amounts of substances being bound to particles in the manure matrix rather than to the degradation to unknown compounds.

In 17 studies, this dry matter content, which is strongly influencing sorption of the test substances, is not even mentioned and thus prohibiting a deeper interpretation of the results. Dry matter content is a key parameter, which impacts the dissipation rates, as shown by Álvarez et al. [3], Arikan [5], Kolz et al. [34], Kreuzig [35], and Kuchta et al. [39]. These authors investigated explicitly sorption onto solid matter, which had already been recognized as a crucial parameter by Winckler and Grafe [78].

Experimental setup

A wide variety of experimental setups were used in the different studies analyzed. The amount of manure used for one replicate ranges from 1 mL [4] up to 295 L [78]. By far, most of the studies were conducted with 50–500 mL manure. Ten studies do not report a clearly defined amount of manure used. Most studies seem to have been conducted without any agitation of the manure during the experiments or they do not clearly report it. There are only a few studies, which mention a periodical stirring of the test manure or at least a stirring directly before sampling the manure.

Some studies refer to several guidelines. Loke et al. [44, 45] refer to ISO 11734 [30], Mohring et al. [50] refer to the German VDI 4630 [69] guideline and to DIN 38414 part 8 [16], and Szatmári et al. [65] refer to the former draft of the EMA guideline on determining the fate of veterinary medicinal products in manure [19, 70].

Many of the studies try to establish anaerobic conditions using an inert gas for flushing headspace or solutions at the beginning of the experiments. Flow-through systems and batch systems (static or semi-static systems) are used. There is only one publication reporting a real flow-through system [2]. Ali et al. worked with a continuous flow-through of N2 and O2 in a defined ratio to establish a redox potential between −100 and +350 mV. With the addition of HCl or NaOH, the pH was adjusted.

Nearly all of the other studies report the usage of batch systems. They just use an inert gas at the beginning of the experiment (static) or periodically during the experiment (semi-static) to guarantee anoxic conditions for the sampling or to drive out the generated biogas. Nevertheless, it is often not well described how exactly produced biogas was driven out of the system or how it was dealt with the generated biogas overpressure. This is important for studies monitoring biogas production or for those studies working with 14C and monitoring mineralization, by trapping 14CO2 with a KOH solution for example [35]. Arikan et al. [6] used a water displacement technique to monitor biogas production. Mitchell et al. [49] worked with a syringe methodology to measure biogas production.

Others—not measuring biogas production—worked with closed glass bottles [11]. Kolz et al. [34] used amber glass vials with Teflon-lined caps. To achieve similar storage conditions as given during storage under a plastic cover in lagoons, Kuchta et al. [39] conducted their studies in 20-L stainless steel containers with clipdown covers. Schlüsener et al. [59] used 300-mL Erlenmeyer flasks closed with fermenting tubes. Mohring et al. [50] worked with a commercially available anaerobic 5-L fermentor (Bigatec, Rheinberg, Germany). Winckler and Grafe [78] were one of the first to study the transformation of pharmaceuticals in liquid manure. They worked with very large 500-L tanks under outdoor and temperature-controlled conditions. In any case, these examples illustrate the aforementioned huge variety of different experimental approaches.

In contrast to the batch experiments, there are two publications working with an anaerobic sequencing batch reactor (ASBR). In the study of Angenent et al. [4], a 5-L ASBR was run by sequencing through a feed step, a react step, a settling step, and a decant step. An intermittent mixing process was thereby performed by biogas recycling. Tylosin half-life experiments were conducted by taking manure from the ASBR, placing it into capped 5-mL glass serum vials (pre-purged with N2), and spiking with tylosin. The vials were stored for a duration of 48 h at a temperature of 25 °C in a water bath. Cetecioglu et al. [14] also used an ASBR with a 24-h cycle to measure the impact of tetracycline on biogas production and the biodegradation of a synthetic organic substrate. In contrast to Angenent et al. [4], they monitored the tetracycline mass balance between the influent and the effluent of the ASBR considering the sludge inside the ASBR. With this setup, it was not possible to determine DT50 values. Huang et al. [29] and Wang et al. [72] also worked with a kind of ASBR. Riemenschneider et al. [57] worked with both a batch experiment and a constant feeding experiment using a 20-L laboratory-scale reactor. Grote et al. [21] only conducted the transformation study with a realistic outdoor scenario, working with chlortetracycline (CTC), sulfadiazine (SDZ), and trimethoprim (TMP). The medicated pigs excreted the pharmaceuticals over a long period of time, thus all relevant metabolites were considered. It is not easily possible to determine DT50 values for this approach, but it is possible to study the realistic transformation of a pharmaceutical.

Parameters

Summarizing, all the studies measured or controlled at least some of the following physical, chemical, and biological parameters during the transformation studies: redox potential Eh (mV), dry matter content (%), pH, dissolved O2 content (mg/kg), NH4-N (g/kg), N total (g/kg), total organic carbon (TOC) (g/kg), total carbon (g/kg), biological oxygen demand (BOD) (g/kg), chemical oxygen demand (COD) (g/kg), temperature (°C), volatile suspended solids (VSS), conductivity (µs/cm), P, Cl, Br, NO3 , Na, K, Ca, Fe, Mg, Al, Si, Cu, Zn, relative abundance of hydrogenotrophic methanogens and acetoclastic methanogens, volatile fatty acids (VFA) and aromatic fermentation products (l-lactate, acetate, propionate, isobutyrate, butyrate, isovalerate, valerate, isocaproate, caproate, phenol, p-cresol, indole and skatole), methane/biogas production, mineralization (%), 50 and 90 % disappearance time (DT50, DT90), transformation products (TP), non-extractable residues (NER), mass balance/recovery (%), Shannon’s diversity index (H’), log copy number/100 ng cDNA, liquid–solid distribution (K d), and the number of antibiotic resistance genes (ARGs).

Aerobic vs. anaerobic conditions

The attempt of this literature review was to select studies that were conducted under primarily anaerobic conditions. The information is either stated by the author(s) or can be deduced from the given facts on the experimental setup. However, also studies are included that used aerobic conditions (e.g., redox potentials above −100 mV, [52]). Various authors merely assume anaerobic conditions without any further indication. Besides, different authors use different terminologies, such as “anaerobic digestion,” “anaerobic conditions,” “methanogenic conditions,” and “anaerobic tightly capped vessels.” Studies with this vague information were still considered in this examination as otherwise the relevant publications would have been limited to a number of only seven studies reporting a redox potential.

Besides using closed laboratory setups, many studies report the use of N2 or He gas to purge the headspaces of the systems or to purge the used liquids and manures before starting the experiments. Others used the glovebox technique [80] or added reducing agents to the manures to guarantee reducing conditions (e.g., Na2S by Álvarez et al. [3] or titanium(III)citrate by Loke et al. [45]). Loke et al. [45] further added resazurin as a redox indicator. As the test bottles did not show a reddish coloring, they assumed anaerobic conditions. However, it might be difficult to interpret the coloring of this also pH-dependent indicator in deep brown liquid manure. For this, they also monitored methane gas production as a main indicator for methanogenic and, by this, anaerobic conditions. Varel et al. [68] systematically studied methane production of their seed manure before starting transformation studies with this manure in order to be able to work with stable methanogenic/anaerobic conditions.

Kuhne et al. [40] used closed incubation systems to investigate the stability of tetracycline in pig manure. They determined that the DT50 for tetracycline in their unventilated systems was 9 days, whereas it was 4.5 days when the slurry was ventilated.

Szatmári et al. [65] compared an anaerobic laboratory study with a field study using manure composting. In the laboratory experiment, more than 30 % and in the field study about 10 % of the initial doxycycline amount could be detected in manure samples after 12 and 16 weeks of aging, respectively. The half-life of doxycycline in manure was calculated to be 52.5 days under anaerobic conditions and 25.7 days under aerobic conditions.

Ali et al. [2] were the only of all included studies who deliberately varied the redox potential. They established a set of microcosms with controlled redox potentials (Eh) (−100 mV, 0 mV, +250 mV, and +350 mV) and pH conditions (pH 5.5, 7.0, and 8.5). With increasing Eh—that is with increasing aerobic conditions—they found significantly higher dissipation rates for tylosin and could attribute this to microbial activity by comparison with sodium azide-treated samples. Increasing pH resulted in increasing dissipation rates. With the addition of azide, a decrease of Eh could be observed. Kolz et al. [34] worked with redox potentials of slurry between −10 and −80 mV. The addition of azide resulted in a decrease of the redox potential to between −90 and −160 mV.

Although redox potential is not directly a proof of anaerobic conditions, it is relatively easy to measure in liquid manure. The internationally harmonized OECD guideline 308 on the transformation of chemicals in water/sediment systems pragmatically sets a maximum upper limit of −100 mV [52] for anaerobic conditions. Strictly considering this limit of −100 mV, only 3–4 studies meet the requirements for anaerobic conditions (Ali et al. [2], Lamshöft et al. [41], Widyasari-Mehta et al. [76], Zheng et al. [81]). It should be considered that redox potentials measured in real manure tanks are even far below −100 mV [74]. Generally, the transformation of VMPs in manure is faster and more complete under aerobic conditions than under anaerobic conditions.

Methane production and microbial activity

The production of methane was considered as an ongoing parameter in 12 studies. In two studies with tetracyclines, Arikan et al. [6] and Álvarez et al. [3] found that methane production was reduced by 27 % during batch experiments and up to 62 % due to antibiotic dosage, respectively. Stone et al. [64] found that the generation of methane was inhibited by 27.8 % due to the presence of chlortetracycline. Dependent on the dosage, Cetecioglu et al. [14] determined adverse impact of tetracycline with a total collapse of the microbial activity and metabolic functions at a concentration of 8.5 mg/L in a synthetic substrate mixture under anaerobic conditions. Shi et al. [62] found a dosage-dependent inhibition on CH4 production and concluded that antibiotics appear to inhibit bacterial activity, resulting in a delay and overall decline in CH4 production. Among these 12 studies measuring biogas production, four studies were explicitly concerned with microbiological issues [1, 26, 64, 72]. Varel et al. [68] mention that an adaption period of 5–6 months was necessary for acclimatization of microorganisms to monensin and to reduce effects of antimicrobials on methane production. Others added small amounts of an inoculum from an anaerobic digester at a farm, or from a wastewater treatment plant, or a biogas plant [3, 5, 49, 50, 62]. Besides the topic of transformation in manure, Ma et al. [47] for example isolated a novel strain of bacteria capable of degrading 100 % tylosin within 72 h. Against that background, each future transformation study has to be analyzed critically. Composition of microbial community has a massive effect on transformation rates and routes. Without any further qualitative and quantitative critical analysis of microbiology, it is not possible to produce reliable and reproducible transformation data of VMPs and biocides in liquid manure. From a regulatory point of view, this topic could enable a massive manipulation of transformation data. Therefore, using a reference substance for transformation studies seems necessary.

Biotic vs. abiotic transformation

In some studies, either sterilization with sodium azide or autoclaving allowed to differentiate between abiotic and biotic transformation. Generally, biotic transformation rates can be substantially higher than pure abiotic transformation rates. However, the process of formation of non-extractable residues cannot be elucidated by this approach.

Loke et al. [45] worked with autoclaved and non-autoclaved manure to study the transformation of oxytetracycline (OTC) by measuring the free concentration of the VMP. By this, they did not find a difference between the sterile and the non-sterile setups, due to the fast sorption of OTC to the solid phase. They did not address the question of whether the following biotic transformation is inhibited by sorption of the substance to suspended solids.

Loke et al. [44] studied the transformation of tylosin A but were unfortunately not able to figure out whether the rapid decrease in the concentration of tylosin A is caused by sorption or abiotic or biotic chemical degradation. Ali et al. [2] later reported, among other conclusions, that microbial degradation was much greater under aerobic (Eh +350 mV) conditions than under anaerobic conditions as compared to abiotic transformation or sorption. Kolz et al. [34] concluded that both biodegradation and abiotic degradation occur during the transformation of tylosin. However, strong sorption to slurry solids was probably the primary mechanism of tylosin disappearance.

Zheng et al. [80] found that the transformation of 17α-estradiol, 17β-estradiol, and estrone was mainly dominated by biodegradation rather than by physical or chemical transformation.

Li et al. [42] found that the combined processes of hydrolysis and biodegradation were responsible for the transformation of ceftiofur. The determined hydrolysis and total degradation rate constants in aqueous solutions varied according to temperature.

Study temperature

Study temperatures within the considered publications ranged from 5 to 55 °C. Only few publications explicitly analyzed the effects caused by a variation of the study temperature.

Harms [25] examined the stability of pharmaceuticals in manure during storage at 7 °C and found no degradation of chlortetracycline during 6 months. Sulfadiazine was reduced to 50 % after 1 week, but the remaining residuals were stable until the end of the trial (32 weeks). The author varied the storage temperature (−20, 7 °C, room temperature) over a period of 16 weeks. Sulfamerazine, sulfamethoxypyrazine, sulfaguanidine, and sulfisomedine persisted. Sulfamethoxazole was reduced up to 80 % at 7 °C as well as at room temperature. The same degradation rate was reached more quickly with higher temperatures than with cooler conditions of storage. Enrofloxacin and tiamulin were reduced to 20 % at 7 °C storage temperature. For tiamulin, a reduction of 10 % at 7 °C and 25 % at room temperature was observed. Only sulfapyridazine and enrofloxacin showed a small decline at a storage temperature of −20 °C.

Li et al. [42] studied the transformation of ceftiofur at temperatures between 15 and 45 °C and found increasing hydrolysis and biodegradation rates with temperature. Increasing the study temperature from 35 to 45 °C resulted in an increasing relevance of hydrolysis on transformation of ceftiofur, whereas biodegradation remained static.

Similarly, Varel et al. [68] found principally increasing dissipation rates with increasing the temperature from 22 to 55 °C. They studied the effect of anaerobic digestion at different temperatures, among other parameters, on the fate of chlortetracycline (CTC) in pig manure and monensin (MON) in cattle manure. The authors concluded that anaerobic digestion at elevated temperatures may be an effective treatment to reduce CTC but not MON. Transformation of CTC mainly depends on abiotic transformation. This was also shown by Shelver and Varel [61] who also worked with CTC between 22 and 55 °C.

Stone et al. [64] worked with a temperature gradient to simulate field conditions commonly found in the northern mid-western United States of America. They started with 10 °C (0–30 days) and increased the temperature over time: 12 °C (30–46 days), 15 °C (46–56 days), and 20 °C (56–216 days).

Half of the studies (21 out of 42) were conducted at ambient temperatures (ranging from 20 to 25 °C). Some other experiments were performed at elevated temperatures of 35 to 40 °C, which enhances the microbial activity [5, 32, 57]. In general, transformation was found to be dependent on the study temperature; increasing temperatures simultaneously result in increasing transformation rates. Working with temperatures above the microbiological relevant limit of 35–40 °C results in an inhibition of microbial activity and biodegradation processes. In which way this affects transformation processes mainly depends on the transformation routes of different substances.

Conclusions

The available studies on the transformation of biocides and veterinary medicinal products in manure show large variations in the experimental setup and conditions such as temperature, redox potential, matrix effects, and physico-chemical properties.

Most frequently investigated VMPs belong to the class of antibiotics, namely sulfonamides, tetracyclines, and macrolide antibiotics. In 16 out of the 42 studies, excrements or manure from a medicated livestock was considered; all other studies are based on spiked manure. There were only three publications working with biocides, which clearly shows that this topic is largely neglected by research. Most of the studies considered manure originating from pigs (28 out of 42), while the remaining studies investigated manure from cattle or in one case synthetic manure was used. Study duration and temperature ranged from 2 to 374 days and 5 to 55 °C, respectively. Many studies do not report the basic parameters. Only seven publications give information on the redox potential of the manure used for transformation. Further, the characterization of the matrix in many cases is inadequate due to missing basic parameters such as dry matter content and pH. Information on dissipation rates or half-lives, transformation products, formation of methane, microbiology, and non-extractable residues (NER) are not available in the majority of the considered publications.

Overall, it can be stated that the majority of the studies describe at least one fundamental parameter of the experimental conditions poorly. Considering all the different approaches, one can conclude that it is inevitable to give specific guidance for studies on the transformation in manure in general and especially with regard to the applicability and acceptability of studies in regulatory contexts. All the parameters—as they are studied particularly within single publications—affect the basic outcome of a transformation study. It is therefore necessary to standardize them or at least measure and report them individually. Parameters such as temperature, dry matter content, origin and preconditioning of the manure, microbiology, pH, and redox potential do have massive effects on the transformation rates or routes of VMPs and biocides in liquid manure. Some of these parameters are relatively simple to measure and should be monitored mandatorily, or even standardized where possible. Only one transformation study at real manure storage tanks was found. This is an important area for research to study transformation processes under realistic conditions. Comparing such authentic outdoor results with those produced on laboratory scale is important to validate the outcome of laboratory studies and to evaluate different experimental setups. One of the most challenging topics with knowledge gaps is related to the composition, the development or spread of resistance, or the adaption and activity of the microbial community. For future studies, this topic should always be addressed.

As an outcome of the summarized monitoring studies, it can be concluded that VMPs occur ubiquitously in manure. Biocides are totally neglected until today. For sulfadiazine and chlortetracycline, concentrations exceeding predicted environmental concentrations were found. For future monitoring studies, it should be obligatory in terms of environmental risk assessment to define the exact animal type as the origin of the manure and to measure and report nitrogen content and dry matter content of the analyzed manures. From our point of view, it would be helpful to imply a Europe-wide monitoring program to evaluate the calculated PECs of VMPs in liquid manure.

Abbreviations

ASBR:

anaerobic sequencing batch reactor

BOD:

biological oxygen demand

CAFO:

concentrated animal feeding operation

COD:

chemical oxygen demand

CTC:

chlortetracycline

CYN:

cyanamide

DAD:

diode array detector

DIF:

difloxacin

DIN:

German Institute for Standardization (german: Deutsches Institut für Normung e.V.)

DT50

time needed for disappearance of 50 % of the parent compound, disappearance time

DT90

time needed for disappearance of 90 % of the parent compound, disappearance time

dw:

dry weight

ELISA:

enzyme-linked immunosorbent assay

EMA:

European Medicines Agency

ERA:

environmental risk assessment

ERY:

erythromycin

EU:

European Union

F + E:

research and development (German: Forschung und Entwicklung)

FEN:

fenbendazole

FKZ:

project no. (German: Forschungskennzahl)

FLU:

flubendazole

GC:

gas chromatography

HPLC:

high-performance liquid chromatography

HR-MS:

high-resolution mass spectrometry

IMZ:

imazalil

ISO:

International Organization for Standardization

LC:

liquid chromatography

LIN:

lincomycin

LOD:

limit of detection

LSC:

liquid scintillation counting

MEC:

measured environmental concentration

MON:

monensin

MS:

mass spectrometry

nd:

not determined or not defined

NER:

non-extractable residues

ns:

not specified

OECD:

Organisation for Economic co-operation and Development

OTC:

oxytetracycline

PEC:

predicted environmental concentration

RTLC:

radio thin-layer chromatography

SCP:

sulfachloropyridazine

SDZ:

sulfadiazine

SMZ:

sulfamethoxazole

SPN:

spectinomycin

TMP:

trimethoprim

TOC:

total organic carbon

TP:

transformation product

TS:

total solids

TYL:

tylosin

UV:

ultraviolet

VDI:

Association of German Engineers (German: Verein Deutscher Ingenieure)

VFA:

volatile fatty acid

VICH:

Veterinary International Conference on Harmonization

VMP:

veterinary medicinal product

VSS:

volatile suspended solids

ww:

wet weight

Declarations

Authors’ contributions

MW, SB, TJ, SK, and RAD were substantially involved in the conception and design of the study. SB and SK gave the background information on regulatory affairs. MW and LS were responsible for the acquisition and analysis of the data. MW drafted the manuscript. All authors read and approved the final manuscript.

Acknowledgements

The present study was funded by the German Federal Ministry for the Environment, Nature Conservation, Building and Nuclear Safety (Grant No. 3712 65 420).

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Institute of Soil Science and Soil Conservation, IFZ, Justus Liebig University Giessen
(2)
Unit IV 2.2 Pharmaceuticals, Washing and Cleansing Agents and Nanomaterials, German Environment Agency (UBA)
(3)
ECT Oekotoxikologie GmbH

References

  1. Akyol Ç, Turker G, Ince O, Ertekin E, Üstüner O, Ince B (2016) Performance and microbial community variations in thermophilic anaerobic digesters treating OTC medicated cow manure under different operational conditions. Bioresour Technol 205:191–198View ArticleGoogle Scholar
  2. Ali M, Wang JJ, DeLaune RD, Seo DC, Dodla SK, Hernandez AB (2013) Effect of redox potential and pH status on degradation and adsorption behavior of tylosin in dairy lagoon sediment suspension. Chemosphere 91(11):1583–1589View ArticleGoogle Scholar
  3. Álvarez JA, Otero L, Lema J, Omil F (2010) The effect and fate of antibiotics during the anaerobic digestion of pig manure. Bioresour Technol 101(22):8581–8586View ArticleGoogle Scholar
  4. Angenent LT, Mau M, George U, Zahn JA, Raskin L (2008) Effect of the presence of the antimicrobial tylosin in swine waste on anaerobic treatment. Water Res 42(10–11):2377–2384View ArticleGoogle Scholar
  5. Arikan O (2008) Degradation and metabolization of chlortetracycline during the anaerobic digestion of manure from medicated calves. J Hazard Mater 158(2–3):485–490View ArticleGoogle Scholar
  6. Arikan O, Sikora LJ, Mulbry W, Khan SU, Rice C, Foster GD (2006) The fate and effect of oxytetracycline during the anaerobic digestion of manure from therapeutically treated calves. Process Biochem 41(7):1637–1643View ArticleGoogle Scholar
  7. ASAE (2005) American Society of Agricultural Engineers, Manure Production and Characteristics. ASAE D384.2 MAR2005Google Scholar
  8. Aust M-O, Godlinski F, Travis GR, Hao X, McAllister TA, Leinweber P, Thiele-Bruhn S (2008) Distribution of sulfamethazine, chlortetracycline and tylosin in manure and soil of Canadian feedlots after subtherapeutic use in cattle. Environ Pollut 156(3):1243–1251View ArticleGoogle Scholar
  9. Bailey C, Spielmeyer A, Hamscher G, Schüttrumpf H, Frings RM (2016) The veterinary antibiotic journey: comparing the behaviour of sulfadiazine, sulfamethazine, sulfamethoxazole and tetracycline in cow excrement and two soils. J Soils Sediments. doi:10.1007/s11368-016-1370-0 Google Scholar
  10. Berendsen BJA, Wegh RS, Memelink J, Zuidema T, Stolker LAM (2015) The analysis of animal faeces as a tool to monitor antibiotic usage. Talanta 132:258–268View ArticleGoogle Scholar
  11. Blackwell PA, Boxall ABA, Kay P, Noble H (2005) Evaluation of a lower tier exposure assessment model for veterinary medicines. J Agric Food Chem 53(6):2192–2201View ArticleGoogle Scholar
  12. BMG (2016) German federal ministry of health, drug information portal. https://www.pharmnet-bund.de/dynamic/en/drug-information-system/index.html, Accessed Mar 2016
  13. Burkhardt M, Stamm C, Waul C, Singer H, Müller S (2005) Surface runoff and transport of sulfonamide antibiotics and tracers on manured grassland. J Environ Qual 34(4):1363–1371View ArticleGoogle Scholar
  14. Cetecioglu Z, Ince B, Gros M, Rodriguez-Mozaz S, Barceló D, Orhon D, Ince O (2013) Chronic impact of tetracycline on the biodegradation of an organic substrate mixture under anaerobic conditions. Water Res 47(9):2959–2969View ArticleGoogle Scholar
  15. Christian T, Schneider RJ, Färber HA, Skutlarek D, Meyer MT, Goldbach HE (2003) Determination of antibiotic residues in manure, soil, and surface waters. Acta hydrochim hydrobiol 31(1):36–44View ArticleGoogle Scholar
  16. DIN (1985) Deutsche Einheitsverfahren zur Wasser-, Abwasser- und Schlammuntersuchung; Schlamm und Sedimente (Gruppe S); Bestimmung des Faulverhaltens, DIN 38414-8:1985-06. Deutsches Institut für Normung, BerlinGoogle Scholar
  17. Edler D, Rosvall M (2016) The MapEquation software package. http://www.mapequation.org
  18. EMA (2008) Revised Guideline on environmental impact assessment for veterinary medicinal products in support of the VICH guidelines GL6 and GL38 (EMEA/CVMP/ERA/418282/2005-Rev.1)Google Scholar
  19. EMA (2011) Guideline on determining the fate of veterinary medicinal products in manure. EMA/CVMP/ERA/430327/2009Google Scholar
  20. Engels H (2004) Verhalten von ausgewählten Tetrazyklinen und Sulfonamiden in Wirtschaftsdünger und in Böden. Dissertation, Georg-August-University of GöttingenGoogle Scholar
  21. Grote M, Vockel A, Schwarze D, Mehlich A, Freitag M (2004) Fate of antibiotics in food chain and environment originating from pigfattening (part 1). Fresen Environ Bull 13(11b):1216–1224Google Scholar
  22. Haller MY, Müller SR, McArdell CS, Alder AC, Suter MJ-F (2002) Quantification of veterinary antibiotics (sulfonamides and trimethoprim) in animal manure by liquid chromatography–mass spectrometry. J Chromatogr A 952(1–2):111–120View ArticleGoogle Scholar
  23. Hamscher G, Pawelzick HT, Höper H, Nau H (2005) Different behavior of tetracyclines and sulfonamides in sandy soils after repeated fertilization with liquid manure. Environ Toxicol Chem 24(4):861–868View ArticleGoogle Scholar
  24. Hamscher G, Sczesny S, Höper H, Nau H (2002) Determination of persistent tetracycline residues in soil fertilized with liquid manure by high-performance liquid chromatography with electrospray ionization tandem mass spectrometry. Anal Chem 74(7):1509–1518View ArticleGoogle Scholar
  25. Harms KS (2006) Untersuchungen zum Nachweis und Vorkommen von Antibiotika und deren Metaboliten in Schweinegülle. Dissertation, Technical University of MunichGoogle Scholar
  26. Heuer H, Focks A, Lamshöft M, Smalla K, Matthies M, Spiteller M (2008) Fate of sulfadiazine administered to pigs and its quantitative effect on the dynamics of bacterial resistance genes in manure and manured soil. Soil Biol Biochem 40(7):1892–1900View ArticleGoogle Scholar
  27. Höltge S, Kreuzig R (2007) Laboratory testing of sulfamethoxazole and its metabolite acetyl-sulfamethoxazole in soil. Clean Soil Air Water 35(1):104–110View ArticleGoogle Scholar
  28. Hu X, Luo Y, Zhou Q (2010) Simultaneous analysis of selected typical antibiotics in manure by microwave-assisted extraction and LC–MSn. Chromatographia 71(3–4):217–223View ArticleGoogle Scholar
  29. Huang L, Wen X, Wang Y, Zou Y, Ma B, Liao X, Liang J, Wu Y (2014) Effect of the chlortetracycline addition method on methane production from the anaerobic digestion of swine wastewater. J Environ Sci China 26(10):2001–2006View ArticleGoogle Scholar
  30. ISO (1998) Water quality—evaluation of the ultimate anaerobic biodegradability of organic compounds in digested sludge—method by measurement of the biogas production, ISO 11734. International Organization for Standardization, GenevaGoogle Scholar
  31. Jacobsen A-M, Halling-Sørensen B (2006) Multi-component analysis of tetracyclines, sulfonamides and tylosin in swine manure by liquid chromatography–tandem mass spectrometry. Anal Bioanal Chem 384(5):1164–1174View ArticleGoogle Scholar
  32. Joy SR, Li X, Snow DD, Gilley JE, Woodbury B, Bartelt-Hunt SL (2014) Fate of antimicrobials and antimicrobial resistance genes in simulated swine manure storage. Sci Total Environ 481:69–74View ArticleGoogle Scholar
  33. Karcı A, Balcıoğlu IA (2009) Investigation of the tetracycline, sulfonamide, and fluoroquinolone antimicrobial compounds in animal manure and agricultural soils in Turkey. Sci Total Environ 407(16):4652–4664View ArticleGoogle Scholar
  34. Kolz AC, Moorman TB, Ong SK, Scoggin KD, Douglass EA (2005) Degradation and metabolite production of tylosin in anaerobic and aerobic swine-manure lagoons. Water Environ Res 77(1):49–56View ArticleGoogle Scholar
  35. Kreuzig R (2010) The reference manure concept for transformation tests of veterinary medicines and biocides in liquid manure. Clean Soil Air Water 38(8):697–705View ArticleGoogle Scholar
  36. Kreuzig R, Blümlein K, Höltge S (2007) Fate of the benzimidazole antiparasitics flubendazole and fenbendazole in manure and manured soils. Clean Soil Air Water 35(5):488–494View ArticleGoogle Scholar
  37. Kreuzig R, Hartmann C, Teigeler J, Höltge S, Cvetković B, Schlag P (2010) Development of a novel concept for fate monitoring of biocides in liquid manure and manured soil taking 14C-imazalil as an example. Chemosphere 79(11):1089–1094View ArticleGoogle Scholar
  38. Kreuzig R, Höltge S (2005) Investigations on the fate of sulfadiazine in manured soil: laboratory experiments and test plot studies. Environ Toxicol Chem 24(4):771–776View ArticleGoogle Scholar
  39. Kuchta SL, Cessna AJ (2009) Lincomycin and spectinomycin concentrations in liquid swine manure and their persistence during simulated manure storage. Arch Environ Contam Toxicol 57(1):1–10View ArticleGoogle Scholar
  40. Kuhne M, Ihnen D, Moller G, Agthe O (2000) Stability of tetracycline in water and liquid manure. J Vet Med A 47(6):379–384View ArticleGoogle Scholar
  41. Lamshöft M, Sukul P, Zühlke S, Spiteller M (2010) Behaviour of 14C-sulfadiazine and 14C-difloxacin during manure storage. Sci Total Environ 408(7):1563–1568View ArticleGoogle Scholar
  42. Li X, Zheng W, Machesky ML, Yates SR, Katterhenry M (2011) Degradation kinetics and mechanism of antibiotic ceftiofur in recycled water derived from a beef farm. J Agric Food Chem 59(18):10176–10181View ArticleGoogle Scholar
  43. de Liguoro M, Cibin V, Capolongo F, Halling-Sørensen B, Montesissa C (2003) Use of oxytetracycline and tylosin in intensive calf farming: evaluation of transfer to manure and soil. Chemosphere 52(1):203–212View ArticleGoogle Scholar
  44. Loke M-L, Ingerslev F, Halling-Sørensen B, Tjørnelund J (2000) Stability of tylosin A in manure containing test systems determined by high performance liquid chromatography. Chemosphere 40(7):759–765View ArticleGoogle Scholar
  45. Loke M-L, Jespersen S, Vreeken R, Halling-Sørensen B, Tjørnelund J (2003) Determination of oxytetracycline and its degradation products by high-performance liquid chromatography–tandem mass spectrometry in manure-containing anaerobic test systems. J Chromatogr B 783(1):11–23View ArticleGoogle Scholar
  46. LWK-NRW (2014) Landwirtschaftskammer Nordrhein-Westfalen, Hinweise zum Einsatz von Wirtschaftsdüngern, organischen und organisch-mineralischen Düngern. www.landwirtschaftskammer.de/Landwirtschaft/ackerbau/duengung/basisinfos/wirtschaftsduenger-pdf.pdf. Accessed Mar 2016
  47. Ma Y, Wang L, Liu L, Zhang X (2015) Biodegradation of tylosin residue in pharmaceutical solid waste by a novel Citrobacter amalonaticus strain. Environ Prog Sustain Energy 34(1):99–104View ArticleGoogle Scholar
  48. Martínez-Carballo E, González-Barreiro C, Scharf A, Gans O (2007) Environmental monitoring study of selected veterinary antibiotics in animal manure and soils in Austria. Environ Pollut 148(2):570–579View ArticleGoogle Scholar
  49. Mitchell SM, Ullman JL, Teel AL, Watts RJ, Frear C (2013) The effects of the antibiotics ampicillin, florfenicol, sulfamethazine, and tylosin on biogas production and their degradation efficiency during anaerobic digestion. Bioresour Technol 149:244–252View ArticleGoogle Scholar
  50. Mohring SAI, Strzysch I, Fernandes MR, Kiffmeyer TK, Tuerk J, Hamscher G (2009) Degradation and elimination of various sulfonamides during anaerobic fermentation: a promising step on the way to sustainable pharmacy? Environ Sci Technol 43(7):2569–2574View ArticleGoogle Scholar
  51. Motoyama M, Nakagawa S, Tanoue R, Sato Y, Nomiyama K, Shinohara R (2011) Residues of pharmaceutical products in recycled organic manure produced from sewage sludge and solid waste from livestock and relationship to their fermentation level. Chemosphere 84(4):432–438View ArticleGoogle Scholar
  52. OECD (2002) Guideline 308 for testing of chemicals. Aerobic and anaerobic transformation in aquatic sediment systems. OECD, ParisView ArticleGoogle Scholar
  53. Olsen J, Björklund E, Krogh KA, Hansen M (2012) Development of an analytical methodology for the determination of the antiparasitic drug toltrazuril and its two metabolites in surface water, soil and animal manure. Anal Chim Acta 755:69–76View ArticleGoogle Scholar
  54. Pan X, Qiang Z, Ben W, Chen M (2011) Residual veterinary antibiotics in swine manure from concentrated animal feeding operations in Shandong province, China. Chemosphere 84(5):695–700View ArticleGoogle Scholar
  55. Pfeifer T, Tuerk J, Bester K, Spiteller M (2002) Determination of selected sulfonamide antibiotics and trimethoprim in manure by electrospray and atmospheric pressure chemical ionization tandem mass spectrometry. Rapid Commun Mass Spectrom 16(7):663–669View ArticleGoogle Scholar
  56. Ratsak C, Barbara G, Sebastian Z, Delschen T (2013) Veterinarantibiotikarückstande in Gülle und Gärresten aus Nordrhein-Westfalen. Environ Sci Eur 25(1):1–11View ArticleGoogle Scholar
  57. Riemenschneider C, Zerr W, Vater N, Brunn H, Mohring SAI, Hamscher G (2014) Analysis and behavior of colistin during anaerobic fermentation. Bioresour Technol 170:303–309View ArticleGoogle Scholar
  58. Sattelberger R, Gans O, Martínez E (2005) Veterinärantibiotika in Wirtschaftsdünger und Boden, Reports BE-272. Umweltbundesamt, WienGoogle Scholar
  59. Schlüsener MP, Arb MA, Bester K (2006) Elimination of macrolides, tiamulin, and salinomycin during manure storage. Arch Environ Contam Toxicol 51(1):21–28View ArticleGoogle Scholar
  60. Schlüsener MP, Bester K, Spiteller M (2003) Determination of antibiotics such as macrolides, ionophores and tiamulin in liquid manure by HPLC–MS/MS. Anal Bioanal Chem 375:942–947Google Scholar
  61. Shelver WL, Varel VH (2012) Development of a UHPLC–MS/MS method for the measurement of chlortetracycline degradation in swine manure. Anal Bioanal Chem 402(5):1931–1939View ArticleGoogle Scholar
  62. Shi J, Liao X, Wu Y, Liang J (2011) Effect of antibiotics on methane arising from anaerobic digestion of pig manure. Anim Feed Sci Technol 166–167:457–463View ArticleGoogle Scholar
  63. Solliec M, Massé D, Sauvé S (2014) Analysis of trimethoprim, lincomycin, sulfadoxin and tylosin in swine manure using laser diode thermal desorption-atmospheric pressure chemical ionization-tandem mass spectrometry. Talanta 128:23–30View ArticleGoogle Scholar
  64. Stone JJ, Clay SA, Zhu Z, Wong KL, Porath LR, Spellman GM (2009) Effect of antimicrobial compounds tylosin and chlortetracycline during batch anaerobic swine manure digestion. Water Res 43(18):4740–4750View ArticleGoogle Scholar
  65. Szatmári I, Laczay P, Borbély Z (2011) Degradation of doxycycline in aged pig manure. Acta Vet Hung 59(1):1–10View ArticleGoogle Scholar
  66. Tylová T, Olšovská J, Novák P, Flieger M (2010) High-throughput analysis of tetracycline antibiotics and their epimers in liquid hog manure using ultra performance liquid chromatography with UV detection. Chemosphere 78(4):353–359View ArticleGoogle Scholar
  67. Varel V (2002) Carvacrol and thymol reduce swine waste odor and pathogens: stability of oils. Curr Microbiol 44(1):38–43View ArticleGoogle Scholar
  68. Varel V, Wells J, Shelver W, Rice C, Armstrong D, Parker D (2012) Effect of anaerobic digestion temperature on odour, coliforms and chlortetracycline in swine manure or monensin in cattle manure. J Appl Microbiol 112(4):705–715View ArticleGoogle Scholar
  69. VDI (2006) Fermentation of organic materials—characterisation of the substrate, sampling, collection of material data, fermentation tests, VDI 4630:2006-04. Verein Deutscher Ingenieure, DüsseldorfGoogle Scholar
  70. VICH (2010) Guideline on determining the fate of veterinary medicinal products in manure—Draft, London. pp 1–9. (outdated; see EMA 2011)Google Scholar
  71. VMD (2016) UK Veterinary Medicines Directorate, product information database. https://www.vmd.defra.gov.uk/ProductInformationDatabase. Accessed Mar 2016
  72. Wang X, Guo R, Ma B, Liang J, Liao X, Wu Y (2014) Fate of tylosin a and its effect on anaerobic digestion using two tylosin inclusion methods. Environ Prog Sustain Energy 33(3):808–813View ArticleGoogle Scholar
  73. Wang Y, Chen G, Liang J, Zou Y, Wen X, Liao X, Wu Y (2015) Comparison of oxytetracycline degradation behavior in pig manure with different antibiotic addition methods. Environ Sci Pollut Res 22(23):18469–18476View ArticleGoogle Scholar
  74. Weinfurtner K (2011) Matrix parameters and storage conditions of manure. UBATexte 02/2011, ISSN 1862-4804. Umweltbundesamt, Dessau-Roßlau, 1–54, http://www.uba.de/uba-info-medien-e/4054.html. Accessed Mar 2016
  75. Weiß K (2008) Austrag von Tierarzneimitteln aus Wirtschaftsdünger in Sickerwasser, Grundwasser und oberirdische Gewässer, final report. Bayerisches Landesamt für Umwelt, AugsburgGoogle Scholar
  76. Widyasari-Mehta A, Suwito HR, Kreuzig R (2016) Laboratory testing on the removal of the veterinary antibiotic doxycycline during long-term liquid pig manure and digestate storage. Chemosphere 149:154–160View ArticleGoogle Scholar
  77. Winckler C, Engels H, Steffens G, Hund-Rinke K, Luckow T, Simon M (2004) Verhalten von Tetrazyklinen und anderen Veterinärantibiotika in Wirtschaftsdünger und Boden (Wirkung von Tetrazyklinen und anderen Tierarzneimitteln auf die Bodenfunktion), scientific report 200 73 248. Umweltbundesamt, BerlinGoogle Scholar
  78. Winckler C, Grafe A (2001) Use of veterinary drugs in intensive animal production evidence for persistence of tetracycline in pig slurry. J Soil Sediment 1(2):66–70View ArticleGoogle Scholar
  79. Zhao L, Dong YH, Wang H (2010) Residues of veterinary antibiotics in manures from feedlot livestock in eight provinces of China. Sci Total Environ 408(5):1069–1075View ArticleGoogle Scholar
  80. Zheng W, Li X, Yates SR, Bradford SA (2012) Anaerobic transformation kinetics and mechanism of steroid estrogenic hormones in dairy lagoon water. Environ Sci Technol 46(10):5471–5478View ArticleGoogle Scholar
  81. Zheng W, Zou Y, Li X, Machesky ML (2013) Fate of estrogen conjugate 17α-estradiol-3-sulfate in dairy wastewater: comparison of aerobic and anaerobic degradation and metabolite formation. J Hazard Mater 258–259:109–115View ArticleGoogle Scholar

Copyright

© The Author(s) 2016
