Development of a test method for transformation of veterinary pharmaceuticals and biocides in anaerobic liquid manure

Abstract

Background

Spreading of manure on agricultural soils represents an important pathway by which veterinary medicinal and biocidal products enter the environment. To assess their environmental impact in the context of authorization processes, experimental testing of transformation of these compounds in manure is considered in regulatory guidance documents. However, there is no standardized experimental test method available so far. To fill this gap, an experimental test method was developed to examine transformation in liquid cattle and pig manure.

Results

To account for manure specifics and for a possible influence of manure parameters on transformation rates, a comprehensive data acquisition and statistical analysis were performed. To address the variability of liquid manure of different type and origin, 30 manures were sampled and characterized. Thereof, three cattle and three pig manures were selected to perform anaerobic transformation studies with two radiolabeled veterinary medicinal active substances (14C-salicylic acid and 14C-paracetamol) and a confidential radiolabeled “14C-biocide B” serving as test compounds. Spatial and seasonal variability of manure parameters was quantified, and a sampling technique to obtain homogenous manure samples was developed. Transformation studies with six replicates per sampling point were conducted to examine the influence of test setup, of manure storage conditions, and of parameter variations between manure of the same species and of different species on half-lives, formation of extractable and non-extractable residues and mineralization rates. Finally, a test design was established that yields reproducible results for transformation studies in liquid cattle and pig manure under anaerobic conditions.

Conclusions

Results give a reliable basis for an experimental test method to perform anaerobic transformation studies in liquid cattle and pig manure. The developed test method comprises detailed guidance on selection of sampling date and site, collection from manure tank, storage duration and temperature in the laboratory, duration of manure acclimation period, and the incubation system design. It proved to give reproducible results in a validation ring test performed in a follow-up project and is planned to be submitted as draft test guideline for approval by the OECD.

Background

Veterinary medicinal products (VMPs) are frequently applied in livestock farming and up to 90% of the active ingredients are excreted unchanged by the treated animals [1]. In addition, biocides used for livestock treatment and stable disinfection treatment are transferred into liquid manure (e.g. [2, 3]). After manure storage, VMPs and biocides enter the environment when manure is spread onto agricultural soils for fertilization purposes [4, 5]. For authorization of VMPs and biocides, an environmental impact assessment is required. Regulatory guidance documents include studies on transformation of these compounds in soil and manure [6]. Current guidance, e.g. guideline on determining the fate of veterinary medicinal products in manure [7], takes transformation in stored manure into account. However, the guidance only contains basic regulatory requirements. No standardized experimental test method is currently available, although it is crucial to have a harmonized and validated test method to obtain reliable and comparable data [8]. For example, technical details on how to homogeneously sample liquid manure from a manure tank or lagoon, and on how to measure endpoints such as mineralization, amount of non-extractable residues (NER), and disappearance half-life time of parent compound (DT50 values) are not given in this regulatory guidance document [7]. Beyond that, it is insufficiently known as to whether and how certain aspects, e.g. manure storage conditions and type and origin of manure, might influence the rate of transformation.

When designing a test system for transformation of chemical substances in manure, specifics of the matrix have to be considered. Weinfurtner [9] carried out a literature study to acquire information on the variability of the composition of different types of anaerobic liquid manure with regard to species and production type, and thus to gather information on the conditions that prevail in manure storage tanks. It was concluded that in the European Union anaerobic (semi-) liquid manure is the predominant type of manure with regional variations. Furthermore, it was obvious from this literature study that the availability of data for matrix parameters of manures is highly variable. In a literature study carried out by Wohde et al. [8], only a limited number of studies on the transformation of VMPs and particularly biocides in liquid manure could be identified. Beyond that, available transformation studies showed large variations with regard to experimental setup (e.g. static, semi-static, flow-through), type and source of manure and test conditions (e.g. dry matter content, redox potential). The authors conclude that the investigated manure characterization is not accomplished sufficiently or comparably in most studies, even though manure parameters influence the results of transformation studies. Former work on laboratory transformation tests for chemicals in liquid manure focused on reference-manure samples (prepared by moistening excrement samples; e.g. [10]) and simplified experiments allowing the screening of the dissipation of a large number of active substances in manure (e.g. [11]).

Against this background, a test method to study the transformation of chemicals (VMPs and biocides) in anaerobic liquid cattle and pig manure was developed, taking into account experiences from simulation type studies on transformation in soil and in water/sediment systems (test guidelines OECD 307 [12] and OECD 308 [13]) and adapting their test design to the specific requirements of the matrix manure. Using 14C-radiolabeled test compounds, a complete mass balance can be established and different dissipation processes like primary degradation (i.e. detection, identification and quantification of parent), formation of transformation products, mineralization (i.e. to 14CO2 and 14CH4), and formation of extractable and non-extractable residues can be distinguished.

This paper describes the development of a test method for transformation studies of veterinary pharmaceuticals and biocides in anaerobic liquid manure, which was used as basis for the validation in the framework of an international ring test described by Junker et al. [14]. The development was a step-by-step procedure in which several issues were addressed.

In the first step, preliminary studies were performed with regard to manure characterization, sampling, acclimation and storage. A standardized method was developed to homogenize manure both in the manure storage tank and in the laboratory prior to performing transformation studies. This standardization was crucial to obtain reproducible results.

Subsequently, two anaerobic intra-laboratory test series with 14C-labeled compounds were performed to examine the influence of test setup (flow-through vs. semi-static, flow rate, amount of manure) on mineralization rates (test series 1) and the influence of type and origin of manure on transformation rates (test series 2).

The results and experience gained during method development, the validation ring test [14,15,16,17] and discussions at two technical workshops and several international meetings, were used to draft a test protocol on anaerobic transformation of chemicals in liquid manure [14] to provide a basis for international harmonization and standardization, e.g. in the framework of the OECD.

Methods

Manure sampling site selection

To develop a procedure for obtaining homogeneous manure samples from a tank and to get an overview on the spatial and seasonal variability of manure parameters, cattle manure was sampled from different regions and at different seasons in Germany. The manure sampling campaign was performed in 2010/2011. Cattle manure was sampled in winter (December to January; herein referred to as “winter manure”) and in summer (April to July; herein referred to as “summer manure”). In total, summer and winter manure obtained from 10 different sites were subjected to characterization. Further information is given in Table 1. Pig manure was collected from regions in Germany which are important for pig rearing. The manure was sampled in the period from November 2011 to September 2012. Three sites each in Bavaria (codes: BAY_1p, BAY_2p, BAY_3p) and North-Rhine-Westphalia (codes: NRW_1p, NRW _2p, NRW _3p) was selected. Manure temperature, redox potential and pH values were measured on-site.

Table 1 Description of below ground cattle manure sampling sites

Manure collection

Prior to collection, the liquid manure was homogenized by mixing in the respective manure storage tank. For mixing, devices either being installed in the tank or external devices were used. Mixing was performed for 1 h, independent from tank volume, and by applying the same procedure as used by the farmer prior to manure spreading. Liquid pig manure and cattle manure required different handling: pig manure was stirred immediately before sampling as separation into liquid and solid phase easily occurs, cattle manure was stirred the day before sampling. After mixing, the subsamples were collected from the tank by appropriate equipment, namely a ladle with a large beaker or a large beaker on a rope. The ladle with the beaker was put into the manure storage tank and turned slightly into various directions. Thereafter, the equipment was withdrawn from the tank and the manure filled into containers. Filling up to approximately three quarters of maximum container volume was proven to be appropriate as the volume of the manure expands due to gas, which is generated by continuous microbial activity. The containers were closed tightly allowing for expansion of gas by connecting a tube with a fermentation air lock to an outlet in the container.

To examine if a reliable and representative sampling of manure is feasible, which is a prerequisite for subsequent transformation studies, the homogeneity of manure collected according to the described sampling procedure was tested. Therefore, 10 replicates of cattle manure were sampled at the sites NRW_1c and NRW_2c each, both in winter and in summer. To also investigate differences in parameters of manure from different spatial origin, the results obtained for 10 sites (one replicate each) were subjected to COV calculation. All replicates were analyzed for the parameters dry matter content (%), ammonium nitrogen (mg/kg fw), total nitrogen (mg/kg fw), and organic carbon content (% fw).

Manure characterization

EMA [7] requires the characterization of manure at various stages of a transformation study by measuring several parameters. The following paragraphs give an overview of the determined manure parameters, the sampling regime and the standardized test methods used for measurements (for details, see also Additional file 1: Table S1).

pH value

The pH value was measured both, directly in manure after sampling at the sampling location (on-site) and in the laboratory (off-site) following a standard test method [18]. The pH values are expressed with accuracy of 0.1 units.

Redox potential

The redox potential is directly measured in manure sample after sampling on-site. The value of redox potential is expressed in mV with accuracy of 1 mV [19].

Dry matter (dm) content

Manure samples (50–80 g) were dried in an oven for at least 12 h at 105 ± 5 °C to constant mass. The mass difference of a sample before and after the drying procedure was used to calculate the dry mass content that is expressed in percentage of the fresh weight with accuracy of ± 0.1% in accordance with [20].

Loss of ignition/organic matter content

The dried manure samples were incinerated in a muffle furnace for at least 1 h at 550 ± 25 °C. The mass difference of a sample before and after incineration was used to calculate the organic matter content that is expressed in % dm with an accuracy of ± 0.1% [21].

Total organic carbon (TOC) content

Total organic carbon content was analyzed using a CHN-analyzer (vario max CHN, elementar). To remove the total inorganic carbon (TIC), the sample was acidified prior to the measurement. The carbon present in dried manure was then oxidized to carbon dioxide by heating up to at least 900 °C in an oxygen atmosphere. The released amount of carbon dioxide was measured by infrared detection. The dry matter content was used to re-calculate the data to % fresh weight (fw). The organic carbon content is expressed in % fw with an accuracy of ± 0.1% [22].

Total nitrogen content

The total nitrogen content of wet manure samples (up to 6 g) was determined by Kjeldahl digestion (Turbotherm, Gerhardt) that transfers the nitrogen containing compounds (amines, proteins) into ammonium. The total nitrogen content is expressed in mg/kg dm with accuracy of 1 mg/kg [23].

Ammonium nitrogen content

A wet manure sample (up to 5 g) was alkalized by adding of sodium hydroxide (30% solution) and was distillated using an automatic distillation apparatus (Vapodest, Gerhardt). The released ammonia was trapped in 50 mL boric acid (20 g/L). Ammonium was titrated using standard volumetric sulphuric acid solution (0.1 mol/L) and some drops of an indicator solution (mixed indicator 5, Merck). The ammonium nitrogen content is expressed in mg/kg with accuracy of 1 mg/kg [24].

Microbial activity

The microbial activity was determined by measuring the mineralization of a readily degradable 14C-labeled compound under anaerobic conditions as developed by Bickert [25] and as mentioned in EMA [7]. 14C-glucose (CAS-No.: 50-99-7, radiochemical purity 99%, specific radioactivity 9.4 GBq/mmol, American Radiolabeled Chemicals, Inc., Lot no. II0105) was used as readily degradable substance. Nine blank manure subsamples without test item were treated in analogy to the samples used for the transformation study (i.e. acclimation of manure, anaerobic/methanogenic incubation conditions, temperature, and light conditions). 3 × 3 replicates were set up as the microbial activity was tested at start and end of the transformation study, and three further replicates were kept as reserves in case the transformation study needed to be prolonged. At the start and the end of the transformation study, the manure was treated with 14C-glucose. Treatment was done by the addition of approximately 800 µL aqueous solution containing 0.8 µg 14C-glucose (concentration in stock solution 1 µg/mL; 50 kBq in 800 µL stock solution) to 50 g manure fresh weight. Thereafter, a constant, water saturated stream of nitrogen was passed over the manure at a rate of approximately 50–100 mL/min. Incubation of manure fortified with 14C-glucose was for 7 days. After 7 days, NaOH-containing traps to measure mineralization were removed and radio-counted for trapped 14CO2 and 14CH4 (see under “incubation systems”). The removed traps were replaced by freshly filled traps. Thereafter, the manure subsamples were treated by addition of 10 mL 10% HCl to strip potentially dissolved CO2 (or HCO3/CO32−). After addition of 10 mL 10% HCl, the incubation vessels were closed again and nitrogen was passed over for 3 h. Samples were not stirred to avoid foaming. After 3 h, NaOH-filled traps were removed and radio-counted for additionally trapped 14CO2. The amount of formed 14CO2 and 14CH4 after 7 days of 14C-glucose incubation was used as a measure of the biological activity of the manure at that respective stage of the transformation study.

Storage of manure

After sampling and before starting a transformation study, it is necessary to store the manure in the laboratory. Therefore, experiments were performed to identify suitable storage conditions. This was achieved by storing liquid cattle manure at different conditions and subsequently testing the microbial activity of the manure by measuring 14C-glucose mineralization 7 days after treatment (DAT) (see “Microbial activity” section). The results obtained for storage periods of 0 days (fresh manure), 28 days, 63 days, and 105 days and temperatures of + 4 °C and + 20 °C after an acclimation period of 21 days were compared.

Anaerobic/methanogenic conditions were ensured by first passing nitrogen over the liquid manure and thereafter closing the container. Care had to be taken to allow gas, generated by biological activity during storage, to expand in order to avoid bursting of the storage container.

Manure acclimation

Prior to use for testing purposes, freshly collected or stored manure needs to be acclimated to the conditions under which the transformation study is going to be performed. This means the manure is filled into vessels to be acclimatized for a certain time period under anaerobic conditions at 20 ± 2 °C in semi-static or flow-through systems. By acclimation for 3 days and 21 days, respectively, and a subsequent determination of the microbial activity of the manure, the influence of the duration of the acclimation period was investigated. Prior to acclimation, the manure was either freshly collected or stored for 56 days at + 4 °C, + 20 °C and − 20 °C (the latter for one replicate only). The microbial activity was tested by determining the mineralization of 14C-glucose after its incubation period of 7 days.

Transformation studies setup

Two VMPs and one biocide were used to examine the feasibility of the suggested test design, and the influence of manure of different type and origin on transformation rates and routes. To cover the most diverse set of different manures concerning origin, period stored in the tank and matrix parameters, such manure sampling sites were chosen which represented different geographic locations, and summer (April to November) and winter (December to March) manures (cf. Additional file 1: Tables S2 and S3 for details on manure characterization).

Test series and test substances

Two test series of transformation studies were run, which required the use of exemplary test substances. These test substances were selected from VMPs and biocides authorized for use in animal farming. Besides, regulatory relevance compounds were chosen based on the following selection criteria: the substances should not degrade immediately after application (e.g. DT50 < 1 day) to allow for feasible and reproducible sampling; the substances should not be persistent, which would result in a prolonged test period or lack of kinetic information; degradation should mainly be based on biological processes; requirements for chemical analyses should not be unreasonably high; the substances should be available as 14C-labeled compound and the position of the 14C-label should enable the detection of main transformation products.

Whereas non-labeled or labeled test chemicals can be used to measure the rate of dissipation of the parent compound, 14C-radiolabeled material is required for studying the pathway of transformation, for quantifying CO2- and CH4-formation, formation of NER, screening for and quantification of transformation products and for establishing a mass balance. In addition, if a non-labeled test chemical is used, a background control or blank sample has to be analyzed, to exclude the presence of the test chemical or to quantify a possible background concentration of the test chemical in the manure.

The first test series studied the influence of the test system setup on the mineralization rate of 14C-salicylic acid (CAS-No. 69-72-2; radiochemical purity 99.0%; specific radioactivity 4.0 MBq/mg; American Radiolabeled Chemicals, Inc.; Lot nos. IO1112, ARC 0287). Tested experimental setups were (i) use of a flow-through system (that means, continuously passing nitrogen over the manure samples) compared to use of a semi-static system (that means intermittently passing nitrogen over the manure samples); (ii) slow flow rate (constant stream of nitrogen of 50–200 mL/min) compared to fast flow rate (> 200 mL/min) in a flow-through system; (iii) incubation of 50 g manure compared to 300 g manure in a flow-through system. Half-life times of mineralization rates (DT50 MIN) were calculated as endpoints based on the formation of 14CO2 and 14CH4. Besides, the mass balance (recovery) at the end of the transformation study was determined and served as a quality check.

The second test series examined the influence of type and origin of manure on the transformation rate of 14C-salicylic acid, 14C-paracetamol (CAS-No. 103-90-2; radiochemical purity 99.2%; specific radioactivity 18.8 MBq/mg; American Radiolabeled Chemicals, Inc.; Lot no. 153-064-077-A-20080611-DR) and a radiolabeled biocide (“biocide B”; the identity was classified as confidential by the owner of the substance; radiochemical purity > 99.0%; specific radioactivity 4.44 MBq/mg).

The test conditions used for the transformation studies in test series 1 and 2 are described in the following paragraphs and are summarized in Tables 2 and 3, respectively.

Table 2 Summary of test conditions used for transformation studies to investigate the influence of test setup on mineralization rates of 14C-salicylic acid in cattle and pig manure (Test series 1)
Table 3 Summary of test conditions used for transformation studies to investigate the influence of type and origin of manure on transformation rates (Test series 2)

Preparation of manure

Before performing the transformation test, the manure was acclimated to test conditions. Prior to the start of the acclimation period, the dry matter content of the manure was determined and adjusted to standardized values. The recommended dry matter content in cattle and pig manure is 10% ± 1% and 5% ± 1%, respectively [7]. If the dry matter content of the original manure was below the recommended value, it was concentrated by careful centrifugation for 10 min at 740×g. However, centrifugation does not only mean a removal of water but also of DOC and micro-organisms. Thus, the initial dry matter content should not be below 8% (cattle) or 3% (pig). If this was not the case, fresh manure was collected. If dry matter content is too high, water (de-ionized water, bubbled with nitrogen for 30 min) was added as needed. Pig manure was homogenized by using a knifetec mill (or similar apparatus) under anaerobic conditions (i.e. by gently passing a nitrogen stream over the manure while mixing) prior to adjustment of the dry matter content in order to obtain a fairly stable phase.

After the adjustment of the dry matter content, manure was homogenized and subsamples were directly filled into the incubation vessels, which were used both for manure acclimation phase and the transformation study itself. Pig manure was homogenized under anaerobic conditions by thoroughly mixing as described above. Cattle manure was homogenized by gently mixing using a glass bar and no additional measures to prevent introduction of oxygen were used during homogenization and filling into incubation vessels. This was not necessary because minor amounts of introduced oxygen were easily consumed by the microbial population.

Incubation systems

Transformation tests were conducted either in a flow-through or semi-static system. The flow-through apparatus was a gas tight system of incubation vessel and traps set in sequence. Humidified nitrogen was gently passed over the liquid manure subsamples at flow rates of 50–200 mL/min (“slow-flow”) or—as an also tested alternative—of > 200 mL/min (“fast flow”). First, the nitrogen was bubbled through water to humidify the gas. Thereafter, the humidified gas was passed over the manure subsamples. Six replicates were run. Once the gas has passed over the incubation flask, it was bubbled through two adsorption traps in sequence containing 2 M NaOH serving to sorb the evolving 14CO2. Since the formation of 14CH4 was expected in such an anaerobic system, the gas was furthermore passed through an oven at 850 °C. 14CH4 was catalytically (CuO-catalyst + O2 feeding to the tube) converted to 14CO2, which again was trapped in a third NaOH trap. Frequently, i.e. at sampling and 14-day intervals, respectively, NaOH-containing traps were removed and radio-counted for trapped 14CO2. The removed traps were replaced by freshly filled ones. At sampling, the manure subsamples were additionally treated by addition of 10 mL 10% HCl to strip potentially dissolved CO2 (or HCO3/CO32−). After addition of 10 mL 10% HCl the incubation vessels were closed again and nitrogen was passed over for 3 h. Stability of the test substances against acidic hydrolysis was tested before. To verify whether the radioactivity captured in the NaOH traps 1 and 2 is 14CO2 and not from potentially also formed volatile fatty acids (VFA), Ba14CO2 precipitation of the radioactivity was conducted. This was done by first radio-counting the solutions in NaOH traps 1 and 2. Thereafter, 20 mL 0.25 M BaCl2 was added to 10 mL aliquots of NaOH trapping solution from traps 1 and 2 each. Precipitation of Ba14CO2 occurred. Vessels were shaken, centrifuged and the supernatant was again radio-counted. The radioactive content in the supernatant after precipitation can be attributed to VFAs whereas the difference of radioactive content before precipitation minus radioactive content after precipitation can be attributed to evolved 14CO2.

The setup for the semi-static system was in principle the same as for the flow-through system with the only exception of valves set before the incubation vessel and at the outlet of the second NaOH-containing trap. Subsamples of the manure were filled into the incubation vessels. For a period of 1 h, a gentle stream of nitrogen was passed over the manure to exclude air from the system. After flushing with nitrogen, the system was closed by closing the two valves. Periodically, e.g. once a week, the system was flushed for 3 h by passing a gentle stream of nitrogen over the manure samples. Formed 14CO2, 14CH4 and VFA were trapped directly or after conversion to CO2 and quantified as described for the flow-through apparatus.

Test conditions

During the whole test period, the manure samples were incubated in the dark at 20 ± 2 °C. Typical environmental temperatures observed in manure tanks are 10 °C for central/northern European countries [9]. In other regions, different temperatures might be considered typical. Therefore, results from laboratory tests (e.g. DT50 values) might have to be converted to environmentally relevant temperatures [26]. As stored liquid manure was found to be anaerobic/methanogenic (i.e. redox potentials ranging from − 230 to < − 400 mV [9]), tests were conducted under anaerobic conditions, as demonstrated by measured redox potentials (Eh) ≤ − 100 mV throughout the test.

Abiotic controls (sterile samples)

For information on the abiotic transformation of the test substance, sterile controls were included. Sampling of sterile controls was at the end of the transformation study. Manure was sterilized by autoclaving twice for 15 min at 121 °C (Systec DX-65 Autoclave). To avoid foaming, vessels were pre-heated overnight at 100 °C in a drying cabinet. The application solution was sterilized by passing over a sterile filter. Application of the test substance was under sterile conditions using a clean-bench. Thereafter, flasks were closed and kept closed carefully. Applied samples were incubated without connecting to the flow-through system. As no evolution of 14CO2 or 14CH4 was expected, samples were locked gastight until sampling.

Treatment with test substance

The required volume of stock solution of the test item was pipetted into the manure under simultaneous stirring using the pipette tip. The pipette tip was left in the manure sample after application to avoid any losses since manure always sticks to the tip. Rinsing with water would have decreased the dry matter content of the sample and the tip is assessed to be inert.

0.02 mg 14C-salicylic acid (75 kBq) plus 1.18 mg unlabeled salicylic acid were dissolved in 3 mL ultrapure water containing 0.05% methanol and applied to 50 g manure fresh weight. For the test series using 300 mg fresh weight manure, 0.12 mg 14C-salicylic acid plus 7.08 mg unlabeled salicylic acid were used. Thus, the final concentration was 24 mg salicylic acid/kg manure fresh weight.

0.004 mg 14C-paracetamol (75 kBq) plus 1.196 mg unlabeled paracetamol were dissolved in 5 mL ultrapure water containing 0.05% acetonitrile and applied to 50 g manure fresh weight. Thus, the final concentration was 24 mg paracetamol/kg manure fresh weight.

0.02 mg 14C “biocide B” (75 kBq) plus 0.03 mg unlabeled “biocide B” were dissolved in 7 mL ultrapure water containing 0.05% acetonitrile and applied to 50 g manure fresh weight. Thus, the final concentration was 1 mg biocide B/kg manure fresh weight.

Test duration and sampling

Test duration depends on the rate of transformation of the parent compound and transformation products. Sufficient sampling time points were included to unambiguously derive all required (kinetic) parameters for parent substance and transformation products. Six replicate incubation vessels were sacrificed per sampling point. This was needed to obtain a reliable data base for statistical analyses.

In the first test series, which investigated the influence of the test system setup (amount of manure, flow-through vs semi-static conditions, flow rate) on the mineralization rate of 14C-salicylic acid, sampling of NaOH containing traps was at 3, 7, 14, 29, 35, 42, 49, 56, 63, 70, 79 and 91 days after treatment (DAT) (cattle manure), and 3, 7, 14, 21, 29, 35, 42, 49, 56 and 63 DAT (pig manure).

In the second test series, which investigated the influence of manure of different type and origin on the transformation rate and route of 14C-salicylic acid, samples were incubated for 0 h, 3 days, 7 days, 14 days, 21 days, 28 days, and 35 days. Abiotic controls (sterile samples) were also incubated and taken at the end of the study. Samples treated with 14C-paracetamol were incubated for 0 h, 7 h, 1 day, 3 days, 7 days, 14 days, and 28 days (cattle manure and pig manure, BAY_2p). Pig manure samples from the sites NRW_1p and NRW_2p were incubated for 0 h, 1 day, 3 days, 7 days, 14 days, 28 days, and 41 days. Abiotic controls were sampled at the end of the study that was at 28 DAT and 41 DAT, respectively. Manure samples spiked with “biocide B” were incubated for 0 h, 7 days, 21 days, 42 days, 63 days, 84 days, and 105 days. Abiotic controls were sampled at 86 DAT.

Clean-up of manure samples

At sampling, the manure subsamples were sacrificed by removing the vessels from the incubation system and cleaned-up directly after sampling without storage. Extraction was done by the use of appropriate solvents (e.g. methanol, acetonitrile) depending on the properties of the test substance. For details on the extraction procedure, see Hennecke et al. [15]. The extraction was achieved by the addition of a sub-portion of the first extraction solvent to the incubation vessel, gently shaking the mixture and transferring it into a centrifuge tube. This procedure was repeated until the complete manure was removed from the incubation vessel. The manuresolvent mixture was shaken for 30 min. Thereafter, the mixture was centrifuged for 10 min at 739×g. The supernatant, i.e. the first extract, was collected. Further extraction solvent was added to the pellet. The whole process was repeated twice. Extracts 1–3 were combined, counted for their radioactivity content (by liquid scintillation counting of an aliquot) and subjected to substance-specific analysis; in this case, thin-layer chromatography with radio-detection and co-chromatography of the labeled parent compound.

The residual solvent was allowed to evaporate from the manure pellet at room temperature. Aliquots were quantified by combustion and radio-assaying the evolved 14CO2. In case non-extractable residues (NER) exceeding 10% aR are observed, further extraction methods should be applied additionally. These methods comprise, e.g. pressurized liquid extraction (e.g. ASE®), reflux, soxhlet, etc. with appropriate solvents. Usually, these solvents are identical to those used in the first extraction steps. According to experiments performed prior to the main tests, it is advisable to apply the harsh extraction twice in order to exhaustively extract the residues. In case the amount of radioactivity exceeds 5% aR the extract should be subjected to substance-specific analysis. However, in the course of the research project, ASE® was applied occasionally only to check the potency of the extraction procedure. Residues remaining after the last extraction step (non-extractable residues, NER) were quantified by combustion and radio-assaying the evolved 14CO2.

Establishment of mass balance

A mass balance was determined and calculated for each sampling interval. This was done by radio-counting the phases and summing up the amount of radioactivity given in (% of applied radioactivity; % aR) in the aqueous/organic extracts plus ASE® plus volatiles other than 14CO2 plus 14CO2 and 14CH4 plus non-extractable residues (NER).

Calculation of half-lives

In the first test series on the influence of the test system setup on the mineralization rate of 14C-salicylic acid, mineralization half-lives (expressed as DT50 MIN values, i.e. values for the time needed for the formation of half of maximum theoretically achievable 14CO2 plus 14CH4) were calculated by means of the KinGUI software tool [27] and using the SFO (Single First Order) kinetic model.

In the second test series, compounds were analyzed based on the recommendation of the Forum for the Co-ordination of pesticide fate models and their Use (FOCUS) work group on degradation kinetics [28]. In addition to the SFO kinetic model, HS (Hockey stick), DFOP (Double first order in parallel), and FOMC (First-order multi-compartment) kinetics were used to calculate the time needed for disappearance of 50% (DT50 value) and 90% (DT90 value) of the parent and transformation products, if appropriate, by means of the KinGUI-software tool [27]. χ2 values were used to evaluate the goodness of fit for all different kinetic models and a visual check of the graphs of all models was performed. According to FOCUS [26], χ2 values < 15% indicate that the respective model is well suited to explain the observed data.

Statistical analyses

Statistical analysis was performed by calculating arithmetic means including standard deviation and coefficient of variation (COV). In addition, testing on homogeneity of variances (Levene’s test [29]; α = 5%) and testing on equal central moments (Mann–Whitney U test; α = 5%) were performed to test the influence of storage conditions (temperature and duration of storage in the laboratory) and duration of manure acclimation period on microbial activity of manure, as well as the variability of manure matrix parameters, and the influence of the origin of manure on substance transformation.

Results and discussion

Spatial and seasonal variability of manure parameters

Figure 1 presents an overview on the variability of each manure parameter. Individual values can be found in Additional file 1: Table S4 (cattle manure, winter), Table S5 (cattle manure, summer) and Table S6 (pig manure).

Fig. 1
figure1

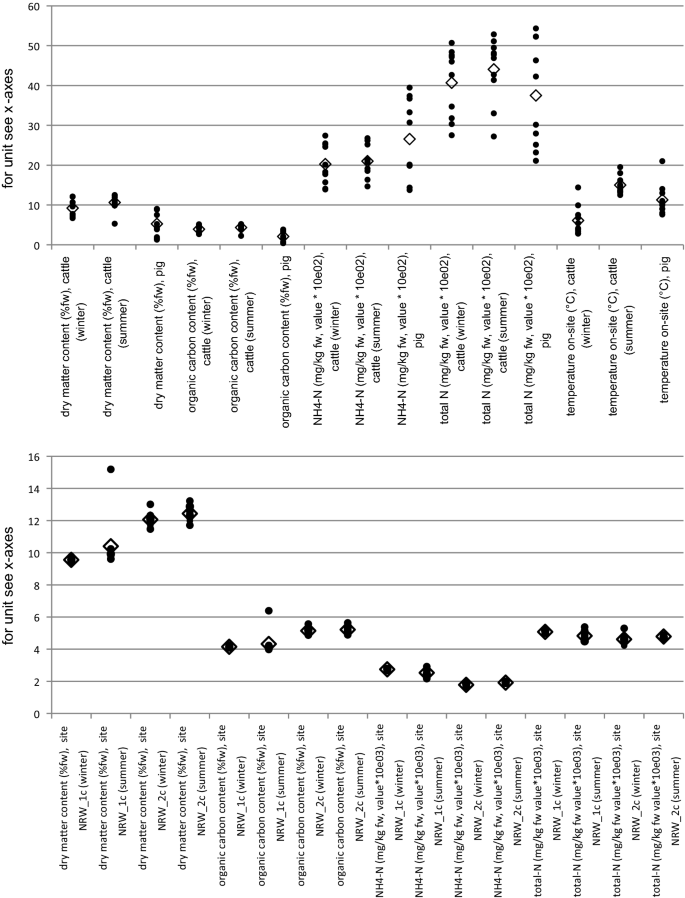

Variability of samples from 10 sites (above) and variability of subsamples from 2 sites (below). Above: Single values (10 different manure samples per parameter; dots) as well as arithmetic means (open squares) for cattle manure sampled in winter 2010/2011, cattle manure sampled in summer 2011, and pig manure sampled in the period November 2011 to September 2012. Please notice the y-axes for NH4-N and total N are (value * 10E002). Below: Single values (10 replicates per site and parameter; dots) as well as arithmetic means (open squares). Please notice the y-axes for NH4-N and total-N are (value * 10E002)

Arithmetic mean values of the dry matter content in cattle manure sampled in winter and summer, respectively, is 9.2% (coefficient of variation, COV 23%) and 10.6% (COV 20%). In pig manure, the mean is 5.2% (COV 60%). The measured mean values are in-line with the EMA guidance document on determining the fate of veterinary medicinal products in manure [7]. Therein, a dry matter content of 10% ± 1% and 5% ± 1% for cattle and pig manure to be used for testing purposes is laid down (cf. paragraph 2.3.3).

The mean organic carbon content is 3.9% fw (cattle, winter), 4.3% fw (cattle, summer) and 2.1% fw (pig). Corresponding COVs are 22%, 20% and 63%, respectively. The determination of NH4-N resulted in means of 2020 mg/kg fw (cattle, winter), 2100 mg/kg fw (cattle, summer), and 2650 mg/kg fw (pig); COVs are 25%, 19% and 38%, respectively. Furthermore, total nitrogen content was measured and gave amounts of 4070 mg/kg fw (cattle, winter), 4400 mg/kg fw (cattle, summer) and 3750 mg/kg fw (pig) with COVs of 21%, 19% and 35%, respectively. For cattle manure sampled in winter 2010/2011, the mean value for the temperature measured in the below ground manure storage tanks is 6.1°C (COV 61%). For cattle manure sampled in summer, the mean temperature is 15.0°C (COV 15%), and for pig manure, it is 11.3°C (COV 35%).

The COVs can be seen as a measure to describe the influence of regional and temporal conditions on manure parameters: the lower the COV, the lower the influence is. COVs of cattle manure parameters sampled in winter are in the range of 2125% whereas values of cattle manure sampled in summer are in the range of 1920%. Generally spoken, COVs are relatively low indicating weak influences of regional conditions. Although these influences are slightly higher in winter, the differences are supposed to represent the natural variability of manure parameters. COVs of pig manure parameters are higher than those of cattle manure and range between 35 and 63%. Thus, influences of regional conditions are more pronounced in pig manure. This might be explained by the pig manure texture, which is more heterogeneous and contains more extraneous materials (e.g. litter, feed, larvae). Furthermore, arithmetic mean values of pig manure parameters are lower in all cases compared to those obtained for cattle manure. This indicates significant species-dependent differences. These conclusions are in line with the EMA guidance document on determining the fate of veterinary medicinal products in manure [7] where it is stated that “for pragmatic reasons, manure within the same animal species, i.e. pigs, cattle and poultry is considered to be comparable”. Thus, extrapolation of transformation study results from one species to another is not possible. Testing of each target species is needed.

Homogeneity of sampling

The homogeneity of the described sampling procedure was investigated by evaluation of 10 replicates of cattle manure sampled at two sites, both in winter and in summer (n = 40). Table 4 gives an overview on means, standard deviation and COV for all analyzed parameters (individual data for replicates are available in Additional file 1: Tables S7–S10).

Table 4 Homogeneity of sampling: results for 10 replicates per sampling site

COV for all parameters of 10 replicates sampled in winter at sampling site NRW_1c are very low (1.1–1.5%). For that sampling site, variation is higher for manure sampled in summer (COV 6.2–17.0%), which indicates a more heterogeneous distribution of summer manure within the storage tank compared to winter manure. In contrast, variations between the 10 replicates sampled at site NRW_2c are somewhat higher compared to winter manure at site NRW_1c. On the other side, differences in COVs between winter manure (3.5–6.2%,) and summer manure (1.8–4.1%) at site NRW_2c are low. This indicates an even distribution of manure in the storage tank both, for manure sampled in summer and in winter.

Overall, COV regarding manure parameters between 10 replicates of sampling are low. Therefore, it can be concluded that the sampling methodology described in “Methods” section yields homogeneous manure samples, and thus is a suitable procedure to sample manure for testing purposes. In contrast, variation of parameters for cattle manure samples from different regional origin is consistently much higher in both summer and winter (COV range 19–25%; cf. Additional file 1: Tables S4 and S5) compared to samples taken from the same manure tank (COV range 1.2–17.0% NRW_1c; 1.8–6.2%, NRW_2c, Table 4). In summary, a practicable and reproducible method to collect homogenous manure samples could be established, which is a major achievement and a prerequisite for conducting reproducible transformation studies.

Influence of storage duration and temperature in the laboratory on microbial activity of manure

Once the manure has been collected from the storage tank, it is transferred to the laboratory where further storage might be necessary until the manure is used for a transformation study. The influences of storage duration and temperature on the microbial activity of the manure were examined as described in “Methods” section on “storage of manure”. When using fresh manure (directly after collection from the manure tank plus an acclimation period of 21 days), 14C-glucose mineralization ranged between 63 and 70.5%. It increased to 93% and 105% after 28 days storage at 4 °C and 20 °C, respectively. At longer storage periods, 14C-glucose mineralization rates again decreased to 47–88% (63 days storage; 4 °C, 20 °C) and 42–58% (105 days storage; 4 °C, 20 °C) indicating a loss of microbial activity (see Additional file 1: Table S11 for individual mineralization rates; values presented in the text are mean values). Based on the results, it is recommended to store manure not longer than 2 months under anaerobic conditions in the lab before testing. The experiments further showed that an influence of the storage temperature on the results cannot be excluded. In general, mineralization at 20 °C was higher than at 4 °C. Beyond that, variability between replicates was higher at a storage temperature of 4 °C compared to 20 °C. Therefore, it is recommended that manure should be stored in the laboratory preferably at test temperature.

Influence of duration of manure acclimation period on microbial activity of manure

14C-glucose mineralization rates for acclimation periods of 3 days and 21 days are different. A longer acclimation period seems to improve microbial activity. Independent from storage temperature, a mean mineralization rate of 43.0% ± 10.8% is observed after a 3-day acclimation period. After 21 days of acclimation, the mean mineralization rate amounts to 64.9% ± 8.8% (see Additional file 1: Table S12 for individual mineralization rates). Furthermore, variability of the results was lower after 21 days of acclimation (COV 13.5%) compared to 3 days of acclimation (COV 25.2%).

The acclimation period (and the previous storage conditions) should help to obtain reproducible results under conditions as realistic as possible taking into account several factors: the results of different experiments should be comparable (e.g. matrix heterogeneity should be reduced during storage/acclimation by transformation of readily degradable organic constituents); anaerobic conditions should be established after sampling; different storage conditions (e.g. duration and temperatures) prior to acclimation should be balanced; the manure should show a sufficient microbial activity to have the potential for biodegradation of the test substance.

Thus, it is recommended to have an acclimation period of 21 (± 1) days in order to ensure a viable biological system simulating the conditions in an anaerobic liquid manure storage tank.

Influence of incubation system design on mineralization rates of 14C-salicylic acid in cattle and pig manure (test series 1)

Flow-through vs semi-static conditions

Figure 2 shows the formation of 14CO2 plus 14CH4 by transformation of 14C-salicylic acid in cattle and pig manure incubated in the flow-through and the semi-static system for 6 replicates which were run in parallel.

Fig. 2
figure2

Formation of 14CO2 plus 14CH4 (% aR) by transformation of 14C-salicylic acid. 50 g cattle and pig manure were incubated in the flow-through system (constant stream of nitrogen at 50–200 mL/min) and the semi-static system (intermittent stream of nitrogen). Results for 6 replicates per sampling (dots) and mean values (open squares) are given

A visual check of the graphs indicates lower mineralization rates in the semi-static systems for both cattle and pig manure. This is confirmed by DT50 MIN values (see Additional file 1: Table S13 for details): Medians are 32.2 days (flow-through) and 41.5 days (semi-static), respectively, measured in cattle manure, and 19.0 days (flow-through) and 23.6 days (semi-static) in pig manure. Lower mineralization rates in the semi-static system might be attributed to incomplete 14CO2 and 14CH4 purging at samplings other than the last one. At the last sampling, the manure subsamples were further treated by addition of 10 mL 10% HCl to completely strip potentially dissolved CO2. Mass balances at the end of the study are in the range of 89.7% aR to 96.4% aR (data not presented in this paper).

Thus, a recommendation for a suitable test setup depends on the test substance properties such as volatility and anticipated mineralization rate: a semi-static test design should be used as it mimics the situation in a manure storage tank, and—from an experimentally point of view—losses of volatile transformation products including CO2 are mostly avoided. A flow-through design might also be used for substances which show no or only low mineralization. These recommendations are supported by the results of test series 2 as presented below, and are furthermore in agreement with conclusions, which have been drawn from the ring test results [14].

Flow rate

DT50 MIN values for the transformation of 14C-salicylic acid incubated under slow flow and fast flow conditions (flow-through system) are comparable (cf. Additional file 1: Table S13 for detailed data). This is observed for both types of manure. Medians of DT50 MIN values are 47.5 days (slow flow) and 50.2 days (fast flow), respectively, measured in cattle manure, and 14.6 days (slow flow) and 14.2 days (fast flow) in pig manure. Recoveries at the end of the incubation period are found to be in the range of 89.0 to 105.0% aR (data not presented in this paper). Thus, the flow rate does not influence the results of the transformation study and can be selected according to system’s needs.

Amount of incubated manure (50 g vs 300 g, flow-through system)

Lower mineralization rates for both types of manure are observed in case 300 g manure is used.

Observed DT50 MIN values (medians) are 47.5 days (50 g) and 62.4 days (300 g) measured in cattle manure, and 14.6 days (50 g) and 26.5 days (300 g) in pig manure (see Additional file 1: Table S13 for details). Mass balances at the end of the study are in the range of 82.2% aR to 98.2% aR (data not presented in this paper).

Based on the available information, one possible explanation could be that it is more difficult to strip out all potentially dissolved 14CO2 when using higher amounts of manure (i.e. a longer time period and/or additional bubbling with nitrogen might be necessary to strip out 14CO2). While an amount of 300 g manure might be more representative for the conditions in a manure storage tank, 50 g manure subsamples are more easily to be handled in routine laboratory practice. This also reduces the amount of expensive 14C-radiolabeled test substance and saves organic solvent needed for extraction compared to a 300 g subsample weight.

Summarizing remarks

Regardless of the modifications of the study design, transformation of 14C-salicylic acid is faster in pig manure compared to cattle manure. One potential reason might be the faster distribution of the test substance in pig manure due to the lower viscosity. However, other reasons (e.g. species-specific differences on microbial community level) cannot be ruled out. This emphasizes the need to test manure of each target species separately. As the test design might influence the results obtained in a transformation study guidance and recommendations are needed taking into account the conditions in a manure storage tank, feasibility considerations and substance properties. This is true for the amount of manure tested as well as the selection of a flow-through or semi-static test system. The flow rate does not influence the test results.

Studies on transformation of 14C-salicylic acid, 14C-paracetamol and 14C-“biocide B” in cattle and pig manure of different origin (test series 2)

Besides radioactivity distribution and mass balances, the disappearance time for 50% (DT50) of the parent compound was also determined in test series 2.

Extractable residues, NER, mineralization and mass balance

Figures 3, 4 and 5 present arithmetic mean values for total recoveries, extractable and non-extractable residues, and mineralization rates of the three substances over the entire test period for manure of both animal types. Mean values are calculated from three (six) experiments per animal type and six replicates per experiment. Mean values, standard deviation and COVs of the mentioned endpoints can be downloaded as Additional file 1: Tables S14 to S19.

Fig. 3
figure3

Radioactivity distribution for transformation of 14C-salicylic acid in cattle (above) and pig (below) manure. Values are arithmetic mean values obtained from six experiments (cattle manure; three sites: NRW_1, NRW_2, BAY_1; sampling in winter and summer) and three experiments (pig manure; three sites: NRW_1, NRW_2, BAY_1) and six replicates per experiment. For standard deviation and COV, see Additional file 1: Tables S14 (cattle) and S15 (pig)

Fig. 4
figure4

Radioactivity distribution for transformation of 14C-paracetamol in cattle (above) and pig (below) manure. Values are arithmetic mean values obtained from three experiments for both animal types (three sites: NRW_1, NRW_2, BAY_1) and six replicates per experiment. For standard deviation and COV, see Additional file 1: Tables S16 (cattle) and S17 (pig)

Fig. 5
figure5

Radioactivity distribution for transformation of 14C-biocide B in cattle (above) and pig (below) manure. Values are arithmetic mean values obtained from three experiments for both animal types (three sites: NRW_1, NRW_2, BAY_1) and six replicates per experiment. For standard deviation and COV see Additional file 1: Table S18 (cattle) and Additional file 1: Table S19 (pig)

For 14C-salicylic acid (Fig. 3) tested in cattle and pig manure, the amount of extractable radioactivity significantly descends in the course of the incubation period and reaches 30.3 ± 16.7% aR and 6.6 ± 3.1% aR for cattle and pig manure, respectively. Formation of non-extractable residues is modest and amounts to 11.3 ± 2.3% aR (cattle) and 10.5 ± 2.4% aR (pig). Thus, NER formation is comparable for both animal species whereas the decrease in extractable residues is more pronounced in pig manure. The latter indicates a faster test substance transformation in pig manure.

This observation is also made for mineralization. At termination of the study, the amount of 14CO2 + 14CH4 is 55.1 ± 11.9% aR (cattle) and 61.6 ± 4.8% aR (pig), respectively. These high mineralization rates are accompanied by high coefficients of variation (COV), which are in the range of 21.5–46.8% (cattle) and 7.8–72.0% (pig) throughout the studies. As the flow-through system was used, a periodical exchange of NaOH-containing traps and thus opening of the incubation apparatus was necessary. Such operation might have resulted in losses of gaseous compounds in several of the subsamples, which led to variations of trapped 14CO2 and 14CH4. This can be avoided by the use of a semi-static system, which is strongly recommended in case of expected high mineralization rates. The selection of an appropriate incubation system depending on substance properties has been discussed above under the aspect of an influence of test design on the results of transformation studies. Similar experiences were made by the participants of the ring test [14]. This led to the respective recommendations on an appropriate test design as laid down in the suggested test method on transformation of VMPs and biocides in liquid manure [14].

Mean values for total recoveries are in the range of 93.5–105.5% aR (cattle) and 75.2–100.2% aR (pig). COVs vary between 4.4 and 11.0% (cattle) and 4.9–12.6% (pig). Low total recoveries in pig manure are supposed to be attributed to losses of mineralization products as already discussed above.

In transformation studies with 14C-paracetamol (Fig. 4), the amount of extractable radioactivity continuously decreases in the course of the incubation period to reach 57.3 ± 5.0% aR (cattle) and 36.3 ± 7.1% aR (pig) by the end of the experiments after 28 days. During this period, formation of NER steadily increases up to 23.8 ± 4.9% aR (cattle) and 31.1 ± 4.4% aR (pig). In parallel, an increase of mineralization products (14CO2 + 14CH4) is observed. The sum of 14CO2 + 14CH4 is 17.9 ± 1.5% aR (cattle) and 23.7 ± 4.7% aR (pig) at the end of the test. Thus, mineralization and the decrease of extractable residues during the incubation period are more pronounced in the studies performed with pig manure.

Total recoveries range between 97.7 and 101.0% aR (cattle), and 91.4 to 103.0% aR (pig).

The amount of extractable residues decreases in the course of the transformation study with 14C biocide B (Fig. 5), and is 52.6 ± 6.0% aR (cattle) and 53.6 ± 5.3% aR (pig) after 105 days of incubation. Vice versa, the amount of non-extractable residues steadily increases up to 44.7 ± 4.3% aR (cattle) and 42.1 ± 5.4% aR (pig). No final mineralization is observed. Total recoveries range between 97.3 and 102.3% aR (cattle), and 88.3 to 99.1% aR (pig). Worth mentioning is the comparability of the substance behavior in manure of both animal types, which is different from the other test substances.

Mass balance as quality criterion

As a quality criterion in OECD test guidelines 307 [12] and OECD 308 [13], a mass balance/recovery in the range of 90–110% for labeled chemicals and of 70–110% for non-labeled chemicals is given. However, due to the more complex and heterogeneous matrix manure, a mass balance of ≥ 90% for 14C-labeled compounds might not be achievable in all cases. The range for labeled compounds was selected based on the results of this study and on frequency distributions of mass balances from ring test results with cattle and pig manure. 88–93% of 14C-mass balances were within 100 ± 15% aR, whereas only 60–86% of mass balances were in the range 100 ± 10% aR [14]. Consequently, a quality criterion of 100 ± 15% aR for mass balance is proposed, taking into account the specifics of the manure matrix.

Summarizing remarks

Arithmetic mean values, SD and COVs have been determined based on the data on extractable residues, NER and mass balance from all experiments with manure from one animal species each but of different temporal and regional origin. A detailed overview on all results is shown in Additional file 1: Tables S14 to S19. It is worth noting that COVs for six replicates of one sampling site in comparison to COVs for mean values of all sites are within the same range for both cattle and pig manure. This implies that using manure from different origins lies within the variability for the test. Differences in the results between animal species (cattle or pig) were observed. These results support the EMA guidance [7] to test each target species of the veterinary pharmaceutical product.

Kinetic evaluation of test substance dissipation (DT50 values)

Transformation of 14C-salicylic acid was studied in cattle manure sampled in winter and in summer as well as in pig manure sampled in March to June. For both types of manure, sampling was at three different sites named as NRW_1c, NRW_2c, and BAY_2c for cattle manure and NRW_1p, NRW_2p, and BAY_2p for pig manure. Six replicates per transformation study were analyzed, and results discussed herein are arithmetic means and standard deviation obtained for these replicates. Although in some cases χ2 values slightly above 15 were observed, the SFO model proved to yield the overall best fit based on χ2 values and visual assessment, compared to HS, FOMC and DFOP models. Therefore, all kinetic evaluations were performed using SFO kinetics.

Figure 6 shows mean DT50 values of parent for the transformation in cattle manure in the range of 3.6 days to 27.9 days. Standard deviations range between 0.1 and 10.3 days. Coefficients of variation are in the range of 3–46%. Dissipation in pig manure is faster compared to that in cattle manure. The range of mean DT50 values of parent is 3.9–7.2 days. Standard deviations range between 0.3 and 0.8 days; coefficients of variation are between 7 and 11%. The range of standard deviation and coefficients of variation are narrower for pig manure compared to cattle manure. The detailed information on DT50-values for parent for all replicates, sampling sites in summer and in winter and both species are shown in Additional file 1: Tables S20 to S22.

Fig. 6
figure6

DT50 values for transformation of salicylic acid (above), paracetamol (middle) and biocide B (below). Transformation in cattle (index_c) and pig (index_p) manure of different origin. Results for 6 replicates per transformation study (dots) and mean values (open squares) are given

Transformation of 14C-paracetamol was studied in cattle manure (sampled in July and August) and in pig manure (sampled in November, February and March). For both types of manure, sampling was at three different sites, namely NRW_1c, NRW_2c, and BAY_2c (for cattle manure) and NRW_1p, NRW_2p, and BAY_2p (for pig manure). Six replicates per transformation study were analyzed. DT50 values of parent for the transformation in cattle manure are in the range of 9.4–16.3 days. Standard deviations are between 1.1 and 1.4, coefficients of variation between 9 and 12%. Means of DT50 values of parent obtained in pig manure are somewhat lower. They are in the range of 4.8–7.2 days. Standard deviations range between 0.5 and 1.6 days, coefficients of variation between 8 and 23%. Individual DT50 values of parent and means are presented in Fig. 6. The detailed information on all individual DT50 values for parent are presented in Additional file 1: Tables S23 and S24.

Transformation of 14C-biocide B also was studied in cattle manure (sampled in July, August and November) and in pig manure (sampled in June and July). As for the other tested chemicals, sampling was at three different sites, NRW_1c, NRW_2c, and BAY_2c (for cattle manure) and NRW_1p, NRW_2p, and BAY_2p (for pig manure). Six replicates per transformation study were analyzed. DT50 values of parent for the transformation in cattle manure range between 11.3 and 16.5 days (cf. Fig. 6). Standard deviations are rather low and in the range of 0.5–1.0 days, whereas coefficients of variation are in range of 3–9%. For the sites NRW_1p and NRW_2p, means of DT50 values obtained in pig manure are higher compared to cattle manure, and are 20.9 days and 31.5 days, respectively. The DT50 value of parent for the dissipation of 14C-biocide B in pig manure sampled at the site BAY_2p is 13.0 days. Again, standard deviations are rather low and between 1.2 and 2.5 days; coefficients of variation are in the range of 6–19%. The detailed information on all individual DT50 values for parent is presented in Additional file 1: Tables S25 and S26.

Conclusions

The aim of this study was to establish a reliable experimental test method to examine the anaerobic transformation of veterinary pharmaceuticals and biocides in liquid cattle and pig manure. The influences of manure specifics and manure parameters on transformation rates, formation of extractable and non-extractable residues and mineralization addressed in this study are summarized below.

Manure characterization, sampling and storage

  • Selection of sampling date and site Seasonal conditions do not influence manure parameters. Thus, manure for testing purposes can be collected at any time of the year.

  • Sampling method from manure tank The here described method to sample manure directly from a storage tank by applying a homogenization step prior to sampling proved to yield in reproducible manure samples with similar manure matrix parameters, such as dry matter content (Table 4).

  • Storage duration and temperature in the laboratory To avoid changes in microbial activity, if necessary, it is recommended to store manure no longer than for 2 months once it has been collected from the tank. Storage temperature influences the microbial activity. Thus, storage in the laboratory prior to use for a transformation study should preferably be at test temperature.

  • Duration of manure acclimation period The length of the acclimation (or pre-incubation) period influences the microbial activity of manure and observed variability. It is recommended to use an acclimation period of 21 ± 1 days to ensure comparable testing conditions.

Transformation studies

Influence of test setup on mineralization rates

  • It cannot be excluded that the regime of passing nitrogen over the samples (semi-static vs flow-through systems) influences the results of a transformation study. Therefore, a semi-static system is preferred over a flow-through system as it rather represents the real conditions in a manure storage tank and can be handled more easily by laboratories. In particular, this is true for volatile test compounds and for substances with anticipated high mineralization rates. When using a semi-static setup, it particularly is of importance to acidify the samples to release trapped CO2 after sampling.

  • The flow rate (flow-through system) does not influence the results of the transformation study.

  • The amount of manure (50 g vs 300 g wet weight) used in a transformation study influences the results. To obtain comparable results from transformation studies, guidance on the amount of manure to be treated is needed. Though an amount of 300 g is more representative for the conditions in a manure storage tank, 50 g manure subsamples facilitate practical laboratory work.

Influence of type and origin of manure on transformation rates

  • With regard to mass balance parameters, COVs for six replicates of one sampling site are within the same range as COVs for mean values of all sites, indicating that the influence of manure origin lies within the variability for the test.

  • COVs for DT50 values are rather low for both cattle (mean 14.3%; range 3–46%) and pig (mean 11.3%; range 6–23%) manure. Thus, the obtained results can be considered as reproducible.

  • It is necessary to test manure specifically from the species for which the VMP or biocide is used. A transfer of results from pig to cattle manure or vice versa is not possible.

Quality criteria

  • Based on the described experiments together with additional data from the ring test [14], the mass balance should range from 85 to 115% aR for radiolabeled test compounds and from 70 to 110% for non-labeled compounds.

  • The test has to be conducted under anaerobic/methanogenic conditions typically found in manure tanks [9]. As an indicator parameter, the measured redox potential (reported as Eh) should be ≤ − 100 mV throughout the entire test period.

The precise and reproducible results obtained in the presented study give a reliable basis for an experimental test method to perform transformation studies in anaerobic liquid manure. The presented work was used as guidance for an international ring test to validate the method and to work toward standardization of testing the transformation of chemicals in anaerobic liquid manure [14].

Availability of data and materials

All data necessary to interpret and replicate the findings reported are included in this published article and its supplemental data files. Further data used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

% aR:

% of applied radioactivity

ASE® :

Accelerated solvent extraction

Bq:

Bequerel

COV:

Coefficient of variation

DAT:

Days after treatment

DFOP:

Double first order in parallel

DT50 value:

Time needed for dissipation of 50% of the initial amount of a compound

DT50 MIN :

Time needed for formation of 50% of expected CO2 + CH4 (mineralization)

EMA:

European Medicines Agency

FOCUS:

FOrum for the Co-ordination of pesticide fate models and their Use

FOMC:

First-order multi-compartment

fw:

Fresh weight

HS:

Hockey stick

NER:

Non-extractable residues

OECD:

Organisation for economic co-operation and development

SFO:

Single first order

VFA:

Volatile fatty acids

VMP:

Veterinary medicinal product

References

  1. 1.

    Spielmeyer A (2018) Occurrence and fate of antibiotics in manure during manure treatments: a short review. Sustain Chem Pharm 9:76–86

    Article  Google Scholar

  2. 2.

    Kreuzig R, Hartmann C, Teigeler J, Höltge A, Cvetković B, Schlag P (2010) Development of a novel concept for fate monitoring of biocides in liquid manure and manured soil taking 14C-imazalil as an example. Chemosphere 79:1089–1094

    CAS  Article  Google Scholar

  3. 3.

    Nieman CC, Floate KD, Düring R-A, Heinrich AO, Young DK, Schaefer DM (2018) Eprinomectin from a sustained release formulation adversely affected dung breeding insects. PLoS ONE 13:e0201074

    Article  Google Scholar

  4. 4.

    Gros M, Mas-Pla J, Boy-Roura M, Geli I, Domingo F, Petrović M (2019) Veterinary phartmaceuticals and antibiotics in manure and slurry and their fate in amended agricultural soils: findings from an experimental field site (Baix Empordà, NE Catalonia. Sci Total Environ 654:1337–1349

    CAS  Article  Google Scholar

  5. 5.

    Thiele-Bruhn S (2019). Environmental risks from mixtures of antibiotic pharmaceuticals in soils—a literature review. UBA-Texte 32/2019. Umweltbundesamt, Dessau-Roßlau, Germany, p 120.  https://www.umweltbundesamt.de/publikationen/environmental-risks-from-mixtures-of-antibiotic

  6. 6.

    EMEA/CVMP (2008) Revised guideline on environmental impact assessment for veterinary medicinal products in support of the VICH guidelines GL6 and GL38. EMEA/CVMP/ERA/418282/2005-Rev.1. European Medicines Agency/Committee for Medicinal Products for Veterinary Use, London, UK

  7. 7.

    EMA (2011) “Guideline on determining the fate of veterinary medicinal products in manure” (EMA/CVMP/ERA/430327/2009 (revised in 2011))

  8. 8.

    Wohde M, Berkner S, Junker T, Konradi S, Schwarz L, Düring RA (2016) Occurrence and transformation of veterinary pharmaceuticals and biocides in manure: a literature review. Environ Sci Eur 28:1–25

    CAS  Article  Google Scholar

  9. 9.

    Weinfurtner K (2011) Matrix parameters and storage conditions of manure. UBA-Texte 02/2011. ISSN 1862-4804. Umweltbundesamt. Dessau-Roßlau, Germany, p 54. https://www.umweltbundesamt.de/publikationen/matrix-parameters-storage-conditions-of-manure

  10. 10.

    Kreuzig R (2010) The reference manure concept for transformation tests of veterinary medicines and biocides in liquid manure. Clean-Soil Air Water 38:697–705

    CAS  Article  Google Scholar

  11. 11.

    Berendsen BJA, Lahr J, Nibbeling C, Jansen LJM, Bongers IEA, Wipfler EL, van de Schans MGM (2018) The persistence of a broad range of antibiotics during calve, pig and broiler manure storage. Chemosphere 204:267–276

    CAS  Article  Google Scholar

  12. 12.

    OECD (Organisation for Economic Cooperation and Development) (2002) Guideline for Testing of Chemicals No 307, Aerobic and Anaerobic Transformation in Soil. Organisation of Economic Cooperation and Development, Paris, France (original guideline, adopted 24 April 2002)

  13. 13.

    OECD (Organisation for Economic Cooperation and Development) (2002) Guideline for Testing of Chemicals No. 308, Aerobic and Anaerobic Transformation in Aquatic Sediment Systems. Organisation of Economic Cooperation and Development, Paris, France (original guideline, adopted 24 April 2002)

  14. 14.

    Junker T, Römbke J, Hennecke D, Herrchen M, Düring RA, Thiele-Bruhn S, Meinerling M, Fiebig S, Topp E, Völkel W (2016) Harmonization of environmental exposure assessment for veterinary pharmaceuticals and biocides: ring test for validation of a draft test protocol for studies on transformation in manure. UBA-Texte 80/2016. Umweltbundesamt, Dessau-Roßlau, Germany, p 231. https://www.umweltbundesamt.de/publikationen/harmonization-of-environmental-exposure-assessment-1

  15. 15.

    Hennecke D, Atorf C, Bickert C, Herrchen M, Hommen U, Klein M, Weinfurtner K, Heusner E, Knacker T, Junker T, Römbke J, Merrettig-Bruns U (2015) Development of a test protocol to study the transformation of veterinary pharmaceuticals and biocides in liquid manure. UBA-Texte 78/2015. Umweltbundesamt, Dessau-Roßlau, Germany, p 148.  https://www.umweltbundesamt.de/sites/default/files/medien/378/publikationen/texte_78_2015_development_of_a_test_protocol_to_study_the_transformation.pdf

  16. 16.

    Herrchen M, Hennecke D, Junker T, Düring RA, Thiele-Bruhn S (2016) Harmonization of experimental exposure assessment for veterinary pharmaceuticals and biocides: influence of different experimental setups on observed mineralization. UBA-Texte 78/2016. Umweltbundesamt, Dessau-Roßlau, Germany. p 55. https://www.umweltbundesamt.de/publikationen/harmonisation-of-environmental-exposure-assessment-2

  17. 17.

    Düring RA, Wohde M, Junker T, Hennecke D, Herrchen M, Thiele-Bruhn S (2016) Harmonization of environmental exposure assessment for veterinary pharmaceuticals and biocides: Literature review of studies on occurrence and transformation of veterinary pharmaceuticals and biocides in manure. UBA-Texte 79/2016. Umweltbundesamt, Dessau-Roßlau, Germany, p 51. https://www.umweltbundesamt.de/publikationen/harmonization-of-environmental-exposure-assessment-0

  18. 18.

    ISO (2005) ISO 10390: soil quality—determination of pH. International Organization for Standardization, Geneva, p 2005

    Google Scholar

  19. 19.

    ISO (2002) ISO 11271: Soil quality—determination of redox potential—field method. International Organization for Standardization, Geneva, p 2002

    Google Scholar

  20. 20.

    DIN (2001) DIN EN 12880:2001-02: Characterization of sludges—determination of dry residue and water content. Deutsches Institut für Normung, Berlin

    Google Scholar

  21. 21.

    DIN (2001) DIN EN 12879:2001-02: Characterization of sludges—determination of the loss on ignition of dry mass. Deutsches Institut für Normung, Berlin

    Google Scholar

  22. 22.

    DIN (2001) DIN EN 13137:2001-12: Characterization of waste—determination of total organic carbon (TOC) in waste, sludges and sediments. Deutsches Institut für Normung, Berlin

    Google Scholar

  23. 23.

    DIN (1997) DIN ISO 11261 1997-05: Soil quality—determination of total nitrogen—modified Kjeldahl method. Deutsches Institut für Normung, Berlin

    Google Scholar

  24. 24.

    ISO (1984) ISO 5664: Water quality—determination of ammonium—distillation and titration method. International Organization for Standardization, Geneva, p 1984

    Google Scholar

  25. 25.

    Bickert C (2011) Biologische Aktivität in Gülle—Entwicklung und Erprobung einer Methode zur Beurteilung der mikrobiellen Aktivität in Rinder- und Schweinegülle. Diploma Thesis, FU Berlin, Fachbereich Geowissenschaften

  26. 26.

    EFSA (2007) Opinion on a request from EFSA related to the default Q10 value used to describe the temperature effect on transformation rates of pesticides in soil. EFSA J 622:1–32

    Google Scholar

  27. 27.

    Mikolasch B, Schäfer D (2006) Kinetic Introduction to the Use of KinGUI. Version 1.1 01.09.2006. Bayer CropScience AG

  28. 28.

    FOCUS (2014) Guidance Document on estimating persistence and degradation kinetics from environmental fate studies on pesticides in EU Registration. Report of the FOCUS Work Group on degradation kinetics. EC Document Reference SANCO/10058/2005 version 1.1, 18 December 2014. p. 434

  29. 29.

    Levene H (1960) Robust tests for equality of variances. In: Olkin I, Ghurye SG, Hoeffding W, Madow WG, Mann HB (eds) Contributions to probability and statistics: essays in honor of harold hotelling. Stanford University Press, Palo Alto, pp 278–292

    Google Scholar

Download references

Acknowledgements

We thank the following persons and institutions for their contributions to the development and experimental validation of the test protocol: Claudia Bickert, Udo Hommen, Michael Klein at Fraunhofer Institut für Molekularbiologie und Angewandte Ökologie (IME), Germany, Elena Heusner and Thomas Knacker at ECT Oekotoxikologie GmbH, Germany, Maria Meinerling at IBACON GmbH, Germany, Silke Fiebig at Noack Laboratorien GmbH, Germany, Sören Thiele-Bruhn at the University Trier, Soil Science Department, Faculty VI, Germany, Wolfgang Völkel at Innovative Environmental Services (IES) Ltd., Switzerland, Ed Topp at Agriculture and Agri-Food Canada (AAFC), Canada.

Disclaimer

The opinions and views expressed in this manuscript do not necessarily reflect those of the German Environment Agency.

Funding

The authors would like to thank the German Ministry for the Environment, Nature Conservation, and Nuclear Safety for financially supporting the present work under Grant Numbers FKZ 3710 67 422 (Development of a test protocol to study the transformation of veterinary pharmaceuticals and biocides in liquid manure), and FKZ 3712 65 420 (Harmonization of experimental exposure assessment for veterinary pharmaceuticals and biocides).

Author information

Affiliations

Authors

Contributions

DH, CA, MH, UMB, TJ and KHW elaborated the experimental setup and performed the experiments. DH, MH, TJ, JR, RAD, SB and SK drafted the test method. MH, TJ and JW drafted the manuscript. SK and SB reviewed the manuscript. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Thomas Junker.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1.

Additional data.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Junker, T., Atorf, C., Berkner, S. et al. Development of a test method for transformation of veterinary pharmaceuticals and biocides in anaerobic liquid manure. Environ Sci Eur 32, 39 (2020). https://doi.org/10.1186/s12302-020-00323-8

Download citation

Keywords

  • Transformation
  • Manure
  • Veterinary medicinal product
  • Pharmaceutical
  • Biocide
  • Degradation
