Pesticides and pesticide-related products in ambient air in Germany

Abstract

Background

Tree bark measurements conducted between 2014 and 2017 in a biosphere reserve in Germany have indicated the presence of pesticides from conventional agriculture in ambient air. In the present study, we quantified pesticides and related substances in ambient air at 69 sites using passive air samplers and ventilation filter mats. It is, to our knowledge, so far the most comprehensive data set on pesticides and their related products in ambient air in Germany.

Results

Samples were collected in 2019 and analysed for over 500 substances. One hundred and nine (109) were detected, including 28 that are not approved for use in Germany. In each sampling site, we identified one to 36 substances, including locations such as national parks and forests. Here, the presence of pesticides is not expected, e.g., on the highest mountain top in the national park “Harz” (13 substances) and in the "Bavarian Forest" (six substances). Glyphosate was recorded in every sample. More than half of passive air samplers contained chlorothalonil, metolachlor, pendimethalin, terbuthylazine, prothioconazole-desthio, dimethenamid, prosulfocarb, flufenacet, tebuconazole, aclonifen, chlorflurenol, hexachlorobenzene (HCB), and γ-hexachlorocyclohexane (γ-HCH). Filter mats also contained boscalid. The statistical analysis showed that landscape classification and agricultural intensity were the primary factors influencing the number of substances detected in ambient air. Location, such as protected areas or regions of organic farming, had only a small effect on the number of substances recorded. Medium- and long-range transport likely accounts for these findings. Extending the current sampling method will probably detect more pesticides than the data currently suggest.

Conclusions

Airborne pesticide mixtures are ubiquitous in Germany, which is particularly concerning for glyphosate, pendimethalin, and prosulfocarb. Deposition of these pesticides on organic products may disqualify them from the market, resulting in economic losses to farmers. Air concentrations of pesticides are a relevant issue and must be reduced.

Background

The European Union Commission’s proposal in May 2021 for a step-by-step reduction in pesticide application to 50% by 2030 as part of the farm-to-fork strategy is a result of the ongoing debate about the use of pesticides in general [1]. Pesticides are the largest group of synthetically produced substances released into the environment [2], designed to protect crops from pests and thus to secure agricultural production. Their use enables today’s predominant industrial agriculture, but their high biological impact raises doubts about the health of humans, animals, and the environment. Therefore, pesticide application is heavily controlled. The testing of active substances is regulated in the approval regulation (EG) 1107/2009 and national legislations such as the “Pflanzenschutzgesetz” valid in Germany. The National Action Plan of the Federal Government, which was drawn up from the framework directive on the sustainable use of pesticides (2009/128/EC), seeks extended goals and measures for improved protection of waterways and preservation of biological diversity [3].

While the environmental fate of pesticides in soil and their effects if released in water must be documented in the approval process, the regulating authorities concluded that sprayed pesticides do not drift far beyond their application site. Today, the data are largely generated by computer modelling [4]. In Germany, two metres for arable crops and five metres for spatial crops are regarded as sufficient to protect public spaces from pesticides [5]. Only for very volatile substances are these estimates validated by field measurements and result in altered regulations (Additional File 1) [6].

Airborne levels of pesticides are an ongoing issue. Organic farming in particular is affected [7], as auxiliaries such as synthetic chemical pesticides or fertilisers are not permitted. European Union Regulation No. 2018/848 [8] governs the process of organic agriculture and its inspection, from seeds or animal feed to the final product on the market. Ambient air pollution poses problems beyond the control of the organic economy.

An example is an incident in the largest continuous organic farming area in Europe (the biosphere reserve Schorfheide-Chorin, Germany). Here, organic grain fennel was not approved for marketing, because it contained high levels of pendimethalin. At that time, the State Agency for the Environment Brandenburg (Landesamt für Umwelt, Brandenburg) commissioned the first scientific analysis to record all relevant substances within the affected areas by means of air quality tree bark monitoring [9]. This study was expanded to include 47 tree bark samples from all areas of Germany in 2018. Air quality tree bark monitoring uses standardised samplers to collect the first millimetre of the outer bark, which consists of dead tissue, where a wide range of ambient air pollutants can accumulate over a timespan of 18–24 months. The samples were analysed for more than 500 pesticides and related substances, including glyphosate [9,10,11]. Pendimethalin and prosulfocarb were the most common pesticides found in the study, but persistent organic pollutants (POPs) such as dichlorodiphenyltrichloroethane (DDT) and γ-HCH, the main compound in lindane, were also widespread. Glyphosate ranked fifth in detection frequency, demonstrating air transport of this pesticide.

Human exposure to glyphosate in Germany was previously measured in urine from 2000 test subjects. Levels did not differ significantly between individuals consuming only organically produced food and those consuming conventionally produced food, again suggesting airborne transport of this pesticide [12]. Since no data on pesticide occurrence in ambient air were available from official sources, a consortium of organic producers, suppliers, and non-governmental organisations was formed to enable research on the incidence of airborne pesticides and to extend the earlier work [9,10,11].

The commissioned study focusses on three questions:

Are pesticides and related products detectable in ambient air in Germany?

Samples were analysed for over 500 pesticides and their related products [13]. No other data are available for such a wide sampling range.

Is transport of pesticides and related substances in the air beyond the spray drift range possible?

To date, significant quantities of pesticides are not expected to travel far. This study included many sites, where no pesticides were expected, such as cities and protected areas (Additional Files 2, 3, and 4). The aim was to create an inventory of possible pesticide loads under a wide range of conditions. All sampling sites were, therefore, graded according to their distances from potential sources.

Collection of airborne pesticides is possible via active and passive sampling. In active sampling, a defined air volume is led through a cartridge comprising a glass fibre filter, a polyurethane foam (PUF) disk, an AmberLite resin core, and a second PUF disk [14]. This technique requires a local power supply and constant maintenance. Passive air samplers have been extensively validated in the Global Atmospheric Passive Sampling (GAPS) network [15, 16, 17] but must be considered to yield only semi-quantitative results. The samplers enable the simultaneous collection of multiple substances, are relatively inexpensive, and their use is not technically demanding and can be accomplished by non-professional operators. To allow a wide range of sampling points to be analysed within the project’s budget, the study focussed on passive air samplers exposed over 7 months.

A statistical analysis compared relevant location factors affecting the observed concentrations.

Is pesticide identification limited to passive air samplers or can pesticides also be detected in other materials exposed to ambient air?

Filter mats from ventilation systems, used to purify incoming outdoor air, were collected from 20 households and analysed. In Germany, an energy-saving regulation recommends a ventilation system for most new but also for existing buildings. Because of the airtight construction of buildings used today, controlling the entry of fresh air is essential. The filter mats were exposed over the same timespan as the passive air samplers, thus enabling a comparison of collected substances and concentrations. The filter mats can qualitatively exhibit the presence of pesticides.

The results concentrate on the numbers of substances detected and their levels in samples from the site. Relating the observed concentrations to pesticide use and application, the physicochemical characteristics of the compound detected, and to other processes that may affect pesticide transport is a topic of further study.

Materials and methods

Definition of terms

A pesticide is the active substance of a plant-protection product, which can contain one or more pesticides plus formulation auxiliaries that ensure that pesticides are easy to handle and apply and have a long shelf life.

The list of substances to be analysed (Additional Files 5 and 6) includes those that are not pesticides in the strict sense: pesticide metabolites, safeners, synergists, auxiliary materials, and compounds unrelated to plant-protection products that are known to have adverse health effects or may occur unintentionally in agricultural products, such as polychlorinated biphenyls (PCBs) [39]. We identified four additional substances that may be of relevance: (hexachlorobenzene (HCB), anthraquinone, dichlorobenzophenone (DCBP-pp), and piperonyl butoxide (PBO); Additional File 7). All these substances are herein termed “pesticides and their related substances” unless a separate listing is required.

Our laboratory findings are concentrations of a substance in polyester filters (PEF) and PUF disks, expressed as nanograms per sample (ng/sample) for passive air samplers or micrograms per square metre (µg/m2) for ventilation filters. These concentrations must not be confused with the concentrations of a substance in ambient air. These were determined by model calculations only for a few data points later in this study.

Passive air samplers

For this project, specific passive air samplers were developed by TIEM technic. The collector (Fig. 1) uses a PUF disk, similar to the standard TE-200-PAS collectors used by the GAPS network. The PUF disks (diameter: 14 cm; height: 1.35 cm) were obtained from Tisch Environmental (Cleves, OH, USA) and have been validated for pesticide sampling [15,16,17,18] and confirmed in the work of Zhang et al. [19,20,21]. A Swedish program analysed 101 substances in PUF disks in 2017 [14].

Fig. 1
figure1

Passive air sampler developed by TIEM technic

However, no data were available on the efficacy of these passive air samplers in measuring glyphosate. Morshed et al. were unable to detect glyphosate in the otherwise effective PUF disk [22]. In a prior experiment [23], TIEM Environmental Monitoring established the PEF (diameter: 8 cm; height: 2 cm, with a round Sect. 3 cm in diameter in the middle; obtained from Freudenberg Filtration Technologies, Weinheim, Germany) as the most effective collection medium.

Therefore, the passive air sampler developed for this project combined the two sampling filters. An enclosed dome open to the outside air by a wide (1.5 cm) rim holds the PUF disk in a sheltered surrounding, while the PEF underneath is openly exposed (Fig. 1).

The polyurethane foam (PUF) disk captures volatile and semi-voltatile pesticides and a polyester filter (PEF) captures glyphosate, and aminomethylphosphonic acid.

The PUF disks were purified according to Pozo et al. [24]. The results obtained from the PUF disks used in the TIEM technic sampler did not differ significantly from the data obtained by TE-200-PAS collectors [25].

Sample collection

The installation of 49 samplers on site (Fig. 2) was carried out by TIEM Integrated Environmental Monitoring. Volunteers were trained in installing and replacing the samplers and provided with tools such as nitrile gloves, aluminium foil, tweezers, and storage and transport containers. The measurement period extended from the first 2 weeks in April to mid-November of 2019. PUF disks were replaced in mid-June, mid-August, and early to mid-November. TIEM Integrated Environmental Monitoring provided new PUF disks and volunteers stored the used disks in temperature-controlled boxes at − 18 °C. At the end of the sampling period, all filters were shipped to TIEM Environmental Monitoring in temperature-controlled boxes with cooled thermal packs to avoid overheating and were subsequently forwarded to the analysing laboratory under the same conditions.

Fig. 2
figure2

Example of a passive air sampler in the field

Sample analysis

The selection of the approximately 500 pesticides tested was based on the active ingredients listed for plant-based foods in the official multi-method (ASU L 00.00–115, 2018–10; QuEChERS) [26]. Some additional substances were added by the analysing laboratory because of consumer concerns. Chemical analysis was conducted by KWALIS (Fulda, Germany), registered with the German accreditation body (Deutsche Akkreditierungsstelle).

The PUF

The extraction of the PUF was carried out with dichloromethane in a Soxhlet extractor [27]. The sample extracts were examined with gas chromatography (GC)–tandem mass spectrometry (MS/MS) (electron ionisation) and liquid chromatography (LC)–MS/MS (electrospray ionisation) in positive and negative mode. The injection volume was 1.5 µl for the GC and 3 µl for the LC.

In the extraction of the PUF, chlorpyrifos-ethyl D10 and triphenyl phosphate (200 ng each) were used as the recovery standards. DDT pp-D8 (100 ng), bentazon D6, atrazine-desethyl D7, HCH-alfa D6, cypermethrin D6, deltamethrin D6, HCB 13C6, and diazinon D10 (50 ng each) were added to the PUF material in the Soxhlet extractor.

The samples were extracted for 24 h using at least 16 extraction cycles. After cooling, n-butyl acetate was added as a keeper and the mixture was evaporated to approximately 20 ml. After concentrating the extract to 1 ml under a stream of nitrogen, on the extract was analysed by LC–MS/MS and GC–MS/MS.

To check the recovery of the analytes in the Soxhlet extraction of the PUF with dichloromethane, recovery tests were carried out at the 100-ng level. Substances with recoveries of 60–140% are listed.

The analytes were identified by means of SRM with 2 productions with the correct ratio (deviation less than 30% compared to the reference) according to SANTE/11,813/2019 [28].

The analytical criteria for the identification refer to SANTE/11813/2019 [28] by LC–MS/MS or GC MS/MS SRM with 2 productions within 30% correct ratio to reference.

Procedural blanks and recovery standards

To control possible contamination of the chemicals and devices, procedural blanks were included. In addition, pre-cleaned but unexposed PUF disks were examined to control possible blank values on the foams. To control the recovery during extraction and quantification, DDT-D8, triphenyl phosphate, and chlorpyrifos-ethyl D10 were used for GC-electron ionisation, triphenyl phosphate and chlorpyrifos-ethyl D10 were used for LC–electrospray ionisation in positive mode, and bentazone-D6 was used for LC–electrospray ionisation in negative mode as recovery standards. The recovery was in the range of 70–120%.

PEFs and filter mats for glyphosate

Levels of glyphosate and aminomethylphosphonic acid (AMPA) in PEFs were validated according to SANTE/11813/2019 [28] by KWALIS separately [29]. The analysis was conducted by means of LC–MS/MS after extraction and derivatisation. Glyphosate and AMPA were extracted from the PEF materials with 0.125 N hydrochloric acid and then derivatised with fluorenylmethoxycarbonyl.

Quantification was conducted by adding the isotope-labelled standards 13C215N-glyphosate and 13C15N-AMPA to the extraction solution. The identification of the analyte glyphosate -FMOC is carried out by the mass transitions 390 > 168 and 390 > 150; of the ILIS glyphosate 13C215N-FMOC by the mass transitions 393 > 171 and 393 > 153.

The AMPA analyte was identified via the mass transitions 332 > 110 and 332 > 136; of the ISTD AMPA 13C15N via the transitions 334 > 112 and 334 > 138.

The mass spectrometric analysis was carried out using a TSQ Vantage mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA).

The LC separation by means of an Accela ultrahigh-performance liquid chromatographer (Thermo Fisher Scientific) was conducted on an RP 18AQ column 150 × 2 mm (Reprosil PUR 120 C18-AQ, 5 μm; Dr. Maisch HPLC GmbH; Ammerbuch, Germany) with a methanol-formic acid (0.01%) gradient at 40 °C.

Additional File 5 provides details the pesticides and related substances that were analysed and the analytical methods and limits of quantification (LQ).

Filter mats from ventilation systems

Passive air samplers are designed to minimise particulate contamination of the PUF disk [30] and, therefore, could not be used to assess pesticides on airborne particles. Instead, we collected filter mats from home ventilation systems, which are designed to remove dust and sometimes pollen from outside air entering buildings. Twenty volunteers submitted the filter mats in their homes for analysis.

Sample collection

All participants were asked to install a new filter mat on April 10, 2019 and ship it to TIEM Integrated Environmental Monitoring at the end of the measurement period (September 28 to October 8, 2019). The mats were forwarded to the analysing laboratory. All technical data and the characteristics of the sampling site were compiled in a protocol. Additional File 8 contains the specifications of the ventilation systems sampled. Unexposed filter mats were tested as blank samples.

Sample analysis

The extraction of the filter mats was performed according to QuEChERS (ASU L 00.00–115; [26]) in a 50-ml Falcon tube with an acetonitrile/water mixture with the addition of internal standards (chlorpyrifos-ethyl D10 and triphenyl phosphate, 200 ng each; bentazon D6, atrazine-desetyl D7, HCH-alfa D6, cypermethrin D6, and deltamethrin D6, 50 ng each) in an overhead shaker overnight for at least 12 h. After adding the citrate salts and magnesium phosphate, the samples were centrifuged to separate the phases and purify the extract. The extract was measured using LC–MS/MS and GC–MS/MS without primary and secondary amine exchange material cleanup.

The sample extracts were analysed by GC–MS/MS (electron ionisation) and LC–MS/MS (electrospray ionisation) in positive and negative mode. The injection volume was 1.5 µl for the GC and 3 µl for the LC. The GC–MS/MS measurement was performed on a TSQ 9000 triple-stage qudrupole mass spectrometer (Thermo Scientific) with an advanced electron ionisation source. The GC separation was performed on a Trace 1310 GC on a 15-m TG-5HT column (ID 0.25 mm with a film thickness of 0.25 μm; Thermo Fisher Scientific).

The LC–MS/MS measurement was performed on a TSQ Vantage triple-stage quadrupole mass spectrometer (Thermo Fisher Scientific) with electrospray ionisation in positive and negative mode. The LC separation was conducted on an Accela 1000 ultrahigh-performance liquid chromatographer (Thermo Fisher Scientific) with a 125 × 2 mm RP18AQ column (Dr. Maisch) with an aqueous 5-mmol ammonium acetate/methanol gradient. Gradients were separated by a 125 × 2 mm RP18AQ column (Dr. Maisch).

The analytes were identified by means of SRM with 2 productions with the correct ratio (deviation less than 30% compared to the reference) according to SANTE/11,813/2019 [28].

The analytical criteria for the identification refer to SANTE/11,813/2019 [28] by LC–MS/MS or GC MS/MS SRM with 2 productions within 30% correct ratio to reference.

To control possible contamination of the chemicals and devices, procedural blanks were included. In addition, unexposed filter mats were analysed to control for possible blank values.

Additional File 6 details the pesticides and related substances analysed and the analytical methods and limits of quantification.

Data files

The limits of quantification of all substances detected in PUF disks and PEFs are given in Additional File 9, which includes the values recorded from passive air samplers. Seven values were below the limits of quantification but above the limits of detection (LD). Additional File 10 lists the findings for filter mats with limits of quantification and the concentrations measured. One value was below the limits of quantification but above the limits of detection.

Selection of sampling sites and statistical analysis

Volunteers willing to supervise a sampler or to donate a filter mat applied through a website. Sites of particular interest, such as national parks, were solicited as well. More than 250 sites were considered to obtain a reasonable nationwide coverage (Fig. 3) and to represent a wide range of sampling characteristics. Six characteristics presumed to be related to pesticide exposure were defined before the study commenced (Table 1 and Additional File 2) and were also used in the statistical analysis of the data, which dealt with the relationship between site features and pesticide concentrations [13]. The number of sites per category is given for all passive air sampler sites (Table 1, Additional File 3) and filter mat sites (Additional File 4). Two factors, agricultural intensity and risk of wind erosion, required some degree of estimation. Additional File 2 details the procedure used.

Fig. 3
figure3

Location of sampling sites (passive air samplers and filter mats)

Table 1 Evaluation criteria for sampling sites

The location of the sampling sites is given with the reference site number 1. Site number 1 may be used to match location with the data in Additional Files 9 and 10.

Sampling sites were selected to reflect a wide range of conditions: intensively farmed land, areas far from agricultural activity, forests, and cities. We included sites, where high exposure to pesticides could be expected (e.g., from intensive conventional farming) and sites, where no relevant exposure was anticipated (e.g., organic farming, protected areas, city centres).

The presence of currently used pesticides in ambient air is the consequence of spraying and airborne transport, sometimes by binding to particulates. The concentrations are likely to depend on the extent of pesticide use at the sites of origin, the distance from the application sites, meteorological conditions in the transport range, and geographical properties such as soil erosion. Land use may also be involved. This study, therefore, recorded site characteristics for inclusion in the analysis in combinations, as it is likely that these are not stand-alone factors. For example, northern Germany has large flat areas, where soil is prone to erosion and areas with intensive farming and wind conditions that favour medium- and long-range airborne transport. This means that statistical analyses of the relationship between site characteristics and pesticide concentrations must account for high-level interactions between factors. In view of the exploratory character of the analysis and the need to investigate high-level interactions, we used regression trees [31], i.e., a sequence of questions concerning the values of the explaining factors, ending in a prediction of the target quantity (pesticide concentration) that holds for all observations with the same answers in the question sequence. Such a sequence can easily be presented as a decision tree and is, therefore, simple to understand. The procedure selects the decision questions such that the final prediction of pesticide concentrations is as good as possible, where goodness is calculated as the variance of the difference between predicted and observed concentrations (the error variance). Observed concentrations enter the calculations as logarithms to make the variance a reasonable criterion. The importance of a factor is expressed as the coefficient of determination, the proportion of the maximal error variance (using only a constant as explanation) that is explained by the factor. The importance of the factor is in direct relation to the size of the proportion of the maximal error variance.

Results

Table 2 lists the concentrations of pesticides and related products measured in 49 passive air samplers and 20 filter mats, along with the number of pesticides detected over the study period per collection method. Eighty substances were detected in passive air samplers and 65 substances in filter mats. Glyphosate and AMPA were found with both methods. The number of substances per site ranged from six to 33 in passive air samplers and one to 36 in filter mats. Additional File 11 lists all 109 substances detected, 28 of which are no longer approved for use in Germany.

Table 2 Pesticides and related substances detected in passive air samplers and filter mats

Thirty-six substances were measured in both passive air samplers and filter mats, while 44 substances were detected exclusively in passive air samplers and 29 were detected only in filter mats.

Table 3 lists the substances that were detected in passive air samplers at more than one third of sites. Table 4 lists the substances that were detected in filter mats in at least one third of the sampling sites. As the quality of the filter materials was variable, the data are used only qualitatively.

Table 3 Substances detected in passive air samplers at more than one third of sampling sites
Table 4 Substances detected in filter mats in at least one third of the sampling sites

In addition to glyphosate and AMPA, we found tebuconazole, epoxiconazole, and folpet in both passive air samplers and filter mats. In passive air samplers, we commonly found high concentrations of prothioconazol-desthio, dimethenamid, and prosulfocarb. The most frequently detected substances were herbicides (nine out of 18), while fungicides dominated in filter mats (nine out of 12).

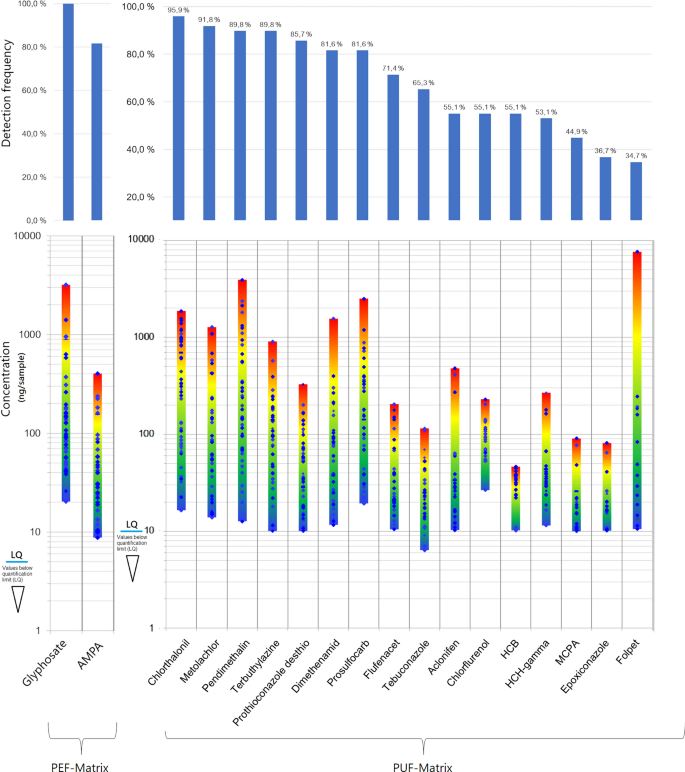

Figure 4 shows the 18 most abundant substances in the PUF samples. The maximum value for a single substance was measured for folpet (7613.8 ng/sample) at one location, and this high value may indicate proximity to a site of application.

Fig. 4
figure4

Pesticides and related products most commonly detected in passive air samplers

Values for pesticides and related products detected in more than one third of sampling sites on a logarithmic scale. Blue bars represent the detection frequency relative to all sites sampled. The coloured bars indicate the spread of the values. Blue diamonds represent individual values. See also Additional File 9. AMPA, aminomethylphosphonic acid; HCB, hexachlorobenzene; HCH, hexachlorocyclohexane; MCPA, 2-methyl-4-chlorophenoxyacetic acid. An LQ above 10 ng is only registerd for Chlorfurenol (20 ng).

Spatial distribution of pesticides and related products

Figure 5A shows the pesticide burden in the sampling sites as the number of substances detected in the samples and Fig. 5B shows only the sites with the highest number of pesticides and related products.

Fig. 5
figure5

Number of substances detected at sampling sites. A All sampling sites. B Sampling sites, where more than 16 substances were detected in passive air samplers and more than 22 substances were detected in filter mats

Many of the sites with a high pesticide burden were in the northern regions of Germany, where intensive agriculture is possible. In the mountainous southern regions, high values may indicate vineyards and fruit crops. A considerable number of substances per site was also detected in unexpected places such as national parks in the Harz (13 substances) and Bavarian Forest (six substances) air samplers and six substances respectively (Additional File 12).

Results of the statistical analysis

For passive samplers, the statistical analysis of the number of pesticides and related substances identified landscape classification as the most influential factor in the overall observed variance (Table 5). However, agricultural activity in the immediate surroundings was the primary influence in the regression tree (Additional File 13; Table 5). Medium or high agricultural activity, noted for 39 sites, increased the overall median number of pesticides per site from 16.8 to 18.1.Footnote 1 The effect, which adds 6.3% to the total explained variance, is relatively small. Depending further on the landscape, the median number of pesticides increased to 23.8, with landscape contributing a total of 30.1% to the total explained variation. Landscape classification in general was the most important factor in the number of pesticides and related products we detected (Table 5), but its effects formed a complex pattern (Additional File 13). Both factors, agricultural activity and landscape classification, were not completely independent. Sites in protected areas (contribution to overall variance: 5.9%) reduced the number of substances detected to 15.8 in two of the landscape classes, Nordostdeutsches Tiefland and Westliches Mittelgebirge. However, in the other four landscape classes, the median increased to 23.8. Consequently, protected areas appear to offer little to no shelter against a large number of airborne pesticides and their related substances. Biogeographical regions, areas with risks of wind erosion, and areas with biological production did not differ from other areas in the number of substances detected.

Table 5 Statistical analysis for the total number of substances detected per site in passive air samplers

Additional File 13 shows the results as a regression tree.

Glyphosate, pendimethalin, and prosulfocarb

Glyphosate was detected at all sampling sites in both passive air samplers and filter mats (Fig. 6), and concentrations peaked at 3176.8 ng/sample (median: 98.4 ng/sample;

Fig. 6
figure6

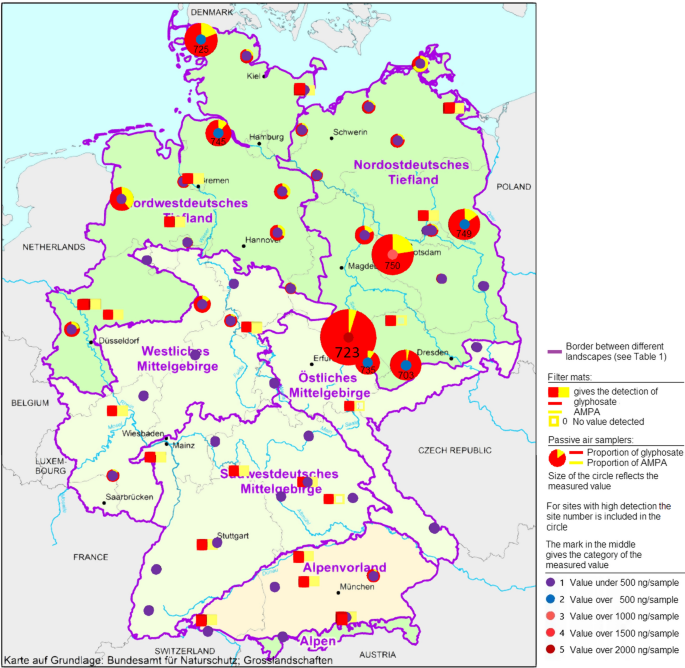

Levels of glyphosate and aminomethylphosphonic acid (AMPA)

Table 3). AMPA was found at most but not all sites.

Empty squares represent no detection. For filter mats, only detection (yes/no) is given, without the actual concentrations.

The size of the circle is proportional to the maximum concentration detected (3916.8 ng/sample for pendimethalin and 2505.3 ng/sample for prosulfocarb).

The presence of pendimethalin and prosulfocarb adversely affects organic farming. Figure 7 shows the spatial distribution of these pesticides in our sampling. Pendimethalin was not detected at only five sites in passive air samplers. The values measured were high and the geographic distribution was widespread. The median of the values we measured (145.5 ng/sample) was below that of chlorothalonil (272.5 ng/sample). Chlorothalonil use was unauthorised in 2019, but application was permitted until May 5, 2020, after our sampling period. For prosulfocarb, we measured a maximum of 2505.3 ng/sample (median: 90.7 ng/sample) in passive air samplers, and the pesticide was not detected at nine sites. Filter mats barely captured pendimethalin (maximum 18.3 ng/m3, five values detected) or prosulfocarb (maximum 5.5 ng/m3, five values detected). The spatial distribution of multiple other pesticides and related products is given in the main report [13], as well as the analysis of honeybee bread and tree bark and a comparison of the major pesticides across sampling methods.

Fig. 7
figure7

Levels of pendimethalin and prosulfocarb

In the passive air samplers, our findings identified landscape classification and agricultural intensity as important factors influencing most of the values measured. The distance to the nearest potential source or an association with organic farming had little influence on the values, with the exception of metolachlor levels, which were significantly lower in sites of organic farming (Additional File 13). The data are linked in a complex manner and must be considered separately for each substance examined. Additional File 14 lists the results of the statistical analysis for passive air samplers. Since only 20 filter mats from ventilation systems were available, the statistical data are not included here.

Are pesticides and related products detectable in ambient air in Germany?

So far, the only available data on pesticides and their related products in ambient air in Germany was the tree bark study of 2018 [10]. The present study expands this database and is still the first of its kind. A large number of pesticides and related substances were detected in German air. Glyphosate, chlorothalonil, metolachlor, pendimethalin, and terbuthylazine were abundant, and high concentrations of prosulfocarb were also found. The concentrations collected in the PUF disks and PEFs varied greatly and were not restricted to values close to the quantification limits.

Is transport of pesticides and related substances in the air possible beyond the spray drift range?

The number of substances detected and their levels in the samples enabled the distinction between polluted and less polluted locations [13] and the assessment of factors influencing contamination. Although the pollution was generally higher in agriculturally intense regions, pesticides were also found in remote locations. Medium-range transport of these airborne substances is the most likely explanation. This has not yet been assumed for currently used pesticides. In general, the concentrations we found could be explained by several factors, such as landscape classification and agricultural activity. However, variables favouring medium-range transport, such as soil erosion, wind conditions, and topography, must also be considered and this should be done on a substance-specific basis.

Is pesticide identification limited to passive air samplers or can pesticides also be detected in other materials exposed to ambient air?

The detection of pesticides and their related substances is not confined to passive air samplers. In samples of filter mats from ventilation systems, a wide range of substances was detected as well. Similar to the findings in PEFs, glyphosate was detected in all samples. Furthermore, filter mats collect a different range of substances. Twenty nine out of 65 substances were only detected in filter mats. It is likely that substances specific to filter mats originate from soil and dust particles in the air that ventilations systems are designed to collect.

Discussion

Comparison with other European studies

So far, it is difficult to gain a conclusive overview of airborne pesticides in Europe. The few recent data on airborne pesticides focus on different ranges of pesticides and use different collection methods.

Most of these studies excluded glyphosate; only the French study by Marliere et al. [32] measured this pesticide. This comprehensive study collected airborne pesticides using Partisol™ Sequential Air Samplers for particulate matter and analysed them for 74 pesticides and one metabolite (AMPA) [32]. We detected glyphosate in all passive air samplers and filter mats, not surprisingly as it is the most widely used plant-protection product in Germany [38]. In France, glyphosate was detected in over 80% of samples, which were collected at a flow rate of 30 m3/h over 48 h. The findings of that study suggest that glyphosate is generally present in ambient air.

Altogether, 42 substances were detected in the air of mainland France. Glyphosate, lindane, metolachlor, pendimethalin, and triallate had a median above zero. Prosulfocarb and folpet had the highest air concentrations. Samples of semi-volatile substances were collected over 7 days with a flow rate of 24 m3/d. This rate increased to 720 m3/d for glyphosate, glufosinate, and AMPA, which were collected over 48 h.

The general sampling rates in the French study for semi-volatile substances is very low compared to the Swedish data [14, 33], which was derived from active sampling at a rate of 400 m3/d over 1 week but did not measure glyphosate. A total of 116 substances were analysed, the majority in the glass fibre and PUF partition of the sampling cartridge. Altogether, 45 substances were detected in the PUF at the Hallahus sampling station in the Swedish study [33], which is a comparable collection medium to our passive air sampler. However, six substances were only found under the quantification limit. Chlorpyrifos, prosulfocarb, terbuthylazine, and triallate are currently used pesticides that were most frequently detected. The highest concentrations were observed for prosulfocarb. Pendimethalin was detected in nearly 40% of all samples; similar to chlorpyrifos, pendimethalin is not approved for use in Sweden.

In Italy, Estellano et al. [34] assessed the occurrence and seasonal variations of 10 current-use pesticides (chlorpyrifos, chlorpyrifos methyl, malathion, terbufos, diazinon, disulfoton, dacthal, trifluralin, pendimethalin, and chlorothalonil). All 10 pesticides were detected. Chlorpyrifos in both forms was identified as the most frequent pesticide with the highest concentrations. Chlorothalonil, which we detected at almost all sites and with very high levels, was the least detected pesticide in the Italian study. Pendimethalin was surprisingly more commonly detected in urban rather than rural settings.

An earlier extensive study in France used a Partisol 2000 low-volume sampler [35]. Between 2006 and 2008, samples were collected and analysed for 56 currently used pesticides, of which 41 were detected. The herbicides trifluralin, acetochlor, and pendimethalin and the fungicide chlorothalonil were detected at a frequency of 52–78%. This corresponds to our findings in Germany, where trifluralin and acetochlor are no longer approved but pendimethalin and chlorothalonil were widely detected.

Degrendele et al. [36] assessed 27 currently used pesticides and 10 persistent organic pollutants in the Czech Republic using a high-volume air sampler exposed for 1 week and an air volume around 600 m3/d as well as a Cascade impactor air sampler. The emphasis of the study was the determination of gas–particle partitioning and particle size distribution in current-use pesticides and persistent organic pollutants. Isoproturon, metazachlor, chlorpyrifos, terbuthylazine, S-metolachlor, and fenpropimorph were detected in more than 65% of samples. Chlorpyrifos, metazachlor, acetochlor, isoproturon, and S-metolachlor were identified as substances with a total combined maximum of (gas particulate phase) concentrations exceeding 100 pg/m3. The presence of terbuthylazine varied by season. The substances our study identifies as widespread, such as chlorothalonil, pendimethalin, dimethenamid, and prosulfocarb, were not analysed here. However, the occurrence of chlorothalonil, chlorpyrifos, and pendimethalin in European air and worldwide had been established in 2012 by Koblizkova et al. [18].

In comparison, the present study covers the widest range of analysed substances. With 109 substances detected, the range of pesticides known to be airborne is extended significantly. Pesticides detected with higher frequencies, such as chlorothalonil, metolachlor, pendimethalin, terbuthylazine, and prosulfocarb, were also frequently identified in other studies. The metabolite prothioconazole-desthio was assessed in the Sweden study but not discussed [14]. Dimethenamid was included in the France study but was only rarely detected (frequency < 5%). Overall, we detected pendimethalin and prosulfocarb in over four fifths of the samples and at high levels. The medium-distance transport of these pesticides is clearly illustrated by Kreuger and Lindström [14], who found pendimethalin in nearly 40% of all samples even though this pesticide is not approved for use in Sweden and probably originated in neighbouring countries such as Denmark, Germany, and Poland.

In general, substances that were not detected in the earlier studies had a lower detection frequency in our data set. These pesticides contribute to the overall pesticide load in the air but may have potential ecotoxicological effects and still result in high air concentrations because of their seasonal application. Their relevance must be assessed further.

However, agriculture is country-specific, with unique environmental conditions in soil and climate. This results a distinctive variety of cultivars, which in turn determine pesticide application. In a comparison with the Swedish PUF data from Hallahus (2017), we found 24 substances that were detected in both countries. Twenty one substances were detected in Sweden but not Germany and 43 substances were detected in Germany but not Sweden. Nine substances detected in Germany were targeted but not found in the Sweden data set. The findings were similar for glass fibre filters and filter mats (Additional File 15).

Pendimethalin and chlorpyrifos are not approved for use in Sweden but were detected at low levels. For chlorpyrifos, this was true for Germany as well. Because of varying environmental conditions, levels of airborne pesticides may vary between areas and countries and also between years. The growing interest in this topic renders is likely that more insights into these variations will be possible in the future.

Comparability to other passive sampler data and concentration estimates for pendimethalin and chlorothalonil

Pendimethalin and chlorothalonil are among the most commonly detected pesticides in German air. For economic reasons, our findings give the total values measured in three PUF disks over 7 months. To compare the data to passive air sampler data, the pooled quantity must be divided by three. We used the calculation given by Estellano et al. [34] to estimate air concentrations of pendimethalin, chlorothalonil, and chlorpyrifos-ethyl (Additional File 16).

Pendimethalin has been detected in air samples worldwide [18]. The more recent data compiled by Estellano et al. [34] in Italy used passive air sampling to measure nine current-use pesticides, including pendimethalin and chlorothalonil. The detection frequency of pendimethalin was below 25% of samples. Surprisingly, higher concentrations were found at urban sites (maximum: 1500 pg/m3 in spring). During other sampled seasons, concentrations did not exceed 280 pg/m3. We compared these values with data from the Czech Republic in 2012 [18] and Canada in 2008 [15] in 2010 [16]. Higher values were detected in France in 2010 [35] using Partisol 2000 low-volume samplers, with a maximum of 117,330 pg/sample and an average 1840 pg/m3; the frequency of detection was 66%.

The German results identify this pesticide more often (frequency: 89.8%) but at lower levels comparable to those recorded in France in 2010. The maximum for pendimethalin was 4796 pg/m3 and was by no means a singular value. Of the seven values that exceeded 1000 ng/sample, an average concentration of 2405 pg/m3 was measured. The German average over all 49 sites, including five sites, where the pesticide was not detected, is 543 pg/m3. These findings may reflect the wide use of pendimethalin in Germany today. Since this study offers only one value over 7 months, it must be expected that the concentrations of pendimethalin are significantly higher during times when the pesticide is applied (spring and autumn). Pendimethalin and prosulfocarb were of special interest in the present study because of their effects on organic farming [11].

Chlorothalonil was widely detected (frequency: 95.9%) but was at the end of its approval period in Germany (May 2020). Estellano et al. [34] detected chlorothalonil in fewer than 25% of samples and during only two seasons, with a peak measurement of 40 pg/m3. In Germany, chlorothalonil concentrations reached an average of 775 pg/m3, even when two samples without detection are included. The highest concentration was 3030 pg/m3, and the average of seven samples that exceeded 1000 ng/sample was 2291 pg/m3. These numbers are in line with data reported by Koblizkova et al. [18], where a 2500 pg/m3 concentration was recorded in Paris and 340 pg/m3 in Kosetice (Czech Republic). However, Coscollà et al. [35] reported considerably higher levels (maximum: 107,000 pg/m3) with an average concentration of 12,150 pg/m3, but at a lower detection frequency of 58%.

Abundant data are available for chlorpyrifos in passive air samplers, which is not approved for use in Germany even though it was detected along the western and eastern borders. The highest value corresponded to 280 pg/m3. Recent data from Chile suggest an air concentration range between 444 and 14,624 pg/m3 when the pesticide is actively applied [37].

Temporal variations in pesticide levels

Our data represent sums over the entire measurement period and do not reflect temporal patterns, so whether the airborne concentrations were relatively constant over the collection period or differed by season or event is unknown. The temporal pattern of exposure was not an aim of this study, but it is highly relevant for a toxicological assessment.

Earlier studies had already shown that temporal variations are detectable using passive air samplers [34, 36].

Sweden is the first European country to conduct long-term active sampling of airborne pesticides at rural sites surrounded by forests and located more than 1 km away from treated fields [14]; weekly data are available from the University of Uppsala [33]. Kreuger and Lindström [14] showed that most of the pesticides and their related substances were captured in the glass fibre filter and the first PUF disk, while only 4% of the total pesticide content was found in the AmberLite resin and second PUF disk. Additional File 17 lists the number of substances detected in 2017 at the Hallahus site, the southernmost measuring station of the Swedish network. The weekly data for the glass fibre filter and the PUF disk are listed separately. Figure 8 shows a graphic summary of the data. Ten to 35 substances of the 101 in the testing protocol were detected in the PUF disk. The glass fibre filters were analysed for 115 substances, adding six to 42 substances to the findings. Figure 8 shows the number of substances detected in the PUF and glass fibre filter.

Fig. 8
figure8

Number of substances detected by active air sampling in Hallahus, Sweden, in 2017 [33]. F testing cartridge, P pesticides, PUF polyurethane foam (first section of the testing cartridge). The red line represents all substances detected in Hallahus, Sweden. The number was calculated by adding the total number of substances detected in the glass fibre filter (blue line) and the total number of substances detected in the PUF (yellow line). The number of identical substances detected in both glass fibre filter and PUF (green line) was then substracted from the total to remove duplicates.

The Swedish data display a clear seasonal variation, with the number of substances detected decreasing in autumn (Additional File 17). A weekly maximum of 59 substances was detected twice in the first half of the year. In autumn (October 30, 2017), only 17 substances remained. The median over the measurement period was 36.5 for all substances in the glass fibre filter and PUF disk. Prosulfocarb and γ-HCH were detected consistently throughout the year [14]. Chlorpyrifos, propyzamide, and triallate were also detected during much of the year. In areas of intensive agriculture in Germany, a continuous presence of pesticide mixtures in ambient air is, therefore, highly likely and should be the subject of further investigation.

Comparing Swedish data with findings from passive air samplers and filter mats

The two sampling methods in our study are likely to reflect airborne pesticides and their related products from differing origins. The PUF disk in the passive air sampler is designed to sample volatile and semi-volatile substances and exclude particles [30], while filter mats capture dust and sometimes pollen. Therefore, filter mats capture a different range of substances. Twenty-nine substances in filter mats were not detected in the passive air samplers, while 44 substances were detected only in the passive air samplers and not in filter mats. However, while we assess these methods separately, the Swedish study [14, 33] measured substances in glass fibre and PUF disks simultaneously. The number of substances detected in the Swedish study [14, 33] peaked at 59. In one example, 37 substances were detected in the glass fibre filter and 32 in the PUF disk. The number of substances detected by both methods, in this case 10, was subtracted from the total to remove duplicates. We detected 36 substances in filter mats and 33 in PUF disks, much lower than the 59 detected in Sweden in glass fibre filters and PUF disks at a peak period.

Our data for Germany are, therefore, likely to underestimate the pesticide load at any one point. Combining filter and PUF disk measurements in a passive air sampler may increase these numbers significantly.

For future passive air sampler measurements, it may be worthwhile to analyse the PEF not only for glyphosate but for the 500 pesticides and related substances assessed in filter mats so as to broaden the detectable range of substances.

Medium- and long-range transport

In our statistical analysis, we defined distances from a potential source for all measured sites so as to separate effects from spray drift, which will only occur in proximity to a field from airborne pesticides that travelled a longer distance in the air. Long-range transport in this context is set when a source is more than 1000 m away from the measurement site.

The FOCUS report [38] took a broader view and defined short-range transport (SRT) as 0,001–1 km, medium-range transport (MRT) as 1–1000 km, and long-range transport (LRT) as > 1000 km from the point of application. Kreuger and Lindström [14] detected many substances that did not originate in Sweden, as they are not authorised for use there, suggesting medium-range transport according to the FOCUS criteria. In Germany, which is centrally located in Europe, a similar phenomenon is likely. We detected chlorpyrifos at several eastern and western sites close to the borders [13], although the use of chlorpyrifos is not permitted in Germany.

Additional File 18 contains the European Food Safety Authority (EFSA) conclusions on the potential for volatilisation and long-range transport of the most widely detected pesticides in this study (glyphosate, metolachlor, pendimethalin, terbuthylazine, and prosulfocarb). Medium- and long-range transport are not distinguished in the EFSA reports. The vapour pressure of these substances classifies all of them as having low volatility [13], with the exception of metolachlor, which is of medium volatility. EFSA maintains that a substantial loss of active substance to the air is not to be expected; a loss to the air over the short range is only considered for pendimethalin. The potential for medium- or long-range transport is disregarded entirely. In view of our findings, the assumptions incorporated into the approval processes concerning the release of pesticides to the air are not adequate. There is a need to revise current EFSA estimates of pesticide releases to include estimates for medium- and long-range air transport. This is particularly relevant for the renewal of the approval for glyphosate.

Our findings indicate that a certain degree of long-range transport between continents is also likely. Current-use pesticides can be expected to travel far from their application sites and be present in any air mass passing over land. Bearing in mind that their environmental fate depends on their chemical properties, a worldwide distribution, as observed already for POPs, nevertheless must be considered possible.

Conclusion

Our findings indicate that pesticides and their related substances are ubiquitously present in ambient air in the Federal Republic of Germany. There is evidence that pesticides and their related substances can travel through the air at least in the medium and possibly also in the long range. This has long been known for substances listed under the Stockholm Convention, such as DDT, PCBs, and γ-HCH [39]. For pesticides and their related substances in current use in Germany, this is demonstrated to this extent for the first time. The findings show clearly that more than one substance is present in sometimes considerable loads at any location. Considering all available data, a distinct seasonal variation must be expected that may be primarily related to the time of pesticide application. Future active sampling is likely to yield better insights.

The passive air sampler was a valuable tool for classifying airborne pesticide loads. The number of pesticides and their measured concentrations yield a good indication of the exposure at the location.

However, we must be aware that passive air sampling may detect fewer airborne pesticides than active sampling. Analysis of the PEF in the passive air sampler for the 500 pesticides may increase the number of substances detected significantly. In addition, the findings for the filter mats indicate that the PEF may likewise collect a different range of substances that are currently unidentified.

Because they are simple to use, passive air samplers are increasingly employed in Europe and other regions. Compilation of all available information into a common database could be valuable for site evaluation and comparison of airborne pesticide levels.

Active monitoring of the airborne concentrations of these substances is nonetheless required. Only active sampling can yield reliable air concentration measurements in the short term. In Germany, the Bundesamt für Verbraucherschutz und Lebensmittelsicherheit (BVL; Federal Office of Consumer Protection and Food Safety) is planning to operate three sampling sites in the next years [40]. Because of the technical requirements, the number of sampling site will always be limited.

All further monitoring must include glyphosate, which was detected universally.

The pesticide approval procedure used by EFSA [41,42,43,44,45,46] underestimates the loss of pesticides to the atmosphere and their potential for medium- and long-range transport for all pesticides that were frequently detected (Additional file 18). Accordingly, a revision of the current EFSA pesticide approval procedure to include a realistic estimate for the potential loss of a pesticide to the air and its potential for medium- and long-range transport is recommended.

Pesticide application reduction as proposed by the European Union Commission’s proposal in May 2021 to 50% by 2030 [1] is an important first step in reducing the air load and relieving problems associated with pesticide application. However, it is not clear from our current data whether airborne pesticides and their related substances are detected as a general side effect from conventional farming. It is possible that our observations are related to specific substances with an exceptionally high potential for airborne transport. In the first case, the general volume of pesticides used should be reduced. In the second case, regulatory management of substances prone to air transport could be an appropriate and expedient solution.

The lack of data does not permit conclusions about the health effects of inhalational exposure to pesticide mixtures, which are likely chronic and must be investigated. Similarly, effects on sensitive ecosystems require further study.

In addition to potential health and ecological effects, the concentrations of pesticides in ambient air also exert significant economic consequences. European Commission regulation 834/2007 governs the control of organic agriculture and its products to ensure that synthetic chemical additives such as pesticides and fertilisers do not interfere with the production process. However, organic farmers cannot protect their crops against air pollution by pesticides such as pendimethalin and prosulfocarb, which results in produce that cannot be marketed as organic.

A search for alternatives for these pesticides is necessary if the European Union’s goal of coexistence anchored in EC Basic Organic Regulation No. 834/2007 between conventional and organic forms of production is to apply.

Availability of data and materials

The data sets generated and/or analysed during the current study are available at https://www.enkeltauglich.bio/supplementing-data-enscieu.
