Fish biomarkers from a different perspective: evidence of adaptive strategy of Abramis brama (L.) to chemical stress



A prerequisite for long-term survival of populations under multi-stress conditions is their capacity to set up efficient adaptive strategies. However, changes in the activity of molecular biomarkers have been for decades considered as early signals of the deterioration of the fish health and evidence of stress-related adverse biological effects. The aim of this study was to show that such changes actually represent adaptive response of fish to chemical stress. Gene expression and enzyme activity level in liver and brain of specimens from two populations of Abramis brama from contrasted habitats (nature reserve and urban) were examined. Selected parameters included biomarkers of general stress, antioxidative defence, xenobiotic metabolism, endocrine disruption, glucose homeostasis, iron homeostasis, and neurotoxicity.


Exposure of A. brama population from urban area to chemical stress was confirmed by assessment of chronic toxic pressure at fish habitats using Toxic Unit approach. The most pronounced response to chemical stress is observed through the activation of antioxidative defence mechanisms in brain and liver at gene and enzyme activity level, high biotransformation capacity of liver, and activation of mechanisms that will meet energy demands and compensate for the metabolic costs of the response to toxicants (higher expression of genes related to glucose homeostasis in the exposed population). Higher hepatosomatic index in the exposed population implies liver hypertrophy due to increased functional load caused by pollution. Body condition factors indicate good overall condition of both fish populations and confirm high efficacy of mobilized adaptation mechanisms in the exposed population.


The study provided the first data on basal expression of a number of genes in A. brama, potentially valuable for biomonitoring studies in absence of clear pollution gradient and/or reference sites (conditions). The study highlights importance of newly identified roles of various genes and proteins, typically considered as biomarkers of effects, and shows that changes in these parameters do not necessarily indicate the deterioration of the fish health. Such changes should be considered as adaptive response to chemical stress, rather than direct proof of ecological impact of pollution in situ.


In a constantly changing environment, under conditions of ever-increasing anthropogenic pressure, one of the greatest challenges aquatic wildlife faces is coping with chemical pollution. Surface waters contain tens to hundreds of thousands of chemicals including plant protection products, biocides, pharmaceuticals, surfactants, personal care products and many more together with numerous transformation products [1]. What is more, chemical pollution is often coupled with hydromorphological alterations and/or other stressors such as eutrophication, oxygen loss, pH and temperature variation, resulting in complex environmental change requiring simultaneous activation of multiple biochemical and physiological control mechanisms in aquatic animals in order to survive.

The main intake routes of chemicals in fish are the gills, skin and the gut (via the food ingestion). In case of absorption through gills and skin, chemicals go directly into the bloodstream and to the most of the organs, while ingested chemicals first undergo initial intestinal metabolism, absorption and hepatic biotransformation [2]. Once they enter the organism, chemicals or their biotransformation products induce plethora of responses on various levels of organization in almost all organ systems, often resulting in mild to severe adverse effects. However, selection pressures associated with exposure to chemicals have led to the evolution of tolerance, with the most important physiological adaptive mechanisms related to the metabolism and excretion of the target chemical, enhancements in antioxidant responses, and alterations of the life cycle of fish [3]. Depending on the ability of species to cope with the chronic chemical stress, the overall responses might range from gradual population decline (sometimes resulting in species extinction) to the development of biochemical and physiological adaptations as mechanisms for successful maintenance of homeostasis in the polluted environment [3,4,5,6].

Phenotypic and physiological changes that develop as adaptations to toxic pressure have a confirmed or inferred genetic basis [7], but so far the processes are well understood in a handful of species for a few chemicals only [3]. Most of the studies on dynamics of gene expression are focused on organisms under controlled laboratory conditions, while data on expression variations in organisms under natural conditions are scarce [8]. Typically, laboratory species are aquarium or farm-reared fish, chosen for practical reasons (e.g., short generation time, small size, easy maintenance in aquaria), but their lower level of genetic diversity in comparison to wild populations can alter responses to anthropogenic chemicals [4]. Moreover, most of the existing studies focus on the effect of one specific stress factor in isolation, while aquatic organisms are typically exposed to multi-stress [9].

In environmental studies, physiological responses in wild fish on the level of gene expression and enzyme activity have been traditionally used as biomarkers of exposure and effects [10], tools supposed to provide information on subtle effects that inevitably precede organism/population level changes and announce or anticipate the typically adverse outcome of exposure to mixtures of toxicants in real-life conditions. In concert with a predictive mixture risk modeling, effect-based methods and field-derived species inventories, in situ tests, among which biomarkers in wild or caged fish have a prominent role, have been recommended as one of the four lines of evidence for assessing the ecological impact of chemical pollution on aquatic ecosystems, to bridge the gap and establish causal links between typically disconnected chemical and ecological assessments [11, 12].

In the aquatic environment, a number of pollutants tend to accumulate in sediment and/or biomagnify in food chains, making benthivorous and piscivorous species among the most exposed to their effects. One of such species is a freshwater cyprinid fish Abramis brama (L. 1758; common bream), a bottom dwelling, typical benthivorous fish, feeding on macrozoobenthos including oligochaetes, chironomid larvae, and bivalves [13]. Still, A. brama is considered as LC (Least Concern) species according to IUCN classification. It is autochthonous and widely distributed in Europe and abundantly represented in various freshwater fish communities [14, 15]. Stocks in a number of water bodies are stable. For example, during Joint Danube Survey 2 (JDS2) in 2007, it was the eighth [16], while 6 years later, it was the seventh most abundant of all identified fish species and also the second most abundant rheophilic B species collected during Joint Danube Survey 3 (JDS3) in 2013 [17]. Although there are a few examples of negative reactions of some populations to the anthropogenic pressures [5, 15], abundance and fitness of common bream in various watercourses indicate to their good adaptability and tolerance towards changeable temperature and trophic conditions as well as hydromorphological alterations [14, 15].

However, data on specific biochemical and physiological adaptive strategies of A. brama exposed to various anthropogenic stressors including chemical pollution are scarce, especially on a level of early responses other than antioxidative defence. Therefore, we compared gene expression and enzyme activity level in liver and brain from two populations of wild fish, exposed to contrasted environmental conditions at two sites in the Serbian section of the Danube River. We examined responses related to general stress, antioxidative defence, xenobiotic metabolism, endocrine disruption, glucose homeostasis, iron homeostasis, and neurotoxicity. Selected parameters were so far typically considered as biomarkers of effect in environmental studies, but here we discuss their role from a different angle as we hypothesize that the differences in responses of two populations represent adaptive mechanisms of wild fish population exposed to chronic toxic stress.


Abramis brama populations

Specimens from wild A. brama populations exposed to contrasted environmental conditions at two sites in the Danube River in Serbia were studied. Reference population, living in the conditions of low overall anthropogenic pressure and particularly low chemical stress, is represented by fish caught at the Special Nature Reserve “Gornje Podunavlje (Upper Danube)”, a wetland area of nearly 20,000 ha along the left bank of the River Danube between 1367 and 1433 river km. Apart from being protected by national regulations and categorized as IUCN (International Union for Nature Conservation) category IV—Habitat and Species Management Area, it is also designated as a Ramsar site, Important Bird Area (IBA), Important Plant Area (IPA) and Emerald site. Exposed population, living in the conditions of high anthropogenic pressure and consequent high chemical stress, is represented by fish caught downstream of the city of Novi Sad (1250 to 1252 river km). In this, urban area, the Danube River receives untreated municipal wastewaters of the entire city of approximately 300,000 inhabitants, as well as partly treated effluents from oil refinery and a number of diverse industrial facilities. Less than 10 river km downstream of City of Novi Sad, there is a 6000 ha big Special Nature Reserve “Kovilj-Petrovaradin Marches”. Similarly to Gornje Podunavlje, it is designated as a Ramsar site, IUCN category IV Area, IBA, IPA and Emerald site. The reserve is a suitable refuge for a number of rheophilic B fish species, including phytolithophilic A. brama, and provides adequate spawning habitat for the exposed population from our study.

Assessment of chronic toxic pressure at sampling sites using Toxic Unit (TU) approach

The chronic toxic pressure at sampling sites of interest for the study was evaluated using the Toxic Unit (TU) approach, assuming that concentration addition is a suitable concept for the mixture toxicity assessment [18]. Environmental concentrations of the substances used for TU calculations were taken over from the official report of the Serbian Environmental Protection Agency (SEPA) on surface and groundwater official monthly monitoring of priority substances in 2017 and 2018 [19, 20]. Also, toxic pressure was calculated from the data provided by detailed chemical analyses of water samples taken in the frame of Joint Danube Survey 3 (JDS3) and published by Liška et al. [21], as well as data from large volume sampling (LVSPE) of Danube water in the area of Novi Sad by König et al. [22]. Concentrations of measured substances are given in Additional file 1: Tables S1–S4.

The Chronic Toxic Units (TUch) were calculated for each quantified chemical by dividing its measured environmental concentration (conci) with average chronic No Observed Effect Concentration (NOECi) for fish, daphnia and algae (back-calculated from the database of Posthuma et al. [23] and given in Additional file 1: Tables S1–S4). The overall chronic toxic pressure is calculated as arithmetic sum of chronic TUs and expressed as SUM TUch and also as chronic pressure from organic compounds SUM TUch org.

$$ {\text{SUM}}\;{\text{TUch}} = \mathop \sum \limits_{n}^{i} \frac{{{\text{conc}}_{i} }}{{{\text{NOEC}}_{i} }} $$

Fish sampling and tissue harvesting

Specimens of A. brama were caught during the spawning period, in May 2018, by fishing nets (fishing approved by Provincial Secretariat for Urban Planning and Environmental Protection, Province of Vojvodina, Republic of Serbia, license no. 140-501-1316/2017-04). This study did not involve any experimental manipulation of fish. Fish were killed by a blow to the head and measured for standard length (cm), total length (cm) and weight (g). Fish were dissected, and their gender and maturity was determined by inspection of gonads. For all calculations, both sexes were combined.

From each fish, whole liver and brain were removed and weighted. One half of the tissue was immediately put on dry ice, and upon return to the laboratory transferred to − 80 °C, where samples were kept until further analyses (homogenization, determination of protein levels and enzyme activity). Another half of the tissue was put in RNAlater (Sigma-Aldrich), and then transferred to − 20 °C until further processing (RNA isolation). Scales for age determination of fish were taken from the first row above the lateral line and below the insertion of the dorsal fin of the left side of the body. They were observed under the dissecting microscope and age was determined by counting annuli on the scale surface. This examination revealed they aged from 3 + to 6 + years.

Determination of somatic indices

Body condition factor (BCF) of fish was calculated according to formula:

$$ {\text{BCF}} = \frac{{{\text{whole}}\; {\text{body}} \;{\text{weight}}\; \left( {\text{g}} \right)}}{{{\text{total}}\; {\text{length}}^{3} \;\left( {\text{cm}} \right)}} \times 100 $$

Hepatosomatic index (HSI) was calculated according to formula:

$$ {\text{HSI}} = \frac{{{\text{liver}} \;{\text{weight}}\; \left( {\text{g}} \right)}}{{{\text{whole}}\; {\text{body}}\;{\text{weight}}\; \left( {\text{g}} \right)}} \times 100 $$

Enzyme activity assays

Brain and liver tissues were homogenized in ice-cold sodium phosphate buffer (0.1 M, pH 7.2) in 1:5 ratio (w/v). Homogenization was done on Disruptor Genie homogenizer (Scientific industries, USA), 2 min for liver samples and 1 min for brain samples, in 1.5 ml Eppendorf tubes with 5 stainless steel bead beaters (1.5 mm dia.) and ~ 10 glass bead beaters (0.5 mm dia.), previously UV sterilized and autoclaved (beads manufactured by Biospec products, USA). Homogenates were centrifuged at 9000×g, 20 min, 4 °C. Supernatants were collected, divided into aliquots, and used for enzyme activity measurements as enzyme source. In all enzyme assays, enzyme activity was determined photometrically using Multiskan™ GO microplate spectrophotometer (Thermo Scientific). Protein concentration in each sample was determined using Pierce BCA Protein Assay Kit (ThermoFisher Scientific), in triplicates, following the manufacturer’s instructions, also using Multiskan™ GO microplate spectrophotometer (Thermo Scientific). Obtained values were used for the expression of enzyme activities per mg of proteins.

Catalase (CAT) activity was measured by the method described by Claiborne [24], and as modified by Velki et al. [25]. In our study, the procedure was adapted for measurement in 96-well plates. In each well, the reaction mixture contained: 120 µl (for liver samples) or 100 µl (for brain samples) of sodium phosphate buffer (0.1 M, pH 7.2), 125 µl of 0.04 M hydrogen peroxide (Sigma-Aldrich), and the reaction was initiated by adding 5 µl of liver samples or 25 µl of brain samples. The decrease in absorbance due to hydrogen peroxide decomposition was measured in triplicates at 240 nm, for 3 min, in 7 (30 s) steps, at 25 °C. The CAT activity was expressed as μmol of hydrogen peroxide decomposed per 1 min/mg of proteins. Molar extinction coefficient of 43.6 M−1 cm−1 was used for calculation.

Carboxylesterase (CES) activity was measured by the method described by Hosokawa and Satoh [26], using p-nitrophenyl acetate (pNPA) as a substrate, and as modified and adapted for 96-well plates by Velki et al. [25]. In each well, the reaction mixture contained: 15 µl of 1 M Tris–HCl buffer (pH 8.0; Sigma-Aldrich), 200 µl of 1 mM pNPA (Sigma-Aldrich) dissolved in acetonitrile and 15 µl of sample in GET solution (preparation: 15 µl of liver sample in 60 µl or 30 µl of brain sample in 45 µl of GET solution (1:5 w/v 85% glycerol (Zorka, RS), 0.2 M EDTA (Centrohem, RS), 1 M Tris–HCL in distilled water, pH 7.4). The increase in absorbance due to formation of p-nitrophenol (pNP) was measured in triplicates, at 405 nm, for 2 min, in 5 (30 s) steps, at 25 °C. The CES activity was expressed as µmol of pNP formed per minute per mg of protein. Molar extinction coefficient of 16,400 m−1 cm−1 was used for calculations.

Glutathione S-transferase (GST) activity was measured by the method described by Habig and Jakoby [27], using 1-chloro-2,4-dinitrobenzene (CDNB) as a ultraviolet chromogenic substrate, and adapted for 96-well plates by Velki et al. [25]. In each well, the reaction mixture contained: 180 µl of 1 mM CDNB (Sigma-Aldrich), 5 µl of liver or 10 µl of brain sample and 50 µl of 25 mM GSH (Sigma-Aldrich). The increase in absorbance due to production of conjugate (CDNB-SG) in reaction between CDNB and GSH was measured in triplicates, at 340 nm, for 3 min, in 10 (20 s) steps, at 25 °C. The GST activity was expressed as µmol of conjugated GSH in 1 min/mg of proteins. Molar extinction coefficient of 9600 M−1 cm−1 was used for calculations.

Acetylcholinesterase (AChE) activity was measured by the method described by Ellman et al. [28], using acetylthiocholine iodide as a substrate, and adopted for 96-well plates by Velki et al. [25]. In each well, the reaction mixture contained: 190 µl (for liver samples) or 200 µl (for brain samples) of sodium phosphate buffer (0.1 M, pH 7.2), 10 µl of 1.6 mM DTNB (Sigma-Aldrich), 20 µl of liver or 10 µl of brain sample, and the reaction was initiated by adding 10 µl of 156 mM acetylthiocholine iodide (Sigma-Aldrich). During the reaction, thiocholine (hydrolyzed from acetylthiocholine iodide by AChE) reacts with DTNB resulting in yellow colored product (5-thio-2-nitrobenzoic acid anion). The increase in absorbance was measured in triplicates, at 412 nm, for 5 min, in 20 s steps, at 25 °C. The AChE activity is expressed as µmol of acetylthiocholine iodide hydrolyzed in 1 min/mg of proteins. Molar extinction coefficient of 16,400 M−1 cm−1 was used for calculations.

Quantitative real-time PCR analysis (RQ-PCR)

Total RNAs from the liver and brain tissue was extracted using the TRIzol reagent (Invitrogen, CA, USA), according to supplier’s instructions. The average RNA yield was 1.5 µg/µl, while the A260/A280 ratio ranged from 1.9 to 2.1, as determined spectrophotometrically using BioSpec-nano (Shimadzu Corporation, Japan).

Reverse transcription of total RNA from each sample to cDNA was conducted using High Capacity cDNA Reverse Transcription Kit with RNase inhibitor (Applied Biosystems). The reaction mixture was prepared in a 20 µl total volume, containing 2 µg of RNA, random primers and MultiScribe reverse transcriptase (Applied Biosystems) according to the supplier’s instructions. The reverse transcription was conducted in the Veriti Thermal Cycler (Applied Biosystems), under the following conditions: 25 °C for 10 min, 37 °C for 120 min, and 85 °C for 5 min.

The RQ-PCR reaction was prepared in a 12.5 µl total volume, containing 1 × Power SYBR Green PCR Master Mix reagent (Applied Biosystems, UK), 500 nM of each primer, template (2.5 µl of product from reverse transcription reaction, 2.5 × diluted), and DEPC-treated nuclease-free water (Sigma). The RQ-PCR was performed on the Mastercycler® ep realplex (Eppendorf, Germany), under the following cycling conditions: 50 °C for 2 min, 95 °C for 10 min, 40 cycles of 95 °C for 15 s, and 60 °C for 1 min.

The housekeeping gene for 40S ribosomal protein s11 (40s11) was used as an endogenous control. Expression of the following genes was tested: heat shock protein 70—hsp70, cortisol receptor—cr, extracellular signal–regulated kinase 2—erk2, cytochrome oxidase subunit 1—cox1, extracellular superoxide dismutase—sod, glutathione peroxidase 1—gpx1, nuclear factor erythroid 2-related factor 2-nrf2a—nrf2a, cytochrome P450 1a—cyp1a, microsomal glutathione s-transferase 3a—mgst3a, estrogen receptor α—erα, estrogen receptor β—erβ, pyruvate carboxylase—pc, glycogen phosphorylase liver isoform—pygl, transferrin variant d—tfd, and myelin basic protein—mbp. Primer sequences for tested genes were adopted from the pertinent literature (Table 1). For each sample, 2 to 4 independent RQ-PCR reactions were conducted. In each reaction, samples were analyzed in duplicate and endogenous control was included in each plate.

Table 1 Primer sequences used for the RQ-PCR analysis

Normalized gene expression (NE) was calculated as previously described [29] according to formula:

$$ {\text{NE}} = \frac{{E_{{40{\text{s}}11}}{^{{{\text{Ct}}_{{40{\text{s}}11}} }} }}}{{E_{\text{target}}{^{{{\text{Ct}}_{\text{target}} }} }}}, $$

where NE is normalized gene expression; E40s11—PCR amplification efficiency of the housekeeping gene; Etarget—the PCR amplification efficiency of the target gene; Ct40s11—threshold cycle of the PCR amplification of the housekeeping gene; Cttarget—threshold cycle of the PCR amplification of the target gene. The Ct is defined as the cycle at which the fluorescence rises appreciably above the background fluorescence.

Statistical analyses

Raw data were checked for normality using D’Agostino & Pearson omnibus and Shapiro–Wilk normality test. Further statistical analyses of the results were performed using software GraphPad Prism 6. For comparison of the responses in two fish populations, in cases of normal distribution of the data, parametric unpaired t-test was used, otherwise, non-parametric Mann–Whitney U test was used. In all tests, the probability level for statistical significance was set to p < 0.05.


Chronic toxic pressure at A. brama habitats

According to the results of the official monthly monitoring of priority substances, priority hazardous substances, river basin specific pollutants and selected pesticides in water ([19, 20], data given in Additional file 1: Tables S1 and S2) during 2017 and 2018 the chronic toxic pressure was higher in protected than in urban area, but the contribution of organic chemicals to the overall toxic pressure is almost negligible (Max SUM TUch org 0.03) along the whole river section of interest for this study (Table 2).

Table 2 Chronic toxic pressure calculated according to official monitoring data [19, 20]

According to the more detailed chemical analyses (Additional file 1: Tables S1–S4) of water samples taken at protected area (Bogojevo) and in the urban area of city of Novi Sad in the frame of JDS3 [21], chronic toxic pressure is up to 2.5 higher in urban area (SUM TUch 0.82 and 1.36 vs. 0.54), while chronic toxic pressure deriving from organic compounds (metals omitted) is up to 3 times higher in urban area (SUM TUch org 0.65 and 1.21 vs. 0.41). High SUM TCch org values were also calculated based on LVSPE data [22] in Novi Sad metropolitan area, at untreated municipal wastewaters discharge point (SUM TUch org 0.82) (Table 3).

Table 3 Chronic toxic pressure in the River Danube at sampling sites of interest

Somatic indices

The values of somatic indices, BCF and HSI, are presented in Fig. 1. Individual fish length and weight was proportional in both populations, which resulted in uniformed BCF with small deviations. Hence, although only slightly higher (13%), an average BCF of exposed population statistically differs from the average value of the reference population. There was no correlation between fish age and BCF values (correlation coefficients lower than 0.05). Difference in HSI was considerably bigger. In exposed population, average HSI was 1.7 times higher than in reference population.

Fig. 1

Somatic indices calculated in two populations of A. brama. BCF body condition factor, HSI hepatosomatic index. Box and whiskers plots present median, interquartile ranges, minimum and maximum values. N = 14 (reference population) and N = 11 (exposed population). Asterisks annotate statistically significant difference between the populations, as determined by Mann–Whitney U test. Levels of significance were **p < 0.01 and ***p < 0.001

Enzyme activity

Results of the enzyme activity assays are presented in Fig. 2. Among the investigated enzymes, antioxidant enzyme CAT exhibits the highest constitutive activity in both examined tissues. The comparison of the average CAT activity in two fish populations revealed that its activity in brain of fish from the exposed population is twice as high as the activity in brain of the fish from the reference population. Although statistically non-significant, considerably higher average CAT activity (31%) was also observed in liver of the fish from the exposed population. The activities of xenobiotic metabolizing enzymes also differ in two fish populations. The average activity of CES is significantly higher both in liver (85%) and brain (61%), and the activity of GST in brain (58%) of fish from the exposed population. The AChE exhibits the lowest constitutive activity, with higher values in brain, as expected. Slightly, but statistically significant higher average activity was determined in liver, while 36% lower enzyme activity was measured in brain of fish from the exposed in comparison to the reference population.

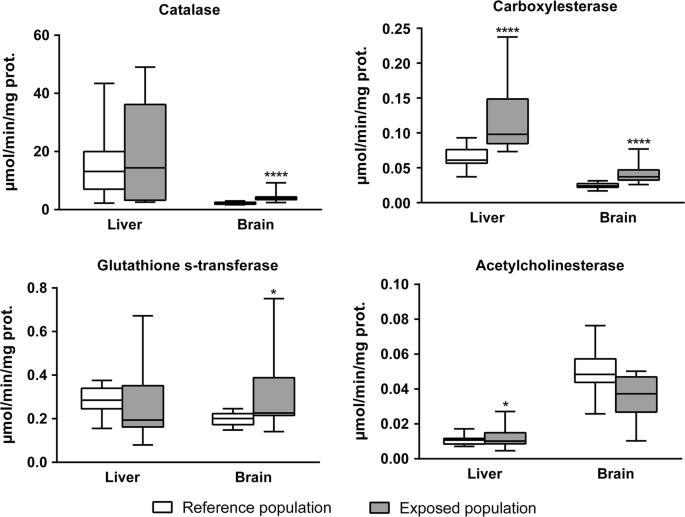

Fig. 2

Activity of enzymes determined in liver and brain of two populations of A. brama. Box and whiskers plots present median, interquartile ranges, minimum and maximum values. N = 14 (reference population) and N = 11 (exposed population). Asterisks annotate statistically significant difference between the populations, as determined by Mann–Whitney U test. Levels of significance were *p < 0.05 and ****p < 0.0001

Gene expression (RQ-PCR)

The expression of 15 genes determined by RQ-PCR analysis is presented in Fig. 3. In markers of general stress, considerable differences were observed in levels of gene expression in two fish populations. The expression of hsp70 was 4.2 times higher and of cox1 4.6 times lower in the exposed population, distinguishing these genes as the most responsive to contrasting environmental conditions. The expression of cr and erk2 in fish from the exposed population is twice as high as expression in fish from the reference population, although the difference between the groups was not statistically significant. In fish from the exposed population, significant 4.7 times higher expression of gpx1, 2.4 higher expression of sod, and 2.7 times lower expression of nrf2 was observed vs. the reference population values. In genes encoding xenobiotic metabolizing enzymes, the trend of lower expression was detected in fish from the exposed population. Similar response was observed in the expression of erα, related to endocrine disruption, and for tfd, related to maintenance of iron homeostasis (significant 2.2 and 2 times lower expression, respectively).

Fig. 3

Gene expression in liver or brain (only neurotoxicity) of the two populations of A. brama. Gene expression was determined by RQ-PCR analysis. Columns represent mean values ± SD, with N = 14 (reference population) and N = 11 (exposed population). Asterisks annotate statistically significant difference between populations, as determined by parametric t-test (for nrf2a, cyp1a, pc, mbp) or Mann–Whitney U test (for hsp70, cr, erk2a, cox1, sod, gpx1, mgst3a, erα, erβ, pygl, tfd), depending on the normality of distribution of data. Levels of significance were *p < 0.05, **p < 0.01, and ***p < 0.001. Median values, interquartile ranges, minimum and maximum are given in Additional file 1: Table S5

Expression of genes related to maintenance of glucose homeostasis, pc and pygl, is significantly higher (up to 3.6 times) in fish from the exposed population. The expression of mbp, a marker of neurotoxicity, was measured in brain, and no statistical difference was observed between the populations.

Constitutive expression of investigated genes varied, and was the highest in mgst3a, tfd, and mbp. Low constitutive expression was determined for cr, cox1, erβ, and pc, but still enabled differentiation between the two populations.


Confirmation of exposure of A. brama population from urban area of the city of Novi Sad to chronic chemical stress

Official monitoring data [19, 20, 38] indicate that water quality in general supported moderate to good ecological status and did not substantially differ between the three sampling sites. Chemical status of the River Danube at sampling site Novi Sad (urban area) was good, while in the same period, concentrations of some pollutants occasionally surpassed environmental quality standards (EQS) at Bezdan and Bogojevo (protected area). Although sediment content of some pollutants at Novi Sad is somewhat higher than at Bezdan, concentrations do not surpass the sediment target values set by national regulations [39]. According to the official data, the overall chronic toxic pressure to Danube ecosystem can be mainly attributed to metals. Due to a very limited number of potentially toxic organic compounds officially monitored and measured above LOQ, the overall chronic toxic pressure from organic compounds seems misleadingly low and even along the whole river stretch of interest for this study, underestimating the potential impact of non-regulated and non-monitored chemicals and their mixtures [1, 11, 22].

However, a detailed chemical analysis of water samples taken at Bogojevo and Novi Sad in the frame of JDS3 [21], reveals profound differences in chronic toxic pressure deriving from organic compounds at two sites. Although the number of compounds above LOQ was very close, considerably higher SUM TUch at two sampling sites along the metropolitan area of Novi Sad in comparison to the site at the protected area indicate substantial pressure from untreated waste waters of city of Novi Sad. This was also confirmed by König et al. [22] by LVSPE of the River Danube water upstream Novi Sad. Chemical characterization of the Danube River water in the area of Novi Sad has been conducted also in other studies recognizing this area as a pollution hot spot [40, 41].

Studies combining chemical analyses and bioassays on different experimental models underlined the large potential of a high load of chemicals from the group of pharmaceuticals, industrial chemicals, pesticides, and personal care products in the Danube River in this area, to activate toxicity pathways and disturb biochemical and physiological homeostasis in various cell lines, zebrafish embryos and fish [22, 42,43,44,45]. Still, the questions whether the biological effects observed in vitro can be regarded as an indication of probable ecological impact and weather the impact could be confirmed by adverse effects in resident biota, on individual and population/community level remain open.

The status and condition of A. brama populations

Biometric indices BCF and HSI are reliable indicators of individual fitness and long-term changes of fish health and also, parameters of a high value that mirror the water quality [46]. Decreasing weight of somatic tissue and consequently relatively lower BCF occurs in spring, due to differentiation and growth of reproductive tissue requiring energy reserves during pre-spawning period [47]. BCF values from our study, therefore suggest good nutritional state with well-balanced metabolic expenditures of the fish. The HSI in our study was significantly higher in fish from the exposed population. Two main factors can influence HSI ratio: exposure to the pollutants and fish diet [46]. High HSI in our study probably indicate to liver hypertrophy caused by pollutants, as cell hypertrophy and an increase in liver size to accommodate increased functional load are denoted as adaptive responses to xenobiotic exposure [48]. Liver is also an important storage of energy reserves in non-fatty fish, so low HSI values can be seen in fish on a poor diet [46], which was not the case in our study. Overall, high HSI in fish from the exposed population confirms exposure to chemical pollution, but together with unaffected BCF also indicate good capacity of fish to cope with the stress.

Abramis brama is among the top five most abundant species, making 8.5% and 6.2% of the total mass catch in the Danube section along Gornje Podunavlje Reserve and downstream of Novi Sad, respectively [49]. Since it has never been re-stocked, all Danube populations are natural. Overall, the two populations of A. brama are examples of stable populations, living in adequate hydromorphological conditions, with sufficient living and spawning habitats and no diet restrictions.

Chemical contamination of the Danube River section in Novi Sad urban area seems to be a primary stressor that might challenge maintenance of homeostasis on many levels, and eventually jeopardize survival of affected population. Traditionally, biomarkers of effect in resident biota, particularly fish, have been perceived as direct evidence of biological effects in situ [10]. Since our results on individual condition as well as the results of the fish community studies [16, 17, 49] lead to the conclusion that common bream resists the challenge of chronic toxic pressure, here we shed a light on mechanisms aimed to fight against the chemical stress and consequently challenge the traditional perception of fish biomarker.

Adaptive responses in A. brama exposed to chemical stress

Heat shock protein70 (HSP70) and cytochrome oxidase subunit 1 (COX1) are parameters studied for stress identification and as sentinels of exposure to contaminants [31]. HSP70 is constitutively expressed in most cells, upregulated by thermal stress, heat-shock, heavy metals and oxidative stress and with appreciable role in stress tolerance, protein folding, regulation of signal transduction pathways that control cell growth and survival, and suppression of apoptosis [50, 51]. In fish, HSP70/heat-shock cognate (HSC)70 may also be used as a source of protein degradation and thus effectively functions as an energy source under stress conditions [50]. High hsp70 expression in A. brama (4.2 times vs. reference population) from the exposed population in our study highlights the importance of adaptive mechanisms related to HSP70 functions. Significant difference was also observed in the expression of cox1, which regulates oxidative phosphorylation, proton pumping and ATP production in mitochondria. Up-regulation of cox1 was recognized as adaptive response in fish attempting to neutralize the oxidative effect of toxicants [31]. Low cox1 expression in fish exposed to chemical stress in our study is surprising, and might represent a weak point of the adaptive mechanism of A. brama, leading to greater production of mitochondrial reactive oxygen species (ROS). However, it seems that efficient antioxidative defence mechanisms minimize oxidative damage.

Cortisol level in plasma is a well-accepted acute stress indicator, and has been successfully applied to assess a level of stress both in the controlled environments and in the wild (reviewed by Sadoul and Geffroy [52]). Expression of cr in A. brama from the exposed population in our study is not significantly different from the reference population, indicating low level of acute stress in the fish. Absence of acute toxicity of Danube River water downstream of Novi Sad was shown also by fish embryo test (FET) with Danio rerio [53]. Non-significant differences between levels of cr expression in two populations from our study can indicate adaptive response to chronic stress, due to the hypothalamo–pituitary–interrenal axis desensitization as a consequence of allostatic overload [54]. Interesting observation in fish populations revealed correlation between individual behavioral phenotypes and cortisol levels, distinguishing “bold” proactive individuals as low-cortisol responders, masking the common cortisol-related responses to stress [55]. Therefore, it might also be possible that in A. brama from the population facing stress, evolutionary strategy favors proactive behavior and low-cortisol levels (and related cr expression).

Induction of antioxidant defence system and xenobiotic metabolizing enzymes in fish, have been recognized as a golden standard in environmental studies based on biomarker approach for decades [10]. Activation of components of antioxidative defence system observed in A. brama from urban area on gene expression (induction of sod and gpx1) and enzyme activity level (induction of CAT) is a proof of strength of their ROS elimination system, and probably one of the most important adaptations to avoid oxidative stress in conditions of chemical contamination. Hepatic antioxidant enzymes activities in A. brama exhibit seasonal variations, which can be related to water temperature, oxygen availability, spawning, feeding activities, and fish metabolic activity in general [13]. Up-regulation of Nrf2 is considered as a protective mechanism with an important role in the adaptive response to oxidative stress, widely seen in environmental and toxicity studies. Although expression of nrf2a in A. brama from our study was lover in the exposed population in comparison to the reference one, it seems that constitutive levels of Nrf2 are still high enough to induce sufficient antioxidative defence response. This result should also be considered from the aspect of controversial role of Nrf2 in tumor development mainly shown in mammals. On the one hand, Nrf2 is required for protecting the body against cancer while on the other, its overexpression in tumors results in a promotion of tumor growth because it confers a survival and growth advantage to cancer cells [56, 57]. In our study, balanced expression of nrf2, sufficient to facilitate the induction of antioxidative defence mechanisms, yet low enough to prevent a tumor growth upon exposure to a number of the proven cancerogenic substances detected in the urban area (Additional file 1: Tables S1–S4), might therefore be considered as an adaptive mechanism against carcinogenesis in fish.

Biotransformation enzymes from the CYP1A subfamily are one of the most studied biomarkers of effect of xenobiotics acting through activation of arylhydrocarbon receptor (AhR) as ligand-dependent transcription factor for cyp1a. In vitro study on concentrated water samples of River Danube from Novi Sad site induced significant effect in AhR CAFLUX assay, indicating presence of AhR-agonists in the water samples [22, 53]. However, CYP1A enzymes do not seem to play important role in adaptation of A. brama from our study, since the expression of corresponding gene was lower in fish from the exposed population. The protective role of GST in fish is complex. Apart from a prominent role in phase II of biotransformation of xenobiotics it also serves as an antioxidant by scavenging ROS. Our results indicate that the role of this enzyme in A. brama overall adaptation to chemical stress is not particularly important. Unchanged or decreased activity of biotransformation enzymes (such as CYP1A and GST) in liver is not surprising, since many evidence show that they can also be suppressed or even inhibited in liver of fish exposed to chronic pollution [58,59,60]. Moreover, seasonal variations of the enzyme activity in liver should also be considered, since it was shown that GST and CAT in different fish species are the highest after the spawning period, which reflects reorganizations in fish metabolism during the reproductive cycle [58]. Seasonal variability in hepatic CYP1A activity (measured as EROD activity), was also shown in A. brama by Yurchenko and Morozov [47], with lower values during the spring in comparison to other seasons. Lack of induction of mgst3a in our study might also result from low expression of nrf2a, since GSTs are among Nrf2 target genes [61].

Inhibition of CES activity is one of the most widely used biomarker of effect. However, more recent studies reveal that mammalian carboxylesterases have important physiological functions in lipid metabolism and energy homeostasis and probably did not evolve for the sole purpose of metabolizing xenobiotics [62, 63]. Although there is a lack of evidence of such a dual function of CES in fish, its role in lipid biochemistry is very likely, so high CES activity might be considered as an adaptive mechanism to maintain energy homeostasis in A. brama exposed to chemical stress. It has been found that CES activity varies among fish species, and level of its constitutive activity may play role in lower susceptibility to certain classes of xenobiotics (reviewed by Wheelock et al. [64]). Therefore, significantly higher activity of CES in liver and brain of fish from the exposed population in our study is one more example of adaptive strategy of A. brama that might aim for the development of lower sensitivity to xenobiotics due to increased potential for their biotransformation, and maintenance of lipid and energy homeostasis.

Processes of antioxidative defence and biotransformation occur in all organs with different intensity, with liver being distinguished as one of the most active [58]. Apart from liver, brain proved to be an organ with strong antioxidative and biotransformation capacity in A. brama, since the activity of CAT, CES and GST was significantly higher in population exposed to chemical stress. This response can be considered as neuroprotective, and probably contributes to maintenance of functionality of the brain by preventing oxidative stress and harmful effects of chemicals on neurons. Inhibition of AChE activity is the best known biomarker of neurotoxicity. Our results reveal that the activity of this enzyme is not jeopardized in brain and liver in the exposed population of A. brama, since no significant enzyme inhibition was shown in any organ. In addition, in both populations similar expression of mbp, gene coding the protein essential for formation of myelin in nervous system, was recorded. Knowing that neuroactive (and potentially neurotoxic) compounds largely contribute to chemical pollution of the rivers world-wide [65] including the Danube River in the area of Novi Sad (project FP7 SOLUTIONS, unpublished results), our findings imply to the effectiveness of protective mechanisms in brain of A. brama, aimed to safeguard the transmission of nerve impulses.

Presence of estrogenic contaminants was confirmed at the Novi Sad site by instrumental analyses and related ER-based in vitro screening assays [22, 42, 53]. Our study showed that erα is a higher expressed receptor subtype in A. brama, but surprisingly, its expression in the exposed population was lower in comparison to the reference population. Significant discrepancies that can occur between in vitro screening assays and the induction of estrogenic biomarkers in fish were explained by Yost et al. [66] by the specific involvement of different ER subtypes in the teleost estrogenic response. Moreover, it is possible that potential xenoestrogens are deactivated through biotransformation processes in fish (a process that can’t be observed in the in vitro assays), limiting their estrogenic effects, which, together with specific ‘cocktail’ effects in vivo could provide explanation for such result [67]. Lower expression of er might also result from reallocation of energy resources away from reproduction and towards tolerance mechanism, highlighted in a study of Xie and Klerks [68]. Moreover, the level of er expression highly depends on the stage of reproductive cycle of fish [66, 67]. Finally, decrease in the expression of genes coding different ER subtypes in fish liver after exposure to synthetic ligands was also reported by other authors [69].

Glucose homeostasis is controlled by liver enzymes including, among others, pyruvate carboxylase (PC) involved in hepatic gluconeogenesis and glycogen phosphorylase which is a key enzyme of glucogenolysis in liver [70]. Expression of genes encoding these enzymes (pc and pygl, respectively) was higher in fish from A. brama population exposed to chemical stress in our study. Such response indicates great ability of the exposed population to mobilize energy resources and provide sufficient blood glucose levels to compensate for the metabolic cost of defence, the feature which largely determines the tolerance of fish to environmental stressors [9].

Transferrin (TF) is a protein vital to iron metabolism and maintains the iron requirement of cells through its binding and transport of iron [71]. Through transport of iron, TF is responsible for different processes, such as DNA synthesis, oxygen and electron transport, cell proliferation and regulation of the immune system [32, 72]. The TF is known to be synthesized increasingly if body iron stores are low [73], so lower expression of tfd in the exposed population of A. brama from our study indicate sufficient levels of iron required for the mentioned processes. TF has also been linked to impaired glucose metabolism, hyperglycemia and insulin resistance [73], so together with pc and pygl might also be involved in maintenance of glucose homeostasis and prevention of hyperglycemia in the fish exposed to chemical stress.

Implications for water management

The study implies that differences in gene expression and enzyme activity level in fish from sites with contrasted environmental conditions represent adaptive mechanisms of wild fish population exposed to chronic toxic stress. A number of studies so far (for review see Backhaus et al. [74]) used the differences in responses in wild fish from reference (unpolluted) and exposed (polluted) sites as direct proof of ecological impact of chemical stress. The result of this study proved that adaptive responses of sentinel species should be taken only as one line of evidence of ecological impact of complex chemical pollution [12]. To ensure that consensual conclusions are drawn from a given dataset, decision matrix on how to combine all available lines of evidence has been suggested by Backhaus et al. [74]. Even in cases of high predicted mixture toxicity and clear signal from effect-based (in vitro) assays, our case study confirmed that the responses of sentinel species should be taken as the evidence of chronic toxic pressure which is likely to cause chemically induced ecological impact, but that the final confirmation must come from (repeated) well designed community studies [12, 74]. In spite of high ecological relevance of using wild fish for the assessment of in situ effects, the choice of species depends on their presence and abundance at all sites of interest, including pollution hot spots. Additional in situ test with caged fish, ideally using the species naturally expected in respective water body type, but absent from the site of interest, would help to distinguish between the ecological impacts of chemical and non-chemical stress, to enable focusing resources on major management tasks.


The study provides the first data on basal expression of a number of genes in common bream, potentially valuable for biomonitoring studies in absence of clear pollution gradient and/or reference sites (conditions).

The results of the study reveal that the adaptive strategy of A. brama against chemical stress predominantly relies on highly efficient antioxidative defence system in brain and liver, high biotransformation capacity of liver, and activation of mechanisms that will meet energy demands and compensate for the metabolic costs of the response to toxicants. So far, changes in gene expression and enzyme activity in fish have mostly been analyzed as biomarkers of exposure or effects, with the main purpose to indicate the level and type of contamination in the aquatic environment. Moreover, any changes in the responses of affected vs. reference populations were typically taken as a proof of an undesirable and potentially harmful effects, which would most likely lead to further changes and damages on higher levels of biological organization. However, our study showed that changes in the activity of molecular biomarkers do not necessarily indicate the deterioration of the fish state. Biomarkers should primarily be used as a tool for predicting the state of biota under stochastic environmental conditions [58]. Emerged from contemporary studies, newly identified roles of various genes and proteins, previously considered only as biomarkers of effects, shed new light on a complex network of responses that should, in case of the stable fish populations, be considered as adaptive. We therefore suggest that the observed changes in gene expression and enzyme activity in the present study should be considered as an evidence of exposure to complex mixtures of hazardous chemicals and adaptive response of affected population to chemical pollution, rather than direct proof of ecological impact in situ. Hence, the study supports the concept of evolutionary toxicology, and issues raised by Whitehead et al. [6] describing how the key features of populations, the characteristics of environmental pollution, and the genetic architecture underlying adaptive traits, may interact to shape the likelihood of evolutionary rescue from pollution.

Availability of data and materials

All data generated or analyzed during this study are included in this published article (and its additional file). The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.





Arylhydrocarbon receptor


Body condition factor





cox1 :

Cytochrome oxidase subunit 1

cr :

Cortisol receptor

cyp1a :

Cytochrome P450 1a

erα :

Estrogen receptor α

erβ :

Estrogen receptor β

erk2 :

Extracellular signal-regulated kinase 2

gpx1 :

Glutathione peroxidase 1


Glutathione S-transferase


Hepatosomatic index

hsp70 :

Heat shock protein 70


Joint Danube Survey


Limit of quantitation


Large volume sampling

mbp :

Myelin basic protein

mgst3a :

Microsomal glutathione s-transferase 3a

nrf2a :

Nuclear factor erythroid 2-related factor 2-nrf2a


Polycyclic aromatic hydrocarbons


Polychlorinated biphenyls

pc :

Pyruvate carboxylase

pygl :

Glycogen phosphorylase liver isoform


Reactive oxygen species


Quantitative real-time PCR analysis


Serbian Environmental Protection Agency

sod :

Extracellular superoxide dismutase


Arithmetic sum of chronic TUs

SUM TUch org:

Arithmetic sum of chronic TUs from organic compounds



tfd :

Transferrin variant d


Toxic Unit


Chronic Toxic Units
