The value of zebrafish as an integrative model in effect-directed analysis - a review
Environmental Sciences Europe volume 27, Article number: 8 (2015)
Bioassays play a central role in effect-directed analysis (EDA), and their selection and application have to consider rather specific aspects of this approach. Meanwhile, bioassays with zebrafish, an established model organism in different research areas, are increasingly being utilized in EDA. Aiming to contribute for the optimal application of zebrafish bioassays in EDA, this review provides a critical overview of previous EDA investigations that applied zebrafish bioassays, discusses the potential contribution of such methods for EDA and proposes strategies to improve future studies. Over the last 10 years, zebrafish bioassays have guided EDA of natural products and environmental samples. The great majority of studies performed bioassays with embryos and early larvae, which allowed small-scale and low-volume experimental setups, minimized sample use and reduced workload. Biotesting strategies applied zebrafish bioassays as either the only method guiding EDA or instead integrated into multiple bioassay approaches. Furthermore, tiered biotesting applied zebrafish methods in both screening phase as well as for further investigations. For dosing, most of the studies performed solvent exchange of extracts and fractions to dimethyl sulfoxide (DMSO) as carrier. However, high DMSO concentrations were required for the testing of complex matrix extracts, indicating that future studies might benefit from the evaluation of alternative carrier solvents or passive dosing. Surprisingly, only a few studies reported the evaluation of process blanks, indicating a need to improve and standardize methods for blank preparation and biotesting. Regarding evaluated endpoints, while acute toxicity brought limited information, the assessment of specific endpoints was of strong value for bioactivity identification. Therefore, the bioassay specificity and sensitivity to identify the investigated bioactivity are important criteria in EDA. Additionally, it might be necessary to characterize the most adequate exposure windows and assessment setups for bioactivity identification. Finally, a great advantage of zebrafish bioassays in EDA of environmental samples is the availability of mechanism- and endpoint-specific methods for the identification of important classes of contaminants. The evaluation of mechanism-specific endpoints in EDA is considered to be a promising strategy to facilitate the integration of EDA into weight-of-evidence approaches, ultimately contributing for the identification of environmental contaminants causing bioassay and ecological effects.
Zebrafish is a model vertebrate organism broadly applied in biological sciences, being one of the most important organisms that is used in different research areas as genetics, developmental biology and ecotoxicology . More recently, its versatility has also been recognized by chemists, which provides an opportunity to enhance interdisciplinary studies involving biology and chemistry  as in effect-directed analysis (EDA) .
Bioassays in EDA
EDA, bioassay-guided fractionation and similar approaches are testing procedures applied to identify the individual bioactive compounds contained in highly complex matrices, such as natural products and environmental samples. Bioassays play a central role in EDA since biological activity directs the chemical fractionation and analysis steps as well as the testing strategy. Since fractionation of the sample is required to reduce the complexity of the original mixture, bioassays are needed to identify the active fractions and to guide further fractionation steps. Target and non-target chemical analyses are applied to select candidates and identify bioactive substances. Bioassays again play an important role in the confirmation phase, for biotesting of the pure substance identified as the bioactive compound [3-5].
Therefore, bioassay selection for EDA studies has to consider aspects that are rather specific to this application. For accurate identification of bioactive fractions, the bioassays should present high sensitivity and low internal test variability and be able to detect different chemicals that address similar endpoints or modes of action. Furthermore, due to limited sample amounts and large numbers of fractions to be tested, high-throughput low-volume bioassays are required .
Thus, in vitro bioassays are often selected for EDA studies; however, certain bioactivities require the organ or organism level for their proper identification, as for compounds in which metabolism plays an important role by interfering with formation or transformation of bioactive metabolites and bioaccumulation profiles . These are the cases when bioassays with zebrafish early-life stages are considered to be of great value since they combine the organism-level endpoints with advantages of the in vitro format. Furthermore, biotesting strategies integrating organism-based and in vitro bioassays are expected to cover a broad range of bioeffects and related toxicants. The resulting diagnostic power strongly supports the identification of specific toxicants in EDA case studies .
Zebrafish model and bioassays in EDA
The zebrafish Danio rerio exhibits characteristics that make it a very attractive research model, including small size, ease of culture, high fecundity, rapid development, external fertilization and development, and transparency of the embryo. Bioassays with zebrafish embryos and larvae have further advantages that fit very well to EDA requirements. While these tests are relevant to evaluate acute  and chronic  effects in later life stages, the experimental setup exhibits several in vitro test characteristics, including a reduced volume of sample for testing and potential for high-throughput applications. Experiments with early life stages often do not require animal test authorization, and no external feeding is needed by embryos and larvae .
The zebrafish success as a model organism is in great part due to the work of pioneer scientists between the late 1960s and mid-1990s, as George Streisinger, who established the first zebrafish models and performed pioneer works on its genetics and developmental biology [10-12]; Charles Kimmel’s descriptions of the cellular fate map  and the stages of development  in embryos; and Christiane Nüsslein-Volhard, who performed a large-scale mutant screen to identify genes for vertebrate development control [15,16]. Following these ground-breaking studies, there was evident increase in the use of zebrafish in research , resulting in the sequencing of its genome , extensive information on its genetics, genomics, phenotypic and developmental biology , and the establishment of thousands of wild-type and transgenic zebrafish lines [20,21].
Importantly, zebrafish embryos and early larvae might be used to replace or refine experiments with adult fish, being increasingly applied in ecotoxicology to evaluate the toxicity of chemicals, plant protection products, biocides, pharmaceuticals, wastewater effluents and various aqueous environmental samples, and to assess sediment toxicity [1,22-24]. Recently, zebrafish embryo toxicity assays have been integrated in biotest batteries in environmental monitoring programmes, as the Joint Danube Survey  and the working group on bioassays of the NORMAN network . Fish bioassays also play an important role in the implementation of the European Water Framework Directive (WFD) since they provide data for the derivation of environmental quality standards (EQS) and might represent a sensitive taxon for substances with specific modes of action . Besides, biotests with fish are also included among recommended bioeffect-based tools for environmental assessment in the context of the WFD and the European Marine Strategy Framework Directive (MSFD) . Consequently, current EU projects are investigating the contribution of zebrafish bioassays for water quality assessment and EDA of environmental samples, with focus on specific modes of action, mechanism-specific endpoints and adverse-outcome pathways [28,29]. Such initiatives are supported by the proposal that EDA contributes as an additional line of evidence in weight-of-evidence frameworks, such as the triad approach, ultimately leading to the identification of the contaminants responsible for the toxic effects observed in bioassays and the environment [30,31].
Context and objectives of this review
This review was developed in the context of the Marie Curie Initial Training Network ‘EDA-EMERGE - Novel tools in effect-directed analysis for identifying and monitoring emerging toxicants on a European scale’, funded by the European Commission within the Seventh Framework Programme for Research . The literature review aimed to provide an overview of previous EDA investigations that applied bioassays with zebrafish, critically evaluating their objectives, methods, biotesting strategy and outcomes; discuss the potential contribution of further zebrafish bioassays for EDA; and propose strategies that might help optimizing the integration of such biotools into future EDA studies investigating environmental samples.
In order to meet these objectives, the literature was searched using the online tools Thomson Reuters Web of Science (WoS), ScienceDirect (SD) and Google Scholar (GS). In WoS, the terms were searched by topic (searching the fields Title, Abstract, Author Keywords and Keywords Plus® per record) in all databases, and in SD and GS, the terms were searched in all fields. The searches were done for publications in all years, except where indicated. The zebrafish terms used for search or filtration were a combination of ‘zebrafish’ or ‘zebra fish’ or ‘Danio rerio’. The EDA and life stage search terms are detailed below.
Zebrafish potential for EDA application
Zebrafish in EDA-relevant research areas
The application of the zebrafish model in EDA-related research areas was verified by search in WoS for the zebrafish terms as keywords in topic/all databases, followed by classification per research area (Figure 1). The search period was limited to between 2004 and 2014, to be in agreement with the publication years of EDA studies evaluated in this review. Outcomes are in good agreement with a recent review that applied much more sophisticated search strategy , indicating the usefulness of WoS for a first evaluation of research areas. Among the research areas strongly related to EDA, toxicology (8.9%) and pharmacology (9.0%) were each referred by circa 9% of the publications, while environmental sciences and ecology (3.0%) and chemistry (1.9%) were referred by a lower percentage. The prevalent research fields addressed by more than 20% of publications were mostly those that traditionally apply zebrafish, as genetics and heredity (40.6%), biochemistry and molecular biology (33.9%), developmental biology (30.7%), and zoology (24.6%)
Life stages referred to by research studies
The use of different life stages in studies with zebrafish was estimated by search for the zebrafish terms filtered by the life stage terms ‘embryo*’ , ‘larva*’ , ‘juvenile*’ , ‘adult*’ and combinations of those. Again, the search period was limited to the publication years of reviewed EDA studies (2004 to 2014). As illustrated in Figure 2, more than half of the studies with zebrafish refer to embryos (52.6%) and almost one fourth of these mentioned also either adults or larvae, corresponding to 4.0% and 7.4% of total publications, respectively. The occurrence of studies mentioning adults (13.4%) and larvae (11.9%) was also representative, while circa 1% only referred to juvenile life stages.
EDA studies integrating zebrafish bioassays
Due to the heterogeneous nomenclature found in the literature, different EDA terms as listed in Weller 2012  plus the term ‘fractionation’ were searched in quotation marks, using the different search tools. After filtering by the zebrafish terms mentioned above, resulting publications were screened for confirmation of the searched content. Review papers, or studies that did not include the EDA procedure or zebrafish bioassays, were excluded. Two studies that followed procedures for toxicity identification evaluation (TIE) [32,33] instead of EDA were included since the similarities between both approaches  make them relevant for this review. In total, 29 publications were found (Table 1), which were carefully evaluated for research area, objective, investigated matrix, bioassay endpoint and setup, biotesting strategy, and study outcomes.
Research areas and investigated matrices

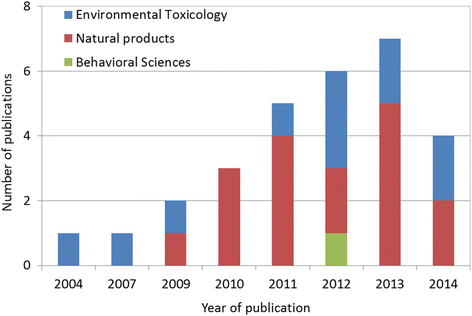

Two main fields were prevalent among EDA studies using zebrafish bioassays: drug discovery from natural products and environmental toxicology (Figure 3). Natural product studies aimed to identify bioactive compounds for pharmacological applications, investigating mostly plant extracts [19,34-45] but also extracts of bacteria , cyanobacteria and algae , seaweed  and marine organisms . Environmental toxicology studies aimed to identify the toxic compounds in various environmental samples, including marine and fluvial sediments [50-52], soil , cyanobacteria and algae [54,55], industrial effluent , rubber tyre leachates , oil sand process waters [56,57] and river pore water . Finally, fish skin extracts were investigated in a behavioural sciences study .
Prevalent life stages and exposure setups
EDA studies applied mostly bioassays with early embryos and larvae, following exposure to chemical extracts and fractions in multiwell-plates, often with exposure of several individuals in the same well (Table 2). Zebrafish up to 5 days post fertilization (dpf) were the life stages mostly applied, except for experiments that extended the assays up to 6 to 7 dpf [34,49,53,56,57] or a few studies with adults [33,47,59]. Environmental toxicology studies for the most part performed exposure not only in 24-well plates (200 μL to 2 mL per embryo or larva) but also in crystallization dishes, scintillation vials or beakers (450 μL to 5 mL per embryo or larva, 40 to 300 mL per adult), while natural product studies were performed exclusively in multiwell-plate setup (<100 to 250 μL per embryo or larva). The exposure of several individuals in the same well or vessel was observed for most of the studies, reflecting the need to reduce workload for EDA biotesting.
The EDA investigations guided only by zebrafish bioassays followed either a single test setup (e.g. [36,53,55-57]) or a combination of methods (e.g. [44,52]) to evaluate endpoints in zebrafish. Other studies applied methods with additional experimental models, mostly cell-based (e.g. [19,45,51]) but also bacteria [46,50] and rodent  assays. When the application of multiple biossays aimed to evaluate distinct bioactivities, the tests were mostly performed in parallel. For instance, bioassay batteries evaluated the occurrence of different toxicity mechanisms [50,51] or effects on different trophic levels in the two TIE studies [32,33]. When instead the aim of multiple methods was to analyse different aspects of the same bioactivity or toxicity mechanism, there was the prevalence of tiered approach biotesting [19,39,45]. When applied in screening phase, zebrafish bioassays aimed to identify active fractions by organism-level endpoints, which were later further investigated by additional methods with zebrafish  or with other experimental models [19,45]. As an example, zebrafish bioassays were applied to screen extracts and fractions for anti-angiogenic effects, followed by further investigations on human cells and transgenic zebrafish embryos . On the other hand, zebrafish bioassays applied only as secondary tests aimed mostly at the confirmation of bioeffect occurrence at the organism level  or to evaluate the occurrence of acute toxicity in fish [46,47].
Use of solvents in bioassays
In biotesting, solvents were used for transference of samples into exposure vessels or as carriers. The first approach was applied using acetonitrile  or ethanol , including also solvent control conditions, and proceeding to solvent evaporation before adding exposure media. The use of solvents as carriers in bioassays showed the prevalence of dimethyl sulfoxide (DMSO), in concentrations ranging from 0.01% , 0.1% [31,45], 0.2% , 0.5% [46,47], 1% [33,48-50] up to 2% . In addition, ethanol was also used as a carrier by a few studies, in concentrations of 0.001% for experiments with larvae [40,41] or 0.435% for experiments with zebrafish adults .
It is relevant to mention that the different procedures for extraction, cleanup, pre-concentration and fractionation of samples, already extensively reviewed elsewhere [3,4,60], also involve the use of different solvents and chemicals. Criteria for the use of solvents in EDA studies are the following: low or lack of toxicity in the biotest, the capacity of the solvent to dissolve complex extracts and fractions and the possibility to use the solvent in chemical analysis. The latter is the precondition to make sure that the chemical mixture tested in the bioassay resembles the mixture evaluated in chemical analysis. While DMSO excellently meets the first criterion, it is less suitable for dissolving complex mixtures when compared to other possible alternatives, and it completely fails the criterion related to the use in chemical analysis. Thus, the investigation of other solvents as possible carriers for exposure in zebrafish embryo testing might help to reduce possible artefacts during solvent exchange to DMSO. The evaluation of process blanks in order to exclude artefact toxicity is crucial for successful EDA and will be discussed below.
Positive/negative controls and biotesting of blanks
Positive control conditions that were specific to the evaluated endpoints were often described. For that, there was exposure of the zebrafish to compounds known to cause specific effects such as anti-convulsant activity , glucose uptake , pro-angiogenesis [36,37], anti-angiogenesis [19,44], or estrogenic effects [52,56]. Regarding negative control conditions, most of the studies reported the testing of solvent controls in the same concentration as for the respective sample testing [19,32,34,35,38-40,43,44,47,49-51,53,55]. Some studies have additionally evaluated a medium only condition in addition to the solvent control [36,37,42,54,56,57].
The preparation and biotesting of blanks was described only in few of the evaluated EDA studies and in the two TIE studies. In the EDA studies, there was submission of the respective solvents [51,53,56,57] or of HPLC-grade water  through the same or part of the procedures that were applied to samples (i.e. sample preparation, extraction, fractionation). The TIE studies described blank preparation by treatment of milliQ water  or 0.1 M KCl solution  in the same way as samples for all procedures. In all these studies, the prepared blanks were evaluated in bioassays in the same way as done for samples and fractions. Another strategy was the use of a fraction that showed to be negative for the evaluated effect as a blank condition . The exchange between elution solvents and DMSO was identified as a critical step since solvent traces might interfere with bioassays; therefore, blank testing was suggested to always be performed .
Investigated endpoints and studies outcomes
The specificity and sensitivity of bioassays and endpoints in identifying the bioactivity or adverse effects in fractions were considered to be a key issue for the relevance of zebrafish bioassays in EDA. Therefore, it is recommended to identify the critical aspects for endpoint assessment, to optimize bioassays accordingly and to demonstrate the validity of the bioassay by testing known bioactive compounds . The endpoints and bioassays described in the different studies are summarized in Table 3 and discussed in the context of respective study objectives and outcomes.
Acute toxicity and lethality
Bioactive sediment fractions  and components partially responsible for toxicity in oil sand process water fractions  have been identified by acute toxicity bioassays. The two TIE studies reported inconsistent acute toxicity of industrial effluents  and rubber tyre leachates . One study investigating seaweed hydrolysates evaluated in vivo toxic potential through acute toxicity testing .
It may be summarized that EDA studies that focused on acute toxicity and lethality had only modest success in determining active compounds. These are unspecific responses that might occur due to exposure to very broad range of compounds; therefore, fractionation typically results in the distribution of toxicity over many different fractions. However, also other unrelated factors might have been involved, as for example, the high complexity of investigated matrices in the reviewed studies. Nevertheless, acute toxicity testing might be a powerful tool in TIE, when applied to evaluate highly contaminated sites with acute toxicity caused by compounds that are well characterized .
Teratogenesis and developmental toxicity
Assessment of teratogenesis and developmental effects was done in studies that identified the bioactive compounds from microalgae, cyanobacteria and plant [41,54,55], river pore water  and developmental toxicants in soil . Most studies evaluated traditionally assessed morphological endpoints, while one investigation of plant fractions focused on ectopic tail formation . One study identified embryotoxicity in sediment extracts but not in respective fractions, which was attributed to losses of active compound or of synergistic effect during fractionation .
An aspect shared by the successful studies was the meticulous experimental characterization of the original matrices and respective fractions regarding their teratogenic effects and developmental toxicity potential. For instance, there was the determination of the optimal exposure period to identify a phenotype of interest that caused minimal acute toxicity . Characteristic phenotypical effects were identified for specific fractions , also on a dose-dependent manner [54,55]. Two studies also investigated if additive or synergistic effects occurred between different fractions  or between aryl hydrocarbon receptor (AhR) agonists by co-exposure to a CYP1A inhibitor .
Bioassays investigating pro- and anti-angiogenesis modulation by different bioactive plants were the most frequent studies in natural products. To this end, studies applied wild-type zebrafish [30,42,43] or the transgenic fli1:EGFP  zebrafish line [19,36-38,40], in which the zebrafish fli1 promoter drives the expression of enhanced green fluorescent protein in blood vessels. In wild-type zebrafish, staining of the vessels was applied to facilitate scoring [30,43], while the transgenic line allowed in vivo observation of the embryonic vasculature. Selected endpoints evaluated specific cellular-morphological phenotypes, as intersegmental vessel formation. In these assays, the exposure start and duration were set to the most sensitive developmental windows related to the assessed endpoints.
All of the evaluated studies were successful in identifying at least one bioactive compound causing angiogenesis modulation, indicating that the identification of highly specific endpoints on the organism level might be a good requirement for the efficient use of zebrafish bioassays in EDA. The use of transgenic zebrafish lines is also considered to be a great asset for studies that evaluate specific morphological effects since it can facilitate endpoint observation and increase sensitivity of bioassays.
Energy uptake and storage
EDA was successful in identifying known and novel insulin-mimetic compounds in plants  with the contribution of zebrafish bioassays to characterize glucose uptake modulation. The study applied fluorescein-tagged glucose bioprobes and measured fluorescence by microscopy imaging and microplate reader, obtaining dose- and time-dependent responses. Another study applied a fluorescent fatty acid analogue to evaluate fatty acid storage modulation in zebrafish embryos by extracts from marine sponge . In this case, the characterization of effects was done by extraction of zebrafish lipids followed by thin-layer chromatography. These studies demonstrated that the use of fluorescent bioprobes is a good tool to evaluate effects on the uptake and storage capacity of zebrafish, allowing not only for qualitative but also quantitative analysis of effects.
Zebrafish embryos were integrated into an EDA study that identified and purified aloe vera polysaccharide with protective effects against oxidative stress . Tests with zebrafish bioassays provided valuable information on organism-level responses regarding the generation of reactive oxygen species and oxidative stress-induced cell death, which were observed in a dose response manner.
Estrogenicity assessment by gene expression
Estrogenic effects were investigated in extracts and fractions of oil sand process waters by vitellogenin gene expression (vtg1) through quantitative polymerase chain reaction (qPCR) in zebrafish early larvae . Estrogenicity was also assessed by the use of transgenic zebrafish embryos that exhibit green fluorescence protein expression in response to aromatase (cyp19a1b) gene induction, with confirmation of results by qPCR .
Gene expression analysis by qPCR showed to be a useful EDA endpoint in zebrafish embryos and larvae when background information allows the selection of specific biomarker genes for the studied effect, as for estrogenicity. The evaluation of sets of genes by qPCR is considered to be a promising strategy for endocrine disruption investigation, when following optimized experimental design regarding exposure intervals and evaluated zebrafish developmental stages . The transgenic zebrafish embryos were also considered to be experimental models compatible with EDA, and their integration in future studies is expected to be facilitated by automated image analysis procedures .
Neuroactivity and behaviour
EDA was applied to identify anticonvulsant compounds present in plants, by co-exposure of evaluated samples with a convulsant compound, followed by the analysis of larvae total locomotor activity. Effects were assessed with video-tracking and software analysis and with electroencephalogram recording analysis . Another EDA study of plant neuroactivity applied similar bioassays, in combination with larvae whole-mount in situ hybridization to assess increased brain c-fos gene expression as an indicator of seizure onset and brain damage . Both studies identified anticonvulsant compounds, demonstrating the usefulness of the zebrafish model to identify neuroactivity in EDA. Also for neuroactivity and behaviour, the assessment of specific endpoints and setting the bioassay accordingly demonstrated to be an effective EDA biotesting approach.
The identification of neuroactive compound extracts of a mixture of red algae and cyanobacteria was investigated by a biotest battery including in vitro and organism-level methods . Bioassays with zebrafish adults aimed at evaluating the neurotoxic potential of the matrix. However, evaluated endpoints were non-specific acute toxicity and mortality, which provided only minor contribution to the overall study outcomes.
The bioactive compounds responsible for fear behaviour response in fish were investigated by the exposure of zebrafish adults to fish skin extracts and fractions . Video tracking was used to quantify alarm behaviour by measuring swimming speed and vertical position. The study identified the bioactive compound and proposed a new class of odorants that trigger alarm behaviour in fish. This study required the development of experimental setup and endpoint assessment that were specific to the evaluated behavioural alteration, confirming the importance of this step also for behavioural assessment.
Summary and discussion
Over the last 10 years, EDA studies guided by zebrafish bioassays have successfully identified bioactive or toxic compounds present in diverse biological matrices or environmental samples. Embryos and early larvae were the prevalent zebrafish life stages in these studies, with exposure being done in multiwell-plates, often with several individuals in the same well. In consequence, the sample volume for biotesting was minimized and the workload was reduced, which are important aspects in EDA. Zebrafish bioassays showed also versatility in terms of biotesting strategy, being applied alone or as a part of biotest batteries and in both screening phase as well as for further investigation of active fractions in tiered biotesting.
In spite of its limited capacity to dissolve complex matrix extracts, DMSO was the main carrier solvent applied in zebrafish bioassays. As a result, it was used in concentrations up to two orders of magnitude higher than the recommended for single compound biotesting (0.01%) . Additionally, DMSO is not suitable for chemical analysis, which restricts the characterization of samples evaluated in biotesting. Therefore, the investigation of alternative carrier solvents would be an asset for zebrafish bioassays in EDA. Passive dosing methods are also promising options, as recently done in EDA investigation of sediments through the use of silicone rods for dosing of extracts and fractions in algae bioassay . In fact, a loaded polymer silicone cast has successfully been integrated in zebrafish embryo assay for dosing of polycyclic aromatic hydrocarbons .
The EDA procedures for sample extraction, cleanup, pre-concentration and fractionation involve the use of different solvents and chemicals. Nevertheless, while most of the studies evaluated solvent and medium control conditions, the investigation of process blanks in bioassays was reported only by a small number of studies. In addition, methods for blank preparation varied considerably between these studies. Since the biotesting of process blanks is crucial for effective EDA, there is a need to improve and standardize the procedures for their preparation and biotesting in future studies.
Most of the successful EDA studies applied specific and sensitive bioassays evaluating molecular, morphological or behavioural endpoints. Some studies optimized bioassays by identifying the most adequate exposure windows and assessment setups to maximize the specific endpoint response and minimize the interference of acute toxicity . Further improvements might be achieved by advancing methods for the analysis of endpoints. For instance, the automated analysis of morphological phenotypes in transgenic or wild-type zebrafish would reduce workload and increase reliability in EDA . Also, EDA of environmental samples would benefit from the analysis of bioassay results in correlation with previously characterized responses to specific classes of pollutants. That is the case of gene expression analysis of biomarker genes for specific mechanisms and modes of action. When analysed in correlation with respective gene modulation by known classes of compounds , biomarker gene responses might indicate the presence of certain classes of chemicals . Similarly, EDA studies evaluating behavioural phenotypes to identify neuroactivity might rely in the near future on databases of behavioural profiles for different classes of compounds [70,71].
Such outcomes support the idea that EDA investigations of toxic environmental samples would benefit of the application of endpoint- and mechanism-specific methods with zebrafish. That is in fact a great advantage since mechanism-specific toxicity methods with zebrafish are broadly developed, as for AhR-mediated toxicity , genotoxicity  and neurotoxicity . Furthermore, EDA guided by such zebrafish bioassays could integrate broader environmental assessment strategies, complementing effect-based approaches  and weight-of-evidence frameworks . In this way, EDA would support the identification of contaminants causing bioassay and ecological effects, and the clarification of links between ecosystem functioning and the responses at different biological levels [30,62]. Finally, the evaluation of toxic aquatic contaminants through EDA guided by zebrafish bioassays might improve the protection of water bodies in the context of the European WFD and MSFD [7,27]. In conclusion, endpoint- and mechanism-specific zebrafish bioassays are considered of great relevance not only for guiding EDA studies but also for integrating EDA into environmental assessment and monitoring, ultimately contributing for environmental quality improvement [7,75].
Zebrafish bioassays have successfully guided different EDA studies; however, further method developments are still needed. Alternative dosing procedures should be investigated, and process blank preparation and biotesting should be standardized. Endpoint- and mechanism-specific bioassays with embryos and larvae are considered to be the most promising zebrafish biotests for future EDA of environmental samples. When integrated into broader environmental assessment strategies, EDA guided by specific zebrafish bioassays might support the identification of compounds causing bioassay and ecological effects, ultimately contributing for environmental quality improvement.
