A modeling assessment of geneflow in smallholder agriculture in West Africa



Small-scale agriculture is an important issue for food security in Africa. In the context of Genetically Modified Organisms, approaches to quantify geneflow in small-scale systems are widely unexplored. We aimed at bridging this gap by contributing to the scientific discussion on the uncertainties of the cultivation of genetically modified (GM) crops in the region. The safety issue is: Would it be possible to withdraw a variety in case that unexpected and undesirable effects occur? e.g. the resistance of pests which make the variety no more useful.


We used a GIS approach to determine the location of maize cultivation sites, field geometries and applied a model for the calculation of geneflow scenarios.


The data revealed that the given cropping density provides optimal conditions for transgene spread, potentially limiting the possibility for coexistence between GM and non-GM fields. On average, we found about 60 fields within a nearest distance of 100 m, and cropping density of 56 fields per square kilometer. The resulting cross-pollination rate from the single GM field into the neighbouring conventional fields was estimated to be about 0.12%.


GM varieties if introduced could remain in cultivation even if their admission has expired or has been retracted. This would be undesirable and could cause long-term, undesirable stacked combination of transgenes which cannot be tested with respect to eventual combinatory effects. These developments pose major challenges for fielder livelihoods, and conservation of maize genetic resources with potentially negative consequences for the African food export sector.


In spite of an obvious need, few studies exist focusing on biosafety research in Africa. This paper therefore presents an account of a project that assessed the implications of Genetically Modified Organisms (GMOs) in small-scale agricultural systems in Africa by focusing on a specific sector of agricultural food production in Ghana. Maize cultivation has been used in this instance to distinguish the differences that exist between agriculture in the USA or Europe, and elsewhere in other developed countries and those of the African conditions; in particular, looking at the agricultural structure, crop field locations, isolation distances between cultivated fields and spatial patterns of agricultural fields which are completely heterogeneous. On the basis of a modelling approach, representative scenarios are calculated to address the possible impacts of gene flow between genetically modified (GM) and conventional fields due to cross-pollination.

We use the situation of agricultural maize production in Ghana to typify the situation of subsistence-based fielding context in West Africa which is the predominant mode of fielding as opposed to a very minor proportion that occur as large-scale commercial fielding enterprises. Agricultural land area in Ghana estimates to about 58.3% of total land area of 24 million hectares. Individual field sizes measure between 1 and 2 ha [1]. Within these land holdings, maize represents the major food crop cultivated, since it constitutes the major food staple for a majority of the population [2]. Maize is often grown in association with other crops. However, the demand for maize in particular as a major food source in the country has led to the observed annual increase in acreage of land grown to maize (Figure 1)[3, 4]. Therefore, acreage of land sown to maize has steadily increased into the overall agricultural land area. Field surveys have revealed that fielders mostly sow fractions of grains bought for food, or seeds saved from previous harvests, obtained as gifts from other fielders, exchanged or simply procured through the formal seed system mainly from seed shops [5]. In the context of land use, the increasing intensity of maize cultivation coupled with the complexities of seed use and exchange has made the discussion on GMOs highly contentious. The situation is largely constrained because regional markets for GMOs are being developed in Africa. Profits and progress are promised in view of a new wave of growth for the agricultural sector in the region [6]. In this regard, GMOs are advertised as an option in support of poverty and hunger alleviation and to feed poor countries in the region [68]. Alongside these developments, serious concerns exist relating to the long-term economic benefits of the technology to small fielders. Questions are being asked about who benefits and who appropriates? Consequently, African states would be in the position to invest huge expenditures to redress environmental damages on the numerous and spatially disaggregated small fields if negatively impacted upon and the resulting public health consequences if adverse effects emerge [9]. For example, setting up huge GMO testing facilities at ports of entry comes at additional costs to government that must be well taken into account in advance.

Figure 1
figure 1

Maize production in Ghana (1965-2005) showing area of land grown to maize over the period. Source: Calculated from FAO database (2007); and Morris et al. (1999) Adoption and Impacts of Improved Maize Production Technology: A Case Study of the Ghana Development. Project. Mexico, D.F.: CIMMYT.

There are also concerns about the unclear nature of the use of genetic resources in the advent of GMO and related issues of patenting and biopiracy since small traditional fielders would like to benefit from their many years of sustaining seed biodiversity maintained over centuries [5]. There is the fear of a high possibility of transgene escape if grain is used as seed, assumed likely under the present agricultural circumstances given the traditional seed exchange and utilization culture [10]. These issues are discussed as legitimate concerns in this context since maize is widely used as food in Africa, with the crop representing the largest component of food for the greater segment of the African population.

It is also noteworthy that elsewhere in the world, the deployment of GM maize has practically caused widespread environmental, economic and legal problems [11]. For example, there have been events of genetic contamination by transgenes in managed non-transgenic conventional production fields in Mexico [12]. Again, GM pollen with insect resistance may pose potential hazard to non-target insect species as has been reported by several authors [1315]. As far as regulation is concerned, it has been argued that though various acts and regulations are in place in some African countries and are supposed to be implemented, there is no formal system to verify the GM content of trans-boundary consignments, save for the permission of permits. The regulation of mandatory labelling of GMOs is inactive and there is no provision for GMO labelling in terms of consumer preference [16].

Owing to the aforementioned complexities of seed use or exchange practices, agricultural structure, increasing land use and maize cultivation intensity, weak regulatory and enforcement capacity in African countries, the safety issues refer to whether it would be feasible to recall a GM variety in case the unexpected happens. For example, with an occurrence of undesirable effects such as the resistance of pests which make the variety no longer useful.

In order to contribute to the scientific discussion, our study sought to calculate geneflow assessment of cross-pollination rates under various scenario assumptions of maize cultivation, and calculate field neighbourhood distance relations and estimate general field geometries. These parameters have been intended to contribute to improvements for biosafety assessment at the local level and support the institution of precautionary measures according to the Cartagena Protocol on Biosafety [17] referring to Art. 1, 10, 11 and Annex III) that enjoins sovereign states or governments to take precaution and extended to cover other contextual issues including aspects of receiving environments and not only on the basis of existing knowledge. The specific objectives of the study were to:

  1. 1.

    Use geographic information system (GIS) to characterize crop fields to assess their distribution and isolation distances.

  2. 2.

    Conduct frequency and cropping density analysis to assess feasibility of coexistence measures.

  3. 3.

    Simulate regional cross-pollination to determine potential for geneflow in smallholder systems following a modeling approach.

We hypothesize that smaller cultivated fields and higher heterogeneity of the seed sources implicitly lead to an increased geneflow and increased genetic exchange in the longer term. This is a preliminary study in which minimal baseline scenarios have been used relevant for biosafety assessment for African agriculture taking into account an African environmental perspective.


The study was carried out within a peri-urban district of Accra, the capital city of the Republic of Ghana. The methods used had been adapted to the Ghanaian agricultural and environmental conditions based on other works [18]. Data on spatial orientation of crop fields (see Table 1) in a 25-km2 region were determined using a global positioning system (GPS) receiver, and later systematized through a GIS database using ArcGIS. Cross-pollination was not measured directly but potential gene flow was assessed by applying a model-based analysis process. Analysis of cross-pollination studies [1928] and the subsequent development of a dispersal kernel had been done (Figure 2)[29] describing cross-pollination relative to source-sink-distance and field-size. This dispersal-kernel was applied in simulations to calculate cross-pollination between maize fields. As the model uses simplified geometric structures, it may be applied for whole regions. The model was developed largely for European conditions within the GeneRisk Project funded in the context of the Social Ecology Call in 2008 ( The relevant data to parameterise the model for the Ghanaian conditions include field maps, variability in the sowing dates, the vegetative period, duration of pollination and maximum distance of dispersal. Isolation distances from field neighbours were calculated using computer programs written in SIMULA [30].

Table 1 Ground surface data based on GPS measurements
Figure 2
figure 2

Analyzed cross-pollination studies. Literature studies on distance-related out-crossing rates in hybrid maize fields (a) used for the development of the dispersal kernel (b), projected on a double logarithmic scale. The data shows a regression function with a gradual reduction in hybridization rates from 0.14% at 100 m, 0.1% at 200 m, and 0.06% at 250 m and about 0.01% at over 1,000 m. The displayed references in (a) are quoted in the reference list. The data of Ortega Molina (2003a) and (2003b) were republished in 2004.

Five (5) scenarios were assessed, implying that genetic modifications (GM) or transgenes get introduced through mode of seed acquisition and via larger fields as follows:

― Scenario 1: GM seeds sown were obtained under exchange conditions, meaning that the seeds were obtained from other fielders as gifts or exchanged.

― Scenario II: GM seeds sown were obtained from the seed market. This directly implies the use of commercial GM varieties.

― Scenario III: A single GM field introduced at the center of the study area. This suggests the scenario of a single GM field among 1,388 conventional fields.

― Scenario IV: GM seeds sown were obtained from seeds saved from previous harvests.

― Scenarion V: GM seeds sown were obtained from food market. This scenario implies that variety planted was collected from quantities bought for food.

The model was run 10 times per scenario and average calculations written to an output file (see Table 4).


1. Cropping density and field geometry

Table 2 provides an overview of the cultivation context as obtained from GIS records for the area of 25 km2 in peri-urban Accra.

Table 2 Cropping density factors of maize fields in the study area

For an urban settlement area, a 4.5% fractional area grown to maize is significant. The incorporation of GM varieties could impact highly on the agrifood sector of traditional maize cultivation. In Figure 3, about 98% of all field locations occur within distance of 5-150 m from the next neighbour. Shortest nearest distance from next neighbour recorded occurred within 5 m. Longest nearest distance occurred at a distance of 459 m.

Figure 3
figure 3

Nearest neighbour distance analysis of crop fields.

Table 3 shows that there are up to a maximum of three field neighbours on average within a distance of 20 m, and up to a total maximum of seven field neighbours within a distance of 40 m. A maximum of 38 field neighbours occur within a 120 m distance.

Table 3 Cropping isolation distances of field neighbours

Figure 4 shows that even though fields are very small in size (mostly approximately <2 ha), considerably large areas are grown to maize. Fields cultivated in the region occur irregularly and widespread on the landscape. There are indications of boundary segments of only about 1 m occurring between some adjacent fields. It appears therefore that the small-scale fields do not follow a purely managed cultivation pattern. The data explains that neighbouring fields could have high crop population and cross-pollination interaction rates. Many small fields occur in the vicinity of a larger field, suggesting potentially higher cross-pollination from larger fields to neighbouring smaller fields.

Figure 4
figure 4

Field geometries and distribution of maize fields displayed on a 2 × 2 km2 grids.

Figure 5 provides indication of high cropping densities involving many small fields, randomly distributed over the landscape. The data shows that the cultivation of fields is highly irregular, and often occurring in association with one another.

Figure 5
figure 5

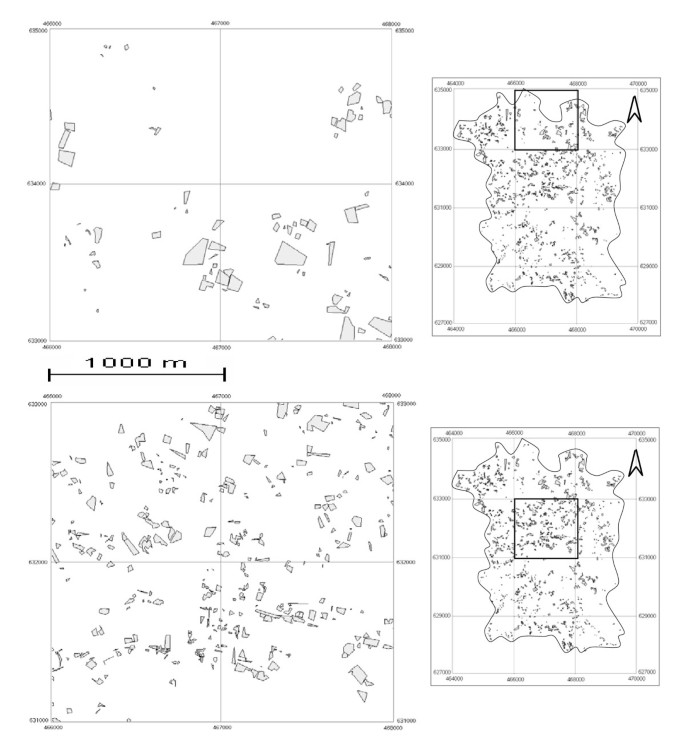

Cropping geometry and density analysis of smallholder maize agricultural systems. The maps provide examples of a higher number of smaller fields occurring in close association with larger fields suggesting higher probabilities of gene flow from larger fields to smaller fields. In addition, high cropping density regions suggest the growing of different maize seed varieties with indications of seed exchange and admixture among fielders. The entire region investigated is shown on the right hand maps

2. Simulations of regional cross-pollination

The simulation was primarily based on GPS-derived maps indicating locations of crop fields where fielders planted seeds acquired on exchanges from other fielders and contrasted with those locations where fielders planted seeds bought from the seed market. Model calculations are further analyzed for additional scenarios executed for different potential situations that could occur (Table 4). This allows to estimate the effects resulting from not only for single GM central fields but also to consider the effects of random processes, how the entry of GM seeds obtained from food and seed markets or eventually from previous harvests could influence cross-pollination in conventional fields. The specification of field locations on maps for seed sources and type of seed cultivated was obtained through a questionnaire.

Table 4 Assessment of potential impacts of geneflow based on various seed sources using the MaMo

The model provides average cross-pollination rates basing on several world-wide studies capturing the variability in climate and environmental factors. A map was derived for all locations where seeds had been planted from: (a) exchange sources, (b) seed market and (c) and those obtained from previous harvests. The single GM central field (d) had been assumed in order to derive hypothetical scenario for the possible impacts of a single GM field, and (e) assuming that GM seeds planted were obtained from food market. This scenario implies that variety planted was collected from quantities bought for food (see Table 4).

3. Model Scenario 4: single GM field in the centre of the study area

Modeling simulation with a single GM field located in the centre of the investigated region (circled). Each of the fields serves as a pollen source and calculates the impact to all other fields. It shows the involvement of random processes depending on size and location of fields as well as sowing time.

The resulting model data suggest that smaller fields provide conditions for enhancing transgene spread due to their very small nature and close proximity with each other (Figure 6) and geneflow between GM and conventional fields is generally high regardless the source of seed used or seed acquisition scenario (Table 4). Analysis from the model further shows that a conventional field at a distance and size of 300 m (200 m2), 800 m (4,000 m2) and 1500 m (10,000 m2) from a single central GM field would have average cross-pollination rates of 4.5%, 1.0% and 0.5% respectively (Figure 7). This strongly suggests that cross pollination rates in conventional fields generally decreases with increase in field size and distance to the GM field and vice-versa.

Figure 6
figure 6

Model simulation of a single GM central field among over 1,300 conventional fields. (a) Shows the initial map with centre field (circled) (b) Shows the results of cross-pollination rates of the fields. There are some conventional fields that do not receive any GM input even though they occur in close association with the GM field, due to the effect of different sowing dates, and the fact that pollination times do not overlap. Random processes involved in pollen movement are incorporated in the model.

Figure 7
figure 7

Cross-pollination rates of conventional fields. These are based on their sizes and distance to a single central GM source field. The data indicates that cross-pollination generally increases with a decrease in field size and distance to the single GM field and vice-versa.


1. Agro-structure and coexistence considerations

The data show that the use of isolation distances between GM and conventional fields as a management measure or requirement to minimize or control gene flow is challenged in the given conditions. Most fields are small, with about 97% of fields below 0.5 ha (Table 2), occurring in very close proximity (Figure 3). For example, on a scale of 100 m, a maximum of three, four, five, seven and eight field neighbours would have to be expected at distances of 20, 40, 60, 80 and 100 m, respectively (Table 3). With a minimum nearest neighbour distance of 5 m and a maximum nearest distance of 459 m (Figure 3), the practice of co-existence of GM and conventional cropping would not be possible. In an event of GM introduction, on-field conservation of maize genetic resources is unlikely due to potentially higher cross-pollination in smaller fields (Figure 5). These findings coincide with studies conducted in Brazil [31] e.g. setting of a minimal isolation distance for coexistence for maize fields would be impractical. Hence, the usefulness of isolation distances under the given conditions is challenged. We conclude therefore that the hypothesis that for smaller cultivated fields and higher heterogeneity of the seed sources implicitly lead to increased geneflow and increased genetic exchange holds true.

2. Cross-pollination scenarios and implications for gene flow

The size of a recipient field, its location and the distance to a GM field are important parameters to estimate the probability of transgene introgression. For example, a single GM field was used as a minimum scenario (Figure 6). It turned out that a single GM field comprising 0.2% of the area could lead to gene flow in the considered region up to 0.12% of GM in the conventional harvest. There are indications that small fractions of transgene introgression in the order of magnitude from 0.12-2.61% into conventional fields are possible under the various tested conditions (Table 3). If the EU regulations would apply for the African conditions at the same labeling threshold of 0.9%, any increasing condition of transgene presence in conventional harvests from any magnitude above 0.9% is sufficient to be labeled and sold as GM. On-field conservation would be unlikely in an event of GM cultivation within small-scale agriculture due to increasing content of GM traits in field-saved seeds. Potentially, this would have severe consequences for the African food export sector and further deepen existing trade barriers afflicting the continent. For the reasons stated above, we recommend:

  • the efficient regulation of maize grains used as food or feed products or even for seed imported into the country since it is highly unlikely to control transgene spread in the environment should they be later found out to be genetically modified varieties;

  • to consider the cost implications for small fielder livelihoods and the additional cost to the local seed biodiversity that must well be taken into account.

We conclude that GMO maize should not be cultivated within the agricultural systems in Ghana and other West African countries with comparable agricultural conditions and efforts to introduce them should be curtailed.
