Characteristic and affecting factors of wetland herbs’ distribution in the radiant belt toward land of lake–terrestrial ecotone in Tibet, China



Lake is a critical part of Tibet's hydrological cycle, the lake–terrestrial ecotone is the most sensitive area in the water and terrestrial ecosystem. For the ecological protection and maintenance of the lakeside zone, defining the upper boundary of the lake–terrestrial ecotone is a key issue that needs to be solved urgently. However, the ecological characteristics of lake–terrestrial ecotone made it difficult to delimit. Wetland herbs are characteristic plants of the lake–terrestrial ecotone, and their distribution width can be used to reflect the upper boundary of the lake–terrestrial ecotone. We took Baksum Lake, Yamdroktso, Namtso, Siling Co as examples, based on the spatial structure of the lake–terrestrial ecotone, used the moving split-window technology (MSWT) delimited the width of wetland herbs.


The results of the MSWT showed the distribution width of wetland herbs in each lake–terrestrial ecotone with the natural-wetland type sampling line of Baksum Lake, Yamdroktso, Namtso, Siling Co was 51 m, 56 m, 33 ~ 53 m, 19 ~ 31 m. The detrended correspondence analysis (DCA) showed quantity of wetland herbs species, BK1 > YT1 = NT1 > NT2 > SC1 = SC2. The principal component analysis (PCA) and the (redundancy analysis) RDA showed soil moisture content (SMO), pH, soil moisture content (SSC), and soil nutrient content had obvious correlation with distribution width.


The MSWT was a feasible method to determine the width of laketerrestrial ecotone. SMO, pH, SSC, and soil nutrient content were all important environmental factors affecting the wetland herbs distribution width of the four lakes; and the SMO was the most important factor. Besides, compared with the lakes in the Middle-Lower Yangtze Plain, the high-density population distribution, high-intensive human activity invaded the plants' growth area, resulting in a smaller distribution width. The distribution edge of wetland herbs is equivalent to the upper boundary of lake–terrestrial ecotone. It determines the management boundary of the lake–terrestrial ecotone, provides a theoretical basis for the construction of environmental protection projects, and is of great significance to the lake ecological restoration and management in watershed control planning.


Lake–terrestrial ecotone is an important part of the lake ecosystem. It has the functions of intercepting pollutants carried by surface overflow, runoff, and underflow; providing habitat for wild animals, and improving the ecological diversity of lakes [1]. In human history, water has been the major attractor for human geographical location and distribution [2]. Lake–terrestrial ecotone is the most susceptible part of lake ecosystem [3]. From the perspective of economic development, flood protection, tourism, and other highly intensive anthropogenic activities, as well as unsustainable and uncontrolled development in lake–terrestrial ecotone trigger severe disturbances in the lake–terrestrial ecotone ecosystem and accelerate ecosystem degradation [4]. As the necessity for ecological environment protection has intensified, considerable restoration activities have been implemented on lake–terrestrial ecotone [5,6,7,8,9,10]. Lake–terrestrial ecotone with natural-wetland type (Fig. 1) is usually used as a good example for eco-restoration. It includes three parts, namely, radiant belt toward the land, shoreline zone and radiant belt toward the lake. Currently, width delimitation is the primary step in lake–terrestrial ecotone protection and restoration. Natural-wetland type lake–terrestrial ecotone naturally feature vegetation changes, primarily manifested in the transition from wetland plants to mesophytes and xerophytes. As they are very sensitive to soil moisture changes, the distribution width of wetland plants can be used to express the boundary of the lake–terrestrial ecotone [1]. According to the plant life form, wetland plants category as trees, shrubs, herbs. Compared with trees and shrubs that can absorb water and nutrients from deeper soil, herbs were more sensitive to soil moisture fluctuation [11]. Therefore, the herbs can better reflect the upper boundary of lake–terrestrial ecotone. The authors propose that the width of the lake–terrestrial ecotone with the natural-wetland type can consider as extending from the lake’s multi-year average high-water line to the edge of the disappearance of wetland herbs. Thus, there is an exigent need to accurately delimit the distribution width of wetland herbs in lake–terrestrial ecotone with natural-wetlands.

Fig. 1
figure 1

Spatial structure of lake–terrestrial ecotone with natural-wetland type

Moving split-window technology (MSWT) is widely used to delimit the boundaries of the chemical and physical characteristics of soil and the boundaries of vegetation or animal communities [12,13,14,15]. MSWT can eliminate the errors due to sampling deviations of individual samplings and can express the position and width of the ecotone more objectively than other methods [16]. MSWT is widely used as well as the most effective method for analyzing the boundaries of an ecotone [17]. MSWT was proved as being able to accurately delimit the width and boundaries of vegetation or animal communities and soil nutrient content [18,19,20,21,22,23,24,25,26]. Therefore, we selected MSWT to delimit the boundary of the wetland herbs-mesophyte/xerophyte transition zone and further use this boundary as an upper limit of the lake–terrestrial ecotone with natural-wetlands.

The distribution of herbs is affected by the combined effects of different environmental factors. Lake–terrestrial ecotone is a relatively small spatial scale; therefore, except climatic factors, factors such as micro-topography, soil physical and chemical conditions, and hydrology needed to be considered [27]. Topographic and geomorphological factors (altitude and slope) affect spatial redistribution of solar radiation and surface water distribution [28], thus influencing the growth and distribution of wetland herbs. In contrast with other environmental factors, soil physical and chemical conditions (soil type, soil nutrient, soil moisture, soil pH, soil salinity, etc.) directly affect the distribution of wetland herbs [29,30,31]. Examining wetland herbs biodiversity, distribution characteristics, and influencing factors will help understand the relationship between the wetland herbs distribution width and the lake–terrestrial ecotone habitat factors. Moreover, prediction of the dynamic changes in the spatial range of the lake–terrestrial ecotone will reveal the formation mechanism of the distribution pattern of wetland herbs as well as the ecological process of community succession and its internal mechanisms. The latter plays a significant role in the lake protection and restoration processes [1, 3].

The Tibetan Plateau features the largest number of lakes in China (> 1500 lakes); most of these are salt lakes [32], and more than 97% as inland lakes [33]. Lakes play a key role in the hydrological cycle in Tibet and greatly affect the regional climate, water resources, and terrestrial/aquatic ecosystems [34]. The lakes in Tibet can be classified based on the distribution characteristics of river systems and lakes: (1) outflow lake areas in southeast Tibet, (2) outflow-inland lake areas in southern Tibet, and (3) inland lake areas in northern Tibet. The lakes in Tibet are located at high altitudes and in extreme climatic conditions and thus, are less affected by anthropogenic activities. Natural wetlands are the primary type of lake–terrestrial ecotone. However, in recent years, with the mining of minerals [35], livestock breeding in the region has increased [36]; further, the construction of roads and railways [37] have severely disturbed the lake–terrestrial ecotone ecological environment in Tibet. In addition to anthropogenic disturbances, changes in lake water level also affect the ecological environment of the lake–terrestrial ecotone. For instance, the expansion of the lake area in Siling Co Lake has led to the degradation of the alpine grasslands and meadows in the lake area [38, 39]. The lake ecosystems in Tibet are very vulnerable to human and natural disturbances, with minor changes leading to irreversible degradation of the regional ecosystems [40, 41]. However, cold-tolerant and salt-tolerant wetland herbs can survive under extreme climatic conditions. Thus, even under harsh environmental conditions of Tibet, at the highest altitude worldwide, wet plants are widely distributed across the entire region.

The aim of this study is to delimit the distribution width of wetland herbs of lake–terrestrial ecotone and their influencing factors that have great significance for the protection of the Tibetan lakes. We examine four lakes encompassing three aforementioned classes of Tibetan lakes including: Baksum Lake (outflow lake area in southeastern Tibet), Yamdroktso (outflow-inland lake area from southern Tibet), Namtso and Siling Co lakes (inland lake area of northern Tibet). Further, we (a) used MSWT to delimit the distribution width of wetland herbs of the lake–terrestrial ecotone; (b) surveyed the average annual temperature (AAT), average annual rainfall (AAR), altitude, slope, and soil characteristics to explain the environmental factors that influence the wetland herbs distribution; and (c) analyzed the relationship among environmental factors, wetland herbs species composition, and community diversity index to determine the main influencing factors of the wetland herbs distribution width.

Materials and methods

Study area

We chose the following typic lakes in Tibet: Baksum Lake, an outflow lake area in southeastern Tibet, Yamdroktso, an outflow-inland lake area in southern Tibet, and Namtso and Siling Co, two inland lakes in northern Tibet (Fig. 2). The natural environmental information on the four lakes is summarized in Table 1. Basing on field survey, six typic lake–terrestrial ecotones with natural-wetland type were selected as sampling areas, their location is shown in Fig. 2.

Fig. 2
figure 2

Map of Tibet (China) and a schematic representation of the starting point of the sampling lines. The red stars denote the lakes, while red circles indicate the sampling line starting points (SC1, SC2, NT1, etc., are the sampling line number). Enlarged views of all lakes are shown in the separate segments of the map (Baksum Lake, Yamdroktso, Namtso, Siling Co)

Table 1 The natural environmental information on the Baksum Lake, Yamdroktso, Namtso and Siling Co

Width delimitation method

The moving split-window technology (MSWT) was applied to delimit the distribution width of wetland herbs. The MSWT divides a segmentation window into two half-windows (A and B) by calculating the difference coefficient between A and B. Then, one point is moved down in order, and the difference coefficient is calculated until every quadrat on the sampling strip participates in the calculation (Fig. 3a) [51, 52]; Here, the distance coefficient is used as the ordinate and the sampling number as the abscissa. The peak value generated by the drawing was expressed as the location of the wetland herbs and mesophytic/xerophyte transition zone in the lake–terrestrial ecotone, and the peak width was expressed as the width of this transition zone. The endpoint of the peak width was the boundary between the transition zone and the adjacent ecosystem [20]. The distance from the endpoint of the peak width to the starting point of the sampling line was the distribution width of wetland herbs in the lake–terrestrial ecotone.

Fig. 3
figure 3

a Schematic diagram of the MSWT [52]. b Schematic diagram of sampling square setting

When the MSWT was applied to delimit the distribution width of wetland herbs, the distance coefficient and calculation index should be selected at the first. The distance coefficient is mostly determined by Squared Euclidean Distance (SED), Percent Dissimilarity (PD) which conversed by Bray–Curtis distance coefficient [53]. Since the most iconic feature of lake–terrestrial ecotone is the vegetation changes, in our previous research, we compared the species richness and the important value (IV) of wetland herbs, which can reflect the essential characteristics of plant communities as an index used to calculate the distance coefficient, PD and SED as distance coefficient, we found the most suitable combination of calculation index and distance coefficient is SED(IV) [54], therefore, in this study we used SED as the distance coefficient and IV of wetland herbs as the calculation index. Equations 1 and 2 explain these parameters, respectively.

SED calculation formula:

$$SED_{n} = \mathop \sum \limits_{i = 1}^{m} \left( {\overline{X}_{iA} { - }\overline{X}_{iB} } \right)^{2} .$$

SEDn is the squared euclidean distance with a window n, while A and B are two adjacent windows for a window n. These are the average values of the A and B half-windows when the parameter is i (i is the importance value of hygroscopic herbaceous plants in the sampling quadrat), while m is the number of parameters.

IV calculation formula:

$${\mathrm{IV}}_{a}=\left(\frac{{D}_{a}}{\sum D}+\frac{{C}_{a}}{\sum C}+\frac{{F}_{a}}{\sum F}\right)\times 100\times \frac{1}{3}.$$

IVa is the importance value of species a in the sampling quadrat; Da is the density of species a in the sampling quadrat; \(\sum D\) is the sum of the density of all plant species in the sampling quadrat; Ca is the coverage of species a in the sampling quadrat; \(\sum C\) is the sum of the coverage of all plant species in the sampling quadrat; Fa is the frequency of species a in the sampling quadrat; \(\sum F\) is the sum of the frequency of all plant species in the sampling quadrat.

Sampling and environmental parameters measurement

The sampling line with the high-water level was set as a starting point. On each sampling line, a sampling quadrat (1 × 1 m) was set up with equal intervals, whereas all quadrats that contain wetland herbs were numbered (Fig. 3b). The name, species, density, coverage, and frequency of each species in the quadrat were recorded and used to estimate important values such as plant community richness and plant community diversity index. The altitude and slope of the lake–terrestrial ecotone were read by Global Positioning System (GPS) program in a smart mobile phone. The surface soil (0–15 cm) in the quadrat were collected, and the soil sample was transported to the laboratory for cold storage. soil moisture (SMO) was determined by the drying method [55]; the SSC was measured by the conductivity method [56]; soil pH was measured using the potentiometric method (the water–soil ratio was 2.5:1) [57]; soil organic matter content (SOM) was measured by low-temperature external heating potassium dichromate oxidation-colorimetric method [58]; soil total carbon content (STC) and soil total nitrogen content (STN) were measured using elemental analyzer (EA3000 elemental analyzer, Italy); soil total phosphorus content (STP) was quantified by the Standards, Measurements and Testing Programme (SMT) method [59].

Data analysis

The MSWT was used to delimit the distribution width of wetland herbs in each lake–terrestrial ecotone sampling line, the principal component analysis (PCA) was applied to analyze the main environmental factors that affect the distribution width of wetland herbs, the detrended correspondence analysis (DCA) was used to analyze the distribution characters of wetland herbs in each sampling line, while the redundancy analysis (RDA) was used to examine the response relationship between the environmental factors and the plant diversity index. The PCA, DCA, and RDA were calculated using the CANOCO 5.0 software. Origin 8.0 software was used for data analysis and figure plotting.


Distribution of wetland herbs in various sampling lines

In total, 101 quadrats (1 × 1 m) were sampled on lake–terrestrial ecotones of four lakes in Tibet. A total of 33 wetland herbs from 21 branches were investigated. The dominant wetland herbs were Rosaceae, Ranunculaceae, and Polygonaceae. There were four Rosaceae species, three Ranunculaceae species and three Polygonaceae species were found, accounting for 12.12, 9.09 and 9.09% of the overall species, respectively. The vegetation coverage of BK1, YT1, and NT1 was relatively high, ranging from 65 to 95%. The DCA analysis (Fig. 4) showed that BK1, YT1, NT1, NT2, SC1, and SC2 had 23, 9, 9, 7, 3, and 3 kinds of wetland herbs, respectively. NT2 and SC1–2 had fewer wetland herb species, lower species richness and lower community diversity indices compared to those of BK1 and YT1 (Fig. 4). It probably due to the sites of NT2 and SC1–2 had worse climate and soil condition. The field survey of SC1–2 revealed that the wetland herbs of these two sampling lines primarily belong to Suaeda glauca and Achnatherum splendens, with a vegetation coverage of ~ 1–18% (Fig. 5).

Fig. 4
figure 4

Use the DCA to show the species of wetland herbs distributed in each sampling line a species of wetland herbs, b numbers of species distributed in BK1 (orange), YT1 (green), NT1 ~ 2 (purple), SC1 ~ 2 (blue). The circle size of dot in b represents the quantity of species of wetland herbs. The numbers in the picture represent plants:1. Cardamine macrophylla 2. Acorus calamus L. 3. Potentilla supina L. 4. Ranunculus muricatus 5. Cicuta virosa 6. Lamiophlomis rotata 7. Selaginella nipponica 8. Salvia przewalskii 9. Achnatherum splendens 10. Rorippa indica 11. Ranunculus tanguticus 12. Halerpestes sarmentosa 13. Suaeda glauca 14. Juncus prismatocarpus 15. Agrostis clavata 16. Potentilla anserina L. 17. Polygonum nepalense 18. Geranium nepalense 19. Aster tataricus 20. Plantago depressa 21. Galinsoga parviflora 22. Rumex acetosa L. 23. Duchesnea indica 24. Geranium sibiricum 25. Pedicularis longiflora 26. Adoxa moschatellina L.27. Polygonum sibiricum 28. Commelina diffusa 29. Astragalus scaberrimus 30. Gentiana pseudoaquatica 31. Potentilla reptans var. sericophylla 32. Ophioglossum vulgatum 33. Asplenium trichomanes

Fig. 5
figure 5

Numerical value of Species (orange), the Shannon–Wiener index (green), the Margalef index (yellow), coverage (blue) index of each sampling line

Characteristics of environmental factors and plant diversity index at each lake–terrestrial ecotone sampling line

Figure 6 shows the AAT, AAR, altitude, slope, soil pH, SMO, SSC, SOM, STC, STN, and STP values of each lake–terrestrial ecotone sampling line. The slopes of the six sampling lines were somewhat similar at 1–3%. AAT, AAR, SMO, and soil nutrient content of BK1, YT1, and NT1 were significantly higher than those of NT1 and SC1–2. Moreover, soil pH and SSC of NT1 and SC1–2 were significantly higher than for other quadrats. The climatic and environmental factors (AAT and AAR), SMO, and soil nutrient conditions of the BK1 were the best among the six sampling lines, as they constitute the most favorable conditions for wetland herbs growth. Consequently, the coverage, species number, community diversity index, and community richness index of wetland herbs in the BK1 were the highest.

Fig. 6
figure 6

a AAT, AAR; b altitude, slope; c SMO; soil pH, SSC; d SOM, STC; e STN, STP of each sampling line

Delimitation of lake–terrestrial ecotone wetland herbs

The selection of a width for the MSWT window has an extremely important influence on the accuracy of the delimitation results. While selecting an extremely small window width leads to multi-peak interference [60], an extremely large window weakens the peaks [61]. Therefore, it is essential to determine the optimal window width of each sampling line for calculating the SED while using the MSWT to delimit the distribution width of wetland herbs. We used the BK1 sampling line as an example (Fig. 7), and considered 4, 6, 8, 10, and 12 sampling quadrats as the window width. At the window width of 10–12 sampling quadrats (n = 10, 12), there was no peak, while at the window width of 4–8 (n = 4–8) sampling quadrats, a prominent peak emerged near quadrat 10. The ecotone exhibited a greater species’ diversity and enhanced community richness index as compared with the adjacent communities driven by the edge effect [62], Thus, the presence of the peak indicates that the plant community at this location had the greatest heterogeneity, and the ecological pattern of the plant community was changed at this location of the ecotone. Moreover, the presence of the prominent peak suggests that the area was the BK1 wetland herbs-mesophyte/xerophyte transition zone. This indicates that when the MSWT window width was 4–8 sampling quadrats (n = 4–8), it could better reflect the position of the plant transition zone. Moreover, compared to the window width of 6–8 sampling quadrats (n = 6–8), the peaks stemming from the window width of the four sampling quadrats (n = 4) were the most prominent, while the peak width was narrower. Notably, this was the optimal window width for BK1 (Fig. 7).

Fig. 7
figure 7

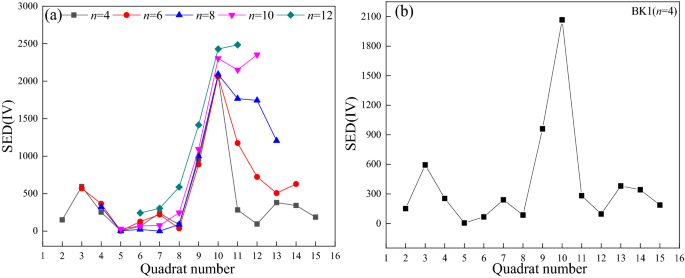

a SED (IV) peak value under the different window width of (BK1), b optimal window width (n = 4) for BK1

Similarly, the aforementioned method of selecting the most suitable window width was used to determine the optimal window width for YT1, NT1, NT2, SC1, and SC2. These corresponded to four sampling quadrats (n = 4) (Fig. 8a), four sampling quadrats (n = 4) (Fig. 8b), six sampling quadrats (n = 6) (Fig. 8c), six sampling quadrats (n = 6) (Fig. 8d), and four sampling quadrats (n = 4) (Fig. 8f), respectively. Under the optimum window width of each sampling line, the wave peak was substantial, the peak value was higher, and the peak width was small, indicating that the MSWT was a suitable method for this study, and the wetland herbs of various sampling lines exhibited different distribution widths.

Fig. 8
figure 8

ae SED (IV) peak value under the suitable window of YT1, NT1, NT2, SC1, SC2

In combination with the field survey, the BK1 sampling line was considered as an example of Baksum Lake. This sampling line was set up with a sampling quadrat (1 m × 1 m) for every 4 m, with 17 sampling quadrats in total. The quadrats 1–11 were primarily included Commelina diffusa, Potentilla anserina, Plantago depressa, Ranunculus tanguticus, Selaginella nipponica, Duchesnea indica, Salvia przewalskii, and other wetland herbs. The quadrats 12–17 primarily represented mesophytic and xerophytic plants such as Aristida triseta, Tripogon chinensis, Gueldenstaedtia verna, and Origanum vulgare L. The YT1 sampling line was considered as an example for Yamdroktso. The sampling line was set up with a sampling quadrat (1 × 1 m) for every 4 m, with a total of 16 sampling quadrats. The quadrats 1–12 were mainly represented by Potentilla anserina, Ranunculus tanguticus, Plantago depressa, Aster tataricus, Polygonum sibiricum, and other wetland herbs. The quadrats 13–16 primarily included mesophytic and xerophytic plants such as Oxytropis bicolor, Elymus dahuricus, and gray mesophytic and xerophytic plants such as Cyananthus incanus, Artemisia younghusbandii, and Tripogon chinensis. The NT1 sampling line was considered as an example for Namtso. The sampling line was set up with a 1 × 1 m sampling quadrat for every 3 m, with a total of 17 sampling quadrats. The quadrats 1–14 were covered by Ranunculus tanguticus, Selaginella nipponica, Gentiana pseudoaquatica, Potentilla reptans, and other wetland herbs. There were also numerous drought-tolerant xerophytic herbs such as Potentilla bifurca L., Tibetia himalaica, Eriophorum comosum, and Dysphania aristata, in the quadrats 14–17. The SC1 sampling line was considered as an example for Siling Co. The sampling line was set up as a sampling quadrat (1 × 1 m) for every 5 m, with a total of 15 sampling quadrats. The quadrats 1–6 mainly included salt-tolerant wetland herbs Achnatherum splendens and Suaeda glauca, while the quadrats 7–15 were covered by xerophytes, Tripogon chinensis, and wet shrubs, Kalidium foliatum. This result confirms that the MSWT can be effectively used to delimit the distribution width of lake–terrestrial ecotone wetland herbs as the result was the same as the field survey wetland herbs community distribution boundary. Hence, the MSWT has promising prospects for the division of different community vegetation zones, directly proving that the MSWT can accurately delimit the growth boundary of wetland herbs [20], therefore, it is feasible to use the MSWT to delimit the upper boundary of lake–terrestrial ecotone. Thus, the wetland herbs distribution widths of the lake–terrestrial ecotone with the natural-wetland type of Baksum Lake, Yamdroktso, Namtso, and Siling Co are shown in Table 2, with values of 51, 56, 33–53 m, and 19–31 m, respectively.

Table 2 Width of wetland herbs distribution of lake–terrestrial ecotone on different lines

Factors affecting the distribution and diversity of wetland herbs

PCA was used to identify the most important environmental factors affecting the distribution width of the wetland herbs. In particular, Fig. 9a shows that the Shannon–Wiener index (SW), Margalef index (M), SMO, soil pH, and SSC were the most important factors affecting the distribution of wetland herbs. In fact, the Shannon–Wiener index and Margalef index were the principal factors affecting the distribution width as they were calculated based on the IV of wetland herbs in the lake–terrestrial ecotone. We also explored the relationship between the plant diversity and the environmental factors to further determine the primary environmental factors affecting the distribution width of the wetland herbs.

Fig. 9
figure 9

a The principal component analysis (PCA) of the species richness (S), the Shannon–Wiener index (SW), the Margalef index (M) (green), environmental factors (black) and width of wetland herbs distribution (red); bThe redundancy analysis (RDA) of the species richness (S), the Shannon–Wiener index (SW), the Margalef index (M) (red), environmental factors and width of wetland herbs distribution (black)

Figure 9b shows the RDA among the Shannon–Wiener index (SW), the Margalef index (M), species richness (S), environmental factors, and the distribution width of wetland herbs. The Monte Carlo test shows that besides the influence of the distribution width of hygroscopic herbaceous plants, the Shannon–Wiener index and the Margalef index were primarily affected by SMO, STP, SSC, and soil pH, while the species richness was mostly affected by SOM, STN, SSC, soil pH, as well as AAT and AAR.


Although the four analyzed lakes (Baksum Lake, Yamdroktso, Namtso, and Siling Co) are located at the Tibetan Plateau, there are obvious differences between them as seen from the natural environmental characteristics (Fig. 6), such as altitude, AAT, AAR, and soil nutrient content. In particular, AAT of the BK1 sampling line was 6.3 °C higher than that of SC2. The SMO, SOM, STC, STN, and STP contents of BK1 were 5.13, 4.11, 6.80, 41.88, 3.81 times those of SC2, respectively. However, the distribution width of the wetland herbs on BK1 disclosed the lowest altitude while the optimal climate conditions were not omnipresent in the area. However, through data investigation, it is not difficult to find that Baksum Lake has a lower altitude than Yamdroktso, Namtso, and the natural environment of Baksum Lake is more suitable for wetland herbs survival. However, through analysis and field survey, we found that the distribution of wetland herbs at the Baksum Lake sampling line (BK1) is not the widest (BK1: 51 m; YT1: 56 m; NT1: 53 m), and the three sampling lines had the same wetland herbs. (Selaginella nipponica; Salvia przewalskii; Halerpestes sarmentosa; Suaeda glauca; Potentilla anserina L; Pedicularis longiflora). The previous study showed that with global warming and human activities increasing, high-altitude areas are the biodiversity hotspots, which provide numerous ecosystem services for the lowlands and become a sanctuary for plants at low altitudes [63]. In order to explain the reason and highlight the impact of human activities on the distribution of wetland herbs in the lake–terrestrial ecotone, we compared the lakes in the Middle-Lower Yangtze Plain that have better natural conditions and are seriously affected by human activities. In a previous study [54], we had investigated the distribution width of lake–terrestrial ecotone wetland herbs in the lakes of the Middle-Lower Yangtze Plain, which was basically in the same latitude range as for the four lakes analyzed in this study (Table 3). The species richness of the wetland herbs and the community diversity index of lake–terrestrial ecotones in the Middle-Lower Yangtze Plain were significantly higher than those four Tibetan lakes, whereas the presence of high-density population, agricultural planting, disturbance of the plants' growth area by road construction that yields, a smaller distribution width are all currently evidenced in Tibet [54]. As the altitude increases, the anthropogenic activities are generally weakened [64], thereby increasing the distribution width of wetland herbs. This pattern can also explain why the wetland herbs distribution width of the YT1 and NT1 was slightly wider than that of BK1. Moreover, our study showed that some wet plants, such as Potentilla anserina L., Duchesnea indica, and Plantago asiatica L., were present in the Middle-Lower Yangtze Plain and Baksum Lake, Namtso, and Yamdroktso at the same time. Had research suggested that high-altitude areas may become shelters for plants as the climate warms areas [65].

Table 3 Comparison of latitude and longitude, plant distribution width and characteristics of lakes in the Middle-Lower Yangtze Plain (Changtan Reservoir, Taihu Lake, Xiazhu Lake) and the Qinghai-Tibet Plateau lakes (Baksum Lake, Yamdroktso, Namtso, Siling Co)

The four lakes on the Tibet Plateau are located far from each other; hence, the wet plants’ quantity and species exhibited rather unique spatial distributions (Fig. 4). The NT2, SC1, and SC2 sampling lines were located in northern Tibet in the arid area of the desertification ecosystem. The area is arid and severely cold throughout the year, with extremely low soil nutrient content, low plant community species richness, and single community structure [66]. The PCA and the RDA analyses indicated that the water conditions, heat conditions, and soil nutrients were the main factors restraining the growth and distribution of plants in the dry and alpine regions [67,68,69]. Wang [70] reported that higher SMO and STN in alpine regions promoted an increase in plant biomass and richness, and vice versa. The PCA also proved that the Shannon–Wiener index and the Margalef index were the most important factors affecting the distribution width of the wetland herbs. Therefore, to determine the main influencing factors of the distribution width of lake–terrestrial ecotone wetland herbs, it is also necessary to explore the environmental factors affecting the Shannon–Wiener index, the Margalef index, and the species richness index.

The PCA also proved that the Shannon–Wiener index and the Margalef index were the most important factors affecting the distribution width of the wetland herbs. Therefore, to determine the main influencing factors of the distribution width of lake–terrestrial ecotone wetland herbs, it is also necessary to explore the environmental factors affecting the Shannon–Wiener index, the Margalef index, and the species richness index.

The distribution width of the wetland herbs, the Shannon–Wiener index, the Margalef index, and the species richness index exhibited significantly negative correlation with soil pH and salinity, indicating that the number of species and community richness in the sampling line had decreased with an increase in soil pH and salinity. It should be noted that soil salinity is stressful for the growth of wetland herbs [71], seemingly due to the decrease in the utilization of soil nutrients [72, 73]. The PCA also showed that soil pH and SSC exhibited significantly negative correlations with SOM, STC, STN, and STP contents, while SSC showed significantly negative correlations with SOM and STP. At the same time, high salinity and alkalinity restrained the growth of wetland herbs. Furthermore, wetland herbs present in SC1–2 were Suaeda glauca and Achnatherum splendens (Fig. 4), both species have high tolerance to salinity and alkalinity [74, 75]. This also showed that different wet herbs species have different adaptabilities to soil pH and SSC [76]. Soil pH and SSC have substantially affected the distribution width of lake–terrestrial ecotone wetland herbs in the four lakes.

Yamdroktso, Namtso, and Siling Co are located in the relatively arid alpine areas. Therein, the composition, species richness, and diversity of plants in the ecosystem are primarily governed by soil moisture and salinity. The heterogeneity of soil moisture strongly affects the distribution of plants as well [77]. Vegetation distribution revealed that higher soil moisture was more conducive to the growth of wetland herbs, thus, resonating with the findings of Zhao and others [78]; they had found the prominent limiting factors for the growth of desert plants in arid areas. Therefore, soil water content was one of the principal factors affecting the distribution width of lake–terrestrial ecotone wetland herbs in the four lakes.

The Pearson correlation analysis showed that the correlation coefficients among SMO, soil pH, SOM, STP, SSC content, and the distribution width of wetland herbs were 0.951 (at p < 0.01 significance), -0.831, -0.902, 0.821, and 0.905 (at p < 0.05 significance). Moreover, the correlation between SMO, pH, SSC, SOM, and STP content was also significant. Fang [79] studied the lake wetland of Aibi Lake in an arid area and showed that the SMO of lakeside wetlands in alpine and arid areas was significantly affected by soil type, topography, climate, and structural factors as well. In addition, soil pH and soil nutrient content were significantly affected by soil moisture content.

A lake–terrestrial ecotone represents an important biological transition zone for the exchange of energy, material, and information between water and terrestrial ecosystems as a transition zone between lake water ecosystems and terrestrial ecosystems [80]. The distribution width of wetland herbs expresses the impact of lakes on the terrestrial environment. The distribution width of the lake–terrestrial ecotone vegetation community depends on the degree of tolerance of dominant species to major environmental stress factors [81], while water is a key factor affecting the ecological adaptation of lake–terrestrial ecotone plants and restraining the growth and distribution of plants [82]. Small differences in soil moisture content cause significant differences in the germination of wetland plant seeds, which subsequently affect the distribution of wetland plant communities [83]. There were significant climate differences among the analyzed lakes (Baksum Lake, Yamdroktso, Namtso, and Siling Co), leading to various magnitudes of soil pH, SMO, and soil nutrient content. These conditions caused the distribution of the lake–terrestrial ecotone wetland herbs in the Tibetan lake area to be influenced by multiple factors. From a macro-perspective, this was caused by the differences in climate conditions that determined the distribution width of the wetland herbs in Tibetan lakes. Plants have responded specifically to various temperatures and humidity caused by different micro-environment during the long-term evolution process in alpine and high-altitude regions and are able to effectively use solar energy for organic matter production under their respective temperature conditions [84]. Besides, biomass has a strong correlation with nutrient availability, microbial activity, and other biotic influences, which are more important drivers of biomass in alpine meadows [85]. It is well known that water is the key factor for plant biomass in alpine and high-altitude region. Previous studies have also found that the productivity of alpine grasslands is highly responsive to soil moisture content, indicating the importance of water conditions in constraining alpine vegetation production [86]. Further analysis also revealed that the species richness remained relatively low in low-moisture areas (NT2, SL1, SL2), regardless of soil temperature (Fig. 4). At the same time, the plant growth perspective emphasizes that the soil moisture content was the most important factor affecting the distribution width of wetland herbs.


The MSWT was successfully used to delimit the distribution width of lake–terrestrial ecotone wetland herbs in Tibet lakes. The delimitation results were consistent with the growth boundary of the wetland herbs in the field survey. SMO, pH, SSC, and soil nutrient content were all important environmental factors affecting the distribution width of the lake–terrestrial ecotone wetland herbs in Tiben lakes, and SMO was found the most important one. In the similar climate condition, the stronger the human interference, the shorter the distribution width of lake–terrestrial ecotone wetland herbs. Since the distribution width of wetland herbs reflected the upper boundary of the lake–terrestrial ecotone, the present study provides a theoretical basis for the lake management and ecological restoration.

Availability of data and materials

Not applicable.



Moving split-window technology


Squared euclidean distance


Important value


Detrended correspond analysis


Principal component analysis


Redundancy analysis


Baksum lake






Siling Co


Annual average rainfall


Annual average temperature


Soil salt content


Soil moisture


Soil organic matter


Soil total carbon


Soil total nitrogen


Soil total phosphorus


The Standards, Measurements and Testing Programme Method;


The Shannon–Wiener index


The Margalef index


Species richness
