Methodology for classifying the ecosystem integrity of forests in Germany using quantified indicators

Abstract

Background

Atmospheric deposition of nitrogen and climate change can have impacts on ecological structures and functions, and thus on the integrity of ecosystems and their services. Operationalization of ecosystem integrity is still an important desideratum.

Results

A methodology for classifying the ecosystem integrity of forests in Germany under the influence of climate change and atmospheric nitrogen deposition is presented. The methodology was based on 14 indicators for six ecosystem functions: habitat function, net primary function, carbon sequestration, nutrient and water flux, resilience. It allows assessments of ecosystem integrity changes by comparing current or prospective ecosystem states with ecosystem-type-specific reference states as described by quantitative indicators for 61 forest ecosystem types based on data before 1990.

Conclusion

The method developed enables site-specific classifications of ecosystem integrity as well as classifications with complete coverage and determinations of temporal trends as shown using examples from the Thuringian Forest and the “Kellerwald-Edersee” National Park (Germany).

Background

Climate change and atmospheric nitrogen (N) inputs can alter the integrity of ecosystems, i.e., their dominant structures and functions, and thus limit their benefits for humans, i.e., the ecosystem services. Therefore, action 5 of the EU Biodiversity Strategy to 2020 foresees that Member States will map and assess the state of ecosystems and their services in their national territory. To this end, an operational guidance to the EU and the Member States on how to assess the condition (or the state) of Europe’s ecosystems was developed [13]. Accordingly, ecosystem condition should be measured using indicators and specified for the national level of the EU member states [13]. For Germany, Jenssen et al. [7] and Schröder et al. [23] laid the foundations for a spatially explicit and nationally applicable concept for the classification of changes in ecosystem integrity. This methodology was further deepened and developed by Schröder et al. [22]. It enables an integrative assessment of changes in ecosystem integrity, taking into account the effects of climate change in combination with atmospheric nitrogen (N) deposition. Characteristics of ecosystem integrity concerned are self-organizational capacity, functionality and compliance of abiotic and biotic properties with the natural site potential (identity). The methodology was based on an extensive vegetation database, nationwide available data from digital maps and long-term monitoring programs. It was complemented by dynamic modeling of future climate and soil conditions. The ecosystem condition was assessed on the basis of the criteria of functionality, chemical and biological characteristics, and stress tolerance to anthropogenic nitrogen inputs and climate change. The methodology allows the identification and mapping of potential natural ecosystem types and current near-natural ecosystem types. For certain climate scenarios and atmospheric nitrogen inputs (2011–2070), possible ecosystem developments can be projected and evaluated in the future. The concept complements existing assessment methods for ecosystem conditions by taking abiotic environmental factors and their changes into account as drivers of biological changes and ecosystem functions. At the same time, it should serve to identify the causes of disturbances as early as possible and to derive suitable measures for the preservation and development of certain ecosystem conditions.

For the development of the methodology presented in this paper, the Federal Environment Agency has attached importance to use data from monitoring programs and to cover three spatial levels: the forest stand level as well as the regional and national levels. Thereby, the German-wide map of hemeroby [25] could not be used since it does not address ecological functions and “is inappropriate for a more accurate calculation of spatial extent and thus the monitoring of local and regional developments” [26]:2.

A fundamental component of the methodology is a classification of Germany’s semi-natural ecosystems. Their concordance with other ecosystem classifications for which no spatial concretisation has been carried out nationwide (European Nature Information System EUNIS, [20], habitat types according to Annex I of the Habitats Directive) has been achieved. Thus, the developed ecosystem classification is connectable with other approaches and enables ecologically founded interpretation and spatial differentiation. For 61 selected ecosystem types, a historical reference condition was quantified based on data from the period 1961–1990 [7, 23]. The reference condition was defined as a type-specific condition of ecosystems, the characteristics of which are characterized by intervals of historical ecosystem condition variables (1961–1990). These conditions are relatively least affected by substance inputs and climate change, which can be adequately quantified with measurement data.

For selected ecosystem functions (habitat function, net primary function, carbon storage, nutrient flow, water flow and adaptability), indicators were selected with which current and modeled future ecosystem conditions can be compared with the respective ecosystem type-specific reference conditions. The indicators were quantified with data from monitoring programs and from the Waldkunde Institut Eberswalde (W.I.E.) database, whereby the focus was on the effects of changes in the abiotic systemic bases of development.

The reference states were quantified for 40 near-natural forests and 21 cultivated forests. Cultivated forests are distinguished from near-natural forests by a tree species composition that has been changed significantly compared to the potential natural state. The reference states refer to the period up to 1990, mainly from 1960 onwards, but in individual cases to data dating back to the 1920s and 1930s. For each ecosystem type, its reference status was indicated by a data sheet with the following information:

  1. 1.

    Ecosystem code: 1st digit = climate ecological coordinate, 2nd digit = water balance type, 3rd digit = substance cycle type (for description see [22], vol. 3),

  2. 2.

    Name of ecosystem type,

  3. 3.

    EUNIS class,

  4. 4.

    Biotope type BfN [20],

  5. 5.

    Vegetation type according to common plant sociological classifications,

  6. 6.

    Photo,

  7. 7.

    Habitat type according to the Fauna–Flora–Habitat Directive [24],

  8. 8.

    Position in the two-dimensional ecogram with the coordinates soil moisture and base saturation,

  9. 9.

    Location factors: soil shape, soil type, terrain, macroclimate,

  10. 10.

    Habitat function: characteristic species association with continuity and mean quantity development of the soil cover, maximum Kullback distance of the individual records to the mean species quantity distribution, minimum similarity of the individual records with the mean species quantity distribution,

  11. 11.

    Net primary production (NPP): above-ground average annual NPP at the time of culmination in tree wood, leaf/needle mass, ground vegetation and total mass, upper stand height at age 100 as comparative parameter,

  12. 12.

    Carbon storage: carbon stock in humus (Corg in humus layer and in soil up to 80 cm depth),

  13. 13.

    Nutrient flow: pH in 1/10 KCl, base saturation V in % and C/N ratio in the uppermost 5 cm from H to Ah horizon (interval of mean value and standard deviation), humus form, nutritional characteristics N%, P%, K%, Ca%, Mg% in the assimilation apparatus of trees in g/100 g of leaf/needle dry matter (August, interval of mean value and standard deviation),

  14. 14.

    Water flow: soil moisture index (interval from mean value and standard deviation) as well as

  15. 15.

    Adaptation to changing environmental conditions: maximum proportions of natural site tree species in self-organized development stages.

The objective of this contribution is to present the methodology of quantifying the ecosystem functions referred to in bullet points 10–15 and to show how ecosystem integrity was classified on this basis.

Methods and results

This paper presents for the first time the following methodical issues for classifying the ecosystem integrity of forests by example of Germany: the operationalisation of ecosystem functions by quantitative indicators (Sect. “Determination of indicator characteristics”) and, based on this, the quantification and classification of ecosystem integrity (Sect. “Classification of ecosystem integrity”) including its site-specific analysis (Sect. “Site-specific classification”), regionalisation (Sect. “Area-related classification”) and temporal trends (Sect. “Determination of temporal trends”). The data used and the results produced as well as software tools developed were published as data and software papers [8, 9, 16, 17].

Determination of indicator characteristics

Indicators of habitat function

The habitat function is simply indicated by the composition of the vegetation according to quality (higher plant species as well as species of soil-dwelling mosses and lichens) and quantity (coverage percentage). For this purpose, the Kullback distance [7, 11, 23] of the vegetation composition of the study area was calculated from the distribution of the mean species quantities of the reference state (Fig. 1).

Fig. 1
figure1

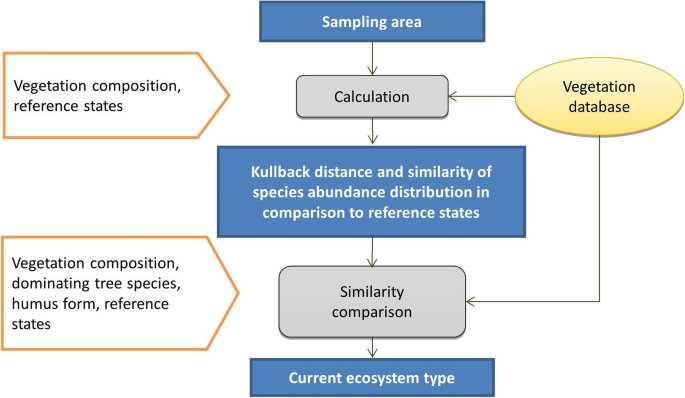

Basic scheme for determining the indicators of the habitat function of a current ecosystem type

For each of the individual vegetation relevés representing the reference state, the Kullback distance to the mean species quantity distribution was calculated and from the sum of the mean value and standard deviation of the totality of these distances, a value was calculated characterizing the reference state, referred to as the maximum Kullback distance of the individual relevés to the mean species quantity distribution, and documented in the data sheets [8] for each ecosystem type. A comparison of the Kullback distance of the vegetation composition of the investigated area with this "limit value" allows a statement on the extent to which the vegetation composition corresponds to the reference condition or not.

In addition to the Kullback distance, an index is calculated which shows the quantitative correspondence of the current species composition of the vegetation with the mean species quantity distribution of the type [4]:

$$ S\left( {p_{1} ,\ldots,p_{S} ,\;p_{1}^{O} ,\ldots,p_{S}^{O} } \right) = \sum\limits_{i = 1}^{S} {\min (p_{i} ,p_{i}^{O} )} \cdot 100\% . $$

This similarity index S is calculated analogously to the Kullback distance [22], Vol. 2: Sect. 2.3). It allows a comparison to be made with the “limit value”, also identified in the data sheets [8] as the minimum similarity of the individual relevés representing the reference state with the mean species quantity distribution, which was calculated as the difference between the arithmetic mean of all similarity indices of the individual relevés representing the reference state and their standard deviation.

Due to its formal structure as entropy, the Kullback distance emphasizes differences in characteristic combinations of several species, each with medium quantity development, while the similarity index is influenced mainly by agreement of the highly continuous dominating species. This difference may be relevant to the interpretation of habitat function for different groups of plant and animal species in different ecological domains, and therefore both indicators are considered and illustrated in the following by the ICPFootnote 1 Forests Level II Location 1605 (Großer Eisenberg, Germany): [19: Table 3] already presented the calculation of the Kullback distance KD(1960) = 0.31 between the vegetation condition of the investigated area in 1960 and the reference condition of ecosystem type C4-6d-B1. A similar calculation was performed for the vegetation surveys from 2001 and 2006 taken from the Level II database with the results KD(2001) = 1.97 and KD2006) = 1.72. If the KD values for all images of the reference condition from the years up to 1990 from Jenssen et al. [9] “C4-6d-B1_Vegetationsgesamttabelle.xls”) are calculated in an analogous manner, the sum of the mean value and standard deviation of these KD values is obtained as the value for the maximum Kullback distance of the individual relevés to the mean species quantity distribution KDmax = 0.53, which is also shown in Jenssen et al. [8]. An analogous calculation of the percentage similarity index S yields values of S(1960) = 69.4%, S(2001) = 50.1% and S(2006) = 60.6% compared to a minimal similarity of the individual relevés representing the reference state with the mean species quantity distribution of Smin = 65%. Thus, both calculated indicators for the habitat function show that the typical species composition of the investigated area is clearly disturbed after 2000, with a reversible development being observed between 2001 and 2006.

Indicator net primary production

The indicator net primary production refers to the net NPP of above-ground wood biomass relevant from a forestry point of view, which is recorded in the form of growth. To make it possible to compare this size, which fluctuates greatly with the age and treatment of the stand, with the reference state valid for the respective ecosystem type, the average net primary production of wood biomass at the time of its culmination is calculated from the wood measurement monitoring data using the method outlined in Fig. 2 and described below.

Fig. 2
figure2

Basic scheme for determining the mean net primary production (NPP)

  1. 1.

    Calculation of the mean stand height HG as the height of the circular mean trunk from the individual tree data recorded on the study area for breast height diameter di and height hi according to the formula

    \(HG = \frac{{\sum\limits_{i} {d_{i}^{2} } \cdot h_{i} }}{{\sum\nolimits_{i} {d_{i}^{2} } }}.\)

  2. 2.

    Calculation of the relative height class from the stand age and HG according to the routine BON_REL [9].

  3. 3.

    Calculation of the growth trend depending on the age of the portfolio according to the routine “Growth” [9] and determination of the average total growth DGZ depending on the age of the portfolio. The “Growth” routine in turn accesses the “Stock” routine and, if necessary, the “Diameter” routine [9].

  4. 4.

    Determination of the culmination point of the average timber growth (DGZ). Multiplication of the DGZmax with the density of the wood species leads to the indicator maximum of the average net primary production DNPmax.

The calculation of the indicator for the year 1995 is exemplified here by example of ICP Forests Level II Location 1605 (Großer Eisenberg, Germany): the Level II data set for the area shows individual timber data for 141 trees of the spruce species for 1995.

  1. 1.

    The chest height diameter d1,3 and the tree height h are given for all 141 trees. In a spreadsheet, the squares of the breast height diameter di2 (I = 1 … 141, i indicates the line number) in column 1 and the individual tree heights hi in column 2 are imported. In column 3 the multiplication di2 × hi is executed. The sum over column 3 is divided by the sum over column 1 and one receives in the result the inventory mean height to HG = 18.6 m.

  2. 2.

    According to the Level II data set, the respective forest stand was allocated to age group 5 (80–100 years) in 1995. An average population age of 90 years is derived from this. The routine BON_REL (ET; ALT; HOE_MITT) [9] is used to determine the relative altitude creditworthiness. The spruce yield table marked with the variable ET = 4 is used, the stock age is entered with ALT = 90 and the mean height with HOE_MITT = 18.6 according to point 1. The result is the relative height credit rating BON_REL (4.90; 18.6) = 4.46.

  3. 3.

    With the help of the routine ZUWACHS (ET; ALT; BON_REL), with ET = 4 and BON_REL = 4.46 for a sufficient interval of the stand age, the growth course of an optimally stocked spruce stand is now calculated using the location quality calculated for the stand as a function of the stand age ALT. For each calculated age of ALT, the average annual total growth DGZ of the previous stock development is obtained by dividing the sum of the annual increases (= total growth) by the reached age of ALT. The result is the course of the DGZ depending on the age of the stand for an optimally stocked spruce stand according to the forestry management model specified by the yield table.

  4. 4.

    The maximum of the DGZ curve calculated according to point 3 corresponds to the average annual total growth at the time of culmination, DGZmax = 13.03 m3/ha, or after multiplication by the density of 0.378 t DM/m3 the average annual net primary production of tree wood DNPmax = 4.93 t/ha under the assumption that the stand would have the stocking density assumed in the yield table model.

  5. 5.

    However, for the calculation of the growth trend, the typical stocking density identified for the reference ecosystem type shall be taken into account. The data sheet on the reference condition of the Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level) [9] shows an average stand height of 22 m at the age of 100 years. This results in a relative height class rating of BON_REL (4,100; 22) = 3.97 for the mean reference condition. Using the GROWTH (4; ALT; 3,97) routine, the average annual net primary production of tree wood DNPmax = 5.58 t/ha is now calculated using the method described in point 3, assuming that the reference condition would have the stocking density assumed in the yield table model. In fact, however, it is a natural spruce forest in the ecological battle zone between a closed high forest and an open grove vegetation with a stocking density significantly reduced compared to the forest yield table model, which in turn leads to a proportional reduction of stock and hectare-related growth. The data sheet on the reference condition of the Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level) [9] shows an average annual net primary production of DNPmax = 2.2 t/ha. This results in a reduction factor of 2.2/5.58 = 0.394, by which the average annual net primary production of tree wood DNPmax = 4.93 t/ha determined under point 4 must be multiplied, so that an average annual net primary production of tree wood DNPmax = 1.94 t/ha is obtained as an indicator of the net primary production of the tree stock of the monitoring area “Großer Eisenberg”.

Indicator carbon storage

As an indicator for carbon storage, the carbon stored in the humus of the organic layer and in the mineral soil between 0 and 80 cm deep is calculated (Fig. 3).

Fig. 3
figure3

Basic scheme for determining the Corg content in humus

The quantities of Corg in g/kg given for the individual soil horizons are multiplied by the respective bulk density (kg/m3) and converted into stock values per hectare using the respective horizon thickness data.

If the data for individual horizons do not contain information on bulk density, the volume-related C reserves can alternatively be calculated on the basis of an empirical relationship between C content and litre weight of the fine soil according to [2]:54. After conversion, the following formula results from this relationship for calculating the bulk density [kg/m3] as a function of the organic carbon content [g/kg]: Bulk density = 1593/Corg0.177465.

Example: ICP Forests Level II site 1605 (Großer Eisenberg, Thuringian Forest, Germany).

The sample calculation was performed using the Level II data for 2009 (Table 1). The mean value for Corg [g/kg] was calculated for each of several measurements given per layer. For the layers of the mineral soil M01 (0–10 cm), M12 (10–20 cm), M24 (20–40 cm) and M48 (40–80 cm), the bulk density was calculated according to the empirical formula given above. The hectare stocks of organic carbon obtained by multiplying Corg [g/kg] by bulk density [kg/m3] were summed across all layers.

Table 1 Calculation of the content of organic carbon in the litter layer and in the soil block up to 80 cm depth from the Level II data for the year 2009

Nutrient and water flow indicators

Nutrient and water flow indicators are calculated using indicator value models (Fig. 4).

Fig. 4
figure4

Basic scheme for the determination of indicators of water and nutrient flow

Indicator value model for calculating the C/N and pH of the topsoil

The indicator value model calculates for a given vegetation survey a probability distribution over the C/N ratio and the pH (KCl) of the topsoil (top 5 cm of the humus layer or mineral soil). The C/N ratio serves as an indicator of nutrient availability similar to the N number according to Ellenberg et al. [1]. From this distribution, an expected value for the C/N ratio and the pH of the topsoil is calculated. A complete documentation of the model is contained in Jenssen et al. [9].

The basis for the modeling of the C/N ratio and the pH are the probability distributions of the most frequent plant species of the Central European forest vegetation, taking into account their stratum affiliation and quantity development ([9]: Tables 3 and 6, respectively). These distributions are multiplicatively linked to a probability distribution for the ecotope characterized by the vegetation uptake. From the resulting distribution, the characteristic values can be assigned to the ecotope. In the applications performed, the expected value assigned to the ecotope was the arithmetic mean of the class values of the C/N ratio or the pH weighted with the class probabilities of the resulting probability distribution ([9]: Tables 1 and 4).

The following model algorithm has been implemented:

  1. 1.

    Reading a table (tblVEG) with the vegetation relevé including all occurring species separated by tree layer, lower and upper shrub layer, field layer and the corresponding percentage cover values.

  2. 2.

    Reading the class mean values C/N and pH [9]: Tables 1 and 4. for 20 classes, respectively.

  3. 3.

    Calculation of the probability densities of the occurring species taking into account stratification and cover value class using the function

    $$ f(x) = a_{0} \cdot \exp \left[ { - \frac{{(x - a_{1} )^{2} }}{{{\kern 1pt} 2 \cdot a_{2}^{2} }}} \right] + a{}_{3} + a_{4} \cdot x + a_{5} \cdot x^{2} $$

    and the parameters according to Jenssen et al. ([9]: Tables 3 and 6, respectively), if these are included in the tables. The parameter “Number” is the number of distributions included in the calculation.

    The deciduous tree species in brackets in the tables are not taken into account due to possibly dominant forestry influences which may falsify the indicator value.

    If there are negative values for f(x), these are set to zero. The probability densities are then normalized to 1 by dividing each f(x) by the sum of all f(x) over all 20 classes.

  4. 4.

    Create a matrix (number, 20) containing the respective probability densities above the class values for the considered plant species (if necessary, separated by strata and cover value class).

  5. 5.

    Multiplicative linking of probability densities

    $$ pd(*) = \prod\limits_{i = 1}^{{{\text{Anzahl}}}} {{\text{Matrix}}\,(i,*)} $$

    for each of the 20 classes. The resulting vector pd contains the probability density for each of the 20 class values.

  6. 6.

    Weighting of the probability density vector pd with the case numbers of the individual classes (column “Absolute frequency” in [9]: Tables 1, 4).

  7. 7.

    Calculation of the expected value for the C/N ratio or the pH as an average over the class values of the C/N ratio or the pH weighted with the probability densities pd.

Example: ICP Forests Level II site 1605 (Großer Eisenberg, Germany).

The calculation should be performed using an executable program that implements the algorithm described above based on the data documented by Jenssen et al. [9]. For a better comprehensibility of the model algorithm, a spreadsheet calculation was carried out in Table 2 for the vegetation survey of the ICP Forests site LII-1605 from 1960, which is documented under the area designation STO 180 in Jenssen et al. [8] (“C4-6d-B1_Vegetationsgesamttabelle.xls”).

Table 2 Calculation of the expected value of the C/N ratio in the topsoil of the ICP Forests site LII-1605 site (Großer Eisenberg, Thuringian Forest, Germany) in 1960 from the probability densities (pdf) of the occurring plant species for 20 classes of the C/N ratio

The first two columns contain the plant species taken from the vegetation survey separately by stratum and the corresponding percentage cover values (step 1 of the model algorithm). The first row contains the class mean values C/N [9]: Table 1 for 20 classes each (step 2). The inner fields of the table contain the probability densities calculated according to steps 2 and 3 for the occurring species over the respective classes, provided that a density function (parameters in [9]) exists for the species. The probability densities were normalized so that their sum over all classes of the C/N ratio (row sum, stored in the last column) results in one. In the row “Column product”, the probability densities of the different plant species were multiplied by the respective C/N classes (step 4). In the next row “Column product, weighed with class frequencies” the probability densities are weighed with the case numbers (absolute frequencies) of the individual classes from Jenssen et al. [9]: Table 1 (step 5). This is to ensure that the two extreme classes with a significantly lower number of underlying measured values and correspondingly lower statistical representation are given a lower weighting in the calculation of the expected value (explanations in [9]). In our example, however, these classes have a zero probability, so step 5 has no effect on the result (Table 2). The modal value of the distribution remains unchanged above the class with the class value C/N = 28.2. The corresponding class probability is 43% after normalization across all classes. In the last line, the expected value for the topsoil C/N ratio of the investigated area is calculated by multiplying the class values with the respective class probabilities and then summing all classes (step 6). The result for the expected value is C/N = 27.4. A completely analogous calculation is carried out to determine the pH (KCl) in the topsoil. pH = 2.8 is obtained.

Indicator value model for calculating the base saturation of the topsoil

So far, no probability density functions have been created for base saturation (V). Therefore, with the help of 787 measurements of the V value available in the W.I.E. database and on the basis of a close correlation to the pH values, a total of 838 forest plant species were assigned mean values of the base saturation of the topsoil [9]: Table 9. For the calculation of an area-related base saturation, an average value weighted with the cover values was calculated. This value is subject to corresponding uncertainties compared to the C/N ratios and pHs.

Example: ICP Forests Level II site 1605 (Großer Eisenberg, Thuringian Forest, Germany).

Table 3 shows the calculation of the base saturation for the ICP Forests site LII-1605 (Großer Eisenberg, Thuringian Forest, Germany) in 1960 on the basis of the vegetation survey of the site LII-1605 from 1960, which is documented under the area designation STO 180 in Jenssen et al. [9] (“C4-6d-B1_Vegetationsgesamttabelle.xls”). The first two columns contain the plant species taken from the vegetation survey and the corresponding percentage cover values, whereby the values r = 0.01% and +  = 0.1% were set. The third column contains the mean V values of the individual plant species taken from Jenssen et al. [9]: Table 9. The last column contains the products from these V values and the coverage percentage, i.e., the products from the two previous columns. In the last row, the column sum of these products is divided by the sum of the cover percentages taken into account and the result 17 is shown as an area-related V value.

Table 3 Calculation of the base saturation (V) in the topsoil of the ICP Forests LII-1605 site (Großer Eisenberg, Thuringian Forest, Germany) in 1960 as weighted mean of V indicated by occurring plant species
Indicator value model for calculating the moisture index of the topsoil

The modeling of the moisture indicators for the topsoil is based on the scaled DKF soil moisture index estimates of the topsoil moisture derived by Hofmann [3] (pp. 204–214) for sociological–ecological species groups [9]: Tables 7 and 8, respectively). From the given soil moisture intervals a Gaussian function is calculated, which approximates a normal distribution of the soil moisture indices in the given interval. The calculation of a moisture index characterizing the test area is carried out analogously to the calculation of the C/N and pH expected values. The probability densities for the respective plant species are weighted with the cover values from the vegetation survey.

The following model algorithm has been implemented:

  1. 1

    Reading a table (tblVEG) with the vegetation picture contains all occurring species.

  2. 2.

    Definition of 20 classes distributed equidistantly between the extremes 0 and 10 and reading the class averages.

  3. 3.

    Approximation of the probability densities of the occurring species with the function

    $$ f(x) = \frac{1}{{\sqrt {2\pi } \cdot {\kern 1pt} \sigma }} \cdot \exp \left[ { - \frac{{(x - m)^{2} }}{{{\kern 1pt} 2 \cdot \sigma^{2} }}} \right] $$

    and the parameters

    $$ m = DKF_{\min } + \sigma \quad ,\quad \sigma = \frac{{DKF_{\max } - DKF_{\min } }}{2} $$

    according to Jenssen et al. [9]: Table 8, if these are included in the tables. The probability densities are then normalized to one by dividing each f(x) by the sum of all f(x) over all 20 classes.

  4. 4.

    Create a matrix (number, 20) containing the approximated probability densities above the class values for the plant species considered. The parameter “Number” is the number of distributions included in the calculation.

  5. 5.

    Weighting of the approximated probability densities over the class values with the cover values of the species summed across all strata.

  6. 6.

    Multiplicative linking of probability densities

    $$ pd(*) = \prod\limits_{i = 1}^{{{\text{Anzahl}}}} {{\text{Matrix}}(i,*)} $$

    for each of the 20 classes. You get a vector pd that contains the resulting probability density for each of the 20 class values. Normalization of the resulting probability density across all classes to one.

  7. 7.

    Calculation of a surface-related topsoil moisture as mean value over the class values of the topsoil moisture weighed with the probability densities pd.

Example: ICP Forests Level II Location 1605 (Großer Eisenberg, Thuringian Forest, Germany).

Table 4 comprehends the characteristic values for the parameterization of the moisture distribution functions of the plant species occurring in 1960 on the at ICP Forests site LII-1605 (Großer Eisenberg, Thuringian Forest, Germany), which are documented under the area designation STO 180 in Jenssen et al. [9],“C4-6d-B1_Vegetationsgesamttabelle.xls”). The characteristic values DKFmin and DKFmax, which designate the lower and upper limits of the moisture index of the topsoil scaling between the extremes 0 and 10, are taken from Jenssen et al. [9]: Table 8. From this, the parameters of a normal distribution according to step 3 were derived.

Table 4 Parameters of the soil moisture distribution functions of the plant species at site LII-1605 (Großer Eisenberg, Thuringian Forest, Germany) in 1960

The first row of Table 5 contains the class mean values of 20 equidistantly distributed classes of topsoil moisture between the extremes 0 and 10 (step 2). The inner cells contain the class probabilities (probability densities) calculated for each type of shrub layer and ground vegetation occurring and for each class mean according to the formula given in step 3 (probability densities) normalized to one across all classes (last column, step 4). Table 6 shows the class probabilities multiplied by the respective percentage cover values (second column) (probability densities, step 5). The row “Column product” contains the product of the class probability pages calculated for each moisture class and weighted with the cover values of the species. In the line below, the class probabilities (probability densities) were normalized to one across all classes. The greatest probability of 45% is calculated for the class between the moisture index 5.5 (medium to permanently fresh) and 6 (permanently fresh). These values were multiplied in the lowest line by the respective class values of the moisture index. The sum of the lines is the expected value of the moisture content of the topsoil on the test area and gives the ratio 5.6 (step 7).

Table 5 Calculation of the class probabilities (probability densities) of the plant species at the ICP Forests LII-1605 site (Großer Eisenberg, Thuringian Forest, Germany) in 1960 for 20 classes of the soil moisture index scaled between the extremes 0 and 10
Table 6 Calculation of the expected value of the soil moisture index of the ICP Forests LII-1605 site (Großer Eisenberg, Thuringian Forest, Germany) in 1960 from the probability densities (pdf) of the occurring plant species over 20 classes of the soil moisture index

Indicator of adaptability to changing environmental conditions

As an indicator of adaptability to changing, unpredictable environmental conditions, the percentage similarity of the current proportions of tree species with the spectrum of natural site tree species [5] is used:

$$ P = \sum\limits_{i} {\min \left( {P_{i} ,P_{i}^{\max } } \right)} . $$

The pi denote the percentage amount shares of the tree species indexed with i for the current stocking on the area to be valuated, whereby the quantity shares are summed over several possibly existing tree layers and set to 100%:

$$ \sum\limits_{i} {P_{i} = 100\% .} $$

The Pimax describe the maximum percentage areas of natural site-specific tree species that are not exceeded in the course of self-organized development stages under the respective site conditions (explanations in [7], Chapter 4).

The Pimax were determined on the basis of the knowledge of the natural distribution and the site requirements as well as the growth and competition behavior of the native tree species for the different ecosystem types and documented in the data sheets of the reference conditions [9]. The pi are determined from the actual cover values of the natural site-specific tree species on the receiving area (Fig. 5).

Fig. 5
figure5

Basic scheme for determining the similarity of the current tree species composition with the spectrum of natural tree species

For a raw humus pine beech forest (Eb-4n-B2), for example, the data sheet for reference conditions [9] gives 80% for the red beech, 40% for the grape oak, 30% each for sand birch and pine and 5% for the mountain ash as the maximum proportions of natural site-specific tree species in self-organized development stages. At present, 70% pine, 20% red beech, 5% grape oak and 5% sand birch are found on a vegetation survey area assigned to this reference condition. The indicator is, thus, calculated as follows.

$$ P = \min (70\% ,30\% ) + \min (20\% ,80\% ) + \min (5\% ,40\% ) + \min (5\% ,30\% ) = 60\% . $$

The current proportions of tree species are, therefore, 60% similar to the spectrum of natural site tree species, i.e., those tree species which are not exceeded in the course of self-organized developmental stages (in contrast to the classical definition of potential natural vegetation (PNV), the spectrum covers not only the main stages but also temporary intermediate forest stages) at this site. Despite excessive amounts of pine, the stock still has sufficient potential to adapt to possibly changing environmental conditions through self-organized development.

Example: ICP Forests Level II site 1605 (Großer Eisenberg, Thuringian Forest, Germany).

For ecosystem type C4-6d-B1, the data sheet of reference states [9] gives the maximum proportions of natural site-specific tree species in self-organized development stages as 100% for spruce, 5% for mountain ash, 2% for bog birch and 5% for silver fir as maximum proportions of natural site tree species. In 1960 and in all other monitoring years, 100% spruce was found on the vegetation survey area. Thus, the indicator is calculated to P = min(100%, 100%) = 100%. The current proportions of tree species are, therefore, 100% similar to the spectrum of natural site tree species, i.e., those tree species which are not exceeded in the course of self-organized development stages at this site.

Classification of ecosystem integrity

The analysis and estimation of ecosystem conditions and their development over time is basically carried out by comparison with a functionally and structurally determined historical reference condition [7, 23]. The change in ecosystem integrity is to be classified as higher the more the status parameters deviate from those of the respective ecosystem type-specific reference status.

To classify ecosystem integrity, a distinction is made between 5 levels in comparison with the reference state, namely on three levels (Fig. 6):

  1. 1.

    Deviations from the reference situation for individual indicators,

  2. 2.

    Deviations from the reference state for individual functions (based on indicators),

  3. 3.

    Changes in ecosystem integrity across functions for the ecosystem type under consideration.

Fig. 6
figure6

Scheme for classifying ecosystem integrity

The deviations between the interval limits of the ecosystem-specific reference condition and the lower or upper limit of the ecosystem-specific total span are subdivided into the levels very low (= within the reference span) and low, medium, high and very high. The classifications for a total of 13 indicators assigned to 6 ecosystem functions are based on the principles presented in Table 7.

Table 7 Definition of the deviation levels from the reference state

The variance levels for the indicators of habitat function, net primary production and carbon sequestration are based on the historically determined reference span and a quartering of the residual interval within the total span. For the nutrient balance indicators whose reference range is defined by the respective ecosystem mean value of ± the simple standard deviation (see above): indicator value models for calculating the C/N and pH the topsoil, the base saturation of the topsoil and the moisture index of the topsoil), are assigned low and medium with values into the ranges smaller than 2 or 3 times the standard deviation. The steps high and very high were defined by halving the remaining intervals within the overall spans specific to the material or material cycle type. For ecosystem types where the triple standard deviation is already outside the total span, the deviation steps high and very high are omitted (e.g., for the pH of the Moder-Tannen-Buchen-Bergwald (D2-6d-C2; Moder fir and beech forests of the montane level), or the base saturation of the Magerrohhumus-Sand-Kiefernwald (Ed-2n-A2; Sandy meager-raw-humus pine forests). According to Jenssen and Hofmann [5], near-natural stands are characterized by values of 60–100%. This span is used as a reference (= very small). The deviation interval below 60% is quartered and distributed equally for all ecosystem types to the levels low (= 59–45%), medium (= 44–30%), high (= 15–29%) and very high (= 0–14%).

In the case of ecological functions, which are described by only one indicator (net primary production, carbon storage, water flow, adaptability), the classification is directly linked to the assessment of the individual indicators. For functions with several assigned indicators (habitat, nutrient flow), the individual estimates are aggregated via the modal value (level 2 in Fig. 6. The modal value also provides good orientation for the overall functional classification of changes in ecosystem integrity, with all criteria being considered equally. For the interpretation, the meanings of the 5 levels of deviation and change are described in Table 8.

Table 8 Levels of deviation from ecosystem type reference states and levels of change of ecosystem integrity

With regard to the interpretation of detected deviations from the reference condition, various threshold values can be used to derive different needs for action on the basis of Mitchell et al. [14] (Fig. 7). Under the simplified assumption of a linear decrease in ecosystem integrity beyond the characteristic range of the reference state, continued measures of environmental monitoring are recommended from the stage low, at the latest from the stage medium, if the temporal trend indicates an increase in deviations from the reference state. Management measures are recommended from the high level onwards, at which conditions outside the ecosystem-specific, natural variability are given (here: mean value of ± three times standard deviation). Appropriate concretizations can be justified with the changes identified at indicator, function and/or ecosystem level.

Fig. 7
figure7

Classification of ecosystem integrity and derivation of needs for action (based on [14]

Site-specific classification

The assessment forms for 61 forest and forest ecosystem types [9] can be used to classify ecosystem integrity at individual sites.

A. Deviation levels for the indicators

At the first level, it is assumed that the ecosystem type was determined by means of a determination key or computer-aided comparison of a vegetation survey with the reference conditions documented in Jenssen et al. [9, 10, 22], vol. 2, chapter 2) and that the characteristics of the indicators for the 6 ecosystem functions (Sect. “”Determination of indicator characteristics) were determined. On this basis, the deviation from the respective reference status is classified using the assessment sheet specified for the ecosystem type identified (level 1 in Fig. 6).

Example: ICP Forests Level II site 1605 (Thuringian Forest, Germany)—“base saturation” at the Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level; Fig. 7).

For the Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level) at ICP Forests Level II site 1605 in the Thuringian Forest, the interval of the reference condition is 12.9–19.7%. A base saturation value of 25% was estimated on the basis of vegetation cover (Sect. “Indicator value model for calculating the base saturation of the topsoil”). The deviation from the reference condition is classified as ‘medium’ on the basis of the rules documented in the evaluation sheet. Continuous observation of the examination area is recommended.

B. Deviation levels for the functions

In the case of ecosystem functions (level 2 in Fig. 6), deviations from the reference status are determined by evaluating the characteristics of the assigned indicators. Since net primary production, carbon storage, water flow and adaptation to changing environmental conditions are each described by a singular indicator, the level of deviation for the function is identical to that of the indicator. With regard to habitat function and nutrient flux, deviations from the reference status are determined by aggregating the levels of deviation of the associated indicators. Aggregation is done with the modal value providing good orientation. All steps of the deviation from the reference condition are considered equally. In principle, there can be several modes if several different deviation levels occur with equal frequency. These multiple responses are carried along until the final classification of integrity at the ecosystem level.

Example: ICP Forests Level II site 1605 (Großer Eisenberg, Thuringian Forest, Germany)—“nutrient flow” at the Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level; Fig. 8).

Fig. 8
figure8

Ecosystem integrity assessment sheet for a Raw-humus spruce forest on the altimontane level (C4-6d-B1), ICP Forests Level II site 1605 (Großer Eisenberg, Thuringian Forest, Germany)

For the Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level) at the ICP Forests Level II 1605 site, the determined values of the nutrient flow indicators result in different levels of deviations from the reference condition: high for the pH, medium for the base saturation and very high for the C/N ratio, furthermore high (N content needles), very low (P content needles), low (K content needles), high (Ca content needles), medium (Mg content needles). The aggregation of these 8 classifications results in an overall deviation from the reference status high for the category nutrient flow at the level of ecosystem functions, which indicates an increased need for countermeasures (Fig. 7).

C. Stages of change for ecosystem types

In a third step, the change in ecosystem integrity is classified across functions (level 3 in Fig. 6.

Example: ICP Forests Level II Location 1605 (Großer Eisenberg, Thuringian Forest, Germany)—“Ecosystem Integrity” at the Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level; Fig. 8.

For the habitat function, there are low or medium deviations from the reference status, low deviations from the net primary production, very low deviations from the C-storage, high deviations from the nutrient flow, low deviations from the water flow and very low deviations from the reference status for the adaptability to changing environmental conditions. This results in 2 denominations of the level very low, 3 denominations of the level low, one denomination of the level medium and one of the level high. The subsequent assessment leads to the classification slight change in ecosystem integrity, to take into account the modal value of the deviation from the reference condition in this example. With regard to ecosystem integrity, continued observation of the study area is recommended.

Area-related classification

For an area-related classification of ecosystem integrity at the regional level, data from vegetation-reception areas (e.g., in nature reserves) are often available or—in contrast to comparable soil data—can be collected with relatively little effort. Deviations of current ecosystem conditions from the respective reference conditions can be spatially generalized either on the basis of mapping of the ecosystem types in the area under investigation or by division of the area into a regular grid (e.g., 2.5 km × 2.5 km) in each case in connection with a representative selection of vegetation survey areas as a sample.

Method 1: classification of ecosystem integrity for mapped ecosystem types

In a first step, the quantification of the topsoil parameters from the vegetation structures according to Sect. “Nutrient and water flow indicators” is carried out. Based on the variances of the reference data to the ecosystem types [22], at least 5 vegetation relevés per ecosystem type are recommended for the regional level. Using the wise values of the plant species, a site-specific classification of the deviations from the reference condition (1: very low, 2: low, 3: medium, 4: high, 5: very high) for the corresponding indicators of ecosystem integrity (Sect. “Site-specific classification”) is then made for each vegetation survey area. Next, the ecosystem type-specific median of the deviation levels is determined as the central tendency and the maximum deviation. The medians are then aggregated via the modal value to levels of deviation and change at the levels of ecological functions or ecosystems (Sect. “Site-specific classification”). The spatial transfer of the ecosystem-specific classifications determined in this way can finally take place by allocation to the forest ecosystem types mapped in the area concerned in the sense of an area interpolation.

Example: Kellerwald-Edersee National Park (Hesse, federal state of Germany).

For the area of the Kellerwald-Edersee National Park (Hesse, federal state of Germany), an ecosystem type mapping on a scale of 1:5000 and 70 vegetation surveys for five different ecosystem types are available [18] (Table 9). After determining the topsoil parameters, for example for the Braunmull-Buchen-Bergwald (D1-6d-D1, Brownmull beech forests of the montane level), the value range of the moisture indicators (DKF) originating from eight indicator value calculations is between 4.7 and 6.9. This results in eight site-related classifications of the deviations from the reference condition between very low and high Fig. 9. The median value as the central tendency is medium. Together with the median values for the other indicators (here: Kullback distance, similarity of species abundance distribution, pH, base saturation, C/N ratio), at the level of ecosystem functions the modal value results in the levels low for habitat function, medium for nutrient flow and medium for water flow. The modal value of these three deviation steps results in a mean change of ecosystem integrity for the Braunmull-Buchen-Bergwald (D1-6d-D1,Brownmull beech forests of the montane level). This results in the recommendation to further monitor the development of ecosystem integrity of D1-6d-D1 in the basement forest in the future, especially with regard to base saturation, C/N ratio and soil moisture.

Table 9 Deviation and ordination of shifting ecosystem integrity based on 6 indicators and 5 ecosystem types in the Kellerwald-Edersee National Park (Hesse, federal state of Germany)
Fig. 9
figure9

Ecosystem type-specific classifications of deviations from the reference condition for the moisture index in the Kellerwald-Edersee National Park (Hesse, federal state of Germany)

Method 2: classification of ecosystem integrity in an area grid

Alternatively, if no information on the spatial distribution of ecosystem types is available for an area, the mean deviation from the reference state can be determined on the basis of an area grid. At a resolution of 2.5 km × 2.5 km per raster element, for example, at least two representative vegetation surveys are recommended for evaluating indicators of soil condition. As in Method 1, a site-specific classification of the deviations from the ecosystem-specific reference condition for the indicators is first carried out for all the sites to be surveyed. For each raster element, the arithmetic mean of the deviation levels is determined, also to show tendencies within the deviation level. On this basis, as in Method 1, the medians are aggregated via the modal value to deviation and change levels at the levels of ecological functions or ecosystems (Sect. “Site-specific classification”). This finally makes it possible to transfer the site-related classifications to the study area grid.

Example: Kellerwald-Edersee National Park (Hesse, federal state of Germany).

Based on the 70 vegetation surveys available for the Kellerwald-Edersee National Park, the variance levels for five different ecosystem types and the indicators of ecosystem integrity were determined. For the moisture index as an indicator of water flow, there are 70 site-related classifications of deviations from the reference condition between very low and high. For each grid, the mean value of the deviation levels is calculated and used as the basis for the grid-related classification (Fig. 10). Information losses with regard to the variance and the maximum deviation in each grid cell can be avoided by displaying the classifications at the individual locations. The example of the Kellerwald [18, 19] shows that a higher spatial differentiation can be achieved by using an area grid compared to the ecosystem type-specific classification, since the area is strongly dominated by the Moder-Buchen-Bergwald (D1-5n-C2, Moder beech forests of the montane level). Together with the variance levels for the other indicators (e.g., Kullback distance, similarity of species quantity distribution, pH, base saturation, C/N ratio), the variance and change levels at the levels of ecological functions or ecosystems are aggregated via the modal value, as in method (1).

Fig. 10
figure10

Grid-based classifications of the deviations from the reference state for the soil moisture index in the Kellerwald-Edersee National Park (Hesse, federal state of Germany)

To make the application of the classification model more effective for larger amounts of data, the OESI tool can be used as a functional extension of ArcGIS® Desktop 10.2 [16]. It was implemented using the Python programming language and supports the classification of deviations from the reference state on the basis of 2711 rules for 60 ecosystem types and 6 indicators to date: Kullback distance, similarity of species quantity distribution, pH, base saturation, C/N ratio and moisture index.

Determination of temporal trends

From repeated recordings of the ecosystem condition, temporal trends can be derived and interpreted. This is demonstrated by the example of the ICP Forests Level II program Table 10: Site LII-1605 (Großer Eisenberg, Thuringian Forest, Germany), altitude: 851–900 m; ecosystem type: Rohhumus-Fichten-Hochbergwald (C4-6d-B1; Raw-humus spruce forest on the altimontane level).

Table 10 Temporal developments of the ecosystem state between 1960 and 2009 using the example of Level II site 1605 (Großer Eisenberg, Thuringian Forest, Germany)

Example: ICP Forests Level II site 1605 (Großer Eisenberg, Thuringian Forest, Germany).

In 1960, the stand matched all ecological parameters of the associated ecosystem type (Rohhumus-Fichten-Hochbergwald). This type corresponds to the natural type of forest that forms in the ridges of the Thuringian Forest under today’s climatic conditions in self-organisation.

The data from 1995 onwards could be attributed to the effect of liming, whereby both the vegetation and the topsoil data point to a decreasing effect until 2009 with at least partial reversible development to the original spruce forest type. This becomes particularly clear in the development of base saturation. In vegetation, this effect is reflected in the occurrence of Rubus idaeus and Oxalis acetosella from 2001 and in their decline with simultaneous increases in Trientalis europaea and Deschampsia flexuosa in 2006. The significant narrowing of the C/N ratio of the topsoil and the increased N value in the needles compared to the reference condition observed since 1995 can be attributed essentially to the increased N release due to mineralisation of the topsoil due to liming.

In fact, at the end of the 1980s, the Institute of Forest Sciences Eberswalde (IFE) developed a method to remedy the Mg deficiency symptoms of the spruce in the Thuringian Forest that had appeared on a large scale at the time (personal communication by Prof. Dr. habil. Gerhard Hofmann, Eberswalde, 12.12.2017). Initially, experiments were carried out on Mg liquid fertilization from the air, which, however, showed no effect due to insufficient quantities. As a result, it was decided to fly large areas of the Thuringian Forest, including the ridges around the Großer Eisenberg, with Kamsdorfer Mg marl (high proportions of CaCO3, MgCO3).

With regard to the assessment of the longer-term effects of liming, it is remarkable that the proportion of basic cations in the spruce needles between 1995 and 2009 remains well below the reference state. A temporal trend was not detectable in the data. This obviously reflects the effect of nitrous gases, which in the eighties had led to extensive needle yellowing in the Thuringian Forest. The nutrient disharmonies in the needles induced by the N effect were not eliminated by the marl fertilization, but were obviously maintained as a result of the increased N mineralization and N uptake by the roots. The relative increase in DNP at the time of culmination, calculated from the development of the mean level, indicates accelerated growth due to the enhanced N input. These cause–effect relationships indicated here should be further analyzed against the background of the process data collected in the EU measurement program.

It is clear that with the proven ecological changes compared to the 1960s, the habitat function protected by the FFH habitat type has been adversely affected. The observed reversible development of vegetation and topsoil condition, on the other hand, is positive.

Since the 1960s, the moisture level indicated by the observed vegetation formation has shifted half a degree towards drier condition and is now at the lower interval limit of the reference condition. A further warming to be expected as a result of climate change could lead to a further decrease in the spread of the natural spruce forest type in the ridges of the Thuringian Forest and a significant expansion of the spectrum of natural site tree species.

Discussion

Over the last couple of years, there has been a broad discussion about sustainable development, ecosystem integrity, ecosystem services and biodiversity in science and the public. However, aside from a bunch of definitory treatises, operationalized approaches which are based on indicators quantifying ecosystem functions and structures with data from monitoring programs of competent authorities are lacking [21].

Ecosystem integrity or related notions are referred to in several national and international biodiversity and ecosystem policies. However, it is still poorly defined and operationalised. Based on a broad literature review Roche and Campagne [21] identified five forms of ecosystem integrity: 1. ecosystem integrity of wilderness, 2. ecosystem functional and structural integrity, 3. ecosystem stability and resilience, 4. ecosystem condition and 5. ecosystem quality and value. The concept of hemeroby is associated with form 1 proposing that natural state or ahemeroby can be defined by the absence evidence of past and actual human management [12]. The values of Hemeroby index are determined by the degree of occurrences of human pressures, generally indicated by land use, landscape patterns and species assemblages. Walz and Stein (2014) published a Hemeroby map of Germany linking some few surface covering data: the CORINE land cover data, the Base-Landscape Model of the Authoritative Topographic–Cartographic Information System and the Digital Land Cover model for Germany. A seven-point scale was used to classify land use by degree of hemeroby. Ecosystem functions were not taken into account, nor were data from ecological environmental monitoring. Following Walz and Stein [26], their hemeroby mapping approach “is inappropriate for a more accurate calculation of spatial extent and thus the monitoring of local and regional developments.” Therefore, in our investigation, we developed a methodology based on 14 indicators for six ecosystem functions (habitat function, net primary function, carbon sequestration, nutrient and water flux, resilience) by example of Germany. It allows assessments of ecosystem integrity changes by comparing current or prospective ecosystem states with ecosystem-type-specific reference states as described by quantitative indicators for 61 forest ecosystem types based on data before 1990 [10]. Advantages of the rule-based method are the increase in reproducibility and effectiveness in assessments of ecosystem integrity and the coverage of three spatial scale: the forest stand level as well as the regional and national level. As a limitation of the methodology, it should be noted that the use of the mode in the aggregation scheme is associated with a leveling within the range of the ratings. For special issues (e.g., early warning) other linkage algorithms (e.g., maximum) may be more appropriate. Due to the formal classification at the levels of the indicators and ecosystem functions, the evaluation always remains comprehensible in detail. In addition, thresholds derived from the classification can provide orientation for deriving existing needs for action.

Conclusion

A methodological gap in the operationalization of the ecological integrity of forests on the basis of generally available data in Germany was closed by the method presented in this article. Following Roche and Campagne [21] who identified five major forms of ecosystem integrity concepts, the approach presented operationalises the ecosystem functional and structural integrity. Thereby, the functional and structural indicators were quantified by data from monitoring programs of competent authorities. Opportunities for the further research are the extension of the methodology to agrarian ecosystems in Germany and forest ecosystems of Europe.

Following meteorology, the method presented refers to a historic reference period. Climatological reference periods usually cover 30 years so that the statistical parameters of the various climatological parameters can be determined with satisfactory accuracy. Longer periods are not used, because then climatic changes influence the series and also in many cases the data basis becomes too scarce. The World Meteorological Organization (WMO) has defined the periods 1931–1960, 1961–1990, 1991–2020 and 2021–2050 1961–1990 as the valid international climatological reference periods. Since meteorological characteristics are the most powerful drivers of ecosystem development, the temporal parallelization of climatic and ecological monitoring periods is technically required. This is all the more true as climate change models are calculated for climate reference periods and a coupling of climate change models with ecosystem change models requires identical time references.

The deviance of a current or potential future ecosystem condition from that of an ecosystem in the reference period does not indicate a drop in ecosystem integrity but a transition of the integrity of an ecosystem type in the reference period to the integrity of a current or future ecosystem condition. This transition is a period with decreasing stability of the ecosystem (integrity) in the reference period which may end up with an upcoming new ecosystem type replacing the former one of the reference period. So, the method ordinates the transition of the integrity of an ecosystem type in the reference period to the integrity of a current or future ecosystem condition. This transition may end up with an upcoming new integer ecosystem type replacing the former one of the reference period.

Availability of data and materials

The datasets generated and/or analyzed during the current study are cited in the References and are available in the ZENODO repository, https://doi.org/10.5281/zenodo.2606380. Also scientific software generated during the current study is available in the ZENODO repository, https://doi.org/10.5281/zenodo.1319552

Notes

  1. 1.

    International Co-operative Programme on Assessment and Monitoring of Air Pollution Effects on Forests.

Abbreviations

A:

Surface soil

BfN:

German Federal agency for nature conservation

Ca:

Calcium

Corg :

Organic carbon

Cov%:

Cover ratio of plant species

d:

Diameter

DGZ:

Average timber growth

DKF:

Soil moisture index

DNP:

Average net primary production

ESI:

Ecosystem integrity

EU:

European Union

EUNIS:

European Nature Information System

h:

Tree height

HF:

Habitat function

HG:

Mean stand height

ICP:

International Cooperative Programme

K:

Potassium

KCL:

Potassium chloride

KD:

Kullback distance

Mg:

Magnesium

n:

Sample size

N:

Nitrogen

NF:

Nutrient flow

NPP:

Net primary production

O:

Organic surface layer

P:

Phosphorus

S:

Similarity index

V:

Base saturation

WF:

Water flow

W.I.E.:

Institute of Forestry Eberswalde

References

  1. 1.

    Ellenberg H, Weber HC, Düll R, Wirth V, Werner W, Paulissen D (1992) Zeigerwerte von Pflanzen in Mitteleuropa [Indicator values of plants in Central Europe]. 3. Aufl., Scripta Geobotanica 18:1–258

  2. 2.

    Hofmann G (1974) Die natürliche Waldvegetation Westthüringens, ihre Gliederung und ihr Weiserwert für Boden, Klima und Ertrag [The natural forest vegetation of West Thuringia, its structure and its indicator values for soil, climate and yield]. Institut für Forstwissenschaften Eberswalde. Eberswalde, Akademie der Landwirtschaftswissenschaften der DDR, 536 S

  3. 3.

    Hofmann G (2002) Entwicklung der Waldvegetation des nordostdeutschen Tieflandes unter den Bedingungen steigender Stickstoffeinträge in Verbindung mit Niederschlagsarmut. Mit Anlagen [Development of the forest vegetation of the north-eastern lowlands of Germany under the conditions of rising nitrogen inputs in connection with low rainfall. With attachments]. In: Anders S et al (eds) Ökologie und Vegetation der Wälder Nordostdeutschlands [Ecology and Vegetation of the Forests of Northeast Germany]. Dr. Kessel: Oberwinter: 24–41, 201–283 (www.forstbuch.de)

  4. 4.

    Jenssen M (2010) Modellierung und Kartierung räumlich differenzierter Wirkungen von Stickstoffeinträgen in Ökosysteme im Rahmen der UNECE-Luftreinhaltekonvention. Teilbericht IIII: Modellierung der Wirkung der Stickstoff-Deposition auf die biologische Vielfalt der Pflanzengesellschaften von Wäldern der gemäßigten Breiten [Modelling and mapping of spatially differentiated effects of nitrogen inputs into ecosystems within the framework of the UNECE Air Pollution Control Convention. Substudy IIII: Modelling of the effects of nitrogen deposition on the biological diversity of plant communities in temperate forests]. UBA-Texte 09/2010. Dessau-Roßlau

  5. 5.

    Jenssen M, Hofmann G (2003) Die Quantifizierung ökologischer Potentiale der Phytodiversität und Selbstorganisation der Wälder [The quantification of ecological potentials of phytodiversity and self-organisation of forests]. Beiträge zur Forstwirtschaft und Landschaftsökologie 37(1):18–27

    Google Scholar

  6. 6.

    Jenssen M, Hofmann G (2005) Einfluss atmogener Stickstoffeinträge auf die Vielfalt der Vegetation in Wäldern Nordostdeutschlands [Influence of atmospheric nitrogen deposition on the diversity of vegetation in forests of north-east Germany]. Beiträge zur Forstwirtschaft und Landschaftsökologie 39(3):132–141

    Google Scholar

  7. 7.

    Jenssen M, Hofmann G, Nickel S, Pesch R, Riediger J, Schröder W (2013) Bewertungskonzept für die Gefährdung der Ökosystemintegrität durch die Wirkungen des Klimawandels in Kombination mit Stoffeinträgen unter Beachtung von Ökosystemfunktionen und–dienstleistungen [Assessment concept for the threat to ecosystem integrity posed by the effects of climate change in combination with substance inputs, taking into account ecosystem functions and services]. UBA-Texte 87/2013. Dessau, Textband + 9 Anhänge:1–381

  8. 8

    Jenssen M, Nickel S, Schröder W (2019) 61 Referenzzustände zur Beurteilung der ökologischen Integrität von Wald- und Forstökosystemen, Link zu Forschungsdaten [61 Reference conditions for assessing the ecological integrity of forest and forest ecosystems, link to research data] (Version v1) [Data set]. ZENODO, https://doi.org/10.5281/zenodo.2582888

  9. 9

    Jenssen M, Nickel S, Schröder W (2019) Einstufung der Ökosystemintegrität von Wäldern und Forsten Deutschlands auf Grundlage quantifizierter Indikatoren, Link zu Forschungsdaten und wissenschaftlicher Software [Classification of ecosystem integrity of forests in Germany based on quantified indicators, link to research data and scientific software] (Version v1) [Data set]. ZENODO, https://doi.org/10.5281/zenodo.2606380

  10. 10.

    Jenssen M, Nickel, S, Schröder W (2019) Referenzzustände von Ökosystemtypen und Möglichkeiten zusätzlicher biozönotioscher Indikation des ökologischen Bodenzustands als Bestandteil der Ökosystemintegrität [Reference states of ecosystem types and possibilities for additional biocoenotic indication of soil ecological status as part of ecosystem integrity] WLN Online-preview: 26 S. (pdf 1.7M; urn:nbn:de:0041-asfv-01831). http://www.afsv.de/index.php/waldoekologie-landschaftsforschung-und-naturschutz

  11. 11.

    Kullback S (1951) Information theory and statistics. Wiley, New York

    Google Scholar

  12. 12.

    Machado A (2004) An index of naturalness. J Nat Conserv 12:95–110

    Article  Google Scholar

  13. 13.

    Maes J, Teller A, Erhard M, Grizzetti B, Barredo JI, Paracchini ML, Condé S, Somma F, Orgiazzi A, Jones A, Zulian A, Vallecilo S, Petersen JE, Marquardt D, Kovacevic V, Abdul Malak D, Marin AI, Czúcz B, Mauri A, Loffler P, Bastrup-Birk A, Biala K, Christiansen T, Werner B (2018) Mapping and assessment of ecosystems and their services: An analytical framework for ecosystem condition. Publications office of the European Union, Luxembourg

    Google Scholar

  14. 14.

    Mitchell BR, Tierney GL, Schweiger EW, Miller KM, Faber-Langendoen D, Grace JB (2014) Getting the message across: using ecological integrity to communicate with resource managers. In: Guntenspergen GR (ed) Application of threshold concepts in natural resource decision making. Springer, New York, pp 199–230

    Google Scholar

  15. 15.

    Nickel S, Schröder W (2017) Fuzzy modelling and mapping soil moisture for observed periods and climate scenarios. An alternative for dynamic modelling at the national and regional scale? Ann For Sci 74(71):1–15

    Google Scholar

  16. 16.

    Nickel S, Schröder W (2017) GIS-integrated rule based model for assessing the integrity of forest ecosystems according to Jenssen. Python-Tool for ArcGIS 10.2 (Version v1). https://doi.org/10.5281/zenodo.1319552.

  17. 17.

    Nickel S, Schröder W (2018) Ecological soil moisture data across Germany, link to shape files. PANGAEA, https://doi.pangaea.de/10.1594/PANGAEA.891249, Supplement to: Nickel S, Schröder W (2017) Fuzzy modelling and mapping soil moisture for observed periods and climate scenarios. An alternative for dynamic modelling at the national and regional scale? Annals of Forest Science 74(71):1–15.

  18. 18.

    Nickel S, Schröder W, Jenssen M (2019) Maps of current semi-natural forest ecosystem types of Germanyand the Kellerwald National Park (Hesse, Germany). Ann For Sci 76(67):1–7. https://doi.org/10.1007/s13595-019-0849-4

    Article  Google Scholar

  19. 19.

    Nickel S, Schröder W, Völksen B (2019) Validating the map of current semi-natural ecosystem types in Germany and their upscaling using the Kellerwald-Edersee National Park as an example. Environ Sci Eur 31(90):1–20

    CAS  Google Scholar

  20. 20.

    Riecken U, Finck P, Raths U, Schröder E, Ssymank A (2006) Rote Liste der gefährdeten Biotoptypen Deutschlands [Red list of endangered biotope types in Germany]. Naturschutz und Biologische Vielfalt 34:1–318

    Google Scholar

  21. 21.

    Roche PK, Campagne CS (2017) From ecosystem integrity to ecosystem condition: a continuity of concepts supporting different aspects of ecosystem sustainability. Curr Opin Environ Sustain 29:63–68

    Article  Google Scholar

  22. 22.

    Schröder W, Nickel S, Jenssen M, Hofmann G, Schlutow A, Nagel H-D, Burkhard B, Dworczyk C, Elsasser P, Lorenz M, Meyerhoff J, Weller P, Altenbrunn K (2019) Anwendung des Bewertungskonzeptes für die Ökosystemintegrität unter Berücksichtigung des Klimawandels in Kombination mit Stoffeinträgen. Abschlussbericht [Application of the assessment concept for ecosystem integrity taking into account climate change in combination with substance inputs. Final report]. Bd. 1: Schröder W, Nickel S, Jenssen M, Hofmann G, (2019): Anleitung zur Beurteilung der Integrität von Wald- und Forstökosystemen in Deutschland [Guide to assessing the integrity of forest ecosystems in Germany.]. UBA-Texte 97/2019:1–504. Bd. 2: Schröder W, Nickel S, Jenssen M, Hofmann G. Anleitung zur Beurteilung der Integrität von Wald- und Forstökosystemen in Deutschland [Guidance on assessing the integrity of forest ecosystems in Germany]. UBA-Texte 98/2019:1–344. Bd. 3: Hofmann G. Bestimmungsschlüssel der Wald- und Forstökosystemtypen Deutschlands [Identification key for forest ecosystem types in Germany]. UBA-Texte 99/2019:1–234

  23. 23.

    Schröder W, Nickel S, Jenssen M, Riediger J (2015) Methodology to assess and map the potential development of forest ecosystems exposed to climate change and atmospheric nitrogen deposition: a pilot study in Germany. Sci Total Environ 521–52:108–122

    Article  Google Scholar

  24. 24.

    Ssymank A, Hauke U, Rückriem C, Schröder E (1998) Das europäische Schutzgebietssystem Natura 2000. BfN-Handbuch zur Umsetzung der Fauna-Flora-Habitat-Richtlinie und der Vogelschutz-Richtlinie [The European system of protected areas Natura 2000. BfN manual for the implementation of the Fauna-Flora-Habitat Directive and the Birds Directive]. Bonn: Bundesamt Naturschutz, Schriftenreihe für Landschaftspflege und Naturschutz 53. 560

  25. 25.

    Steinhardt U, Herzog F, Lausch A, Müller E, Lehmann S (1999) The hemeroby index for landscape monitoring and evaluation. In Hyatt DE, Lenz R, Pykh YA (Eds.) Environmental indices systems analysis approach. Advances in sustainable development. Proceedings of the first international conference on environmental indices systems analysis approach (INDEX-97), St. Petersburg, Russia, July 7–11, 1997. EOLSS, Oxford, 237–254

  26. 26.

    Walz U, Stein C (2014) Indicators of hemeroby for the monitoring of landscapes in Germany. J Nat Conserv 22:279–289. https://doi.org/10.1016/j.jnc.2014.01.007

    Article  Google Scholar

Download references

Acknowledgements

We would like to thank the Federal Environment Agency (Dessau-Roßlau, Germany) for financial support and professional advice.

Funding

Open Access funding enabled and organized by Projekt DEAL. Federal Environmental Agency, Dessau-Roßlau, Germany.

Author information

Affiliations

Authors

Contributions

WS headed the study and drafted the manuscript. MJ developed the methodology and performed, together with SN, the computations. The author read and approved the final manuscript.

Corresponding author

Correspondence to Winfried Schröder.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Endnotes

Not applicable.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Jenssen, M., Nickel, S. & Schröder, W. Methodology for classifying the ecosystem integrity of forests in Germany using quantified indicators. Environ Sci Eur 33, 46 (2021). https://doi.org/10.1186/s12302-021-00478-y

Download citation

Keywords

  • Ecosystem classification
  • Ecosystem functions
  • Ecosystem structures
  • Ecological indicators
  • Environmental monitoring
  • Geo-information system
  • Mapping
\
