Occurrence of a single-species cyanobacterial bloom in a lake in Cyprus: monitoring and treatment with hydrogen peroxide-releasing granules
Environmental Sciences Europe volume 33, Article number: 31 (2021)
Excess loads of nutrients finding their way into waterbodies can cause rapid and excessive growth of phytoplankton species and lead to the formation of cyanobacterial harmful algal blooms (cyano-HABs). Toxic cyanobacteria produce a broad range of bioactive metabolites, some of which are known as cyanotoxins. These metabolites can negatively impact the ecosystem, and human and animal health, thus their presence needs to be closely monitored and mitigated. This study aimed to monitor St. George Lake (Athalassa National Forest Park, Cyprus) for its water quality characteristics, and initiate a new methodology to control the bloom that occurred in the lake during summer 2019, by comparing hydrogen peroxide treatment with novel metallic peroxide granules as source of hydrogen peroxide.
Lake monitoring showed that pH, salinity, total dissolved solids and conductivity varied throughout the year, and nutrients concentration was high, indicating a eutrophic lake. The cyanobacterium Merismopedia sp. bloomed in the lake between June and September 2019, comprising up to 99% of the phytoplankton biovolume. The presence of microcystin synthase encoding gene (mcyB, mcyE) was documented, however microcystins were not detected by tandem mass spectroscopy. Treatment with liquid hydrogen peroxide in concentrations 1 to 5 mg L−1 had no effect on the phycocyanin fluorescence (Ft) and quantum yield of PSII (Fv/Fm) indicating an ineffective treatment for the dense Merismopedia bloom (1 million cells mL−1 ± 20%). Metallic peroxide granules tested for their H2O2 releasing capacity in St. George Lake water, showing that CaO2 released higher H2O2 concentration and therefore have better mitigation efficiency than MgO2 granules.
The present study highlights the importance of monitoring several water parameters to conclude on the different actions to be taken to limit eutrophication in the catchment area. The findings demonstrated that testing for the presence of genes involved in cyanotoxin production may not be sufficient to follow cyanotoxins in the water, therefore it should be accompanied with analytical confirmation. Treatment experiments indicated that slow release of H2O2 from peroxide granules may be an alternative to liquid hydrogen peroxide when applied in appropriate doses, but further investigation is needed before it is applied at the field.
Cyanobacteria are phytoplankton microorganisms whose ability to oxygenate the atmosphere 3.5 billion years ago contributed to life formation . It is a group of bacteria ranging from 1 to 100 μm in diameter, while some of them are even smaller having a diameter less than 1 μm. Those are described as picoplankton and include species such as Merismopedia, Aphanocapsa, and Synechococcus sp. . These species belong to the order of Synechococcales and can be described as spherical or oval cells with the tendency to form flat mats or sheets by being arranged in rows. In general, cyanobacteria gain energy from photosynthesis by capturing light through pigments. There is an array of photosynthetic pigments present in cyanobacterial species, predominated by phycocyanin which has a distinctive excitation wavelength at λ = 620 nm that distinguishes them from green-algae and other phytoplankton taxa .
Anthropogenic activities such as agricultural, urban, and industrial activities have intensively increased the load of nutrients in surface waters around the globe, making cyanobacterial blooming more persistent and prevalent . Along with other factors such as light, temperature, phytoplankton and zooplankton; both nutrients and cyanobacteria are essential components in the aquatic ecosystem to maintain its balance . Disruption of this balance by excess load of nutrients causes their rapid and excessive growth which leads to the formation of cyanobacterial harmful algal blooms (cyano-HABs). Blooms decline water quality by reducing light and causing oxygen depletion with serious consequences on aquatic biodiversity , while adding undesirable color, taste, and odor to water. Toxic cyanobacteria can release into the water a broad variety of bioactive metabolites, some of them known as cyanotoxins . These metabolites can negatively impact the ecosystem and human health, making it an important environmental issue of concern . Although their acute toxicity on humans is not extensively studied, mass mortalities of fishes, birds, mammals, and many other animal taxa have been reported . Recent studies have correlated liver-related deaths in the US with several cyanotoxins . Cyano-HABs presence in freshwaters used as drinking water reservoirs is not only a health issue, but it also raises the overall treatment and monitoring costs which are in the range of millions of euros annually . Currently, there is no method for in situ detection or a predictive model for the occurrence of these toxins since not all cyanobacterial species are active toxin producers under the same conditions. Therefore, it is imperative to find both monitoring tools and efficient treatment methods to mitigate the problem to safeguard water quality and reduce water treatment costs at source and in the waterworks.
The concentration (total and dissolved fraction) of the main nutrients—nitrogen (TN) and phosphorus (TP), is a strong indicator of the eutrophic state of waterbodies thus, several models have been developed over the years to form correlations . Monitoring of nutrients in waterbodies and estimating their corresponding ratios is critical for improving the applied management strategies to better control the limiting factors of a bloom, and to prevent future blooming events. Surface water monitoring is not only essential for maintaining a healthy status but also to protect the biodiversity of aquatic biotopes around EU. Unfortunate events of high nutrient loads that lead to the formation of cyano-HABs are mostly unpredictable, thus highly efficient methods are required to be applied in situ for lake restoration.
There are several physical, chemical, and biological treatment methods that have been developed and applied over the years with the chemical ones to be more cost effective, rapid, and efficient . A recent study has summarized the new insights on green photocatalytic oxidation for cyanotoxins and cyanobacteria from pure cultures and field samples . The need to make chemical treatment “greener” has led to the application of hydrogen peroxide (H2O2) as an alternative to copper algicides, resulting in selective reduction of cyanobacterial species among other taxa of phytoplankton [15, 16]. The hydroxyl radicals (.OH) formed by the oxidant inhibit the electron transport of photosystem II (PSII), causing reduction of its photosynthetic activity and leading to cellular death [17, 18]. The efficiency of such treatment varies and depends on the nutrient load of the matrix, the species composition and abundance, the bloom density, and light intensity. Usually doses of H2O2 over 5 mg L−1 are required for the complete destruction of cyanobacterial cells , which are considered high for the freshwater environment and potentially toxic to the remaining ecosystem . An alternative to liquid hydrogen peroxide is its granular form found as metallic peroxide granules (CaO2 and MgO2) which decompose slowly and release H2O2 as shown in Eqs. 1 and 2 :
The first aim of the current study was to monitor the status of St. George Lake to correlate its trophic condition with water quality characteristics and to identify the key environmental variables driving cyanobacterial blooming. Another aim was to examine the treatment efficiency of metallic peroxide granules on a dense single-species natural bloom that occurred in St. George Lake. We hypothesized that peroxide granules would have the ability to destroy cyanobacterial cells by inhibiting the PSII electron transfer in the same way as H2O2 does, but in a more gradual and controlled manner, simulating multiple additions of liquid hydrogen peroxide. To do that, we first determined the kinetics of the H2O2 release by CaO2 and MgO2 granules into the St. George water matrix. Then we compared the efficiency of the two peroxide granules in reducing the maximal efficiency yield of PSII (QY) during a 48-h treatment while monitoring pigments' fluorescence signal and residual oxidant concentration. Since, the bloom was recorded during the summer months of the monitoring period, it was essential to determine the most appropriate dose for its successful mitigation as Merismopedia sp., the dominant specie of the bloom, has been reported in the literature as a potential toxin producer. This study aimed to address all of the above in order to propose an efficient treatment method for in-lake application to restore water quality.
Materials and methods
Saint George Lake is located at the Athalassa National Forest Park (ANFP) in Nicosia, the capital city of Cyprus. It is an artificial lake which covers an area of 68,000 m3 with an average depth of approximately 2 m. ANFP covers an area of 8.5 km2 and it is found between Aglantzia, Strovolos, Latsia, and Geri municipalities; four of the most densely populated locations in Nicosia. Athalassa Lake and Saint-Gorge Lake (Additional file 1: Scheme S1) serve as aquatic life and bird habitats, making them an extremely important biotope for the island. The present study focuses on monthly monitoring of the St. George Lake for a 1-year period, in terms of nutrient concentration, cyanobacterial content, and toxicity.
Sampling and monitoring
Sampling was performed at a central part of the lake and water was collected from a depth of 0.1–0.2 m below the surface. Three water samples were collected each time and stored in acid-washed polyethylene (PE) bottles for the physicochemical water characterization and treatment purposes, and in glass containers for cyanobacterial genes and cyanotoxins analyses. All samples were stored at 4–6 °C in the dark, brought to the laboratory, and processed within 6 h after sampling to ensure high accuracy and prevent decomposition of the water characteristics.
The monitoring of St. George Lake occurred between February and December 2019, and 10 samples were collected overall during the year (Additional file 1: Table S3). The main physicochemical parameters (pH, conductivity, salinity, total and dissolved nutrients), the presence of cyanobacteria and green algae in terms of fluorescence signal (Fv), maximum yield of PSII (QY), and microscopic observation, the content of genes for main cyanotoxins synthesis, and the concentration of cyanotoxins were determined. Samples were also collected during the blooming period (August 2019) for treatment experiments with liquid hydrogen peroxide and hydrogen peroxide-releasing granules.
Physicochemical water characteristics analyses
Raw samples were analyzed for total nitrogen (TN) and total phosphorus (TP) while samples filtered through cellulose nitrate membrane filter (0.45 μm) were analyzed for the dissolved nutrients content (ammonium—NH4+, nitrates—NO3−, nitrites—NO2−, and phosphates—PO43−). Nutrients were determined by using Spectroquant® cell test kits (Merck Millipore) equivalent to EPA and APHA standard analytical methods and the Spectroquant® Pharo 300 spectrophotometer (Merck) with method standard deviations ± 0.15 mg L-1-N, 0.027 mg L-1 PO4-P, 0.043 mg L-1 NH4-N, 0.13 mg L-1 NO3-N, 0.0027 mg L-1 NO2-N, respectively. Dissolved inorganic nitrogen was calculated as the sum of dissolved nitrogen ions (NH4+, NO3−, NO2−). Temperature, pH, conductivity, and salinity were measured at the sampling site using the ExStik® portable pH meter (EXTECH, FLIR Systems).
Instantaneous fluorescence (Ft) and quantum yield (QY) of the PSII were determined using AquaPen AP 110/C (Photon Systems Instruments, Czech Republic) equipped with blue and red LED light emitters. Blue excitation wavelength at 450 nm represents the instantaneous chlorophyll-a fluorescence and red excitation wavelength at 620 nm represents the phycocyanin fluorescence, both in raw fluorescence units (RFU). The maximum quantum yield of the PSII was recorded on both wavelengths as a fraction of the maximal variable fluorescence (Fv) to the maximal fluorescence intensity in the dark-adapted (5-min adaptation) state (Fm). The instrument was used to monitor the growth of algae and cyanobacteria in St. George Lake.
For the characterization of cyanobacterial species in water samples, raw sample was placed directly or after filtration (cellulose nitrate filter, 0.45 μm) on a microscopy slide and tested under ECLIPSE Ci-L microscope (Nikon) equipped with OPTIKAM Wi-Fi camera (OPTIKA®, Italy). Phytoplankton samples were preserved with Lugol’s iodine solution (2% final concentration), stored in 4–6 °C under dark conditions and used within 3 weeks.
DNA isolation and PCR amplification
DNA isolation from the biomass collected on cellulose nitrate filters was performed as described by Rogers and Bendich (1994) with minor modifications . Briefly, filters were placed in 2-mL Eppendorf tubes, frozen in liquid nitrogen and grinded. Glass beads (150–212 µm) were added in ratio 1:1 and the content was dissolved in 700 µL of the extraction buffer I (100 mM Tris, 1.3 M NaCl, 20 mM EDTA, 4% cetrimonium bromide, 1% polyvinylpyrrolidone, 0.1% 2-mercaptoethanol). The mixture was beaten for 10 min using vortex shaker. After 45 min of incubation in 65 °C with 0.5% RNase A, 600 µL of the chloroform–isoamyl alcohol mixture (24:1) was added and the content was shaken and centrifuged at 14,000g for 10 min. The upper phase was transferred into a new tube and mixed with 50 µL of buffer II (10% cetrimonium bromide, 0.7 M NaCl). The chloroform washing step was repeated. After the addition of cold isopropanol in ratio 1:1 the mixture was centrifuged at 14,000g for 10 min. The pellet was washed in 500 µL of 70% ethanol and the samples were centrifuged at 14,000g for 10 min. The supernatant was discarded, the pellet was dried on air and resuspended in 50 µL of nuclease-free water.
Newly designed primers were verified using positive controls: DNA from Anabaena lapponica 966 for cyrB, cyrJ, DNA from Anabaena flos-aquae for anaC, DNA from Microcystis aeruginosa PCC for mcyB and mycE and DNA from Aphanizomenon flos-aquae NIVA-CYA 689 for sxt. The negative control was the DNA of Raphidiopsis raciborskii AMU-DH-30 (non-toxic). PCRs for the identification of main genes of cyanotoxins were conducted using Dream Taq DNA polymerase (Thermo Fisher Scientific). Approximately 80 ng of isolated DNA was added to the reaction mixture (20 µl total volume) with 0.2 µM of each primer. PCR was performed with the following parameters: initial denaturation for 3 min at 95 °C, 30 cycles at 95 °C for 30 s, a primer-pair specific temperature for 30 s and 72 °C for 60 s; a final extension at 72 °C for 10 min. The electrophoresis of PCR products was conducted on 1% agarose gels at 100 V for 25–40 min. Gels were stained with Midori Green Advance DNA Stain (ABO).
The high-performance liquid chromatography–high-resolution mass spectrometry (HPLC–HRMS) method was used to detect intra-cellular cyanotoxins in the biomass stored on GF/C filters at − 20 °C until extraction. Sample preparation included extraction of cyanotoxins with 1 mL of 75% methanol in an ultrasonic bath . All chemicals used for analytical procedures were of analytical grades. Acetonitrile (HPLC-grade) and methanol (LiChrosolv hypergrade for LC–MS) were purchased from Merck (Darmstadt, Germany); formic acid (98–100%) was obtained from Fluka Chemika (Buchs, Switzerland). High-quality water (18.2 MΩ cm−1) was produced by the Millipore Direct-Q water purification system (Bedford, MA, USA). The MC-LR, MC-RR, MC-YR standards were purchased from Sigma-Aldrich. Sample preparation procedures were run according to Chernova et al. (2016). Analyses of extracts were performed using the LC-20 Prominence HPLC system (Shimadzu, Japan) coupled with LTQ Orbitrap XL Hybrid Ion Trap–Orbitrap Mass Spectrometer (Thermo Fisher Scientific, San Jose, USA). Separation of the toxins was achieved on a Thermo Hypersil Gold RP C18 column (100 mm × 3 mm, 3 μm) with a Hypersil Gold drop-in guard column (Thermo Fisher Scientific) by gradient elution (0.2 mL min−1) with a mixture of water and acetonitrile, both containing 0.05% formic acid. Mass spectrometric analysis was carried out under conditions of electrospray ionization in the positive ion detection mode. The identification of target compounds was based on the accurate mass measurement of [M + H]+ or [M + 2H]2+ ions (resolution of 30,000, accuracy within 5 ppm), the collected fragmentation spectrum of the ions and the retention times. Limits of the detection for different microcystin congeners (2–6 ng L−1) were evaluated in model experiments using standard compounds, natural water, and biomass as matrixes.
Experimental set-up for treating cyano-HABs
Experiments on the treatment of Merismopedia sp. bloom in St. George Lake were performed in 250-mL sterile borosilicate glass containers and the oxidants used for this purpose were liquid hydrogen peroxide and metallic peroxide granules. Hydrogen peroxide (30%) was purchased from Sigma-Aldrich and diluted to 1000 mg L−1 for the stock solution. Calcium peroxide (CaO2) and magnesium peroxide (MgO2) granules were provided in the form of IXPER® 70CG and IXPER® Magnesium Peroxide Granules 30MG by Solvay Chimika S.A. (free samples). Bloom sample from St. George Lake was homogenized to achieve similar initial phycocyanin variable fluorescence in each treatment flask (~ 8000 RFU). H2O2 stock solution was added into each flask containing raw sample from St. George Lake to achieve the following concentrations: 0 (control), 1, 2, 3, 5 mg L−1; and a quantity calcium peroxide and magnesium peroxide granules to achieve: 0 (control), 1, 2, 3 g L−1 granules. All the experiments were conducted in a set temperature of 20 °C, and a continuous light of about 800 (± 200) Lux. Each treatment was performed in triplicates.
The oxidant concentration was monitored by the colorimetric method introduced by Sellers et al. (1980) . In brief, 5 mL of sample was filtered through a PVDF syringe filter and immediately reacted with 0.5 mL of titanium oxalate ([C] = 50 g L−1) and 0.5 mL sulfuric acid (1 + 17 v/v) (both reagents purchased from Sigma-Aldrich). Absorbance was then measured at 400 nm by the Spectroquant® Pharo 300 spectrophotometer in a quartz cuvette and the concentration of H2O2 was quantified based on a calibration curve ranged between 0.5 and 20 mg L−1.
For determining the efficiency of oxidants on mitigating the naturally occurred cyanobacterial bloom (Merismopedia sp.); photosynthetic changes associated with H2O2 additions, including instantaneous fluorescence and PSII efficiency were monitored in both wavelengths (450, 620 nm) at 1, 2, 3, 4, 6, 24, 48 h following oxidant addition. Physicochemical characteristics such as pH, conductivity, TDS and salinity were measured before and after treatment with the use of ExStick probe (EXTECH).
Kinetics release of H2O2 by metallic peroxide granules
Kinetics of H2O2 release were performed in filtered samples of St. George Lake to remove cyanobacterial and other contaminants found in the water. The collected water was filtered through nylon membrane filters (0.45 μm) and each flask was filled with 250 mL of water. CaO2 and MgO2 granules were added into the flask to achieve: 0 (control), 1, 2, and 3 g L−1 concentration. H2O2 concentration was monitored through the colorimetric reaction previously descript for every hour the first 6 h and then at 24, 26 and 48 h after the addition of granules in the matrix.
Data processing and statistical analysis was performed with the use of PRISM®-GraphPad software. For each measurement, mean and standard deviation of the triplicates were calculated and presented on the graphs as mean with error bar and/or tables as mean ± SD. Differences of Ft, and Fv/Fm between the H2O2, CaO2 and MgO2 treatments experiments were compared using one-way ANOVA followed by a Turkey’s test.
During the summer months air temperature was as high as 34 °C while during Spring, Fall and Winter the temperature varied between 15–25 °C. St. George Lake had a stable pH with small variations between 8.3 and 8.9 during the year. Throughout the year the conductivity varied between 1200 and 2000 μS cm−1 and salinity between 700 and 1000 ppm (Additional file 1: Figure S1). Conductivity and salinity followed the same trend showing a noticeable increase during the summer period; both having their peak in August.
The measured nutrient concentration, calculated dissolved inorganic nitrogen and best fitting ratios for nutrient limitation are summarized in Table 2. Phosphorus was higher than 0.2 mg L−1 in most samples indicating St. George as a eutrophic lake. High nitrogen concentrations were detected in the early months of the year when the status of the lake was oligotrophic with low cyanobacterial content, while high phosphorus concentration was recorded during the blooming period, followed by its decline. Soluble reactive phosphorus (SRP) was below the MDL before the bloom occured, stable during the summer months (0.03 mg L−1) and increased during the remaining monitoring period (0.05 mg L−1). This may be due to heavy rainfalls that caused high nutrient run-offs to enter the lake. Dissolved inorganic nitrogen (DIN) remained high at the beginning of the year, radically decreased during summer, and increased again in winter (Table 1).
The concentration of phosphorus during the bloom was higher than 0.2 mg L−1 which means that in such a eutrophic lake (TP > 0.2 mg L−1) most probably nitrogen became the limiting element. To support these findings, different approaches on estimating nutrient limitation through nutrient ratios (DIN:TP, NO3−:TP) were tested to investigate which one fits better to the studied environment (Table 2). The ratios and thresholds used in the present study for evaluating the trophic status of the lake based on the limiting elements during the monitoring period are presented in Supplementary Materials document.
Photosynthetic parameters and cyanobacterial characterization
The blooming in St. George Lake was found to be a seasonal phenomenon that peaked during the summer period. More specifically, in July and August 2019 cyanobacterial fluorescence recorded at 620 nm was extremely high (~ 8000 RFU) indicating high phycocyanin concentration, but after a light rainfall at the beginning of September it began dropping. Instantaneous fluorescence at 450 nm corresponding to the chl-a presence in the samples was minimal in the first 3 sampling events, but rapidly increased during blooming and maintained quite high (> 1000 RFU) even after blooming period (Fig. 1a). The maximal quantum yield (Fv/Fm) recorded in both wavelengths (λ = 620, 450 nm) remained high throughout the year, showing that cyanobacterial mass had a good photosynthetic activity, even before or after blooming, as quantum yield is a measure of the PSII efficiency (Fig. 1b).
Microscopic observation of preserved samples during the blooming period showed that 99% of the phytoplankton biovolume was attributed to a single picocyanobacterial species, Merismopedia sp. (Fig. 2). These species are reported in the literature as microcystin and nodularin producers [25, 26], which are both among the most detected cyanotoxin groups in surface waters. Therefore, cyanotoxin genes analyses and cyanotoxin concentrations analysis were performed to examine the toxicity of this bloom.
The presence of cyrB and cyrJ was recorded only in sample 1. The presence of MC genes was recorded in samples 1 (mcyB) and 1, 4–8 (mcyE). Neither anaC nor sxtA were found in analyzed samples (Fig. 3).
Because of mcyB and mcyE detection in several samples, the tandem mass spectroscopy (HPLC MS/MS) was employed to verify the presence and concentration of microcystins variants. Microcystins were not detected above the MDL in any of the samples. However, matrix compounds with m/z very close (2–4 ppm) to that of microcystins were detected in a very low concentration, but the fragmentation patterns of their parent ions differ from those of microcystins (see Additional file 1: Fig. S2). Lack of characteristics fragments for MCs as the m/z 375.27 [C11H15O–Glu-Mdha]+, m/z 553.36 [Mdha-Ala-Leu-MeAsp-Arg + H]+, m/z 599.42 [Arg-Adda-Glu]+ confirmed the absence of microcystins in the Merismopedia sp. bloom.
The oxidants used for cyano-HAB mitigation exhibited different efficiencies and impact on the Merismopedia sp. bloom. The average initial instantaneous fluorescence (Ft) and quantum yield at λ = 620 nm, were 8500 and 0.37, respectively; while at λ = 450 nm were 3000 and 0.6, respectively. Liquid hydrogen peroxide was not effective for treating the dense bloom in concentrations of 1–5 mg L−1.
At the lowest doses (1 and 2 mg L−1) cyanobacteria continued to grow steadily; making the treatment inefficient. Treatment with 3 and 5 mg L−1 H2O2 showed only a minor drop of the corresponding Ft values in raw fluorescence units (RFU) compared with the control (Fig. 4a) which was found to be insignificant (p > 0.05). All treated samples showed a stable average of QY around 0.37, meaning that the bloom remained unaffected during treatment with liquid H2O2 and the oxidant dose was unable to disrupt the photosystem II efficiency (Fig. 4b) of the specific bloom.

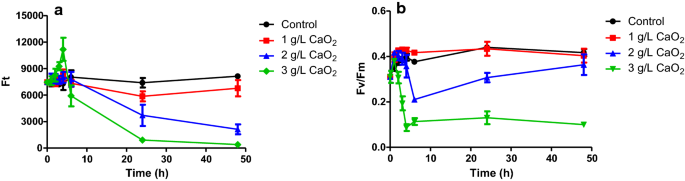

Treatment with CaO2 granules effectively decreased the photosynthetic activity of cyanobacteria (Fig. 5a). CaO2 doses of 2 and 3 g L−1 significantly decreased the pigment concentration measured as Ft value after only 24 h (p < 0.001 compared to control and 1 g L−1) and maintained at low levels until 48 h of treatment. Even though 2 g L−1 of CaO2 reduced the sample’s fluorescence, Fm/Fv was restored after 6 h of treatment, making it less efficient than 3 g L−1 which maintained a lower Fm/Fv value for the duration of the 48-h treatment (Fig. 5b).
Magnesium peroxide treatment was inefficient for concentrations up to 3 g L−1. Both Ft and Fv/Fm values at λ = 620 nm were stable during the treatment period (Fig. 6). In the first 4 h of treatment, Ft values insignificantly decreased, but then were recovered within 6 h of treatment. In general, magnesium peroxide was not able to influence the bloom, and therefore had no effect on both Ft and Qy.
Fluorescence and maximal quantum efficiency of PSII at 450 nm excitation wavelength were also monitored during the 48 h treatment, to examine the effect of oxidants in the chlorophyll-a concentration, as illustrated in Fig. 7a–f. There was a drop of chl-a in samples treated with 3 and 5 mg L−1 of H2O2, giving also visual changes in the color of the treated water. Even though chl-a concentration (measured in RFU) dropped at the high added H2O2 concentrations, QY was stable in all samples during treatment meaning that PSII photosynthetic activity was not affected during treatment (Fig. 7a, b). Instantaneous fluorescence, measured at 450 nm of samples treated with 2 and 3 g L−1 CaO2, showed significant drop of about 50% (p < 0.05 in comparison with control), while the quantum yield of the same samples was not significantly affected, meaning that recorded chl-a could be extracellular due to cell destruction during treatment (Fig. 7c, d). Magnesium peroxide treatment was inefficient for all added doses. Both Ft and Fv/Fm values at 450 nm were stable during the treatment period (Fig. 7e, f).
It is apparent that MgO2 had a much lower H2O2 releasing capacity than CaO2, making CaO2 a much more efficient treatment method. Release curves in filtered St. George Lake matrix showed that maximum accumulative hydrogen peroxide concentration from 1, 2 and 3 g L−1 of CaO2 was 3.5, 8.0 and 11 mg L−1, respectively; while for 1, 2 and 3 g L−1 of MgO2 it was 0.7, 1.2, and 1.8 mg L−1 of H2O2, respectively (Fig. 8). Even though a noticeable amount of H2O2 was released in filtered water by granules; during treatment, oxidant was rapidly consumed throughout treatment as we were unable to detect any residual concentrations higher than 0.5 mg L−1.

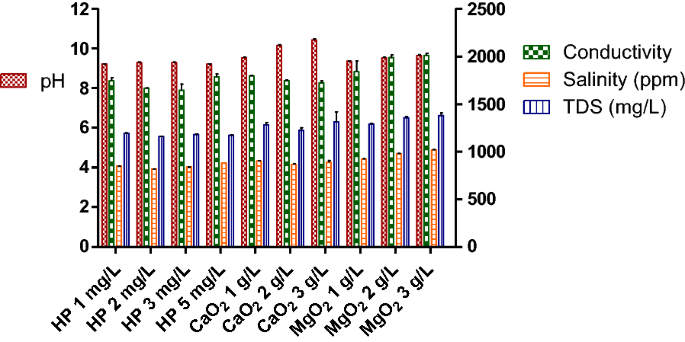

Physicochemical parameters (pH, conductivity, Salinity and TDS) variations during the treatments were monitored since the treatment with oxidants may negatively affect water matrixes. Hydrogen peroxide did not affect the water quality characteristics while magnesium peroxide granules slightly increased all the recorded parameters. MgO2 and CaO2 granules made the solution more alkaline while H2O2 had the least effect on the pH of the water matrix (Fig. 9). More specifically, 3 g L−1 CaO2 granules increased the pH above 10, which is considered high for freshwater environments. Overall, there was no dramatic change of the physicochemical characteristics of the water, except the pH rise above 10 which is considered as an unwanted effect in the waterbody.
Monitoring of St. George Lake showed that the blooming period lasted 4 months during summer and early autumn period (June–September). The increase of the water temperature and the low turbidity during summer in combination with nutrient load and/or release from the sediments  may result in periodical blooming of cyanobacteria. In St. George Lake, high nutrient content recorded throughout the year, favored Merismopedia sp. to form mono-dominated dense bloom. Annual average of nutrients classifies this Lake at class III (see OECD classification in additional materials document, Additional file 1: Table S2) meaning that water quality improvements are essential to be applied since EU Water Framework Directive requested member countries to maintain surface waters at class I and II .
Guildford and Hecky (2000) proposed that lake systems tend to have higher than Redfield thresholds for P-limitation . Those thresholds showed a better fit than TN:TP molar ratios, shifting from P-limitation to co-limitation during the bloom, but they still do not represent well the trophic status. The best fit was found when the ratio proposed by Levine (2001) and Symons (2012) [30, 31] was applied (Table 2). Both DIN:TP and NO3−:TP mass ratios showed relatively similar results, suggesting N-limitation during the bloom, co-limitation before and after the bloom and P-limitation in the remaining period. Overall, approaches that were based on ocean dynamics were found to have poor fitting on the trophic status of the lake in contrast with more recent approaches that were intended for fresh waterbodies. This stresses the need of better understanding nutrient dynamics in lakes and the development of holistic approaches based on the different physicochemical characteristics of each waterbody, taking into consideration also other limiting factors that may affect trophic status, such as light intensity and temperature .
High correlation of nutrient levels and trophic status indicates the need of monitoring for the early detection of (toxic) cyanobacterial blooms when a high nutrient load is documented. Photosynthetic parameters of water samples such as instantaneous fluorescence and PSII quantum yield are strong indicators of the bloom density. Instantaneous fluorescence (Ft) of water samples at 620 nm with higher than 3000 RFU usually represents an on-going bloom or a preliminary stage of a bloom. A steep increase of fluorescence at 620 nm, revealed the increase of cyanobacterial mass into the water since it represents phycocyanin, a pigment found in cyanobacteria. Also, an increase at 450 nm confirmed chlorophyll-a presence which is also a pigment found in both cyanobacterial cells and green-algae suspensions. Ft in raw fluorescence units remained high even after the bloom. This can be explained with the release of pigments after the cell death occurred at the end of the blooming period and gave high fluorescence signal both at 620 nm (phycocyanin) and 450 nm (chlorophyll-a). Another possibility is the growth of green-algae after the cyanobacterial blooming cycle that gave a high chl-a fluorescence signal.
Microscopic observation of samples during the bloom indicated a mono-domination of a picocyanobacterial species Merismopedia (most probably Merismopedia minutissima based on their 2-D sheets morphology), a known MC and NOD producer. However, even though genes involved in MC and NOD synthesis were present (mcyB and mcyE), these cyanotoxins were not detectable in any sample. This may indicate that the gene expression was weak, and the toxin level was below the method detection limit. The regulation of mcy gene expression in a response to external biotic and abiotic factors has been investigated recently . An indirect downregulation of MC synthesis was observed in response to iron limitation , probably as a result of a lower photosynthetic activity. The light intensity is also known as an important abiotic factor influencing mcy expression and MC production . Interestingly, in mixed cultures of M. aeruginosa and P. agardhii both suppressed growth and downregulation of mcyE expression were observed  which suggested that the competition between two toxic strains may result in a lower MC production. In the studied lake, the mono-domination of one species excluded a strong competition with other species and we can only hypothesize that in this condition MC production was also inhibited. Alternatively, the presence of mcyB only in 1 sample and mcyE in 6 samples may indicate that the genetic machinery for MC synthesis is deficient and the dominant species lost the capability of MC synthesis.
However, it should be underlined that any applied genetic method should be complemented and accompanied with an analytical confirmation. The level of mcy transcripts is often not correlated with the MC concentration. The toxicity based on the mcy levels might be both under- and overestimated [37, 38]. Therefore, these assays should not be considered as good indicators of bloom toxicity, but rather as a complementary tool in risk assessments. Similarly, it can be assumed that the detection of mcy does not ensure MC presence, which should be proven through advanced analytical methods (LC–MS/MS). Attention should be paid on the obtained m/z and the corresponding fragmentation patterns so that cyanotoxin concentration is not overestimated.
Dense blooms of Merismopedia sp. in a eutrophic lake inferred the requirement of extremely high doses of H2O2 for efficient treatment. Since in those cases, direct application of H2O2 doses over 5 mg L−1 are considered potentially harmful for the other components of microbial communities (bacteria, phytoplankton, and zooplankton), alternative solutions are needed. CaO2 and MgO2 granules studied herein, are an alternative to the traditionally used liquid hydrogen peroxide . To determine the most efficient dose, we took into consideration the ability of the oxidant to destroy cyanobacterial cells by measuring changes in the photosynthetic parameters such as fluorescence of the pigments (phycocyanin and chl-a) and the maximal efficiency of the PSII quantum yield, as well as the effects that it may had on the physicochemical parameters of the sample (pH, conductivity, TDS, and salinity).
Treatment with 2 and 3 g L−1 of CaO2 treatment were the most effective in bloom elimination (Figs. 4, 6), but they both caused an increase of pH which recorded slightly above 10 after 48-h of treatment (Fig. 9). Taking into consideration the wellness of the photosystem II, recorded as the quantum yield, 2 g L−1 CaO2 did not affect QY significantly, which means that photosynthetic activity of treated sample may be restored shortly after treatment allowing for further growth of the remaining healthy cells. On the other hand, treatment with CaO2 3 g L−1 outperformed other concentrations as it maintained a low Fv/Fm (< 0.2) for up to 48-h. Also, a drop of the Ft at λ = 450 nm (chl-a fluorescence) reflects the ability of H2O2, released by 2 and 3 g L−1 CaO2, to degrade not only the cyanobacterial cells, but also part of the pigmentation released by cyanobacteria after cell death. In the rest of the treatments, where chl-a fluorescence was not affected significantly (p > 0.05), residual H2O2 concentration was not high enough to cause the simultaneous degradation of cyanobacteria and released pigments at the same time.
Both granules released H2O2 with a reaction that follows a pseudo-zero-order kinetics pattern, and their kinetics are greatly affected by temperature and the pH of the solution as explained by Wang et al. . In general, CaO2 shows higher releasing capacity than MgO2 (Fig. 8). The lower H2O2 release by MgO2 may be due to the fact that, at the same pH, the dissolution product of MgO2, (magnesium hydroxide) is less soluble than the dissolution product of CaO2 (calcium hydroxide) not allowing for the reaction equilibrium to shift towards the products. This also affected the suspended solids content of the treated water. Calcium peroxide granules caused drastic change of pH as while decomposing it releases highly basic Ca(OH)2 (Eqs. 1, 2).
Taking into consideration both the treatment efficiency and the releasing capacity, direct application of liquid H2O2 and MgO2 granules is less efficient compared with CaO2 granules. For the effective restoration of contaminated sites by high-density cyanobacterial blooms, doses higher than 5 mg L−1 of liquid H2O2 should be applied and in the case of magnesium peroxide granules it would require higher than 3 g L−1 of granular compound. In both cases the required applied doses will have undesirable side-effects for in situ application. Therefore, CaO2 which has the ability to release H2O2 more effectively could be introduced as a suitable treatment methods in concentrations no more than 3 g L−1 for high-density blooms. Effects on the physicochemical parameters of treated freshwaters need to be accounted as well when deciding on the type of oxidant and its dosing to avoid possible side-effects in the lake during treatment.
Conventional monitoring tools can give limited information on the factors driving cyanobacterial blooming. Therefore, additional characterization of the lake ecosystem including physicochemical characteristics; total and dissolved nutrients; temperature, air and light intensity; cyanobacterial and green algae content; cyanotoxins genes, and cyanotoxins analyses were found to be essential. Correlations between nutrients and eutrophication have been developed recently  with the DIN:TP and NO3−:TP mass ratio to be the most promising ratios for shallow lake systems, as confirmed also in our case. While these ratios are proving to be promising for understanding the eutrophic status of surface waters, they should be applied after careful examination of each waterbody’s unique characteristics. Customized monitoring strategies for each waterbody and treatment application at the early stages of a bloom, are essential for protecting water quality of surface waters.
Treating cyanobacteria effectively, without harming the remaining ecosystem is vital for restoring and safeguarding surface water quality. Currently, hydrogen peroxide is widely used for mitigating cyano-HABs as an alternative to algicides and an eco-friendly method. However, the treatment of dense blooms, such as the one occurred in St. George Lake, requires the application of high doses (> 5 mg L−1) of liquid H2O2 at once which in turn affects other aquatic organisms in the lake. This means that application of liquid hydrogen peroxide must be performed on low biomasses, at the beginning of a bloom cycle and not on high-density blooms to avoid the undesirable side-effects, including the release of potential cyanotoxins into the waterbody. Therefore, peroxide granules that are H2O2 slow releasing oxidants were tested herein as an alternative to a single-dosed liquid hydrogen peroxide treatment. Despite that concentrations of CaO2 granules higher than 2 g L−1 can release a high amount of H2O2 (> 10 mg L−1), CaO2 granules act gradually by first reacting with the organic load of the matrix and then by reaching the contaminant making it more efficient than liquid hydrogen peroxide. Calcium peroxide outperformed magnesium peroxide in terms of treating contaminated water samples, which makes it a potential treatment method worth investigating further for its efficiency on different cyanobacterial species and matrixes.
Based on the above, bloom mitigation with CaO2 granules (as an alternative to liquid H2O2) must be first validated in bench-scale experiments to adjust the appropriate doses based on the waterbody needs (type of bloom, density, water quality characteristics). Bench-scale evaluation of an emerging treatment method provides important information towards its optimization, however it is important to investigate its scalability potential as well . In the case of peroxide granules, care should be taken with the way they are applied in the field since based on their size, they can be consumed by aquatic organisms prior to their degradation. Application through a delivery system can be one way of resolving this problem. Further studies will provide a clearer view on its potential as a promising mitigation technique and allow for its application as an effective, yet green treatment option.
