Commercial preparations of pesticides exert higher toxicity and cause changes at subcellular level in earthworm Eisenia andrei

Environmental Sciences Europe volume 33, Article number: 12 (2021) Cite this article

Abstract

Background

The environmental impact of pesticides has been an increasingly discussed issue over the last decades. Constant usage of pesticides presents a burden for soil and causes a decrease in its health, including the negative effects on earthworms which are indicators for soil quality. The objective of this research was the assessment of the effects of two insecticides and two herbicides on the earthworm Eisenia andrei. Namely, the following active ingredients and respective commercial preparations were investigated: esfenvalerate (Sumialfa), thiacloprid (Calypso), dimethenamid-p (Frontier) and prosulfocarb (Filon). Lethal concentrations (48 h) of both active ingredient and commercial preparations were determined using the filter paper contact test.

Results

The results showed that Calypso and Frontier were significantly more toxic than the active ingredient. Therefore, all further measurements were performed after exposure of earthworms to the commercial preparations of the pesticides. Specifically, several enzymatic biomarkers and multixenobiotic resistance activity were assessed. Additionally, a fluorescence-based assay for the determination of oxidative stress was established. Significant changes were detected for catalase, carboxylesterase and multixenobiotic activities after 48-h exposures. Also, a significant change in oxidative stress parameters could be observed for both Calypso and Frontier.

Conclusions

The obtained results show that commercial preparations can be more toxic than the active ingredients, and the formulations being distributed in the environment can affect earthworms on a molecular level already after short exposures. This emphasizes the importance of a more integrated eco-toxicological assessment of commercial pesticide preparations not to underestimate their effects on the environment.

Background

The environmental impact of pesticides has been an increasingly discussed issue over the last few decades [47]. Even though the awareness for sustainable and organic farming practices has risen continuously [14, 42], the usage of pesticides has steadily increased worldwide [49]. Pesticides are chemical or biological agents used to control pests and vectors of disease. They belong to the group of chemicals intentionally brought into the environment, and therefore their applications need to be strictly regulated. However, in 2018, over 50 years after the release of Rachel Carson’s Silent Spring, the German National Academy of Sciences Leopoldina released their discussion paper “The silent spring—on the need for sustainable plant protection” [47], concluding that current regulations and assessment strategies are not effective enough to avoid adverse effects on the environment. As more and more studies have associated biodiversity losses with pesticide usage, implementing more sustainable agricultural practices and improving current pesticide regulations becomes increasingly urgent in order to stay within the planetary boundaries [14, 19, 40, 51]. While there are additional stressors such as climate change and environmental pollution [28, 47] which might contribute to some observed adverse effects, it is necessary to improve standard agricultural practices and include more detailed eco-toxicological data to better understand their impact as the usage of pesticides will likely not decrease in the near future.

With natural resources being finite and constantly decreasing due to misuse of land and mismanagement of soil, it is crucial to understand the negative effects pesticides might have on soil and help improving agricultural practices [8]. Soil is a non-renewable resource, therefore, sustainable agricultural practices need to focus on ensuring the quality and fertility of the soil. Earthworms have long been used as bioindicators for soil quality, as their abundance and species composition can give valuable information on the fertility of soil [17, 37, 39]. Overall, they are essential for the nutrient balance of soil and their burrowing improves the soil structure and helps to increase decomposition, humification, and nutrient cycling [25]. As a consequence, earthworms are crucial for maintaining soil properties such as water holding capacity, porosity, aeration and pH but also play an important role in increasing the habitat quality for various soil organisms, thus often being referred to as ecosystem engineers [1].

With the increase of extensive use of pesticides in the last decades, their potential adverse impact on soil communities became more apparent. Generally, pesticides can be classified by their target organism or their mode of action. Data of global pesticide usage show that herbicides made up the largest portion, while insecticides were the second biggest class of pesticides used worldwide in 2018 [16]. While insecticide disruptions of the nervous system are known to be problematic for many non-target organisms such as, e.g., bees [10], the main mode of action of herbicides through targeting plant-specific mechanisms often suggests that they might not be toxic for animals. Research, however, has shown that this is not the case [22, 27, 55. Out of many pesticides available on the market, four pesticides used worldwide have been chosen for this study: the herbicides dimethenamid-p, a chloroacetamide, and prosulfocarb, a thiocarbamate, both inhibiting the long chain fatty acid synthesis [41] and the insecticides esfenvalerate, belonging to the class of synthetic pyrethroid which block sodium channels [46, 50], and thiacloprid, a neonicotinoid that stimulates the nicotinic acetylcholine receptor [32, 33]. Even though these four pesticides have been heavily used in Europe, e.g., in Germany domestic sales amounted to 250–1000 t of dimethenamid-p and prosulfocarb, < 1 t of esfenvalerate and 25–100 t thiacloprid, which has been on the substitution list of the European Union since 2015, with a decision in 2020 to not renew its approval anymore [5, 13], there is very scarce data on their adverse effects on soil non-target organisms.

Since all four pesticides are so far still in usage and hence a potential threat to the environment, in this research their effects and possible other modes of action were assessed. The earthworms Eisenia andrei has been chosen, due to its widespread use as a model organism for soil toxicology, also being recommended by the OECD in their test guidelines [36].

The objective of the present research was therefore to assess the effects of four commonly used pesticides on the earthworm E. andrei by applying the filter paper contact test. Previous studies often only determined the effects of the active ingredient [15] as current regulations only include the toxicity of the active ingredient. To investigate, whether there is a discrepancy between the acute toxicity, here the acute toxicity was assessed for both the active substance and the respective commercial preparations. Due to implications obtained from these results, further assessments of the specific mode of actions were performed for the commercial preparations only. These measurements included the assessment of the effects of sublethal pesticide concentrations on enzymatic activities and multixenobiotic resistance (MXR) activity. Multixenobiotic resistance is an important first line of defense to actively expel toxic substances from cells before they cause any cellular damage [2]. For the assessment of pesticide effects on enzymatic activities, both oxidative stress-related and detoxification enzymes were chosen to enable gaining insight into the modes of action and detection of early effects. Furthermore, an assay based on a previous study on zebrafish larvae [26, 27] was established for the fluorescence-based assessment of oxidative stress (reactive oxygen species and glutathione) in earthworms. The obtained results are thought to add to a more integrated eco-toxicological assessment of pesticides and their commercial preparations to not underestimate their effects on the environment.

Material and methods

Chemicals

The following chemicals (analytical grade) were used: acetonitrile (C2H3N, CAS 75-05-8), β-nicotinamide adenine dinucleotide 2′-phosphate reduced tetrasodium salt hydrate (β-NADPH) (C21H26N7Na4O17P3 xH2O, CAS 2646-71-1 (anhydrous)), 9-(2-carboxyphenyl)-6-diethylamino-3-xanthenylidene]-diethylammonium chloride (rhodamine B) (C28H31ClN2O3, CAS 81-88-9), CellTracker™ Green CMFDA Dye (C25H17ClO7, CAS 136832-63-8) (ThermoFisher Scientific), 1-chloro-2,4-dinitrobenzene (CDNB) (C6H3ClN2O4, CAS 97-00-7), CM-H2DCFDA (C27H19Cl3O8, CAS 1219794-09-8) (ThermoFisher Scientific), hydrogen peroxide (H2O2, CAS 7722-84-1), (2-mercaptoethyl)trimethylammonium iodide acetate (acetylthiocholine iodide) (CH3COSCH2CH2N(CH3)3I, CAS 1866-15-5), disodium hydrogen phosphate (NaH2PO4, CAS 7558-79-4), 5,5′-dithiobis-(2-nitrobenzoic acid) (DTNB) ([-SC6H3(NO2)CO2H]2, CAS 69-78-3), glutathione disulfide (GSSG) (C20H32N6O12S2, CAS 27025-41-8), 4-nitrophenyl acetate (C8H7NO4, CAS 830-03-5), (2S)-2-amino-4-{[(1R)-1-[(carboxymethyl)carbamoyl]-2-sulfanylethyl]carbamoyl}butanoic acid (glutathione (GSH)) (C10H17N3O6S, CAS 70-18-8), sodium dihydrogen phosphate dihydrate (NaH2PO4 × 2H2O, CAS 13472-35-0). Pierce™ BCA Protein Assay Kit was used for protein concentration measurements.

The following pesticide active ingredients (analytical standard) and respective commercial preparations were used in this study: dimethenamid-p (C12H18ClNO2S, CAS 163515-14-8) (Frontier, BASF, 720 g/L a.i.), esfenvalerate (C25H22ClNO3, CAS 66230-04-4) (Sumialfa, Arysta LifeScience, 50 g/L a.i.), prosulfocarb (C14H21NOS, CAS 52888-80-9) (Filon, SYNGENTA, 800 g L a.i.), thiacloprid (C10H9ClN4S, CAS 111988-49-9) (Calypso, Bayer Crop Science, 480 g L a.i.)

Test organism

All tests were performed using adult earthworms (E. andrei) which were obtained prior to the experiments from a local supplier and acclimatized at 20 °C. To prepare the earthworms for the experiment, adult individuals showing a well-developed clitellum were selected and thoroughly washed with distilled water before being placed on damp filter paper for 12 h to void their gut contents [36].

Acute toxicity tests

The filter paper contact test was performed according to the OECD Guideline 207 [36]. It allows the assessment of effects without potential interference from the soil matrix, while also being easy to perform and offering higher reproducibility [61].

Due to their poor water solubility the active ingredients were dissolved in acetone and the desired concentrations prepared. The respective solution (2 mL of solution per vial) was then evenly distributed onto the filter paper in glass vial (4.5 cm height and 6 cm diameter). The vials were then left open for the acetone to completely evaporate. Only then 2 mL distilled water per vial was evenly distributed on the filter paper and one earthworm per vial added. Afterwards, each vial was closed with a lid. Based on preliminary tests the following concentrations (covering full range of no effects to 100% mortality) for assessment of the acute toxicity of the active substances were applied: thiacloprid 100, 200, 400, 600, 800 and 1000 ng/cm2, esfenvalerate 20, 30, 40, 50 and 100 ng/cm2, dimethenamid-p 2.5, 5, 7.5, 10 and 12.5 µg/cm2 and prosulfocarb 1, 5, 7.5, 10, 12.5, 20 and 30 µg/cm2. Controls were performed in parallel using the same procedure of applying 2 mL acetone and after evaporation adding 2 mL of distilled water per vial. The exposure vials were placed in the dark at 20 °C and the mortality was recorded after 24 h and 48 h. The exposures were performed in at least three independent replicates with 5 earthworms per each exposure condition and replicate.

The commercial preparations of the pesticides were diluted in distilled water to obtain the desired concentrations. Afterwards 2 mL of solution per vial were evenly distributed onto the filter paper in flat-bottom glass vials and further treated as described above. The following concentrations for assessment of the acute toxicity of the commercial preparations were applied for each pesticide based on preliminary tests: Calypso 10, 20, 40, 50, 60, 70 and 80 ng/cm2, Sumialfa 12.5, 25, 50, 75, 100, 125, 250 and 500 ng/cm2, Frontier 1, 1.5, 2.25, 2.5, 2.75, 3 and 5 µg/cm2 and Filon 1, 1.25, 2.5, 5, 7.5, 10, 12.5, 15, 20 and 25 µg/cm2. Concentrations of commercial preparations are expressed as amounts of active substance in the formulation. Controls with distilled water only were also performed. The exposure vials were then placed in the dark at 20 °C and the mortality was recorded after 24 h and 48 h. The exposures were performed in at least three independent replicates with five earthworms per each exposure condition and replicate.

Assessment of pesticides on enzymatic biomarkers

Exposure to pesticide formulations

Based on the data from the acute toxicity tests, for the following experiments sublethal concentrations were chosen. Since it was determined that the commercial preparations were more toxic than their active ingredient and only the commercial preparations are applied on fields, all subsequent exposures were performed with the commercial preparations only.

The following sublethal concentrations of the commercial preparations were chosen: Calypso 1.25, 2.5, 5 and 10 ng/cm2, Sumialfa 1.5625, 3.125, 6.25 and 12.5 ng/cm2, Frontier 0.125, 0.25, 0.5 and 1 µg/cm2 and Filon 0.25, 0.5, 1 and 2 µg/cm2. Concentrations of the commercial preparations are expressed as amounts of active substance in the formulation. Controls were also performed with distilled water only. Per each exposure condition 10 earthworms were exposed using the filter paper contact test as previously described. The whole experiment was repeated once to determine the repeatability of the results.

Sample preparation

After a 48-h exposure period each earthworm was weighed and then homogenized in cold sodium phosphate buffer (0.1 M, pH 7.2, in ratio 1:5 w:v) on ice with an Ultra-Turrax T18 homogenizer. Samples were then centrifuged (30 min, 9000g, 4 °C). The supernatant (post-mitochondrial fraction, S9) was transferred to a fresh tube and stored at − 80 °C until used for further enzymatic biomarker and oxidative stress measurements.

Glutathione S-transferase (GST)

Measurements of GST activity [20] were performed in 96-well plates with the reaction mixture consisting of 7.5 µL sample (S9), 160 µL 1-mM CDNB (in sodium phosphate buffer) and 40 µL 25-mM GSH. Each sample was tested in triplicates. For the kinetics measurement of the reaction mixtures, absorbance was recorded using a Tecan Spark microplate reader at 340 nm for 2 min (measuring every 15 s) at room temperature. After the amount of protein was determined for each sample, the specific enzyme activity was calculated and given in nmol of conjugated GSH in one min per mg of proteins.

Catalase (CAT)

The CAT activity measurements [6] were performed in cuvettes in duplicates, with the assay mixture containing 500 µL sodium phosphate buffer (0.1 M, pH 7.2), 500 µL H2O2 (0.019 M) and 15 µL of the sample (S9). For the kinetics measurements of the assay mixtures, absorbance was recorded using a Perkin-Elmer Lambda 25 UV–Vis spectrophotometer at 240 nm for 1 min (measuring every 15 s) at 20 °C. After the amount of protein was determined for each sample, the specific enzyme activity was calculated and given in μmol of degraded H2O2 in 1 min per mg of proteins.

Glutathione reductase (GR)

For the GR activity measurements [20] 10 µL sample (S9), 100 µL sodium phosphate buffer (0.1 M, pH 7.2), 100 µL 2 mM GSSG and 10 µL 1 mM NADPH were added per well in 96-well plates. Each sample was tested in triplicates. For the kinetics measurement of the reaction mixtures, absorbance was recorded using a Tecan Spark microplate reader at 340 nm for 5 min (measuring every 20 s) at 20 °C. After the amount of protein was determined for each sample, the specific enzyme activity was calculated and given in nmol of reduced GSSG in 1 min per mg of proteins.

Acetylcholine esterase (AChE)

For the determination of AChE activity [12] 200 µL sodium phosphate buffer (0.1 M, pH 7.2), 10 µL 1.6 mM DTNB, 20 µL 156 mM acetylthiocholine iodide and 7.5 µL of the respective sample (S9) were added per well in 96-well plates and each sample tested in triplicates. For the kinetics measurement, absorbance was recorded using a Tecan Spark microplate reader at 412 nm for 2 min (measuring every 15 s) at 20 °C. After the amount of protein was determined for each sample, the specific enzyme activity was calculated and given in nmol of acetylthiocholine iodide hydrolyzed in 1 min per mg of proteins.

Carboxylesterase (CES)

For the determination of CES activity [23] 10 µL sample (S9) and 190 µL 1 mM 4-nitrophenyl acetate were added per well in 96-well plates in triplicate. For the kinetics measurement, absorbance was recorded using a Tecan Spark microplate reader at 405 nm for 2 min (measuring every 15 s) at 20 °C. After the amount of protein was determined for each sample, the specific enzyme activity was calculated and given in nmol of 4-nitrophenol produced per 1 min per mg of protein.

Protein content determination

The protein concentration in all samples was measured with Pierce™ BCA Protein Assay Kit (Thermo Fisher Scientific). Protein content was measured by adding 1.5 µL of the sample to 23.5 µL sodium phosphate buffer (0.1 M, pH 7.2) and 200 µL of the working solution (prepared according to the kit instructions) in 96-well plates. After a 2-h incubation period at 20 °C absorbance was recorded using a Tecan Spark microplate reader at 562 nm. Calibration curve was constructed with bovine serum albumin and protein concentrations calculated accordingly. The obtained protein concentrations were used for calculations of the specific enzyme activities.

Assessment of pesticide effects on the oxidative stress level

A fluorescence-based oxidative stress detection protocol was established based on the protocol previously developed for zebrafish larvae [26, 27]. For the detection of oxidative stress two fluorescence probes were used: CellTracker Green CMFDA for the detection of thiols and CM-H2DCFDA for the detection of general reactive oxygen species. The samples were diluted in 1:10 ratio and added in triplicate to 96-well plates. For ROS detection 5 μL sample, 95 μL sodium phosphate buffer (0.1 M, pH 7.2) and 5 μL CM-H2DCFDA (7.87 µM) were added to the well, for GSH detection 1 μL sample, 99 μL sodium phosphate buffer (0.1 M, pH 7.2) and 5 μL CellTracker Green CMFDA (9.78 µM) were added to the well. Blanks were performed in parallel. After an incubation period for 30 min at 25 °C, the fluorescence was measured using a Tecan Spark microplate reader at 485 nm (ex.) and 530 nm (em.) with the gain set to 50. In order to confirm the proper functioning of the protocol, positive controls with GSH (25 mM) and H2O2 0.019 M) were performed (data not presented).

Assessment of the impact of pesticides on multixenobiotic resistance (MXR) activity

For investigation of effects of investigated pesticides on the MXR activity, the same concentrations were used as for the enzymatic biomarker and oxidative stress measurements, but separate exposures were performed. Determination of the MXR activity was performed using rhodamine B (RB) retention protocol [21] in which pesticide stock solution and RB stock solution are mixed to get the final concentration of 100 μM RB and desired final concentration of pesticide. After evenly distributing 2 mL exposure solution per vial on the filter paper in the vials, one earthworm was placed in each vial and the vials were closed with a lid that provided a hole for ventilation. For the exposures controls of 100 μM RB were run in parallel. After a 48 h exposure in the dark at 20 °C, sample preparation was conducted in the same manner as for measurement of enzyme activities and 10 µL of each sample was added to 250 µL phosphate buffer per well. The respective fluorescence was measured with a Tecan Spark microplate reader in triplicates in 96-well plates at 553 nm (ex.) and 578 nm (em.) with gain set to 55. Calibration curve was constructed using RB (stock solutions were prepared in a 1:2 dilution row starting with 25 µM RB) and used for calculation of RB content in each. Then 10 µL of the RB added to 250 µL phosphate buffer per well. For expression of MXR activity, the protein concentration was taken into account and results were given in nmol RB per mg proteins. The whole experiment was repeated to determine the repeatability of the results.

Data analysis

Data analyses of the acute toxicity data were performed using the statistical software R version 3.3.2 (R Core Team, 2016). Mortality calculations were based on the number of the observed dead earthworms after the 48-h exposure period. The logit procedure of the drc package within the R software environment was used for the determination of lethal concentrations (LC10, LC50, LC90). Mortality concentration–response curves were fitted using a four-parameter logistic curve. The significant level of mean separation (p < 0.05) was based on a non-overlap between the 95% confidence limits of the LC50 values calculated after exposure to active substance vs. commercial formulation. The classification of pesticide toxicity was done according to Roberts and Dorough by taking into account LC50 values after 48-h exposure to pesticides: supertoxic (< 1.0 μg/cm2), extremely toxic (1–10 μg/cm2), very toxic (10–100 μg/cm2), moderately toxic (100–1000 μg/cm2), or relatively non-toxic (> 1000 μg/cm2) [44].

Enzymatic biomarker data, fluorescence-based oxidative stress data and MXR activity data, were analyzed using GraphPad Prism 8 (GraphPad Software, Inc., California, USA). Prior to further analysis, data were checked for equality of variances (Bartlett test) and normality (Shapiro–Wilk test). Considering that the normal distribution of the data was obtained, one-way ANOVA was applied followed by the Dunnett’s multiple comparison test to determine the significance levels reached in comparison to the control. The level of significance was set to p < 0.05 throughout the study.

Results

Lethal concentrations of investigated pesticides

Lethal concentrations (LC) after exposure of earthworm E. andrei to the active insecticide ingredients thiacloprid and esfenvalerate and the active herbicide ingredients dimethenamid-p and prosulfocarb, as well as the respective commercial preparations, are shown in Table 1. A comparison of the LC50 values for the active ingredients and commercial preparations shows that two out of four tested commercial preparations are significantly more toxic than their respective active ingredient alone. Based on the 48-h LC50 values, esfenvalerate and thiacloprid and their commercial preparations can be classified as super toxic, dimethenamid-p and its commercial preparation as extremely toxic and prosulfocarb as very toxic while its commercial preparation can be classified as extremely toxic [44].

Table 1 Lethal concentrations (LC10, LC50 and LC90) and 95% confidence levels of the investigated pesticide active ingredients and their respective commercial preparations to earthworm E. andrei for 48 h
Full size table

Significant differences between the LC50 values of the commercial preparation and respective active ingredient are marked with different letters.

Responses of enzymatic biomarkers

The specific enzyme activities measured in earthworms after exposure to different concentrations of the commercial pesticide preparation Calypso are presented in Fig. 1. Significant difference compared to control was observed only for CES activity at 2.5 ng/cm2.

Fig. 1
figure 1

Specific activity of acetylcholinesterase (AChE), carboxylesterase (CES), glutathione S-transferase (GST), glutathione reductase (GR) and catalase (CAT) measured in E. andrei earthworms exposed to the commercial pesticide preparation Calypso (active ingredient thiacloprid) for 48 h (mean ± standard deviation; N = 20). Significant differences between control and pesticide treatments (ANOVA followed by Dunnett’s multiple comparison test) are labeled with *(p < 0.05)

Full size image

Figure 2 shows the measured specific enzyme activities in earthworms exposed to the commercial pesticide preparation Sumialfa. The only significant difference in enzyme activity was observed for CAT after exposure to the highest concentration of 12.5 ng/cm2.

Fig. 2
figure 2

Specific activity of acetylcholinesterase (AChE), carboxylesterase (CES), glutathione S-transferase (GST), glutathione reductase (GR) and catalase (CAT) measured in E. andrei earthworms exposed to the commercial pesticide preparation Sumialfa (active ingredient esfenvalerate) for 48 h (mean ± standard deviation; N = 20). Significant differences between control and pesticide treatments (ANOVA followed by Dunnett’s multiple comparison test) are labeled with *(p < 0.05)

Full size image

The results of the enzymatic biomarker measurements in E. andrei exposed to different concentrations of Filon are presented in Fig. 3. No significant changes were observed in any of the five measured enzymes.

Fig. 3
figure 3

Specific activity of acetylcholinesterase (AChE), carboxylesterase (CES), glutathione S-transferase (GST), glutathione reductase (GR) and catalase (CAT) measured in E. andrei earthworms exposed to the commercial pesticide preparation Filon (active ingredient prosulfocarb) for 48 h (mean ± standard deviation; N = 20). Significant differences between control and pesticide treatments (ANOVA followed by Dunnett’s multiple comparison test) are labeled with *(p < 0.05)

Full size image

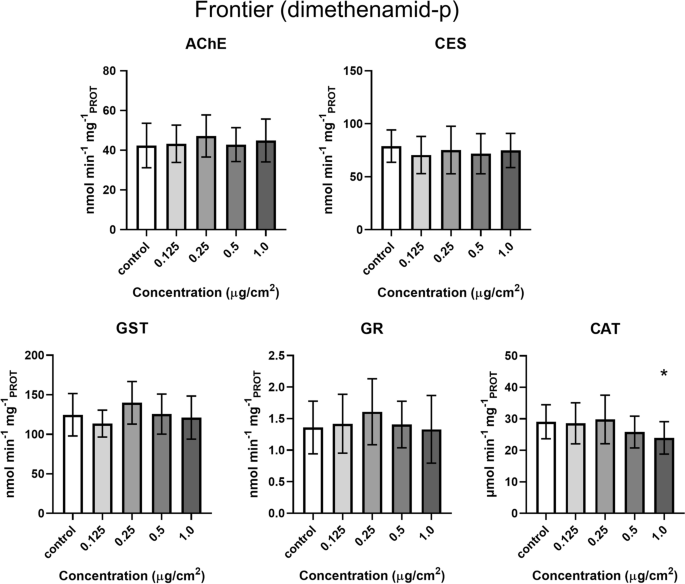

Figure 4 shows the measured specific enzyme activities in earthworms exposed to different concentrations of the commercial pesticide preparation Frontier. A significant difference was observed only for CAT after exposure to the highest concentration of 1.0 µg/cm2.

Fig. 4
figure 4

Specific activity of acetylcholinesterase (AChE), carboxylesterase (CES), glutathione S-transferase (GST), glutathione reductase (GR) and catalase (CAT) measured in E. andrei earthworms exposed to the commercial pesticide preparation Frontier (active ingredient dimethenamid-p) for 48 h (mean ± standard deviation; N = 20). Significant differences between control and pesticide treatments (ANOVA followed by Dunnett’s multiple comparison test) are labeled with *(p < 0.05)

Full size image

Fluorescence-based ROS and GSH determination

Figures 5 and 6 show the relative fluorescence that was determined using two different fluorescent probes for the measurement of reactive oxygen species (ROS) and glutathione (GSH) after a 48-h exposure to the four different commercial pesticide preparations. For Calypso, significant changes could be detected for the measurement of ROS (Fig. 5) and GSH (Fig. 6). For the ROS detection, the three lowest concentrations showed a significant increase of relative fluorescence with the enzyme activity almost doubling, while only the lowest concentration showed a significant increase of relative fluorescence for the detection of GSH by a factor of approximately 1.5. For Frontier, a significant decrease by (more than) half in relative fluorescence could be observed for the detection of GSH after exposure to 0.125, 0.25 and 0.5 µg/cm2 (Fig. 6), but no significant differences to the control for the detection of ROS could be observed (Fig. 5). For both Sumialfa and Filon neither the detection of ROS nor the detection of GSH showed any significant differences of relative fluorescence.

Fig. 5
figure 5

Relative fluorescence for reactive oxygen species (ROS) measurements in Eisenia andrei exposed to the four commercial pesticide preparations Calypso (active ingredient thiacloprid), Sumialfa (active ingredient fenvalerate), Filon (active ingredient prosulfocarb) and Frontier (active ingredient dimethenamid-p) for 48 h (mean ± standard deviation; N = 20). Significant differences between control and pesticide treatments (ANOVA followed by Dunnett’s multiple comparison test) are labeled with *(p < 0.05)

Full size image
Fig. 6
figure 6

Relative fluorescence for glutathione (GSH) measurements in Eisenia andrei exposed to four commercial pesticide preparations Calypso (active ingredient thiacloprid), Sumialfa (active ingredient esfenvalerate), Filon (active ingredient prosulfocarb) and Frontier (active ingredient dimethenamid-p) for 48 h (mean ± standard deviation; N = 20). Significant differences between control and pesticide treatments (ANOVA followed by Dunnett’s multiple comparison test) are labeled with *(p < 0.05), **(p < 0.01) and ***(p < 0.001)

Full size image

MXR activity

Results of the relative rhodamine B (RB) concentrations in earthworm E. andrei after exposures to four different commercial pesticide preparations are shown in Fig. 7. A significant increase in the relative RB concentration was detected for the insecticide Calypso at the highest concentration of 10 ng/cm2, while a significant decrease in relative RB content could be observed after exposure to the lowest concentration of 0.25 μg/cm2 of the herbicide Filon. No significant changes in the relative RB concentration were detected following exposures to the insecticide Sumialfa and the herbicide Frontier. An increase in accumulated RB indicates an inhibition of the MXR activity, while a decrease of relative RB concentrations indicates an induction of the MXR activity.

Fig. 7
figure 7

Relative rhodamine B (RB) concentration for the measurement of MXR activity in Eisenia andrei exposed for 48 h to the commercial pesticide preparations Calypso (active ingredient thiacloprid), Sumialfa (active ingredient esfenvalerate), Filon (active ingredient prosulfocarb) and Frontier (active ingredient dimethenamid-p) (mean ± standard deviation; N = 20). Significant differences between control and pesticide treatments (ANOVA followed by Dunnett’s multiple comparison test) are labeled with *(p < 0.05)

Full size image

Discussion

The acute toxicity of four commonly used pesticides’ active ingredients and their respective commercial preparations, as well as subcellular effects of the commercial preparations, on the earthworm E. andrei was investigated by applying the filter paper contact test. The investigated endpoints comprised assessment of acute toxicity, enzymatic activities, MXR activity and oxidative stress-related responses. The main mode of action of all four pesticides is well-known, with the herbicides dimethenamid-p and prosulfocarb inhibiting long chain fatty acid synthesis [18], and the insecticides thiacloprid and esfenvalerate stimulating the nicotinic acetylcholine receptor and blocking sodium channels, respectively [32, 33, 46, 50]. Despite knowing the main toxicity mechanisms of the investigated pesticides, it is still not known in detail how they affect non-target organisms such as earthworms. Furthermore, while for example the mode of action of herbicides is mostly related to plant organisms, studies had shown that they often also adversely affect non-target animal organisms [27, 38, 56].

Acute toxicity

The results of the filter paper contact tests showed that both insecticides could be classified as extremely toxic to the earthworm E. andrei, and the herbicides dimethenamid-p and prosulfocarb could be classified extremely toxic and very toxic, respectively [44]. While there is no comparable data for the investigated herbicides on earthworm toxicity available from literature, a study by Ye et al. investigated the comparative toxicity of fenvalerate and esfenvalerate. It showed similar toxicity results from the filter paper contact test for the earthworm Eisenia fetida with the LC50 of esfenvalerate after a 48 h exposure period being 0.68 µg/cm2 and therefore classified as super toxic [60]. A study by Wang et al. investigated the toxicity of 24 insecticides to E. fetida using the filter paper contact test including thiacloprid, which they classified as super toxic with an LC50 of 0.45 µg/cm2 [59].

Currently, all four pesticides are available on the European market, with dimethenamid-p and prosulfocarb being sold in rather high tonnages and prosulfocarb being on the list of the most sold pesticides in Germany in 2019 [5]. While esfenvalerate is sold in rather small amounts in comparison, the main mode of action of insecticides often also affects a wide range of non-target organisms [3, 11, 45, 54, 56]. The insecticide thiacloprid on the other hand has been on a substitution list since 2015 with the European Commission having recently decided against the re-approval due to its concerns about a potential for endocrine disruption [13].

Our results showed that the toxicity of the commercial preparations Calypso, Filon and Frontier can be higher than their respective active ingredient only. But only Calypso and Frontier gave significantly higher toxicity values. This, however, indicates that the current risk assessment might underestimate the actual toxicity of pesticides on the environment. The effects of solvents, dispersants and other adjuvant chemicals that are used to improve the durability, storage and application of the pesticides are not taken into account [7]. More and more studies have shown the discrepancy between the toxicity of active ingredients and commercial preparations with one of the most debated example being glyphosate and its commercial preparation Roundup [4, 24, 38]. A recent review by Nagy et al. on the toxicity of pesticide active ingredients and their product formulations showed that out of 36 studies, 24 studies reported a higher toxicity of the commercial formulation and only 8 showed a lower toxicity. Out of these 36 studies, a significant number of 10 studies focused on the comparative testing of glyphosate or glyphosate-based herbicides [34]. However, even though the effects of glyphosate and its preparation Roundup are subject of a highly controversial discussion, this problem also applies to most other pesticides that are not as intensely studied as glyphosate, making it more difficult to come to a consensus on how to improve risk assessment. Overall, there is very scarce information on the toxicity mechanisms available for the pesticides investigated in the present study and especially their commercial preparations [9, 29, 43, 45, 58, 60]. This also supports Nagy et al. postulations of the inadequacy of current EU required assessments resulting in little information on the actual hazard from commercial pesticide formulations [34]. Therefore, the current study focused on assessing the toxicity mechanisms of the investigated commercial pesticide preparations.

Oxidative stress

In this study, a multiwell plate assay for the fluorescent detection of GSH and ROS, oxidative stress-related responses, in the earthworm S9-fraction was established based on a previous protocol for the detection in zebrafish larvae [26, 27]. Oxidative stress occurs due to an imbalance of the natural ROS molecules and antioxidants, e.g., GSH—the primary redox buffer [35]. It has been shown in various studies that oxidative stress is often related to the toxicity of pesticides [30, 31, 54, 56, 57]. In this study, the pesticides Calypso (thiacloprid) and Frontier (dimethenamid-p) showed effects on the ROS and GSH levels (Figs. 5 and 6). Specifically, Calypso showed an increase by over 100% in relative fluorescence, indicating a high increase in ROS levels after exposures to Calypso. The assessment of GSH levels showed an increase only in the lowest concentration of Calypso. An increase in GSH levels shows a response of the antioxidant system and the induction of oxidative stress. The herbicide Frontier also affected GSH levels in exposed earthworm, however, in this case the opposite effect was observed with a decrease in GSH levels after exposures to the three lowest concentrations. While no significant differences in ROS levels could be detected, this might be due to the antioxidant system still being able to make up for any increased production of ROS. A similar fluorescence-based method to assess ROS levels in earthworm E. fetida has been used by Wang et al. after exposures to the neonicotinoid insecticide imidacloprid [57], where a significant increase of ROS levels could be shown after long-term exposures in soil. Another study by Liu et al., which also assessed long-term oxidative stress-related responses of E. fetida after neonicotinoid exposure by means of fluorescent ROS detection showed an increase of ROS levels for different exposure times such as 7 days and 28 days [30]. However, there seems to be very little understanding yet of short exposure effects in earthworms on ROS or GSH levels after exposures to pesticides and especially herbicides. Therefore, the protocol for oxidative stress detection established here can be a helpful and sensitive, yet simple and easy tool to investigate both ROS and GSH levels to gain a better understanding of non-enzymatic oxidative stress-related responses.

Enzymatic biomarker responses

When comparing the results of the fluorescence probe-based assay for oxidative stress detection with enzymatic biomarkers, the fluorescence-based assay proved to be more sensitive for observing oxidative stress responses after short exposure at low concentrations, as for Calypso (thiacloprid) no significant change in responses of enzymatic biomarkers for oxidative stress, such as GST (also a phase II detoxification enzyme) or CAT, was observed (Fig. 1). However, CAT activity was decreased after exposure to the highest concentration of both Sumialfa (esfenvalerate) and Frontier (dimethenamid-p) (Figs. 2 and 3), suggesting that the enzymatic responses may respond slower, with possibly different results for longer exposure periods. These results are supported by our previous study where the effects of the pesticides diuron and diazinon were investigated using the fluorescent probes, as well as the enzymatic biomarkers and also showed that the fluorescent probes-based assessment of oxidative stress might be more sensitive or that the enzymatic antioxidant reactions are slower compared to the GSH reaction [54, 56]. There are no other studies assessing oxidative stress induction of pesticides investigated herein, thus making comparisons difficult. However, there have been several studies elucidating oxidative stress to be a common mode of action of pesticide toxicity even though the responses might not always be univocal. A review by Lukaszewicz-Hussein looks at oxidative stress induced by the group of organophosphate pesticide exposure whose main mode of action is the inhibition of AChE, showing that oxidative stress is another mode of action through which they cause adverse effects [31]. Furthermore, there are also various studies looking at the effects of oxidative stress-related enzyme responses in earthworm, mostly E. fetida, showing the effects on not only CAT or GST but also peroxidase, superoxide dismutase or malonaldehyde [30, 48, 52, 53, 57, 62].

While this shows, that oxidative stress often occurs as a result of pesticide exposure and often contributes to pesticide toxicity, other biomarkers can also be used to elucidate more specific toxicity mechanisms and modes of action. Other enzymatic biomarkers that were assessed besides the biomarkers for oxidative stress were AChE activity and CES activity. Acetylcholinesterase is an important enzyme in neuronal transmission, while carboxylesterase is a phase I detoxification enzyme [35]. AChE activity was not affected by any of the pesticide exposures, suggesting that an inhibition of AChE is not the mechanism of action of the investigated pesticides and rather oxidative stress. On the other hand, an increase in CES activity could be observed after exposure to Calypso. As Calypso also affected the MXR activity, overall Calypso seems to affect various forms of detoxification mechanisms. A study by Feng et al. had investigated the long-term effects of the active ingredient thiacloprid in soil and could also show a significant decrease in CES activity after a 7-day exposure period [15].

MXR activity

In the assessment of multixenobiotic resistance activity, an important first line of defense to toxic compounds, earthworm exposed to the pesticides Calypso (thiacloprid) and Filon (prosulfocarb) significantly affected accumulation of rhodamine B (Fig. 7). The RB concentration in earthworms exposed to the highest concentration of Calypso decreased significantly, indicating an induction of the MXR activity. The induction of MXR suggests that as a first line of defense, the activity is increased to evict the toxic substance out of the cells. An opposite effect was observed after the exposure to the lowest concentration of Filon, with an increase in RB content, which represents an inhibition of the MXR activity. This indicates, that the efflux pumps are unable to expel the toxins, therefore increasing the exposure time of the pesticide within the cell and increasing the time to exert toxic effects [54, 56]. Regarding the no observed effect at higher Filon concentrations, it is possible that at lower concentrations the pesticide causes an inhibition of MXR activity, whereas at the higher concentrations cells activate defense mechanisms and prevent inhibition of MXR activity in order to alleviate toxic effects. No previous research assessed effects of the investigated pesticides on the MXR activity on earthworm or other species. However, multiple studies assessed the effects of other pesticides on MXR activity in earthworms and both inhibition and induction of MXR activity was observed. Velki et al. observed an inhibition of MXR activity after individual exposures to four commercial pesticide preparations, namely MaximExtra 050 (difenoconazole + fludioxonil), Koban T (pethoxamid + terbuthylazine), Pyrus 400 SC (pyrimethanil), and Cruiser 350 FS (thiamethoxam) [56]. Similar to the inhibition of MXR activity by the herbicide Filon (prosulfocarb), in a previous study, we observed the inhibition of MXR activity after the exposure of E. andrei to two herbicides [27]. Other studies also showed an inhibition of MXR activity caused by insecticides such as deltamethrin or a time-dependent induction and then inhibition after exposure to dimethoate [21, 52, 53]. This emphasizes the various impacts pesticides can have on the defense system of earthworm cells, thus increasing the potential adverse effects they can have on this important soil organism and the soil ecosystem.

Conclusions

Present study showed that commercial preparations can be more toxic compared to their respective active ingredients and that effects of the investigated pesticide formulations can be observed on a subcellular level already after 48 h exposure. Furthermore, a fluorescence-based method for ROS and GSH was established, providing a sensitive tool for the detection of oxidative stress-related responses. Overall, the insecticide Calypso (thiacloprid) showed the most diverse effects, as it affected CES activity, ROS and GSH levels as well as MXR activity. Both the insecticide Sumialfa (esfenvalerate) and the herbicide Frontier (dimethenamid-p) caused a decrease in CAT activity, while Frontier also decreased GSH levels. Filon (prosulfocarb) did not show any effects on enzymatic biomarkers but caused an inhibition of MXR activity. Considering the obtained results, there is a need to involve commercial preparations of pesticides into the risk assessment of pesticides. Toxicity classifications of the investigated pesticides indicate that they can have adverse effects on key species of soil ecosystems at low concentrations. The exposure of 48 h might have been too short to observe more effects on enzymatic biomarkers, however, first indications were obtained for various effects on cellular defense mechanisms also using fluorescence-based assays for the determination of oxidative stress and MXR activity. Future studies should assess effects of these pesticides in soil as well to include influences of the soil matrix on availability and toxicity. Furthermore, assessments on higher levels of biological organization are needed in order to determine the potential risks to the soil ecosystem.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

CAT:

Catalase

CES:

Carboxylesterase

GSH:

Glutathione

GR:

Glutathione reductase

GST:

Glutathione S-transferase

MXR:

Multixenobiotic resistance

RB:

Rhodamine B

ROS:

Reactive oxygen species
