Non-target screening of organic pollutants and target analysis of halogenated polycyclic aromatic hydrocarbons in the atmosphere around metallurgical plants by high-resolution GC/Q-TOF-MS

Environmental Sciences Europe volume 32, Article number: 96 (2020) Cite this article

Abstract

Background

The 16 priority polycyclic aromatic hydrocarbons (PAHs) issued by US Environmental protection agency are a major focus in atmosphere in previous studies. Many more PAH congeners or their substitutes could be produced during combustion or thermal industrial processes and released into the atmosphere. However, a full screening of various organic pollutants in air surrounding important industrial sources has not been conducted. Identifying and characterizing organic pollutants in air is essential for accurate risk assessment. This study conducted non-target screening of organic pollutants and simultaneous target analysis of emerging contaminants including 8 polychlorinated naphthalenes and 30 higher cyclic halogenated PAHs by high-resolution gas chromatography quadrupole time-of-flight mass spectrometry (GC/Q-TOF-MS) and applied to the air samples collected surrounding metallurgical plants. Emerging organic chemicals of high toxicity in air were identified.

Results

We identified and characterized 187 organic chemicals categorized as PAHs, alkylated polycyclic aromatic compounds (PACs), heterocyclic PACs, and aliphatic hydrocarbons in atmosphere around industrial sources. Some of these identified chemicals, such as phthalic acid esters, dimethylbenz[a]anthracene, and hydroquinone with alkane substituents are of potential high toxicities and have not been the focus of previous studies of airborne contaminants. Moreover, hydroquinone with alkane substituents may be critical intermediates and precursors of an emerging contaminant—environmentally persistent free radicals. Thus, the presence of those identified highly toxic chemicals in the air merits attention. Moreover, 38 chlorinated and brominated PAHs as target compounds were accurately quantitated by using isotopic dilution method by application of GC/Q-TOF-MS, and the findings were similar to those of high-resolution magnetic mass spectrometry.

Conclusion

In this study, both non-target screening of organic pollutants and target analysis of halogenated PAHs in air were achieved by GC/Q-TOF-MS. The method could be of significance for simultaneous analysis of those trace pollutants containing multiple congeners. Specific pollutants of potential high toxicity in atmosphere around industrial sources were identified. Those knowledge could be helpful for comprehensively recognizing the organic contaminants in air surrounding metallurgical plants and better understanding their potential health risks.

Background

The 16 priority polycyclic aromatic hydrocarbons (PAHs) issued by US Environmental protection agency (EPA) are a major focus of efforts to assess the risks of pollutants in atmosphere to human health [1]. However, besides the 16 priority PAHs, much more PAH congeners or their substitutes are also produced during combustion or thermal industrial processes and released into the atmosphere [2]. Taking polychlorinated naphthalenes (PCNs) as an example, they can be unintentionally produced and emitted to the air. PCNs are on the list of persistent organic pollutants (POPs) covered under the Stockholm Convention because of their toxicity, persistence, bio-accumulation, and long-range transport in the environment [3, 4]. Halogenated PAHs, which exert similarly toxic effects, can also be formed during activities such as incineration of municipal solid waste and secondary copper smelting [5, 6]. Chlorinated and brominated PAHs (Cl/Br-PAHs) with three to five rings are considered more toxic than their parent chemicals [7,8,9]. Those less focused PAH congeners or their substitutes might be important pollutants or precursors for highly toxic air contaminants. Therefore, pollutants of high concentrations and toxicities in atmosphere need to be recognized and further intensive studied.

Metallurgical plants have been identified to be important sources of unintentional POPs, and can release trace levels but carcinogenic polychlorinated dibenzo-p-dioxins and dibenzofurans, polychlorinated biphenyls, and PAHs [10, 11]. Incomplete combustion of the organic residues, such as cables, paint and heavy oil in the raw materials used for metallurgical plants and the formation during cooling stage of flue gas is the inherent cause for toxic pollutant emissions [12, 13]. Studies characterizing and measuring the levels of these dioxins and dioxin-like compounds of trace levels in the environment surrounding metallurgical plants have been widely conducted by gas chromatography coupled with magnetic sector high-resolution mass spectrometry (GC–HRMS) for the accurate qualification and quantification [14, 15]. GC–HRMS is typically run in selected ion monitoring mode to achieve high sensitivity and selectivity, meeting the analytical requirements of trace levels of specific POPs in air [8, 10, 11, 16]. GC/MS, GC/MS/MS and GC/HRMS have been used for the analysis of halogenated PAHs, among which GC/HRMS in selected ion mode is the most widely applied method currently [14]. GC × GC/TOF-MS or Fourier transform ion cyclotron resonance mass spectrometry has been applied for non-target analysis of soil and biota samples, and high levels of several halogenated PAH congeners were detected [14]. Besides the well-known dioxins and PAHs, it is believed that numerous other toxic organic pollutants could simultaneously be formed during the metallurgical processes. However, comprehensive recognition of the pollutant components in environment surrounding the industrial sources was still unknown. Screening of more organic pollutants such as PAH congeners and their substitutes should be conducted for better understanding the potential impact of source emissions on surrounding environment. High-resolution GC quadrupole time-of-flight (GC/Q-TOF-MS) mass spectrometry has great potential for the non-target analysis of GC-amenable compounds. The same full-spectrum accurate mass data enable both quantitation of priority targets and reliable screening of more compounds, especially those present in trace amounts.

In this study, we developed a high-resolution GC/Q-TOF-MS method to comprehensively measure and identify organic pollutants such as PAHs, alkylated polycyclic aromatic compounds (PACs), heterocyclic PACs in air. Novel PACs of high toxicity and concentrations in the air samples will be identified and focused with the aim of obtaining comprehensive overview of various organic chemicals in the air surrounding the metallurgical plants. We also conducted a simultaneous analysis of targeted halogenated PAHs including PCNs regulated by the Stockholm Convention by GC/Q-TOF-MS. The method by application of GC/Q-TOF-MS could be useful for simultaneous analysis of those trace pollutants containing multiple congeners. The knowledge obtained in this study could be helpful for recognizing and characterizing the organic contamination in air and better understanding their potential health risks.

Methods and materials

Air samples were collected from an area surrounding metallurgical plants including iron ore sintering plants and steel-making plants by high-volume air samplers (Echo Hi-Vol, Tecora, Milan, Italy) at a flow rate of 0.24 m3/min for 24 h, according to US EPA method TO-9A. The air volume was approximately 1000 m3. Cleaned quartz fiber filters (102 mm diameter, baked in muffle furnace at 450 °C for 6 h) and polyurethane foam (63 mm diameter, 76 mm length, purified by accelerated solvent extraction with acetone and hexane) were used to gather particle phase and gas phase of the air samples, respectively. The collected air samples were wrapped with aluminum foil and retained in polyethylene valve bags. Prior to extraction, the samples were spiked with labeled standards (2 ng of a mixture of three PAHs, 2 ng of a mixture of six halogenated PAHs and 2 ng of a mixture of six PCNs) for target analysis of halogenated PAHs. The spike of label internal standards into the samples was used for accurate qualification and quantification of target compounds. Moreover, the labeled internal standards could be helpful for preliminarily estimating the relative abundance of non-target compounds by comparing their peak areas with that of labeled internal standards. The signal-to-noise ratio and the recoveries of labeled standards can meet the accurate identification of target compounds and the semi-quantification of non-target chemicals. The samples were extracted by accelerated solvent extraction with dichloromethane and hexane (1:1). The extraction solution was concentrated and then cleaned using an activated silica gel column [14]. The sample solution was then concentrated by rotary evaporator and nitrogen gas and the elution was concentrated to approximately 20 μL. Fly ashes from the metallurgical plants were also collected and analyzed by gas chromatography–Orbitrap mass spectrometry in our previous studies [6]. The non-target screening results were compared between that in air samples and in fly ashes samples to show their different distribution characteristics.

Data were acquired using an Agilent 7890B GC instrument coupled to an Agilent 7250 high-resolution Q-TOF-MS platform equipped with a multimode inlet (Agilent Technologies, Santa Clara, CA, USA). The electron ionization full-spectrum mode of the GC/Q-TOF-MS system enabled target and non-target acquisition using the same method. The resolution of the mass analyzer was set at > 25,000 (full width at half maximum) at m/z 271.9867. A DB-5 ms UI (60 m–0.25 mm–0.25 μm) column was used to separate all targeted and untargeted chemicals. Additional file 1: Table S1 lists the detail parameters of analytical settings. The data were acquired and processed using MassHunter Qualitative Analysis (version B.08.00) and Quantitative Analysis (version B.09.00) software (Agilent Technologies). Unknowns Analysis software (version B.09.00) with the SureMass deconvolution algorithm, on the basis of the exact mass number, was used for non-target analysis. Initial compound identification was performed by spectrum comparison with data from the NIST17 EI library. Hexane solution was analyzed by the same methods as a solvent blank to exclude interferences from systematic errors.

Target analysis of the 38 Cl/Br-PAHs, including eight PCNs congeners and 30 Cl/Br-PAHs congeners, were conducted using isotope dilution GC/Q-TOF-MS. The compounds were measured by calibration curves with 13C-labeled compounds as internal standards (shown in Tables 1 and 2). Most calibration concentrations were 5–800 ng/mL. The lowest level of calibration solution (5 ng/mL) was sequentially injected eight times and the RSDs of almost all congeners ranged from 2.0 to 14.4%, all below 15% over the range. The signal-to-noise ratios of these congeners at the lowest concentration in the calibration curve were all > 10. These calibration curves were used to quantitate the target Cl/Br-PAHs congeners in the air samples. Relative response factors (RRFs) equation was used and measured for accurate quantification of the target congeners on the basis of the Method 1613 developed by the United States Environmental Protection Agency for dioxins:

$$\left( {{\text{RRF}} = \frac{{\left( {A1_{x} + A2_{x} } \right)C_{1} }}{{\left( {A1_{1} + A2_{1} } \right)C_{x} }}} \right),$$
(1)

where A1x and A2x are the peak areas of quantitative and qualitative ion of target congeners, respectively; A11 and A21 are the peak areas of quantitative and qualitative ion of 13C-labeled internal standard, respectively; Cx and C1 are concentration of target congeners and the corresponding 13C-labeled internal standard (pg/m3). The RRFs ranged from 1.21 to 1.65, and the variable deviation ranged from 8.3 to 14.6%.

Table 1 Aromatic hydrocarbons in air samples screened by gas chromatography quadrupole time-of-flight mass spectrometry
Full size table
Table 2 Quantitative method performance for chlorinated and brominated polycyclic aromatic hydrocarbons
Full size table

Results and discussion

General characteristics of organic pollutants in air

Target priority PAHs were quantified using a calibration curve with labeled internal standards. The concentrations of target priority PAHs ranged from 0.12 to 101.2 pg/m3. We used SureMass signal processing of GC/Q-TOF-MS data to deconvolute the components and MassHunter Unknowns Analysis software to identify untargeted PAHs to briefly understand the components of pollutants in the air surrounding industries. Compounds were identified and verified via the NIST17 library using the exact mass of the molecular ion or characteristic fragments (mass error < 10 ppm) and isotopic distribution as the criteria parameters. Figure 1 shows an example compound, 9H-fluorene, 9-methylene-. Altogether, we identified and verified 187 organic chemicals using GC/Q-TOF-MS. Among these organic chemicals, 146 were aromatic hydrocarbons (Table 1) and 41 were aliphatic hydrocarbons (Additional file 1: Table S2).

Fig. 1
figure 1

Example of deconvolution function for 9-methylene-9H-fluorene (CAS: 4425-82-5) detected by gas chromatography quadrupole time-of-flight mass spectrometry. a Co-elution plot of first five main deconvoluted fragment ions in an air sample. b The mass spectra after deconvolution. c NIST spectrum for 9-methylene-9H-fluorene. The match factor was calculated by MassHunter Unknown Analysis software (Agilent Technologies)

Full size image

Fly ashes are considered to be important matrix for catalyzing the organic pollutant formations during thermochemical processes. General characteristics of organic pollutants in air were summarized and compared to that in fly ashes [6]. As shown in Fig. 2, the compound composition of air and the fly ash were different, and pollutants in air are more diverse than that in fly ash samples. Comparison between the screening results of air samples and fly ash samples from industrial sources showed that aliphatic hydrocarbons are more abundant in air. Few aliphatic hydrocarbons have been reported in fly ash from industrial sources [6]. Halogenated PACs are easily released from industrial activities [6], but PAHs and alkylated or heterocyclic PACs are more common in air samples. Physical properties including subcooled vapor pressure and log koa of the contaminants in air were predicted in this study and compared to the pollutants in the fly ash samples from multiple industries reported in our previous studies [6]. Even though pollutants in air were much more numerous than that in fly ash, the deviation degree of the physical properties was smaller for pollutants in air than that in fly ashes (shown in Fig. 2). The deviation degree of pollutants in fly ashes were greater than that in air, most of which were of higher subcooled vapor pressure and lower log koa than that of pollutants in air. Therefore, some pollutants in fly ashes with higher subcooled vapor pressure and lower koa from multiple industries might release into the air. Those pollutants of high subcooled vapor pressure and toxicity should be focused during the disposal of fly ash. Normal distribution test of subcooled vapor pressure of pollutants in air and fly ashes were also conducted (Fig. 2c). Results showed that the subcooled vapor pressure of pollutants in the air fit the lognormal distribution pattern, indicating the multiple influence factors on the pollutants in the air. Pollutants in air originated from numerous sources, but the pollutants in fly ashes were relatively simple due to high-temperature combustion processes. This might contribute to the abnormal distribution of the organic pollutants in fly ashes. It was suggested that the pollutants with relatively higher subcooled vapor pressure and lower log koa in the fly ashes need to be concerned because their potential adverse impacts on the air pollutions.

Fig. 2
figure 2

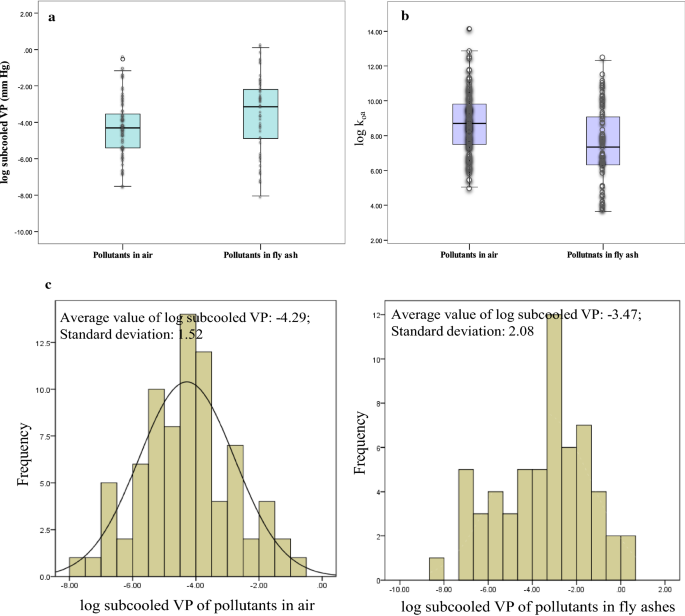

Properties including a subcooled vapor pressure (VP), b log koa of pollutants in air and fly ash samples and the c normal distribution test of log subcooled VP

Full size image

Aromatic hydrocarbons in air by non-target analysis of GC/Q-TOF-MS

Most of the 16 priority PAHs were detected in the air samples surrounding industrial sources. Fluoranthene was a major contributor to the atmospheric PAH burden, and its peak areas accounted for 59% of the total peak areas of the 16 PAHs. A similar finding was also found by the comparison of PAHs in different areas in India, and the results showed that fluoranthene in the industrial sites was significantly higher than those in commercial sites [17]. Other studies concluded that atmospheric fluoranthene concentrations may have sources other than motor vehicles [18, 19]. Fluoranthene may therefore be considered an important indicator of industrial emissions. Higher molecular weight parent PAHs such as benzo[ghi]perylene, triphenylene, perylene, and benzo[a]pyrene was also abundant in the samples, and these compounds are typically formed via combustion at elevated temperatures [20]. The results are different from the PAHs dominance in the air from residential areas [21], indicating the remarkable influence of pyrogenic processes on the surrounding air of thermal industries. Benzo[a]pyrene was reported to be photo-reactive and thus unstable in air. Benzo[a]pyrene cannot undergo long distance migration and is normally in relatively low abundance in air samples [22]. Therefore, detection of benzo[a]pyrene in air can be used as an indicator of emissions from local sources. Perylene was confirmed to be dominant precursor of PCNs during combustion or other industrial thermal processes [23, 24]. Therefore, these parent PAHs with high levels in air surrounding thermal industries need further attention.

Chemical substitution in PAH molecules can substantially affect their carcinogenic potential [25]. However, PAH derivatives in the environment have been studied less than the 16 priority pollutants. We have detected multiple novel aromatic hydrocarbons and substitutes of the 16 PAHs such as isopropyl-methylphenanthrene, methylphenanthrene, and ethyl-methylanthracene. Some PAH derivatives, including methyl-, dimethyl-, trimethyl-, tetramethyl-, and ethenyl- substitutes, may be more toxic than their parent compounds and contribute a large part of toxicity of the atmospheric pollutants [2]. Toxicities of several novel PAH derivatives were calculated and shown in Additional file 1: Table S3. Chemical substitution in PAH molecules such as fluorene, 9-methylene were of relatively higher toxicities compared to benz[a]pyrene. 7,12-Dimethylbenz[a]anthracene, whose toxic equivalency factor was reported to be 20 times that of its parent and twice that of benzo[a]pyrene [2], but this compound is typically ignored in routine tests of PAHs in air samples. Dimethylbenzo[a]anthracene was screened out in this study, even though the methyl substitution position cannot be elucidated according to the screening result, alkyl derivatives of PAHs such as 7,12-dimethylbenzo[a]anthracene in the air need further attention.

Concentrations of phthalic acid esters such as dibutyl phthalate, dibutyl phthalate, bis(2-methylpropyl) ester-1,2-benzenedicarboxylic acid, di(hex-3-yl) ester phthalic acid (Table 1) were higher than those of other chemicals, and their peak areas contributed 19% of all 147 chemicals detected. Phthalic acid esters are widely used as plasticizers in various industries and have been detected in water, soil, and air, because they are not chemically bound to polymers and can therefore be easily released into the environment [26]. The oral chronic reference dose of p-phthalic acid was calculated as 1 mg/kg/day, approximately four orders of magnitude higher than that of the widely recognized toxic benzo[a]pyrene (3 × 10−4 mg/kg/day) [27], and its highest peak areas in the air samples we collected indicated higher inhalation exposure. Six phthalic acid esters have been listed as priority controlled toxic pollutants by the US and European agencies considering the corroborated endocrine disrupting toxicity, and three phthalic acid esters—dimethyl phthalate, diethyl phthalate, and di-n-octylphthalate—are regulated in surface and drinking water in China [28, 29], but phthalic acid esters in the air around industrial plants has not yet become a focus of study. Our findings were in accordance with those of previous studies, which reported higher concentrations at industrial sites than at residential and trafficked areas [30]. Workers and residents in areas contaminated by phthalic acid esters will be exposed to high levels over time [31], so control of phthalic acid esters in industrial areas is essential.

We detected heteroatom-substituted polycyclic aromatic compounds, which are often neglected in studies of environmental pollution even though their toxicity is comparable to that of PAHs [32]. Oxygenated PAHs have one or more carbonyl oxygens in the aromatic ring structure and are more mobile in the environment than PAHs because of their polarity properties, easily moving from air to surface water [32]. Therefore, oxy-PAHs should be taken into consideration when assessing risks of PAHs in the air. Oxygenated PAHs have also been reported in diesel exhaust [33], stack gas from combustion processes [34], and fly ash from various industries [35]. Hydroquinone, a toxic phenolic organic compound, has been found in various industrial effluents [36,37,38]. In this study, 42 oxy-PAHs including phenols, xanthenes, furans, aldehydes and quinones were detected. The oxy-PAHs are emitted from similar primary sources of PAHs. Both oxy-PAHs and PAHs were products of incomplete combustions. In addition, chemical or photo-oxidation of PAHs can also form oxy-PAHs in the environment [2]. Therefore, oxy-PAHs can widely occur in diesel exhaust, stack gas or fly ash from thermal processes, soils and air [2]. Oxy-PAHs such as hydroquinone with alkane substituents were detected. Apart from the known hematotoxicity and carcinogenicity of hydroquinone [39], it may also be a critical intermediate and precursor of an emerging toxic pollutants in the air—the environmentally persistent free radicals, which has already been found in the atmospheric particles [40,41,42]. Semiquinone free radicals and cyclopentadiene radicals attached to airborne fine particles were considered as the dominant composition of EPFRs in the air and are believed to exist in the air for a long time [42,43,44,45,46,47]. Hydroquinone molecules with alkane substituents and phenol substitutes may be precursors or products in the formation or transformation of environmentally persistent free radicals in airborne particles [48], and therefore the levels and characteristics of hydroquinone and environmentally persistent free radicals in the air should be correlated and merits further attention. Oxygenated PAHs such as benzobisbenzofuran and dibenzofuran were also detected, and may subsequently chlorinate to polychlorinated dibenzofurans. We also identified nitro- and sulfurized PAHs such as dibenzothiophene and carbazole, which have acute or long-term hazardous to the aquatic life. Furthermore, they may be further chlorinated to the toxic polychlorinated dibenzofurans, polychlorinated dibenzothiophenes, and polychlorinated carbazoles [49, 50]. This highlights the importance of studying high molecular weight PAHs, alkylated PAHs, and heteroatom-substituted PAHs in the air, beyond the standard focus on the 16 priority pollutants.

Occurrences of chlorinated and brominated PAHs in air by target analysis of GC/Q-TOF-MS

Cl/Br-PAHs are halogenated derivatives of PAHs, which can be emitted as by-products of thermal industries and formed through photochemical reactions in the air [51]. Because of the large numbers of Cl/Br-PAHs congeners and extremely trace levels in environmental media, it is difficult to accurately quantify and characterize these compounds. In addition, there are no standardized methods for extraction and instrument analysis of Cl/Br-PAHs. Existing accurate analysis for multiple Cl/Br-PAH congeners is mainly conducted by HRMS [52]. We used GC/Q-TOF-MS to analyze 21 chlorinated PAHs (including eight PCNs) and 17 brominated PAHs and quantitated them with 12 labeled internal standards (Fig. 3a). Mass spectrum parameters are shown in Table 2. The limit of quantitation was calculated by these standard deviations times 10 and ranged from 1.0 to 7.2 pg/µL (shown in Table 2). An accurate mass extraction window ± 15 ppm was used to eliminate the matrix noise. Two labeled compounds were added to the final extract prior to injection to assess the recoveries of 12 internal standards (ISTDs). The recoveries of 6 PCN internal standards (ISTD 1–6 in Table 2) relative to 13C-labeled 1,2,3,4,5,7-hexachloro-naphthalene were calculated to be in the range of 28.9–81.6%. Recoveries of the Cl/Br-PAHs internal standards (ISTD 7–12) relative to 13C-labeled 7,12-dichlorobenz[a]anthracene were calculated to be in range of 18.9–80.3%. Figure 3b shows the extracted ions chromatograms of specific Cl/Br-PAHs in air samples. Figure 3c shows the chromatograms of specific PCNs homologs, indicating sufficient resolution and sensitivity of the GC/Q-TOF-MS method for the synchronization analysis of those trace pollutants containing multiple congeners. Further studies can be conducted on the development of simultaneous analysis of the widely concerned persistent organic pollutants of trace levels in the environment.

Fig. 3
figure 3

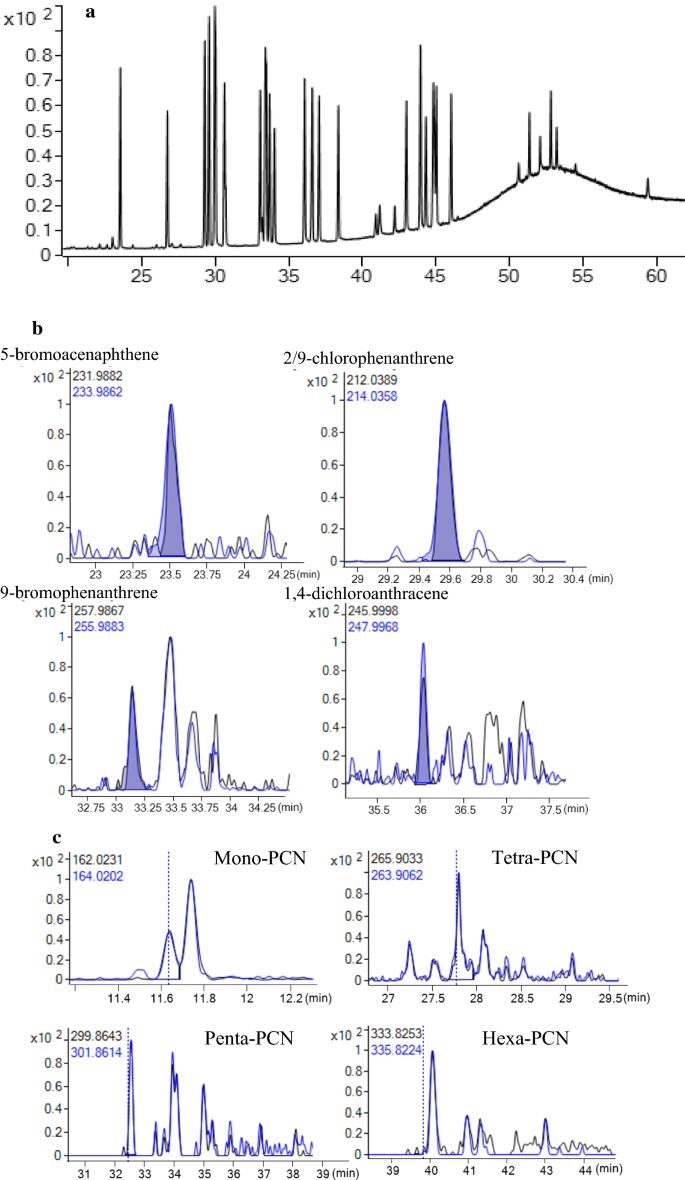

a Total ion chromatogram. b Extracted ion chromatograms of chlorinated and brominated polycyclic aromatic hydrocarbon standards. c Extracted ion chromatograms of specific polychlorinated naphthalene homologs in air samples

Full size image

The total concentration of the 13 chlorinated PAHs and 17 brominated PAHs (shown in Table 2) in air samples was 818.9 and 294.9 pg/m3, respectively. These levels are similar to those estimated previously in our laboratory by isotope dilution high-resolution gas chromatography and HRMS (987.4 pg/m3 for 13 chlorinated PAHs and 429.6 pg/m3 for 17 brominated PAHs) in air [49]. Concentrations of chlorinated PAHs were approximately three times higher than those of brominated PAHs, because chlorine levels are typically higher than bromine levels in the natural environment and in thermal-related activities. Monochlorinated anthracene was the most abundant congener, contributing 20%–50% of the total chlorinated PAHs in the samples, and its fractions were higher than those of dichlorinated or tetrachlorinated anthracene, indicating that chlorination may not be favored during the formation of the chlorinated compound. Less-chlorinated polychlorinated naphthalene congeners were dominant in the gas phase, while more highly chlorinated congeners dominated the particle phase. For example, 70% of 2-chloronaphthalene was in the gas phase. 54% of more highly chlorinated congeners (hexa- to octa-) existed in the particle phase. The phenomenon may be contributed by the physiochemical properties of Cl/Br-PAHs that highly halogenated congeners with lower vapor pressure tend to be absorbed into the particle phase.

Conclusions

Non-target screening of organic pollutants and simultaneous target detection of halogenated PAHs were achieved by GC/Q-TOF-MS and applied to the air samples collected surrounding metallurgical plants. Emerging pollutants of trace levels in the air including 8 polychlorinated naphthalenes (PCNs) and 30 higher cyclic halogenated PAHs as target compounds were accurately quantitated. In addition, 187 organic chemicals categorized as PAHs, alkylated polycyclic aromatic compounds (PACs), heterocyclic PACs, and aliphatic hydrocarbons in the air samples were identified by non-target screening. Some specific compounds such as phthalic acid esters, dimethylbenz[a]anthracene, which were of high toxicity and concentration, indicated the influence of industrial sources on the surrounding atmosphere. Hydroquinone with alkane substituents in the air was not reported previously, except for the known hematotoxicity and carcinogenicity, they may be critical intermediates and precursors of an emerging toxic pollutants in air—the environmentally persistent free radicals. The toxicological significance of these pollutants is often neglected in studies of airborne contaminants around industries and requires recognition.

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Abbreviations

PAHs:

Polycyclic aromatic hydrocarbons

GC/Q-TOF-MS:

High-resolution gas chromatography quadrupole time-of-flight mass spectrometry

PACs:

Polycyclic aromatic compounds

EPA:

Environmental Protection Agency

PCNs:

Polychlorinated naphthalenes

POPs:

Persistent organic pollutants

Cl/Br-PAHs:

Chlorinated and brominated PAH

GC-HRMS:

Gas chromatography coupled with magnetic sector high-resolution mass spectrometry

RRFs:

Relative response factors

References

  1. Keith LH (2014) The Source of U.S. EPA’s sixteen PAH priority pollutants. Polycyclic Aromat Compd 35:147–160

    Google Scholar

  2. Andersson JT, Achten C (2015) Time to say goodbye to the 16 EPA PAHs? toward an up-to-date use of PACs for environmental purposes. Polycycl Aromat Compd 35:330–354

    CAS  Google Scholar

  3. Liu G et al (2015) Identification of indicator congeners and evaluation of emission pattern of polychlorinated naphthalenes in industrial stack gas emissions by statistical analyses. Chemosphere 118:194–200

    CAS  Google Scholar

  4. Liu G et al (2012) Atmospheric emission of polychlorinated naphthalenes from iron ore sintering processes. Chemosphere 89:467–472

    CAS  Google Scholar

  5. Ohura T et al (2007) Aryl hydrocarbon receptor-mediated effects of chlorinated polycyclic aromatic hydrocarbons. Chem Res Toxicol 20:1237–1241

    CAS  Google Scholar

  6. Yang L et al (2019) Gas chromatography-Orbitrap mass spectrometry screening of organic chemicals in fly ash samples from industrial sources and implications for understanding the formation mechanisms of unintentional persistent organic pollutants. Sci Total Environ 664:107–115

    CAS  Google Scholar

  7. Ohura T et al (2008) Chlorinated polycyclic aromatic hydrocarbons in the atmosphere: seasonal levels, gas-particle partitioning, and origin. Environ Sci Technol 42:3296–3302

    CAS  Google Scholar

  8. Ohura T et al (2016) Local and seasonal variations in concentrations of chlorinated polycyclic aromatic hydrocarbons associated with particles in a Japanese megacity. J Hazard Mater 312:254–261

    CAS  Google Scholar

  9. Kakimoto K et al (2017) Size distribution of chlorinated polycyclic aromatic hydrocarbons in atmospheric particles. Arch Environ Con Tox 72:58–64

    CAS  Google Scholar

  10. Yang L et al (2017) Atmospheric occurrence and health risks of PCDD/Fs, polychlorinated biphenyls, and polychlorinated naphthalenes by air inhalation in metallurgical plants. Sci Total Environ 580:1146–1154

    CAS  Google Scholar

  11. Hu J et al (2013) Occupational exposure to polychlorinated dibenzo-p-dioxins and dibenzofurans, dioxin-like polychlorinated biphenyls, and polychlorinated naphthalenes in workplaces of secondary nonferrous metallurgical facilities in China. Environ Sci Technol 47:7773–7779

    CAS  Google Scholar

  12. Liu G et al (2013) Atmospheric emission of polychlorinated biphenyls from multiple industrial thermal processes. Chemosphere 90:2453–2460

    CAS  Google Scholar

  13. Liu G et al (2015) Field pilot study on emissions, formations and distributions of PCDD/Fs from cement kiln co-processing fly ash from municipal solid waste incinerations. J Hazard Mater 299:471–478

    CAS  Google Scholar

  14. Jin R et al (2017) Congener-specific determination of ultratrace levels of chlorinated and brominated polycyclic aromatic hydrocarbons in atmosphere and industrial stack gas by isotopic dilution gas chromatography/high resolution mass spectrometry method. J Chromatogr A 1509:114–122

    CAS  Google Scholar

  15. Liu GR et al (2010) Estimation and characterization of polychlorinated naphthalene emission from coking industries. Environ Sci Technol 44:8156–8161

    CAS  Google Scholar

  16. Xu SS et al (2006) Emission of polycyclic aromatic hydrocarbons in China. Environ Sci Technol 40:702–708

    CAS  Google Scholar

  17. Cheng H et al (2013) A comparison study of atmospheric polycyclic aromatic hydrocarbons in three Indian cities using PUF disk passive air samplers. Atmos Environ 73:16–21

    CAS  Google Scholar

  18. Marr LC et al (1999) Characterization of polycyclic aromatic hydrocarbons in motor vehicle fuels and exhaust emissions. Environ Sci Technol 33:3091–3099

    CAS  Google Scholar

  19. Jariyasopit N et al (2019) Polycyclic aromatic compounds in urban air and associated inhalation cancer risks: a case study targeting distinct source sectors. Environ Pollut 252:1882–1891

    CAS  Google Scholar

  20. Steinhauer MS et al (1992) The composition and distribution of saturated and aromatic hydrocarbons in nearshore sediments, river sediments, and coastal peat of the Alaskan Beaufort Sea: implications for detecting anthropogenic hydrocarbon inputs. Marine Environ Res 33:223–253

    CAS  Google Scholar

  21. Mahfouz MM et al (2019) PAH concentrations and exposure assessment from house dust retained in air-conditioning filters collected from Greater Doha, Qatar. Environ Geochem Health 41:2251–2263

    CAS  Google Scholar

  22. Fraser MP et al (1998) Air quality model evaluation data for organics. 5. C6-C22 nonpolar and semipolar aromatic compounds. Environ Sci Technol 32(12):1760–1770

    CAS  Google Scholar

  23. Weber R et al (2001) Formation of PCDF, PCDD, PCB, and PCN in de novo synthesis from PAH: mechanistic aspects and correlation to fluidized bed incinerators. Chemosphere 44:1429–1438

    CAS  Google Scholar

  24. Iino F et al (1999) De novo synthesis mechanism of polychlorinated dibenzofurans from polycyclic aromatic hydrocarbons and the characteristic isomers of polychlorinated naphthalenes. Environ Sci Technol 33:1038–1043

    CAS  Google Scholar

  25. Vendrame R et al (1999) Structure-activity relationship studies of carcinogenic activity of polycyclic aromatic hydrocarbons using calculated molecular descriptors with principal component analysis and neural network methods. J Chem Inf Comp Sci 39:1094–1104

    CAS  Google Scholar

  26. Zhang Q et al (2020) Phthalate exposure in Chinese homes and its association with household consumer products. Sci Total Environ 719:136965

    CAS  Google Scholar

  27. Risk assessment information System. https://rais.ornl.gov/index.html

  28. Keith LH, Telliard WA (1979) Priority pollutants I—a perspective view. Environ Sci Technol 13:416–423

    Google Scholar

  29. Liu X et al (2014) Occurrence of phthalic acid esters in source waters: a nationwide survey in China during the period of 2009–2012. Environ Pollut 184:262–270

    CAS  Google Scholar

  30. Kong S et al (2013) Spatial and temporal variation of phthalic acid esters (PAEs) in atmospheric PM10 and PM2.5 and the influence of ambient temperature in Tianjin, China. Atmos Environ 74:199–208

    CAS  Google Scholar

  31. Su H et al (2020) Using ambient mass spectrometry to explore the origins of phthalate contamination in a mass spectrometry laboratory. Anal Chim Acta 1105:128–138

    CAS  Google Scholar

  32. Lundstedt S et al (2007) Sources, fate, and toxic hazards of oxygenated polycyclic aromatic hydrocarbons (PAHs) at PAH-contaminated sites. Ambio 36:475–485

    CAS  Google Scholar

  33. Cho AK et al (2004) Determination of four quinones in diesel exhaust particles, SRM 1649a, and atmospheric PM2.5 special issue of aerosol science and technology on findings from the fine particulate matter supersites program. Aerosol Sci Technol 38:68–81

    CAS  Google Scholar

  34. Sidhu S et al (2005) Endocrine disrupting chemical emissions from combustion sources: diesel particulate emissions and domestic waste open burn emissions. Atmos Environ 39:801–811

    CAS  Google Scholar

  35. Akimoto Y et al (1997) Oxygenated polycyclic aromatic hydrocarbons from MSW incinerator fly ash. Chemosphere 34:263–273

    CAS  Google Scholar

  36. Suresh S et al (2012) Adsorption of catechol, resorcinol, hydroquinone, and their derivatives: a review. Int J Energy Environ Eng 3:1–19

    Google Scholar

  37. Enguita FJ, Leitao AL (2013) Hydroquinone: environmental pollution, toxicity, and microbial answers. Biomed Res Int 2013:542168

    Google Scholar

  38. Tyagi A et al (2018) Removal of toxic hydroquinone: comparative studies on use of iron impregnated granular activated carbon as an adsorbent and catalyst. Environ Eng Res 24:474–483

    Google Scholar

  39. Lai Y et al (2011) New evidence for toxicity of polybrominated diphenyl ethers: DNA adduct formation from quinone metabolites. Environ Sci Technol 45:10720–10727

    CAS  Google Scholar

  40. Dellinger B et al (2001) Role of free radicals in the toxicity of airborne fine particulate matter. Chem Res Toxicol 14:1371–1377

    CAS  Google Scholar

  41. Dellinger B et al (2007) Formation and stabilization of persistent free radicals. Proc Combust Inst 31:521–528

    Google Scholar

  42. Yang LL et al (2017) Highly elevated levels and particle-size distributions of environmentally persistent free radicals in haze-associated atmosphere. Environ Sci Technol 51:7936–7944

    CAS  Google Scholar

  43. Lubick N (2008) Persistent free radicals: discovery and mechanisms for health impacts. Environ Sci Technol 42:8178

    CAS  Google Scholar

  44. Kelley MA et al (2013) Model combustion-generated particulate matter containing persistent free radicals redox cycle to produce reactive oxygen species. Chem Res Toxicol 26:1862–1871

    CAS  Google Scholar

  45. Gehling W et al (2014) Hydroxyl radical generation from environmentally persistent free radicals (EPFRs) in PM2.5. Environ Sci Technol 48:4266–4272

    CAS  Google Scholar

  46. Gehling W, Dellinger B (2013) Environmentally persistent free radicals and their lifetimes in PM2.5. Environ Sci Technol 47:8172–8178

    CAS  Google Scholar

  47. Khachatryan L et al (2008) Formation of phenoxy and cyclopentadienyl radicals from the gas-phase pyrolysis of phenol. J Phys Chem A 112:481–487

    CAS  Google Scholar

  48. Truong H et al (2008) Mechanisms of molecular product and persistent radical formation from the pyrolysis of hydroquinone. Chemosphere 71:107–113

    CAS  Google Scholar

  49. Wiedmann T et al (1997) HRGC-MS of polychlorinated phenanthrenes (PCP), dibenzothiophenes (PCDT), dibenzothianthrenes (PCTA), and phenoxathiins (PCPT). Fresenius J Anal Chem 359:176–188

    CAS  Google Scholar

  50. Sinkkonen S et al (1991) Tetrachlorodibenzothiophenes and pentachlorodibenzothiophenes are formed in waste combustion. Chemosphere 23:583–587

    CAS  Google Scholar

  51. Jin R et al (2020) Chlorinated and brominated polycyclic aromatic hydrocarbons: sources, formation mechanisms, and occurrence in the environment. Prog Energy Combust Sci 76:100803

    Google Scholar

  52. Xu Y et al (2018) Chlorinated and brominated polycyclic aromatic hydrocarbons from metallurgical plants. Environ Sci Technol 52:7334–7342

    CAS  Google Scholar
