eDNA of zooplankton reveals the ecological community thresholds for key environmental factors in the Baiyangdian Lake aquatic ecosystem



The drastic change in an ecosystem as a threshold phenomenon caused by abrupt changes in environmental conditions is a focus of current ecological research. However, the study of ecological thresholds has generally been limited to estimating the threshold values of single factors. Using eDNA metabarcoding technology, we collected zooplankton data from Baiyangdian Lake, the largest freshwater lake in the North China Plain, to explore the zooplankton community distribution characteristics and the relevant environmental factors. We used Threshold Indicator Taxa Analysis (TITAN) to determine the thresholds of key environmental factors and to identify the factors influencing biological diversity.


By comparing previous studies, we found that the zooplankton community composition based on eDNA metabarcoding was similar to that based on morphological methods, and that the data could be used to estimate ecological thresholds and assess risk conditions. Temperature (T), electrical conductivity (EC), and turbidity were the major environmental factors affecting the zooplankton community structure. The composition and structure of zooplankton communities in rivers and lakes were significantly different due to the influence of specific environmental factors. The results of TITAN analysis showed that there were different indicator species for T and EC in rivers and lakes. The protection thresholds of zooplankton in rivers were T = 19.0 °C and EC = 795 μS/cm, whereas the protection thresholds of zooplankton in lakes were T = 14.3 °C and EC = 1920 μS/cm. The overall values for the Baiyangdian watershed were T = 15.5 °C and EC = 1073 μS/cm. Compared with the field monitoring results, approximately 50% of the water quality index values at the sampling points in the Baiyangdian watershed exceeded the negative response threshold, indicating that Baiyangdian Lake was disturbed.


The validity of eDNA technology in biodiversity analysis was confirmed by the zooplankton community data from Baiyangdian Lake. The ecological thresholds derived by combining eDNA technology with Threshold Indicator Taxa Analysis (TITAN) are beneficial to the biological conservation of the region.


Zooplankton are important for maintaining the richness and stability of the aquatic food web [1]. Zooplankton are sensitive to changes in the environment, and their community structure will be affected by changes in water temperature, pH, and other environmental factors. This sensitivity is conducive to the evaluation of environmental water quality, and thus zooplankton are often used as indicators in environmental monitoring [2,3,4,5,6]. In aquatic ecosystems, species are usually identified by traditional morphological methods. However, the rich diversity and complexity of zooplankton require researchers to have extensive identification experience and knowledge reserves; otherwise, there will be species identification errors. In addition, due to the small sizes of zooplankton individuals, the collection and identification process requires significant technical requirements. Therefore, the traditional methods have limitations in practical application. Environmental DNA (eDNA) refers to the method of directly extracting target gene fragments from environmental samples (e.g., soil, sediments, and water bodies) and using various molecular technologies for qualitative or quantitative analyses [7]. As a new biological identification method [8], eDNA metabarcoding technology has been widely used in research on plankton [9,10,11,12], fish [13] and other taxa to explore the structure and spatial changes of biological communities. Compared with traditional morphological methods, the advantages of eDNA metabarcoding technology are that eDNA sample collection is non-destructive and can be analyzed without naked eye observation. The methods can be used to detect and identify a wide range of species, including invasive species. In addition, the technology can better characterize biodiversity, evaluate endangered species, assess biomass, and measure species diversity. These advantages enable the use of eDNA technology to better understand the state of the entire ecosystem [14]. Takahara et al. [15] confirmed that the method can estimate species biomass in the natural environment more easily and quickly than traditional methods such as tagging and mark–recapture. It should be noted that in order to improve the accuracy of the eDNA macro-barcode technique, future research should also focus on collecting more field data and comparing the technique with other estimation methods. In addition, eDNA metabarcoding technology can be used to interpret the influence of environmental factors on the plankton community [16] and to estimate the ecological thresholds of environmental factors such as BOD5 and NH3-N [17].

An ecological threshold is defined as the limit of disturbance that an ecosystem can withstand before being altered or degraded to a different system. The concept was first proposed by May [18] in the 1970s. They defined a threshold as the breakpoint between two stable states of the system. The ecological threshold is a point or interval in which the ecosystem rapidly changes from one state to another, and the driving force for this change comes from small additional changes in one or more key ecological factors [19]. Different environmental factors have various ecological thresholds [20], and studying of the relationship between the two is crucial for protecting biodiversity and maintaining the stability of the ecosystem [21]. At present, studies on the threshold values of grasslands [22], lakes [21], rivers [23] and other ecosystems have been carried out. A large number of nonlinear statistical methods such as nonparametric analysis, Bayesian analysis, and piecewise regression analysis have been used to deduce the ecological thresholds of various environmental factors [24, 25]. Other studies have found that ecological genome methods based on genetic diversity can also be used to determine the ecological thresholds of factors and establish water quality standards, for example location-specific water quality standards (WQC) for ammonia in Taihu Basin [21]. In addition, Threshold Indicator Taxa Analysis (TITAN is regarded as an effective method of estimating an ecological threshold. This method was proposed by Baker and colleagues and features combining the two methods of inflection point analysis and indicator species analysis. The positive and negative response directions of indicator species to environmental disturbances are identified, and ecological thresholds of environmental factors are then derived [26, 27]. In recent years, TITAN methods have been widely used to study the responses of benthic organisms [26, 28] macroinvertebrates [29], zooplankton [30] and algae [31] to changes in different environmental factors.

Baiyangdian Lake (115°45–116°07E, 38°44–38°49N) is the largest natural freshwater lake in the North China Plain [32]. The water body of Baiyangdian Lake has undergone large changes throughout its history. After 2000, the environment was improved through water replenishment. The water quality was improved, and ecological functions were gradually restored [5, 33]. In order to reveal the impact of environmental factors on biodiversity change in the Baiyangdian watershed, this study used eDNA metabarcoding technology to analyze the biodiversity of zooplankton in the lake area; the results were then used to determine the thresholds of environmental factors and to characterize the status of water quality in this region. We hypothesized that (1) variation in environmental factors would lead to significant differences in community composition and distribution among different water types (rivers, lakes) or at different points in rivers; (2) when the environmental factors exceed the response thresholds, the zooplankton community structure will be disturbed to some extent.

Materials and methods

Field sampling

In April 2019, sample collection was carried out at 15 points of seven rivers entering Baiyangdian Lake (the Nanjuma River, the Ping River, the Nanbeipu River, the Cao River, the Fu River, the Tang River, and the Xiaoyi River) and at 15 points of Baiyangdian Lake (Fig. 1).

Fig. 1
figure 1

Sampling sites in the Baiyangdian Lake area

Three parallel surface water samples (20 L) were collected from each sampling site and were combined. The plankton nets (20 μm) were cleaned with sterile water and 60 L of surface water, and then used to collect zooplankton. After the plankton samples were diluted to 1 L in sterile water, they were further filtered through 142-mm-diameter and 5-m-aperture microporous membranes of filtration (BHLM, CHN). The filter membranes intercepted the plankton and were stored in a cryostat (liquid nitrogen) and transferred to a refrigerator at − 80 °C until DNA extraction. In addition, negative controls were set to avoid the unreliability of experimental results due to sample contamination and other factors.

Measurement of environmental variables

The index environmental factors measured from water samples included temperature (T), electrical conductivity (EC), dissolved oxygen (DO), pH, turbidity (Turb), oxidation–reduction potential (ORP), and chlorophyll a (Chl-a). In addition, Baiyangdian Lake is in a mild state of pollution according to the 2019 "Ecological Environment Condition Bulletin" issued by the Hebei provincial environmental protection department. The main water pollution index is chemical oxygen demand, and thus we used the potassium dichromate (K2Cr2O7) oxidation method to determine chemical oxygen demand (CODcr) as an environmental factor.

Specifically, water T, EC, pH, turbidity, and ORP were measured in situ by a multi-parameter water quality instrument probe (MYRON Company, USA), and DO and Chl-a were measured by a portable dissolved oxygen meter (HACH Company, USA) and a handheld fluorometer (Turner Designs, USA) for in situ determination. The CODcr was measured according to the 'Determination of Water Quality Chemical Oxygen Demand' method (HJ 828-2017).

Metabarcoding analysis of the zooplankton community

eDNA extraction, amplification, and sequencing

Before the total DNA of the zooplankton community was extracted, the samples were stored in 100 ml of 100% alcohol. Then, 10 mL was extracted from each sample and filtered using a 20-μm silk sieve. This procedure was repeated three times, and the samples were combined for total DNA extraction. Total DNA was extracted from zooplankton samples using a DNeasy Blood and Tissue Kit (Qiagen Canada Inc., ON, Canada) according to the manufacturer’s instructions. The concentration and mass of total DNA in the samples were determined using a UV spectrophotometer (NanoDrop, Thermo Fisher Scientific Inc., USA). The primers used in this study were 5-AGGGCAAKYCTGGTGCCAGC-3 (Uni18S) and 5-GRCGGTATCTRATCGYCTT-3 (Uni18SR) that were used to amplify the V4 region of nuclear small subunit ribosomal DNA (18S rDNA) of the zooplankton [34]. In order to construct a sequencing library from the 30 collected samples, this study added 8-base sequence tags (barcodes/tags) [35] that uniquely corresponded to the sample sites at the 5'- ends of the upstream and downstream primers, and PCR amplification was performed on the total DNA of each sample by using the primers with barcodes. PCR amplification was performed eight times for each sample site to avoid the influence of random biased amplification on community structure analysis. All PCR reactions were carried out with 15 μL of Phusion® High-Fidelity PCR Master Mix (New England Biolabs), 0.2 μM of forward and reverse primers, and about 10 ng of template DNA. Thermal cycling consisted of initial denaturation at 98 °C for 1 min followed by 30 cycles of denaturation at 98 °C for 10 s, annealing at 50 °C for 30 s, and elongation at 72 °C for 30 s followed by a final extension at 72 °C for 5 min. An equal volume of IX loading buffer (containing SYB Green) was combined with the with PCR products and subjected to electrophoresis on 2% agarose gels for detection. Eight PCR products from each sample site were combined in equal density ratios. The mixed PCR products were then purified using a Qiagen Gel Extraction Kit (Qiagen, Germany). Purified PCR products from the 30 zooplankton communities were then combined, and sequence libraries were generated using a TruSeq®DNA PCR-free sample preparation kit (Illumina, USA) following the manufacturer’s recommendations, and index codes were added. The library quality was assessed on the Qubit@2.0 Fluorometer (Thermo Scientific) and Agilent Bioanalyzer 2100 system. Finally, the library was sequenced on an Illumina NovaSeq platform, and 250-bp paired-end reads were generated.

Bioinformatic analysis

The UPARSE algorithm was used to analyze the raw data from the high-throughput sequencing results. First, data errors were filtered out; the criteria were (1) sequence tags or sequences with mismatched primers (python scripts, UPARSE), sequences containing N bases, sequences with Q scores (Phred scores) < 30, and those with a maximum expected error threshold less than 0.75. Secondly, the sequences were concatenated together. In order to avoid inconsistency in lengths of sequences, the process was repeated as necessary. The filtered and concatenated sequences were processed repeatedly to reduce the amount of subsequent data processing. Finally, a cluster analysis was carried out. In this study, the UPARSE-OTU algorithm was used to cluster the non-duplicated sequences based on 97% similarity, and OTUs along with the corresponding sequence information of each OTU were organized in an OTU table and subjected to blast comparison analysis. The BLASTn function embedded in Seed was used to conduct sequence alignment for all OTUs obtained based on the GenBank database, and the classification boundary element of each OTU was identified. The screening criteria for comparison results were an E value < 10–80, minimum query coverage > 80%, and similarity > 85%. OTUs the comparison results of which were vertebrates or algae were rejected and did not participate in subsequent analysis [34,35,36].

The operational taxonomic units (OTUs) clustering and species classification analysis were conducted based on valid data. Representative sequences of each OTU were annotated to obtain the corresponding species information and species-based abundance distributions, and the required zooplankton OTUs were screened. At the same time, the abundance and diversity of OTUs were calculated to obtain information on the richness and evenness of species in the samples as well as the common and specific OTUs among different groups.

Statistical analysis

Changes in the zooplankton community composition

To explore the richness and diversity of the zooplankton communities at the sampling points, alpha diversity indices were computed, and a rarefaction curve was drawn [37, 38]. The distribution characteristics of the zooplankton community in Baiyangdian Lake were obtained by non-metric multidimensional scaling (NMDS) sorting analysis, and a similarity analysis based on Bray–Curtis distance (ANOSIM) was used to test for differences in dominant taxa and to further explore the differences in community structure. NMDS and ANOSIM analyses were implemented by the software PRIMER 5.0 [39, 40]. In addition, a similarity analysis (SIMPER) was used to select the main OTUs contributing to community gradient changes [40]. The log(x + 1) transformation of environmental variables except for pH was performed for species relative abundance data to improve normality.

Community environment interaction analysis

Redundancy analysis (RDA) was used to analyze the relationships between zooplankton community structure and environmental factors. Before selecting redundancy analysis, we first conducted a detrended correspondence analysis (DCA) for the communities, and the results showed that the highest gradient of difference between the communities was less than 4, indicating that the zooplankton community and environmental variables showed a linear corresponding relationship; RDA was thus considered as more suitable to reflect the relationships between the zooplankton community and environmental factors. DCA and RDA were performed using CANOCO4.5 software [41, 42].

Ecological threshold analysis

The thresholds obtained in this study were calculated by the TITAN method [26]. TITAN monitors the response patterns of species with environmental pressure gradients. The performance of individual species with varying pressure changes is measured by the IndVal score, and the reliability of the calculated thresholds is tested by bootstrapping. The calculated fraction of each species to environmental pressure is finally summed to determine the response threshold of the community to pressure, and this is labeled as the sum-z. The log(x + 1) transformation of species abundance data was performed before data analysis to exclude species with a frequency less than 3 and thereby reduce the impact of rare species. After the initial mutation point of species was obtained by TITAN, the threshold and the reliability of the corresponding species were verified based on uncertainty (P < 0.05), purity (purity ≥ 0.95) and reliability (reliability ≥ 0.90). TITAN was conducted in R-3.6.2 software using the TITAN2 software package.


Zooplankton community composition

A total of 7,596,296 raw sequences (NCBI SRA No.: PRJNA984715) were obtained from the flux sequencing results for 30 sample communities. After quality filtering and algae and vertebrate sequence removal and screening, the final effective dataset retained a total of 5,875,456 sequences (accounting for 77.3% of the original sequence data). The rarefaction curve of samples tended to be flat, indicating that the sequencing depth was able to reflect the diversity of the zooplankton in the samples (Additional file 1: Fig. S1).

A total of 3553 OTUs were obtained, of which 1293 were special to Baiyangdian Lake and 1253 were special to Baiyangdian rivers, with 1007 common OTUs. Most zooplankton sequences in the water samples belonged to Rotifera and Arthropoda, accounting for 92.40%. The remaining sequences belonged to Mollusca, Annelida, Platyhelminthes, Nematoda, Apicomplexa, Bryozoa, and Gastrotricha (Additional file 1: Fig. S2).

Differences in zooplankton community composition

NMDS and ANOSIM analyses of the Baiyangdian watershed showed that there were significant differences in zooplankton communities between Baiyangdian lakes and rivers, and between different rivers (Fig. 2). In the β-diversity analysis, NMDS (stress < 0.05) showed a relatively clear separation of zooplankton communities in the Baiyangdian area. ANOSIM (R = 0.349, P < 0.01) confirmed that there were significant differences between lakes and rivers. Among different points in rivers, ANOSIM (R > 0, P = 0.024) confirmed that the difference between groups was greater than the difference within groups.

Fig. 2
figure 2

Analysis based on Bray–Curtis non-metric multidimensional scale (NMDS) sorting and similarity analysis (ANOSIM). The degree of difference is shown between lakes and rivers (a) and between different rivers (b)

The SIMPER similarity percentage analysis showed that the relative abundances of Brachionus calyciflorus and Eucyclops serrulatus in Baiyangdian Lake were much higher than in the inflow rivers, while the relative abundances of Thermocyclops sp. and Mesocyclops pehpeiensis in Baiyangdian Lake were lower than that in the inflow rivers. These groups contributed significantly to the variation among zooplankton communities (Table 1). The alpha diversity analysis showed that the species richness of zooplankton in Baiyangdian rivers was higher than in the lake (Additional file 1: Tables S1 and S2).

Table 1 Contributions of different species to the changes in communities analyzed by similarity percentage (SIMPER)

Relative abundances of 13 genera of zooplankton detected in Baiyangdian Lake exceeded 1% (Fig. 3). These were Brachionus, Thermocyclops, Eucyclops, Synchaeta, Cephalodella, Mesocyclops, Sinocalanus, Megacyclops, Filinia, Corbicula, Philodina, Cyclops, and Aeolosoma. In Baiyangdian Lake, the most abundant genera were Brachionus, Thermocyclops, Synchaeta, Cephalodella, Mesocyclops, and Megacyclops. Relative abundances of Brachionus, Thermocyclops, Eucyclops, Mesocyclops, Sinocalanus, Corbicula, Philodina and Aeolosoma were higher in inflow rivers.

Fig. 3
figure 3

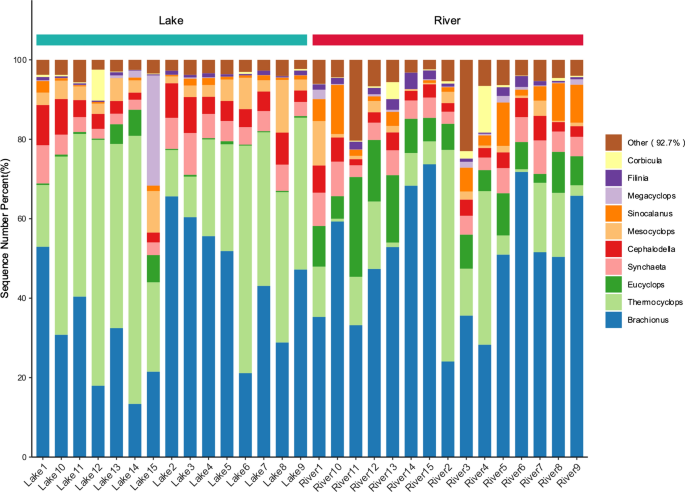

Zooplankton community composition at different sampling sites in the Baiyangdian watershed using relative abundance of different taxa at the genus level

Relationship between zooplankton community and environmental factors

DCA analysis of the zooplankton communities in the Baiyangdian watershed showed that the maximum values of the first four axes of the lengths of gradient were less than 3.0, and thus RDA could be used to assess the relationships between environmental factors and zooplankton communities at different sampling points. The RDA ranking diagram showed that the first two RDA axes accounted for 56.63% of the zooplankton community structure. Among the eight measured environmental variables, T, turbidity, and EC were significantly correlated with the difference in zooplankton communities in Baiyangdian Lake (Fig. 4a). The sampling points of the inflow rivers were mainly located in the first and fourth quadrants, and the communities were closely related to T, turbidity, and EC. The lake sampling points were largely distributed in the second quadrant, and the communities were closely related to ORP, DO, and CODcr. Environmental variables played an important role in the distribution of zooplankton communities (Fig. 4a). Species such as Mesocyclops pehpeiensis, Cyclops sp., Thermocyclops sp., Thermocyclops crassus, Itunella muelleri, Brachionus calyciflorus, Sinocalanus sinensis, Keratella quadrata, Physocypria cf., Lampsilis cardium, Aeolosoma sp., Macrocyclops albidus, Dero borellii, Eucyclops serrulatus, and Eucyclops speratus showed significant correlations with the above six environmental variables (Fig. 4b). In the RDA analysis of rivers, T, EC, and DO were significant environmental factors affecting community structure (Fig. 4c), and species such as Eucyclops serrulatus, Thermocyclops sp., and Brachionus calyciflorus were strongly affected by these factors (Fig. 4d).

Fig. 4
figure 4

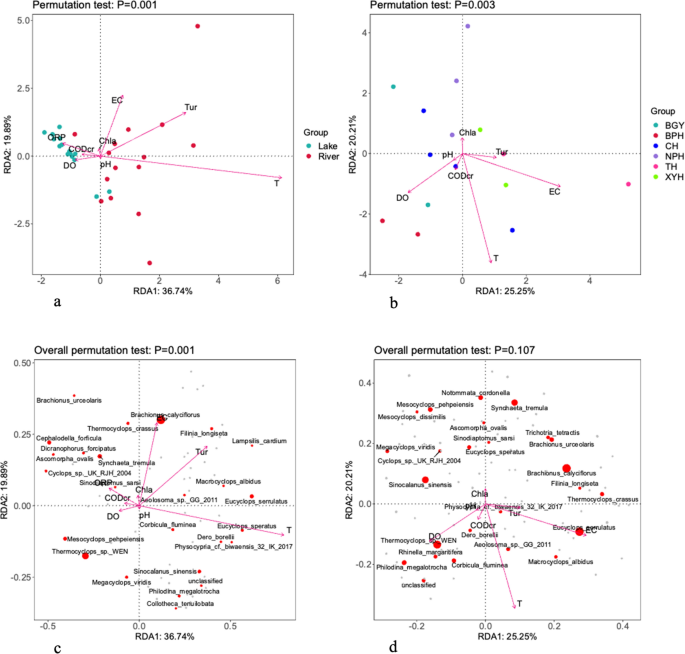

RDA analysis of sample–environment relationships a and species–environment relationships b between lakes and rivers. RDA analysis of sample–environment relationships c and species–environment relationships d between streams. P < 0.05 indicated that the variance was significantly indigenous, and each point represented a species. The larger the point was, the higher the corresponding species abundance was. The gray point represented the species with low abundance

Ecological thresholds of key environmental factors

Influencing factors for zooplankton

We explored the main environmental factors affecting zooplankton using RDA analysis. The changes in community structure reflected the effects of environmental variables on the relative abundances of species. The factors T, turbidity, and EC were significantly correlated with the distribution of zooplankton in the entire Baiyangdian basin. To investigate the mechanisms by which zooplankton responded to various environmental factors and their differences in rivers and the lake, we performed a Threshold Indicator Taxa Analysis (TITAN). Turbidity was not an environmental factor with a significant influence in the RDA analysis of rivers, and thus we did not apply turbidity in the subsequent comparative analysis.

Indicator species and thresholds of water quality indexes

The TITAN method was used to analyze the responses of zooplankton to T and EC, key environmental factors in the Baiyangdian watershed. The OTUs in Baiyangdian rivers were analyzed, and TITAN determined 27 OTUs as sum (z −) individual indicator taxa that decreased with increased temperature from 18.4 °C to 21.2 °C, while 11 OTUs were identified as sum (z +) taxa, indicating that individual taxa increased with temperature from 19.0 °C to 21.3 °C (Fig. 5, Table 2). Most OTU change points overlapped in the range of 18.4–21.2 °C. The screening of indicator species for T showed that with the increase of temperature, the maximum inflection point of sum (z −) taxa occurred at 19.0 °C, and the species that were good indicators included Synchaeta tremula, Brachionus calyciflorus, and Synchaeta pectinata. All three species occurred in all samples. The maximum inflection point of sum (z +) occurred at 21.1 °C, and Brachionus urceolaris was the main indicator species of this point. Similarly, in Baiyangdian Lake, Synchaeta tremula and Cyclops sp. were indicators for the T inflection point of sum (z −), and Megacyclops viridis and Eucyclops serrulatus were indicators for the sum (z +) point (Fig. 6, Table 2).

Fig. 5
figure 5

The T response curve (a), T indicator species (b), EC response curve (c), and EC indicator species (d) in Baiyangdian rivers identified by TITAN. z − , zooplankton negative response species; z + , zooplankton positive response species. In the indicator species figure (left), the size of circle indicates the response intensity of species. The black solid line and red dot represent the cumulative frequency distribution of sum (z −) and sum (z +), respectively.

Table 2 Community-level thresholds of zooplankton groups to T and EC based on TITAN
Fig. 6
figure 6

The T response curve (a), T indicator species (b), EC response curve (c), and EC indicator species (d) in Baiyangdian Lake identified by TITAN. z − , zooplankton negative response species; z + , zooplankton positive response species. In the indicator species figure (left), the size of circle indicates the response intensity of species. The black solid line and red dot represent the cumulative frequency distribution of sum (z −) and sum (z +), respectively.

TITAN determined 63 OTUs as sum (z−), indicating a classification group that decreased with EC in the range of 747–1603 μS/cm, while only six OTUs were determined as sum (z+), indicating increasing with EC in the range of 882.1–1864 μS/cm. Most OTU change points overlapped in the range of 747–1603 μS/cm. The screening of indicator species for EC via TITAN showed that with the increase of EC, the change point of sum (z−) was 795 μS/cm, and the species that were good indicators for this point were Fabaeformiscandona subacuta, Sinocalanus sinensis, and Diplogasteroides luxuriosae, while the change point of sum (z+) was 1928 μS/cm (Fig. 5, Table 2). Similarly, in Baiyangdian Lake, Sinocalanus sinensis and Synchaeta tremula were indicators of EC inflection point sum (z−), and Thermocyclops sp. was an indicator of sum (z+) (Fig. 6, Table 2).

Forty indicator species related to water temperature and 18 indicator species related to EC were screened out by TITAN (Fig. 7, Table 2). For the response of zooplankton to environmental variable T in Baiyangdian, nine water temperature-related indicator species were identified as sum (z −) indicator groups that decreased with increasing T between 14.8 °C and 21.0 °C, while 31 species were identified as sum (z +) indicator groups increasing with T ranging from 14.8 °C to 20.0 °C. The indicator species of T were screened, and sum (z −) reached the peak at 15.5 °C with the increase of temperature, and then decreased rapidly (Fig. 7). Cyclops sp. and Thermocyclops sp. were the best indicators of this point. There was no clear peak in the species with positive response to T, and the cumulative species fraction of sum (z +) remained stable above 18.0 °C and then decreased slightly, thus determining the community threshold level at 16.0 °C. Species that were good indicators for this point included Prodorylaimus sp., Lampsilis cardium, Physocypria cf., and Cypridopsis uenoi.

Fig. 7
figure 7

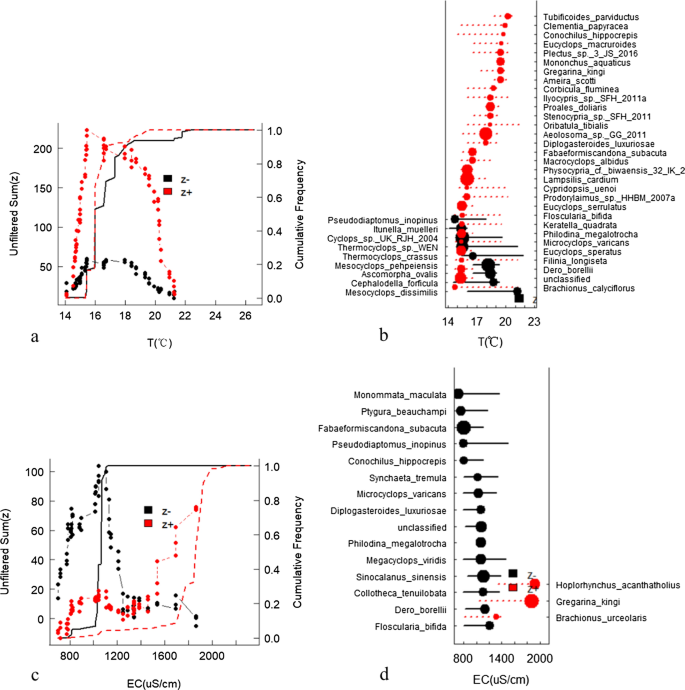

The T response curve (a), T indicator species (b), EC response curve (c), and EC indicator species (d) in the Baiyangdian watershed obtained by TITAN. z − , zooplankton negative response species; z + , zooplankton positive response species. In the indicator species figure (left), the size of circle indicates the response intensity of species. The black solid line and red dot represent the cumulative frequency distribution of sum (z −) and sum (z +), respectively.

By analyzing the response of zooplankton in the Baiyangdian basin to the environmental variable EC, TITAN identified 15 species as sum (z −) indicator groups that decreased with the increasing EC gradient ranging from 710 μS/cm to 1208 μS/cm, while three species were identified as sum (z +) indicator groups, with the EC gradient ranging from 1312 μS/cm to 1864 μS/cm. After screening the indicator species for EC, the maximum inflection point of sum (z −) occurred at 1073 μS/cm, and the species that had indicator effects on this point included Philodina megalotrocha, Megacyclops viridis, and Diplogasteroides luxuriosae. The maximum inflection point of sum (z +) occurred at 1864 μS/cm, and Brachionus urceolaris was the main indicator species of this point (Fig. 7, Table 2).


Effects of environmental factors on the zooplankton community distribution in the Baiyangdian watershed

Due to the difference in flow structure and the ecological environment between rivers and lakes, the physical and chemical properties of turbidity, water temperature, and DO will vary [43], and the different water conditions of lakes and rivers will also affect the structure of the zooplankton community [44]. The present study focused on a single area, as relatively few studies have considered the effects of the same ecosystem on the distribution of plankton under different water conditions. Therefore, studies of rivers and lakes in the same climate and geographical area taking into account their environmental characteristics and examining the response of zooplankton to environmental factors are of practical importance for ecosystem conservation. In previous studies of the Baiyangdian watershed, the dominant genus of copepods was Thermocyclops, and the dominant genus of rotifers was Brachionus [45]. This result was consistent with the results in this study, indicating that the dominant groups of zooplankton in the Baiyangdian area have changed little in recent years. However, the spatial variation of zooplankton in different regions of rivers and lakes was a result of environmental impacts. The different regional characteristics of the lakes and rivers in Baiyangdian affected the abundance of zooplankton. In this study, the relative abundances of Brachionus, Thermocyclops, Synchaeta, Cephalodella, Mesocyclops and Megacyclops in Baiyangdian Lake were higher, while Brachionus, Thermocyclops, Eucyclops, Mesocyclops, Sinocalanus, Corbicula, Philodina and Aeolosoma were the most abundant genera in the inflow rivers. This phenomenon indicated that in the same season and the same study area, rivers and lakes may have different biological distributions due to their intrinsic differences.

T, turbidity, and EC were identified as the main environmental factors that influenced the variation in the structure of zooplankton communities in the Baiyangdian watershed. Wang et al. [46] pointed out that zooplankton are highly sensitive to water temperature changes, a finding that was in accordance with our research results. In addition, it is also known that water temperature and EC are important environmental factors affecting the growth and abundance of phytoplankton, and thus can indirectly affect the community structure of zooplankton by directly acting on the phytoplankton. For example, Microcystis easily forms colonies, and some filamentous cyanobacteria have relatively large particle sizes, making them less easy to be preyed on, thereby affecting the growth of zooplankton [47]. In addition, there are few studies on the correlation between zooplankton community structure and turbidity. It has been speculated that the abundance of zooplankton in Baranagua Bay being extremely high may be due to the fact that the "maximum turbidity area" around the bay hinders the movement of zooplankton and aggregates the zooplankton in the high turbidity area [48]. Other studies have shown that summer turbidity in the Bohai Sea is higher than winter turbidity, resulting in a more significant correlation between zooplankton abundance and summer turbidity. Researchers have speculated that the contribution of zooplankton density to turbidity in the study area is more significant, and the abundance of zooplankton in summer is much higher than in winter, hence the contribution to turbidity is higher, resulting in a more significant correlation of zooplankton with turbidity [49]. Therefore, the reason for the significant influence of turbidity as a factor in this study could be that seasonality affects zooplankton density, resulting in an enhanced correlation between organisms and turbidity.

Indicator species and environmental thresholds

Screening of indicator species is important for analyzing the relationships between biological populations and the environment as well as for environmental monitoring and management. At present, there are no studies on indicator species in the Baiyangdian watershed. In this study, the TITAN analysis of zooplankton communities was performed based on environmental DNA technology. More than 80% of the indicator groups were in a strong indicator state for significant environmental factors, confirming the efficient indicator properties of zooplankton. The threshold of the water quality index in Baiyangdian watershed was analyzed using the TITAN method. When the water quality index exceeds the negative response threshold, the community structure of zooplankton begins to be disturbed, indicating a decrease in the density of sensitive species. When the water quality index exceeds the positive response threshold, some resistant species also reach the tolerance limit and begin to decline. The structure of the zooplankton community will then change significantly. Therefore, the negative response threshold can be used as the minimum value to trigger a change in the zooplankton community, and the positive response threshold can be regarded as the tolerance limit value of the zooplankton community [19, 50]. By comparing the number and distribution characteristics of zooplankton species in rivers and lakes in the Baiyangdian watershed, we found that the biodiversity was highest in areas (rivers) with high temperature and low electrical conductivity. The results suggested that the decrease in temperature and the increase in electrical conductivity reduced the frequency of zooplankton-sensitive species. Comparing different water quality index thresholds with the field sampling data, we found that the water quality index values of more than 56.7% of the sampling points in the Baiyangdian watershed exceeded the negative response threshold for temperature, and 53.3% of the sampling points exceeded the corresponding positive response threshold. In addition, 46.7% of the sampling points exceeded the corresponding negative threshold for electrical conductivity, and 6.7% of the sampling points exceeded the positive response threshold.

The community thresholds of T and EC were analyzed in different regions of the Baiyangdian watershed. Among the species indicated by the EC of the river, the period of gradual change in the range of the species composition due to the increase of the EC was the factor that led to the greatest change in the community structure. The negative response for EC reached a peak at 795 μS/cm and then decreased sharply. The community threshold of most positive response species was within 1100 μS/cm, and the upper limit threshold sum (z +) was much higher than this (1928 μS/cm). Therefore, the community thresholds for tolerant species were inconsistent. The negative response species to EC in the lake decreased sharply at 920 μS/cm, and no clear peak was observed for the tolerant species. The cumulative species fraction (z +) increased by about 500 μS/cm and remained stable above the value of 1350 μS/cm, then showed a slight decrease, thus determining the threshold level of tolerant species at 1363 μS/cm. The temperature-sensitive species in the river decreased sharply after reaching the peak at 19.0 °C, and the temperature-tolerant species decreased slightly after 21.0 °C; the community threshold of temperature-tolerant species was therefore determined. In lakes, due to the gradual change in the species composition caused by the increase in T, there was no overlap in the change points of many species with similar concentrations, and thus it was impossible to propose indicator species for the change points of T.

At present, most studies generally focus on the derivation of the nutrient threshold. There have been few studies on the ecological thresholds for other water quality indicators using the TITAN method. Richards et al. [29] used the TITAN method to analyze stream invertebrates in Idaho. The temperature change point for macroinvertebrates decreasing with the increase of temperature was about 20.5 °C, a value that was similar to our threshold results; however, the temperature change point of groups that increased with the increase of temperature was about 11.5 °C, far lower than our results. Schröder et al. [31] used TITAN to describe the changes in the macroinvertebrate community composition between 800 and 1000 μS/cm and obtained the community threshold levels of sensitive species (EC = 926 μS/cm) and tolerant species (EC = 1416 μS/cm). This was similar to our results. We may conclude that the differences in threshold values between studies may arise from variation in environmental factors and the distribution of biological groups in the study area. In addition, differences in environmental factors such as water bodies can affect the threshold derivation results. It should be noted that EC is highly susceptible to pollutants, and thus 1073 μS/cm can only be used as a reference value for EC biological protection in the Baiyangdian watershed. Specific analysis should also be combined with the results of nearby areas and laboratory toxicology tests.

In the present study, we also found that there were some differences in the indicator species for the ecological thresholds of the water quality indicators in different regions. Different indicator species have been analyzed and compared to the dominant genera in the Baiyangdian area. Brachionus calyciflorus and Synchaeta pectinata were widely distributed and had high frequencies of occurrence, and thus could be used as negative response indicator species of river regional temperature. Sinocalanus sinensis could be used as a negative response indicator species of regional river EC, while Synchaeta tremula could be used as an indicator species of regional lake T. Sinocalanus sinensis could be used as indicator species of regional lake EC. Among the EC indicator species in Baiyangdian Lake, the negative response species Collotheca tenuilobata, Floscularia bifida, and Synchaeta tremula and the positive response species Brachionus urceolaris had the highest occurrence frequencies, while the other indicator species occurred at relatively low frequencies. Among the change points corresponding to the indicator species of the EC, only one species was above the positive response threshold for EC, while the others were basically between the positive and negative response thresholds. This indicated that when the EC concentration in the water exceeded 1864 μS/cm, although only a small number of species would show changes in density, most zooplankton will have exceeded the EC tolerance limit, and the zooplankton community would not produce a significant threshold response. In addition, although the EC indicator species Monommata_maculata, Ptygura_beauchampi and Gregarina_kingi appeared less frequently, they were highly indicative, emphasizing that the determination of an EC threshold cannot ignore the influence of rare species. The sum (z −) for T reached a peak at 15.5 °C with the increase of temperature, and then decreased rapidly. The species that were good indicators for this point included Cyclops sp. and Thermocyclops sp. There was no clear peak in the species with positive response to T, and the cumulative species fraction sum (z +) remained stable above 18.0 °C and then decreased slightly, thereby determining the threshold level of tolerant species as 16.0 °C. The negative response species Cyclops sp., Thermocyclops sp., Thermocyclops crassus, Mesocyclops pehpeiensis, Ascomorpha ovalis, Cephalodella forficula and the positive response species Brachionus calyciflorus, Dero borellii, Eucyclops speratus, Filinia longiseta, Eucyclops serrulatus and Floscularia bifida appeared in all samples. Pseudodiaptomus inopinus, Mesocyclops dissimilis, Philodina megalotrocha, Microcyclops varicans, Keratella quadrata, Macrocyclops albidus, Corbicula fluminea and Conochilus hippocrepis were among the species with relatively high occurrence. The occurrence of indicator species was less than 38% in all samples. The data showed that the threshold of T was 15.5 °C, and the threshold of EC was 1073 μS/cm. This means that 50.0% of the sensitive species could be protected when T was less than 15.5 °C, and 65.8% of the sensitive species could be protected when EC was less than 1073 μS/cm.


In this study, we combined eDNA metabarcoding technology and the TITAN method to explore the response relationships between zooplankton communities and environmental factors in the Baiyangdian watershed and to determine the relevant ecological thresholds. Through comparison with previous studies, we found that the community composition of zooplankton based on eDNA metabarcoding technology was similar to that based on morphological methods. Under the influence of environmental factors, the community structure in different regions (rivers and lakes) was significantly different. The TITAN method identified positive and negative response relationships between indicator species and environmental factors, and the data could be used to emphasize different ecological thresholds. At the same time, the threshold values for different environmental factors varied among research areas. Therefore, we believe that the thresholds derived by combining eDNA technology and the TITAN method are significant for regional protection.
