Spring waters as an indicator of nitrate and pesticide pollution of rural watercourses from nonpoint sources: results of repeated monitoring campaigns since the early 2000s in the low mountain landscape of Saarland, Germany

Abstract

Background

Spring waters, which are fed mainly by near-surface groundwater, provide a comprehensive picture of emissions of nitrate and other pollutants caused by the type and intensity of land use in the topographic catchment area. One aim of this study was to develop a model for predicting the contribution of nonpoint-source inputs to the nitrate load of small- and medium-sized watercourses based on the type of agricultural use in the catchment areas.

Methods

Fifty-five springs in the German Land Saarland and the adjacent Rhineland-Palatinate were monitored for pollutants during three monitoring periods of at least 12 months between 2000 and 2019. The catchment areas are representative of the natural regions in the study area and are outside the influence of settlements and other developments. In addition to nitrate and other physicochemical parameters, 25 agriculturally impacted springs were screened for pesticides and their metabolites.

Results

Since the first measurements were taken in 2000, the vast majority of agriculturally impacted springs have consistently exhibited high nitrate concentrations of between 20 and 40 mg/L NO3. Springs not influenced by agriculture contained an average of 3.6 mg/L nitrate. The extreme values observed in the early 2000s decreased to the limit value of 50 mg/L, but most of the springs with moderate levels exhibited an increase to approximately 30 mg/L. The number of pesticidal agents detected in the spring waters demonstrated a clear correlation with the watershed’s amount of arable land and the nitrate content detected. Moreover, we found a highly significant correlation between nitrate content and the share of cropland in the catchment area. From this, we derived a regression model that could be used to quantify the share of nitrate pollution attributable to nonpoint-source inputs for larger catchments in the region under investigation.

Conclusion

Nitrate discharged from farmland has not decreased since the European Water Framework Directive (EU WFD) entered into force. At the historically extremely heavily polluted sites, measures have been implemented that have led to compliance with the limit value of the Nitrate Directive. However, below this limit, nitrate levels have increased significantly almost everywhere in the last two decades. We therefore recommend introducing stricter requirements for official water pollution control, such as the marine ecological target value.

Introduction and objectives

Springs are natural conduits through which groundwater flows from aquifers into surface water bodies. They are considered the starting point for watercourses and, depending on their hydrological–morphological characteristics, provide diverse habitats for aquatic and amphibious plants and animals [1, 2]. The chemical composition of spring water provides an approximation of the pollutant load of the body of groundwater that feeds it. Indicators and trends of the pollution level of the groundwater can therefore be demonstrated using longer-term monitoring programs at springs [3]. Of particular importance are springs that are predominantly fed by interflow, which is the groundwater near the surface in the upper soil horizons [4]. The degree of pollution in the water from these springs is largely determined by the emission of substances stemming from the respective forms of usage and management in the topographic catchment areas. Depending on the geological parent substrate and pedological conditions, residues of pesticides or fertilizers, for example, are retained to varying degrees or flushed out of the soil and discharged into surface waters via springs.

Nitrate is a significant pollutant in surface waters and groundwater; in the case of an oversupply in catchment areas, excess nitrate leads to aquatic eutrophication and the associated consequences. It is discharged into bodies of water from both point sources and nonpoint sources [5,6,7]. Nonpoint-source inputs of fertilizers leached from farmland or atmospheric deposition dominate outside of settlements and industrial areas [7, 8]. The geological baseline situation, the resulting soil properties and groundwater dynamics as well as the variability of precipitation modify the transport of nitrate into surface waters [9].

Nitrate dynamics in landscape ecosystems are essentially characterized by an interplay of release during the mineralization of organic matter, dissolution and transport by soil water, and uptake by plant organisms during the build-up of biomass [10, 11]. In addition, denitrification processes take place in the anaerobic environment, forming N2O and/or N2 as gaseous end products. Ideal conditions for these reduction processes are found in the soil of wetland meadows, swamps and bogs, as well as in the sediment body of slow-flowing or impounded stretches of water [6, 12]. Denitrification also occurs in groundwater in the presence of appropriate electron donors. Nitrate retention by uptake in plant biomass depends on site and seasonal growth conditions. In agroecosystems, the dominant factor is the type and intensity of cultivation [13]. Thus, permanent pastures show a much higher retention, especially through nitrogen uptake by vegetation, than arable land, which routinely releases nitrate after harvest [14]. Here, the natural nitrogen cycle is more influenced by the N supply through fertilization and the N removal through harvesting or mowing of grasslands.

In surface waters, significant nitrate retention, both by denitrification in the hyporheic sediment zone and by uptake into biomass by riparian vegetation and phytoplankton, occurs only in slow-flowing or impounded water body sections [15, 16]. Such conditions are found in lowland waters, on larger rivers and in impounded sections above dams. On smaller low mountain streams, which are the subject of the present study, these areas are very rare [17].

Particularly in areas with large-scale, intensive agricultural use and soils with low water retention capacities, agricultural inputs constitute the most significant component of pollution. In addition to the geogenically or pedogenically related nitrate retention capacity, the type of agricultural use also plays an important role. For example, agricultural land that is managed according to the rules of organic farming exhibits significantly lower leaching rates across the entire crop rotation than conventionally cultivated areas [18].

To reduce nitrate pollution in surface waters, various limit values, environmental quality standards and target values have been set in the past by administrations at the European, national and regional levels. The European Water Framework Directive (EU WFD) elucidates a limit value of 50 mg/L of annual average concentration for compliance in terms of the good chemical status of surface waters, as does the corresponding national implementation legislation in Germany [19, 20]. In addition, to protect coastal waters and oceans, "maximum annual inland nitrogen concentrations" have been identified as marine ecological target values for water resource management in Germany [21, 22]. For the low mountain regions, this value is 3.2 mg/L TN (total nitrogen), which corresponds to a maximum value of 14.2 mg/L nitrate (NO3). While the limit value of the EU WFD derives from a process of negotiation between the scientifically based minimization requirement and what is economically and politically feasible, the marine ecology target value is based on large-scale modeling calculations of the ecological carrying capacity of the seas.

Regular measurements of the pollutant load of watercourses within the context of official water resource management are generally taken at monitoring sites along the middle and lower reaches. This enables the summary recording of all pollution parameters for the subcatchment concerned. However, nitrate enters surface waters from very different point and nonpoint sources. Point sources of anthropogenic nitrate are primarily runoff from urban and industrial wastewater. In addition to atmospheric inputs and unregulated infiltration from improperly sealed sewers, diffuse sources primarily include inputs from an oversupply of fertilizers on agricultural land [7, 23]. Therefore, a differentiated consideration of individual sources of pollution on the basis of the measurements at the catchment’s area outlet is possible only to a limited extent.

At present, there are great difficulties in quantifying the contribution of agriculture to nitrate pollution at a measuring point of official water monitoring. Physical or conceptual material flow models are usually used for this purpose [24,25,26]. These are based on a large number of input parameters, which are available at different spatial resolutions in the study areas concerned. Consequently, the accuracy of the results is strongly dependent on the area size and the degree of aggregation of the input parameters. The models were initially developed for larger river basins and provide sufficiently accurate estimates for this purpose. For smaller river basins, the quantitative significance is generally more difficult since the basic data are not available with the corresponding spatial accuracy.

The pollutant emitters can be identified even more clearly by monitoring springs and headwaters with a detailed recording of the forms of use in their catchment areas [13, 14]. In the absence of settlements, commercial areas and major transport routes, elevated nitrate levels are usually due to the type and intensity of agricultural use [27, 28].

Several studies have already been conducted in recent decades to determine nitrate pollution and nitrate dynamics in spring waters [3, 29,30,31,32,33,34]. These are primarily springs with consistently high discharge and are often located in karst areas. In addition, the influence of agricultural use on nitrate levels has also been demonstrated in smaller springs with low, often variable, flow rates [9, 35,36,37]. However, most of these studies were conducted in areas with partially semiarid climates. The arable land there was usually extremely heavily fertilized and irrigated, which led to increased nitrate leaching. Systematic studies of the pollution status of smaller headwater streams and springs in temperate agricultural landscapes are currently scarce.

Field studies with the aid of lysimeters also demonstrate the close relationship between dissolved nitrate in the soil moisture of agricultural fields and the concentration in the spring water of the corresponding catchment area [38]. Whereas such soil moisture samples can provide only spatially limited data that are representative of the field from which they are collected, spring waters integrate the diverse uses throughout the catchment area. As forest and grassland areas discharge comparatively low levels of nitrate [39], we can assume that the percentage of cropland in the spring catchment area is a decisive metric of the nitrate content of agriculturally impacted springs.

If such a relation can be demonstrated for a large number of spring waters, even with different types of arable land use as well as different crops, a regression and prediction model can be derived from this. Based on the proportion of arable land in the catchment area of any given water body in the region of interest, this model makes it possible to quantify the proportion of nitrate content that is attributable to diffuse sources and, in particular, to agriculture. This will enable quantitative statements to be made for the first time on nitrate discharge from agriculturally influenced areas without having to carry out costly lysimeter investigations. Since the forecasts are based on actual measured values from the region concerned, it can be assumed that they are considerably more accurate than the results of catchment-related modeling calculations currently used to estimate diffuse nutrient inputs. As a basis, a representative number of springs must be investigated in the processing area over at least one annual cycle. Point-source inputs of nitrate, e.g., from urban wastewater, are to be excluded in the spring catchment areas. If the correlation between the proportion of arable land in the different spring watersheds and the nitrate content in the respective spring water is correspondingly high and significant, a quantitative estimation can be made with adequate accuracy using the regression model. The spring catchment areas and the catchment areas of the forecast waters should have similarities in terms of the initial geo-ecological situation (e.g., climate, altitude, slope) and type of agricultural use. In principle, the model could be applied in any other region with a balanced, temperate climate regime in low mountain landscapes with a clearly recognizable agricultural influence.

A central objective of the present study was to develop approaches for such a forecast model. Extensive investigations of spring waters in an agriculturally dominated low mountain range landscape from a total of three measuring periods over almost two decades served as a basis. The findings can be used to quantify the contribution of different emitters (point and nonpoint sources) to the nitrate loads at the surface water monitoring sites and thus facilitate the derivation of targeted measures that can be used to reduce them.

Against this background, nitrate concentrations at 55 springs in Saarland and adjacent Rhineland-Palatinate were monitored in three study periods since the early 2000s. The most recent and third monitoring phase lasted from October 2017 to April 2019. In terms of area, the sampling sites are evenly distributed within the principal geological units dominating the study area. Sampling was conducted at monthly intervals, which provided a sufficiently accurate picture of the pollution profiles of the springs compared to time-consuming continuous measurements [39]. From 2000 to 2001, the measurement network was established and successively expanded. A first complete measurement period over 12 months was carried out in 2002. From July 2010 to July 2011, a second monthly sampling over 12 months was carried out at the same sites. It was already possible to identify a close correlation between the degree of arable land use and the nitrate content of the spring water at that time [37, 38]. However, no clear trend in nitrate concentration ratios was identified from one monitoring period to another.

Another stress factor for headwaters and springs is pesticides and their degradation products [40]. They usually follow similar input pathways as nitrate and are closely linked to the intensity of agricultural use in the catchment. To date, few studies are known that address the co-occurrence of nitrate and pesticidal substances in springs as a function of land use. Therefore, during the last study period, spring water samples were also analyzed for pesticides and their metabolites.

The current study summarizes the results of the three measurement periods. Since the current and last monitoring campaign dealt with supplementary topics on the geo-ecological background of the pollution of the spring waters, it is considered in more detail. In addition to the central objective, the development of a prognostic model for the nitrate load from diffuse sources, the following questions are to be answered:

  • What is the current nitrate pollution of springs with an agriculturally dominated catchment area? How do the values compare with limit values and target values or with the pollution levels of forest springs largely unaffected by agriculture?

  • Can any differences or trends from the last measurement campaign be identified with respect to pollution levels during 2002 or 2011–2012 and, if so, to what can these be attributed?

  • How clear is the relationship between nitrate pollution and the intensity of agricultural usage, and are there any differences between the three monitoring periods? Can this be used to develop a forecast model for estimating the contribution of nonpoint-source inputs to the nitrate load of a surface water body?

  • Is there evidence of the role of interflow in nitrate inputs to surface waters?

  • To what extent are the springs in the study also contaminated with plant protection products (PPPs)? Is the pattern of pollution with pesticidal agents similar to that of nitrate?

To answer these questions, in addition to the new monthly monitoring campaign, spring water samples were also analyzed for pesticides and their transformation products. In addition, further measuring facilities were installed to sample the near-surface groundwater in the vicinity of selected springs.

Methodology

Study area

The study was conducted at 55 springs in Saarland and the adjacent Rhineland-Palatinate (southwest Germany). All surface waters drain to the Rhine via the Saar, Moselle and Nahe Rivers.

The low mountain landscape of the study area is characterized by a varied relief that is dominated by the prominent scarps of the Upper Muschelkalk (Middle Triassic) and the Upper Bunter sandstone (Lower Triassic) [41], particularly in the southeast and west. Between these, the zones of the Middle Bunter sandstone and the Middle and Lower Muschelkalk form extensive plains and gentle slopes. The central part is dominated by Carboniferous and Permian (Rotliegend) sediments and individual Permian volcanic rocks, which form an irregular hilly relief. In the north, the Devonian metamorphic rocks of the Hunsrück mountain range, an offshoot of the Rhenish Slate Mountains, form the highest elevations and steep ridges with elevations ranging from 160 m above sea level in the lower Saar valley to over 650 m above sea level in the Hunsrück range.

The sampling sites in Muschelkalk are located in the Bliesgau region in southeastern Saarland and northwestern Saar–Mosel–Gau. On gentle slopes and in smaller valleys of the Gau landscapes, Eutric Cambisols and Luvisols create relatively favorable conditions for agricultural use, while the soils on the steep slopes of the stratified levels are less fertile. Four of the ten springs studied in the Muschelkalk were slightly influenced by agriculture, with an agricultural area < 25% of the catchment area.

Most of the springs that were sampled in the Bunter sandstone (Lower Triassic) are located in the southeastern part of Saarland and belong to the "Saarbrücken-Kirkeler Wald" region, while three of them are located in the northwest in the foothills of the Hunsrück range. The predominant soils in the catchment areas are Eutric and Dystric Cambisols with low cation exchange capacities (CECs), low water retention capacities and low buffering capacities. Because the Bunter sandstone areas are typically used for forestry and woodland, only three of the sites were classified as open land springs (agricultural area > 25%).

The springs in the central and eastern parts of the Rotliegend (Lower Permian) stratigraphic unit were primarily characterized by Cambisols and Luvisols on sandy to clayey substrata. Three of the Rotliegend springs are located in zones of clay-rich, acidic cambisols derived from Permian volcanic rocks. The fertility of the soils is very heterogeneous and depends on the relief and the geochemical baseline condition of the respective petrographic subzone. Four of the 14 springs in the Rotliegend are considered to be largely unaffected by agriculture, with agricultural land use at < 1% and forest cover at > 95%. In eight springs, this share was well above 25%, although only three catchment areas with an agricultural predominance of > 80% could be characterized as genuine agricultural springs.

The Carboniferous zone in Saarland is predominantly characterized by forest and settlement areas ("Saarkohlenwald"). The parent rock consists of siltstones, argillites, sandstones, quartzitic shales and outcropping coal seams, which primarily generate Dystric Cambisols, Stagnic/Gleyic Luvisols and Dystric Gleysols. The five Carboniferous springs with catchment areas in which agriculture accounts for more than 50% of land use are located in zones with loamier soils on the northern edge of the Saarkohlenwald region.

The parent rock of the northern catchment areas in the Hunsrück foothills is dominated by Devonian acidic quartzites (Taunus quartzite) and slates. The waters of the southernmost locations are also influenced by the rocks of the Bunter sandstone. The predominant soils, Dystric Cambisols, Dystric and Lithic Leptosols, have low water retention capacities, low CECs and low buffering capacities. All catchment areas in the Devonian zone are more than 95% forested.

The climate in the study area is temperate oceanic and characterized by mild temperatures and a balanced annual cycle of precipitation with a slight maximum during the winter period. An annual mean temperature of 9.0 °C and an annual total precipitation of 1031 mm were the multiyear averages for the normal period from 1981 to 2010 at the Tholey station in the central area of Saarland [42].

The weather pattern during the three monitoring periods generally deviated from the multiyear average. While the first year of the study (2002), with a total precipitation of 1281 mm, was clearly wetter than the multiyear mean (24% higher), the other two monitoring periods were slightly drier (see Table 1). In terms of average annual temperatures, 2018 was 11 °C, or 2° above the multiyear average. Across Germany, it was considered the warmest year since weather records began. The other two monitoring periods, however, were only slightly warmer than the average in the study area, + 0.8° (2002) and + 0.4° (2011–2012). Prolonged periods of low precipitation combined with prolonged high temperatures led to extreme dry spells in the summer and autumn of 2018.

Table 1 Annual total precipitation (p) and mean temperature (T) of three monitoring periods in comparison with the long-term average (Tholey weather station, German Weather Service)

The 55 springs included in the study are, for the most part, evenly distributed over the most important geological units in Saarland (see Fig. 1). In terms of topography, geology and land use structure, they can be considered representative of the rural parts of the study area. The designation of the sampling sites was based on the initial letter of name of the respective main lithological/geological unit (German).

Fig. 1
figure 1

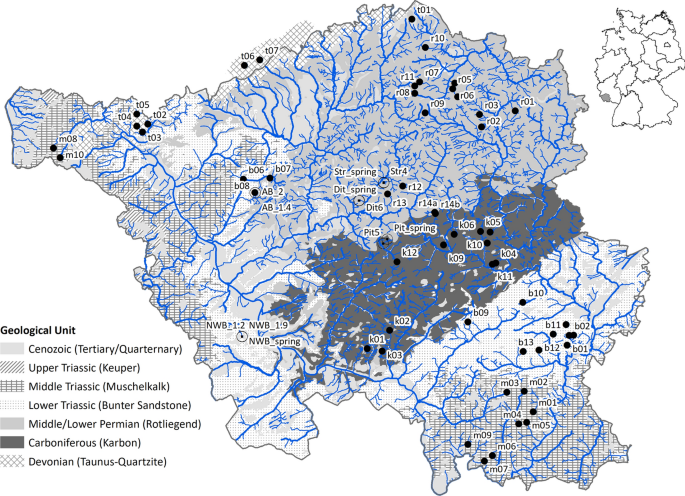

Location of the sampling sites in the main geological units of Saarland (dots = springs; circles = piezometers)

All springs are located outside the influence of settlements, commercial areas and wastewater discharges. The sampling sites exhibit very different degrees of development, ranging from near-natural seepage springs to spring outcrops restructured as wells. Some springs in agricultural lands also partially tap into cropland drainages. The morphological structure, naturalness, and bulk flow characteristics were documented for each sampling site to identify potential effects on the chemical composition of the spring waters. Our previous studies have shown that the nitrate content is largely unaffected by the structural characteristics of the spring [37,38,39]; therefore, no further consideration of this parameter is presented below.

Land use in the spring catchment areas

The catchment areas of the sampling sites were delineated using a geoinformation system based on a digital terrain model (DGM5) of the State Office for Geoinformation and Land Development (LVGL, grid spacing 12.5 m, dated 2010). The results were validated and corrected using topographic data and field observations. Initially, aggregated usage-based object classes from the ATKIS (Authoritative Topographic-Cartographic Information System—dated 2010) data of the LVGL served as the basis for mapping land use within the catchment areas delineated in this way [43]. The delineation of each type of land use was verified using digital infrared orthophotos (dated 2012) and then remapped in the field. A comparison of the mapping from the three monitoring periods did not reveal any significant changes in the proportions of land use types in the spring catchment areas over the past two decades.

Farmland accounted for more than 25% of the topographic catchment areas for 22 of the 55 springs studied. The shares of grasslands, croplands and total agricultural area for these springs are shown in Table 2. Four other springs were only slightly influenced by agriculture, which accounted for between 10 and 15% of the land use. All other sites were largely unaffected by agriculture, with agricultural land use at < 5%. The areas of the 55 topographic spring catchments ranged from 1.3 to 92 ha. Approximately half of the catchment areas were smaller than 10 ha. These smaller catchment areas occurred primarily in the Bunter sandstone (Lower Triassic), Rotliegend (Lower Permian) and Carboniferous.

Table 2 Median values of selected physicochemical parameters and land use of 22 springs influenced by agriculture

The croplands in the catchment areas studied are predominantly used for the cultivation of cereals, maize and rape. Root crops or specialty crops are not represented. The croplands and grasslands are regularly treated with organic and mineral fertilizers at varying intensities according to the fertilizer regulations in force in Germany.

Sampling and analysis

Monitoring of spring waters

The first spring monitoring phase began in 2000 with monthly sampling that focused on forest springs. As the program progressed, the monitoring network was modified and steadily expanded to the main geological units in Saarland. The resulting monitoring network of 55 springs was first studied in 2002 with monthly sampling over the course of an entire year. An initial follow-up investigation was conducted between July 2010 and June 2011. The third and final monitoring period began in October 2017 (until April 2019). The 12-month comparator period for the other two monitoring periods was from the beginning until the end of 2018.

Although some springs had been deformed during the course of nearly two decades since the beginning of the first sampling program and therefore had to be replaced by other monitoring sites, 50 of the original 55 sites were still available for a multiyear comparison.

Monthly sampling involved collecting a grab sample from the open channel bed immediately downstream from the spring's outcrop. The pH, electrical conductivity, dissolved oxygen, and temperature were measured using a hand-held meter (WTW MultiLine Multi 3430) immediately after sampling in the field. The samples were filled into PE bottles and kept refrigerated at 4 °C for further analysis in the laboratory. Ammonium and nitrate ions were analyzed within 24 h after sampling in accordance with DIN 38405 [44]. Reserve samples were deep-frozen at − 20 °C for any subsequent measurements. A check was carried out for internal quality control by adding a standard to each series of measurements for selected samples.

DIN 38405-29 [45] served as the basis for the nitrate measurement. Samples were mixed with the Merck "Spectroquant®" nitrate test and measured by a UV/VIS spectrophotometer at 340 nm. The limit of determination specified by the manufacturer was 4.4 mg/L nitrate. Ammonium was measured photometrically according to DIN 38,406 [46] using a spectrophotometer at 690 nm. The Merck ammonium test from the "Spectroquant®" product range was used. The limit of determination specified by the manufacturer was 0.06 mg/L ammonium.

For averaging and further evaluation, all values below the limit of determination were set to half the limit of determination according to the recommended procedures for water monitoring in Germany [20].

Near-surface groundwater—piezometers

In addition to the monitoring sites at the springs, piezometers were installed at selected sites for sampling the near-surface groundwater to differentiate the lateral and vertical transport paths of the discharged nitrate. The piezometers are stainless steel tubes (diameter approx. 30 mm) with a closed tip at the lower ends, which allowed them to be driven into the ground. A filter section with longitudinal slots (length 78 mm, slot width 0.35 mm) above the tip allows the infiltration of soil moisture or groundwater. The piezometers were installed at different depths in the colluvial area of the depth contour below the selected springs. Samples were collected by pumping out the infiltrated water at monthly intervals.

The aim of the study was to randomly determine possible differences in infiltration behavior as a function of the geogenic substrate. Sampling sites for this purpose were initially selected in the Rotliegend (Lower Permian), which plays an important role in terms of area in central Saarland. The soils in this zone are mostly sandy loam, with some silty clays, and they have medium water retention capacities. In contrast, two additional sites were identified in the area of sandy, permeable soils in the Bunter Sandstone (Lower Triassic). The locations of the piezometers are shown in Fig. 1.

A total of 11 sampling events were conducted at the Rotliegend sites from February to December 2020. As it has been demonstrated that the nitrate contents of the groundwater samples fluctuate very little over the course of the year, the monitoring sites in the Bunter sandstone, which were not installed until December 2020, were sampled only three times up to and including April 2021. Grab samples were collected from the springs upgradient of the piezometers at the same time that the piezometers were sampled.

The water samples were poured into PE bottles using a procedure similar to the protocol used for sampling at the springs and kept chilled at 4 °C. They were then filtered and analyzed for nitrate content according to the procedure described above.

Plant protection products

In 2019, water samples from 25 spring sites in the monitoring program that were heavily impacted by agriculture were analyzed for their levels of pesticides and the associated degradation products. The samples were collected in April, June and October. Among the sampled springs were three forest springs (percentage of agricultural land < 5%), which served as potentially uncontaminated reference sites.

The grab samples were collected manually on each occasion. The unfiltered water was bottled in brown glass bottles and then stored in a cooler. The samples were subjected to an unbroken cold chain at 4 °C from the time of collection until analysis. The Speyer Agricultural Investigation and Research Institute (LUFA) analyzed the water samples for a total of 251 organic substances using a procedure analogous to that used in an earlier study on pesticides in headwaters [46]. This included not only pesticides and their metabolites but also other organic micropollutants, such as drug residues and biocides. The analysis was performed by LC–MS/MS (liquid chromatography with tandem mass spectrometry coupling) in accordance with DIN 38407-36 [47].

Results

Physicochemical characterization of the agriculturally impacted springs

In addition to potential contamination, the pH, oxygen content, water temperature (T) and temperature amplitude over the course of the year (ΔT) as well as the electrical conductivity (EC) are essential for the geo-ecological characterization of spring waters. A total of 55 springs were studied between 2002 and 2018. Twenty-two springs with farmland accounting for more than 25% of land use were considered potentially influenced by agriculture. Table 2 lists selected physicochemical parameters from the 2018 monitoring period.

The pH values of the spring waters influenced by agriculture were in the neutral range, i.e., between 6 and 8, and therefore did not exhibit any extreme values. Consistent with the lithology of the catchment areas, all the sites in the Muschelkalk and two springs each in the Rotliegend and the Bunter sandstone exhibited rather basic conditions, while all other spring waters were slightly acidic on average. The springs in Muschelkalk exhibited significantly higher conductivity values than almost all the other sites; this result was due to the high solubility of the minerals of the carbonate parent rock.

With the exception of a single heavily modified site (b06), the mean oxygen contents were well above the critical range of 3 mg/L for fish and many other aquatic organisms. However, the orientation value for good ecological status according to the German Surface Water Ordinance [20] of 8 mg/L was undercut by the annual average at seven locations and at least once over the course of the year at 13 locations.

The correlations of selected physicochemical parameters using the correlation matrix in Table 3 demonstrated a clear correlation of nitrate concentrations with the shares of farmland and cropland. In contrast, electrical conductivity (EC) exhibited a much weaker correlation with farmlands and croplands (r < 0.5). The low correlation coefficient of r = 0.29 between NO3 and EC indicated that EC was likely dominated more by the solubility of the components of the geogenic parent substrate and other material inputs than by nitrate. The weak positive correlation of ammonium values with temperature amplitude ΔT and the weak negative correlation with oxygen content (O2 median and O2 min) indicated the influence of surface runoff at some springs. Springs with elevated amounts of surface runoff, relative to groundwater and interflow, exhibited greater temperature amplitudes over the course of the year. Increased temperatures lead to lower oxygen levels during the summer months. This was indicated by the negative correlation of ΔT and O2 min. The relationship to NH4+ suggested that ammonium enters predominantly via surface runoff, for example, at livestock watering sites or from freshly fertilized land. Such relationships were found at springs r14a, r14b, and m02 (see Table 2). However, more than half of the agriculturally impacted springs exhibited very low ammonium levels (< 0.1 mg/L) at significantly elevated NO3 concentrations. As expected, the principal component of nitrogen inputs was nitrate, which entered surface waters primarily via interflow.

Table 3 Correlation matrix between selected parameters based on Pearson's correlation coefficient r

Interflow and groundwater

To determine the seepage and transport behavior of the near-surface groundwater, piezometers were installed at seven springs in the Rotliegend and in the Bunter sandstone and added to the monitoring sites in the program. In several random samples, the nitrate content of the springs and groundwater were measured at depths of approximately 1 m and 2 m. While the springs in areas where the predominant use was cropland exhibited elevated nitrate concentrations, as expected (11–33 mg/L in the Rotliegend and 47.5 mg/L and 59.8 mg/L in the Bunter sandstone), these concentrations were significantly reduced in the near-surface groundwater samples (see Table 4). At a depth of approximately 2 m, approximately 20% of the concentrations of the spring samples were still detected at the Bunter sandstone locations, while significantly lower values were detected in the upper horizons at depths of 1.2–1.4 (see Table 5).

Table 4 Nitrate concentration (mean) in piezometers and springs in Rotliegend/Lower Permian (numbers in sample ID indicate the sampling depth in m; 0 = spring)
Table 5 Nitrate concentration (mean) in piezometers and springs in the Bunter sandstone/Lower Triassic (numbers in sample ID indicate the sampling depth in m; 0 = spring)

The piezometer samples from the Rotliegend consistently exhibited nitrate concentrations of < 2 mg/L, whereby the values at a depth of 1 m were regularly somewhat higher than those at 2 m. This result demonstrates that in both the clayey-loamy soils of the Rotliegend and the sandy sites, the vertical transport of nitrate via infiltration was negligible in terms of quantity. The elevated nitrate concentrations of the piezometer samples from sites ba and bb at a depth of 2 m indicated that there was a connection to the respective groundwater body in both areas. The pollution levels in both areas were clearly evident at approximately 10 mg/L. There was no such groundwater body in the Rotliegend, which means that elevated nitrate levels were not detected even at greater depths.

Nitrate levels in spring waters from 2002 to 2018

The focal point of this study was nitrate pollution in springs with an agricultural catchment area (agricultural area ≥ 25%). The measured nitrate concentrations at these 22 springs were, for the most part, clearly above 10 mg/L for all three measuring periods (see Fig. 2). An exception was site b06, which could be considered largely uncontaminated, with nitrate levels below 5 mg/L. The share of agricultural usage in the catchment area here was only 25% and consisted exclusively of permanent grassland. In addition, there was a 100 m wide area of forest and field copses between the grassland area and the spring outcrop; this could further reduce the relatively low discharge of nitrates expected from the grassland area.

Fig. 2
figure 2

Nitrate content of 22 springs influenced by agriculture (median and standard deviation of 12 monthly measurements) and average of all forest springs; comparison of three measurement periods (dark blue = 2002; light blue = 201120–12; red = 2018; dotted line = target value 14.2 mg/L; dotted line = Nitrate Directive threshold 50 mg/L)

All other springs under agricultural influence exhibited mean nitrate concentrations that were, at times, significantly greater than 10 mg/L (median from 12 monthly measurements). The marine ecology target value of 14.2 mg/L was exceeded at all springs during at least one of the three monitoring periods. Nitrate levels greater than 30 mg/L were detected at ten springs during at least one monitoring period. The annual average at three springs exceeded the 50-mg/L limit value from the Nitrate Directive.

A comparison of the mean nitrate levels (medians) for the three monitoring periods revealed no clear trend for 2002, 2011–2012 and 2018. On the one hand, nitrate levels from the three springs, m08, m10, and k10, which had peak nitrate levels greater than 70 mg/L in 2002, leveled off relatively consistently to approximately 50 mg/L in 2011–2012 and 2018. On the other hand, a trend toward increasing nitrate levels was observed in numerous springs with moderate pollution levels. The limit values from the Nitrate Directive were exceeded in individual measurements at these springs; however, the mean and median values over 12 months were significantly lower.

In particular, the springs in Rotliegend (r01–r14), with mean nitrate concentrations between 25 and 40 mg/L over the two decades considered, exhibited no improvement. In some cases, a significant increase in nitrate pollution was observed between 2002 and 2018. The reason for this was likely the intensification of agricultural use and the lack of regulatory requirements for nitrate emissions below the legal limit. At the three springs with peak values that had exceeded the limit value of 50 mg/L in the past, appropriate measures had apparently been implemented to reduce emissions to the permissible level.

Nitrate in springs without agricultural influence

To determine the background pollution that could not be attributed to the influence of agriculture, the monitoring program also included springs with predominantly forested catchment areas (forest share > 95%). Agricultural land use accounted for < 1% of usage in the catchment areas of 24 springs; these springs could therefore be classified as being largely unaffected by agriculture.

Figure 3 shows the mean nitrate concentrations for the three monitoring periods and the medians of all measurements at the individual sites. The vast majority of these springs had consistently low nitrate levels of well below 10 mg/L. The determination limit for the analytical method was consistently undershot in 13 springs during 2018. Individual outliers, such as t04, t05, b12 and k12, were due to silvicultural activities such as clearing and/or the deposition of cuttings. The area around k01 was also strongly influenced by the activities of the former coal mining industry. In addition to local fills and excavations, there were large-scale clearings and accumulations of residual wood.

Fig. 3
figure 3

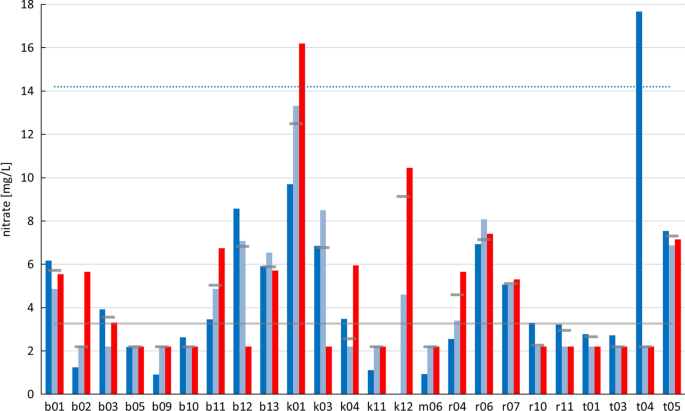

Nitrate content of springs outside agricultural influence (farmland < 1%); median of 12 monthly measurements (dark blue = 2002; light blue = 2011–12; red = 2018; dotted line = target value 14.2 mg/L; short gray lines = median of 3 periods; gray line = median of all values)

The median of all measured values from the three periods was 3.26 mg/L (N = 769; see gray line in Fig. 3). The mean nitrate values from the three monitoring periods for the 24 forest springs (2002: 3.45 mg/L; 2011–12: 2.2 mg/L; 2018: 2.75 mg/L) are shown as comparison values in Fig. 2. Taking into account the ± 2.3 mg/L measurement inaccuracy of the analytical method specified by the manufacturer, this results in a mean concentration of 5.6 mg/L nitrate as the threshold value for anthropogenic pollution in the study area. Nitrate levels that are clearly above this level therefore indicate increased anthropogenic inputs.

Seasonality of the nitrate content in the three monitoring periods

Due to its high degree of solubility, the release of nitrate from the soils of agricultural areas into spring waters depends, to a large extent, on the hydroclimatic conditions during the periods under consideration. During the growth phase, vegetation can absorb and thus retain a major part of the nitrate, even during heavier precipitation. Retention decreases sharply after the harvest and toward the end of the growing season in autumn, and the nitrate in the soil, which is released from fertilizer residues and now increasingly from decomposed, dead plant parts, can be freely washed out with the seepage. Considerable pollution peaks can be expected after longer dry phases during late summer and autumn.

The three monitoring periods exhibited clear differences with regard to precipitation and temperature conditions. While annual precipitation for the 2011–2012 and 2018 periods was slightly below the multiyear average for the 1981–2010 normal period, it exceeded the average by more than one-fifth in 2002 (see Table 1). The annual average temperatures for the first two periods were only slightly above the multiyear average. However, at almost 2 °C above the multiyear mean, 2018 was significantly warmer than the other monitoring periods.

Differences in the monthly precipitation conditions over the course of the year were also observed (see bars in Fig. 4). The highest amounts of precipitation generally occurred during the winter months for all three periods. However, the maximum for 2002 was in February, and the values for October and November clearly exceeded those of December and January. During 2011–2012 and 2018, however, a much drier autumn was followed by maximums in December and January. The 2011–2012 phase was also characterized by a summer with relatively high precipitation.

Fig. 4
figure 4

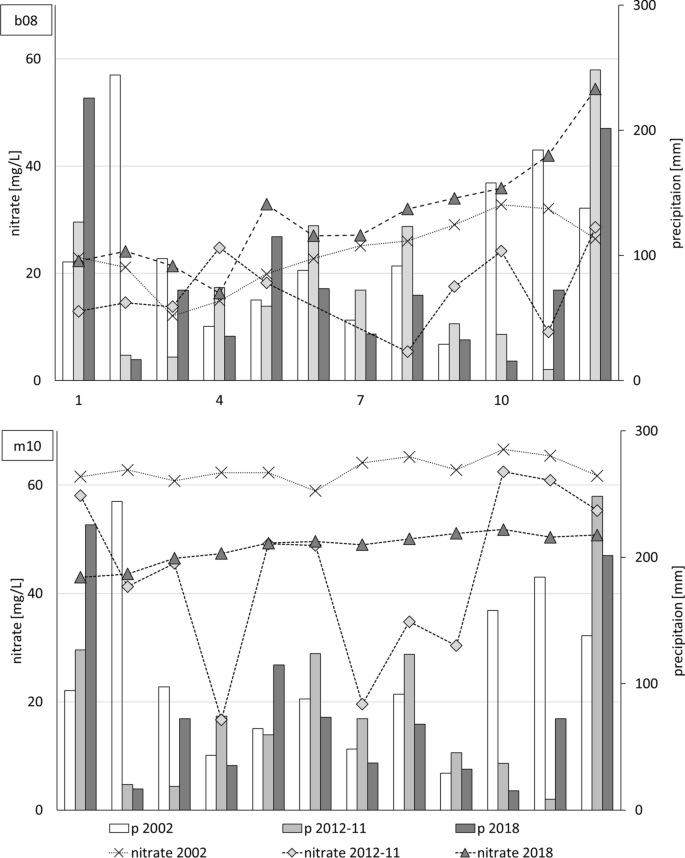

Nitrate content during the course of the year for two exemplary springs with monthly precipitation p

To compare the trend of nitrate contents for the three monitoring periods during the course of the year, the monthly measured values were presented along with the monthly precipitation totals. Figure 4 shows the annual trends of nitrate concentrations for two representative springs along with the monthly precipitation totals. As the measurements for the 2011–2012 period were taken between July 2011 and June 2012, the monthly data for the two 6-month periods, 2/2011 and 1/2012, were presented in reverse order for better comparability with the other monitoring periods. Thus, the period begins with January 2012 and ends with December 2011 and is referred to as the 2012–2011 period for this review.

Nitrate pollution was relatively uniform without major peaks over the course of the year for the 2002 and 2018 monitoring periods at both sites, with the minimum in spring (March–April) and a continuous increase from May to August to the maximum in autumn/winter (beginning in October). This trend was largely in parallel with the monthly precipitation levels. At Bunter sandstone site b08, this was much more pronounced during 2018, which was a very warm, dry year, than in 2002, which was a wet year. At this site, the temporary maximums and minimums followed the precipitation curve somewhat, but there was some interference due to retention by vegetation during the growth phase (March–April), fertilization (increase May–June) and leaching after harvest (beginning in August). Heavy precipitation was less noticeable during the growing season (June) than in autumn/winter. At site m08, however, with the exception of the period from 2012 to 2011, a very uniform course of nitrate pollution was observed. This result can be interpreted as a consequence of the different nitrate retention capacities of the two catchment areas. The predominantly sandy substrate in the Bunter sandstone at b08 had a good percolation capacity and a low retention capacity, whereby free nitrate in the soil solution, which came from fertilizer applications or the decomposition of biomass, was discharged without delay to the spring via interflow during precipitation events. The clayey soils with shell limestone had greater water retention capacities and could retain significantly larger amounts of nitrate. With a well-equilibrated water balance and an existing nitrate surplus, leaching here was relatively continuous. The strong fluctuations at site b08 during the 2012–2011 monitoring period were explained by the intermittent drying up of the spring during the summer months.

Dependence of nitrate content on land use

The relationships between nitrate levels and some selected metrics have already been discussed above for the 2018 monitoring period. The strongest dependence was on the type of agricultural land use. There was a highly significant positive correlation with the share of cropland in the catchment area in the spring (r = 0.88; p < 0.01). Grassland usage, however, had a much lower impact on nitrate emissions in the catchment area. The correlation between the share of grassland and the mean nitrate concentration in the spring water was only slightly positive, with r = 0.24, and not significant (p = 0.07) (see Fig. 5). This result demonstrates that the highest nitrate emissions came from croplands, whereas grassland usage tended to have a neutral or even reducing effect on water pollution through dilution.

Fig. 5
figure 5

Correlation of nitrate content and share of cropland (A) and grassland (B) in catchment areas of 55 springs in the 2018 monitoring period

A comparison of the 50 springs for which measured values were available from all three monitoring periods revealed a highly significant correlation between the nitrate content and the share of cropland (p < 0.01). Figure 6 shows the regression lines for the three monitoring periods. The correlation coefficient increased slightly from 2002 (r = 0.82) to 2011–2012 and 2018 (r = 0.87). When considering only those springs with a significant agricultural influence in terms of area (agricultural area > 25%), the 2002 and 2018 correlation was highly significant, and that of 2011–2012 was significant (p < 0.05). Again, the significance of the correlation increased from 2002 to 2018.

Fig. 6
figure 6

Correlation of nitrate content (median) and share of cropland in the catchment areas of 50 springs for three monitoring periods (circles/solid line = 2018, ×/dotted line = 2011–20112, +/dashed line = 2002)

A comparison of the regression lines for the three monitoring periods in Fig. 6 shows a very similar trend with almost the same slope. This correlation could be used to develop a regression model that estimated the mean nitrate concentrations attributable to nonpoint-source inputs, particularly from agriculture, based on the share of cropland in the catchment area.

Using the 150 median values of the 12 monthly measurements from the three periods, a coefficient of determination of R2 = 0.72 yielded a regression coefficient of m = 43.7 and a y-intercept b of 5.7.

The corresponding regression equation for predicting the potential nitrate content as a function of the share of cropland is as follows:

$${C}_{\text{nps}}{\text{ NO}}_{3}^{-} \, \text{in catchment} \, i = 5.7 + 43.7 * {P}_{\text{CL}} \, \text{in catchment} \, i,$$

where Cnps is the predicted nitrate content in the watercourse caused by nonpoint sources in the selected catchment area i, and PCL represents the share of cropland in the selected catchment area i in terms of area.

As already shown above, the investigated spring catchment areas are considered to be representative in terms of topography, geology and land use structure for the rural regions of Saarland. Springs dominated by forest or grassland as well as sites with predominantly cropland areas were included. The relatively low nitrate emissions from the forest and grassland areas were included as a constant in the regression model via the y-axis intercept. Thus, the determined concentration Cnps at monitoring site i of any watercourse in the study area represents the amount that is not caused by settlements or other point sources. Consequently, the share of point-source inputs can be estimated by taking the difference between the measured nitrate concentration at monitoring site i and the predicted value Cnps of the regression model:

$${C}_{\text{ps}}{\text{ NO}}_{3}^{-} \, \text{in catchment} \, i={C}_{\text{m}}{ {\text{NO}}}_{3}^{-} - {C}_{\text{nps}}{\text{ NO}}_{3}^{-} \, \text{in catchment} \, i,$$

where Cps represents the nitrate content attributable to point-source inputs to catchment area i, and Cm indicates the measured nitrate concentration at the outlet of catchment area i.

Thus, the nitrate concentrations measured at the outlet of catchment area i could be used to estimate the nitrate content attributable to point sources on the basis of the areal share of cropland in the catchment area:

$${C}_{\text{ps}}{\text{ NO}}_{3}^{-} \, \text{in catchment} \, i={C}_{\text{m}}{\text{ NO}}_{3}^{-} - 5.7 + 43.7 * {P}_{\text{CL}} \, \text{in catchment} \, i.$$

The regression model assumes a close correlation between concentrations and areal proportions of the land use types in the catchment area. If reliable runoff values are available at the outlet of the catchment area, they can also be used to quantify the components of the nitrate load, each of which originates from point and nonpoint sources.

The constant 5.7 (y-axis intercept) and the factor 43.7 (regression coefficient) were determined on the basis of the monitoring of 50 representative spring catchments presented here. Thus, the model in its present form can be applied to any rural stream within the study area "Saarland".

In principle, the application in other areas of the world with similar geo-ecological conditions (low mountain range landscape, temperate climate, etc.) is also possible. For this purpose, at least 12 months of nitrate monitoring at representative spring catchments outside the influence of point sources as well as a recording of the proportion of arable land in the spring catchment areas are required. Assuming a significant correlation between nitrate content and proportion of arable land, a specific regression model with a particular regression coefficient m and y-axis intercept b can be established on the basis of the measured data for the respective study area.

Analogous to the procedure described above for the study area presented here, a predictive model can be derived that allows quantification of nitrate levels from point sources at a monitoring site in any given watershed. The corresponding general function is:

$${C}_{\text{ps}}{\text{ NO}}_{3}^{-} \, \text{in catchment} \, i={C}_{\text{m}}{\text{ NO}}_{3}^{-} - {b}_{\text{sa}} + {m}_{\text{sa}} * {P}_{\text{CL}} \, \text{in catchment} \, i.$$

As above, Cnps is the nitrate concentration to be estimated from point sources, Cm is the measured nitrate concentration at the area outlet of catchment i, and PCL indicates the areal percentage of cropland in catchment i. From the regression model described above, bsa (y-axis intercept) and msa (regression coefficient) are calculated as specific quantities for the study area.

Pesticide contamination and nitrate levels

Pesticides are another pollution factor that can impair the ecological quality of surface waters at their source; therefore, water samples from 25 springs in the monitoring program that were characterized as predominantly agricultural were analyzed for pesticide content and the content of pesticide degradation products. The samples were collected in April, June and October 2019. Among the sampled springs were three forest springs (percentage of agricultural land < 5%), which served as potentially uncontaminated reference sites (m01, b06).

A total of 26 pesticides and metabolites were detected. Atrazine, which has been banned in Germany since 1991 and in the EU since 2003, and its degradation product desethylatrazine were detected at four sites. However, the concentrations were below the limit values or orientation values of the surface water and drinking water ordinances. Notably, the neonicotinoid insecticide clothianidin was detected in one spring (m08) during sampling in April 2019. As of February 2019, the application of this insecticide is no longer permitted. Atrazine was also detected at this site, and spring exhibited the highest nitrate pollution of the entire study.

Figure 7 shows the number of pesticidal agents detected along with the mean nitrate levels in 2018. A comparison of pesticide occurrences with nitrate contamination demonstrates a highly significant correlation between the number of detected substances and nitrate contamination (r = 0.77; p < 0.01). The number of pesticides detected was also highly significantly positively correlated with the share of cropland (r = 0.64; p < 0.01). In particular, the first relationship mentioned indicated a clear link between the intensity of conventional agricultural usage and water pollution. The absence of detected pesticides at sites m03 and k09, which each had nitrate levels of approximately 20 mg/L with an agricultural land share of > 85%, confirmed the influence of management practices on emissions. Grasslands were dominant at k09, particularly in the immediate vicinity of the spring, while the cropland and grassland areas at m03 were managed according to the principles of organic farming.

Fig. 7
figure 7

2018 concentrations of nitrate and pesticides (including transformation products) in selected springs in 2019 (blue = nitrate median of 12 monthly measurements; red = number of detected pesticides)

Discussion

This study demonstrated that systematic monitoring of springs in settlement-free areas could be used to map the influence of land use on the pollutant level of surface water. Whereas soil moisture samples taken with the aid of lysimeters can only provide spatially limited data that are representative of the field from which they are collected, spring waters integrate the diverse uses throughout the catchment area.

Interflow

Due to its high degree of solubility, nitrate is discharged vertically into the groundwater via the soil moisture or laterally into the surface waters if there is a sufficient slope. In the second case, as already described, transport occurs as interflow in the near-surface groundwater flow within the upper soil horizons. The randomly performed piezometer tests demonstrated that, even with permeable bedrock, as with the Bunter sandstone, there was no clearly measurable descendant nitrate displacement. This result indicated that nitrate discharged from agricultural land entered surface waters predominantly via interflow.

Development of the nitrate content in the springs over two decades

Most springs with agricultural catchment areas exhibited elevated nitrate levels. Depending on the area and intensity of cropland usage, annual average concentrations were near or above the EU-wide limit value of 50 mg/L. These highly impacted springs exhibited a slight decrease during the three monitoring periods, 2002, 2011–2012, and 2018, while many moderately impacted springs exhibited an increase to as high as 40 mg/L. This result seems to be because official management targets oblige farmers to implement measures to reduce nitrate emissions only if the limit value of the Nitrates Directive is repeatedly exceeded.

However, more or less constant nitrate concentrations between 20 and 40 mg/L constitute considerable pollution for watercourses and are far from the natural baseline level. The mean nitrate content of those springs in the study that were not impacted by agriculture was 3.6 mg/L. Taking into account measurement inaccuracies due to the methods used, we could identify a threshold value of 5.6 mg/L of nitrate for the study area, above which agricultural impact would be assumed. Pollutant levels of up to 14.2 mg/L nitrate are still tolerable from the perspective of marine ecology objectives. This value was still exceeded at 16 of the 22 agriculturally impacted springs in our 2018 study. At present, the marine ecology target value for official water pollution control is regarded only as a guideline. It is not applied in the German Surface Water Ordinance or in the current management plan for Saarland [20, 48]. The steadily increasing nitrate values of the springs with moderate pollution levels show that measures for reducing emissions are necessary even below the limit value of the Nitrates Directive. Watercourses that are already significantly contaminated in the area near the spring will receive additional point-source and nonpoint-source inputs further downstream. Because there is no significant nitrate retention in the upper reaches of the watercourse [39] and any dilution effect due to infiltration of interflow water is to be expected only when passing through longer, wooded sections or grassland zones, it can be assumed that the pollution level is at least constant along the entire length of the watercourse. The overall conclusion is that despite major efforts by the authorities to protect bodies of water, nitrate inputs caused by agriculture have not been significantly reduced since the turn of the millennium. The reduced maximum values now observed at sites that previously had high pollution levels contrast with significantly increased nitrate levels at numerous other monitoring sites.

Annual trend in nitrate content

During all three monitoring periods, the nitrate content over the course of the year followed the seasonal interplay of discharge as a result of fertilization before and at the beginning of the growth phase, retention by the vegetation during the growth phase, and release after harvest as well as the decomposition of the dead biomass and subsequent flushing out during the autumn and winter months. The extremely hot, dry period during 2018 led to a stronger increase in nitrate concentrations during the winter than was observed in the other monitoring periods, particularly for soils with low water retention capacities. A considerable reservoir of nitrate accumulated in the soils during the long period of low precipitation from late spring to autumn; this nitrate would be washed out at an accelerated rate by the onset of precipitation in autumn. This leads to nitrate concentrations increasing to values significantly above the mean values after the autumn and winter rainfall events, thereby temporarily placing the aquatic ecosystems under additional stress. With an increasingly uneven distribution of precipitation over the course of the year, which is to be expected as climate change progresses [49, 50], an increase in the phases with peak levels in autumn/winter can also be assumed.

Relationship between water pollution and agricultural land use

The relationship between the nitrate content of the spring waters and the intensity of agricultural use was documented during all three monitoring periods. In each case, the share of cropland in the catchment area had a highly significant degree of correlation with the mean concentration, confirming the findings of other studies [27, 37, 38].

A regression model that estimates the contribution of nonpoint-source inputs to the measured nitrate pollution at a given monitoring site for a watercourse can be derived based on this close correlation.

In principle, such a regression model can also be set up in other areas of the world. The prerequisite is proof of a close correlation between nitrate content in spring waters and the percentage of arable land in the catchment area of the springs. For the respective study area, nitrate monitoring should be carried out for at least 12 months at a sufficient number of representative springs with an agricultural character. From this, a forecast model specific to the study area can be derived, with the help of which the quantification of the nitrate content from diffuse sources on the one hand and point sources on the other hand becomes possible at a measuring point in any catchment area in the study area under consideration.

So far, such a differentiation is mainly based on catchment-related modeling calculations. However, these are usually based on large-scale aggregated input parameters, which can only inadequately represent the specific geo-ecological conditions of different study areas. As a consequence, the model results are often very imprecise, which thus hampers the implementation of appropriate management measures. However, since the results of the forecast model developed here are based on real measurement results from the study area, a significantly increased accuracy compared to the modeling results can be assumed. The more precise differentiation of the nitrate contents at the monitoring sites according to point sources (predominantly settlement) and non-point sources (agriculture) makes it possible to derive more practical measures that can be included in the management plans of the watersheds.

The forecast model is based on a simple mass balance and assumes that nitrate retention is negligible along the flow path from the spring to the monitoring site at the catchment area outlet [39]. This assumption applies only to smaller bodies of water with at least moderate flow velocity. However, at larger river sections or very slow-flowing watercourses in lowland areas, discernible nitrate degradation processes are to be expected, and this model does not take these processes into account. The most accurate estimates can be expected for catchment areas that correspond to the spring catchments studied here in terms of utilization mix and geo-ecological baseline situation. However, inaccuracies of greater or lesser magnitude are to be expected if, for example, large wetlands or emission-reducing forms of cultivation such as organic farming dominate in terms of area. This result was also confirmed in previous studies, which demonstrated the effect of wetlands, unused buffer strips and grasslands that were mown several times per year in the vicinity of the upper reaches [14, 27]. The significance is also limited for catchments with more settlement and infrastructure area than open spaces because the share of nonpoint-source inputs as a cause of nitrate pollution is correspondingly lower.

To test the model further, mass balances should be drawn up in other areas in selected rural catchment areas using suitable modeling approaches, and monitoring sites should be set up at the catchment area outlets. By measuring nitrate and runoff over at least a one-year measurement period and by determining the areal proportions of cropland, meaningful data could be generated to validate the models.

The pesticide pollution of the springs is also related to the intensity of agricultural land use and shows a similar picture as the nitrate pollution: a total of 26 pesticides and metabolites were detected, including two products that are banned in Germany. Most pesticides were detected where nitrate pollution was high (highly significant correlation). Similarly, the number of pesticide detections was highly significantly positively correlated with the proportion of arable land. Exceptions, such as the absence of pesticide detections at sites k09 and m03 with a simultaneously high proportion of agricultural land, could be attributed to the management method, as could the low nitrate levels there. In the first case, grassland use in the vicinity of the spring was predominant, while the farmland in the catchment of the second spring was managed according to the principles of organic farming.

Conclusion

The overall conclusion from this study is that the systematic monitoring of spring waters can provide a clear picture of the impact of agricultural usage in catchment areas. The prerequisites are that the springs be located outside the influence of settlements and other potential emitters of pollutants and that the monitoring intervals in the campaign are monthly or shorter, with monitoring being conducted over at least one full year. Given a sufficient number of representative catchment areas within an approximately geo-ecologically homogeneous region, it is possible to develop forecast models for determining nonpoint-source inputs to the surface waters of this region. This is the first time that it has been possible to quantify the impact of agriculture on small- and medium-sized watercourses. The method can serve as an alternative or supplement to catchment-based modeling calculations. The approach can even be used in the context of official water monitoring, provided that the catchment areas are rural and do not deviate too much from the average situation in the study area in terms of topography, usage and geo-ecological baseline situation. In general, the model can be applied to any other region with a balanced, temperate climatic regime in low mountain landscapes with a clearly discernible agricultural influence. Targeted, site-specific measures that contribute to improving the overall ecological status of the body of water can be derived for preventive water pollution control.

Nitrogen losses from arable land cause considerable economic and ecological problems worldwide. In addition to the eutrophication of water bodies and the impact on landscape ecosystems and the resulting follow-up costs, the rising cost of mineral fertilizers is becoming increasingly important due to rising energy costs. Thus, the integration of our approach into the management strategies of agricultural catchments can contribute to the reduction of ecological damage on the one hand and to the avoidance of unnecessary costs for agricultural production on the other hand.

A comparison of the three monitoring periods over nearly two decades revealed that nitrate discharges from agricultural land have not decreased since the EU WFD entered into force. In the meantime, measures that have led to compliance with the limit value stipulated in the Nitrate Directive have been implemented at sites that have exhibited extremely high levels of pollution in the past. Below this limit, however, nitrate levels have been increasing significantly in many cases since the first monitoring campaign. The marine ecology target value, which is to be understood as a point of reference for a nitrate pollution level that is still tolerable, was exceeded at numerous monitoring sites. In the future, this is where more official measures should be taken to permanently reduce nitrate inputs into surface waters from the land.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

EU WFD:

Water Framework Directive

TN:

Total nitrogen

CEC:

Cation exchange capacity

p :

Precipitation

T :

Temperature

DWD:

Deutscher Wetterdienst (German Weather Service)

LVGL:

Landesamt für Geoinformation und Landentwicklung (State Agency for Geoinformation and Rural Development)

DGM:

Digitales Geländemodell (digital terrain model)

ATKIS:

Authoritative Topographic-Cartographic Information System

LUFA:

Landwirtschaftliche Untersuchungs- und Forschungsanstalt (Agricultural Investigation and Research Institute)

ΔT:

Temperature amplitude

EC:

Electric conductivity

References

  1. Kresic N, Stevanovic Z (2010) Groundwater hydrology of springs. Engineering, theory, management, and sustainability. Butterworth-Heinemann, Oxford

    Google Scholar

  2. Williams DD (1991) The spring as an interface between groundwater and lotic fauna and as a tool in assessing groundwater quality. Verh Internat Verein Limnol 24:1621–1624

    Google Scholar

  3. Katz BG, Chelette AR, Pratt TR (2004) Use of chemical and isotopic tracers to assess nitrate contamination and groundwater age, Woodville Karst Plain, USA. J Hydrol 289:36–61

    CAS  Article  Google Scholar

  4. Beven K (1989) Interflow. In: Morel-Seytoux HJ (ed) Unsaturated flow in hydrologic modeling. NATO ASI series (series: C mathematical and physical sciences), vol 275. Springer, Dordrecht. https://doi.org/10.1007/978-94-009-2352-2_7

    Chapter  Google Scholar

  5. Tian S, Youssef MA, Richards RP, Liu J, Baker DB, Liu Y (2016) Different seasonality of nitrate export from an agricultural watershed and an urbanized watershed in Midwestern USA. J Hydrol 541:1375–1384

    CAS  Article  Google Scholar

  6. Heathwaite AL (1993) Nitrogen cycling in surface waters and lakes. In: Burt TP, Heathwaite AL, Trudgill ST (eds) Nitrate: process, patterns and management. Wiley, Chichester, pp 99–140

    Google Scholar

  7. Carpenter SR, Caraco NF, Correll DL, Howarth RW, Sharpley AN, Smith VH (1998) Nonpoint pollution of surface waters with phosphorus and nitrogen. Ecol Appl 8(3):559–568. https://doi.org/10.2307/2641247

    Article  Google Scholar

  8. Strebel O, Duynisveld WHM, Böttcher J (1989) Nitrate pollution of groundwater in Western Europe. Agric Ecosyst Environ 26:189–214

    CAS  Article  Google Scholar

  9. Yakovlev V, Vistivna Y, Diadin D, Vergeles Y (2015) Nitrates in springs and rivers of East Ukraine: distribution, contamination and fluxes. Appl Geochem 53:71–78

    CAS  Article  Google Scholar

  10. Galloway JN et al (2003) The nitrogen cascade. Bioscience 53(4):341–356. https://doi.org/10.1641/0006-3568(2003)053[0341:Tnc]2.0.Co;2

    Article  Google Scholar

  11. Zheng W, Wang S, Tan K, Lei Y (2020) Nitrate accumulation and leaching potential is controlled by land-use and extreme precipitation in a headwater catchment in the North China Plain. Sci Total Environ 707:136168

    CAS  Article  Google Scholar

  12. Petersen JP, Liang Z, Prinds C, Jéglot A, Thamdrup B, Kyaergaard C, Elsgaard L (2020) Nitrate reduction pathways and interactions with iron in the drainage water infiltration zone of a riparian wetland soil. Biogeochemistry 150:235–255

    CAS  Article  Google Scholar

  13. Richards G, Gilmore TE, Mittelstet AR, Messer TL, Snow DD (2021) Baseflow nitrate dynamics within nested watersheds of an agricultural stream in Nebraska, USA. Agric Ecosyst Environ 308:107223. https://doi.org/10.1016/j.agee.2020.107223

    CAS  Article  Google Scholar

  14. Casal L, Durand P, Akkal-Corfini N, Benhamou C, Laurent F, Slmon-Monviola J, Ferrant S, Probst A, Probst J-L, Vertés F (2019) Reduction of stream nitrate concentrations by land management in contrasted landscapes. Nutr Cycl Agroecosyst 114:1–17. https://doi.org/10.1007/s10705-019-09985-0

    CAS  Article  Google Scholar

  15. Kellman L (2004) Nitrate removal in a first-order stream: reconciling laboratory and field measurements. Biogeochemistry 71(1):89–105

    CAS  Article  Google Scholar

  16. Saunders D, Kalff J (2001) Nitrogen retention in wetlands, lakes and rivers. Hydrobiologia 443:205–212. https://doi.org/10.1023/A:1017506914063

    CAS  Article  Google Scholar

  17. Sánchez Pérez J, Trémolieres M, Takatert AP, Eichhorn A, Maire G (1999) Quantification of nitrate removal by a flooded alluvial zone in the Ill floodplain (East of France). Hydrobiologia 410:185–193. https://doi.org/10.1023/A:1003834014908

    Article  Google Scholar

  18. Kubiniok J, Neumann B (1998) Stickstoffdynamik landwirtschaftlicher Kulturböden: Vergleich verschiedener Anbaumethoden und Möglichkeiten zur Ausweisung von Flächen unterschiedlichen Nitratauswaschungspotentials. In: Saar-Lor-Lux, Umweltprobleme. Saarbrücker Geographische Arbeiten. vol 44 pp 81–97

  19. Wfd EU (2000) Directive 2000/60/EC of the European parliament and of the council of 23 October 2000 establishing a framework for community action in the field of water policy. J Eur Union L327:1–72

    Google Scholar

  20. OGewV (2016) Verordnung zum Schutz der Oberflächengewässer (Oberflächengewässerverordnung—OgewV vom 20. Juni 2016). BGBl I. p 1373

  21. LAWA (2014) Empfehlung zur Übertragung flussbürtiger, meeres-ökologischer Reduzierungsziele ins Binnenland. Bund/Länderarbeitsgemeinschaft Wasser (ed), Dresden

  22. Trepel M, Fischer M (2014) Übertragung meeresökologischer Reduzierungsziele ins Binnenland. Wasser und Abfall 9:34–37

    Google Scholar

  23. Meyer AM, Klein C, Fünfrocken E, Kautenburger R, Beck HP (2019) Real-time monitoring of water quality to identify pollution pathways in small and middle scale rivers. Sci Total Environ 651:2323–2333

    CAS  Article  Google Scholar

  24. Cheng X, Chen L, Sun R (2019) Modeling the non-point source pollution risks by combing pollutant sources, precipitation, and landscape structure. Environ Sci Pollut Res 26:11856–11863

    CAS  Article  Google Scholar

  25. Venohr M, Hirt U, Hofmann J, Opitz D, Gericke A, Wetzig A, Natho S, Neumann F, Hürdler J, Matranga M, Mahnkopf J, Gadegast M, Behrendt H (2011) Modelling of nutrient emissions in river systems—MONERIS—methods and background. Int Rev Hydrobiol 96(5):435–483. https://doi.org/10.1002/iroh.201111331

    CAS  Article  Google Scholar

  26. Busico G, Colombani N, Fronzi D, Pellegrini M, Tazioli A, Mastrocicco M (2020) Evaluating SWAT model performance, considering different soils data input, to quantify actual and future runoff susceptibility in a highly urbanized basin. J Environ Manag 266:110625. https://doi.org/10.1016/j.jenvman.2020.110625

    Article  Google Scholar

  27. Li Y, Boswell E, Thompson A (2021) Correlations between land use and stream nitrate-nitrite concentrations in the Yahara River watershed in south-central Wisconsin. J Environ Manage 278(Part 2):111535. https://doi.org/10.1016/j.jenvman.2020.111535

    CAS  Article  Google Scholar

  28. Goeller BC, Febria CM, Warburton HJ, Hogsden KL, Collins KE, Devlin HS, Harding JS, McIntosh AR (2019) Springs drive downstream nitrate export from artificially-drained agricultural headwater catchments. Sci Total Environ 671:119–128. https://doi.org/10.1016/j.scitotenv.2019.03.308

    CAS  Article  Google Scholar

  29. Burg A, Heaton THE (1998) The relationship between the nitrate concentration and hydrology of a small chalk spring. Israel J Hydrol 204:68–82

    Article  Google Scholar

  30. Katz BG (2004) Sources of nitrate contamination and age of water in large karstic springs of Florida. Environ Geol 46:689–706

    CAS  Article  Google Scholar

  31. Katz BG, Böhlke JK, Hornsby HD (2001) Timescales for nitrate contamination of spring waters, northern Florida, USA. Chem Geol 179:167–186

    CAS  Article  Google Scholar

  32. Leibundgut C (1998) Tracer-based assessment of vulnerability in mountainous headwaters. In: Kovar K, Tappeiner U, Peters NE, Craig RG (eds) Hydrology, water resources and ecology in headwaters (proceedings of the HeadWater ’98, Merano, Italy), 248. IAHS Publication, Wallingford, pp 317–325

    Google Scholar

  33. Panno SV, Hacley KC, Hwang HH, Kelly WR (2001) Determination of the sources of nitrate contamination in karst springs using isotopic and chemical indicators. Chem Geol 179:113–128

    CAS  Article  Google Scholar

  34. Amiel RB, Grodek T, Frumkin A (2010) Characterization of the hydrogeology of the sacred Gihon Spring, Jerusalem: a deteriorating urban karst spring. Hydrogeol J 18:1465–1479

    CAS  Article  Google Scholar

  35. Boy-Roura M, Mencio A, Mas-Pla J (2013) Temporal analysis of spring water data to assess nitrate inputs in groundwater in an agricultural area (Osona NE Spain). Sci Total Environ 452–453:433–445

    Article  Google Scholar

  36. Menció A, Boy M, Mas-Pla J (2011) Analysis of vulnerability factors that control nitrate occurrence in natural springs (Osona region, NE Spain). Sci Total Environ 409:3049–3058

    Article  Google Scholar

  37. Weber G, Kubiniok J (2013) Investigation of spring waters to assess the geo-ecological state of landscape and soil. J Agric Sci Technol A 3:592–602

    Google Scholar

  38. Kubiniok J, Feltes W, Neumann B, Bruch I (2004) Diffuse und punktuelle Stickstoffeinträge in Quellen und Oberläufe kleiner saarländischer Fließgewässer. In: VDLUFA-Schriftenreihe 59, Kongressband 2003, Saarbrücken, p 685–692

  39. Weber G, Honecker U, Kubiniok J (2020) Nitrate dynamics in springs and headwater streams with agricultural catchments in southwestern Germany. Sci Total Environ 722:137858

    CAS  Article  Google Scholar

  40. Weber G, Christmann C, Thiery A-C, Martens D, KubiniokJ, (2018) Pesticides in agricultural headwater streams in southwestern Germany and effects on macroinvertebrate populations. Sci Total Environ 619–620:638–648. https://doi.org/10.1016/j.scitotenv.2017.11.155 (ISSN 0048-9697)

    CAS  Article  Google Scholar

  41. Liedtke H, Marcinek J (2002) Physical geography of germany, Gotha and Stuttgart

  42. DWD (2019) Vieljährige Mittelwerte, Deutscher Wetterdienst (ed.). https://www.dwd.de/DE/leistungen/klimadatendeutschland/vielj_mittelwerte.html. Accessed 07 July 2021

  43. AdV (2018) Authorative topographic-cartographic information system (ATKIS). http://www.adv-online.de. Accessed 07 July 2021

  44. DEV (1979) Deutsches Einheitsverfahren zur Wasser-, Abwasser- und Schlammuntersuchung. DIN 38 405. Band 2, Teil 9, Anionen (Gruppe D). Berlin, Wien, Zürich

  45. DEV (1995) Deutsche Einheitsverfahren zur Wasser-, Abwasser- und Schlammuntersuchung—Anionen (Gruppe D), Teil 29: Photometrische Bestimmung von Nitrat mit Sulfosalizylsäure (D 29). DIN 38405-29:1994-11. ISO 7890-3:1988, modifiziert. Berlin, Wien, Zürich

  46. DEV (1983) Deutsches Einheitsverfahren zur Wasser-, Abwasser- und Schlammuntersuchung. DIN 48 406. Band 3, Teil 5, Kationen (Gruppe E). Berlin, Wien, Zürich

  47. DIN (2014) German standard methods for the examination of water, waste water and sludge—jointly determinable substances (group F)—part 36: determination of selected active substances of plant protection products and other organic substances in water - Method using high performance liquid chromatography and mass spectrometric detection (HPLC-MS/MS or -HRMS) after direct injection (F 36)

  48. MUV (2020) 3. Bewirtschaftungsplan nach Artikel 13 der Richtlinie 25000/60/EG des Europäischen Parlaments und des Rates vom 23. Oktober 2000 für das Saarland. https://www.saarland.de/SharedDocs/Downloads/DE/muv/wasser/WRRL/3bewirtschaftungsplan. Accessed 22 July 2021

  49. Held IM, Soden BJ (2006) Robust responses of the hydrological cycle to global warming. J Climate 19:5686–5699

    Article  Google Scholar

  50. Brasseur G, Jacob D, Schuck-Zöller S (eds) (2017) Klimawandel in Deutschland—Entwicklung, Folgen, Risiken und Perspektiven. Springer Spektrum, Berlin

    Google Scholar

Download references

Acknowledgements

The authors would like to thank all persons and institutions who contributed to this study.

Funding

Open Access funding enabled and organized by Projekt DEAL. This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Author information

Authors and Affiliations

Authors

Contributions

GW planned, organized, supervised field and lab work and contributed to the conceptualization of the study. He conducted GIS-work, analysis of data, did the literature research and wrote the manuscript. JK was responsible for supervision and project administration as well as for conceptualization and study design in the initial phase of the study. Both the authors read and approved the final manuscript.

Corresponding author

Correspondence to Gero Weber.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare no financial and non-financial competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Weber, G., Kubiniok, J. Spring waters as an indicator of nitrate and pesticide pollution of rural watercourses from nonpoint sources: results of repeated monitoring campaigns since the early 2000s in the low mountain landscape of Saarland, Germany. Environ Sci Eur 34, 53 (2022). https://doi.org/10.1186/s12302-022-00632-0

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s12302-022-00632-0

Keywords

  • Nitrates
  • Pesticides
  • Watercourses
  • Springs
  • Nonpoint-source inputs
  • EU WFD
  • Intensive agriculture
