Ternary metal-organic framework/multi-walled carbon nanotube/iron oxide nanocomposite for removal of butachlor pesticide

Abstract

Background

Butachlor (BUT) as an organochlorine pesticide (OCP) that prevents weeds from growing has been used in the agriculture field. It remains in the environment for a long time and causes mutagenicity and cancer.

Results

In the current study, magnetic multi-walled carbon nanotube with zeolitic imidazolate frameworks-67 (Fe3O4–MWCNT–ZIF67) was used as adsorbent to remove BUT from the aqueous solution. The characteristics and the chemical composition of the adsorbent were evaluated using FE-SEM, TEM, MAP, EDX, FTIR, BET, TGA and VSM. The response surface methodology (RSM) as a method for the design of experiment was applied to optimize variables such as the initial concentration of BUT, adsorbent dosage, contact time and temperature in the batch experiment by central composite design (CCD). The optimum adsorption condition predicted by RSM was pH = 4.5, initial concentration = 5.75 ppm, dosage = 0.07 g and contact time = 95 min. The results showed that maximum removal efficiency for the butachlor is 86%.

Conclusions

Different adsorption isotherms were evaluated using adsorption equilibrium data and results showed that Temkin model has the best compatibility with the experimental data. In addition, the adsorption kinetics data were closer with pseudo-second-order model. Thermodynamic study showed that the adsorption process was spontaneous, endothermic and physical. This composite can be effectively used for the remediation/clean-up of groundwater and agricultural run-off water which are contaminated with harmful pesticides.

Graphical Abstract

Introduction

According to some studies, the most important environmental pollutants are pesticides and fertilizers [1, 2]. Excessive use of pesticides in the agricultural industry causes environmental pollution, especially in water resources. Organochlorine (OC) toxins can stay in the environment for long time. Even low concentration of OCs is harmful to human health and they can accumulate in tissues due to their low rate of chemical and biological degradation and hydrophobicity. With increasing their concentrations, they enter to the food cycle and affect the nervous system and cause carcinogenicity. According to the European Union, the amount of pesticides in drinking water should not exceed 0.1 μg L−1 [3].

One of the organochlorine pesticides (OCP) is N-(butoxymethyl) 2-chloro 2',6'-diethyl acetanilide known as butachlor (BUT). It is widely used in African and Southeast Asian countries such as China, India and Iran. BUT is used to prevent weeds in rice, wheat, barley, sugarcane, cotton and corn fields [4].

Numerous adsorbents have been used to remove pesticides, such as two-dimensional carbon materials including graphene oxide [5], carbon nitride [6], silica particles [7], magnetic materials [8], and organic porous polymers [9]. Carbon nanotubes (CNT) are nanomaterial with one-dimensional and multidimensional tubular structure [10]. Due to their small radial dimension, special surface area, outstanding mechanical properties, electrical and thermal conductivity, they have excellent effect in adsorbing inorganic and organic pollutants from solutions, such as heavy metal ions [11], antibiotics [12], dyes [13], and other organic materials [14].

Multi-walled carbon nanotubes (MWCNTs) are composed of graphene sheets with high specific surface area, hollow porous structure, and excellent stability, which make them suitable as adsorbents [15]. Functionalized CNTs have strong interaction with organic molecules through non-covalent forces such as hydrogen bonding, π–π bonding, electrostatic force, and hydrophobic interaction, which leads to increased special benefits in the removal of organic pollutants. However, MWCNTs are 1D nanomaterials and it is difficult to separate them from the aqueous solutions, which limits their application. For easy separation, they can be combined with iron oxide (Fe3O4) to form a magnetic composite [10].

New adsorbents such as metal–organic frameworks (MOF) have recently received much attention due to high surface area and porosity. Metal centers coordinated with oxygen or nitrogen atoms are connected by linkers to aromatic rings. The main characteristics of MOFs are strong crystalline frames with permanent porosity, crystalline properties, super-adjustable porosity, variable structure, large surface area and pore volume, uniform pore size, and special sites for selective adsorption [16]. Due to their high removal ability, they are ideal options for various applications such as removal of pollutants [17], fuel storage (methane and hydrogen) [18], carbon dioxide adsorption [19], sensor, photocatalytic degradation [20], catalytic purpose [21], separation [22], membrane [23] and heterogeneous decomposition [24].

Zeolite imidazolate frameworks (ZIF) are one example of MOFs, which has well-formed porous and three-dimensional structure. Due to their high specific surface area, high adsorption capacity, often high chemical and physical stability, they have been considered in many different fields such as: gas storage [25], separation [26], catalyst [27], contaminant removal [28], chemical sensors [29] and drug delivery [30]. The properties, type and structure of ZIF depend on different combinations of imidazole binders and metal ions. Many synthetic ZIF structures have been reported. It is possible to synthesize them using different transition metals (such as zinc and cobalt), imidazole binders (such as: 2-methylimidazole and benzimidazole) and solvents such as: water, dimethylformamide, diethylformamide, ethanol and methanol [31, 32]. ZIF-67 is a conventional MOF made from binding the cobalt ion and 2-methylimidazole ligand. Due to its attractive structure, large surface area, distinct morphology, permanent nanoscale porosity and excellent chemical stability, it is widely used in various fields such as separation [33], adsorption [34], inhomogeneous decomposition [35], oxygen evolution [36] and electrochemical reaction [37].

There is limited research on the removal of BUT by adsorption method [38]. With this aim, a composite of magnetic carbon nanotubes with ZIF-67 was fabricated and used as an adsorbent for BUT removal. In addition, the effect of parameters such as initial herbicide concentration, adsorbent dosage, pH, contact time and temperature were investigated using experimental design method.

Materials and methods

Chemicals

Co(NO3)2 0.6H2O, 2-methylimidazole (2MIM), FeCl2 and FeCl3, ammonium hydroxide solution (25%), HNO3 (65%) and sulfuric acid (98%) were all provided by Merck Company. MWCNT (diameter of 30–50 nm) was purchased from Sigma-Aldrich. BUT toxin with 98% purity was provided by Golsam Company (Golestan province, Iran).

Adsorbent synthesis

ZIF-67

The ZIF-67 was synthesized according to the literature with little modification. First, 0.45 g of 2MIM and 0.45 g of Co(NO3)2.6H2O were dissolved separately in 20 mL and 3 mL water. Co(NO3)2 solution was then added to the 2MIM solution and the mixture was stirred at room temperature for 6 h. The resulting purple precipitate (ZIF-67) was collected by centrifugation, washed with distilled water and then with ethanol for several times, and finally dried in oven at 60 °C for 24 h [39].

Functionalization of MWCNT

To oxidize and functionalize MWCNTs, 2 mL of nitric acid and 1.8 mL of H2SO4 were added separately to two 100-mL volumetric balloons. Then, 25 mL of HNO3 and 75 mL of H2SO4 were mixed with volume ratio of 1:3 and 0.6 g of MWCNTs was added to the mixture. It was irradiated in an ultrasonic batch for 2 h at 40 °C and then rinsed several times with distilled water and centrifuged. The precipitate was dried at 60 °C in an oven for 60 h.

Preparation of Fe3O4–MWCNT

At this stage, the synthesis of Fe3O4–MWCNT was performed by co-precipitation method. First, 0.6 g of MWCNT was added to 720 mL of distilled water and irradiated by ultrasonic for 1 h to obtain a homogeneous and dispersed mixture in water and then transferred to a three-neck round-bottom flask. The temperature of the hot water bath was set at 80 °C. 2.4 g of FeCl2 and 5.4 g of FeCl3 with 50 mL of distilled water were added to the balloon and allowed to mix for 1 h under N2 atmosphere, and then 17 mL of ammonium solution was added drop-by-drop into flask for 20 min. The mixture was stirred for another 1 h to allow the reaction of any unreacted materials. The product was washed using water and ethanol with a volume ratio of 1:1. The washing step was continued until the pH reaches neutral values. A strong magnet was used to separate the sediment. The precipitate was then dried in a vacuum oven at 60 °C for 24 h.

Fe3O4–MWCNT–ZIF67

2.4 g of Fe3O4–MWCNT was mixed with 60 mL of distilled water and subjected to ultrasonic irradiation for 30 min. 1.35 g of Co(NO3)2.6H2O and 1.35 g of 2-MIM were mixed separately in 9 and 60 mL of water, respectively. The dissolved cobalt nitrate solution was added to the Fe3O4–MWCNT in a beaker and placed on a magnetic stirrer for 30 min. Then 2-MIM solution was added to the mixture and stirred for another 6 h. Water and ethanol with a volume ratio of 1:1 were used to wash the precipitate and a strong magnet was used to collect the particles from the mixture. The washing step was performed several times to reach the pH of mixture to neutral range. The product was then transferred to a vacuum oven for drying at 60 °C for 24 h.

Adsorbent characterization

To determine the morphology and characteristics of adsorbent, field emission scanning electron microscope (FE-SEM) (TESCAN, MIRA III) and transmission electron microscopy (TEM, Philips, accelerating voltage of 100 kV) were used. X-ray diffraction (XRD) (PHILIPS, PW1730) was performed to investigate the crystal structure of samples. Fourier transform infrared spectroscopy (FTIR) was conducted to identify the functional groups and molecular structure (Thermo, AVATAR). For chemical identification of materials, energy dispersive X-ray spectroscopy (EDS) and mapping analysis were used to provide the frequency distribution of available elements (TESCAN, MIRA III). To investigate the porosity and surface area of Fe3O4–MWCNT–ZIF67 nanocomposite, N2-adsorption/desorption isotherm was recorded using BELSORP MINI II. To determine the thermal stability of the adsorbent, TGA analysis (by TA, Q600) was applied in the temperature range of 25–800 °C under argon gas with a heating rate of 10 °C min−1. A vibrating-sample magnetometer (Meghnatis Daghigh Kavir Co. Kashan, Iran) was used to investigate the magnetic properties of the adsorbent.

Removal of BUT herbicide

Adsorption experiments

In order to investigate the batch adsorption process, the effect of various parameters such as adsorbent dosage (0.01–0.09 g), pH (3–9), initial solution concentration (2–17 ppm), contact time (5–125 min) and temperature (20–40 °C) were evaluated using a design of experiments (DOE).

Various experiments were defined and performed to evaluate the efficiency of adsorbent and the effect of different parameters on the rate of toxin adsorption. To prepare the stock solution of BUT (17 ppm), it was dissolved in acetone and all the required concentrations were diluted using the same stock solution. 50 mL of solution containing pesticide in certain concentrations was added to an Erlenmeyer with a volume of 100 mL, and after adjusting the pH of the solution, a certain mass of adsorbent was added to the solution. The Erlenmeyer is then transferred to an incubator shaker so that the solution and the adsorbent are in contact under the defined operating conditions. Then, after a certain period of time, some of the solution was separated using a strong magnet in order to separate the adsorbent particles from the solution. Gas chromatography coupled with flame-ionization detector (GC-FID, Agilent 6850) was used for determination of BUT residues and stock solution concentration. The capillary column HP-5 (30 m × 0.25 mm × 0.25 μm) was used for separation. Nitrogen was used as the carrier gas at a flow rate of 1 mL min−1. The following temperature program was employed: initial temperature of 180 °C held for 3 min; increased at 30 °C min–1 to 240 °C, total runtime of 8 min. The injector and detector temperatures were 260 °C. To extract the BUT from aqueous solution, ethyl acetate was used.

The following equation was used to calculate the removal percentage of BUT pesticide:

$$\mathrm{BUT\, removal} \%=\left(\frac{{C}_{0}-{C}_{t}}{{C}_{0}}\right)*100,$$
(1)

where \(C_{0}\) and \(C_{t}\) are initial concentration and concentration of the BTU in solution at time t.

Design of experiments

Response surface methodology (RSM) is a set of mathematical and statistical methods that are used in DOE, model development, factor evaluation and condition optimization. In order to investigate the main factors in the process of removing BUT toxin, the interactions among them, and also minimize the number of experiments, the central composite design (CCD) method, which is one of the methods of the RSM family, was utilized. In this work, five variable factors including initial concentration of BUT, pH, adsorbent dosage, contact time and temperature were considered. The lower, middle, and upper limit ranges of CCD are tabulated in Table 1. Analysis of variance (ANOVA) was performed by determining the correlation coefficient (R2). The statistical values of the coefficients of the approach and model variables were measured based on probability. The experimental design was done with Design Expert software version 10. The design of the semi-partial rule experiment was performed. The total number of experiments is 36 (Table 2). The purpose of response surface optimization is to determine the optimal maximum or minimum location in the design space that the response is stable. Response surface optimization is obtained with Design Expert software version 10 and based on the model equation. After determining the optimal conditions by the model, the last step was done at the optimum point to confirm the credibility of the model.

Table 1 Range and levels of laboratory independent variables
Table 2 Total number of experiments

Adsorption isotherm

To study the adsorption process, Langmuir, Freundlich and Temkin isotherms were investigated to describe the adsorption isotherms of Fe3O4–MWCNT–ZIF67 for removal of BUT pesticide.

Langmuir model assumes monolayer coverage on adsorbent [40]:

$${q}_{e}=\frac{{q}_{\mathrm{max}}{K}_{L}{C}_{e}}{1+{K}_{L}{C}_{e}},$$
(2)

where \({q}_{e}\) and \({q}_{\mathrm{max}}\)(mg g−1) indicates equilibrium adsorption capacity and maximum adsorbent capacity; \({K}_{L}\) (L mg−1) equilibrium constant and \({C}_{e}\) (mg L−1) is equilibrium concentration.

Freundlich model is an empirical model allowing for multilayer adsorption on adsorbent [41]:

$${q}_{e}={K}_{F}{C}_{e}^{1/n},$$
(3)

where Kf and n are the Freundlich constants. Kf is roughly an indicator of the adsorption capacity (L g−1) and 1/n is an empirical parameter relating the adsorption intensity. Temkin model interaction between adsorbent and adsorbed considers [42]:

$${q}_{e}=\left(\frac{RT}{{B}_{T}}\right)Ln\left({K}_{T}{C}_{e}\right),$$
(4)

where \({K}_{T}\) and \({B}_{T}\) Temkin constant; R general gas constant; (8.314 J mol−1 K−1);and T is the absolute temperature (K).

Adsorption kinetics

Kinetic study provides information about rate of process throughout of adsorption pathway. There are several adsorption kinetic models for analyzing of experimental data. In this study, the pseudo-first-order kinetic model and pseudo-second-order kinetic model were investigated.

The pseudo-first-order kinetic model was generally expressed as the following equation [43]:

$$\mathrm{log}\left({q}_{e}-{q}_{t}\right)=\mathrm{log}{q}_{e}-\frac{{K}_{1}}{2\cdot 303} t,$$
(5)

where \({K}_{1}\) is the constant speed (min−1); parameters \({q}_{t}\) and \({q}_{e},\) respectively, the adsorption capacity is at time t and equilibrium time (mg g−1). The pseudo-second-order kinetic model was expressed as following [44]:

$$\frac{t}{{q}_{t}}=\frac{1}{h}+\frac{t}{{q}_{e}},$$
(6)

where \(h={K}_{2}{q}_{e}^{2}\) initial species uptake rate; the parameter K2 is the quadratic velocity constant of the relation, \(h={K}_{2}{q}_{e}^{2}\) are obtained.

Another kinetic model is the Elovich model which is represented as follows [45]:

$$q_{t} = \frac{1}{\beta }\ln (\alpha \beta ) + \frac{1}{\beta }\ln (t)$$
(7)

The parameter \(\alpha\) is the initial adsorption rate of Elovich equation (mg g−1 min−1) and \(\beta\) is the desorption constant (g mg−1).

A model on the basis of intra-particle diffusion theory was proposed by Weber and Morris was investigated. According to this model, adsorption capacity is proportional to the square root of time [46]:

$$q_{t} = K\,t^{0.5} + C$$
(8)

The parameter K is intra-particle diffusion rate constant and C is boundary layer thickness constant.

Thermodynamic studies

The effect of temperature on removal percentage was investigated in the range of 20–40 °C. Important thermodynamic parameters such as Gibbs free energy change (ΔG°), standard enthalpy (ΔH°) and standard entropy (ΔS°) were calculated as follows [47]:

$$\Delta {G}^{0}=\Delta {H}^{0}-T\Delta {S}^{0}$$
(9)
$$ln\mathrm{Kd}=\frac{\Delta {S}^{0}}{R}-\frac{\Delta {H}^{0}}{RT},$$
(10)

where R is the universal gas constant (8.314 J mol−1 K−1), T is the absolute temperature (K) and Kd is the thermodynamic equilibrium constant, determined from \(\frac{qe}{Ce}\).

Results and discussion

Characterizations of Fe3O4–MWCNT-OH/ZIF67

Figure 1a, b shows the FE-SEM images of Fe3O4–MWCNT at two different magnifications. Spherical Fe3O4 nanoparticles are formed on the surface of MWCNT and aggregated to each other. Figure 1c, d shows the morphology of Fe3O4–MWCNT–ZIF67, in which the MWCNTs and other nanoparticles with sizes lower than 100 nm can be observed in the image. It seems that with addition of ZIF-67 to the structure of sample, the aggregation of sample is somewhat decreased. In addition, Fig. 1e, f shows the structure of ZIF-67 which are composed of some spherically interconnected nanoparticles in the form of plates.

Fig. 1
figure 1

FE-SEM images of a, b Fe3O4–MWCNT, c, d Fe3O4–MWCNT–ZIF67 and e, f ZIF67

TEM was used to obtain more information about the structure of Fe3O4–MWCNT–ZIF67 at different magnifications (Fig. 2). MWCNTs can be observed in the images and some nanoparticles are attached to them. The dark regions in the images are due to the presence of Fe in Fe3O4 and Zn in ZIF-6, respectively, with higher atomic weight than carbon and oxygen elements in MWCNTs. As can be seen, the nanoparticles are aggregated to each other which cause to create thickness contrast in the images.

Fig. 2
figure 2

TEM images of Fe3O4–MWCNT–ZIF67 at different magnifications (scale bars are: a 75 nm b 100 nm and c 150 nm)

Figure 3 shows the EDS spectrum and elemental mapping analysis of Fe3O4–MWCNT-OH–ZIF67. The presence of Co and N in the spectrum of sample originates from the presence of ZIF-67. Furthermore, the characteristic peaks of Fe (Kα, Kβ and Lβ) arise from the Fe3O4 formation. The characteristic peaks of Fe, C, O, N and Co in spectrum confirm the formation of nanocomposite (Fig. 3A). The quantitative results of EDS analysis are included in the table (inset of Figure). Figure 3B shows the FE-SEM image of the selected area on the surface. The mapping analysis on the defined area shows the homogeneous distribution of the different elements.

Fig. 3
figure 3

A EDS analysis and B FE-SEM of selected area for Fe3O4–MWCNT–ZIF67 and C elemental mapping analysis for different elements

Figure 4A shows the FTIR spectra of ZIF-67, Fe3O4–MWCNT-OH and Fe3O4–MWCNT–ZIF67 (before and after asorption). In the FTIR spectrum of Fe3O4–MWCNT, the characteristic peaks with wavenumbers of 1270, 1399 and 1715 cm−1 correspond to iron oxide nanoparticles and peak with wavenumber of 543 cm−1 is related to the stretching vibration of Fe–O bands [48]. The peaks at 1110 and 1649 cm−1 are attributed to multi-walled carbon nanotubes with hydroxyl functional groups of MWCNT-OH [40]. The peak at 2923 cm−1 is the asymmetric stretching adsorption of C–H bands [41]. The peak at 3414 cm−1 is due to the stretching vibrations of the O–H group.

Fig. 4
figure 4

A FTIR spectra and B XRD patterns of Fe3O4–MWCNT, Fe3O4–MWCNT–ZIF67, and ZIF-67

In the FTIR spectrum of ZIF-67, the peak at 435 cm−1 is related to the stretching vibrations of the Co–N bands [40]. The peaks with wavenumbers in the range of 620 to 1419 cm−1 correspond to 2-methylimidazole [49]. The peak at 1170 cm−1 is related to the deformation vibrations within the plane of the C–H bands. The peaks at 1569 cm−1 and 1632 cm−1 are attributed to the vibrations of the imidazole rings [40]. The peak at 2922 cm−1 is related to the stretching of aliphatic C–H bands indicating the presence of 2-methylimidazole [50]. The characteristic peak of N–H bands, which is related to the combination of nitrogen atoms and metal ions, occurs at 3428 cm−1 [49]. The peak at 3682 cm−1 corresponds to the free O–H bands. The peak at 1715 cm−1 related to the C=O stretching is observed in the spectra of Fe3O4–MWCNT and ZIF-67. With formation of the nanocomposite, the intensities of peaks are decreased which confirms the formation of Fe3O4–MWCNT–ZIF67. In addition, as the nanocomposite was used in adsorption process of BUT (Fig. 4A), the intensity of peaks reduced substantially which means the interaction of BUT with Fe3O4–MWCNT–ZIF67.

Figure 4B shows the XRD patterns of different samples. For ZIF-67, the characteristic peaks appeared in 2θ = 10.6, 12.7, 14.9, 16.8, 18.1, 19.7, 22.4, 25.3, 31.3 and 33.7°. For Fe3O4–MWCNT, the peaks at 2θ = 30.7, 35.98, 54.06, 57.43 and 63.11° are for Fe3O4 and the peaks at 2θ = 26.96 and 43.7° arise from the MWCNT. Due to the presence of MOF in Fe3O4–MWCNT–ZIF67, the peak intensities of nanocomposite were slightly decreased in comparison to Fe3O4–MWCNT [49].

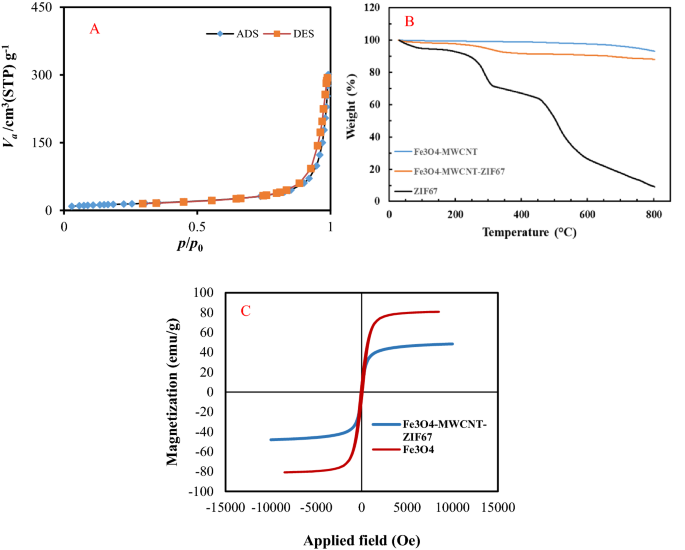

Figure 5A shows N2-adsorption and desorption isotherm of Fe3O4–MWCNT–ZIF67 composite. The isotherm is from type IV and has a hysteresis loop of type H3. BET surface area, specific surface area of pores, average pore diameter and total pore volume obtained from the analysis were 48.73 m2 g−1, 53.175 m2 g−1, 907.35 nm and 0.43662 cm3 g−1, respectively. ZIF-67 has type I isotherms with microporous structure and provides high specific surface area of 1714 m2 g−1 and total pore volumes of 0.631 cm3 g−1. The comparison of the results shows that with mixing the MWCNTs, ZIF-67 and Fe3O4, the surface area of nanocomposite reduces and changes in physical and chemical properties have occurred.

Fig. 5
figure 5

A Adsorption–desorption isotherm of Fe3O4–MWCNT–OH/ZIF67, B TGA and C VSM curves of different samples

Figure 5B shows TGA curves for Fe3O4–MWCNT, Fe3O4–MWCNT–ZIF67 and ZIF-67. With increasing the temperature to 800 °C, a three-step weight loss is observed for ZIF-67 and reach to 90.91% of initial weight. The first stage of weight loss in the range of 25–275 °C is due to the loss of surface moisture in the sample. The second and third stage occurred in the range of 275–480 and 480–800 °C, respectively, which are attributed to the loss of trapped water and solvent and destroying the structure of MOF. The TGA curves of Fe3O4–MWCNT and Fe3O4–MWCNT–ZIF67 show weight loss of 6.927 and 12%, respectively. MWCNT encounters with the weight loss due to removal of oxygen-containing groups. When Fe3O4 and MWCNT were added to ZIF-67 in nanocomposite, thermal stability was significantly increased and becomes stable [50].

The magnetic properties of the adsorbent were measured using VSM analysis at ambient temperature. Figure 5C shows the VSM curves for Fe3O4 and Fe3O4–MWCNT–ZIF67. No hysteresis loop is observed and the sample shows the superparamagnetic behavior which is due to the formation of Fe3O4. The presence of non-magnetic materials of MWCNT and ZIF-67 in nanocomposite reduced the magnetic property of iron oxide from 69.03 to 45.8 emu g−1 which is due to decreasing of non-magnetic saturation of the nanoparticles covered by the materials. Although the magnetic strength of the adsorbent is lower than that of Fe3O4 nanoparticles, the magnetic strength of the adsorbent is sufficient for easy separation from the aqueous solution by applying an external magnetic field.

Optimization

Among several possible models and according to the experimental results, a third-degree model can be fitted on the results. Equation 11 shows the resulting model in terms of the initial concentration (A), pH (C), adsorbent dose (B), temperature (E) and time (D) of solution with the following relation:

$$\begin{gathered} R\% = \, 33.34 - 6.56A + 15.67B + 0.18C + 4.91D + 4.39E + 5.82AB + 8.5AC \hfill \\ + 3.9AE + 4.57BE + 7.51A^{2} - 8.85A^{2} E \hfill \\ \end{gathered}$$
(11)

The parameter that has the great positive coefficient value in the equation indicates a greatly positive influence on the response. The mean squares, the degree of freedom, and the sum of squares were also obtained. Moreover, F and p-values were used to display when these terms are significant in the quadratic model. Data reported in Table 2 exhibit that all coefficients are significant. The significance of the quadratic model with consideration of Table 1 is presented in Table 3.

Table 3 Results of model analysis of variance

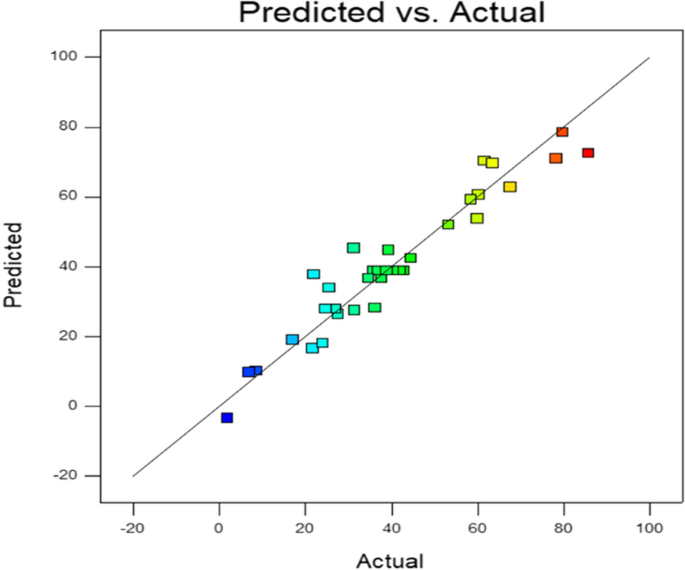

The accuracy of the designed equations is expressed by the convergence coefficient R2. The R2 and R2adj values of the model are 0.91 and 0.86, respectively, which is in good agreement with the experimental values. Figure 6 shows the correspondence between experimental data and the predicted response by the RSM optimization approach. Data closer to the line represent small difference between the experimental and the predicted responses. Therefore, a good optimal point can be obtained from the designed experiment.

Fig. 6
figure 6

The predicted data versus actual data obtained by experimental data removal efficiency of BUT

Analysis of three-dimensional response surface curves

To better understand each response surface, three-dimensional curves of effective parameters in the presence of BUT removal percentage were plotted and analyzed (Fig. 7). In these curves, a pair of parameters is displayed while other factors are kept constant. Figure 7a shows the response surface curve of the removal percentage with the initial BUT concentration and the adsorbent dosage. According to the proposed model (i.e., Eq. 11), the initial concentration of BUT has a negative effect on the adsorption percentage. The reason for decreasing the removal percentage is that with increasing the initial concentration of BUT from 5.75 to 13.25 ppm, the mole of contaminant increases, but there is a given amount of adsorbent in the solution, in other words, the active adsorption sites are constant.

Fig. 7
figure 7

Effect of factors on BUT Removal (%) RSM plots

The adsorbent dose has a positive effect on the removal percentage because the adsorbent active sites on the surface are higher than the adsorbate molecule. However, with increasing the adsorbent dose to values higher than 0.07 g in 50 mL solution, the active sites become saturated in the surface, therefore, the removal percentage decreases. However, considering the interaction of two parameters on the removal percentage, it showed a positive effect on the removal process of BUT. An increase in the percentage of BUT removal by decreasing the initial concentration from 13.25 to 5.75 ppm and increasing the adsorbent dosage from 0.03 to 0.07g are also observed.

Figure 7b shows the response surface curve of the removal percentage with the initial BUT concentration and pH. According to the proposed model (i.e., Eq. 11), the initial concentration of BUT and pH have negative effect on BUT removal percentage, so that with increasing pH from 4.5 to 7.5, the removal percentage decreases. In the natural and alkaline pH range, the percentage of BUT removal is negligible because BUT has anionic form due to the presence of carboxylic and phenolic groups. However, the adsorbent surface is positively charged at low (acidic) pH range 4.5 and converts to the cationic form, thus establishing a strong electrostatic bond between the adsorption surface and BUT, causes further removal of BUT. However, considering the interaction of both parameters, the removal percentage had a positive effect.

Figure 7c shows the response surface curve of percentage of BUT removal with the initial BUT concentration and temperature. According to the proposed model (i.e., Eq. 11), the initial concentration of BUT has a negative effect and the temperature has a positive effect, so that if the process is endothermic, the kinetic energy of the pollutant increases with increasing temperature from 25 to 35 °C and the probability of their collision with the adsorbent surface increases. However, considering the interaction of the two parameters, it has a positive effect on the removal percentage trend.

Figure 7d shows the response surface curve of percentage of BUT removal with adsorbent dosage and temperature. An increase in percentage of BUT removal is also observed by increasing the adsorbent dosage from 0.03 to 0.07 g and the temperature from 25 to 35 °C. According to the model, both of them have positive effects.

Figure 8 represents the adsorption isotherm of BUT on Fe3O4–MWCNT–ZIF-6. Equilibrium parameters related to above isotherms are presented in Table 4. The results show that the Temkin isotherm is in good agreement with equilibrium data. The highest value of R2 for the Temkin isotherm (R2 = 0.993) in comparison to Langmuir (R2 = 0.988) and Freundlich (R2 = 0.942) isotherms proved that the interactions between the Fe3O4–MWCNT–ZIF-6 and the BUT are considered.

Fig. 8
figure 8

Equilibrium adsorption data (V = 40 mL, dosage = 0.07gr, pH = 4.5 and temp = 35 °C)

Table 4 Parameters obtained from fitting equilibrium data with different isotherms

In addition, from Tables 5 and 6, different models are fitted with kinetic data. As can be seen, the pseudo-first-order equation, Elovich and intra-particle diffusion models do not fit well, but the pseudo-second-order equation can be properly fitted.

Table 5 Parameters of kinetic models
Table 6 Parameters of kinetic models

The thermodynamic quantities are calculated from the Van’t Hoff equation plot (Fig. 9) and summarized in Table 7. Based on the results, the negative values of ΔG° indicate the spontaneous as well as the physicality (range of 0 to 20 kJ mol−1) of the adsorption process. The positive value of ΔH° is a representative of the endothermic process. The positive value of ΔS° also demonstrates the increase of irregularities in the interface of liquid–solid during the adsorption, which exhibits the enhancement of the performance for BUT adsorption.

Fig. 9
figure 9

Plot of Van’t Hoff equation in the range of 293–313 K (C0: 5.75 ppm, adsorbent dosage: 0.07 g, pH 4.5, and contact time: 95 min)

Table 7 Thermodynamic parameters for the adsorption of BUT

Conclusions

In this research, the ability of Fe3O4–MWCNT–ZIF67 adsorbent was studied for BUT removal from the aqueous solution. RSM and CCD analyses were used to optimize the important adsorption parameters (i.e., adsorbent dosage, initial concentration, pH, contact time and temperature). The optimum adsorption conditions predicted by RSM were pH = 4.5, initial concentration = 5.75 ppm, dosage = 0.07 g and contact time = 95 min. The kinetic data are better fitted to the pseudo-second-order kinetic model. Comparison between the regression coefficients of different isotherm models indicates that Temkin isotherm is in a good agreement with equilibrium data. It was concluded from the thermodynamic investigations that the removal of BTU by the adsorbent is spontaneous and endothermic.

Availability of data and materials

All data generated or analyzed during this study are included in this published article.
