- Open Access
Mixture toxic impacts and the related mechanism of aflatoxin B1 and deoxynivalenol on embryonic zebrafish (Danio rerio)
Environmental Sciences Europe volume 33, Article number: 86 (2021)
Although humans and animals are often simultaneously exposed to a variety of mycotoxins via feed and food consumption, in which aflatoxin B1 (AFB1) and deoxynivalenol (DON) is one of the most prevalent combination of mycotoxins. Many toxicological studies have merely focused on the impacts of single mycotoxins. In the present study, the combined toxicity and the related mechanism of AFB1 and DON to zebrafish (Danio rerio) were investigated.
Results exhibited that DON had lower toxicity to embryonic zebrafish with a 7-day LC50 of 218.3 mg a.i. L−1 in comparison to AFB1 (0.031 mg a.i. L−1). The mixture of AFB1 and DON elicited an additive combined effect on zebrafish embryos. The levels of CAT, caspase-3, and T4 markedly varied in most single and mixture groups. The expressions of four genes (cas3, apaf-1, cc-chem, and cyp19a) associated with oxidative stress, cellular apoptosis, immune system, and endocrine system were markedly varied upon the mixture exposure in comparison to the corresponding single exposure of AFB1 or DON.
Our results revealed that the impacts of a mixture could not be estimated solely based on toxicities of the single mycotoxins. Taken together, our comprehensive investigation on the mycotoxin mixtures and their potential mechanisms could better reflect the reality of mycotoxin contamination in food and feed.
As toxic secondary metabolites generated by a wide variety of fungi, mycotoxins can contaminate food and feed resources, which has become a worldwide problem to public health and economic significance . These toxicants can cause acute toxicity or chronic disorders in animals and humans, including reduced food production and livestock breeding and induction of cancers and immune deficiency [2, 3]. Most toxin-producing fungi can generate various mycotoxins simultaneously and result in the co-occurrence of multiple mycotoxins in different feed and food commodities in which aflatoxin B1 (AFB1) and deoxynivalenol (DON) is one of the most prevalent combination [4,5,6]. Although humans and animals can be exposed to multiple mycotoxins through the consumption of contaminated foods and feeds, the great majority of studies merely focus on the toxicology of individual mycotoxins, which might misunderstand the combined toxicities caused by the mixtures . Therefore, the adverse effects of mixture mycotoxins are be growing concern and needs to be elucidated. However, mixture toxic effects of mycotoxins on D. rerio have not been well documented.
Although numerous studies have investigated the mixture effects of mycotoxins lately, most of these reports have focused on cytotoxicity testing . The mixture of AFB1 and DON can decrease the viability of cells by inducing intracellular reactive oxygen species (ROS) production and promoting apoptosis in rat liver cells, which was mediated by apoptosis pathway shared between AFB1 and DON [9, 10]. However, the cytotoxicity testing method is restricted by immortalization, limited survival, metabolic imbalance, or lack of tissue intercourse . Zebrafish (Danio rerio) has been well accepted as general fish and vertebrate model to investigate the chemical toxicity and mechanism because of its easy breeding in the laboratory, great fecundity, fast development, short life cycle, and transparency of the eggs and embryos . Therefore, it is an outstanding vertebrate model due to its highly developmental similarity to mammals . Because of these reasons, toxicity evaluation on zebrafish can serve as a significant reference to humans .
Aflatoxins are a family of closely related pyranocoumarin compounds generated as secondary metabolites of the common molds Aspergillus flavus, A. parasiticus and to a lesser extent A. nominus . As the most toxic xenobiotic and potent carcinogen, AFB1 has hepatocarcinogenic, mutagenic, and genotoxic effects . Deoxynivalenol is a trichothecene, and it is mainly produced by Fusarium spp. . Ingestion of DON-polluted feed can cause anorexia, and vomiting, and affect the immune system in different livestock species . Since AFB1 and DON frequently occur as mixtures in various food and feed commodities, which may have additional impacts on humans in comparison to their respective compounds . Up to date, the underlying mechanism of the mixture impacts in D. rerio remains largely unclear . Thus, the hidden effects of these two mycotoxins on zebrafish embryos were investigated in the present study. Such systematic tests laid a solid foundation for future studies on the toxicological impacts and mechanism of mycotoxin mixtures on humans.
Materials and methods
AFB1 (purity ≥ 99%, CAS Number: 1162-65-8) and DON (purity ≥ 99%, CAS Number: 51481-10-8) were purchased from Sangon Biotech (Shanghai) Co., Ltd. (China). A stock solution of AFB1 was prepared in dimethylsulfoxide (DMSO) and Tween-80, and the stock solution of DON was prepared in Milli-Q water directly. Mycotoxins of desired concentrations were prepared using reconstituted water supplemented with 2 mmol L−1 Ca2+, 0.5 mmol L−1 Mg2+, 0.75 mmol L−1 Na+, and 0.074 mmol L−1 K+ .
The contents of malonaldehyde (MDA), lipid peroxidation (LPO) enzyme, antioxidant enzymes [superoxide dismutase (SOD), catalase (CAT) and peroxidase (POD)], apoptotic enzymes (caspase-3 and caspase-9), and detoxification enzymes [cytochrome P450 (CYP450), carboxylesterase (CarE) and glutathione-S-transferase (GST)], as well as the vitellogenin (VTG) and thyroid hormones (THs), such as triiodothyronine (T3) and thyroxine (T4), were determined using ELISA kits from Nanjing Jiancheng Bioengineering Institute (Nanjing, China). TransZol Up Plus RNA Kit and TransScript® II One-Step RT-PCR SuperMix were purchased from TransGen Biotech (Takara, Dalian, China). All other chemicals and compounds were of analytical grade.
Maintenance and rearing conditions of fish
Wild-type (AB strain) adult zebrafish were obtained from the China Zebrafish Research Center (Wuhan, China) and reared in a laboratory-scale polyisoprene tank (200 L) equipped with a recirculation system. The fish breeding was carried out at 27 ± 1 °C under a photoperiod consisting of 14 h of light and 10 h of darkness. Fish were fed TetraMin Flake (fish food) complemented with brine shrimp (Artemia salina) twice a day. For egg induction, parental zebrafish (male:female ratio, 1:2) were segregated in spawning boxes (Esen Corp, Beijing, China) overnight. Light-induced spawning was carried out the next morning, and eggs were harvested within half an hour. Fertilized and morphologically normal eggs were picked for further assays. The animal study was authenticated by the Animal Care and Use Committee of Zhejiang Academy of Agricultural Sciences (Hangzhou, China).
Acute toxicity determination
Individual mycotoxin toxicity determination
The acute toxicity test on embryonic fish was carried out based on OECD test guideline 236 with minor modifications . The median lethal concentration (LC50) was determined using the preliminarily tested concentrations. Embryos at about 3 h post-fertilization (hpf) were stochastically selected and placed into 96-well plates, and each well contained one embryo and 2 µL of exposure solution. Reconstituted water was employed as untreated (blank untreated) control, and solvent untreated containing the same content of DMSO and Tween-80 at the highest concentration was adopted in the AFB1 test. Each test concentration and untreated control were performed three times. Each replicate was composed of 32 wells. Embryos were challenged by six different concentrations with a geometric ratio to establish the concentration–mortality relationship for each mycotoxin. All 96-well plates were incubated at the conditions same as the rearing conditions. The plates were sheathed by transparent lids for 7 days. The test solution was changed every 12 h to maintain the concentrations of toxicants. The mortality was determined according to the signs of coagulation of embryos, lack of somite formation, non-detachment of the tail, and failure of heartbeat, and recorded after 4 and 7 days of exposure.
Determination of mixture toxicity
The mixture toxicity of mycotoxins was examined with zebrafish embryos. In this study, an equitoxic ratio was adopted to avoid that when the toxicity of a single pollutant differed greatly, one pollutant would dominate and mask the toxic effect of the other pollutant, thus changing the combined action type of mixed pollutants. Based on the LC50 values acquired in the single toxicity determination, the final concentration of the individual mycotoxin in the mixture was used as the corresponding LC50 value (equipotent combinations) to assess the mixture toxicity and type of interaction. The total concentration of each blend was methodically altered, and all the above-mentioned ratios were unchanged to explore the concentration–response correlation. All experiments were performed three times for each concentration. The other test routines of mixture toxicity determination were consistent with those of the individual mycotoxin test.
Subacute toxicity determination
The subacute toxicity was determined based on the data of acute toxicity to embryos to explore the potential mechanisms of AFB1, DON, and their mixture in embryonic zebrafish.
Briefly, 1/320, 1/80, and 1/20 of 7-day LC50 for each mycotoxin were defined as the low, middle, and high concentrations, respectively. Accordingly, low, middle, and high concentrations in the combined exposure of AFB1 + DON (JOT) were combinations of AFB1 and DON at the low, middle, and high concentrations, respectively. Besides, the blank and solvent controls were set up. About 300 embryos of 3 hpf were stochastically picked and placed into a 1-L beaker containing 600 mL mycotoxin solution, and each experiment was repeated three times for each concentration. The test solution was renewed every 12 h. After exposure for 7 days, hatched larvae were collected and rinsed twice with reconstituted water.
Biochemical level determination
Briefly, about 200 larvae were homogenized (1:20, w/v) in 50 mmol L−1 potassium phosphate buffer (pH 7.0) containing 0.5 mmol L−1 EDTA, followed by centrifugation at 12,000 rpm for 30 min at 4 °C. The supernatant was collected and used for the assay of biochemical parameters.
The indexes of oxidative stress, including MDA content, the activities of LPO enzyme, antioxidant enzymes including SOD, CAT, and POD, apoptosis-related enzymes including caspase-3 and caspase-9, and detoxification enzymes including CYP450, CarE, and GST, as well as the levels of VTG and THs (T3 and T4), were determined according to the instructions of the respective assay kits.
Molecular level determination
After 7 days of exposure, approximately 30 embryos were harvested and dissolved in Trizol reagent (Takara, Dalian, China) for total RNA isolation with a previously described protocol . The RNA concentration was determined at 260 nm, and the RNA integrity was confirmed based on the absorbance ratios (OD260/OD280). Purified RNA was reversely transcribed into cDNA using a PrimeScript™ RT reagent Kit (Takara, Dalian, China). Quantitative real-time polymerase chain reaction (qRT-PCR) was performed on a CFX Real-Time PCR Detection System (Bio-Rad, USA) using a SYBR Green PCR Master Mix reagent kit (Takara, Dalian, China). After an initial denaturation step at 95 °C for 30 s, amplifications were carried out with 40 cycles at a melting temperature of 95 °C for 5 s, and an annealing temperature of 60 °C for 30 s. The relative expressions of the target genes were calculated using the 2−ΔΔCt method. β-actin was adopted as the internal control. All primers were designed by Primer 6.0 software and synthesized by Sangon Biotechnology (Shanghai, China) (Additional file 1: Table S1).
A probit analysis was carried out to determine the acute toxicity of mycotoxins to D. rerio using a previously developed program . The differences between the control and exposure groups were determined using one-way analysis of variance (ANOVA), followed by Dunnett’s post hoc comparison, and P < 0.05 was considered statistically significant.
Individual and mixture acute toxicity evaluations
The acute toxicity data of AFB1 and DON to embryos of D. rerio are listed in Table 1. Results exhibited that various mycotoxins had significantly different toxicities to fish. At a 4-day interval, AFB1 exerted higher toxicity to D. rerio than DON. At a 7-day interval, AFB1 still elicited higher toxicity to zebrafish than DON. The toxicity of AFB1 was 7042 times higher in comparison to DON after exposure for 7 days. Moreover, the toxicities of AFB1 and DON were significantly elevated when the exposure period was extended. To understand the interaction between different mycotoxins in the mixture toxicity against D. rerio, we detected the LC50 values of AFB1 and DON in their mixture after exposure for 7 days. According to the LC50 values of AFB1 and DON individually and in the mixture, the mixture toxicity of AFB1 and DON displayed an additive effect on D. rerio.
Biochemical level determination
Oxidative stress determination
The MDA level in the high-concentration group of AFB1 and the low-concentration group of DON was surprisingly inhibited in comparison to the control group. Besides, a markedly lower level of MDA was also detected in the middle-concentration group of JOT in comparison to the corresponding single-exposure groups of AFB1 and DON (Fig. 1A). The LPO activity was radically increased in the high-concentration group of AFB1. By contrast, the activity was markedly elevated in the low-concentration group of DON. Moreover, its activity was also radically decreased in the middle-concentration group of JOT in comparison to the corresponding single-exposure group of DON (Fig. 1B). The SOD activity was not outstandingly altered in all the single and JOT exposure groups. Additionally, no outstanding alteration was monitored in all the JOT exposure groups in comparison to the corresponding single-exposure groups of AFB1 or DON (Fig. 1C). The CAT activity remained unchanged in all the single-exposure groups. However, the activity was markedly decreased in the high-concentration group of JOT in comparison to the corresponding single-exposure group of DON (Fig. 1D). The POD activity was diminished in the low-concentration group of DON in comparison to the control group. On the contrary, the activity was remarkably increased in the low-concentration group of JOT in comparison to the corresponding single DON exposure group (Fig. 1E).
Apoptosis and detoxification enzyme activities
The activity of caspase-3 was prominently induced in the middle-concentration group of AFB1 in comparison to the control group. Besides, its activity was prominently induced in the low-concentration group of JOT in comparison to the corresponding single-exposure group of DON (Fig. 2A). Similarly, the caspase-9 activity was not noteworthily varied in all the single and JOT exposure groups. Besides, its activity was not markedly changed in all the JOT exposure groups in comparison to the corresponding single-exposure groups of AFB1 or DON (Fig. 2B). The CYP450 activity was conspicuously reduced in the high-concentration group of AFB1. In contrast, its activity was conspicuously increased in the high-concentration group of JOT in comparison to the corresponding single AFB1 group (Fig. 2C). Similar to the CAT activity, the CarE activity was not observably different in all the single-exposure groups in comparison to the control group. However, the level was observably elevated in the high-concentration JOT group in comparison to the corresponding single DON group (Fig. 2D). The GST activity was extraordinarily enhanced in the low-concentration groups of AFB1 and JOT, and the high-concentration group of DON. By contrast, its activity was extraordinarily inhibited in the high-concentration JOT group in comparison to the corresponding single DON group (Fig. 2E).
TH and VTG levels
The T3 level was manifestly reduced in the low-concentration group of DON in comparison to the control group and the corresponding JOT exposure group. Contrarily, its level was manifestly elevated in the high-concentration group of DON in comparison to the control group (Fig. 3A). The T4 level was enormously lessened in the low-concentration group of DON and the high-concentration group of AFB1 in comparison to the control group. Nonetheless, its level was enormously increased in the middle- and high-concentration groups of JOT in comparison to the corresponding single-exposure groups of AFB1 (Fig. 3B). The VTG level was drastically decreased in the middle-concentration groups of AFB1 and DON in comparison to the control groups. Conversely, its level was drastically elevated in the high-concentration group of JOT in comparison to the control group (Fig. 3C).
Determinations of gene expression
Influence on genes involved in anti-oxidative stress and cell apoptosis
The expression level of Mn-sod was markedly increased in the middle-concentration groups of DON and JOT, as well as in the high-concentration groups of AFB1 and DON. However, its expression was sharply decreased in the high-concentration group of JOT in comparison to the corresponding single AFB1 group (Fig. 4A). The expression of Cu/Zn-sod was remarkably elevated in the middle-concentration groups of AFB1 and DON in comparison to the control group. Additionally, the level of expression was remarkably induced in the high-concentration group of AFB1 (Fig. 4B). The gpx expression was substantially elevated in the low-concentration group of DON in comparison to the corresponding JOT group (Fig. 4C). The cas3 expression was considerably elevated in the middle-concentration groups of AFB1 and DON. However, its expression was considerably reduced in the high-concentration group of JOT in comparison to the corresponding single AFB1 group (Fig. 4D). The expression of cas9 was surprisingly increased in the high-concentration groups of AFB1 and JOT. Furthermore, its expression was surprisingly elevated in the low-concentration group of JOT (Fig. 4E). The apaf-1 expression was radically reduced in the low-concentration group of DON. Furthermore, the apaf-1 expression was also radically reduced in the middle-concentration group of JOT in comparison to the corresponding single DON group (Fig. 4F). The expression of bax was outstandingly accelerated in all the single-exposure groups of AFB1 and DON. Similar to the Cu/Zn-sod expression, the expression of bax was not altered in all the JOT exposure groups in comparison to the corresponding single AFB1 or DON group (Fig. 4G). The expression of p53 was markedly elevated in the middle- and high-concentration groups of AFB1. Similar to the expressions of Cu/Zn-sod and bax, the expression of p53 did not change in all the JOT exposure groups in comparison to the corresponding single-exposure group of AFB1 or DON (Fig. 4H).

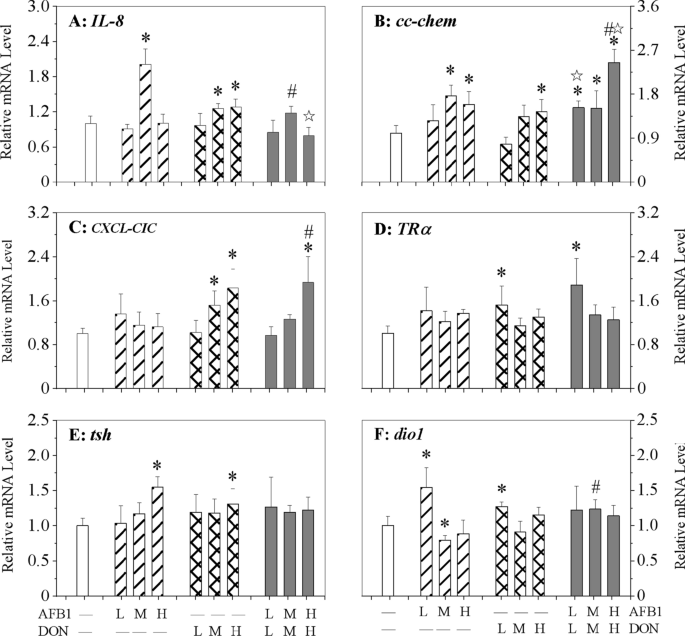

Influence on genes involved in immunology system and hypothalamic–pituitary–thyroid (HPT) axis
The IL-8 expression was enhanced in the middle-concentration group of AFB1 in comparison to the corresponding JOT exposure group. Moreover, its expression was also increased in the high-concentration group of DON (Fig. 5A). The expression of cc-chem was prominently increased in the low-concentration group of JOT in comparison to the corresponding DON exposure group. Furthermore, the expression level was prominently enhanced in the high-concentration group of JOT in comparison to the corresponding single-exposure group of AFB1 or DON (Fig. 5B). The cxcl-clc expression was noteworthily up-regulated in the middle- and high-concentration groups of DON. Also, its expression was noteworthy up-regulated in the high-concentration group of JOT in comparison to the control group and the corresponding single-exposure group of AFB1 (Fig. 5C). The expression of TRα was conspicuously elevated in the low-concentration groups of DON and JOT. Nonetheless, its expression was not conspicuously altered in all the JOT exposure groups in comparison to the corresponding single-exposure group of AFB1 or DON (Fig. 5D). The expression of tsh was observably induced in the high-concentration groups of AFB1 and DON. Similar to the TRα expression, the expression of tsh did not observably change in all the JOT exposure groups when compared with the corresponding single AFB1 or DON exposure groups (Fig. 5E). The expression of dio1 was extraordinarily increased in the low-concentration groups of AFB1 and DON. Moreover, its expression was extraordinarily elevated in the middle-concentration group of JOT in comparison to the individual AFB1 exposure group. Contrarily, the expression of dio1 was extraordinarily reduced in the middle-concentration group of AFB1 (Fig. 5F).
Influence on genes involved in hypothalamic–pituitary–gonadal (HPG) and hypothalamic–pituitary–adrenal (HPA) axes
Similar to the SOD and caspase-9, the ERα and ERβ1 expressions were not manifestly different in all the single and JOT exposure groups in comparison to the control groups. Additionally, their expressions were not manifestly different in the JOT exposure groups in comparison to their corresponding single-exposure groups (Fig. 6A, B). The expression of cyp17 was enormously enhanced in all the AFB1 and JOT exposure groups (except for the high-concentration groups of AFB1 and JOT). Moreover, its expression was enormously enhanced in the middle-concentration group of DON (Fig. 6C). The expression of cyp19a was not drastically altered in all the single-exposure groups. Nevertheless, its expression was markedly elevated in the low-concentration group of JOT in comparison to the control group and the corresponding single-exposure group of AFB1 or DON. The cyp19a expression was also remarkably induced in the middle-concentration group of JOT in comparison to the control group (Fig. 6D). The crh expression was sharply elevated in the high-concentration group of AFB1 in comparison to the control group. On the contrary, its expression was sharply decreased in the low-concentration group of JOT (Fig. 6E). The expression of gr was markedly elevated in the high-concentration groups of AFB1 and JOT. Its expression was remarkably up-regulated in the middle-concentration group of AFB1 in comparison to the corresponding JOT exposure group. In contrast, its expression was markedly suppressed in the low-concentration group of JOT (Fig. 6F).
Integrated biomarker response (IBR)
To uncover toxic difference of AFB1, DON and their mixtures with different concentrations, IBR was used to integrate all the determined indicators. Data of zebrafish embryos exposed to mycotoxins at different concentrations were selected to calculate IBR index. Toxicity order of the individual and mixture mycotoxins at different concentration can be compared. The results were represented as star plot (Fig. 7). Overall, AFB1 and JOT exposures exhibited stronger response than DON to the antioxidant biomarkers. In contrast, AFB1 and DON elicited the strongest response among all the exposures to apoptotic and detoxification biomarkers, respectively (Fig. 7B, C). Besides, the JOT exposure displayed the strongest response among all the exposures to the endocrine system and immune system biomarkers (Fig. 7D, E).
Acute toxicity test provides useful information on a wide range of concentrations that can be adopted in the following toxicity testing and the assessment of the therapeutic impacts of toxins . Former reports have displayed that the 4-day LC50 value of AFB1 to zebrafish larvae is 0.51 mg a.i. L−1, which is not consistent with our findings . Such a prominent difference might be likely attributed to the different tested life periods. Moreover, our data showed that AFB1 possessed stronger toxicity to zebrafish in comparison to DON. The determined mycotoxins had prominently different toxicities, which might be attributed to deviations in toxicokinetics and dynamics, such as uptakes, supersession, excretion, or binding to the target sites in D. rerio . Therefore, the exposure of AFB1 and DON had latent risks to aquatic animals. Nevertheless, previous investigations on AFB1 and DON have mainly focused on their single toxic effect, while the toxicity of their combinations remains largely unknown.
Because of the natural co-occurrence in the food of mycotoxin, a great deal of attention has been paid to the effects of the mixture exposure . Zebrafish toxicity studies can serve as an important reference to humans [28,29,30,31]. Consequently, embryonic zebrafish were adopted to evaluate the mixture toxic effect of AFB1 and DON in this study. An additive effect was observed by exposing zebrafish embryos to AFB1 and DON mixtures, indicating that the mixture of AFB1 and DON had stronger mixture toxicity in comparison to their single compounds . Our findings manifested that it was imminently essential to assess the combined toxicity of mycotoxins because the toxicity evaluation of mycotoxins is generally performed barely on single compounds, which might result in a misleading toxic effect in realistic situations.
With the wide existence of mycotoxins in food, it is very necessary to clarify the detoxification mechanism of mycotoxins in humans and how mycotoxins impair and influence human’s detoxification mechanism . Our findings indicated that changed CYP 450 and GST activities might contribute to the toxic action of AFB1 in D. rerio, and the elevated GST activity might be the toxic mechanism of DON in the animals. Furthermore, the decreased CarE and GST activities in the high-concentration group of JOT in comparison to the corresponding single-exposure group of DON, and the enhanced CYP450 activity in the high-concentration group of JOT might result in the overall additive toxicity of AFB1 and DON . Therefore, all the determined three detoxification enzymes were involved in the detoxification mechanism of mixture toxicity.
As a cell suicide mechanism, apoptosis can get rid of superfluous or undesired cells . The caspase family has a critical function in cell apoptosis, and caspase-3 has been shown as an important executor that is activated downstream in apoptosis pathways . As a transcription factor, the P53 protein can prevent tumorigenesis via inducing cell cycle arrest and apoptosis . Apaf-1 is the molecular core of the apoptosome, which is the executioner of mitochondria-dependent apoptosis . Caspase-9 can bind to the apoptosome where it can induce executioner caspases, such as caspase-3 . As a cardinal proapoptotic member of the BCL-2 family, the BCL-2-associated X protein (bax) can mediate the critical equilibrium in a cell cycle . The present study exerted that the caspase-3 activity was markedly induced in the AFB1 exposure, while no prominent change in caspase-9 was observed, which was not in line with the gene expression pattern. AFB1 apparently stimulated the expressions of cas3, cas9, bax, and P53 at the mRNA level, showing that this mycotoxin caused apoptosis via activating P53, which directly triggered the expression of gene encoding the proapoptotic protein (bax), then induced the critical executor of apoptosis (cas3) activation and subsequently resulted in cell apoptosis . Moreover, the expressions of cas3, cas9, and apaf-1 were markedly altered in the JOT group, implying that regular apoptosis was influenced by the co-exposure of AFB1 and DON.
Environmental stressors can immediately stimulate oxidative stress via a complex physiological process, and oxidative stress occurs when the level of reactive oxygen species (e.g., O2−, H2O2, OH, etc.) is higher than the scavenging activities of antioxidants [40, 41]. SOD can scavenge O2−and catalyze it to O2 and H2O2 . The H2O2 generated is further detoxified via CAT and other enzymes, such as POD. The changes in their contents may indicate the extent of damage to the organism . Both SOD and CAT activities in the single mycotoxin exposure groups were not markedly altered, indicating that the determined concentration of single mycotoxin was insufficient to induce prominent oxidative stress. However, a prominent reduction was found in the high-concentration group of JOT in comparison to the corresponding single-exposure group of DON, which could be attributed to an overwhelmed antioxidant capacity . MDA is the primary by-product of LPO, and an elevation in its content incarnates the degree of the cell damage caused by free radicals . However, the MDA level was reduced in the AFB1 and JOT exposure groups, potentially suggesting that LPO was reduced by antioxidants. The expressions of anti-oxidative genes are necessary for evaluating antioxidant capacity . In our current study, AFB1 and DON exposures up-regulated the expressions of Mn-sod and Cu/Zn-sod at the mRNA level, which was not consistent with the SOD activity, suggesting that SOD was primarily modulated at the protein level. The increased expressions of Mn-sod and Cu/Zn-sod may induce the SOD activity and eliminate the superoxide anion radical caused by the exposure of AFB1 and DON. Besides, the up-regulation of gpx at the mRNA level could also activate the gpx activity. Such discrepancy between antioxidant activity and gene expression might also be attributed to the presence of multiple gene copies in the species, a time-lag, and post-transcriptional modifications .
THs play an important role in the growth and development of fish and the thyroid endocrine system, while the HPT axis can regulate the thyroid system . In the current study, the levels of T3 and T4 were markedly changed after exposure to AFB1 or DON, and their contents were also distinctly altered in the JOT exposure groups. Besides, the T4 level was markedly increased in the JOT exposure. The expression of the TRα gene was dramatically enhanced in the low-concentration group of DON, indicating that a mechanism negatively responded to the reduced T4 level . On the contrary, a marked up-regulation of the TRα gene was found in the low-concentration group of JOT, implying that there was a positive feedback mechanism because of the induced T4 level . Noticeably increased expression of tsh was found in the high-concentration groups of AFB1 and DON in comparison to the control group. Iodothyronine deiodinases (Dio) possess an important function in modulating the circulation of peripheral TH levels and maintaining the ratios of T4 and T3 in vertebrates . Dio1 affects iodine recovery and TH degradation. The expression of dio1 was negatively associated with T3 and T4 levels in fish upon exposure to AFB1, DON, and their mixture. Consequently, the changes in T3 and T4 contents in zebrafish indicate the maladjustment of THs . The expressions of thyroid-associated genes were also considerably changed, indicating that AFB1, DON, and their mixture were thyroid disruptors in embryonic zebrafish.
VTG is considered a biomarker of estrogen-associated endocrine disorders, and the generation of VTG is regulated via 17β-estradiol activation of estrogen receptors (ERs) [51, 52]. The VTG content was obviously reduced in the AFB1 and DON exposure groups, indicating that the two mycotoxins had the anti-estrogenic effect. Conversely, the VTG content was increased in the JOT exposure group, implying that the mixture of AFB1 and DON possessed the estrogenic effect . HPG axis modulates sex hormones, which are tightly associated with procreation in fish . Surprisingly up-regulated expressions of cyp17 and cyp19a were found in the AFB1, DON, or JOT group. Besides, the cyp19a expression was remarkably up-regulated in the low-concentration group of JOT implies that AFB1, DON, and their mixture could impair the reproduction of zebrafish.
The main function of the HPA axis is to modulate the adaptive stress response of organisms . The expressions of crh and gr were noticeably varied in most of AFB1 and JOT exposure groups, implying that AFB1 and its combination with DON could impact the development of zebrafish. Environmental pollutants can elevate or reduce the expressions of immune-related genes . Our present study exhibited that the single and JOT exposures increased the expressions of IL-8, cc-chem, and cxcl-cic at the mRNA level. This finding might imply that latent tissue damage triggered by AFB1, DON, and their blend provoked the up-regulation of the investigated cytokines in this study . Moreover, AFB1, DON, and their mixture might impair the immune function and elevate the susceptivity to toxicants for fish.
A test of multiple toxicities in zebrafish is helpful in comprehensively understanding the toxic mechanisms of environmental pollutants [36, 52]. To comprehensively assess the mixture mechanisms of AFB1 and DON in fish, we attempted to assess the toxic effects of mixture mycotoxins on oxidative stress, immunotoxicity, cell apoptosis, and endocrine system in the early developmental stage of zebrafish at various endpoints. Our data provided solid evidence on the mixture toxic mechanism of AFB1 and DON in aquatic organisms. In the present study, the altered enzyme activity reflected the extent of cellular damage. Nevertheless, different biochemical enzymes have different sensitivity to mycotoxins. To validate this hypothesis, further study is still required to evaluate the changes of these enzymes at the protein level. The zebrafish can adapt to various stimuli induced by exogenous mycotoxins via a potential mechanism by up/down-regulating genes. Therefore, it is indispensable to evaluate the mechanism underlying the different alternations in immune-associated genes.
AFB1 exhibited greater acute toxicity than DON to the embryos of D. rerio and the mixture presented an additive effect. The levels of CAT, caspase-3, and T4 were markedly varied in most single and mixture groups. The expression levels of four genes (cas3, apaf-1, cc-chem, and cyp19a) associated with oxidative stress, cellular apoptosis, immune system, and endocrine system varied markedly in the mixture group in comparison to the corresponding single group. A comprehensive assessment of toxic effects of AFB1, DON, and their mixture using multiple endpoints offered valuable insights into the total toxicity induced by single and mixture mycotoxins in zebrafish as well as its potential mechanism.
Availability of data and materials
Reactive oxygen species
- LC50 :
Median lethal concentration
The combined exposure of AFB1 and DON
Liew WP, Mohd-Redzwan S (2018) Mycotoxin: its impact on gut health and microbiota. Front Cell Infect Microbiol 8:60
Adegbeye MJ, Reddy PRK, Chilaka CA, Balogun OB, Elghandour MMMY, Rivas-Caceres RR, Salem AZM (2020) Mycotoxin toxicity and residue in animal products: prevalence, consumer exposure and reduction strategies—a review. Toxicon 177:96–108
Yang C, Song G, Lim W (2020) Effects of mycotoxin-contaminated feed on farm animals. J Hazard Mater 389:122087
Wallin S, Gambacorta L, Kotova N, Lemming EW, Nälsén C, Solfrizzo M, Olsen M (2015) Biomonitoring of concurrent mycotoxin exposure among adults in Sweden through urinary multi-biomarker analysis. Food Chem Toxicol 83:133–139
Ma R, Zhang L, Liu M, Su YT, Xie WM, Zhang NY, Dai JF, Wang Y, Rajput SA, Qi DS, Karrow NA, Sun LH (2018) Individual and combined occurrence of mycotoxins in feed ingredients and complete feeds in China. Toxins 10(3):113
De Ruyck K, Huybrechts I, Yang S, Arcella D, Claeys L, Abbeddou S, De Keyzer W, De Vries J, Ocke M, Ruprich J, De Boevre M, De Saeger S (2020) Mycotoxin exposure assessments in a multi-center European validation study by 24-hour dietary recall and biological fluid sampling. Environ Int 137:105539
Rushing BR, Selim MI (2019) Aflatoxin B1: a review on metabolism, toxicity, occurrence in food, occupational exposure, and detoxification methods. Food Chem Toxicol 124:81–100
Smith MC, Gheux A, Coton M, Madec S, Hymery N, Coton E (2018) In vitro co-culture models to evaluate acute cytotoxicity of individual and combined mycotoxin exposures on Caco-2, THP-1 and HepaRG human cell lines. Chem Biol Interact 281:51–59
Sun LH, Lei MY, Zhang NY, Gao X, Li C, Krumm CS, Qi DS (2015) Individual and combined cytotoxic effects of aflatoxin B1, zearalenone, deoxynivalenol and fumonisin B1 on BRL 3A rat liver cells. Toxicon 95:6–12
Zhou H, George S, Hay C, Lee J, Qian H, Sun X (2017) Individual and combined effects of aflatoxin B1, deoxynivalenol and zearalenone on HepG2 and RAW 264.7 cell lines. Food Chem Toxicol 103:18–27
Sun H, Wang Y, Cheff DM, Hall MD, Shen M (2020) Predictive models for estimating cytotoxicity on the basis of chemical structures. Bioorg Med Chem 28(10):115422
Bambino K, Chu J (2017) Zebrafish in toxicology and environmental health. Curr Top Dev Biol 124:331–367
Shen C, Zuo Z (2020) Zebrafish (Danio rerio) as an excellent vertebrate model for the development, reproductive, cardiovascular, and neural and ocular development toxicity study of hazardous chemicals. Environ Sci Pollut Res 27(35):43599–43614
Lomba L, Ribate MP, Zuriaga E, García CB, Giner B (2019) Acute and subacute effects of drugs in embryos of Danio rerio. QSAR grouping and modelling. Ecotoxicol Environ Saf 172:232–239
Caceres I, Khoury AA, Khoury RE, Lorber S, Oswald IP, Khoury AE, Atoui A, Puel O, Bailly JD (2020) Aflatoxin biosynthesis and genetic regulation: a review. Toxins 12(3):150
Urbanek KA, Habrowska-Górczyńska DE, Kowalska K, Stańczyk A, Domińska K, Piastowska-Ciesielska AW (2018) Deoxynivalenol as potential modulator of human steroidogenesis. J Appl Toxicol 38(12):1450–1459
Male D, Wu W, Mitchell NJ, Bursian S, Pestka JJ, Wu F (2016) Modeling the emetic potencies of food-borne trichothecenes by benchmark dose methodology. Food Chem Toxicol 4:178–185
Alassane-Kpembi I, Schatzmayr G, Taranu I, Marin D, Puel O, Oswald IP (2017) Mycotoxins co-contamination: methodological aspects and biological relevance of combined toxicity studies. Crit Rev Food Sci Nutr 57(16):3489–3507
Gruber-Dorninger C, Jenkins T, Schatzmayr G (2019) Global mycotoxin occurrence in feed: a ten-year survey. Toxins 11(7):375
ISO (1996) Water quality-Determination of the acute lethal toxicity of substances to a freshwater fish Brachydanio rerio Hamilton-Buchanan (Teleostei, Cyprinidae)—part 3: flow-through method. ISO 7346-3
OECD (2013) OECD guidelines for the testing of chemicals, Fish Embryo Acute Toxicity (FET) test. OECD, Paris, France. No. 236
Teng M, Zhu W, Wang D, Yan J, Qi S, Song M, Wang C (2018) Acute exposure of zebrafish embryo (Danio rerio) to flutolanil reveals its developmental mechanism of toxicity via disrupting the thyroid system and metabolism. Environ Pollut 242(Pt B):1157–1165
Chi H (1997) Computer program for the probit analysis. National Chung Hsing University, Taichung
Vidal A, Mengelers M, Yang S, De Saeger S, De Boevre M (2018) Mycotoxin biomarkers of exposure: a comprehensive review. Compr Rev Food Sci Food Saf 17(5):1127–1155
Cullen JM, Newberne PM (1994) Acute hepatotoxicity of aflatoxins. In: Eaton DL, Groopman JD (eds) The toxicology of aflatoxins—human health, veterinary and agricultural significance. Academic Press, San Diego, pp 3–26
Schrenk D, Gao L, Lin G, Mahony C, Mulder PPJ, Peijnenburg A, Pfuhler S, Rietjens IMCM, Rutz L, Steinhoff B, These A (2020) Pyrrolizidine alkaloids in food and phytomedicine: occurrence, exposure, toxicity, mechanisms, and risk assessment—a review. Food Chem Toxicol 136:111107
Reisinger N, Schürer-Waldheim S, Mayer E, Debevere S, Antonissen G, Sulyok M, Nagl V (2019) Mycotoxin occurrence in maize silage—a neglected risk for bovine gut health? Toxins 11(10):577
Juan-García A, Bind MA, Engert F (2020) Larval zebrafish as an in vitro model for evaluating toxicological effects of mycotoxins. Ecotoxicol Environ Saf 202:110909
Domijan AM, Marjanović Čermak AM, Vulić A, Tartaro Bujak I, Pavičić I, Pleadin J, Markov K, Mihaljević B (2019) Cytotoxicity of gamma irradiated aflatoxin B1 and ochratoxin A. J Environ Sci Health B 54(3):155–162
du Plessis B, Regnier T, Combrinck S, Heinrich P, Braunbeck T (2019) Effect of pH on the toxicity of fumonisins towards the RTL-W1 cell line and zebrafish (Danio rerio) embryos. Toxicol Lett 313:101–107
Zhou H, George S, Li C, Gurusamy S, Sun X, Gong Z, Qian H (2017) Combined toxicity of prevalent mycotoxins studied in fish cell line and zebrafish larvae revealed that type of interactions is dose-dependent. Aquat Toxicol 193:60–71
Lyagin I, Efremenko E (2019) Enzymes for detoxification of various mycotoxins: origins and mechanisms of catalytic action. Molecules 24(13):2362
Jin Y, Gao Y, Zhang H, Wang L, Yang K, Dong H (2020) Detoxification enzymes associated with butene-fipronil resistance in Epacromius coerulipes. Pest Manag Sci 76(1):227–235
Kang R, Li R, Dai P, Li Z, Li Y, Li C (2019) Deoxynivalenol induced apoptosis and inflammation of IPEC-J2 cells by promoting ROS production. Environ Pollut 251:689–698
Yang F, Li L, Chen K, Li C, Wang Y, Wang G (2019) Melatonin alleviates β-zearalenol and HT-2 toxin-induced apoptosis and oxidative stress in bovine ovarian granulosa cells. Environ Toxicol Pharmacol 68:52–60
Ben Salah-Abbès J, Belgacem H, Ezzdini K, Abdel-Wahhab MA, Abbès S (2020) Zearalenone nephrotoxicity: DNA fragmentation, apoptotic gene expression and oxidative stress protected by Lactobacillus plantarum MON03. Toxicon 175:28–35
Omur AD, Yildirim B, Saglam YS, Comakli S, Ozkaraca M (2019) Activity of resveratrol on the influence of aflatoxin B1 on the testes of Sprague dawley rats. Pol J Vet Sci 22(2):313–320
Chen J, Yang S, Huang S, Yan R, Wang M, Chen S, Cai J, Long M, Li P (2020) Transcriptome study reveals apoptosis of porcine kidney cells induced by fumonisin B1 via TNF signalling pathway. Food Chem Toxicol 139:111274
Wang J, Jin Y, Wu S, Yu H, Zhao Y, Fang H, Shen J, Zhou C, Fu Y, Li R, Wang R, Wang J, Zheng K, Fan Q, Chen B, Zhang J (2019) Deoxynivalenol induces oxidative stress, inflammatory response and apoptosis in bovine mammary epithelial cells. J Anim Physiol Anim Nutr 103(6):1663–1674
Agahi F, Álvarez-Ortega N, Font G, Juan-García A, Juan C (2020) Oxidative stress, glutathione, and gene expression as key indicators in SH-SY5Y cells exposed to zearalenone metabolites and beauvericin. Toxicol Lett 334:44–52
Taroncher M, Pigni MC, Diana MN, Juan-García A, Ruiz MJ (2020) Does low concentration mycotoxin exposure induce toxicity in HepG2 cells through oxidative stress? Toxicol Mech Methods 30(6):417–426
Rašić D, Micek V, Klarić MS, Peraica M (2019) Oxidative stress as a mechanism of combined OTA and CTN toxicity in rat plasma, liver and kidney. Hum Exp Toxicol 38(4):434–445
Marček T, Vuletić MV, Španić V (2018) Biochemical changes in ears of wheat genotypes subjected to Fusarium spp. attack. Acta Biol Hung 69(4):493–504
Egresi A, Süle K, Szentmihályi K, Blázovics A, Fehér E, Hagymási K, Fébel H (2020) Impact of milk thistle (Silybum marianum) on the mycotoxin caused redox-homeostasis imbalance of ducks liver. Toxicon 187:181–187
Zhao W, Wang L, Liu M, Jiang K, Wang M, Yang G, Qi C, Wang B (2017) Transcriptome, antioxidant enzyme activity and histopathology analysis of hepatopancreas from the white shrimp Litopenaeus vannamei fed with aflatoxin B1(AFB1). Dev Comp Immunol 74:69–81
Parsons AE, Lange A, Hutchinson TH, Miyagawa S, Iguchi T, Kudoh T, Tyler CR (2020) Expression dynamics of genes in the hypothalamic-pituitary-thyroid (HPT) cascade and their responses to 3,3′,5-triiodo-l-thyronine (T3) highlights potential vulnerability to thyroid-disrupting chemicals in zebrafish (Danio rerio) embryo-larvae. Aquat Toxicol 225:105547
Parsons A, Lange A, Hutchinson TH, Miyagawa S, Iguchi T, Kudoh T, Tyler CR (2019) Molecular mechanisms and tissue targets of brominated flame retardants, BDE-47 and TBBPA, in embryo-larval life stages of zebrafish (Danio rerio). Aquat Toxicol 209:99–112
Gogoi P, Kalita JC (2020) Effects of butylparaben exposure on thyroid peroxidase (TPO) and type 1 iodothyronine deiodinase (D1) in female Wistar rats. Toxicology 443:152562
Xu C, Niu L, Guo H, Sun X, Chen L, Tu W, Dai Q, Ye J, Liu W, Liu J (2019) Long-term exposure to the non-steroidal anti-inflammatory drug (NSAID) naproxen causes thyroid disruption in zebrafish at environmentally relevant concentrations. Sci Total Environ 676:387–395
Spaan K, Haigis AC, Weiss J, Legradi J (2019) Effects of 25 thyroid hormone disruptors on zebrafish embryos: a literature review of potential biomarkers. Sci Total Environ 656:1238–1249
Fuentes N, Silveyra P (2019) Estrogen receptor signaling mechanisms. Adv Protein Chem Struct Biol 116:135–170
Mukherjee U, Samanta A, Biswas S, Das S, Ghosh S, Mandal DK, Maitra S (2020) Bisphenol A-induced oxidative stress, hepatotoxicity and altered estrogen receptor expression in Labeo bata: impact on metabolic homeostasis and inflammatory response. Ecotoxicol Environ Saf 202:110944
Tran TKA, Yu RMK, Islam R, Nguyen THT, Bui TLH, Kong RYC, O’Connor WA, Leusch FDL, Andrew-Priestley M, MacFarlane GR (2019) The utility of vitellogenin as a biomarker of estrogenic endocrine disrupting chemicals in molluscs. Environ Pollut 248:1067–1078
Corton JC, Kleinstreuer NC, Judson RS (2019) Identification of potential endocrine disrupting chemicals using gene expression biomarkers. Toxicol Appl Pharmacol 380:114683
Luo Y, Chen H, Li D, Zhan M, Hou L, Dong W, Luo Y, Xie L (2020) The effects of norethindrone on the ontogeny of gene expression along the hypothalamic-pituitary-adrenal and hypothalamic-pituitary-gonadal axes in zebrafish (Danio rerio). Sci Total Environ 747:141554
Torraca V, Mostowy S (2018) Zebrafish infection: from pathogenesis to cell biology. Trends Cell Biol 28(2):143–156
Iwanami N, Hess I, Schorpp M, Boehm T (2017) Studying the adaptive immune system in zebrafish by transplantation of hematopoietic precursor cells. Methods Cell Biol 138:151–161
The authors acknowledge the technical assistance of Siyi Fang and Hailiang Guo (Zhejiang Academy of Agricultural Sciences).
The research was supported by the National Key Research and Development Program of China [Grant Number 2018YFC1603104], the National Natural Science Foundation of China [Grant Number 31771894] and Shanghai Agriculture Applied Technology Development Program, China [Grant Number 2021, NO.3-2].
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
About this article
Cite this article
Wang, Y., Wang, Q., Ji, C. et al. Mixture toxic impacts and the related mechanism of aflatoxin B1 and deoxynivalenol on embryonic zebrafish (Danio rerio). Environ Sci Eur 33, 86 (2021). https://doi.org/10.1186/s12302-021-00529-4
- Joint toxicity
- Aflatoxin B1
- Toxic mechanism
- Aquatic vertebrates
