Bracken growth, toxin production and transfer from plant to soil: a 2-year monitoring study

Environmental Sciences Europe volume 33, Article number: 45 (2021) Cite this article

Abstract

Background

Bracken fern (Pteridium aquilinum) produces several toxic glycosides, of which ptaquiloside (PTA) is the most well documented. PTA is released from bracken to soil and leaches to surface water and to groundwater. This study presents the first comprehensive monitoring study of bracken biomass, PTA content in the biomass, release by precipitation and concentrations in soil solution at 50 cm depth. Laboratory experiments were carried out to estimate the degradation kinetics of PTA in different soil horizons and moisture contents.

Results

The PTA concentration in bracken was highest at the earliest development stages of the plant, i.e., May, declining through the growing season until negligible contents at senescence. The maximum seasonal PTA content in the canopy peaked in early summer, with values up to 1600 mg m−2. Results show that on average 0.2% of the PTA present in the canopy is washed per mm of incident rain, resulting in up to 13.1 mg PTA m−2 being washed off during single rain events. Once in the soil, PTA dissipates rapidly showing a half-lives ranging from 3.3 to 73 h with observed degradation rates showing a tenfold decrease with soil depths increasing from top soil to 25 cm soil depth. Concentrations of PTA in soil solution were positively correlated with the content of PTA in the canopy, with maximum pore water concentrations up to 4,820 ng L−1 during a pulse event taking place in July 2019.

Conclusions

The production of PTA in bracken was found to be proportional to biomass growth, while the mass of PTA being released is a function of volume and intensity of precipitation, as well as the bracken development stage. Leaching of PTA takes place in the form of pulses linked to precipitation events, with concentrations in the soil solution exceeding levels which are known to pose a risk to human health.

Background

Plants produce a wide array of secondary metabolites essential for physiological processes and defence against stressors, such as competing plants or pests. These compounds are often polar and mobile, some of them toxic and a few are present in remarkably high amounts in the plant biomass. Studies during the last two decades have increased the awareness of phytotoxins as emerging aquatic micropollutants [1,2,3], as some of these have been detected in soil and water near toxin producing plants [4,5,6].

The presence of phytotoxins in the environment has raised questions on how toxins are mobilized from the plant to the environment. Several release pathways of phytotoxins into the environment have been identified such as leaf wash off, stem-flow wash off, root exudation and decay of plant material [7, 8]. However, there is still a lack of understanding in the underlying mechanisms that control the release of phytotoxins from the plant, which is critical to assess the risk of these emerging aquatic micropollutants.

Bracken fern is a complex genus of Pteridaceae comprising several species, subspecies and varieties, present in all continents except Antarctica [9]. This fern genus is viewed in many places as a weed and its abundance has been related to changes in land use. Bracken can grow vigorously, and often appears as the dominant species when present, with maximum recorded biomasses up to 1408 g m−2 [10]. The production of aboveground biomass is supported by a well-developed rhizome system with a weight generally higher than the aboveground biomass. In bracken infested areas in UK, the rhizome dry biomass has been estimated to reach values up to 5.14 kg m−2 [11].

Bracken produces large amounts of toxic compounds, where some of these compounds exert allelopathic effects on other plant species [12, 13]. Furthermore, the International Agency for Research on Cancer (IARC) WHO/IARC has classified bracken fern in group 2B, as possibly carcinogenic to humans, based on the evidence in experimental animals [14]. From all the toxic compounds produced by bracken, ptaquiloside (PTA), an illudane glycoside, has been identified as the main responsible for the carcinogenicity of bracken fern (Table 1) [15, 16].

Table 1 Structure and physicochemical properties for ptaquiloside (PTA) and pterosin B (PTB)
Full size table

Previous studies have detected other glycosides in bracken such as caudatoside (CAU), ptesculentoside (PTE) and ptaquiloside Z [17,18,19,20]. The total illudane glycoside content measured in bracken was up to 13.0 mg g−1, with different ratios between PTA, PTE and CAU observed as a function of geographical region [21]. However, PTA was the prevalent illudane glycoside produced by Scandinavian bracken. Ptaquiloside has been detected in soil and water in bracken infested areas, with concentrations up to 73,000 ng g−1 in soils, 92 ng L−1 in shallow groundwater and 2,280 ng L−1 in stream water [4, 22, 23]. There are different mechanisms for release of PTA from the plant, with PTA washed off by precipitation suggested to be the most important. For instance, concentrations of PTA up to 169 µg L−1 in the leaf wash off collected during precipitation events have been measured [24, 25]. To put concentrations into perspective, the maximum tolerable concentration of PTA in drinking water has been estimated to 0.5–16 ng L−1 [26].

Ptaquiloside is highly hydrophilic and weakly sorbing, implied by an log octanol–water partition coefficient (KOW) value of − 0.63 [26] (Table 1). Ptaquiloside dissipates in soils into pterosin B (PTB) by both microbial degradation and hydrolysis, with half-lives between 8 and 180 h depending on the type of soil material [26, 27]. Hydrolysis of PTA is strongly pH dependent, with lower degradation rates found at slightly acidic to neutral conditions [28]. PTB dissipates in the soil at a slower rate than PTA, by both microbial degradation and irreversible sorption to soil components such as clay and organic matter [29]. Based on wide occurrence of PTA in the environment, several authors have identified PTA as a potential aquatic micropollutant due to its toxicity, high content in bracken, release in high concentrations, high solubility and the widespread presence of bracken [3, 24, 30, 31].

Production of PTA in bracken is influenced by environmental factors, plant varieties or induced stress by human management activities [20, 22, 32]. The concentration of PTA in bracken is maximum at emergence, with recorded contents up to 37 mg g−1 in bracken tissue [22, 27]. From the moment of emergence, PTA concentrations in bracken decline progressively through the growing season [21, 33]. The total PTA content in the biomass recorded is usually in the order of mg m−2, with recorded values up to 590 mg PTA m−2 in bracken from Scotland [31].

A previous study by Garcia-Jorgensen et al. introduced a novel modelling concept for predicting the environmental fate of natural toxins using the mechanistic model DAISY [30]. Toxin production rates and release of PTA from bracken were identified as the processes with the highest uncertainty, due to the lack of a comprehensive dataset for calibration of the model. The present study aims to characterize key PTA pathways from bracken to soil, with specific focus on: (i) PTA generation in bracken, (ii) PTA wash off from the canopy by precipitation, (iii) soil solution PTA concentrations, (iv) PTA degradation kinetics in the soil, and (v) link between release events and soil solution concentrations. For this, we performed a 2-year monitoring program focusing on bracken biomass, PTA concentration in plant, and soil water concentrations at 50 cm depth. Moreover, we carried spot field experiments targeting release events and batch laboratory experiments to determine PTA degradation in soils. To the best of our knowledge, this study presents the first comprehensive longer-term dataset regarding PTA dynamics in bracken fern and soil.

Materials and methods

Site description

The monitoring study was carried out in Humleoreskov, a temperate forest located 60 km west of Copenhagen, Denmark (N 55° 28′ 29.7" E 11° 54′ 26.1", Fig. 1a). The study area is located inside a forest glade dominated by bracken and surrounded by deciduous tree species such as European beech (Fagus sylvatica L.) and Common oak (Quercus robur L.) (Fig. 1a, b). In the area, bracken is present in form of dense stands in forest glades composed almost exclusively of bracken, as well as forest floor vegetation at a lower density. Bracken completely covers all surface with high density, with a homogeneous canopy surpassing two meters height when fully developed. The criteria for selecting the area was to have a minimal disturbance from the tree canopy on precipitation, a flat topography, and homogeneous bracken biomass in the plot (Fig. 1b).

Fig. 1
figure 1

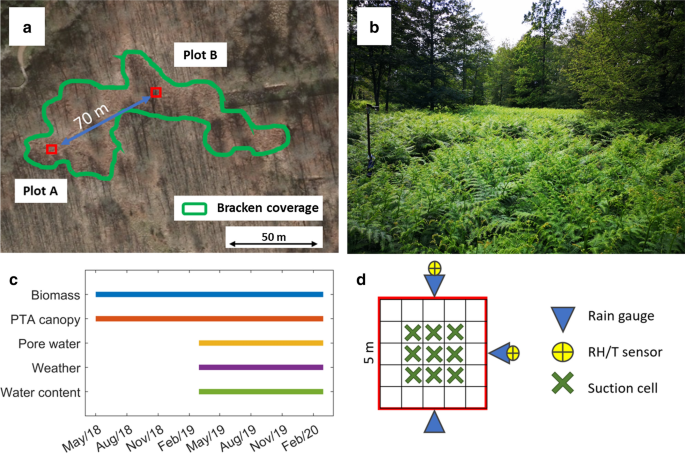

a Aerial picture of the study area of the monitoring plots. b Photo of B-plot in June 2019 (Photo by Daniel Garcia Jorgensen). c Start and end date of the different variables monitored. d Set up of rain collectors, relative humidity/temperature sensors and suction cells in the B monitoring plot

Full size image

Humleore’s soil is categorized as sandy loam by the United States Department of Agriculture (USDA) classification and identified as an Oxyaquic Hapludalf in the USDA soil taxonomy [34, 35]. The soil is composed of morainic till with a content of clay and silt in deeper horizons up to 18 and 26%, respectively. The soil presents pH values ranging from 4.3 at the surface to 6.9 at 36 cm depth. For a more detailed description of the soil profile, horizons and physicochemical characteristics, the reader is referred to Additional file 1: Section 2.

Field monitoring and laboratory experiments

The monitoring began in May 2018 and finished in March 2020 (Fig. 1c). For the entire period, the frequency of sampling ranged from 1 to 3 weeks, depending on the time of the year. High frequency sampling of plant material and soil pore water was centered in the period from beginning of the growing season until the full transition of bracken into litter, i.e., from May to December.

Two different plots of each 25 m2 each were set in the forest glade, with 5 m side length, located in the center of the forest glade. Plots were separated by approximately 70 m from each other (Fig. 1a, d). Moreover, each plot was divided into 25 subplots of 1 m2 each for sampling purposes. Bracken biomass and PTA content was measured in both plots, while PTA in pore water, soil water content and climate variables (temperature, relative humidity, precipitation) were only monitored in B-plot (Fig. 1b, d). Different sensors were set in the borders of the B plot to monitor precipitation, temperature and relative humidity. Moreover, nine suction cells were installed at 50 cm depth in the center of the plot in March of 2019 to sample soil solution under bracken canopy for the entire calendar year (Fig. 1d).

Environmental variables

From March 2019 until March 2020, precipitation, relative humidity and temperature were constantly monitored on-site (Fig. 1d). Precipitation was measured using three rain collectors comprising a Pronamic Rain-O-Matic small rain gauge (Ringkoebing, Denmark) coupled with an ONSET HOBO® Pendant® Event Data Logger (Bourne, USA). The rain collectors were installed on poles placed in the middle of three different sides of the plot, at 250 cm height and above the bracken canopy (Fig. 1b). Temperature and relative humidity were monitored with two ONSET® HOBO® External Temperature/RH Sensor Data Loggers (Bourne, USA). For measuring the water content in the soil profile, three Delta-T PR2 soil profile probes were installed at 100 cm depth in the B-plot. Measurements were carried out with a Delta-T HH2 Moisture Meter (Cambridge, UK).

Bracken biomass

During the entire monitoring period, bracken biomass was monitored in plots A and B (Fig. 1a) comprising a total of 22 sampling days. In each sampling day, a total of six different subplots were sampled for bracken biomass, three from each plot. All subplots to be sampled were randomly selected at the beginning of each season.

For each subplot and measuring day, the number of fronds, frond height, number of pinnae and pinna length were determined on-site. One frond from the most representative class was collected from each subplot. This was selected visually considering height and apparent biomass of all fronds for the specific subplot. The length of the second and third pinnae of the selected frond were also measured on site. The collected fronds were placed in plastic bags and kept on ice for up to two hours until arrival to the laboratory. Once in the laboratory, the diameter of the rachis, as well as the weight of the frond, pinna and rachis were determined separately. The total aboveground biomass per square meter was calculated as the sum of pinna and rachis biomass, multiplied by the number of fronds in each plot. In the 2019 growing season, the monitoring of biomass halted at the end of July as a heavy storm tilted the bracken, making it impossible to continue monitoring of the number of fronds.

Moreover, below-ground biomass was determined once on 1st July of 2020, at the time of frond maturity. For that, three plots of 0.5 × 2.0 m were established at 20–60 m west-southwest of the B-plot (Fig. 1a). Each plot was then excavated until no further rhizomes were found for 20 cm. The soil was removed from the rhizomes, washed and divided into frond-bearing and storage rhizomes based on the occurrence of short-shots (frond-bearing only). The length of all rhizome-fragments was measured and the number of terminal buds counted. The dry-matter content was determined after drying for 48 h at 110 °C in a fan-ventilated oven. For more details regarding the morphology of bracken and calculation of the biomass, the reader is referred to Additional file 1: Sections 1 and 6, respectively.

PTA in the canopy

Initially, the pinna and rachis were separated with common scissors. Then, bracken pinnae were cut into 5–10 cm pieces, mixed by hand and a subsample of approximately 15 gr stored in a plastic bag. Rachis used for PTA determination was cut longitudinally in pieces with an approximate length of 10 cm and placed in plastic bags. Thereafter, all plant samples were stored at − 80 °C until sample preparation.

Soil pore water

From March 2019, pore water was monitored for one full calendar year (Fig. 1c). Nine Prenart Super Steel suction cells (Frederiksberg, Denmark), with a dimension of 110 mm length, 19.5 mm outer diameter, porous area of 40 cm2 and an average pore size of 50 nm were used. The suction cells were installed at approximately 50 cm depth and at an angle of 45 degrees to minimize disturbance of the soil column above the cell. Suction cells were connected to 100 mL glass collector bottles on the soil surface via 2 mm PTFE tubing. Between sampling days, vacuum was applied with a hand vacuum pump until a pressure of − 20 kPa was reached. At the time of sampling, the content in the bottle was emptied, followed by the application of a vacuum of -60 kPa for the extraction of fresh soil pore water. A subsample, if possible, of 10 mL was transferred to 15 mL polypropylene conical centrifuge tubes. Samples were immediately stored on ice, for a time up to 2 h, until arrival at the laboratory. Afterwards, samples were preserved by adding 0.5 mL of 0.3 M ammonium acetate buffer per 20 mL of sample, following the protocol of Clauson-Kaas et al. [24]. Thereafter, the samples were immediately stored at − 18 °C until sample purification.

PTA release

For quantification of the PTA being released by precipitation, we sampled the throughfall water under bracken, i.e., intercepted rainwater dripping off the canopy, during four precipitation events. The precipitation events that were monitored took place in 25th and 30th of August 2018, and 5th and 30th July of 2019. For collecting the throughfall water, glass jars were placed randomly under the bracken canopy prior to the precipitation event. The jars were cylindrical with an opening diameter of 8 cm. Moreover, a plastic mesh with grid size of 1.1 mm was placed on the openings of the jars to avoid plant materials entering the container. Prior to the rain event, 2 mL of 0.3 M ammonium acetate buffer was added to each container to minimize PTA degradation until collection of the sample [36]. A total of 9 (2018) or 12 (2019) jars were placed in the middle of the B plot, with the same distribution pattern than suction cells in the soil (Fig. 1d). However, during the precipitation event taking place on 30th July 2019, a total of 9 jars were placed in both plots A and B, to determine the variation in wash off amount between plots. The mass of PTA washed off the canopy during a precipitation event (mg PTA m−2) was calculated as the concentration of PTA measured in throughfall water (mg L−1), multiplied by the volume of throughfall water collected in the glass containers (L) and divided by the area of the jar (m2).

Degradation of PTA in soil

We conducted 6 rounds of batch experiments estimating PTA degradation kinetics for the three uppermost horizons of the soil, i.e. A1, A2 and AE horizons. For this, a soil profile was excavated under bracken canopy near plot B. Moreover, we tested the influence of soil moisture content on PTA degradation kinetics, by carrying out incubations in both unsaturated (matric potential of − 100 cm or pF 2) and near saturated (matric potential of − 10 cm or pF 1) conditions. An aliquot of PTA solution was added to the soil samples to reach an initial concentration of 10 µg g−1 dry weight (DW). The stock solution of PTA used for addition was concentrated bracken extract purified by preparative HPLC with a Perkin Elmer Series 10 liquid chromatograph (Connecticut, USA) equipped with a Shimadzu SPD-10A UV–VIS Detector (Kyoto, Japan). The purification followed the method by Rasmussen et al. [26]. For more detailed information of the standards use and the procedure followed see Additional file 1: Section 5.1.

After the soil water mixture was homogenized, an aliquot equivalent to 2 g DW was added into 15 mL centrifuge vials. Three different replicates were prepared for each sampling time, making a total of 180 samples incubated during the experiment. All samples were stored on ice during sample preparation to avoid degradation. Thereafter, samples were placed in a climate chamber at 10 °C, 70% humidity and darkness. To avoid anaerobic conditions, the tubes were incubated covered with aluminum foil. The samples were left undisturbed throughout the experiment until the moment of extraction and analysis.

The PTA degradation kinetic data were fitted as a pseudo first-order reaction with respect to PTA. TableCurve 2D v. 5.01 software was used (Jandel Scientific, USA) for non-linear regression. The nominal initial concentration at time 0 was not included in the regression analysis but was estimated by regression. The values are expressed as degradation, as sorption of PTA is negligible compared with microbial degradation [26, 27, 37].

PTA determination methods

Solvents and chemicals

HPLC-grade methanol for bracken extraction and determination of PTA in bracken was obtained from Sigma-Aldrich (Denmark). HPLC-grade hexane was obtained from VWR (HiPerSolv Chromanorm, Denmark). LC–MS grade methanol was obtained from Honeywell (LC–MS Chromasolv, Germany), while LC–MS grade acetonitrile was obtained from Merck Millipore (LC–MS LiChrosolv hypergrade, Germany). All acids and bases (sodium hydroxide, formic and trifluoroacetic acid) were analytical grade obtained from Sigma-Aldrich (Denmark). Polyamide was obtained from Sigma-Aldrich (Polyamide for column chromatography 6, Denmark). Loganin used as internal standard was purchased from Sigma-Aldrich (Denmark).

PTA determination in bracken tissue samples

Frozen plant samples for PTA determination were freeze dried in a Labogene Scanvac Cool Safe freezer dryer, at 1 hPa and − 96 °C for 48 h. The freeze-dried samples, both pinna and rachis, were milled into a fine powder in a Kenwood KVC3100 W kitchen machine adapted with a Kenwood Multi Mill attachment. For extraction, an aliquot of 0.5 g of powder was placed into polyethylene centrifuge tubes of 50 mL, followed by the addition of 20 mL of 80% v/v methanol into the centrifuge tubes and shaking for 20 min. For extraction, both methanol and ethanol were tested, and methanol was selected because it showed a better extraction efficiency. Thereafter, the tubes were centrifuged at 20,000g and 4 °C for 15 min. The supernatant was transferred to another centrifuge tube and kept on ice. Then, an aliquot of 4 mL of the extract was filtered through a 0.45 µm regenerated cellulose (RC) syringe filter (Sigma-Aldrich, Denmark) into a 15 mL centrifuge tube. For removal of pigments, 4 mL of hexane was added. The tube was shaken by hand for 10 s and the two phases then allowed to separate. The methanol phase was transferred to a 15 mL centrifuge tube using a Pasteur pipette. The cleaning with hexane was repeated twice, to remove as much interfering substances as possible. Thereafter, 2 mL of the methanolic extract was diluted with DI to reach a 40% methanol solution, filtered with a 0.22 µm PTFE syringe filter into a 1.5 mL LC amber vial and stored on ice until analysis. All samples were done in duplicates. Extraction and analysis of all samples were carried out in the same day.

The method for quantification of PTA and PTB was adapted from the method of Ayala-Luis et al. and Rasmussen and Pedersen [28, 38]. Quantification of PTA and PTB in bracken extracts took place on an Agilent 1200 series diode array detector (DAD) HPLC system equipped with a Phenomenex Hyperclone C8-DBS (150 mm × 4.6 mm, 3 µm) column thermostated at 35 °C; a Phenomenex Gemini C6-Phenyl guard column was used. The analytes were separated with a mobile phase composed of 10% acetonitrile (eluent A) and 100% acetonitrile (eluent B). The elution gradient was: 0–6 min 11% B, 7 min 47% B, 7–10 min 47% B, 11 min 11% B, and 11–13 min 11% B. The sample injection volume was 50 µL. UV detection was performed at 214 nm for PTA and 220 nm for PTB. All samples were prepared in duplicates.

The LOD and LOQ of the method for PTA was 82 and 276 µg g−1, respectively, while for PTB it was 16 and 55 µg g−1. The LOD and LOQ for PTA was calculated as 3 and 10 times the standard deviation of the injection of the lowest standard for all runs, divided by the average slope of the calibration curves. Since PTB is present in low amounts in the canopy and assumed to not be produced in the plant but formed as degradation of PTA (Additional file 1: Figure S13), we decide to proceed with molar sum as a calculation of the total PTA produced (PTATOT). The final concentration of PTATOT in each sample was obtained adding the measured concentration of PTA and PTB, applying 1:1 molar conversion ratio from PTA to PTB. For calculation of the PTATOT after the storm in July 2019, e.g., without information regarding the number of fronds, it was assumed that the number was equal to that measured the last sampling date. For more information regarding calculations of toxin in the biomass, the reader is referred to Additional file 1: Section 7.

PTA determination in soil solution

Soil water samples were purified and concentrated by solid phase extraction (SPE) using Waters Oasis MAX (1 cc Flangeless Vac Cartridge, 10 mg, USA) using a SPE method adapted from Skrbic et al. [39]. The SPE cartridges were conditioned consecutively with 0.33 mL of 100% methanol and 0.33 mL of deionized water, with the cartridges running dry for 20 s between additions. A total of 3 mL of sample was loaded to each SPE, by consecutive 1 mL additions. The cartridges were washed with 0.33 mL of deionized water, eluted with 1 mL of 100% methanol and the eluate collected into 1.5 mL LC amber vials. The methanol in the samples was then evaporated in a heat block (Mikrolab Aarhus, Denmark), thermostated at 30 °C, with a gentle air flow. After evaporation, the eluate was dissolved in 40% methanol + 0.1 M ammonium acetate solution, buffered at pH 5 [17]. For ensuring the recovery of all compounds in the vial, these were shaken on a vortex shaker for approximately 10 s. The solution was then transferred to a LC amber vial of 200 µL and stored at − 20 °C until analysis.

The method used for quantification is adapted from Kisielius et al. [17]. The chromatographic separation and quantification of analytes were performed using Agilent 1260 Infinity HPLC system equipped with an Agilent 6130 Single Quadrupole mass spectrometer. The LC system was thermostated at 35 °C and with a flow of 1 mL min−1. The analytes were separated with a mobile phase comprising LC–MS-grade water (eluent A) and acetonitrile (eluent B), both containing 0.1% formic acid. The gradient of elution was: 0–1 min 20% B, 4.5 min 52% B, 5 min 95% B, 5–5.5 min 95% B, 5.6 min 20% B, and 5.6–6 min 20% B. The column was flushed for a minute with 11% B at end of each run, with a total time of analysis of 7 min. The injection volume was 20 µL, including 2 µL of internal standard. Loganin was used as an internal standard in all determinations, by the addition of 2 µL of 500 µg L−1 solution into each sample by the sampling robot connected to the LC instrument [36]. The mass spectrometer operated in single ion mode, targeting 219.1 m/z fragments for both PTA and PTB [17]. Total ion scans were included for the m/z window between 200 and 460.

The LOD and LOQ of the analytical method for PTA with external standards, including preconcentration, was 14.7 and 45.3 ng L−1, respectively. On the other hand, the LOD and LOQ for PTB was 2 and 6 ng L−1, respectively. The recovery of the full method, including preconcentration, was 74.3 ± 0.02% and 99.6 ± 0.03% for PTA and PTB, respectively. For handling of the results, in cases where a signal at the specific retention time of PTA or PTB was recorded, but with areas below the LOQ, the concentrations were set at half of the LOQ. In cases where no signal was detected, the concentration was set at half of the LOD.

For quality control, a positive and a negative sample was extracted with SPE as any other field sample every 15 samples. Positive sample was composed of a solution of PTA and PTB with known concentration, while the negative was a field blank from a soil in Humleore without bracken presence (Additional file 1: Section 8). All determinations were performed using purified external standards with known concentrations provided by Vaidotas Kisielius [17]. No matrix effect nor instrumental drift were identified. Analysis and visualization of results were done in MATLAB version R2020b (MathWorks, USA).

PTA determination in soil

The extraction of PTA from soils was carried out following the method by Jensen et al. [23]. After extraction, PTA was converted to PTB using the method by Rasmussen and Pedersen [38]. First, 6 mL of deionized water was added to each sample tube, followed by shaking on a flatbed shaker for 10 min at 18 Hz. After shaking, samples were centrifuged at 20,000g at 1 °C for 10 min. The supernatant was then filtered through a RC syringe filter of 0.2 µm. However, the top horizons had to be filtered with 0.45 µm instead, due to clogging of the filter by the organic-rich topsoil materials. The cleaning up of impurities and PTB in the extract was done by passage through solid phase extraction columns dry packed with polyamide. The PTA in the filtered extract was then converted to PTB by stepwise addition of 75 µL of sodium hydroxide (1 M) and 75 µL of trifluoroacetic acid (2.5 M) [38]. Samples were stored at − 18 °C until HPLC analysis. PTB concentrations were analyzed by HPLC using the same analytical instrument used for PTA and PTB in bracken samples (“PTA determination in bracken tissue samples” section) but with optimized settings for the chromatographic separation of PTB. The analytes were separated with a mobile phase composed of 43:57 water: acetonitrile. Flow of 1 mL min−1 and 50 µL of injection volume. The LOD and LOQ of the analytical method for PTB was 8.3 and 28 µg L−1, respectively. For more details, the reader is referred to Additional file 1: Section 5.1.

PTA concentration in throughfall

The quantification of PTA and PTB in the throughfall water from the wash off field experiments was carried out using the same method as described above. The samples from the events taking place in the 2018 growing season were analyzed by transformation to PTB and quantification by HPLC (“PTA determination in soil” section). Samples from the 2019 release experiments were quantified using a Waters Acquity UPLC I-class module equipped with a Waters Xevo TQD triple quadrupole mass spectrometer, with adjusted parameters based on the method by Kisielius et al. [17].

Results and discussion

Bracken biomass development

The development of bracken biomass followed the same trend in the 2018 and 2019 growing seasons. Emergence of fronds took place in May, reaching a maximum biomass in middle of July and followed by stabilization of the biomass until senescence (Fig. 2a). However, there are differences in the maximum value between 2018 and 2019 growing seasons, with a maximum of 785 and 1200 g DW m−2 for 2018 and 2019, respectively. The peak in biomass was reached earlier in 2018 (July) than in 2019, where the maximum was not reached before the monitoring came to a stop at the end of July due to a tilted bracken canopy caused by a heavy storm. The maximum weight of an independent frond was reached at end of July or beginning of August in both seasons, with masses of 173 and 247 g fresh weight (FW) for the 2018 and 2019 growing seasons, respectively.

Fig. 2
figure 2

a Measured aboveground biomass for the 2018 (blue) and 2019 (red) growing seasons expressed as g DW m−2 (n = 6). b Average PTA content in bracken pinna calculated as PTA equivalent in terms of PTA (PTATOT) (n = 6, all analysis performed in duplicates). c PTA content, in PTA equivalent, in bracken canopy for the same period (n = 6). Average and standard deviation indicated by the points and error bars, respectively

Full size image

Estimation of the subsurface biomass took place 1st July 2020 at the time that fronds reached maturity. Belowground biomass totaled 800 g DW m−2, with a substantial variation between sites, which is normal due to stand heterogeneity. The biomass is somewhat lower than what reported from United Kingdom. However, sampling date is important considering that in July the rhizome biomass is expected to be at minimum, due to recent frond maturation and depletion of the rhizome nutritional storage [10]. Considering that bracken growth at initial stages is supported by root nutrient reserves, it is expected that biomass production within different years to be highly variable, even in the same location as it has been observed in this study (Fig. 2a).

PTA production in bracken biomass

The concentration of PTATOT in the fronds (mg PTATOT g−1 DW) shows the same pattern for both years, starting from the highest value at the beginning of the season and decreasing through the rest of the season until senescence (Fig. 2b). The maximum concentration of PTATOT in the biomass takes place at the beginning of the growing season, with values of 2.68 and 4.95 mg g DW−1 for the 2018 and 2019 growing seasons, respectively. The decreasing trend is in agreement with observations from previous investigations [22, 33]. One possible explanation is that PTA is produced during leaf initiation and then, concentrations decrease with time due to the combined effect of dilution in the growing biomass and release from the canopy by precipitation. This might also explain the drop in PTA content after the biomass has reached maturity, since the plant is not producing new biomass and hence, toxin in the canopy.

The total mass of PTATOT in the canopy reaches a maximum coinciding with the moment that maximum biomass is reached. The average maximum PTATOT mass in the canopy occurred in 2018, with values up to 1600 mg PTA m−2. However, the seasonal maximum took place at different times in both seasons, peaking in June and July for the 2018 and 2019 growing seasons, respectively. After peak concentrations were reached, a sudden decrease in the toxin content until senescence was recorded during both seasons (Fig. 2c). This decreasing trend observed in the toxin content taking place from time of maturity to senescence has been observed previously for studies in both UK and Denmark [33].

The similar curves for PTATOT content in bracken for both seasons indicates that the toxin production in a certain bracken community and biotope, might be relatively stable between years. However, there were differences in the timing of the toxin maximum between years, probably influenced by the effect of environmental conditions on growth. The observed peak in toxin content took place in late June of 2018, during a period with high biomass and still high toxin concentrations, giving an estimated maximum of 2810 mg PTATOT m−2. On the other hand, in 2019 the peak in toxin content took place later than in 2018, at end of July, where the biomass reached its maximum. Therefore, particular production of new organs during the growing season might be correlated with toxin production [40, 41]. This also explains the drastic decrease in the content in both years once the plant has reached maturity and there is no further net biomass production. This pattern of production of plant secondary metabolites linked with the production of new organs such as leaves, flowers or seeds, has been observed in other plants [5, 40, 42, 43].

Another factor contributing to the observed toxin content is the accumulated precipitation prior of sampling. The point with highest toxin mass at the end of June 2018 only had 21 mm of prior precipitation during the entire period (i.e., from 15th May), compared with 96 mm of rain during the same period in 2019. This observation supports the idea that PTA is produced during leaf initiation and that there is only a small fraction of PTA available for wash off that get depleted over time due to precipitation.

Release of PTA from bracken to soil

Precipitation events may cause PTA to be released at high concentrations, with PTA concentrations in the through-fall water ranging from 0 to 2530 µg L−1 for all samples and for all rain events (Additional file 1: Figure S8). Average concentrations for the individual rain events ranged from 102 to 1280 µg L−1, with an average PTA sample concentration of 663 ± 700 µg L−1, calculated from all events. The average amounts of PTA washed from bracken leaves by precipitation during a single precipitation event ranged from 0.13 to 13.1 mg PTA m−2, with an average PTA mass released from bracken during a single rain event of 6.23 mg PTA m−2 (Fig. 3a).

Fig. 3
figure 3

a Estimated PTA masses washed off by precipitation during four different precipitation events. The middle of the box represents the median, the edge of the box the 25th and 75th percentile, while the errors bars denote the 10th and 90th percentiles. n = 12 (2018) or 9 (2019). b Volume of precipitation recorded during the release events. c Estimated mass of PTA washed in the rain samples versus volume of throughfall collected in rain containers (n = 50)

Full size image

The amounts of PTA washed off the canopy were positively correlated with the volume of precipitation and the canopy development stage (Fig. 3c). From the results, it is estimated that 0.04 to 0.65% of the PTA present in the pinna was washed per mm of incident rain, in accordance with previous studies [24, 25]. The results indicate that the PTA mass washed off the canopy is higher during precipitation events appearing late than early in the growing season, and this is most probably due to higher leaf area values at later stages (Fig. 3c). Another observation from the rain wash-off measurements, is that concentrations of PTA in the wash off were found to be inversely correlated with the volume of precipitation, hence indicating that the fraction of PTA available for wash off in bracken pinnae is not infinite (Additional file 1: Figure S8).

The fourth precipitation event took place during July or August, and therefore, the release event occurred with a fully developed canopy and biomass (Fig. 2a). Bracken canopy has a high water retention capacity, which has a strong influence on water dynamics in bracken populations, determining the amount of water intercepted and released as throughfall. For instance, during events with a low precipitation amount such as the event on 5th of July of 2019, the canopy intercepts most of the water and hence, barely any water was released from the canopy as throughfall (Fig. 3a). This is supported by the estimation of the canopy water retention capacity using the model of Pitman [44], which correlates leaf area index (LAI, e.g., area of leaves per surface area) with water holding capacity of the canopy. Bracken canopy with a LAI 4 is estimated to have a water retention capacity ranging from 0.6 to 1.9 mm [44]. Hence, during precipitation events not surpassing these values, water intercepted in the canopy would wash the PTA on the canopy but not transfer it to the soil, as it would not be any water dripping off the canopy. Water stagnated in the canopy might be also important contributing to the degradation of PTA on the canopy by hydrolysis or photolysis, hence explaining the presence of PTB in bracken.

Furthermore, there are some less obvious factors contributing to the total mass of PTA being released such as the number of antecedent dry days before precipitation. Results from the release events in this study suggest that there is only a certain pool of PTA to be washed off by precipitation, rather than the total toxin content in the plant. A period with continuous precipitation is expected to deplete the available PTA pool in the canopy. Hence, the amount of PTA washed per mm of rain will be extremely variable between locations as well as within different years due to widely different precipitation patterns, calling for caution in the interpretation of the release data (Fig. 3b). Another important remark is that other glycosides produced by bracken fern, e.g., CAU and PTE, were detected at relatively high concentrations compared with PTA in the throughfall (Additional file 1: Figure S10). The median relative abundance for CAU and PTE in the precipitation event taking place on 30th July 2019 was 38 and 26%, respectively. This finding suggests that all the glycosides produced by bracken can be equally washed off the canopy like PTA.

Degradation of PTA in soil

Degradation kinetics of PTA in soil materials could be successfully fitted as a first-order reaction with respect to PTA. Results show that PTA dissipates in the soil rapidly, with half-lives ranging from 3.3 to 84.5 h (Table 2). A tenfold decrease in degradation rates with depths was recorded when comparing horizon A1 and AE, showing a strong influence of depth on degradation of PTA in soils. On the contrary, soil moisture had a negative effect on degradation rates for all horizons, with 9–27% slower degradation rates at pF 1 compared with pF 2.

Table 2 Rate constants (k), coefficients of determination (R2) and half-lives (t½) for the dissipation of PTA in different Humleore soil horizons at two different moisture contents (10 °C)
Full size table

Results are in agreement with previous studies on PTA degradation and with similar effects of the influence of soil depth [26, 27, 37]. The marked decrease in rates with depth, indicates that degradation of PTA is mainly driven by microbial degradation, as seen in previous studies with sterile soil in acidic pH ranges similar to this study [27].

The contribution of abiotic hydrolysis to the overall degradation of PTA is rather small considering the model proposed by Ayala-Luis et al., which estimates hydrolysis rates of PTA based on pH of the solution. Using the pH from each horizon and accounting for the influence of temperature, abiotic hydrolysis is estimated to contribute just with 1 to 4.1% of the overall degradation of PTA observed [28]. Even though hydrolysis rates are two orders of magnitude lower than microbial degradation, it will gain importance at determining the fate of PTA in groundwater in the long term as microbial activity is much lower in subsoils and in aquifers.

PTA in soil solution

Results from the suction cells show that PTA is present in the soil mostly during the growing season and beginning of autumn. On the other hand, PTB was detected from the beginning of the monitoring in March until autumn, suggesting that there is an unidentified input of PTA prior to the start of the season, given the rapid degradation of PTA and PTB in soils as described above (Fig. 4). Concentrations of PTA and PTB in the soil pore water increased over time during the growing period, showing a strong positive correlation with the development of bracken biomass. Median concentrations in the pore water at 50 cm depth were, only considering positives, 40 and 88 ng L−1 for PTA and PTB, respectively. Concentrations in the soil showed extreme variability, with values differing by several orders of magnitude for samples taken the same day. Observed concentrations in the soil solution indicates that leaching of PTA takes place in form of pulses connected to specific precipitation events, considering that PTA degrades rapidly in soils. This leaching pattern has been observed for PTA in surface waters, as well as for the case of pesticides under similar environmental conditions [24, 45].

Fig. 4
figure 4

Concentrations of PTA (a) and PTB (b) in soil pore water at 50 cm depth under bracken recorded in the period from March 2019 until March 2020 (n = 1–9). Green line represents the PTATOT (PTA and PTB equivalents in term of mg of PTA) mass in the canopy during the same period. c Precipitation recorded for 10 min interval in the nearest weather station during the same period (bottom). Boxplots represent the 25th and 75th percentile, while the whiskers represent the 10th and 90th percentile. LOD shown by red line, while red stars represent observed values of measurements. Dotted line represents the median concentration for each sampling day, while average is indicated by the black line

Full size image

Peak concentrations in soil solution were observed at the end of July, with observed values up to 4820 and 3500 ng L−1 for PTA and PTB, respectively. The average concentrations for that particular sampling day were also the maximum observed during the entire monitoring period, with values of 1660 and 2410 ng L−1 for PTA and PTB, respectively. After this period, there is an apparent decrease in concentrations until October, but uncertain due to the limited number of samples during the dry period. This decrease in soil pore water concentrations from July correlates with the decrease in toxin content in the canopy (Fig. 2c). A second high pulse event took place at the end of October after a rainy period. Concentrations of PTA peaked with 3850 ng L−1, while PTB concentrations only reached up to 180 ng L−1. Average concentrations for this pulse event were 1050 and 32 ng L−1 for PTA and PTB, respectively.

The ratios of PTA and PTB concentrations gives an indication of residence time of PTA in the soil, given the assumption that PTB is produced as a primary degradation product of PTA. Throughout the monitoring, PTA was predominantly lower or at the same concentration range as PTB, as PTA is transformed into PTB rapidly in soils (Table 2). Note that PTB also degrades in soils, so the presence of PTB indicates a relatively fresh input of PTA into the soil system [29]. During the pulse event taking place at the end of October, PTA concentrations were 21-fold higher than PTB. This indicates that there is a source of PTA able to release considerable amounts into the soil in late October. Bracken at that time in 2019 had become litter and PTA contents in the biomass were under the LOD, since the middle of September (Fig. 2c). Interestingly, before the sampling date, the first two nights of frost with a minimum temperature of − 5 °C had appeared (Additional file 1).

Frost might be an important factor contributing to leaching as frost results in lysis of cells [46]. Applying this to the case of bracken, it explains the total depletion of PTA in bracken material at the end of the season, indicating that all PTA is either released or degraded rapidly after senescence. The formation of frost during the winter period also contribute to the progressive compaction of the litter layer, and after every thawing cycle, the content of soluble compounds in the litter is released to pore water. Moreover, at the beginning of autumn is when PTA contents in the rhizomes are at its maximum, and therefore, rhizome and/or root exudation cannot be excluded as another source of PTA [31]. Release of PTA from decaying bracken rhizomes is an unknown and yet not quantified process, and it has the potential to be a major input to the soil, considering both biomass and PTA content of rhizomes [31].

Other important aspects to consider are the conditions of the soil in the beginning of autumn, with increasing water saturation and low soil temperatures. Hence, during the autumn period, residence time of PTA in the soil is shorter than in summer, giving less time for PTA to dissipate. Moreover, low soil temperatures also contributes to decrease in rates from both microbial degradation and hydrolysis [28]. Taking into consideration all points mentioned above, we identify the period at the beginning of autumn as the highest risk of release of PTA leaching to freshwaters.

A higher sampling frequency will improve our understanding of PTA dynamics in the soil–plant-water continuum, and lead to more accurate estimation of mass fluxes between the different environmental compartments. The dataset generated in this study can be used as the validation dataset for the model of Garcia-Jorgensen et al. This model will serve as a valuable tool for elucidating the leaching fluxes and peak concentrations during pulse events and to accurately assess the risk of water-bodies pollution by bracken toxins.

Conclusion

This 2-year monitoring study connects production of bracken biomass, production of PTA in the canopy, release by precipitation and PTA concentrations in soil solution. The mass of PTATOT in the canopy peaked at 1600 mg m−2 in July, coinciding with the moment, where the maximum biomass was reached. Production of PTA in bracken was proportional to the production of new biomass. Once there was no net production of biomass, PTATOT in the canopy decreased progressively towards the end of the growing season.

Wash off by precipitation was the most important input of PTA to the soil, with estimated masses of PTA transfer to the soil up to 13.1 mg m−2 during a single rain event. The total mass of PTA washed was positively correlated with the volume of precipitation and development stage, showing an influence of canopy structure on the release of PTA. The fraction of PTA washed off by mm of rain is estimated to be, on average, 0.2% of the total content in the canopy. Degradation of PTA in the soil was fast and strongly decreased by soil depth, with half-lives between 3.3 and 73 days for upper and lower soil horizons, respectively.

Leaching of PTA takes place as pulses related to specific rain events, with peak concentrations in the soil pore water solution up to 4.8 µg L−1. Observation of a PTA pulse event in October indicates that there was a fresh input of PTA to the soil taking place in autumn, suggesting the presence of another PTA pool apart from the living canopy. Based on the results, we conclude that leaching of PTA takes place throughout the growing season and into the autumn, with high variability in concentrations due to the pulse-type transport and substantial degradation of PTA in the soil.

Availability of data and materials

The datasets used and analyzed during this study, and not already included in Additional file 1 materials, are available from the corresponding author on reasonable request.

Abbreviations

PTA:

Ptaquiloside

WHO/IARC:

World Health Organization/International Agency for Research of Cancer

CAU:

Caudatoside

PTE:

Ptesculentoside

PTB:

Pterosin B

USDA:

United States Department of Agriculture

PTATOT :

PTA equivalents in term of mg of PTA

LOD:

Limit of detection

LOQ:

Limit of quantification

HPLC:

High-performance liquid chromatography

LC–MS:

Liquid chromatography mass-spectrometry

LAI:

Leaf area index
