Negative correlation between concentration of iron oxides and particulate matter in atmospheric dust: case study at industrial site during smoggy period

Environmental Sciences Europe volume 32, Article number: 134 (2020) Cite this article

Abstract

Background

Environmental magnetism, focusing on ferrimagnetic iron oxides, provides useful additional information on pollution of different environments. Magnetic methods have been applied to studies of atmospheric dust, namely PM10 (particulate matter smaller than 10 µm) in, e.g., industrial or urban areas. Until now, positive correlation was reported between concentration of iron oxides (expressed in terms of either magnetic susceptibility, saturation remanent or saturation induced magnetization) and concentration of PM10 or smaller. Purpose of this study was to verify the relationship between iron oxides and PM at monitoring site close to source of emissions rich in iron oxides during period of smoggy conditions.

Results

We examined 24-h PM10 and PM1 samples, collected during 10 days of smoggy winter period at a site close to steel plant, which represents a significant source of atmospheric emissions in industrial region of Northern Moravia (Czech Republic), known for generally high degree of air pollution. Magnetic hysteresis loops were measured to obtain parameters reflecting the concentration and grain-size distribution of iron oxides. Our data show unexpected negative correlation between saturation magnetization (concentration of ferrimagnetic iron oxides) and both PM1 and PM10 concentrations, to the best of our knowledge the trend not being reported yet.

Conclusions

Our finding may seemingly disqualify magnetic methods as useful proxy in air pollution studies. However, we suggest that this is an exceptional case, specific to this region and monitoring site, as well as to synoptic conditions during the smoggy period. Although the significant dust emissions are presumably rich in iron oxides, the overall air quality at the monitoring site is determined by the general environment, controlled by many other sources of different character in the region, and by the specific climatic conditions. Thus, the steel plant, presumably emitting dust rich in ferrimagnetic iron oxides, dominates the deposited dust at the nearby monitoring site only during few days of suitable weather (namely wind speed and direction).

Background

Environmental magnetism applies rock-magnetic methods to assess the composition, concentration, and grain-size distribution of ferrimagnetic iron oxides, namely magnetite and maghemite. Originally developed for the study of historical records of geomagnetic field and its changes in rocks (paleomagnetism), these methods are now also used to study magnetic properties of, e.g., sediments, soils, atmospheric dust and its biocarriers (tree leaves and needles, lichens, mosses), mainly to establish the correlation between magnetite (and/or maghemite) and environmentally significant parameters, such as concentration of heavy metals or particulate matter of specific size (PM10), and thus to assess the environmental stress reflected by the presence of these minerals. Muxworthy et al. [1] investigated samples of respirable atmospheric particulate matter collected in Munich, Germany, and compared them with pollution and meteorological data. The primary magnetic mineral identified was magnetite in the grain-size range 0.2–5 µm and concentrations of 0.3–0.6% in mass. Saturation remanent magnetization (Mrs) of daily samples of PM10, collected at two sites in Munich, Germany, was found to be strongly correlated with the PM mass, with the magnetite concentration being 0.3–0.5% by mass [2]. Magnetite as the dominant magnetic mineral was identified in particulate matter 10 µm or less in diameter (PM10) collected at sites with different level of air pollution also by Petrovsky et al. [3]. Sagnotti et al. [4] reported on the magnetic properties of PM10 samples collected by six automatic stations installed for air quality monitoring through the Latium Region (Italy). In addition to magnetic parameters reflecting the composition, concentration and grain-size distribution of iron oxides, Sagnotti et al. [4] examined also low‐field magnetic susceptibility and found high positive correlation with PM10. More details on composition, concentration and grain-size distribution of magnetic fraction deposited on tree leaves as well as collected by automated monitoring station in Rome were published by Sagnotti et al. [5]. Magnetic properties of tree leaves as biocarriers of the deposited atmospheric dust have been investigated in relation to air pollution by many authors [5,6,7,8,9,10,11,12,13,14,15,16,17]. There are also numerous studies on magnetic properties of tree needles [18,19,20], tree barks, rings or branches [21,22,23,24,25,26], lichens, in situ or transplanted [27,28,29,30,31,32,33,34], and moss and transplanted moss bags [32, 35,36,37,38,39,40,41,42]. High sensitivity of magnetic methods enabled even examination of magnetic properties of spider webs [43]. Magnetic measurements of different carriers of atmospherically deposited dust particles have unambiguously several advantages: very high sensitivity in terms of concentration of ferrimagnetic iron oxides, non-destructive character, ability to investigate short-term (daily samples) as well as long-term deposition (months to years), and/or possibility to be applied in remote places without any infrastructure and electricity (transplanted lichens and moss bags). However, it has to be emphasized that the results in terms of air pollution are site specific; correlation with environmentally important parameters has to be established for each study site independently. It seems also clear that saturation magnetization (either remanent or induced) is more sensitive and reliable magnetic parameter compared to magnetic susceptibility, the use of the latter one as a rapid method of assessing the bulk magnetic content of atmospheric particulate matter could be misleading.

Finally, to the best of our knowledge, all the studies reported on positive correlation between concentration of ferrimagnetic iron oxides and particulate matter, either PM10 or smaller. In this study, we examine daily PM10 and PM1 samples collected by automatic high-volume samplers at industrial monitoring site located very close to the iron smelter during smoggy period, characterized by very high level of air pollution. Magnetite was determined as the main magnetic fraction in PM10 collected at the same monitoring station in our previous study [3]. The aim of the present study was to determine the relationship between concentration of magnetite and PM at this specific industrial site, where we assumed that magnetite is predominantly of industrial origin, emitted from the steel plant. Moreover, due to the specific climatic conditions during the smoggy period, the emitted dust is supposed to remain in the close neighborhood of the source.

Samples and methods

Daily samples of PM10 and PM1 (16 samples each) were collected from 30 January to 7 February 2012 using two parallel Grasseby-Andersen high-volume samplers during day and night time (thus representing 12-h accumulation) on acetyl-nitrocellulose filters at monitoring station “Ostrava Radvanice ZU” (formerly Ostrava Bartovice, GPS 49°48′25.4"N 18°20′20.9"E, altitude of 263 m a.s.l., Fig. 1). This period was characterized by smoggy conditions, with PM10 daily average concentrations well above 50 µg/m3 (Table 1). After this period, when the daily PM10 values dropped below the limit of 50 µg/m3, additional sampling from 16 to 18 February was carried out to obtain samples for comparison (4 samples of both PM10 and PM1).

Fig. 1
figure 1

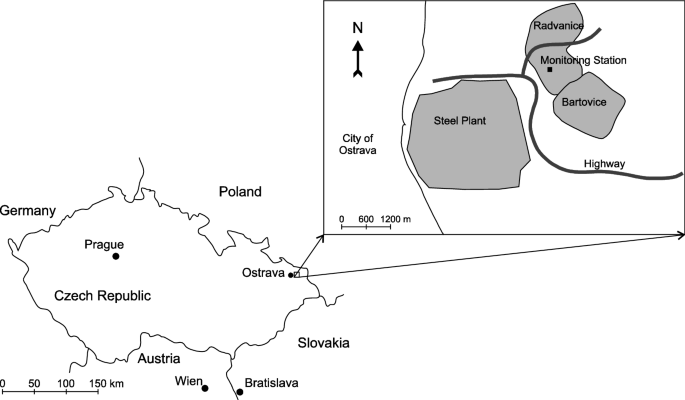

Location of the study site. The detail shows positions of the steel plant and Radvanice and Bartovice suburban areas in relation to the monitoring station

Full size image
Table 1 List of particulate matter (PM) sample codes, corresponding sampling time and average daily concentration of PM10, and meteorological data
Full size table

Mass of the deposited dust (PM10 and PM1) was determined by subtracting the mass of blank filter (before the exposure in the high-volume samplers) from the mass of filter with collected PM (after the exposure). Subsequently, the mass of PM was divided by the volume of air which flew through the sampler to obtain the concentration of PM in µg/m3.

The station belongs to automatic monitoring network of the Czech Hydrometeorological Institute (www.chmi.cz). It is located in residential area, about 50 m from major road and some few hundreds of meters from major steel works to the south-west (Fig. 1). According to the EOI 97/101/EC document (https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:31997D0101&from=EN), the station is classified as industrial, and the zone is characterized as industrial/suburban/residential (https://portal.chmi.cz/files/portal/docs/uoco/web_generator/locality/pollution_locality/loc_TORE_GB.html). The spatial representativeness of the station is within the microscale of 100 m. The site is considered as one with the most polluted atmosphere in the Czech Republic. In 2012, the maximum of daily average concentration of PM10 was 281.3 µg/m3, median was 35.2 µg/m3, the daily limit of PM10 was exceeded during 166 days. The annual average concentration of PM10 was 49.5 µg/m3 (data based on automatic monitoring using the optoelectronic method, [44]). Data for PM1 are not available for that period, only PM10 and PM2.5 were monitored automatically. The sampling period of February 2012 was characterized by smoggy conditions; the daily limit of PM10 was consistently exceeded from 24 January until 21 February (Table 1). The average daily PM10 concentrations during January and February 2012 ranged from 15.9 to 281.3 µg/m3 (automatic monitoring system, optoelectronic method, www.chmi.cz).

Magnetic properties were measured using ADE EV9 vibrating sample magnetometer (DSM Magnetics, ADE Corporation; Lowell, MA, USA) at room temperature. Hysteresis loops (induced magnetization) were measured in magnetic fields from − 2 to + 2 T. To define the intersections with the field and magnetization axes using linear interpolation (coercive force Bc and saturation remanent magnetization Mrs, respectively), the field step varied from 0.5 to 50 mT for different sections of the loop, the finest field step was used around the intersection with the magnetization axis. From each sample, a specimen 1 cm wide and 10 cm long was cut, carefully folded and attached to the quartz sample holder using teflon tape. The measured magnetic moment represents a combination of different responses: that of diamagnetic substance of the filter and quartz sample holder, and diamagnetic, paramagnetic and ferrimagnetic minerals contained in the dust. To obtain only the signal corresponding to ferrimagnetic minerals (presumably magnetite), first background curve of the blank filter was subtracted from the measured data. Then, combined contribution of paramagnetic and diamagnetic minerals present in the specimen to total magnetic moment was determined by linear regression fit above 1 T. At these fields, ferrimagnetic contribution is already saturated and does not contribute to further increase of total magnetic moment. Subtracting this linear trend from the measured magnetic moment (Fig. 2) results in data representing only ferrimagnetic response to the applied magnetic field. In order to obtain magnetization, the measured data were normalized by mass of the measured dust mMD, which was determined as follows:

$${{m}}_{{{\text{MD}}}} \approx \left( {{{m}}_{{{\text{SP}}}} /{{m}}_{0} } \right){m}_{{{D}}} ,$$
Fig. 2
figure 2

Example of the measured hysteresis loop and data processing (correction for the background and linear diamagnetic and paramagnetic contributions)

Full size image

where mSP is mass of the measured specimen, m0 is mass of the original sample (whole filter and deposited dust), and mD is mass of the dust deposited on the whole filter. Distribution of the dust on the surface of the filter can be considered as sufficiently homogeneous [45].

Thus, the mass-normalized saturation induced magnetization Ms depends solely on the concentration of ferrimagnetic substance; in case of pure magnetite, Ms would be 90–92 Am2/kg. Saturation remanent magnetization Mrs depends on the concentration as well as on grain-size distribution of the ferrimagnetic substances. The ration Mrs/Ms reflects the squareness of the hysteresis loop and like coercive force Bc depends mostly on the grain-size distribution. Coarse, multi-domain particles have low values of both Mrs/Ms and Bc, finer stable single-domain particles show higher values. Finally, ultra-fine, superparamagnetic particles contribute neither to Mrs nor to Bc. For more details on these magnetic properties and their meaning, see, e.g., Dunlop and Ozdemir [46].

Magnetic properties determined from the hysteresis loops (Ms, Mrs and Bc) were compared with the PM10 and PM1 concentrations of the corresponding samples collected by the high-volume samplers using bi-plots and linear regression. Relationship between these variables was assessed using bi-plots, Pearson correlation coefficient R, goodness of the fit parameter (coefficient of determination R2) of linear regression, and statistical significance p value, determined using two-tailed Student’s t-test.

Results and discussion

Samples with the corresponding sampling period, concentration of PM10 obtained using automatic optoelectronic method (about 12-h averages, corresponding to the period of sampling by the high-volume samplers), and basic meteorological data are listed in Table 1. Table 2 shows the data of PM10 and PM1 concentrations determined from the dust collected by the high-volume samplers (about 12-h sampling periods) and magnetic properties of the measured specimens (saturation induced magnetization Ms, saturation remanent magnetizations Mrs and coercive force Bc). It is obvious that except for one specimen (G148, day period towards the end of the sampling), the PM10 concentrations determined by the automatic monitoring system exceeded the allowed limit for daily average of 50 µg/m3 [47]. This is in good agreement with the PM10 concentrations determined from the collected samples of PM10, which were well above the limit of 50 µg/m3 (except for three specimens at the end of the sampling period). Although the limit of 50 µg/m3 represents the daily average and our data correspond to about 12 h sampling period, we use this allowance limit for reference to emphasize that the sampling period was characterized by significantly increased levels of air pollution.

Table 2 List of magnetic parameters of the measured specimens and concentrations of the deposited PM10 and PM1
Full size table

Saturation-induced magnetization Ms of the PM10 specimens varies from 0.140 to 0.467 Am2/kg. One specimen (G148) shows significantly increased value of 0.953 Am2/kg. The average value of Ms is 0.351 Am2/kg (including the G148 specimen). Three specimens (G146, G144 and G74) are considered as outliers, with Ms of 10.944, 14.971 and 14.733 Am2/kg, respectively (Table 2). These three values are very high in terms of concentration of magnetite (100% magnetite would have Ms of 90–92 Am2/kg, e.g., [46]. The corresponding saturation remanent magnetization Mrs values are about 10 times lower, ranging from 0.014 to 0.051 Am2/kg, specimen G148 has Mrs of 0.100 Am2/kg. The average value of PM10 Mrs is 0.037 Am2/kg. The three outliers (G146, G144 and G74) have Mrs of 0.998, 1.277 and 1.181 Am2/kg, respectively (Table 2). Correlation of Ms and Mrs with the PM10 concentrations is shown in Fig. 3, where striking trend can be observed. Both parameters clearly show negative trend with the PM10 concentration, except for the three outliers (G146, G144 and G74), with the goodness of the fit R2 of 0.449 and 0.473, respectively, suggesting moderate correlation. The Pearson correlation coefficient R is − 0.67 and − 0.691, respectively, and the corresponding respective statistical significance p is 0.003254 and 0.002137.

Fig. 3
figure 3

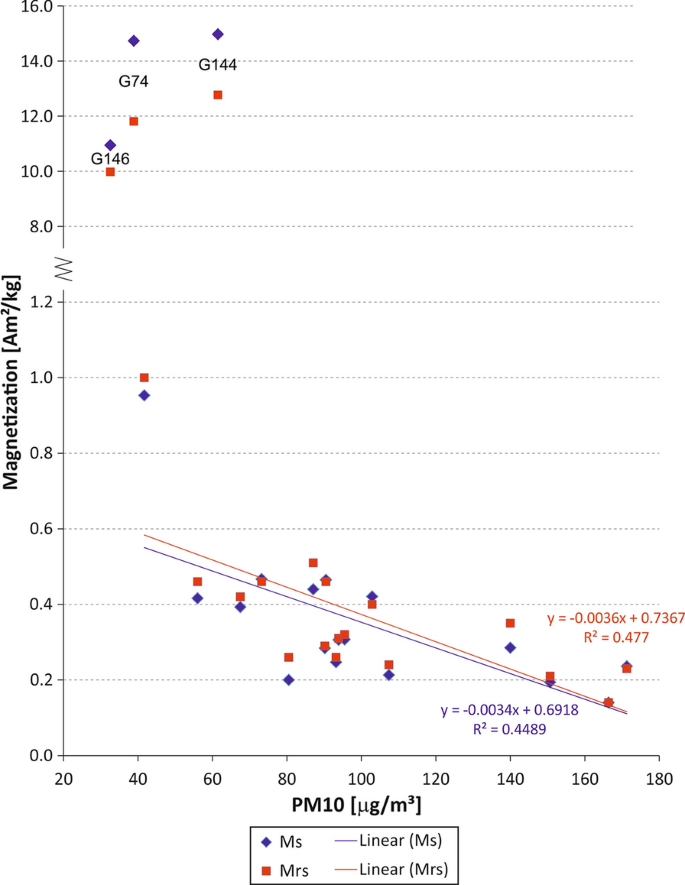

Correlation between magnetization and concentration of PM10, collected by the high-volume sampler. Ms: saturation-induced magnetization, Mrs: saturation remanent magnetization (values are multiplied by a factor of 10). Specimens G74, G144 and G146 are considered as outliers. R2 is goodness of the fit parameter (coefficient of determination) of linear regression

Full size image

Very similar observation was done in the case of PM1. Ms values vary from 0.066 to 0.293 Am2/kg, with an average of 0.169 Am2/kg. Again, three outliers were identified (G147, G145 and G143), coinciding in the sampling time with those of PM10. These have Ms of 8.448, 9.192 and 8.636 Am2/kg, respectively. Mrs values are between 0.007 and 0.033 Am2/kg, with an average of 0.018 Am2/kg. The three outliers have Mrs of 0.779, 0.722 and 0.719 Am2/kg, respectively (Table 2). Correlation between Mrs and PM1 concentration is depicted in Fig. 4. Similar negative trend as in Fig. 3 can be observed also in the case of PM1, with the R2 parameter of 0.586 for Ms vs. PM1 (suggesting moderate correlation), and of 0.279 for Mrs vs. PM1, suggesting weak correlation. The Pearson correlation coefficient R is -0.7656 and − 0.5286, respectively, and the corresponding respective statistical significance p is 0.00034 and 0.02915.

Fig. 4
figure 4

Correlation between magnetization and concentration of PM1, collected by the high-volume sampler. Ms: saturation-induced magnetization, Mrs: saturation remanent magnetization (values are multiplied by a factor of 10). Specimens G143, G145 and G147 are considered as outliers. R2 is goodness of the fit parameter (coefficient of determination) of linear regression

Full size image

Values of coercive force Bc are from 7.7 to 11.8 mT (average of 9.68 mT) for PM10, and between 4.8 and 12.3 mT (average of 7.81 mT) for PM1. Only week relationship between Bc and concentration of PM10 and PM1 was observed, with R2 of 0.1175 and 0.1693, respectively (Fig. 5). In this case, the correlation coefficient R is, respectively, −0.3425 and −0.4115, and the corresponding p value is 0.13893 and 0.07144.

Fig. 5
figure 5

Correlation between coercive force Bc and concentration of PM collected by the high-volume sampler

Full size image

While the saturation-induced magnetization Ms values depend only on the concentration of ferrimagnetic fraction, the remanent magnetization Mrs is affected also by the grain-size distribution. Finer stable single-domain (SSD) particles have significantly higher values than coarse multi-domain (MD) particles. Ultra-fine nano-sized superparamagnetic (SP) particles do not contribute to magnetic remanence. Theoretical value of Mrs/Ms for a system of non-interacting SSD particles is 0.5. In our case, the values for PM10 specimens are from 0.080 to 0.129, with the average of 0.104. No outliers were detected in this case and no correlation with PM10 concentration was observed. In case of PM1 specimens, Mrs/Ms ranges from 0.047 to 0.154, the average being 0.104. These values, along with the very close similarity in relationship between Ms and Mrs on one side and PM concentration on the other (Figs. 3 and 4) clearly support the idea that the coarse MD particles dominate the collected PM samples. However, both the Ms and Mrs values of PM10 are about twice of those of PM1 specimens, suggesting that concentration of magnetite in PM10 is about two times higher than in PM1.

Very similar relationship between concentration of ferrimagnetic iron oxides, expressed by Ms, and concentration of PM10 and PM1 suggest that composition of the particulate matter in both fractions is controlled by the same sources. However, the steel plant in the proximity does not contribute significantly to air pollution in these days. Somewhat weaker relationship between Mrs and PM1 may be explained by higher relative contribution of nano-sized SP magnetite particles, which do not contribute to magnetic remanence. However, situation is completely different during the days when the outliers where collected (at the end of the sampling smoggy period). These specimens show significantly higher values of Ms and Mrs, while the grain-size dependent Bc does not change. This can be interpreted as dominant contribution from the steel plant due to wind direction blowing from the plant to the monitoring station; while in the previous days, it was blowing from the opposite direction.

It is interesting to see that the days with extremely high content of iron oxides (outliers in Figs. 3 and 4) coincide not only with the change in the wind direction, but also with increased average daily humidity and temperature, and decreased air pressure (Table 1). This may indicate worse atmospheric circulation and dispersion of dust. However, elucidating this observation would require much larger data set.

According to the information provided by the steel plant, special measures were in force during the smoggy period. Namely, one baking belt with electrostatic filter in the southern part of the plant stopped, while the remaining three belts with tissue filters in the northern side and one with electrostatic filter in the southern side of the plant continued operation. This resulted in reduction of production of this section by about 15%. Other specific actions were taken in different sections of the plant with the aim to reduce dust emissions. These actions started on 28 January 2012 and lasted until 16 February 2012. Thus, they fully covered our sampling period and we assume they did not affect significantly our results, namely the pronounced change in the observed trend between content of iron oxides and concentration of particulate matter.

We are well aware of the fact that the data deserve more detailed discussion. However, this would require more data, also from different locations with respect to the steel plant, which would enable to study the effect of wind direction, as well as contributions from sources outside the area directly affected by emissions from the steel plant. More discussion now would be only a speculation. Our primary aim is to report on negative correlation between magnetic variables and PM, which was not reported until now.

Conclusions

Magnetic properties of day and night atmospheric dust samples of PM10 and PM1, collected by high-volume samplers during smoggy period of winter 2012 at an industrial monitoring site located close to major steel plant, were analyzed in comparison with the PM concentrations and local weather conditions. Contrary to all the results published until now, our data show negative correlation between the concentration of PM and saturation induced magnetization, which is a measure of concentration of ferrimagnetic iron oxides magnetite and maghemite. Three distinct outliers, which do not follow this trend and show magnetization values about 1.5 orders higher, were collected during days with the westerly’s prevailing wind (blowing from major city and steel plant) and changed weather conditions. We believe that the iron-oxides content in the dust collected only during these days was controlled by the emissions from the steel plant. During the other days, the complexity and high number of different pollution sources in the region, combined with the weather conditions (smoggy period), caused that the steel plant did not contribute significantly to air pollution at the nearby monitoring station. These are the first results showing such negative correlation between concentration of iron oxides and dust, which are striking in particular at site close to source of emissions rich in iron oxides. Despite that, our findings do not exclude magnetic methods from environmental monitoring. However, one has to realize that magnetic monitoring is site specific, reflects local conditions, and, as a first step, basic trendlines between the content of iron oxides and pollutants have to be determined at any new site.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

Bc :

Coercive force in T (magnetic field in direction opposite to previous saturation, at which induced magnetization changes its sign)

CHMI:

Czech Hydrometeorological Institute

Chv :

Concentration of PM determined from the mass of high-volume sampler samples before and after the sampling (12-h averages)

Coe :

Concentration of PM obtained using automatic optoelectronic method (24-h averages)

m0 :

Mass of the original sample

mMD :

Mass of the collected dust

Mrs :

Saturation remanent magnetization in Am2/kg (magnetization in zero field after previous saturation)

Ms :

Saturation-induced magnetization in Am2/kg

mSP :

Mass of the measured specimen

PM:

Particulate matter

PM10:

Particulate matter smaller than 10 µm

PM1:

Particulate matter smaller than 1 µm

R2 :

Goodness of the fit parameter (coefficient of determination) of linear regression

p :

Statistical significance, determined using two-tailed Student’s t-test
