The effect of natural materials used as sediment remediation on phosphorus and nitrogen control in a mesocosm

Environmental Sciences Europe volume 32, Article number: 90 (2020) Cite this article

Abstract

Background

Achieving nitrogen (N) and phosphorus (P) control in sediment remediation projects by adding natural materials is receiving increasing attention. In this study, different natural materials, including iron-rich clay minerals, calcite, kaoline, sugarcane bagasse and Phragmites detritus, were applied to test their effects on N and P in a mesocosm experiment.

Results

Iron-rich clay minerals and Phragmites detritus had obvious advantages for P control; they resulted in almost undetectable levels of soluble reactive phosphorus (SRP) in the water column throughout the experiment. This finding can be explained by their strong P adsorption ability. The high level of available organic carbon in the sediment and water column after sugarcane bagasse addition provided enough electron donors for denitrification and dissimilatory nitrate reduction to ammonium (DNRA), which caused nitrate (NO3−-N) deficiency and ammonium (NH4+-N) accumulation in the water column. Additionally, this resulted in anaerobic conditions, further fuelling the release of P from iron-bound P induced by anoxia. Thus, the amount of sugarcane bagasse applied should be considered carefully in order to balance denitrification and DNRA as well as P releases. Calcite and Phragmites detritus are recommended as remediation materials for N removal based on their significant promotion of denitrification and limitation of DNRA, which resulted in low NO3−-N and NH4+-N levels. These results can be explained by the shifts in the functional microbial community composition and abundance after the addition of natural materials.

Conclusions

Iron-rich clay minerals and Phragmites detritus are promising sediment remediation materials for P immobilization due to their strong P adsorption ability. Taken together, the selection of sediment remediation materials should consider the N and P coupling relationship, to prevent NO3−-N removal from causing P leaching or NH4+-N accumulation.

Background

Eutrophication, one of the most serious environmental problems, causes harmful algae to multiply and has led to the severe degeneration of the water quality in lakes worldwide [18, 39]. A prominent cause of eutrophication is high nutrient loadings, such as N and P loadings [46]. The biological toxicity and spectral characteristics of contamination in seriously polluted urban rivers are closely linked [5]. For example, in eutrophic water, microcystins produced from cyanobacteria can accumulate in fish tissues and then endanger organism and ecosystem health through food web transfer [40]. Furthermore, sediments that play a role in gathering pollutants can transport nutrients into the water column through biochemical and physical reactions [6]. Thus, when external N and P loadings have been controlled effectively, the release of internal nutrients dedicates to eutrophication increasingly [41].

The movement of endogenous nutrients is mainly caused by the relative environmental conditions [26]. For instance, several drivers of P release generally include pH, dissolved oxygen, redox potential, temperature, flow rate and biological activity [24, 27]. N is usually released into water bodies as NH4+-N, NO3−-N or nitrite (NO2−-N). The crucial factors that can result in the exchange of N at the sediment–water interface, mainly involve the capacity of sediments to retain nutrients (e.g., sediment accumulation rates), the conditions of the overlying water (e.g., dissolved oxygen, pH, redox potential, temperature) and the biota (e.g., bioturbation, bioadvection or rates of microbial N transformation) [7, 30].

To date, numerous methods have been developed to control the release of endogenous nutrients. There are several possible methods of reducing internal P release in sediments, including artificial aeration; chemical applications, such as flocculation precipitation or adding Fe, Al or Ca-based agents; and sediment capping [10, 16]. The application of CaO2 effectively controlled the release of N and P from the sediment, and the concentrations of N and P in the overlying water were obviously reduced because of the increased microbiological action [44]. Illite is a useful agent for deactivating P for lake eutrophication control, and it has shown high efficiency (> 130%) as the capping material for both soluble reactive phosphorus (SRP) and total phosphorus (TP) [13]. Similarly, several efforts have been proposed to mitigate N releases. These strategies include capping [52], chemical injection [28] and microorganism fortification [45]. Among the capping techniques, the application of biochar resulted in the fluxes of NH4+-N, NO3−-N and total nitrogen (TN) from sediments to water being significantly reduced or reversed [52]. In addition, the TN and NH4+-N removal efficiency increased obviously after the bioaugmentation of specialized bacteria [25].

However, even though these proposed methods had effects on the remediation of sediment in eutrophic lakes, they also revealed some drawbacks. For instance, several ecological risks are related to the use of chemical products. In addition, biological methods are susceptible to environmental factors [14]. Consequently, finding a material that is environmentally friendly, economic and efficient for the control of endogenous nutrient pollution in eutrophic lakes is a crucial issue.

In this study, five different natural materials, namely, iron-rich clay minerals, calcite, kaoline, sugarcane bagasse and Phragmites detritus, were added to eutrophic lake sediments to test their N and P control effects in a mesocosm experiment. Different forms of N and P, dissolved organic carbon (DOC) and chlorophyll a (Chl a) in the water samples were analyzed. The organic carbon composition; activities of leucine aminopeptidase (LAP), β-glucosidase (GLU) and alkaline phosphatase (AP); P fractionation and sorption; N transformation rates and the abundance and composition of the functional microbial communities in sediment samples were determined. The purposes of this study are to 1) test the effects of different natural materials on N and P levels; 2) describe the chemical and microbial mechanisms of N and P control by these materials; 3) highlight mutual effects on N and P control based on the relationship between N and P; and 4) suggest promising natural materials for N and P control in sediment remediation.

Materials and methods

Experimental design and sampling

The 4-month experiment was conducted in 12 lab-scale columns made of PVC pipe. The inner diameter of the column was 300 mm, and the height was 1200 mm. The sediment and overlying water were collected from Lake Chaohu, which is seriously eutrophic. Sediment mixed with different natural materials was placed into each column to height of 50 cm, followed by the overlying water, which was added slowly to avoid sediment suspension. The 12 columns were divided into six treatments in duplicate, namely, the control group (CT) and the iron-rich clay mineral (IR), calcite (CA), Phragmites detritus (PH), sugarcane bagasse (SU) and kaoline (KA) treatments. Iron-rich clay minerals, calcite and kaoline were chosen because of their high phosphorus sorption ability, while Phragmites detritus and sugarcane bagasse were used to provide organic carbon as an electron donor for denitrification.

Water samples from all treatments were collected and tested weekly, and equivalent amounts of water from Lake Chaohu were used to replenish the columns after sampling. The sediments were sampled by a Peterson grab sampler twice at the beginning of the experiment (9 March) and at the end (4 July). The water samples were processed on the collection day, and the sediments were stored at 4 °C in the dark for analysis within 1 week.

Nutrient analysis

The water samples were tested for TN, dissolved total nitrogen (DTN), NH4+-N, NO2−-N, NO3−-N, TP, dissolved total phosphorus (DTP), SRP, DOC and Chl a contents. For the analyses of N and P species, water samples were filtered through 0.45-μm cellulose acetate membranes for soluble nutrient preparation. All the methods followed national standards [2]. Dissolved organic nitrogen (DON) was calculated as: DON = DTN-DIN, while DIN was calculated as the sum of NH4+-N, NO2−-N and NO3−-N. Particulate nitrogen (PN) was calculated as: PN = TN-DTN. Dissolved organic phosphorus (DOP) was calculated as: DOP = DTP-SRP. Particulate phosphorus (PP) calculated as: PP = TP-DTP. For the analysis of DOC, the water samples were filtered through GF/C filters (Whatman, USA) and measured by a Multi N/C 2100 TOC analyser. Chlorophyll a (Chl a) was extracted from GF/C filters (Whatman, USA) with 90% acetone and measured by the fluorometric method according to Yentsch and Menzel [47].

Total organic carbon (TOC) in the sediment was measured by loss-on-ignition in a muffle furnace [3]. Protein (PRT) analysis was conducted according to Hartree [17], and the values were expressed as bovine serum albumin (BSA) equivalents. The carbohydrate content (CHO) was determined according to Gerchakov and Hatcher [11] and expressed as glucose equivalents. Lipids (LIPs) were extracted by direct elution with chloroform–methanol using the methods of Bligh and Dyer [4] and Marsh and Weinstein [29].

Sediment P fractionation was carried out according to Golterman [12]. The method groups sediment P into iron-bound P (Fe(OOH) ~ P), calcium-bound P (CaCO3 ~ P), acid-soluble organic P (ASOP) and hot NaOH-extractable organic P (Palk). The different forms of P were sequentially extracted, and the SRP was detected.

The method for sediment P sorption was that of James et al. [22]. Five milliliters of sediment suspension was mixed with 10 mL of 0, 0.1, 0.2, 1, 2, 5, 8, 10, 15, 20, 25, 30, 40, or 50 mg/L KH2PO4 solution (containing 0.01 mol/L KCl). The mixtures were mixed and shaken thoroughly for 24 h at 25 °C. After centrifugation, the supernatant was filtered through a 0.45-μm cellulose acetate membrane, and SRP was detected. The reduced phosphate from solution was considered adsorbed by sediment. The sorption parameters at equilibrium were calculated as [1]:

$$S_{e} = \left( {C_{0} - C_{e} } \right){\text{V}}/{\text{m}} ,$$
(1)

where Se is the P sorption capacity at equilibrium (mg P/kg), V is the sample volume (mL), C0 is the initial P concentration (mg P/L), Ce is the aqueous P concentration at equilibrium (mg P/L), and m is the adsorbent amount (kg).

The obtained data were fitted to the Langmuir adsorption isotherm equation [2] [38]:

$$\frac{{C_{e} }}{{S_{e} }} = \frac{1}{{S_{ \hbox{max} } K_{L} }} + \frac{1}{{S_{ \hbox{max} } }}C_{e} ,$$
(2)

where Smax is the maximum adsorbed concentration (mg P/kg) and KL is the Langmuir equilibrium constant (L/mg P).

All parameters for the nutrients mentioned above were measured in triplicate.

Microbial activity analysis

The activities of leucine aminopeptidase (LAP), β-glucosidase (GLU) and alkaline phosphatase (AP) were analyzed fluorometrically according to Hoppe [19], using the methylumbelliferone (MUF)-labeled substrates l-leucine-4-methylcoumarinylamide, MUF-beta-d-glucopyranoside and 4-methylumbelliferyl phosphate. In brief, slurries were made at a ratio of 1:10 by weight, and triplicates of 3-mL subsamples as the initial samples were added to 100 µM of each specific fluorogenic substrate. The reaction was stopped immediately in an electrically heated 90 °C thermostatic water bath, while other triplicates of 3-mL slurries as final samples were incubated separately for 1 h with the same concentrations of each specific fluorogenic substrate. The fluorescence released by substrate hydrolysis was measured with a spectrofluorometer (Shanghai Sanco 960, Shanghai, China) as the increase between the initial time and 1 h of incubation.

The potential rates of denitrification and ANAMMOX were tested via the isotope-tracing method with a membrane inlet mass spectrometer (MIMS) [20, 35], and DNRA rates were determined by OX/MIMS [48]. The specific processes have been described by peer researchers [8]. Briefly, at a ratio of 1:7 by weight, the sediments and water were combined into a slurry, purged by helium for approximately 30 min, and then transferred into 20 respective 12-mL gas-tight vials (Labco Exetainers) under a helium atmosphere. To eliminate residual nitrite, nitrate, and oxygen, the vials were preincubated in a shaker at 150 rpm for 24 h. Then, 15NO3− was added to the vials (final concentration approximately 100 μmol 15N L−1) with a syringe, and 100 μL of saturated HgCl2 was added to 10 of the replicates for preservation, 5 of which were DNRA initial samples. Another 5 vials were initial samples for ANAMMOX and denitrification. The remaining 10 samples were shaken (200 rpm) and incubated for approximately 8 h, and then the samples were preserved with HgCl2 as the final samples, half of which were tested for the dissolved nitrogen gas (29N2 and 30N2) produced during the incubations for the ANAMMOX and denitrification rate calculation [32, 35]. The other half were oxidized with hypobromite iodine solution to transfer the 15NH4+ produced by DNRA into nitrogen gas (29N2 and 30N2), and the DNRA rates were calculated based on changes in the concentration of 15NH4+ during the incubations.

Metagenome DNA extract and sequencing

To determine the abundance and composition of the functional microbial communities in the sediment samples, metagenomic analysis was conducted. Genomic DNA was extracted with commercial kits according to the manufacturer’s instructions. DNA integrity and purity were monitored on 1% agarose gels. The DNA concentration and purity were measured using Qubit 2.0 (Thermo Fisher Scientific, Waltham, USA) and a Nanodrop One (Thermo Fisher Scientific, Waltham, USA) spectrophotometer at the same time. Sequencing libraries were generated using the NEB Next® Ultra™ DNA Library Prep Kit for Illumina® (New England Biolabs, MA, USA) following the manufacturer’s recommendations and index codes were added. The library quality was assessed on a Qubit 3.0 fluorometer (Life Technologies, Grand Island, NY) and Agilent 4200 (Agilent, Santa Clara, CA) system. Finally, the library was sequenced on the Illumina HiSeq X-ten platform.

Statistical analysis

In this study, triplicate samples were analyzed, and the data are presented as the mean ± SD. The average value and standard deviation were analyzed in IBM SPSS Statistics 23. A statistical significance level within 0.05 was employed for all analyses. Nonlinear regression estimation for the model parameters was conducted in Sigma-Plot 10.0 with the dynamic fit wizard function. The figures were drawn using OriginPro 9.0, and the concentrations of chemical parameters in water and sediments are displayed. Clustering based on the relative abundance of functional genes among the different treatments was performed using hierarchical clustering method and visualized through heatmaps using the Primer 5 and Adobe Illustrator CS6.

Results

Nutrients in the water column

The effects of the different natural eutrophic sediment remediation materials on nutrient levels in the water column and on algal growth and species were not exactly the same. There was a sharp increase in SRP concentration on the second sampling day (18 Mar, 9 days of incubation) in Treatment SU, which was maintained until 29 April (51 days of incubation). In the other treatments, SRP remained at a low level until the end of the experiment (3 June, 86 days of incubation), at which time the SRP began to increase in Treatments CT, KA and CA, especially in Treatment CT, indicating release of P from the sediment. DOP and PP maintained low levels in almost all treatments except in Treatment SU, in which DOP and PP peaked on 8 April (30 days of incubation) and 1 April (23 days of incubation), respectively. Additionally, in Treatment PH, the PP value was relatively high (Fig. 1).

Fig. 1
figure 1

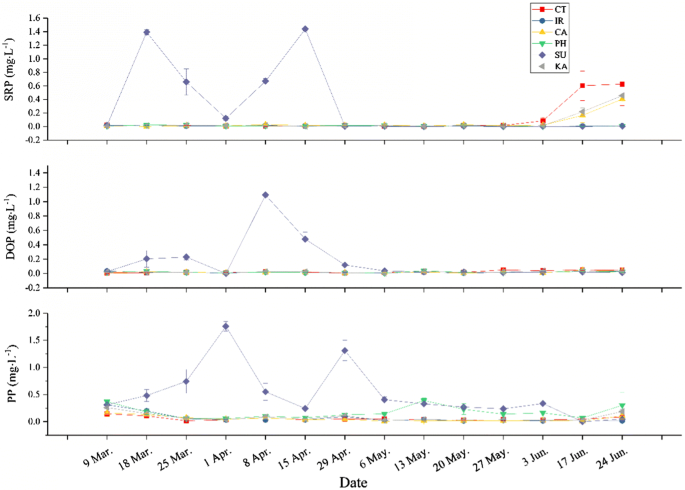

Concentrations of SRP, DOP, and PP in water column among different treatments

Full size image

NH4+-N showed a high value at the beginning of the experiment and then began to decrease and remained at a low level until the end of the experiment (107 days of incubation) in all treatments except Treatment SU, which always exhibited a high value of NH4+-N throughout the experiment. A low NO2−-N value was found in all treatments. There was a common pattern of a peak from 1 to 8 April (23–30 days of incubation) for the NO3−-N concentration in all treatments; the NO3−-N concentration was significantly lower (P < 0.01) in Treatments PH and SU than in the other treatments. DON and PN were not significantly different among the different treatments except in Treatment SU, which had peaks on 6 May (58 days of incubation) and 13 May (65 days of incubation), respectively (Fig. 2).

Fig. 2
figure 2

Concentrations of NH4+-N, NO2−-N, NO3−-N, DON and PN in water column among different treatments

Full size image

The DOC content in Treatment SU was an order of magnitude higher (P < 0.01) than that in the other treatments, showing a peak on 15 April (37 days of incubation). In almost all treatments, the Chl a content was considerably low except in Treatment SU, which had a peak on 6 May (58 days of incubation). At the end of the experiment, relatively low Chl a content was found in Treatment IR (Fig. 3).

Fig. 3
figure 3

Concentrations of DOC and Chl a in water column among different treatments

Full size image

Nutrient fractionation and sorption in sediment

The addition of sugarcane bagasse and Phragmites detritus (Treatments SU and PH) at the beginning of the experiment significantly stimulated the accumulation of TOC, PRT, CHO and LIP (P < 0.01), and the addition of kaoline (Treatment KA) at the beginning of the experiment increased the PRT content compared to the control. At the end of the experiment, the PRT, LIP and CHO in Treatment PH and the LIP in Treatment SU had increased significantly (P < 0.01), and CHO in Treatment SU had decreased significantly (P < 0.01) compared to those values at the beginning of the experiment. The carbon fractionation in most treatments did not change greatly during the whole experiment (Fig. 4).

Fig. 4
figure 4

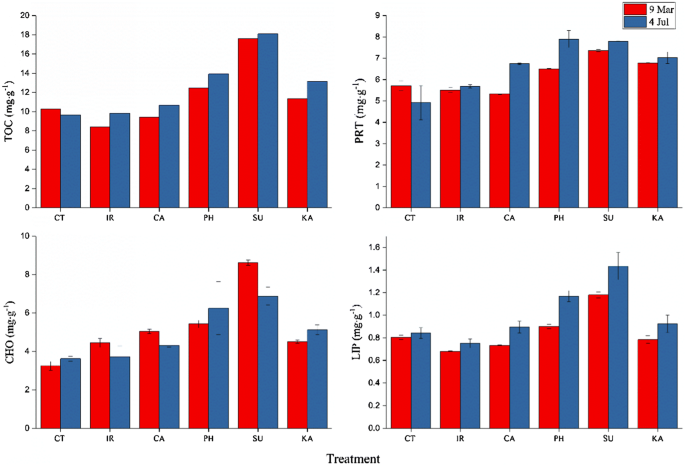

Comparison of TOC, PRT, CHO and LIP in sediments among different treatments

Full size image

The calcium- and iron-bound phosphor contents increased significantly (P < 0.01) after the addition of calcite and kaoline (Treatment CA and KA), respectively. In the treatments of PH and SU, which had with organic carbon as the main component, obviously increased iron-bound P (P < 0.01) was observed at the beginning of the experiment; iron-bound P declined considerably in Treatment SU at the end of the experiment (Fig. 5). In addition, compared to that in the control, relatively low values of the P sorption parameter EPC0 were found in Treatments PH and SU, coupled with high Qmax values. Higher EPC0 values were recorded in Treatments IR and CA. The Qmax value increased significantly (P < 0.05) in all treatments from the beginning to the end of the experiment. Qmax had a significantly higher value (P < 0.01) in Treatment SU than in the other treatments (Fig. 6).

Fig. 5
figure 5

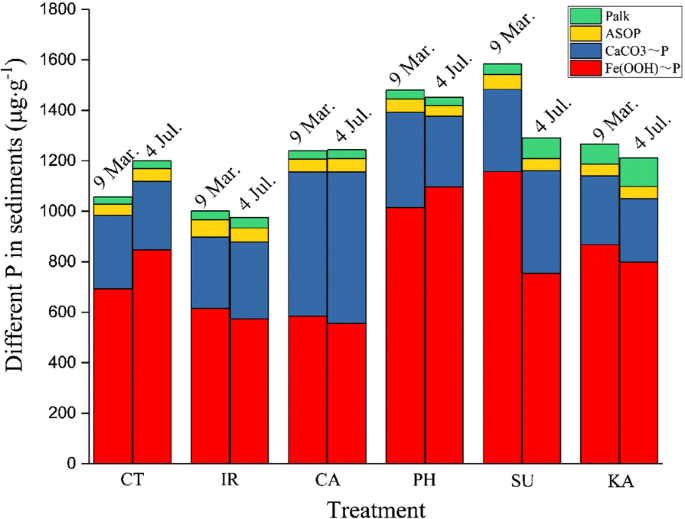

Different P in sediments among different treatments

Full size image
Fig. 6
figure 6

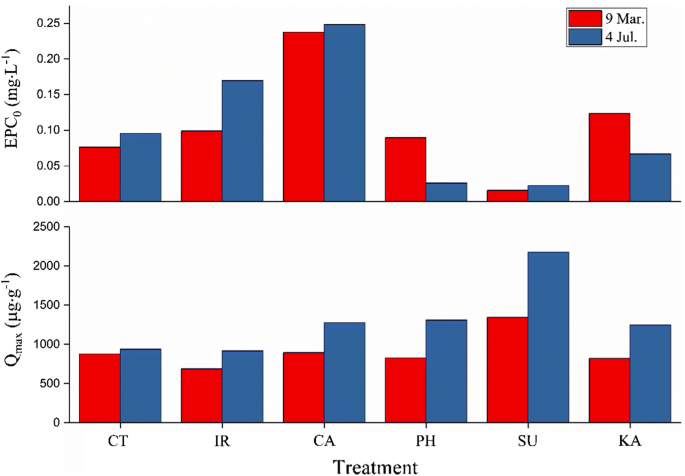

The parameters of P sorption in sediments among different treatments

Full size image

Microbial activities, functional genes and microbial community composition in sediment

The addition of sugarcane bagasse (Treatment SU) significantly inhibited the LAP, GLU and AP activities (P < 0.01) in sediments at the beginning of the experiment; the activity of the latter two enzymes increased sharply at the end of the experiment. The LAP activity did not vary greatly after the addition of natural materials except in Treatment SU and then dropped down to a very low level at the end of the experiment in all treatments. The addition of Phragmites detritus markedly stimulated GLU activity (P < 0.01) in Treatment PH throughout the experiment. AP activity was inhibited at the beginning of the experiment in all treatments (Fig. 7). The denitrification process dominated the N transformation processes. The denitrification rate was significantly promoted in Treatments CA, PH, SU and KA (P < 0.01) compared to that in the control. The difference was that in Treatments PH, SU and KA, the DNRA rate was also greatly increased, while it was limited in Treatment CA. The ANAMMOX process was negligible in all treatments (Fig. 8).

Fig. 7
figure 7

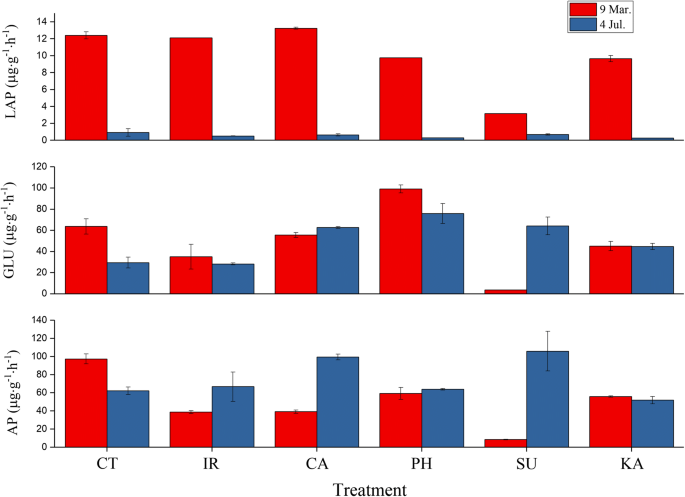

The activities of leucine aminopeptidase, β-glucosidase and alkaline phosphatase in sediments among different treatments

Full size image
Fig. 8
figure 8

Potential rates of denitrification, Anammox and DNRA in sediments among different treatments

Full size image

The functional genes mediating C, N and P cycling in all treatments showed completely different levels, with the highest and lowest levels in Treatment KA and SU, respectively. The number of functional genes mediating denitrification, DNRA, ammonification and phosphatase in Treatments IR, CA, PH and SU was significantly lower (P < 0.01) than that in Treatment CT. The number of functional genes mediating nitrification and carbon decomposition in Treatment CA was significantly higher than that in the other treatments except for Treatment KA (P < 0.01, Fig. 9).

Fig. 9
figure 9

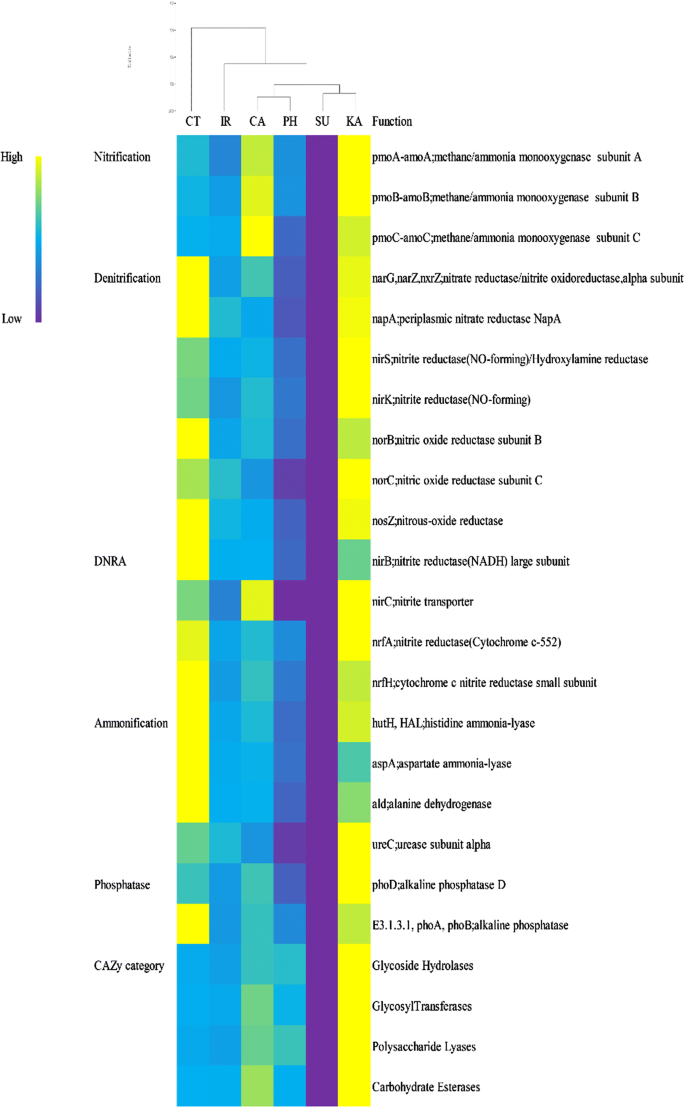

Relative abundance of key functional genes mediating C, N and P cycling among different treatments

Full size image

The dominant taxa in the microbial community were completely different in all treatments. The dominant community included Cytophagales and Nitrosomonadales in the CT and IR treatments, respectively. In Treatment CA, Dehalococcoidia, Planctomycetales and Nitrospirales dominated. In Treatment PH, the dominant community included Aeromonadales, Rhizobiales, Opitutales, Delta-proteobacteria, Syntrophobacterales and Chlorobiales. In Treatment KA, Proteobacteria, Chlamydiales and Bacillales dominated. Compared to that in the other treatments, the diversity of the microbial community composition in Treatment SU was more abundant, and the community was dominated by Methanomicrobiales, Methanocellales, Methanobacteriales, Methanosarcinales, Anaerolineales, Sulfuricurvum, Bacteroidales, Erysipelotrichales, Pseudomonadales, Clostridiales, Desulfovibrionales, Flavobacteriales and Desulfuromonadales (Fig. 10).

Fig. 10
figure 10

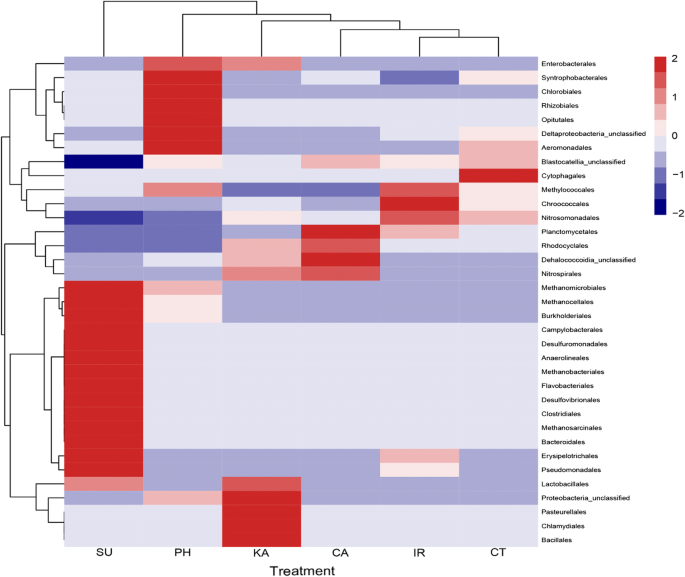

The functional microbial community composition and abundance in sediments among different treatments

Full size image

Discussion

Effects of the addition of different natural materials on P control

At the beginning of the experiment, in Treatment SU, all forms of phosphorus accumulated (Fig. 1), indicating that the addition of sugarcane bagasse caused P leaching in the initial phase. Sugarcane biomass increases significantly with P fertilizer application, suggesting that abundant phosphorus is stored inside sugarcane cells [1]. Additionally, the addition of sugarcane-derived biochar to sediment effectively stimulated phosphorus release  [31]. Thus, the enzymatic hydrolysis of the organic P in sugarcane bagasse is likely responsible for the P leaching to some extent, in accordance with the sharp increase in AP activity (Fig. 7). In addition, the significant increase in iron-bound P in Treatments PH and SU (Fig. 5) can be explained by the fact that the addition of sugarcane bagasse and Phragmites detritus resulted in partial inorganic P immobilization with ferric iron [49, 51]. The immobilized iron-bound P in Treatment SU was subsequently released as shown by the decline in iron-bound P at the end of the experiment (Fig. 5). The most likely reason for this trend was the onset of anaerobic conditions, which facilitated the desorption of iron-bound P [21]. Sustained hypoxia results in an initial decrease in sediment P content due to the dissolution of P-bearing iron oxyhydroxides, resulting in a pulse of phosphate to the overlying waters [34]. Furthermore, in Treatment SU, a great deal of DOC was produced in the sugarcane bagasse decomposition process (Fig. 3), in which dissolved oxygen was consumed and anaerobic conditions developed. In summary, the addition of sugarcane bagasse caused P leaching, which can be attributed to the hydrolysis of the organic P in the plant cells and the release of iron-bound P due to serious anoxia.

However, it is worth noting that at the end of the experiment, all the P released in Treatment SU was re-immobilized (Fig. 1), which was associated with the strong P sorption ability and potential of sugarcane bagasse, expressed by the relatively low EPC0 value and high Qmax value (Fig. 6). In other words, even though the addition of sugarcane bagasse initially resulted in P leaching, it promoted P sorption, and the sugarcane bagasse adsorbed all released P in the end. At the end of the experiment, in Treatments CT, KA and CA, SRP was released gradually from the sediments (Fig. 1). This finding indicated that the addition of calcite and kaoline did not effectively inhibit P release in the long term.

Phragmites can be considered an effective natural material for short-term P control in sediments due to its high sorption ability and low P leaching rate, although it might increase the iron-bound P content. Iron minerals maintained low P levels in the water column throughout the experiment, but their P sorption ability was weak. The release of the organic P fraction from Phragmites detritus is a longer-term process that may finally influence the balance of absorption and release of P in sediments. Hence, the effects of Phragmites detritus on P control require more studies in a long time series; the time course of this study (ca. 100 days) is not sufficient. Sugarcane bagasse should be applied prudently due to the initial P leaching that occurs, although it distinctly enhanced the P sorption ability and re-adsorb the released P. Calcite and kaoline could not maintain P fixation for a long period (Figs. 1, 5 and 6).

Effects of the addition of different natural materials on N control

The NH4+-N accumulation and NO3−-N deficiency in Treatment SU (Fig. 2) manifested weak nitrification and/or strong NH4+-N production abilities. As mentioned above, in Treatment SU, the high DOC content and possibly anaerobic status (Fig. 3) indicated blocked nitrification. On the other hand, the increase in all carbon fractions after the addition of sugarcane bagasse, especially the increase in CHO, which was rapidly consumed at the end of the experiment (Fig. 4), illustrated that sugarcane bagasse could provide abundant electron donors for NO3−-N reduction. Elevated DOC, including organic-rich sugars, has been detected in groundwater beneath irrigated sugarcane, which may be beneficial for denitrification [42]. Sugarcane straw increased the DOC by more than 50% in the topsoil layer and was positively correlated with N2O emissions [43]. Additionally, the organic carbon content of sugarcane bagasse facilitated denitrification in vertical flow wetlands [37]. This is the reason for the NO3−-N deficiency due to strong denitrification in Treatment SU. Furthermore, the significantly high denitrification and DNRA rates in Treatment SU (Fig. 8) supported the above conclusion. As a result, large amounts of NH4+-N and N2 were produced in Treatment SU (Fig. 2). In addition, the obviously low LAP activity, suggesting low ammonification in Treatment SU (Fig. 7), further illustrated that the DNRA process was primarily responsible for the NH4+-N accumulation. Organic carbon was the primary factor controlling the rates of dissimilatory nitrate reduction, accounting for 28.3% and 37.9% of the variance in the denitrification and DNRA rates, respectively [23]. High organic carbon and reducing conditions shifted NO3−-N reduction towards more pronounced DNRA [33]. Therefore, in Treatment SU, the high organic carbon level fuelled the DNRA process. In summary, weak nitrification, strong denitrification and DNRA after sugarcane bagasse addition jointly caused NH4+-N accumulation and NO3−-N deficiency. Coupled with P release, algal growth was greatly promoted in Treatment SU (Fig. 3).

Similarly, in Treatment PH, all carbon fractions accumulated in sediments, especially PRT (Fig. 4). However, the lack of high DOC production (Fig. 3) indicated the low availability of the introduced organic carbon (Phragmites detritus) and the inactive organic carbon decomposition process, compared to that in sugarcane bagasse. The low decomposition rate of Phragmites due to its component properties has been demonstrated [50], resulting in the low organic carbon availability and DOC leaching rate [9]. This suggests that the dissolved oxygen at the sediment–water interface should be sufficient and that organic carbon for electron donors should be sufficient but not excessive. Hence, the expected strong nitrification and denitrification as well as the weak DNRA, expressed as the denitrification and DNRA rates (Fig. 8), jointly led to the low NH4+-N and NO3−-N concentrations in Treatment PH (Fig. 2), even if a strong ammonification process had occurred (Fig. 7). Simply speaking, Phragmites detritus should be considered a promising natural material for introduction for N removal in sediment remediation projects.

The NO3−-N accumulation in Treatments CT, IR, CA and KA at the beginning of the experiment should be attributed to different mechanisms. In Treatments CA and KA, at the beginning of the experiment, weak denitrification likely occurred due to the lack of electron donors. On the other hand, the high LAP activity indicated a strong ammonification process (Fig. 7), coupled with the predicted strong nitrification and weak denitrification; these factors jointly resulted in NO3−-N accumulation at the beginning of the experiment. However, during the experiment, organic detritus and some reductive metals inside calcite and kaoline were dissociated and served as electron donors for denitrification (Fig. 4); this may explain the high denitrification rate and low NO3−-N concentration at the end of the experiment (Figs. 2 and 8). There is evidence that electron donors exist on the surface of calcite [36]. During the formation of calcite, electron donors are needed for bacterial sulfate reduction [15]. The low denitrification rate (Fig. 8) due to electron donor deficiency (Fig. 4) in Treatment CT and IR directly resulted in the sustained maintenance of a high NO3−-N concentration (Fig. 2).

Effects of the addition of different natural materials on microbial functional genes and community composition

Treatment SU had the lowest levels of functional genes mediating C, N and P cycling of all the treatments (Fig. 9), as well as a unique microbial community composition and rich microbial diversity (Fig. 10). These findings indicate that sugarcane bagasse addition shaped the microbial community and reduced the abundance of functional microorganisms, which responded with lower EEAs at the beginning of the experiment (Fig. 7). On the other hand, the increased denitrification and DNRA rates (Fig. 8) suggested that the excess organic carbon in Treatment SU (Figs. 3 and 4) resulted in a minority of functional microorganisms performing more functions (depending on the organic carbon). Additionally, in Treatment SU, the dominant microbial community species (Fig. 10) all grew in strictly anaerobic environments. Most of these microorganisms are capable of decomposing organic carbon and producing methane as well as reducing sulfate, which was consistent with the anaerobic status and abundance of organic carbon as well as the high denitrification and DNRA rates (Figs. 3, 4 and 8). Even though similar functions (organic carbon decomposition and methane production) were found in Treatments SU and PH, the dominant microbial community compositions were different (Fig. 10), indicating the difference in organic carbon components during sugarcane and Phragmites detritus decomposition.

In Treatment KA, the high functional gene abundance and moderate denitrification and DNRA rates (Figs. 8 and 9) suggested that kaoline triggered functional promotion by greatly increasing the quantity of functional microorganisms. Additionally, the significantly high abundance of functional genes mediating nitrification and carbon decomposition in Treatments CA and KA (Fig. 9) were corroborated by the similar dominant microbial community composition, such as Dehalogenimonas and Nitrospira (Fig. 10), which perform nitrification and organic matter decomposition. All these results illustrate that natural material addition both shapes community composition and changes the quantity of functional microorganisms, further determining ecological functions during C, N and P cycling to a great extent.

Conclusions

The high level of available organic carbon in sediment and water after sugarcane bagasse addition provided a great deal of electron donors for denitrification and DNRA and also resulted in anaerobic conditions. The first consequence of this was NO3−-N deficiency and NH4+-N accumulation due to strong denitrification and DNRA as well as weak nitrification. The second consequence was a large amount of P leaching due to the release of iron-bound P induced by the anaerobic conditions. The third consequence was substantial algal growth due to the high P and NH4+-N levels. Thus, the amount of sugarcane bagasse applied for sediment remediation should be controlled in order to balance denitrification and DNRA and to reduce P leaching. Calcite and Phragmites detritus are recommended as remediation materials for N removal because their addition significantly accelerated the denitrification rate and restricted the DNRA rate, resulting in low NO3−-N and NH4+-N. The results described above can be explained by the change in the functional microbial community composition and abundance after the addition of natural materials. Iron-rich clay minerals and Phragmites detritus should be regarded as promising sediment remediation materials for P immobilization due to their strong P adsorption ability. Taken together, the selection of sediment remediation materials for joint N and P control should consider the N and P coupling relationship, to prevent NO3−-N removal from causing P leaching or NH4+-N accumulation.

Availability of data and materials

The datasets obtained and analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

SRP:

Soluble reactive phosphorus

DNRA:

Dissimilatory nitrate reduction to ammonium

NO3−-N:

Nitrate

NH4+-N:

Ammonium

NO2−-N:

Nitrite

TP:

Total phosphorus

TN:

Total nitrogen

DOC:

Dissolved organic carbon

Chl a :

Chlorophyll a

LAP:

Leucine aminopeptidase

GLU:

β-Glucosidase

AP:

Alkaline phosphatase

CT:

Control

IR:

Iron-rich clay mineral

CA:

Calcite

PH:

Phragmites detritus

SU:

Sugarcane bagasse

KA:

Kaoline

DTN:

Dissolved total nitrogen

DTP:

Dissolved total phosphorus

DON:

Dissolved organic nitrogen

PN:

Particulate nitrogen

DOP:

Dissolved organic phosphorus

PP:

Particulate phosphorus

TOC:

Total organic carbon

PRT:

Protein

BSA:

Bovine serum albumin

CHO:

Carbohydrate

LIP:

Lipid

CaCO3 ~ P:

Calcium-bound P

ASOP:

Acid-soluble organic P

Palk :

Hot NaOH-extractable organic P
