Occurrence and distribution of antibiotic resistance genes in the water and sediments of Qingcaosha Reservoir, Shanghai, China



Qingcaosha Reservoir is China’s largest river impoundment and an important drinking water resource for Shanghai city. Although antibiotics contamination in the reservoir has been reported, little is known about the presence of antibiotic resistance genes (ARGs). In this study, the occurrence and distribution of 12 ARGs and the class 1 integron gene (intI-1) in water and sediments collected from the reservoir were investigated for 1 year.


The 12 ARGs were detected in both water and sediment samples, and no significant temporal or spatial variations were observed. Sulfonamide resistance genes were predominant in the reservoir with a detection frequency of 100%. Statistical analysis indicated a positive correlation in relative abundance between some ARGs such as sul1, sul2, and intI-1. Most ARGs were negatively correlated with total nitrogen and positively correlated with chemical oxygen demand and chlorophyll-a.


In general, ARGs were found to be prevalent in Qingcaosha Reservoir, among which sulfonamide resistance genes were the most dominant and tetB was the least. intI-1 may facilitate the proliferation and propagation of some ARGs, especially sul1 and sul2. The abundance of ARGs was well correlated with aquatic environmental factors in water, providing potential clues for the control of ARG contamination.


Antibiotics are effective against bacteria and have been widely used to treat bacterial infections in humans or animals since their discovery in the 1930s [1]. China is the largest producer and consumer of antibiotics in the world, accounting for approximately 72,700 tons of 36 common antibiotics consumed in 2013, divided equally between clinical and veterinary use [2]. Overuse of antibiotics has subjected bacteria to long-term selection pressure, leading to the development of antibiotic resistance, which indicates that the bacteria will be difficult to kill [3]. Antibiotic resistance genes (ARGs) are the core functional elements in antibiotic resistant bacteria, and they have the ability to migrate among different microbes through horizontal gene transfer [4, 5]. The shuttling of ARGs among various bacteria has made possible the generation of super resistant pathogens, posing a tremendous potential threat to public health [6].

Recently, ARGs have been detected in surface water [7, 8], drinking water [9], sewage treatment plants [10], wetland [11], soils [12], sediments [13], and even air [14]. The environmental abundance of ARGs is mainly caused by selection pressure from antibiotics, and by some environmental factors including microbial consortium structure and nutrients [15]. Aquatic ecosystems have been the environments of most concern in ARGs research. It has been reported that sulfonamide, tetracycline, β-lactam, and macrolide resistance genes are the most abundant ARGs in aquatic environments [16, 17]. Notably, clays in aquatic ecosystems such as in sediments are able to adsorb DNases that would otherwise hydrolyze free DNA (including ARGs), and thus contain a large number of microbes possessing ARGs [18]. These adherent ARGs were possibly released into water from the sediments under relatively quiescent (low-flow) condition [18]. Thus, the distribution of ARGs between water bodies and sediments merits further exploration [18, 19].

In drinking water supplies, the presence of ARGs has been believed to seriously threaten public health and thus has attracted increasing attention. Conventional water treatment techniques including sand filtration and sedimentation have difficulty completely removing ARGs, and the concentrations of ARGs can even increase after chlorine disinfection [20, 21]. These ARGs residues from drinking water treatment plants were bound to be transported to terminal consumers. Hao et al. investigated the concentrations of ARGs in the tap water of Tianjin, China, and fifteen ARGs were continuously detected in all samples [21]. Therefore, in addition to further improving treatment techniques, it is necessary to control the distribution of antibiotics and ARGs into drinking water sources. Artificial reservoirs have been constructed for water storage and supply in various countries including China. With the spread of antibiotic use, ARGs as a variety of emerging contaminant have been detected in many reservoirs in recent years [22, 23].

Qingcaosha Reservoir came into use in 2011 to replace the Huangpu River as the long-standing main water source for Shanghai, which was no longer suitable considering increasing quality requirements for clean drinking water [3]. The reservoir is located in the Yangtze River Estuary in Shanghai, eastern China, covering an area of approximately 70 km2 and with a designed effective storage capacity of 435 million cubic meters. In recent years, due to the chemical industry and sewage plant pollution from the upper reaches of the Yangtze River Estuary, the reservoir’s water quality has slightly deteriorated [24]. A previous study demonstrated that various antibiotics were widely distributed in Qingcaosha Reservoir water, raising the possibility of health risks to residents [25]. However, little is known about the presence of antibiotic corresponding ARGs, and long-term continuous monitoring for this emerging risk is still lacking.

We collected both water and sediment samples from Qingcaosha Reservoir monthly for an entire year. Our main aims were to (1) characterize the occurrence, abundance, distribution, and variation of 12 ARGs and the class 1 integron gene (intI-1) in water and sediments; (2) explore the potential connections between different ARGs; and (3) determine the primary environmental factors that influence the abundances of ARGs. Our results provide annual monitoring data for the prevalence of ARGs in Qingcaosha Reservoir and yield important clues for controlling antibiotics and their corresponding ARGs in the reservoir and nearby areas.

Materials and methods

Study site and sample collection

Qingcaosha Reservoir, located in the Yangtze River Estuary in eastern China, is an important source of drinking water for a population of over 12 million in Shanghai and provides more than 7.19 million m3 of water daily. This large shallow reservoir has a surface area of 66 km2 with a depth ranging from 1.5 to 7.0 m. It receives its fresh water supply from the Yangtze River with an average flow velocity of 0.05 m/s. Our sampling sites were located as shown in Fig. 1. Water and sediment samples were collected monthly from April, 2016, to March, 2017. Water samples (5 L) were collected from the top 0.5 m of surface water, and sediment samples (1 kg) were collected from the top 5 cm of the riverbed using a core sampler. Each sample consists of a mixture of three different raw samples from one sampling site. All samples were stored in sterile bottles and then transported immediately to the laboratory, stored at 4 °C and pretreated within 24 h.

Fig. 1

Map of the Qingcaosha Reservoir and sampling sites

Sample pretreatment and DNA extraction

Water samples (500 mL) were filtered through 0.22 μm pore size polycarbonate membranes (GTTP, Millipore, Ireland), and then, the filter membranes were cut into small pieces and placed in extraction tubes provided in a Water DNA Kit (Omega, USA). Total DNA was extracted according to the instructions of the manufacturer. For sediments, 0.25 g dry samples were extracted using the PowerSoil DNA Isolation Kit (Mobio, USA) according to the manufacturer’s protocol. The quality of extraction was verified by agarose gel electrophoresis, and the DNA quantities were measured using a UV–Vis spectrophotometer (Q5000, Quawell, USA).

Quantification of ARG by qPCR

Quantitative real-time PCR (qPCR) assays were carried out to quantitatively analyze the target genes from water and sediment samples, including the 16S rRNA gene, two sulfonamide resistance genes (sul1, sul2), three tetracycline resistance genes (tetA, tetB, tetQ), three β-lactam resistance genes (OXA-1, TEM-1, ampC), two aminoglycoside resistance genes (strA and strB), two macrolide resistance genes (ermB, mphA), and the class 1 integron gene (intI-1). These target genes were relatively common in water environment, and related antibiotics have been detected in this reservoir [25]. Sequences of all primers of the target genes are listed in Additional file 1: Table S1 based on the published literature [17, 26,27,28,29,30,31]. All qPCR assays were performed in a 20 μL total volume containing 0.5 μM primer pairs (Sangon Biotech, China), 8 μL of ddH2O, 10 μL of hot start reaction mix with 1 × SensiMix™ SYBR® No-ROX Kit (Bioline, USA), and 1 μL of template DNA. All reactions were conducted with a real-time PCR instrument (ABI 7500, Thermo Scientific, USA), and each run consisted of an initial preheating step at 95 °C for 5 min, followed by 40 cycles with each cycle consisting of 15 s at 95 °C and 30 s at different annealing temperatures as presented in Additional file 1: Table S1. Product specificity was validated by melting curve analysis (60–98 °C, 0.5 °C per read, 6 s hold). For each sample, an additional diluted extract was simultaneously analyzed to avoid possible inhibitory effects in PCR processes. The specific amplified products were cloned in pCR™2.1 vector using a TA cloning Kit (Promega, USA).

Plasmids extracted from a known copy number of the positive colony were serially diluted to generate a standard curve. Reliable correlation coefficients (R2 > 0.99) and amplification efficiencies based on slopes between 90 and 110% for standard curves were obtained. The samples and positive plasmids along with sterile ultrapure water as a negative control were run in triplicate. The copy numbers of target genes were calculated based on the calibration curves. Gene concentrations in samples of water and sediments are presented as copies/mL and copies/g (dry weight), respectively.

Analysis of water quality parameters

All reagents and solvents in the water quality analysis were analytical grade. Concentrations of chlorophyll-a (Chl-a), chemical oxygen demand (CODMn), ammonia nitrogen (NO4+–N), total nitrogen (TN), and total phosphorus (TP) were measured according to Chinese national standards [11]. Dissolved organic carbon (DOC) was measured using a TOC analyzer (Shimazu, Japan), and pH was measured using a digital meter (pHS-25, Leici Instrument Co., Shanghai).

Statistical analysis

Correlation analysis was performed with Origin 9 (Originlab, USA). The redundancy analysis (RDA) used to analyze the effect of environmental factors on ARGs was performed using Canoco 5.0 (Biometris, Netherlands). A one-way ANOVA followed by Dunnett’s test was used to assess the homogeneity of variance with a significance level of 5% (p = 0.05). The calculations of heat map were performed using Microsoft Excel 2010.


Occurrence and abundance of a variety of ARGs in Qingcaosha Reservoir

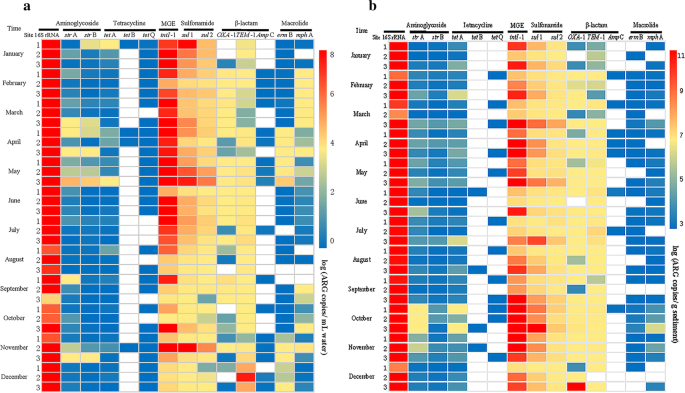

Figure 2 summarizes the abundance of all of the target genes in water and sediment samples from Qingcaosha Reservoir sampling sites over the entire year. The different colors of blocks represent absolute abundances of genes (log-transformed). Detailed information on abundance and detection frequency is presented in Additional file 1: Table S2. 16S rRNA genes and ARGs were detected in all samples, with detected concentrations higher in sediment than in water.

Fig. 2

Heat maps of target genes for all sampling sites and all sampling times. a Water samples; b sediment samples. Each grid represents the absolute abundance of the target genes for all samples normalized on a log 10 scale. White blocks stand for below limit of quantity. The vertical axis represents the sequence of sampling sites and sampling times, while the horizontal axis represents the target genes. The legend shows corresponding fold change values

In particular, genes 16S rRNA, intI-1, sul1, sul2, tetA, strA, and strB were detected in 100% of the water and sediment samples. The concentration of 16S rRNA genes was the highest, with copy numbers ranging from 1.4 × 105 to 1.1 × 108 copies/mL in water and from 1.8 × 108 to 1.8 × 1011 copies/g in sediment. For ARGs, sulfonamide resistance genes sul1, sul2 were predominant in the Qingcaosha Reservoir, with the highest absolute abundance of 3.7 × 103 to 1.4 × 106 copies/mL in water and 2.1 × 107 to 4.4 × 109 copies/g in sediment, respectively. Of the three tetracycline resistance genes, tetA was the most prevalent in this reservoir with an average concentration of 6.7 × 102 copies/mL in water and 2.5 × 106 copies/g in sediment. However, the concentrations of tetB and tetQ were relatively low, especially the gene tetB, detected in only 11.1% of the samples. Of the three β-lactam resistance genes, the overall trend in frequency in water and sediment samples was TEM-1 > OXA-1 > ampC, with the lowest detection frequency being ampC in sediment. Two aminoglycoside resistance genes, strA and strB, were also found in the reservoir in high concentrations, with a peak value for strA of 1.1 × 107 copies/g in sediment. In addition, the concentrations of two macrolide resistance genes ermB (94.4% in water and 77.8% in sediment) and mphA (91.7% in water and 80.6% in sediment) were significantly lower than other resistance genes. Class 1 integron gene (intI-1) was another highly abundant gene in this reservoir, with concentrations ranging from 9.5 × 103 to 4.0 × 106 copies/mL in water and 1.8 × 108 to 1.3 × 1010 copies/g in sediment.

Temporal and spatial distribution of ARGs

For analysis of temporal variation in a distinct way, we divided the data from 12 months into four seasons, including spring (March, April, and May), summer (June, July, and August), autumn (September, October, and November) and winter (December, January, and February). Figure 3 shows the seasonal variation of ARGs in water samples (Fig. 3a) and sediment samples (Fig. 3b). Copy numbers of TEM-1, strA, strB, and ermB higher in water samples in summer, and OXA-1, TEM-1 were higher in sediment in summer and autumn, respectively. However, the absolute abundance of ARGs exhibited no significant variation between seasons.

Fig. 3

Seasonal variation of ARGs in the samples from the Qingcaosha Reservoir. a Water samples; b sediment samples

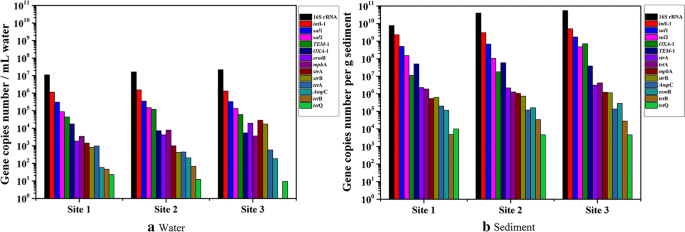

Figure 4 shows the spatial variation of ARGs in water samples (Fig. 4a) and sediment samples (Fig. 4b) from different sampling sites. In general, there were no significant differences between different sample sites although the absolute abundance of ARGs at site 3 was slightly higher than for other sediment sampling sites and tetB was not detected in water samples.

Fig. 4

Distribution of ARGs in the samples from different sampling sites in the Qingcaosha Reservoir. a Water samples; b sediment samples

To minimize the variance in the abundance of ARGs possibly caused by divergences in background biomass and DNA extraction efficiency, the normalization of absolute abundances was performed using the copy numbers of 16S rRNA. A similar variation tendency in terms of seasonal and spatial distribution in both water and sediment was found in the relative abundances of ARGs (Additional file 1: Figs. S1, S2).

Correlation analysis between abundances of ARGs

A correlation analysis comparing the absolute and relative abundances of ARGs was performed, and the results of this analysis are summarized in Additional file 1: Tables S3, S4. intI-1, the gene with the highest relative abundance, had strong positive correlations with two sulfonamide resistance genes sul1, sul2 in both water and sediment (p < 0.01, Fig. 5). In sediment samples, a positive correlation was found between the relative abundances of intI-1 and strA, strB, tetA (p < 0.01, Additional file 1: Table S4). Apart from that, we found significant correlations between most ARGs in the same class (Additional file 1: Tables S3, S4).

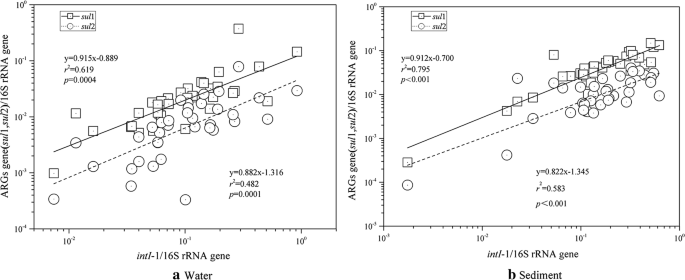

Fig. 5

Correlations between the relative abundance of class 1 integron and two sulfonamide resistance genes. a Correlations in water samples (n = 36); b correlations in sediment samples (n = 36)

Effects of water quality parameters on ARGs

To analyze the key factors affecting the occurrence and abundance of ARGs, we recorded several water quality parameters including Chl-a, CODMn, DOC, pH, TN, TP, and NH4+-N. The detailed results for water quality parameters are shown in Additional file 1: Table S5. The effective tool, RDA, was used to assess the potential response relationship between different ARGs and their associated water quality parameters (Fig. 6). intI-1, sul1, and sul2 were the predominant genes in the reservoir, and they had similar relationships with water quality parameters, mainly CODMn and Chl-a, indicating that their formation was favored in circumstances with relatively higher CODMn and Chl-a. For ARGs in water, most were negatively correlated with TN but positively correlated with pH, which was further verified using a Pearson correlation coefficient (Additional file 1: Table S6).

Fig. 6

Diagram of the RDA analysis between all ARGs and environmental factors in water


Among all detected genes, the copy numbers of sul1, sul2, and intI were predominant in this reservoir with high detection frequencies, which was consistent with previous reports for the Three Gorges Reservoir located in the upper reaches of the Yangtze River [32], but greater than those observed in studies of Tai Lake [8] and the Haihe River [18]. Sulfonamide resistance genes sul1 and sul2 encoded alternative drug-resistant variants of the dihydropteroate synthase enzymes and produced clinical resistance in Gram-negative enteric bacteria [33]. Multiple studies have shown that sulfonamide resistance genes are the most common ARGs in the environment [8, 18, 32], which could possibly be linked to the widespread use of sulfonamides and resulting selective pressure for the corresponding ARGs [2]. For example, the release from aquaculture is one of the most important sources of antibiotics (including sulfonamide) in Yangtze Estuary [34]. According to previous studies of antibiotic residues in Qingcaosha Reservoir [25] and the Huangpu River [3], sulfamonomethoxine has a high abundance in this reservoir, ranging from not detected to 163.2 ng/L, and in the Huangpu River, ranging from 2.05 to 623.27 ng/L. Generally, the antibiotic contents in the environment were much lower (usually on the order of 10−9–10−6) than the minimum inhibitory concentration acquired in the laboratory studies. It was estimated that the resistance of bacteria was gradually developed under the long-term selection pressure [15, 35]. The previous study in the Haihe River also revealed a strong positive correlation (p < 0.01) between the relative abundance of sul1, sul2 and the concentration of sulfonamide [18]. Gene intI-1 is a mobile genetic element (MGE) that, as an indicator for the horizontal gene transfer potential of ARGs, has been frequently detected in the environment [36,37,38]. In our study, the relative abundance of intI-1 was significantly positively correlated with some ARGs (p < 0.01), particularly sul1 and sul2, indicating that intI-1 could facilitate the propagation of sul1 and sul2 in the Qingcaosha Reservoir. The gene sul1 is generally associated with class I integrons, and thus, a strong positive correlation is not surprising. Similar results were obtained in the Three Gorges Reservoir [32] and the Wenyu River [39].

Both aminoglycoside resistance genes (strA and strB) and macrolide resistance genes (ermB and mphA) had relatively high abundance/detection frequencies in the reservoir. Aminoglycosides are in frequent clinical use, and macrolides have been widely found in animal waste and agricultural soil [40]. Their corresponding ARGs have rarely been reported in aquatic environments. The β-lactam resistance gene TEM-1 was present in all water samples and 97.2% of the sediment samples, higher values than found in other studies on the Huangpu River (103–104 copies/mL) [41]. The concentration of β-lactam was reported in a previous study to be the highest among all antibiotics in Qingcaosha Reservoir [25]. The high concentration of β-lactam resistances genes could be caused by antibiotic long-term selection pressure.

The abundances of tetracycline resistance genes were relatively low in Qingcaosha Reservoir. Of the three tetracycline resistance genes, tetA was dominant while tetB possessed the lowest abundance and detection frequency. The differences among the three tetracycline resistance genes might be caused by different patterns of tetracycline antibiotic usage and different compositions of microflora [42]. Tetracycline resistance genes have been found to be among the most common ARGs in aquatic environments [43, 44]. The levels of tetracycline resistance genes were lower than those of Tai Lake [45], but they were in agreement with those detected in the Huangpu River [41]. Pearson correlation coefficients revealed positive correlations between ARGs of the same class such as tetA, tetB, and tetQ, indicating that mobilizable plasmids containing ARGs can be transferred among microbial communities [46].

The temporal and spatial variations of ARGs may be the result of fluctuations in various factors including water temperature, flow conditions, surface run-off, and anthropogenic activities including antibiotics usage. Son et al. examined the abundance of 11 ARGs in rivers and reservoirs in South Korea and speculated that higher temperatures and nutrient conditions promoted the growth of microbes in summer, while general stress responses from adverse conditions such as low temperature and low nutrient promoted horizontal gene transfer of ARGs in winter [22]. The observation that the abundance of ARGs during wet seasons is lower than that in dry seasons could be due to dilution by rainfall [8]. However, in Qingcaosha Reservoir, no distinct temporal or spatial variations were observed except that the relative abundance of some ARGs was slightly higher in winter. We estimated that this was because of reduced influence from anthropogenic activities and relatively stable hydrological conditions. Similar distribution features were also found in studies of Taihu Lake [8].

In comparison with water, the concentrations of ARGs in sediments were significantly higher. Similar results have been found in previous studies [47,48,49]. On the one hand, a large number of microbes are present in sediments due to rich nutrients and the accumulation of particulate matter, which lead to a higher biomass in per g soil than in per mL water. For water samples, the process of pre-filtering would inevitably increase the loss in biomass [50]. On the other hand, clay components such as sediments can adsorb DNases that would otherwise hydrolyze free DNA, including ARGs, making it an ideal reservoir for ARGs [18, 19]. The results of some studies have revealed strong positive correlations between the copy numbers of ARGs in water and sediments, suggesting the possible intermigration of ARGs between these two matrixes [18, 19]; however, no such correlations were found in Qingcaosha Reservoir.

Consistent with previous studies of the influence of environmental factors on ARGs [51, 52], in this study, the total abundance of ARGs (ΣARGs), 16S rRNA, intI-1, sul1, and sul2 was positively correlated with Chl-a and CODMn, indicating the potential impacts of these factors on the propagation of ARGs. The indicator Chl-a represents the density of algal cells in the water, and CODMn represents organic components that could be easily biodegraded and provide energy to ARBs (antibiotic resistant bacteria) for propagation; therefore, decreasing the numbers of algal cells would help to reduce the spread of ARGs [53]. Most ARGs in our study had negative correlations with TN, inconsistent with some other studies [48, 54]. We hypothesized that this was because nitrogen was demonstrated to be the main nutrient inhibiting the growth of algae in Qingcaosha Reservoir [24, 55]. Moreover, the aquatic pH affects the transfer efficiency of ARGs between cells [56]. Thus, it is crucial to pay attention to the impact of environmental factors on the propagation of ARGs when treating the ARG contaminants.


This one-year continuous monitoring of the occurrence and distribution of 12 ARGs and intI-1 found that ARGs were widely distributed in both water and sediment samples in Qingcaosha Reservoir, and no significant temporal or spatial variations were found. The concentrations of sulfonamide resistance genes sul1, sul2 were highest, while the tetracycline resistance gene tetB was the lowest. intI-1 facilitated the proliferation and propagation of sul1 and sul2, which may be the reason why sulfonamide resistance genes were so prevalent in the environment. Some environmental factors such as pH, nitrogen, and phosphorus in the water were correlated with ARGs, indicating that they may play key roles for the formation or control of ARGs. In contrast to short-term studies, this study acquired detailed data regarding ARGs contaminants in the Qingcaosha water system over an entire year and could provide a scientific basis for reservoir management to deal with ARGs and related antibiotic pollution.
