Carbonized metal–organic frameworks with trapped cobalt nanoparticles as biocompatible and efficient azo-dye adsorbent

Environmental Sciences Europe volume 31, Article number: 56 (2019) Cite this article

Abstract

Background

Metal–organic frameworks (MOFs) derived carbonaceous materials functionalized with metal/metal-oxide nanoparticles are obtained by its carbonization. The carbonization of MOFs occurs simultaneously with the metal and metal-oxide particle formation. The carbon-based flake-like nanostructures with trapped metal/metal-oxide nanoparticles have been formed. Due to its non-toxicity and environmental friendliness, the capacity for pollution adsorption using model anionic dye has been revealed.

Results

The structure of the hybrid is formed as the effect of carbonization of metal–organic frameworks with cobalt as a metal counterpart (CoOF). The cobalt nanoparticles are placed between the carbon layers what limits the dissolution of cobalt nanoparticles and protects the environment from its toxicity. It is preliminary validated by means of two reference micro-organisms (Gram-negative Pseudomonas aeruginosa and Gram-positive Staphylococcus aureus) and in in vitro analysis with human cell line (A375). The efficiency of the adsorption properties of the material was tested with Acid Red 18 as a model anionic dye. The mechanism of dye adsorption was analyzed in details. In addition, various thermodynamic parameters, such as standard enthalpy, standard entropy, and standard Gibbs free energy, were tested. In addition, it was proved that the main substrate of CoOF (terephthalic acid) can be used from PET bottles, while the organic solvent used in its synthesis (N,N-dimethylformamide) was distilled and reused. The obtained carbonized CoOF revealed the same morphology and properties as pristine material.

Conclusions

The kinetic data of dye adsorption fit well with the pseudo-second-order model and Langmuir type. Acid Red 18 adsorption is more favourable at lower temperatures and lower pH. The location of the cobalt nanoparticles between the carbon flakes effectively limits their toxicity compared to the free metal nanoparticles. The CoOF can be obtained from recycled substrates, which revealed the same morphology as pristine material. Therefore, it is believed that this work highlights the practical application of carbonized CoOF as an adsorbate and provides the evidence that such nanocomposite can be applied without environmental risks.

Background

Metal–organic frameworks (MOFs) and carbonized MOFs have drawn enormous attention in the last several years [1, 2]. MOFs are crystalline materials, constructed by joining metal based units (clusters) or metal ions with organic bridging ligands. Using bonds, the organic molecules are held in the place of metal units, creating two- or three-dimensional networks. Self-assemblage network of metal ions/clusters interrelated by organic ligands possess a flexible rational design as a result of the control of the metal and organic ligand type. Pore structure and surface area can be tuned exhibiting high stability and catalytic performance. These crystalline materials are classified as a subclass of coordination polymers with high micropore volume, crystallinity, and a high metal content offering potentially valuable active sites. Therefore, MOFs are promising candidates in the field of clean energy for applications such as hydrogen and gas storage, Li-ion rechargeable batteries, supercapacitors, and solar cells. Moreover, they are also favourable materials for environment protection like dyes and waste adsorption or catalytic waste decomposition. Usually, MOFs are synthesized in hydrothermal conditions using well-soluble salts as the source of metal components and organic molecules—mostly mono-, di-, tri-, and tetracarboxylic acids—as a polar solvent. The properties of crystalline inorganic–organic materials can be adjusted by the carbonization of organic ligands leading to high chemical resistance, large pore volume, high surface area [3, 4], as well as catalytic and photocatalytic performance [5]. For that reason, carbon derived of MOFs with metallic or metal-oxide nanoparticles have become attractive materials for catalysis [6], gas adsorption/storage [7, 8], analytical chemistry [9], drug delivery [10, 11], and photoluminescence [12].

The carbon-based nanostructures have attracted enormous attention due to its unique physical and chemical properties. Commonly, carbon nanotubes have been used for the dye in its pristine [13] and functionalized form [14, 15]. Recent studies focus on the different carbon nanostructures, e.g., nanocomposites of ordered mesoporous carbon with ferromagnetic nanoparticles [16], KOH-activated carbon aerogels [17] or graphene-based sandwich-like structures formed by the carbon-coating nanoparticles. Such a structure was proposed by Zheng et al. [18]. He proposed one-pot synthesis of sandwich-like MgO@Carbon. Among variety of carbon nanostructures, carbonized carbon such as MOFs focused enormous attention. [19, 20].

MOF-derived carbonaceous materials functionalized with metal/metal-oxide nanoparticles can be conveniently prepared the one-step carbonization. The carbonization of MOFs occurs simultaneously with the process of carbon graphitization, growth, agglomeration, as well as oxidation and carboreduction of formed metal oxides to metal particles. The efficiency of these processes is related to the chemical composition of MOFs (type of metal and organic ligand) and the process temperature [21]. Metal nanoparticle in the carbonized structure will be formed in various shapes and sizes with different crystal phases and oxidation degree. The evaporation of metallic particles in the presence of carbon species under an inert gas atmosphere (commonly known as the carboreduction) is responsible for the growth and agglomeration of the nanoparticles. This effect was previously observed by the growth of zinc oxide nanorods during MOF-5 carbonization [22]. The evaporation of the precursor metals varies depending on temperature. Through the control of carbonization parameters, one can design and tune the properties of metal nanoparticles in the MOF-derived carbonaceous materials used for catalysis [23], sensing [24], batteries [25], adsorption [26], and energy storage [27].

Dyes such as Rhodamine B and Acid Reds are widely used in the industrial production of textiles, paper, leather, cosmetics, pharmaceuticals, and food [28]. Azo-dyes (e.g., Acid Red 18) represent up to 70% of all dyes being used in the industry. They are the largest, highly water soluble, group among synthetic aromatic dyes used in the textile industry for dyeing. These dyes usually consist of one or more –N=N–bond, sulfonic (SO3−) groups, and complex aromatic molecular structure. Due to the presence of azo groups, they show hepatotoxic effects in albino rats [29, 30], and are recalcitrant and carcinogenic in natural environment. The complex aromatic molecular structure is almost non-biodegradable. Therefore, different photo-Fenton and electrochemical oxidation techniques are studied for azo-dye degradation from colored textile wastes [29]. These techniques are expensive and generate amine residues in the sludge after degradation. However, regular consumption of such untreated or poorly treated toxic water shows carcinogenesis in humans [31]. To remove the toxic dyes without their degradation and emission of amine residues, the physical processes can be employed for the purification of dye-contaminating wastewater. Here, adsorption has been recognized as the most promising method for the removal of dyes from aqueous solution due to its simplicity, high efficiency, easy recovery, and reusability of the adsorbent. Up to now, numerous types of adsorbents, such as carbon-based materials (e.g., activated carbon), minerals (e.g., zeolite), and polymeric materials (e.g., polystyrene) for removal of azo-dye from wastewater, were investigated. However, low adsorption capacities of these conventional adsorbents toward dyes restrict their practical applications [30].

Shi et al. showed the potential of cobalt oxide nanoparticles located on the surface of graphene oxide in the catalytic decomposition of dye. Shi et al. revealed that graphene oxide (GO) with Co3O4 was efficient in degradation of Orange II [32]. The catalytic decomposition of dye was performed with the use of advanced oxidation technology based on sulphate radicals. This demonstration showed a synergistic catalysis of the composite. The synergistic catalysis effect, achieved by combination of graphene oxide and cobalt oxide, was proved and analyzed in detail in series of reports of Shi et al. [32, 33]. Many investigators have studied various techniques for the removal of dyes from wastewater, including diversified advance oxidation processes [34], chemical coagulation/flocculation [35], nanofiltration [36], ozonations [37], micellar enhanced ultrafiltration [38], adsorption onto bentonites [39], or several types of activated carbon [40].

Cobalt is an element that naturally occurs in numerous chemical forms. It is a microelement and may be used in cells as a cofactor in enzymes. For that reason, small amounts of cobalt are essential to maintain homeostasis. On the other hand, excessive exposure to cobalt causes a set of neurological, cardiovascular, and endocrine deficits, directly related to the uptake of Co ions [41]. Cobalt compounds can produce carcinogenic effects in humans, which were reported by the International Agency for Research on Cancer. According to the report, cobalt nanoparticles cause changes in gene expression, apoptosis, oxidative stress, and inflammation in the human body [42]. The toxicity of cobalt nanoparticles on plant seeds was also confirmed. Described investigations included mitotoxic and genotoxic effects which lead to the disturbances in mitotic behavior of cells through various types of chromosomal aberrations [43]. The reports indicate that the addition of small amounts of cobalt stimulated microbial growth, which is consistent with its biological role as an enzymatic cofactor. For example, small amounts of cobalt (with 300 mg (Co(II)) L−1) added to the culture of Streptomyces coelicolor A3(2) increased its growth by ~ 50% [44]. On the other hand, in the current state of art, the effects of cobalt on micro-organisms confirm that high concentrations inhibit microbial growth, although a number of environmental factors (e.g., pH, medium composition, biomass concentration, and presence of other heavy metals) can also affect the toxicity [45]. Research by Adiga et al. [46] indicated that approximately 110 mg (Co(II)) L−1 reduced by 50% the growth and glucose consumption of fungus A. niger. Al-Sarrani [47] reported that the growth of another fungus, Monoascus rubber, was inhibited by approximately 40% in the presence of 10 mg (Co(II)) L−1, whereas minimal inhibitory concentration (MIC) was observed at 100–200 mg (Co(II)) L−1. Nonetheless, the cobalt nanoparticles are necessary to remove the carbonized MOF structures after dye and impurities adsorption. Therefore, successful entrapment of cobalt nanoparticles in nanostructures is essential to avoid unpredictable biological effects of the nanomaterial.

In this study, we have explored the application of flake-like nanocomposite composed of cobalt nanoparticles trapped between the carbon layers used as anionic dye adsorbent. We reveal the influence of temperature, initial dye concentration, and pH on the adsorption kinetics. Moreover, cytotoxicity of CoOF was examinated on the two reference micro-organisms (Gram-negative Pseudomonas aeruginosa and Gram-positive Staphylococcus aureus) and in in vitro analysis with human cell line (A375). Furthermore, synthesis of CoOF structures from recycled and reused substrates was also conducted.

Experimental

Materials

Hydrochloric acid (36%, CAS Number: 7647-01-1) and N,N-dimethylformamide (DMF, CAS Number: 68-12-2) were purchased from Chempur (Poland). The Acid Red 18 (75%, CAS Number: 2611-82-7), Cobalt chloride (CoCl2, CAS Number: 7646-79-9), and terephthalic acid (C6H4 (COOH)2, CAS Number: 100-21-0) were bought from Sigma-Aldrich (Germany).

Synthesis and carbonization of cobalt organic framework (CoOF)

CoOF was synthesized in the following the procedure. Briefly, 574 mg of terephthalic acid and 740 mg of cobalt (II) chloride (CoCl2) were dissolved in 183 mL of DMF solution. After vigorous stirring, the homogeneous mixture was refluxed at 125 °C for 24 h. The product was collected by centrifugation (8000 rpm for 10 min). Obtained CoOF nanocomposite was placed in a horizontal oven and carbonized at 600 °C for 5 min in the inert gas atmosphere. CoOF was placed for purification in a glass flask with chloric acid (36%) and stirred for 24 h.

CoOF structures from recycled organic substrates were synthesized from polyethylene terephthalate (PET) bottle and DMF used in the pristine CoOF. To convert the waste PET bottle into the terephthalic acid, polymer bottle was cut into small pieces (approximately 0.5 × 0.5 cm). 10 g of the bottle flakes was placed with 100 mL water in the autoclave. The autoclave was then heated up to 150 °C for 24 h. Obtained white powder was washed with water and dried. DMF after synthesis of CoOF and centrifugation (8000 rpm for 10 min) was refluxed under reduced pressure at 150 °C, with an additional flask to collect the distillate to be reused. The synthesis of CoOF occurred according to the method and parameters described above.

Material characterization techniques

The CoOF morphology was investigated by scanning electron microscopy (TESCAN, VEGA SBU3), under 30 kV acceleration voltage. The N2 adsorption/desorption isotherms were acquired at liquid nitrogen temperature (77 K) using a Quadrosorb SI (Quantachrome Instruments). The specific surface area and pore size distribution were calculated using the Brunauer–Emmett–Teller (BET) method. The crystallographic phases were identified using X’Pert Philips PROX-ray diffractometer (X’Pert PRO Philips diffractometer, CoKa radiation). Thermogravimetric analysis was performed using DTA-Q600 SDT TA instrument with a heating rate of 10 °C min−1. The dye concentration was examined with the UV–Vis spectrophotometer Helios alpha (Thermo Scientific).

Adsorption, reusability, and regeneration of CoOF

Dye solution (10 mL) with initial concentration of 25, 50, 75, and 100 mg L−1, respectively, was transferred to a conical flask. Afterwards, the flasks were placed on a hotplate, with magnetic stirrer in the water bath to keep constant temperature. The experiments were carried out at 30, 40, and 60 °C, respectively. After the temperature was reached, 10 mg of CoOF was added into the flask. 2 mL sample was taken from the solution at set time. The liquid was separated with magnet. The concentration of dye was determined spectroscopically at its maximal absorbance (for Acid Red 18 at 508 nm). The equation for the adsorption capacity at equilibrium qe point is provided in Additional file 1.

To determine the reusability of the adsorbent, carbonized CoOF without regeneration was introduced to the dye solution and maintained for 500 min. All reusability experiments were performed at 20 °C, with dye and nanomaterial concentration equal to 25 mg mL−1 and 1 mg mL−1, respectively. After adsorption the nanomaterial was separated from the solution with the magnet and dried at 60 °C. Powdered samples were divided into two batches that were used for the dye release and further adsorption experiments. All experiments were performed at the same parameters (time, temperature, and CoOF concentration) as the adsorption experiments (described above).

CoOF adsorbent was regenerated at ambient temperature by the insertion of sodium hydroxide (1 mg mL−1) into the nanomaterials. The CoOF (1 mg mL−1) was kept in the solution for 2 h. CoOF after sodium hydroxide treatment was rinsed four times with distilled water and dried at 60 °C.

Cytotoxicity on microbial models

Microbiological studies were conducted on two reference bacterial strains—Gram-negative Pseudomonas aeruginosa ATCC® 27583™ and Gram-positive Staphylococcus aureus ATCC® 6538™. Bacteria were kept frozen in Tryptone Soy Broth (TSB, Graso Biotech) medium with 10% addition of glycerol until used in the experiments. Thawed cultures were streaked to Tryptone Soy Agar (TSA, Graso Biotech) medium and incubated at 37 °C to obtain the colonies. Afterwards, one colony was taken and inoculated into 25 mL of TSB medium in a sterile 50 mL falcon tube and cultured overnight at 37 °C on rotary shaker.

Toxicity of the studied nanomaterials was tested on 96-well microtiter plates in 24-h assay. Two methods were used for the evaluation—optical density (OD) measurements and alamarBlue® assay (Thermo Fisher Scientific, USA). Each sample was prepared in eight repetitions. The stock samples (1 mg mL−1; 1 mL each) were sonicated in 1.5 mL Eppendorf-type tubes in a water bath sonicator (Bandelin Sonorex DT 255 H, power—640 W) for 30 min, and then diluted to reach desired concentrations. Carbonized CoOF were suspended in ultrapure water with addition of 1% dimethyl sulfoxide (DMSO, Sigma-Aldrich, Germany) to obtain four final concentrations—100 µg mL−1, 50 µg mL−1, 25 µg mL−1, and 12.5 µg mL−1. The control sample was filled with equal amount of ultrapure water with 1% DMSO. Additional controls were conducted to confirm that DMSO had not been noxious to the used micro-organisms, and it was introduced into the experimental setting to increase the dispersion of the nanomaterial. Furthermore, the experiments were conducted in triplicate to confirm the gained tendencies. In the final form, each prepared well contained 160 µL medium, 20 µL CoOF suspension and 20 µL of overnight bacterial culture diluted 1:200. Subsequently, optical density (OD) was measured on spectrophotometer Tecan m200 PRO (Männedorf, Switzerland) at 600 nm wavelength. Afterwards, the plates were kept at 37 °C without the access of light for 24 h, with shaking (140 rpm) on orbital shaker incubator (Biosan ES-20/60, Latvia). Afterwards, another round of OD measurements was performed. Then, alamarBlue® assay was performed according to the manufacturer’s guidelines. For that purpose, 20 µL of working solution was added to each well, and then, plates were incubated for 30 min for S. aureus and 2 h for P. aeruginosa without the access of light. After incubation, fluorescence (λex = 520 nm; λem = 590 nm) was measured with spectrophotometer Synergy HTX (Biotek, USA). The results were analyzed by one-way ANOVA. P values lower than 0.05 were considered as statistically significant. Analyses were performed with Origin 8 (OriginLab) software.

Cell culture and cytotoxicity assay

Human malignant melanoma cells (A375, catalogue no. 88113005) were purchased from the European Collection of Authenticated Cell Cultures (ECACC). Cells were cultured in a humidified incubator (5% CO2, 37 °C) in DMEM culture medium (Dulbecco’s Modified Eagle Medium, High Glucose, HyClone, Germany) supplemented with 10% heat-inactivated foetal bovine serum (FBS, HyClone, Germany), l-glutamine (2 mM, Sigma-Aldrich, Germany), and 0.4% penicillin–streptomycin (Sigma-Aldrich, Germany).

The cytotoxicity of the reference cobalt nanoparticles (nanoCo) and carbonized CoOF was evaluated using the WST-1 assay (Sigma-Aldrich, Germany). The WST-1 test is based on the reduction of the tetrazolium salt WST-1 to a soluble red formazan by mitochondrial dehydrogenase. The amount of formazan dye is directly correlated to the number of metabolically active cells. In the current study, A375 cells were seeded in 96-well plates (3 × 103 cells/well in 100 µL medium). After 24 h, the culture medium was removed and the cells were treated with carbonized CoOF, and dispersed in the cell culture medium to reach the concentrations of 100, 50, and 25 μg mL−1. The reference cobalt nanoparticle samples were dispersed in a medium to reach concentrations equal to Co concentrations in the carbonized samples, namely: 55, 27.5, and 13.75 μg mL−1 for carbonized CoOF. All samples were vortexed and sonicated (not longer than 1 min) before application to the cell medium. The cells without the tested compounds were used as controls. After 48 h, WST-1 reagent was added and incubated with the cells for 30 min. Absorbance was measured at 450 nm (with 620 nm background correction), using a spectrophotometric microplate reader (Infinite 200 Pro, Tecan, Switzerland). The interaction between compounds (without cells) and WST-1 reagents was also determined (Ablank). The results were normalized to the control cells, and the cell viability was calculated using the following formula: the number of viable cells (% of control) = [(Atest − Ablank)/(Acontrol − Ablank)] × 100%. The readings were acquired from three independent experiments (each conducted in triplicate). Statistical analysis was performed using Statistica 12 software (StatSoft Inc., Tulsa, Oklahoma, USA). The results were expressed as mean ± standard deviation. Experimental data were analyzed by Student’s t test. The criterion for statistical significance was set at P < 0.05.

Results and discussion

Characterization of the carbonized material

SEM images of the morphology of pristine CoOF are shown in Fig. 1a. The particles exhibited hexagonal shape in range 5–20 µm. During the carbonization, organic ligand graphitization and cobalt nanoparticle oxidation occurred. Carbonized CoOF crystals maintained their original hexagonal-like shape and were covered with cobalt oxides nanoparticles (see Fig. 1b). Figure 1c shows the flakes of carbonized CoOF after removal of Co with chloride acid. However, the Co species were visible on both samples as brighter spots and were distributed all-over the hexagonal-like structures. The encapsulation of Co inside carbonized CoOF was reported previously [48]. The presence of cobalt species (as cobalt and cobalt oxide presented in Fig. 1d) in the carbonized CoOF has been confirmed by XRD. The Brunauer–Emmett–Teller method (BET) revealed that the surface area of carbonized CoOF is 199 m2 g−1. The carbonized CoOF pore volume reached 0.812 cm3 g−1 with the average pore radius at 8.142 nm. The nitrogen adsorption isotherm of carbonized CoOF sample is presented in Additional file 1: Figure S1 and it can be described as a Type IV isotherm, which is characteristic for the mesoporous structure [49].

Fig. 1
figure 1

SEM images of CoOF (a) and carbonized CoOF before (b) and after (c) acid purification. X-ray diffraction spectra (d), TGA (e), and amount of released cobalt particles (f) from the carbonized and purified CoOF

Full size image

The TGA curves of carbonized CoOF showed a mass loss in two stages (Fig. 1e). The first mass loss started at 380 °C, and corresponded to the removal of oxygen-containing functional groups (10 wt% of the sample). The second mass loss (starting at 420 °C) corresponded to the pyrolysis of the carbon material. TGA analysis also showed that the content of the metal nanoparticles in the carbonized CoOF was ~ 50 wt% of the sample. To prove the efficiency of encapsulation cobalt particles between the graphene layers, atomic adsorption spectroscopy was used. The carbonized CoOF with 50 wt% of cobalt (as a metallic cobalt and oxides) at concentration 1 g L−1 released up to 40 μg L−1, during first 48 h (Fig. 1f). This is less than 1 wt%, proving that graphene layers protect cobalt particles from dissolution. Detailed physicochemical analysis of the pristine and carbonized material was presented previously [48, 50].

Adsorption kinetics, adsorption isotherms, effect of temperature, and pH

The sorption kinetics was conducted to elucidate the mechanism that controls the dye sorption process. It is well known that the process parameters played an imperative role in the adsorption processes by the influence on the physicochemical nature of the adsorbate–adsorbent, and in a consequence through the control in the removal rate. Therefore, the interpretation of sorption kinetics data in terms of various process parameters including pH, temperature, and initial dye concentration provides valuable insights of the sorption mechanism.

Acid Red 18 adsorption experiments were performed with initial dye concentrations ranging between 10 and 25 mg L−1 at pH of 7 at 20 °C. Acid Red 18 adsorption increased from 23.5 mg L−1 to 41 mg L−1 along with the increase in dye concentration (Fig. 2a). There was a rapid increase in the adsorption capacity for the first 10 min of contact for all concentrations which then proceeded in a slower rate, until it reached the equilibrium point. The time needed to reach the equilibrium point was reduced after the increase of the dye concentration. The highest correlation coefficients were observed for the pseudo-second-order kinetic model. The correlation coefficient of intraparticle diffusion kinetic model (R2 ≤ 0.828) was lower than calculated pseudo-second-order kinetic model (see Additional file 1: Figure S1 and Table S1). This suggested that the pseudo-second-order adsorption mechanism had been predominant [51].

Fig. 2
figure 2

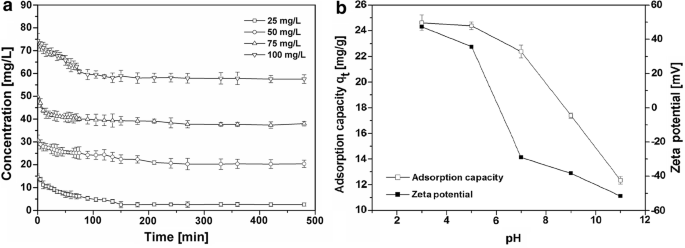

The effect of initial dye concentration (a) and pH (b) on the adsorption capacity of the AR18 onto carbonized CoOF and zeta potential changes

Full size image

The theoretical model proposed by Weber and Morris states that the adsorption process is controlled solely by the intraparticle diffusion if the regression of qt versus t0.5 is linear and passes through the origin. Equation for the intraparticle diffusion calculation with plots (Additional file 1: Figure S3) is presented and described.

All equations used for the calculation of adsorption isotherms are provided Additional file 1. Both isotherm plots and data of the fitted models with correlation coefficients R2 are given in Additional file 1: Figure S3 and Table S2. Obtained results indicated that the adsorption processes could be well fitted by the Langmuir isotherm model, and suggesting that maximum adsorption corresponds to the formation of AR18 monolayer on CoOF. According to the Langmuir isotherm model, the energy of adsorption is constant and the adsorbate does not transmigrate to the surface.

The effect of temperature on equilibrium adsorption was examined to determine whether the process was endothermic or exothermic. The adsorption capacities of AR18 decreased with increase in the temperature. The calculated thermodynamic parameters and all equations used for the calculation of thermodynamic parameters are listed in Additional file 1: Table S3 and Figure S4.

The negative value of enthalpy (ΔH°) (− 105.23 kJ mol−1) indicates that AR18 was adsorbed onto CoOF in the exothermic reaction [52]. Negative value of ΔS indicated a decrease in the degrees of freedom during the adsorption. Before adsorption molecules can move in three dimensions, although when they are being adsorbed on the surface, the motion of molecules is restricted towards the surface and their entropy decreases. This phenomenon is characteristic for the adsorption by the metal–organic frameworks [53]. The positive Gibbs energy (ΔG°) values indicate that there is an energy barrier and the reaction should not occur or the opposite reaction could occur—desorption (slight decrees of absorption capacity after 60 min.). The calculated thermodynamic parameters are listed in Additional file 1: Table S3 and Figure S4). The pseudo-second-order model along with free Gibbs energy suggests that for the studied temperatures, physisorption took place.

The effect of pH has an important influence on the adsorption process. Therefore, the influence of pH of the solution on the adsorption of AR 18 onto CoOF was analyzed. The pH of the solutions were adjusted by addition of 0.1 M HCl or NaOH. As presented in Fig. 2, pH of solution alters the CoOF adsorption capacity. An adsorption capacity was decreased with increasing in pH. The adsorption capacity is the highest at pH < 5 and stabilizes above this value. The analysis of the zeta potential of the absorbent allowed to determine the surface charge of CoOF. The surface charge decreases from the positive value to the negative with increase in pH, reaching zero net charge at pH = 6.5.

AR18, as the anionic dye, dissociates to sodium cations and sulphur anions in acid aqueous solution. Positive charges on CoOF surface (at pH below 6.5) enhance the adsorption of anionic dye through electrostatic interaction. Figure 2 shows that zeta potential and adsorption capacity are correlated with each other.

The FT-IR spectra of the sample after dye adsorption in the pH range from 3 to 11 are presented in Additional file 1: Figure S5.

The adsorption on the carbon nanomaterials follows according to the possible interactions: the π–π interactions, hydrogen-bonding, and Van der Waals interactions [54, 55]. The π–π interactions are dominant mechanism on the graphene nanostructures. The π–π interactions are also independent on the influence from environmental, like pH, ionic concentration, temperature, and the concentration [56, 57]. Adsorption capacities’ analysis in the pH 5 ranged from 5 to 11 is depending on the pH. Therefore, it suggests the physical adsorption through the π–π stacking or hydrophobic effects between CoOF and AR18 [58]. However, FT-IR of the sample measured at the lowest pH suggests the presence of chemical bonding between CoOF and AR18.

Reusability investigation of the carbonized CoOF

The reusability and stability of the adsorbents is an essential aspect in terms of their industrial applications. Therefore, carbonized CoOF were analyzed in the repeatable AR18 adsorption–desorption process efficiency. Furthermore, chemical/physical changes in the structure (content of cobalt particles, their crystal structure, and changes in the size of carbon flakes) were also investigated. Figure 3a, b shows SEM images of the CoOF before and after dye adsorption. This analysis indicated that the adsorption of dye did not influence the morphology and the size of carbon flakes, as well as the size and distribution of cobalt nanoparticles on the carbon flakes. Figure 3c proves that the adsorption capacity was maintained in the second cycle (87% of the dye was adsorbed). During the third adsorption cycle, nanomaterial adsorbed up to 40% of the dye. Due to the chemisorption mechanism, CoOF showed strong binding capability to AR18, since the release of dye was detected after the third cycle of adsorption. The saturated CoOF released up to 16% of the adsorbed dye during the single adsorption cycle. The nanocomposite was sodium hydroxide treated to restore its adsorption efficiency [59]. This process allowed observing 94% adsorption efficiency in the next cycle.

Fig. 3
figure 3

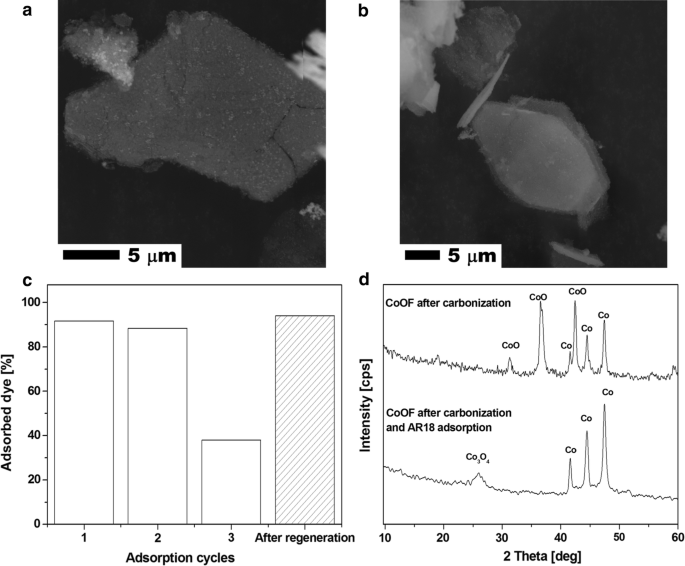

SEM images of CoOF adsorbent (after purification) before adsorption (a) and after adsorption (b); the reusability of CoOF adsorbent (c); and XRD spectra of the CoOF before and after adsorption (d)

Full size image

XRD analysis showed some differences in the CoOF chemical composition after the adsorption of AR18 (Fig. 3d). It showed the transformation of cobalt (II) oxide to the mixture of cobalt (II) and (III) oxides. The phenomenon was related to the oxidation of cobalt oxide in the aqueous solution, which was previously reported [60]. The oxidation of cobalt was caused by the water penetration into carbon layers [61], the physical disruption of carbon structure, or the extraction of cobalt spices on the surface of the carbonized CoOF.

Cytotoxicity on microbial models

MIC (minimal inhibitory concentration) observed for P. aeruginosa was 100 µg mL−1, whereas it was not obtained for S. aureus (compare respiration). The viability of cells (respiration) measured in alamarBlue® assay confirmed results revealed in the OD measurements in the case of Gram-negative bacterium. Despite the reduction in OD in S. aureus culture with the highest concentration of carbonized CoOF, the relative metabolic activity remained comparable to the control sample. The results are shown in Fig. 4. In Additional file 1: Figures S8 and S9, the comparison of the carbonized CoOF before and after acid purification, presenting the influence of trapping cobalt particles between graphene layers, is provided.

Fig. 4
figure 4

Optical density (OD) of cultures after 24 h of incubation with nanomaterials in comparison to the control sample and viability of cells in alamarBlue® assay in relation to the control sample

Full size image

Cell cytotoxicity

The WST-1 test results showed a strong concentration-dependent cytotoxicity of free cobalt nanoparticles (Fig. 5). At the highest tested concentration (55 μg mL−1), cobalt nanoparticles decreased the viability of A375 cells to 9.28 ± 4.87%. The cobalt nanoparticles encapsulated inside the carbonized CoOF effectively prevented metal toxicity, even at the highest tested cobalt concentrations (55 μg mL−1). The carbonized CoOF caused slight cytotoxicity—the cell viability dropped to 79.04 ± 3.89%.

Fig. 5
figure 5

The viability (% of the control) of A375 cells after exposure to different concentrations of carbonized CoOF and cobalt nanoparticles as reference sample (at equal concentrations to carbonized CoOF) measured by WST-1 assay; *P < 0.05 statistical significance compared with the control cells; #P < 0.05 statistical significance between cobalt nanoparticles as reference and cobalt contained in the carbonized CoOF

Full size image

Waste reduction in the synthesis of CoOF by recycling organic substrates

To reduce the amount of waste from the synthesis of carbonized CoOF, DMF from the previously used experiment was distilled. Furthermore, terephthalic acid was obtained from PET bottles.

SEM images of recycled CoOF show the same morphology as the pristine CoOF [see Fig. 6a (pristine) and Fig. 6b (recycled)]. The structures received from both synthesis routes show characteristic shape and size of cobalt based MOF—flat, hexagonal nanostructures. However, SEM image (Fig. 6c) shows that CoOF structures synthesized from the distilled DMF and recycled terephthalic acid exhibit smaller diameter in respect to the pristine material (the size distribution is provided in Additional file 1: Figure S6). The reported size of the CoOF from the recycled substrates was in the range of 1–5 µm. The conclusions from microscopic observation were confirmed by the XRD analysis (Fig. 6d). The characteristic peaks corresponding to the terephthalic acid can be noticed in both samples. In the sample synthesized from the recycled substrates (DMF and terephthalic acid), some peaks from the unreacted terephthalic acid and PET can be observed.

Fig. 6
figure 6

SEM images of CoOF after synthesis from fresh (a) and recycled (b) substrates. XRD (c) of the pristine terephthalic acid and from hydrolysed PET bottles, and CoOF from pristine and recycled substrates. The effect of initial dye concentration on the adsorption capacity of the AR18 onto CoOF from pristine and recycled substrates (d)

Full size image

The adsorption capacity of the structure obtained from recycled reagents was evaluated. The results are shown in Fig. 6d. Interestingly, the adsorptive capacity of this structure is very similar to the pristine one. Adsorption occurs a bit slower; however, the final concentration of the dye in the solution is nearly the same (pristine CoOF—2.6 mg L−1, recycled CoOF—3.4 mg L−1). The process for both samples proceeded according to the pseudo-second-order kinetic model (Additional file 1: Figure S10 and Table S4). Therefore, it is recognized that the material can be used in the adsorption process.

Discussion

Cobalt (in different compounds) is a well-known heavy metal causing cardiomyopathy [62], adverse pulmonary effects [63], carcinogenicity [64], and neurotoxicity [65]. The available in vitro data indicate that cobalt can induce cell death by apoptosis or necrosis [66], activation of caspases [67], and oxidative stress [68]. It should be pointed that mitochondria appear to be the main target of cobalt toxicity [69]. This nanomaterial can generate ROS (reactive oxygen species). It is already reported that Gram-positive strain established a defence mechanism that can use ROS to upregulate cell’s metabolism [70]. This underlines the susceptibility of P. aeruginosa and possible resistance of S. aureus to studied nanostructure. Our findings suggest that apart from decolourization properties, such nanostructures could be used also as component reducing Gram-negative bacteria in the filter. Nonetheless, in the present study on A375 cell by means of WST-1 viability assay, which is based on the measurement of mitochondrial activity, it is confirmed that carbon flakes prevent nanoCo toxicity. The encapsulation of toxic compounds in the protection layer is a promising strategy to obtain biocompatible and biologically useful particles. For example, silica was successfully used as a shell to coat Fe-based [71] and Co/Co3O4-based [72] magnetic nanoparticles to reduce direct metal toxicities. Likewise, graphitic materials can be used as matrices for metals and metal oxides to improve their biocompatibility [73].

When the reusability of the adsorbents and the lack of potential cytotoxicity against living organisms are ensured, the essential aspect constitutes the industrial application of synthetized nanomaterials. The potential industrial synthesis of MOF structures depends on the cost, amount of the produced waste, and toxicity of the used substrates. Handling of toxic substrates and waste will generate additional cost related to the environmental and health safety. Highly toxic, corrosion substrates, and waste are used in the industry to produce materials, but due to environmental concerns industrial company search for eco-friendly substitute. DMF used for synthesize MOF structures is regarded as toxic for natural environment and can cause birth defects in humans [74]. Non eco-friendly substitutes were reported and only potential reduction of the used DMF allows to minimize risk and synthesis/handling cost. As reported, to reuse of DMF, it should be separated from the unreacted substrates and obtained MOF by distillation. Second important substrate used in CoOF synthesis is organic ligand—terephthalic acid. As reported by Huang et al. [75] and Ren et al. [76], linker can be recovered from the PET waste, by hydrolysis and reused for synthesis of NTHU-2, NTHU-3, MOF-5, MIL-53, MIL-101, and chromium-based MOF. The syntheses of MOF structures from the recycled terephthalic acid were confirmed by Deleu et al. [77]. Reducing the DMF waste and recycling terephthalic acid from PET waste allow not only to decrease the amount of toxic waste but also show the potential for industrial applications.

Azo-dyes (e.g., Acid Red 18) are one of the synthetic dyes that are used in many industries. The treatment and disposal of dye-contaminated wastewater is one of the most serious environmental problems. Intermediate products of azo-dyes are toxic, mutagenic, and carcinogenic to humans and aquatic life. For this reason, there are many reports about adsorption processes of this group of dyes. Table 1 lists the comparison of maximum monolayer adsorption capacity of AR 18 dye onto CoOF and other adsorbents. The maximum adsorption capacity Q0 was 44.26 mg g−1 onto CoOF. In accordance with state of art on Acid Red 18 adsorption, the highest maximum monolayer adsorption capacity was observed for chitosan-based samples, 693 mg g−1 [78] and 691 mg g−1 [79]. According to Wong et al., the adsorption of the acid dyes on the chitosan occurs through the electrostatic attraction between two counter ions: the amino groups of chitosan and sulphate groups of acid dye [80]. Similar conclusions on the nature of AR 18 adsorption mechanism were reported by Shi Wang et al. [81]. As reported by Wong et al., the adsorption efficiency may mainly be attributed to the chemical structure and molecular size. Since larger dye ions, like AR 18, do not completely penetrate the adsorbent pore and preferentially adsorb on the outer surface [78]. Similar conclusion on the dyes adsorption on chitin was reported by McKay et al. [82]. Since the summarized reports (Table 1) shows that the presence of amino groups promotes the electrostatic interactions between AR 18 and adsorbent; this explains the lower adsorption capacity of CoOF than chitosan. Although CoOF adsorption capacity does not reach the highest values compared to other materials, it has other advantages. Due to the fact that the material contains cobalt, it makes it magnetic and can be easily separated from the solution. On the other hand, it can be used for adsorption many times, as well as we proved that the material can be prepared from recycled organic substrates. All these features promote CoOF.

Table 1 Comparison of the maximum monolayer adsorption capacity (Q0) of AR 18 onto CoOF with others adsorbents reported in the literature
Full size table

In the last several years, the number of reports on application of the magnetic graphene and graphene oxide nanocomposites increased extensively. The significance of graphene-based nanocomposites constantly rises due to the numerous advantages and potential applications, and a variety of magnetic nanoparticles that can be used to adjust nanocomposites to be suitable in the environmental protection. Throughout the twenty-first century, various hybrid nanostructures and nanocomposites of graphene with magnetic nanoparticles have been described. Metallic particles from the transition elements (e.g., Co [87]), metal oxides (e.g., Fe2O3 [88] and Co3O4 [89]), and different ferrites MFe2O4 [90] are usually used as magnetic nanoparticles. Many of these structures found their application as adsorbates [83]. The common technology of graphene–magnetic particle nanocomposite preparation is based on the chemical methods such as precipitation on the graphene surface from the precursor or chemical binding of the metallic/metal-oxide nanoparticles [91]. Second method reported by Hu et al. is based on the synthesis of graphene structures simultaneously with iron oxide particles, by thermal decomposition of glucose and Prussian blue [92]. A third alternative to obtain such hybrid nanocomposite is proposed in this study. Wide range of MOF structures give an opportunity to adjust the shape, structure, and chemical composition of the designed hybrid structures [93]. The carbonization of the CoOF allows obtaining hybrid structures with metal nanoparticles encapsulated by carbon structure [48]. Simultaneous carbonization and formation of the metal particles allow to decrease the number of stages required to produce the materials. Most of the graphene/cobalt hybrid are studied as electrodes for the catalytic removal of dyes. In all of these structures, cobalt nanoparticles are located on the surface of graphene and are used as an electrode. Co-graphene hybrid proposed by Fei et al. showed higher catalytic efficiency in the degradation of Orange II than the reference Co [94]. Similar application in the catalytic decomposition of phenol was reported for the Co3O4—graphene hybrid [95]. As shown in Table 1, the maximum monolayer CoOF adsorption capacity is consistent with the literature data. In our study, we show that Acid Red 18 chemically interacts in contrary to rhodamine B [50]. In this cationic dye, the physical interaction—by the hydrogen bonding—was detected [50]. Therefore, the adsorbed Acid Red 19 is attached stronger to the surface of the adsorbent and then rhodamine dye. Due to low surface area and not well-developed pore structure of CoOF, the amount of adsorbed dyes is not the highest one (in comparison to the reported data), but its magnetic behavior allows easier removal of the adsorbed dyes what is highly desired in practical applications.

Wang et al. reported not only an original hydrothermal reaction that resulted in the functionalization of oxidized graphite powder with cobalt nanoparticles of narrow size distribution, but also showed an efficient adsorption of Congo Red [96]. Furthermore, other proposed graphene–cobalt hybrid structures were obtained in similar way, i.e., by placing metal/metal oxides on the surface of the graphene layers. In all of these studies, the cytotoxicity of cobalt nanoparticles has not been taken into account. The nanomaterials applied in the water treatment should perform the water purification without showing any toxicity to living organisms. Our studies showed that the encapsulation of cobalt nanoparticles not only prevented their negative influence on the biological models, but also protected them from the dissolution. Similar observation considering the protection of metal nanoparticles (from the metal reaction with the electrolyte) by the graphene coating was previously reported by Jiang et al. [97]. Moreover, the comparable effect of the protection/separation of metal [98] or other guest molecules (e.g., cytostatic drugs) from the environment was reported [99].

The possibility to reduce the amount of toxic waste from the CoOF production is another advantage of the carbonized CoOFs in application as dye adsorbers. As it was described above, DMF can be easily recovered by its distillation and recycled. Other reports similarly show the adsorption efficiency, potential application, and reusability of graphene–cobalt structures, although they do not consider the negative aspects (e.g., toxic waste or gases emission), or energy consumption during the production of materials. Current state of the art presents numerous methods of production of higher amount of the graphene–cobalt nanostructures. However, they still contain metal nanoparticles located on the surface of the graphene [53]. Such nanomaterials can pose a threat to health and the natural environment. The proposed route of CoOF synthesis provides a high-quality nanomaterial in the process that reduces the amount of waste and eliminates the toxicity of metal particles which are encapsulated between the carbon layers.

Conclusions

Flake-like structure with cobalt nanoparticles trapped between the carbon layers exhibits efficiency in the removal of Acid Red 18 (model anionic dye) that is used in the textile industry. The adsorption mechanism of anionic dye can be described by the pseudo-second-order kinetics and Langmuir isotherm. The evaluated thermodynamic parameters showed that the anionic dye adsorption was more favoured at lower temperatures and lower pH. AR18 shows limited tendency to be released after the adsorption. Furthermore, carbonized CoOF can be efficiently reused in further adsorption studies. In the second adsorption cycle, 87% of the dye was absorbed, while in the third 40%. After washing with sodium hydroxide, the material adsorbed again 94% of the dye again. Sandwich-like structure prevents cobalt nanoparticles to be released to the environment, where they could induce the toxicity. The material was tested on the selected human cells (A375) and reference micro-organisms (Gram-positive and Gram-negative). The location of the cobalt nanoparticles between the carbon flakes effectively limits their toxicity compared to the free metal nanoparticles. In addition, it was presented that CoOF can be synthesized from the recycled toxic DMF and terephthalic acid from the waste PET reducing the amounts of produced waste. The carbonized CoOF obtained from recycled substrates exhibits the same hexagonal shape with insignificantly smaller diameter and similar adsorption capacity.

Availability of data and materials

Not applicable.

Abbreviations

MOFs, MOF:

metal–organic frameworks

MOF-5:

metal–organic framework Zn4O(BDC)3, where BDC2− is 1,4-benzodicarboxylate

CoOF:

Cobalt-based metal–organic framework

DMF:

N,N-dimethyloformamide

AR18:

Acid Red 18

PET:

polyethylene terephthalate

OD:

optical density

TGA:

thermogravimetric analysis

MIC:

minimal inhibitory concentration

XRD:

X-ray diffraction

GO:

graphene oxide
