Chemical fractionation of heavy metals and zinc isotope source identification in sediments of the Huangpu River, Shanghai, China

Environmental Sciences Europe volume 36, Article number: 137 (2024) Cite this article

Abstract

Background

The Huangpu River serves as a vital water source for around 24 million individuals residing in the metropolitan area of Shanghai. Despite this, elevated levels of heavy metals persist in the sediments of the river, with their chemical fractionation and sources remaining inadequately understood.

Results

To improve the management of heavy metal contamination, sequential extractions and zinc (Zn) isotopic compositions were utilized to evaluate pollution levels in the Huangpu River. The findings reveal that the majority of heavy metals in the river sediments are present in residual fractions, constituting an average of 67.5% for Cd, 57.6% for Cu, 60.6% for Ni, 56.2% for Pb, and 74.4% for Cr, with the exception of Zn (33.8%). Furthermore, a substantial portion of Zn, exceeding 66%, was found in acid-exchangeable, reducible, and oxidizable fractions, indicating a high potential for Zn release into aquatic ecosystems.

Conclusion

Further analysis of Zn isotopes pinpointed traffic emissions, including exhaust fumes and tire wear particles (account for ~ 34.0%), along with anthropogenic emissions and fertilizer (~ 31.7%), as the major culprits behind this contamination. These findings highlight the critical need for stricter regulations to control heavy metal contamination from traffic and domestic sources within the Huangpu River basin.

Introduction

Heavy metal contamination is a growing environmental concern due to their toxicity in the environment [31, 45]. While essential for some aquatic organisms in low concentrations, these metals exhibit a dramatic increase in toxicity when exceeding a specific threshold [42]. Resistant to degradation, they accumulate in the environment, posing a significant threat to environmental health as they reach harmful levels [47, 52]. Furthermore, some heavy metals have a strong tendency to be absorbed and accumulated in crops, posing a substantial risk to human health [25, 40]. Therefore, research focusing on the distribution patterns and tracing the sources of heavy metals is imperative for the prevention and management of environmental contamination.

Over the past few decades, the environment has faced escalating exposure to heavy metals as a result of rapid industrialization and urbanization [7, 68]. The Huangpu River, has long served as a vital source of drinking water for Shanghai, China [61]. It traverses the urban expanse of Shanghai before merging with Changjiang and ultimately flowing into the East China Sea. Several studies have focused on heavy metals contamination along the Huangpu River, including the types, concentrations, and pollution assessments of heavy metals [4, 12, 34, 54, 65, 71]. Meanwhile, it has been demonstrated that the river sediments surrounding high density of factories showed environment risks in Huangpu River [4]. Nevertheless, the chemical fractionation, sources of heavy metals and contribution of each sources are still not well understood, which may hinder the development of effective policies for controlling and treating heavy metal contamination.

Zinc (Zn) is ubiquitous, present in soils, plants, and biota, acting as both an essential and a toxic element depending on its concentration and fractionation in solution [13]. Concerning human health, a surplus of zinc is associated with oxidative stress and is a contributing factor in many chronic diseases [56]. Zn isotope systematics has gained significant attention in the last two decades due to the notable Zn isotope fractionation observed in various biogeochemical processes, including chemical weathering, ocean circulation, and plant physiological processes [32, 64]. In particular, stable Zn isotopic compositions have widely used to examine the sources of Zn in sediments, soils, and water [18, 53]. This research focused on investigating heavy metal contamination in Huangpu River, with two primary objectives: (1) to analyze the chemical fractionation and evaluate the contamination levels of heavy metals in the river, and (2) to determine the sources of Zn in river sediments by examining isotopic compositions. The authors believe that the results can contribute to a better understanding of heavy metal transport in river ecosystems and offer technical assistance for managing heavy metal pollution in Huangpu River.

Regional background

Shanghai is one of the most comprehensively industrial and commercial cities in China, which is surrounded by Jiangsu and Zhejiang Provinces in the north and west, and Hangzhou Bay in the east (Fig. 1a). It should be noticed that Shanghai locates mostly on the delta region of Changjiang and with the area of ~ 6340 km2. The elevation of Shanghai is low where the eastern is slightly higher than the western. The strata in Shanghai are mainly deposited in the Quaternary, except for several volcanic massifs, such as Sheshan, Xiaokunshan and Tianmashan [66]. Meanwhile, the land use types in Shanghai are complex and can be divided into the industrial, agricultural, commercial and living areas (Fig. 1b). Huangpu River, which origins from Dianshan Lake with the length of ~ 113 km, is the most important and largest river flowing through Shanghai (Fig. 1). Meanwhile, Huangpu River had been the major drinking water source of Shanghai where several water supply points are in the upstream of river [4]. However, its 83 km course through the densely populated Shanghai metropolitan area makes it vulnerable to pollution from various anthropogenic activities, including industrial and domestic wastewater discharge [62]. Besides, Huangpu River is an important shipping artery in Shanghai, and hence the ship-generated waste and fuel emission may also result in the serious environmental problems.

Fig. 1
figure 1

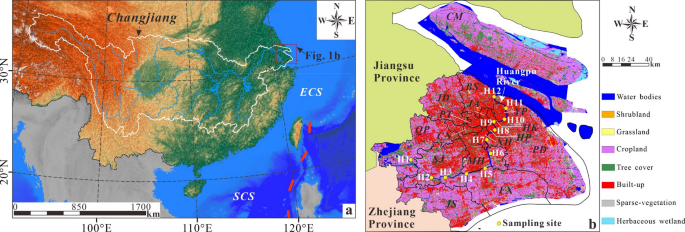

Map of sampling sites in Huangpu River, Shanghai, China (a). The landuse map of Shanghai in 2018 (b), data was download from the Resource and Environment Science and Data Center (https://www.resdc.cn/Default.aspx). ECS is East China Sea, SCS is South China Sea; CM: Chongming, BS: Baoshant, JD: Jiading, QP: Qingpu, SJ: Songjiang, JS: Jinshan, FX: Fengxian, PD: Pudong, MH: Minhang, CN: Changning, PT: Putuo, JA: Jingan, YP: Yangpu, HK: Hongkou, XH: Xuhui, HP: Huangpu

Full size image

Materials and methods

Sample collection

Twelve bulk river sediment samples along the mainstream of Huangpu River were collected in 2017 (Fig. 1b). The river sediments were collected by an extendable grab bucket. The large stones/garbage in the sediments were removed and then the sediments were immediately transported to the laboratory of Shanghai Normal University and stored in an airtight cooler.

Chemical analysis

Heavy metal fractionation analysis

The present study employed previously established methods [11, 21, 22] to extract and determine the chemical fractionation of heavy metals. The BCR (Community Bureau of Reference) sequential extraction procedure, as described by Wijaya et al. [59], was utilized and consisted of four operationally defined chemical fractions: (F1) Acid exchangeable fraction, which refers to easily soluble and exchangeable metals, (F2) Reducible fraction, which pertains to metals bound to manganese and iron oxides [49, 70], (F3) Oxidizable fraction, which can be combined with organic matter or sulfide through chelation and complexation; and (F4) Residual fraction, which is embedded in the mineral lattice and is characterized by stable properties, weak biological activity, and weak ecological risk [14]. The detailed geochemical fractionation procedure of sediment is presented in Supplementary Table S1.

Heavy metal concentration

The methods for heavy metal sediment pretreatment and concentration measurement were followed by [54]. In summary, the sediment samples were subjected to grinding using an agate mortar and screened with a 100-mesh plastic screen. Subsequently, approximately 0.25 g of the sediment was weighed and placed in a Teflon microwave digestion tube. A series of concentrated acids, including 6 mL HNO3, 3 mL HCl, and 2 mL HF, were sequentially added to the tube. The samples were then subjected to a three-step temperature increase process and subsequently heated at 50 °C to remove excess acid [54]. The data were acquired through the implementation of a tripartite experimental procedure, followed by the computation of the mean value. The relative standard deviation (RSD) of three replicate analyses was normally lower than 5%. The heavy metal concentrations were determined using inductively coupled plasma optical emission spectrometry (ICP-OES, icap 7400) at Shanghai Normal University.

Zn isotopic composition

Approximately 0.1 g of sediment was placed into a digestion tube and dissolved using concentrated HF and HNO3 (1:1) at 140 °C for approximately 24 h. The resulting solution was evaporated on an electric heating plate at 140 °C and then treated with aqua regia (HCl:HNO3 = 3:1). The crucible was heated at 80 °C for 1 h, followed by heating at 120 °C for 24 h. The samples were then evaporated at 50 °C and treated with 1 mL HCl at 120 °C until completely dissolved. The dissolved samples were transferred to a 7 mL beaker for further evaporation. Next, 1 mL 6 mol/L HCl and 0.001% H2O2 were added and evaporated at 120 °C. Finally, Zn was separated and purified using anion exchange chromatography with AG MP-1 resin (100–200 mesh, Bio-Rad). The resin was loaded onto a column and eluted with 10 mL 8 mol/L HCl to remove matrix elements. Cu and Fe were then collected in the following 24 mL 8 mol/L HCl + 0.001% H2O2 and 18 mL 2 mol/L HCl, respectively. Finally, Zn was collected in the subsequent 15 mL 0.5 mol/L HNO3. Zn isotopic compositions were measured by MC-ICP-MS (Neptune plus, Thermo Scientific) at Nanjing University. The Zn isotope was expressed in δ66Zn (‰) based on the following equation: δ66Zn = [(66Zn/64Zn)sample/(66Zn/64Zn)standard-1] × 1000. The certified Zn standard is IRMM-3702 in present study [36]. The SSB (standard-sample bracketing) method was used to avoid the mass bias of the measurement [37].

Environmental assessment methods

Enrichment factor

Enrichment factor (EF) was used to determine the magnitude of the metal pollutions. Al, Fe, Li, Co, Sc, Ti and Cs are often used as reference elements [16]. Ti was selected as the reference element in present study. EF of river sediments was calculated using Eq. 1:

$$EF=\frac{{\left(Me/Re\right)}_{sample}}{{\left(Me/Re\right)}_{background}}$$
(1)

where Me is the heavy metal measured, and Re is a reference element mainly combined in silicate minerals, which is geochemically conservative and not easy to chemically change in processes of the earth surface system. In this study, Ti was used as a reference element for EF calculation. (Me/Ti)Sample is the metal to Ti ratio for the analyzed sample; (Me/Ti)Background is the natural background value of metal to Ti ratio. The Ti concentration of the UCC (Upper Continental Crust) as the background value [44].

Geo-accumulation index

Another criterion to evaluate the heavy metal pollution is the geoaccumulation index (Igeo) proposed by Müller [38], by comparing current concentrations with pre-industrial levels and can be calculated by the following equation:

$${\text{I}}_{{{\text{geo}}}} = \log_{2} \left( {\frac{Ci}{{1.5 \times Bi}}} \right)$$
(2)

where Ci is the measured concentration of the heavy metal; Bi is the geochemical background value of the metal. Factor 1.5 is the background matrix correction factor due to lithogenic effects [17]. We adopted the UCC values in geoaccumulation index calculation [44]. Seven classes of geoaccumulation index are distinguished to evaluate heavy metal pollution degrees (Table 1) [38]. The highest class reflects 100-times enrichment above the background values [17].

Table 1 Classification for enrichment factor and geoaccumulation index [38]
Full size table

Risk assessment code

The Risk Assessment Code (RAC) was calculated using the equation of [19]: RAC = [(metal content in exchangeable fraction/total metal content) × 100]. The RAC values of ≤ 1%, 1–10%, 11–30%, 31–50%, and ≥ 50% corresponded to no risk, low risk, medium risk, high risk, and very high risk, respectively.

Quality control and assurance

The centrifuge tubes and conical tubes used for determining the total amount of heavy metals and conducting fractionation experiments were thoroughly cleaned with 50% high-grade pure HNO3. They were then soaked in 20% HNO3 to remove insoluble impurities. Blank samples and parallel samples were included in the experiment. The content of heavy metals was measured using ICP-OES, with three repetitions and the average value were used. The detection limit for each heavy metal ranged from 0.001 mg/L to 0.004 mg/L (0.002, 0.002, 0.001, 0.001, 0.002 and 0.004 mg/L for Pb, Zn, Cu, Cr, Cd, and Co, respectively), with a relative standard deviation of less than 5%. For the determination of heavy metal fractionation, the recovery rate was tested using the formula: Recovery Rate = [(F1 + F2 + F3 + F4)/total amount] × 100%. In this study, the recovery rate ranged from 80 to 120%.

Results

Heavy metal composition in Huangpu River sediments

Heavy metal concentrations in Huangpu River sediments are presented in Table 2. Zn is the most abundant element among all of the heavy metals, with the highest and average concentration of 170.2 mg/kg and 127.3 mg/kg respectively, followed by Cr, Pb, Cu, and Co. The concentrations of heavy metals in sediments of Huangpu River exceed the soil background levels of Shanghai (Fig. 2a), as reported by Dai and Li [10]. Specifically, the concentrations of Cr and Cd were found to be significantly higher than the background values. These findings suggest that heavy metal concentrations in the sediments of Huangpu River may reach contamination levels. A strong correlation was observed between Cr and other heavy metals (p ≤ 0.05), while Zn exhibited a notable correlation with Cr and Cu (p ≤ 0.05) (Fig. 3). Moreover, the majority of heavy metal concentrations in the downstream area of Huangpu River were higher compared to the midstream and upstream regions, with the exception of H12 located in the river estuary. Furthermore, certain heavy metals, including Cd, Pb, and Zn, exhibit significant enrichment at specific sampling sites along Huangpu River (Fig. 2b and c).

Table 2 Concentration of heavy metals in Huangpu River sediment
Full size table
Fig. 2
figure 2

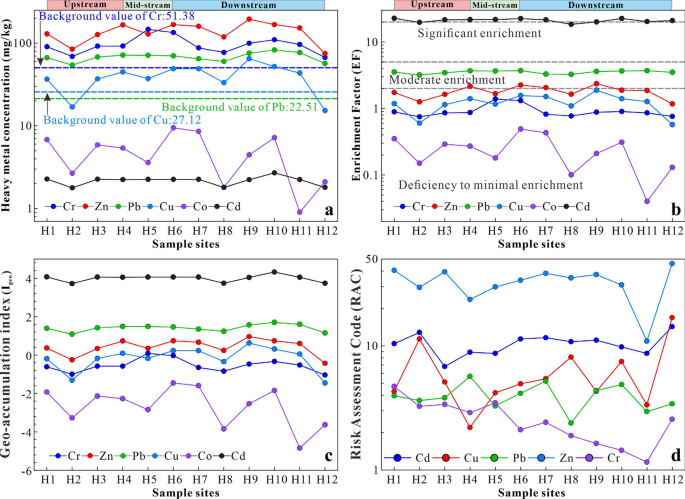

The concentration of heavy metal from the upstream to downstream (a). Data of backgrounds are from Dai and Li [10]. The EF, Igeo and RAC of river sediments in Huangpu River (b, c and d)

Full size image
Fig. 3
figure 3

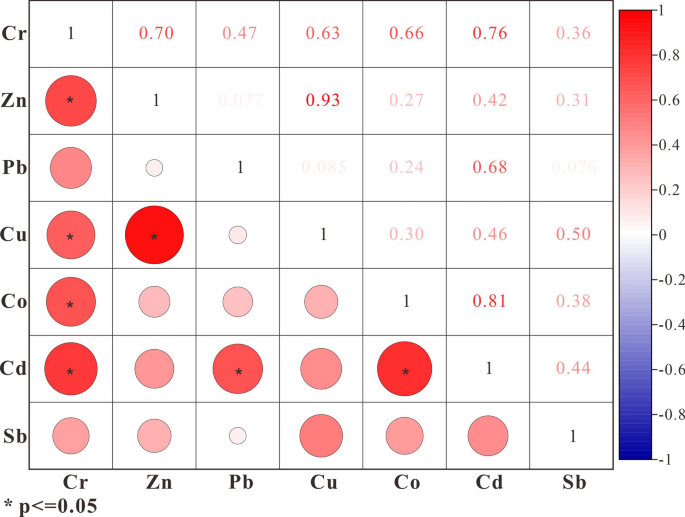

Pearson correlation plot of the association between heavy metals

Full size image

Zn isotopic composition of Huangpu River sediments

Zn is an essential micronutrient for aquatic organisms, however, elevated levels can be toxic to both organisms and surrounding environment. The Zn concentration in sediments of Huangpu River is approximately two times higher than the background level in Shanghai, suggesting the presence of contamination. The concentrations of Zn in midstream and downstream are higher than upstream, except for site H12 situated at the river estuary (Fig. 4). Besides, Zn isotopic composition of Huangpu River varied by approximately 0.12‰, with δ66Zn varies from 0.25‰ to 0.37‰ (Fig. 4). In comparison, the Zn isotopic composition in Huangpu River sediment is lower than that of the East China Sea (average δ66Zn value of 0.43‰) as reported by Zhang et al. [72], but higher than that of the Pearl River (average δ66Zn value of 0.23‰) and the Erren River (average δ66Zn value of 0.18‰) in China as reported by Zeng and Han [69] and Tu et al. [55].

Fig. 4
figure 4

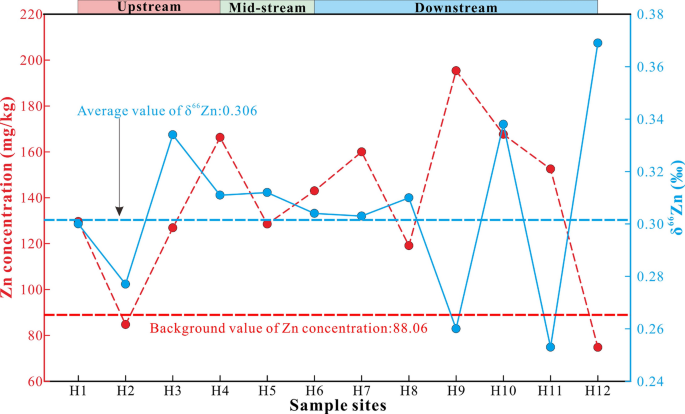

Variation of Zn concentration and isotopic composition of Huangpu River sediment. Data of backgrounds are from Dai and Li [10]

Full size image

Discussion

Chemical fractionation of heavy metals in Huangpu River sediments

The total concentration of heavy metals provides valuable information on their environmental dynamics (Hochella Jr et al., [24]). However, the different chemical fractionation of heavy metals can have varying effects on aquatic ecosystems [3], Kim et al., [29]). Heavy metal fractionation is primarily determined by sediment mineralogy and chemistry [23]. Therefore, the BCR sequential extraction techniques were used to extract different chemical fractions to understand heavy metal fractionation in Huangpu River sediments [41, 43].

Based on sequential extraction results, residual fractions are the predominant component for heavy metals in Huangpu River sediments, except for Zn. Residual fractions account for an average of 67.5%, 57.6%, 60.6%, 56.2%, and 74.4% for Cd, Cu, Ni, Pb, and Cr, respectively (Fig. 5a). This suggests that most heavy metals in the sediments are stable and not easily released into the aquatic environment. However, the non-residual fractions of Zn account for 66.2%, which means that Zn in the sediments can be easily released, potentially leading to significant environmental contamination if its concentration exceeds a certain threshold (Figs. 2d and 5a). Zn contamination in rivers is a global issue, as seen in the Lot River in France [2], Wenrui Tang River in China [63], and Ganga River in India [39]. In this study, the chemical fractionation analysis reveals that Zn in Huangpu River sediments is primarily composed of acid-exchangeable and reducible fractions, with levels exceeding 50% except at the H11 site (Fig. 5b). This implies that Zn in river sediments has the potential to be easily released, thereby posing a threat of environmental contamination in Huangpu River.

Fig. 5
figure 5

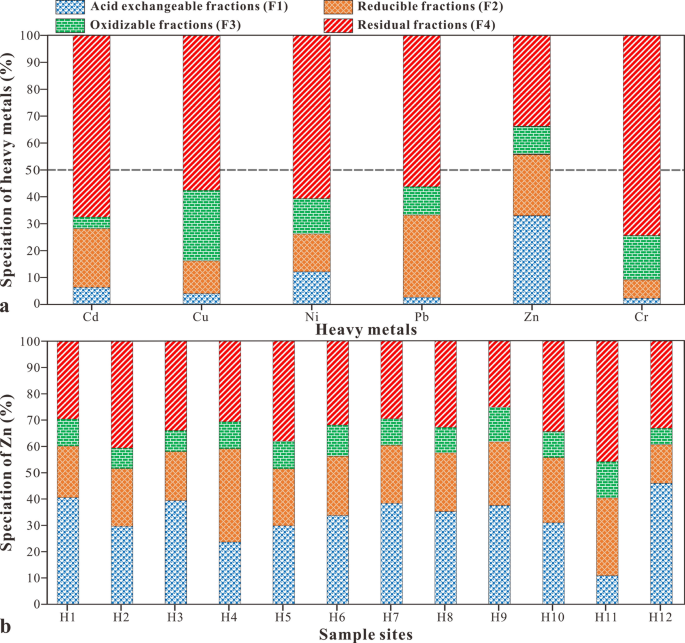

Chemical fractionation of heavy metal for sediment in Huangpu River (a). Chemical fractionation of Zn from upstream to downstream (b)

Full size image

Relationship between heavy metal contamination and urbanization

As mentioned above, Zn in river sediments might be a significant heavy metal contamination in Huangpu River. Abundant previous studies have shown a positive correlation between heavy metal concentrations in soils and factors such as population density, traffic volume, and urbanization [1, 4]. It should be emphasized that Huangpu River flows through both urban (Minhang, Xuhui, Huangpu, Hongkou, and Yangpu) and rural (Qingpu, Songjiang, and Baoshan) areas of Shanghai (Fig. 1, [8]). As shown in Fig. 6a, the levels of zinc in Huangpu River sediments are significantly elevated in areas with higher urbanization, indicating that urbanization may play a significant role for the contamination of zinc in Shanghai. This finding aligns with previous studies by Ajmone-Marsan and Biasioli [1], Bai et al. [4] and Shi et al. [48], which observed higher heavy metal concentrations in urban areas compared to rural areas in Shanghai.

Fig. 6
figure 6

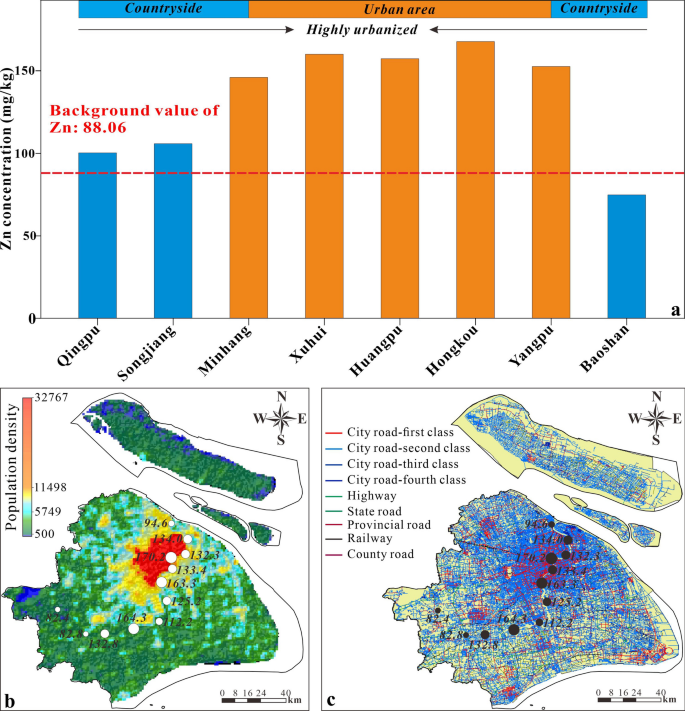

The concentration variation of Zn between countryside and urban area (a). Zn concentration and population density of Shanghai (b). Zn concentration and traffic of Shanghai (c). Data of backgrounds are from Dai and Li [10], data of urbanization are from Cui and Shi [8]

Full size image

Figure 6b indicates that there is a positive correlation between population density and Zn concentrations in Huangpu River sediments. This suggests that urbanization, with its associated increase in municipal sewage and domestic waste, is a contributing factor to elevated Zn levels [50, 67]. Additionally, heavy metal contamination is influenced by traffic volume, as vehicular emissions contribute significantly to environmental pollution. Urban areas with high traffic volume exhibit increased Zn concentrations, as depicted in Fig. 6c. Moreover, Zn concentrations in the rural regions of Qingpu and Songjiang surpass the baseline levels of Shanghai, with agricultural practices in Qingpu and industrial processes in Songjiang being identified as the primary sources [4]. These anthropogenic activities contribute to the release of Zn into the surrounding environment. Overall, heavy metal contamination in Shanghai is linked to urbanization, with potential sources including traffic emissions, and other sources like natural processes and urban wastewater.

Identification of the pollution sources with Zn isotopic composition

The isotopic composition is a valuable tool for studying the origins and processes controlling the cycling of Zn in river sediments and soils [9, 51, 53]. Hence, Zn isotopic and elemental ratios were utilized to trace the origins of Zn contamination in Huangpu River. Meanwhile, the contribution rates of each endmembers were calculated by IsoSource (Version 1.3.1). This approach can offer crucial theoretical and technical assistance for the management and remediation of heavy metal contamination.

The Zn isotopic compositions versus Cu/Zn ratios of source endmembers and Huangpu River sediments were illustrated in Fig. 7. According to the findings of source apportionment analysis, in addition to natural and plant sources (~ 34.3%), the heavy metal contamination in Huangpu River sediments is predominantly attributed to traffic-related emissions, including vehicle tire wear and exhaust emissions, accounting for approximately 34.0% (Fig. 7a and b). Moreover, anthropogenic activities and fertilizer use may also play a significant role, contributing to around 31.7% of the contamination (Fig. 7a and b). Shanghai is an international metropolis with high population density (over 24 million) and traffic volume in the urban areas [33, 46]. The high population density accompanied by a large amount of domestic sewage and wastewater, which would induce serious heavy metal contamination [15, 58]. Meanwhile, the city roads corresponded to high traffic volume were densely distributed in Shanghai, especially in urban areas. Hence, the primary sources of Zn contamination in Shanghai are the aerosol and particulate matter (PM) that originate from exhaust emissions and tire debris resulting from the frictional heat between the tire and paved road surface [30, 35, 60]. By using Zn isotopic compositions, the traffic emission and the human activities can be identified as the main source of Zn in Huangpu River sediments. It further suggested that the government should pay more emphasis on traffic and anthropogenic emissions for heavy metal control.

Fig. 7
figure 7

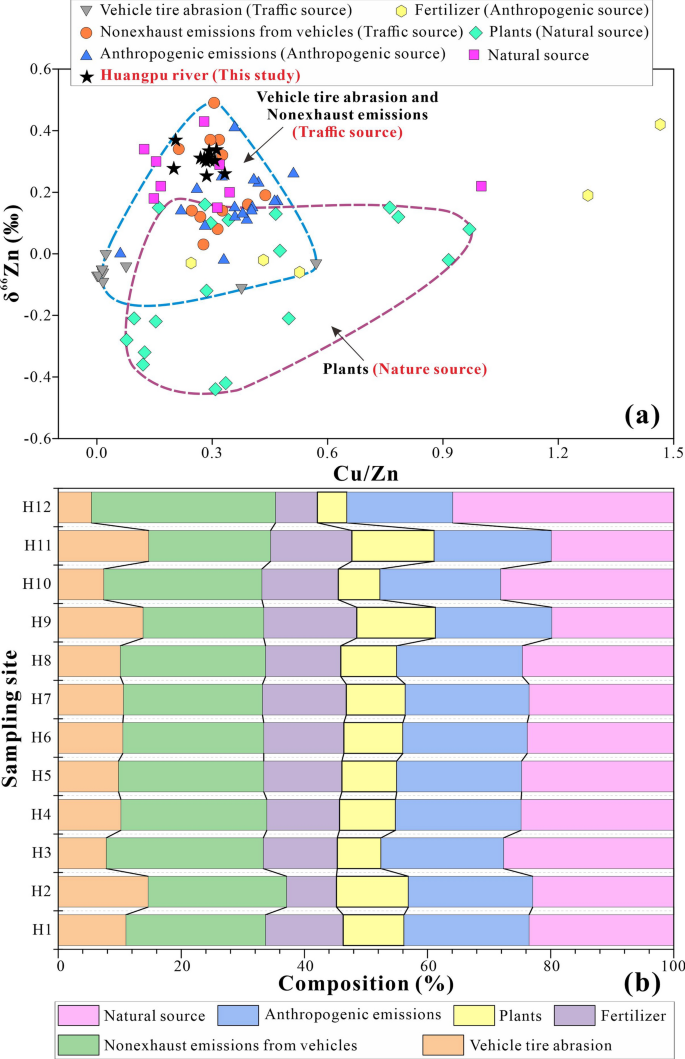

Source tracing of heavy metal pollution in Shanghai with the proxy of Zn isotopic composition (a). Quantitative calculation of contribution rates of different endmembers (b). Zn isotopic and elemental composition of source end-members are form Chen et al. [5], Fekiacova et al. [18], Chen et al. [6], Jouvin et al. [28], Gonzalez et al. [20], Jeong [26], Jeong et al. [27], and Wang et al. [57]

Full size image

Conclusions

This investigation aims to reveal the heavy metal contamination and trace the sources of contamination with the proxy of Zn isotopic composition in Huangpu River. The major conclusions are summarized as follows. Among the 12 collected samples, Zn concentrations in Huangpu River sediments are mostly higher than the soil background value of Shanghai. The heavy metals in Huangpu River sediments are mainly composited by residual fractions which account for 67.5%, 57.6%, 60.6%, 56.2%, and 74.4% in average for Cd, Cu, Ni, Pb, and Cr, respectively. However, the non-residual fractions of Zn are high (account for 66.2%), which suggests that Zn can be easily released from sediment into the aquatic environment and may further induce serious environmental contamination. Our results also indicated that the highly urbanized areas with dense population and high traffic volume have much higher Zn concentrations. Besides, caused by agricultural activities and industrial factories in Qingpu and Songjiang, the Zn concentrations of Qingpu and Songjiang are higher than the background value, even though they are countryside areas. Based on the Zn isotopic compositions and Cu/Zn ratios, the Zn contaminations in Huangpu River are mainly induced by traffic emissions and human activities: human activities include the anthropogenic emissions and fertilizer while traffic emissions indicate the aerosol and particulate matter (PM) originated from the exhaust emissions and the tire debris caused by the frictional heat between the tire and paved road surface. In other words, traffic emissions and human activities are the most important sources for Zn contamination in Shanghai.

Data availability

All data generated during this study are included in this published article and its supplementary material.

References

  1. Ajmone-Marsan F, Biasioli M (2010) Trace elements in soils of urban areas. Wat Air Soil Pollut 213(1):121–143. https://doi.org/10.1007/s11270-010-0372-6

    Article  CAS  Google Scholar

  2. Audry S, Schäfer J, Blanc G, Jouanneau J (2004) Fifty-year sedimentary record of heavy metal pollution (Cd, Zn, Cu, Pb) in the Lot river reservoirs. Environ Pollut 132(3):413–426. https://doi.org/10.1016/j.envpol.2004.05.025

    Article  CAS  Google Scholar

  3. Babich H, Stotzky G (1985) Heavy metal toxicity to microbe-mediated ecologic processes: a review and potential application to regulatory policies. Environ Res 36:111–137. https://doi.org/10.1016/0013-9351(85)90011-8

    Article  CAS  Google Scholar

  4. Bai Y, Wang M, Peng C, Alatalo JM (2016) Impacts of urbanization on the distribution of heavy metals in soils along the Huangpu river, the drinking water source for Shanghai. Environ Sci Pollut Res 23(6):5222–5231

    Article  CAS  Google Scholar

  5. Chen J, Gaillardet J, Louvat P (2008) Zinc isotopes in the Seine river waters, France: a probe of anthropogenic contamination. Environ Sci Technol 42(17):6494–6501. https://doi.org/10.1021/es800725z

    Article  CAS  Google Scholar

  6. Chen J, Gaillardet J, Louvat P, Huon S (2009) Zn isotopes in the suspended load of the Seine river, France: isotopic variations and source determination. Geochim Cosmochim Acta 73(14):4060–4076. https://doi.org/10.1016/j.gca.2009.04.017

    Article  CAS  Google Scholar

  7. Cheung YH, Wong MH (1992) Trace metal contents of the Pacific oyster (Crassostrea gigas) purchased from markets in Hong Kong. Environ Manag 16:753–761. https://doi.org/10.1007/BF02645665

    Article  Google Scholar

  8. Cui L, Shi J (2012) Urbanization and its environmental effects in Shanghai, China. Urban Clim 2:1–15. https://doi.org/10.1016/j.uclim.2012.10.008

    Article  Google Scholar

  9. Cloquet C, Carignan J, Libourel G (2006) Isotopic composition of Zn and Pb atmospheric depositions in an urban/periurban area of northeastern France. Environ Sci Technol 40(21):6594–6600. https://doi.org/10.1021/es0609654

    Article  CAS  Google Scholar

  10. Dai F, Li XF (2009) A preliminary study on background levels of thirteen priority metals in soil of Shanghai. Shanghai Environ Sci 28:271–274

    CAS  Google Scholar

  11. Davidson CM, Thomas RP, McVey SE, Perala R, Littlejohn D, Ure AM (1994) Evaluation of a sequential extraction procedure for the speciation of heavy metals in sediments. Anal Chim Acta 291:277–286. https://doi.org/10.1016/0003-2670(94)80023-5

    Article  CAS  Google Scholar

  12. Deng J, Qiu CE, Wang HY, Gao NY, Li XY (2020) Occurrence and removal of dissolved metals in surface drinking water sources from Yangtze river delta region. East Chin Desalin Water Treat 175:205–218. https://doi.org/10.5004/dwt.2020.24896

    Article  CAS  Google Scholar

  13. Desaulty AM, Petelet-Giraud E (2020) Zinc isotope composition as a tool for tracing sources and fate of metal contaminants in rivers. Sci Total Environ 728:138599. https://doi.org/10.1016/j.scitotenv.2020.138599

    Article  CAS  Google Scholar

  14. Devi P, Saroha AK (2014) Risk analysis of pyrolyzed biochar made from paper mill effluent treatment plant sludge for bioavailability and eco-toxicity of heavy metals. Bioresour Technol 162:308–315. https://doi.org/10.1016/j.biortech.2014.03.093

    Article  CAS  Google Scholar

  15. Drozdova J, Raclavska H, Raclavsky K, Skrobankova H (2019) Heavy metals in domestic wastewater with respect to urban population in Ostrava. Czech Repub Water Environ J 33(1):77–85. https://doi.org/10.1111/wej.12371

    Article  CAS  Google Scholar

  16. Fan J, Jian X, Shang F, Zhang W, Zhang S, Fu H (2021) Underestimated heavy metal pollution of the Minjiang river, SE China: evidence from spatial and seasonal monitoring of suspended-load sediments. Sci Total Environ 760:142586. https://doi.org/10.1016/j.scitotenv.2020.142586

    Article  CAS  Google Scholar

  17. Farkas A, Erratico C, Viganò L (2007) Assessment of the environmental significance of heavy metal pollution in surficial sediments of the River Po. Chemosphere 68(4):761–768. https://doi.org/10.1016/j.chemosphere.2006.12.099

    Article  CAS  Google Scholar

  18. Fekiacova Z, Cornu S, Pichat S (2015) Tracing contamination sources in soils with Cu and Zn isotopic ratios. Sci Total Environ 517:96–105

    Article  CAS  Google Scholar

  19. Fuentes A, Lloréns M, Sáez J, Soler A, Aguilar MI, Ortuño JF, Meseguer VF (2004) Simple and sequential extractions of heavy metals from different sewage sludges. Chemosphere 54(8):1039–1047. https://doi.org/10.1016/j.chemosphere.2003.10.029

    Article  CAS  Google Scholar

  20. Gonzalez RO, Strekopytov S, Amato F, Querol X, Reche C, Weiss D (2016) New insights from zinc and copper isotopic compositions into the sources of atmospheric particulate matter from two major European cities. Environ Sci Technol 50(18):9816–9824. https://doi.org/10.1021/acs.est.6b00863

    Article  CAS  Google Scholar

  21. Hall G, Pelchat P (1999) Comparibility of results obtained by the use of different selective extraction schemer for the determination of element forms in soils. Water Air Soil Pollut 112:41–53. https://doi.org/10.1023/A:1005001131472

    Article  CAS  Google Scholar

  22. Hall G, Vaive JE, Beer R, Hoashi M (1996) Selective leaches revisited, with emphasis on the amorphous Fe oxyhydroxide phase extraction. J Geochem Explor 56:59–78. https://doi.org/10.1023/A:1005001131472

    Article  CAS  Google Scholar

  23. He Z, Li F, Dominech S, Wen X, Yang S (2019) Heavy metals of surface sediments in the Changjiang (Yangtze river) estuary: distribution, speciation and environmental risks. J Geochem Explor 198:18–28. https://doi.org/10.1016/j.gexplo.2018.12.015

    Article  CAS  Google Scholar

  24. Hochella MF Jr, Moore JN, Putnis CV, Putnis A, Kasama T, Eberl DD (2005) Direct observation of heavy metal-mineral association from the Clark Fork river superfund complex: implications for metal transport and bioavailability. Geochim Cosmochim Acta 69:1651–1663. https://doi.org/10.1016/j.gca.2004.07.038

    Article  CAS  Google Scholar

  25. Huang Z, Liu C, Zhao X, Dong J, Zheng B (2020) Risk assessment of heavy metals in the surface sediment at the drinking water source of the Xiangjiang river in south China. Environ Sci Eur 32:1–9

    Article  Google Scholar

  26. Jeong H (2022) Toxic metal concentrations and Cu-Zn-Pb isotopic compositions in tires. J Anal Sci Technol 13:1–10. https://doi.org/10.1186/s40543-021-00312-3

    Article  CAS  Google Scholar

  27. Jeong H, Ryu JS, Ra K (2022) Characteristics of potentially toxic elements and multi-isotope signatures (Cu, Zn, Pb) in non-exhaust traffic emission sources. Environ Pollut 292:118339. https://doi.org/10.1016/j.envpol.2021.118339

    Article  CAS  Google Scholar

  28. Jouvin D, Weiss DJ, Mason TFM, Bravin MN, Louvat P, Zhao F, Ferec F, Hinsinger P, Benedetti MF (2012) Stable isotopes of Cu and Zn in higher plants: evidence for Cu reduction at the root surface and two conceptual models for isotopic fractionation processes. Environ Sci Tech 46(5):2652–2660. https://doi.org/10.1021/es202587m

    Article  CAS  Google Scholar

  29. Kim Y, Kim B, Kim K (2010) Distribution and speciation of heavy metals and their sources in Kumho river sediment. Korea Environ Earth Sci 60:943–952. https://doi.org/10.1007/s12665-009-0230-2

    Article  CAS  Google Scholar

  30. Kovochich M, Liong M, Parker JA, Oh SC, Lee JP, Xi L, Kreider ML, Unice KM (2021) Chemical mapping of tire and road wear particles for single particle analysis. Sci Total Environ 757:144085. https://doi.org/10.1016/j.scitotenv.2020.144085

    Article  CAS  Google Scholar

  31. Kumar N, Singh AK (2022) Impact of environmental factors on human semen quality and male fertility: a narrative review. Environ Sci Eur 34:1–13. https://doi.org/10.1186/s12302-021-00585-w

    Article  Google Scholar

  32. Liang B, Han G, Zeng J, Liu M, Zhang Q (2022) Environmental implications of land use change on the fate of Zn in agricultural soils: a case study of Puding karst soils, southwest China. Environ Res 215:114221. https://doi.org/10.1016/j.envres.2022.114221

    Article  CAS  Google Scholar

  33. Li R, Yang X, Fu H, Hu Q, Zhang L, Chen J (2017) Characterization of typical metal particles during haze episodes in Shanghai, China. Chemosphere 181:259–269. https://doi.org/10.1016/j.chemosphere.2017.03.140

    Article  CAS  Google Scholar

  34. Liu LR, Miao JJ, Pan LQ, Li Z, Sun YW (2020) Characterization of sediment toxicity in Shanghai harbor using toxicity tests and digital gene expression analysis based on clams Ruditapes phillipinarum. Ecotox Environ Safe 204:111065. https://doi.org/10.1016/j.ecoenv.2020.111065

    Article  CAS  Google Scholar

  35. Luo Z, Zhou X, Su Y, Wang H, Yu R, Zhou S, Xu EG, Xing B (2021) Environmental occurrence, fate, impact, and potential solution of tire microplastics: similarities and differences with tire wear particles. Sci Total Environ 795:148902. https://doi.org/10.1016/j.scitotenv.2021.148902

    Article  CAS  Google Scholar

  36. Moeller K, Schoenberg R, Pedersen RB, Weiss D, Dong S (2012) Calibration of the new certified reference materials ERM-AE633 and ERM-AE647 for copper and IRMM-3702 for zinc isotope amount ratio determinations. Geostand Geoanalytical Res 36(2):177–199. https://doi.org/10.1111/j.1751-908X.2011.00153.x

    Article  CAS  Google Scholar

  37. Moynier F, Vance D, Fujii T, Savage P (2017) The isotope geochemistry of zinc and copper. Rev Min Geochem 82(1):543–600

    Article  CAS  Google Scholar

  38. Müller, G., 1979. Schwermetalle in den Sedimenten des Rheins-Veränderungen seit 1971.

  39. Prasad S, Saluja R, Joshi V, Garg JK (2020) Heavy metal pollution in surface water of the upper Ganga river, India: human health risk assessment. Environ Monit Assess 192(11):1–15. https://doi.org/10.1007/s10661-020-08701-8

    Article  CAS  Google Scholar

  40. Qin G, Niu Z, Yu J, Li Z, Ma J, Xiang P (2021) Soil heavy metal pollution and food safety in China: effects, sources and removing technology. Chemosphere 267:129205

  41. Quevauviller P (1998) Operationally defined extraction procedures for soil and sediment analysis I standardization. Trend Analyt Chem 17:289–298. https://doi.org/10.1016/S0165-9936(97)00119-2

    Article  CAS  Google Scholar

  42. Rinklebe J, Antoniadis V, Shaheen SM, Rosche O, Altermann M (2019) Health risk assessment of potentially toxic elements in soils along the Central Elbe River, Germany. Environ Int 126:76–88. https://doi.org/10.1016/j.envint.2019.02.011

  43. Ryan PC, Hillier S, Wall AJ (2008) Stepwise effects of the BCR sequential chemical extraction procedure on dissolution and metal release from common ferromagnesian clay minerals: a combined solution chemistry and X-ray powder diffraction study. Sci Total Environ 407:603–614. https://doi.org/10.1016/j.scitotenv.2008.09.019

    Article  CAS  Google Scholar

  44. Rudnick RL, Gao S (2003) Composition of the continental crust. crust 3:1–64

    Google Scholar

  45. Sayadi MH, Sayyed MRG (2011) Comparative assessment of baseline concentration of the heavy metals in the soils of Tehran (Iran) with the comprisable reference data. Environ Earth Sci 63:1179–1188

  46. Senlin L, Zhenkun Y, Xiaohui C, Minghong W, Guoying S, Jiamo F, Paul D (2008) The relationship between physicochemical characterization and the potential toxicity of fine particulates (PM2.5) in Shanghai atmosphere. Atmos Environ 42(31):7205–7214. https://doi.org/10.1016/j.atmosenv.2008.07.030

    Article  CAS  Google Scholar

  47. Sharma RK, Agrawal M, Marshall F (2007) Heavy metal contamination of soil vegetables in suburban areas of Varanasi, India. Ecotoxicol Environ Saf 66(2):258–266

  48. Shi G, Chen Z, Xu S, Zhang J, Wang L, Bi C, Teng J (2008) Potentially toxic metal contamination of urban soils and roadside dust in Shanghai. China Environ Pollut 156(2):251–260. https://doi.org/10.1016/j.envpol.2008.02.027

    Article  CAS  Google Scholar

  49. Singh AK, Hasnain SI, Banerjee DK (1999) Grain size and geochemical partitioning of heavy metals in sediments of the Damodar river–a tributary of the lower Ganga. India Environ Geol 39:90–98. https://doi.org/10.1007/s002540050439

    Article  CAS  Google Scholar

  50. Suchkova N, Darakas E, Ganoulis J (2010) Phytoremediation as a prospective method for rehabilitation of areas contaminated by long-term sewage sludge storage: a Ukrainian-Greek case study. Ecol Eng 36(4):373–378. https://doi.org/10.1016/j.ecoleng.2009.11.002

    Article  Google Scholar

  51. Szynkiewicz A, Borrok DM (2016) Isotope variations of dissolved Zn in the Rio Grande watershed, USA: the role of adsorption on Zn isotope composition. Earth Planet Sci Lett 433:293–302. https://doi.org/10.1016/j.epsl.2015.10.050

    Article  CAS  Google Scholar

  52. Tam NFY, Wong YS (2000) Spatial variation of heavy metals in surface sediments of Hong Kong mangrove swamps. Environ Pollut 110:195–205. https://doi.org/10.1016/S0269-7491(99)00310-3

    Article  CAS  Google Scholar

  53. Thapalia A, Borrok DM, Van Metre PC, Wilson J (2015) Zinc isotopic signatures in eight lake sediment cores from across the United States. Environ Sci Technol 49(1):132–140. https://doi.org/10.1021/es5036893

    Article  CAS  Google Scholar

  54. Tu YJ, Luo PC, Li YL, Liu J, Sun TT, Li GJ, Duan YP (2023) Seasonal heavy metal speciation in sediment and source tracking via Cu isotopic composition in Huangpu River, Shanghai, China. Ecotoxico and Environ Saf. 260:115068.

  55. Tu Y, You C, Kuo T (2020) Source identification of Zn in Erren river, Taiwan: an application of Zn isotopes. Chemosphere 477:126044. https://doi.org/10.1016/j.chemosphere.2020.126044

    Article  CAS  Google Scholar

  56. Walsh CT, Sandstead HH, Prasad ADS, Newberne PM, Fraker PJ (1994) Zinc: health effects and research priorities for the 1990s. Environ Health Perspect 102(suppl 2):5–46. https://doi.org/10.1289/ehp.941025

    Article  CAS  Google Scholar

  57. Wang D, Zheng L, Ren M, Li C, Dong X, Wei X, Zhou W, Cui J (2022) Zinc in soil reflecting the intensive coal mining activities: evidence from stable zinc isotopes analysis. Ecotoxicol Environ Saf 239:113669. https://doi.org/10.1016/j.ecoenv.2022.113669

    Article  CAS  Google Scholar

  58. Wang L, Dai L, Li L, Liang T (2018) Multivariable cokriging prediction and source analysis of potentially toxic elements (Cr, Cu, Cd, Pb, and Zn) in surface sediments from Dongting Lake. China Ecol Indic 94:312–319. https://doi.org/10.1016/j.ecolind.2018.07.005

    Article  CAS  Google Scholar

  59. Wijaya AR, Khoerunnisa F, Armid A, Lusiana RA (2022) The best-modified BCR and Tessier with microwave-assisted methods for leaching of Cu/Zn and their δ65Cu/δ66Zn for tracing sources in marine sediment fraction. Environ Technol Innov 28:102663. https://doi.org/10.1016/j.eti.2022.102663

    Article  CAS  Google Scholar

  60. Woo S, Jang H, Mun S, Lim Y, Lee S (2022) Effect of treadwear grade on the generation of tire PM emissions in laboratory and real-world driving conditions. Sci Total Environ 838:156548. https://doi.org/10.1016/j.scitotenv.2022.156548

    Article  CAS  Google Scholar

  61. Wu HN, Huang RQ, Sun WJ, Shen SL, Xu YS, Liu YB, Du SJ (2014) Leaking behavior of shield tunnels under the Huangpu river of Shanghai with induced hazards. Nat Hazard 70:1115–1132. https://doi.org/10.1007/s11069-013-0863-z

    Article  Google Scholar

  62. Wu M, Wang L, Xu G, Liu N, Tang L, Zheng J, Bu T, Lei B (2013) Seasonal and spatial distribution of 4-tert-octylphenol, 4-nonylphenol and bisphenol a in the Huangpu river and its tributaries, Shanghai. China Environ Monit Assess 185(4):3149–3161. https://doi.org/10.1007/s10661-012-2779-6

    Article  CAS  Google Scholar

  63. Xia F, Qu L, Wang T, Luo L, Chen H, Dahlgren RA, Zhang MH, Mei K, Huang H (2018) Distribution and source analysis of heavy metal pollutants in sediments of a rapid developing urban river system. Chemosphere 207:218–228. https://doi.org/10.1016/j.chemosphere.2018.05.090

    Article  CAS  Google Scholar

  64. Xia W, Wang R, Zhu B, Rudstam LG, Liu Y, Xu Y, Chen Y (2020) Heavy metal gradients from rural to urban lakes in central China. Eco Process. 9:1–11.

  65. Xie X, Kang J, Yan G, Zhang J, Zhu W (2010) Heavy metal concentration in agricultural soils around the upper-middle reaches of Huangpu river. China Environ Sci 30:1110–1117

    CAS  Google Scholar

  66. Xu Y, Shen S, Du Y (2009) Geological and hydrogeological environment in Shanghai with geohazards to construction and maintenance of infrastructures. Eng Geol 109(3–4):241–254. https://doi.org/10.1016/j.enggeo.2009.08.009

    Article  Google Scholar

  67. Yakamercan E, Ari A, Aygün A (2021) Land application of municipal sewage sludge: human health risk assessment of heavy metals. J Clean Prod 319:128568. https://doi.org/10.1016/j.jclepro.2021.128568

    Article  CAS  Google Scholar

  68. Yang J, Zhou M, Yu K, Gin KYH, Hassan M, He Y (2022) Heavy metals in a typical city-river-reservoir system of East China: multi-phase distribution, microbial response and ecological risk. J Environ Sci 112:343–354. https://doi.org/10.1016/j.jes.2021.05.014

    Article  CAS  Google Scholar

  69. Zeng J, Han G (2020) Tracing zinc sources with Zn isotope of fluvial suspended particulate matter in Zhujiang river, southwest China. Ecol Indic 118:106723. https://doi.org/10.1016/j.ecolind.2020.106723

    Article  CAS  Google Scholar

  70. Zeng X, Xiao Z, Zhang G, Wang A, Li Z, Liu Y, Wang H, Zeng Q, Liang Y, Zou D (2018) Speciation and bioavailability 521 of heavy metals in pyrolytic biochar of swine and goat manures. J Anal Appl Pyrolysis 132:82–93. https://doi.org/10.1016/j.jaap.2018.03.012

    Article  CAS  Google Scholar

  71. Zhang H (2007) The orientation of water quality variation from the metropolis river-Huangpu River Shanghai. Environ Monit Assess 127:429–434. https://doi.org/10.1007/s10661-006-9292-8

    Article  CAS  Google Scholar

  72. Zhang R, Russell J, Xiao X, Zhang F, Li T, Liu Z, Guan M, Han Q, Shen L, Shu Y (2018) Historical records, distributions and sources of mercury and zinc in sediments of east China sea: Implication from stable isotopic compositions. Chemosphere 205:698–708. https://doi.org/10.1016/j.chemosphere.2018.04.100

    Article  CAS  Google Scholar

Download references

Acknowledgements

The authors would acknowledge Prof. Gao-Jun Li and Prof. Wei Li for the support of Zn isotopic analysis at School of Earth Science and Engineering, Nanjing University. We also thank the assistance from Dr. Wen-Xian Gou and Dr. Tao Li for their help in sample treatment and MC-ICP-MS analysis.

Funding

This work is supported by Strategic Priority Research Program of the Chinese Academy of Sciences under the grant number XDB40020105 and State Key Laboratory of Loess and Quaternary Geology, Institute of Earth Environment, CAS under the grant number SKLLQGZR2304.

Author information

Authors and Affiliations

  1. School of Environmental and Geographical Sciences, Shanghai Normal University, No. 100, Guilin Rd., Shanghai, 200234, China

    Yalong Li, Yaojen Tu, Yali Pu, Meichuan Chien & Yanping Duan

  2. Yangtze River Delta Urban Wetland Ecosystem National Field Observation and Research Station, Shanghai Normal University, No. 100 Guilin Rd., Shanghai, 200234, China

    Yalong Li, Yaojen Tu & Yanping Duan

  3. Institute of Urban Study, Shanghai Normal University, No. 100, Guilin Rd., Shanghai, 200234, China

    Yaojen Tu & Yanping Duan

  4. School of Earth Sciences and Engineering, Nanjing University, Nanjing, 210023, China

    Gaojun Li

Authors
  1. Yalong Li
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Yaojen Tu
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Gaojun Li
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Yali Pu
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Meichuan Chien
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Yanping Duan
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

Yalong Li: Writing Original Draft; Writing-review & editing. Yaojen Tu: Conceptualization; Investigation; Writing Original Draft; Writing-review & editing. Gaojun Li: Writing—review & editing. Yali Pu: Data curation; Writing Original Draft. Meichuan Chien: English Writing-review & editing. Yanping Duan: Writing—review & editing.

Corresponding author

Correspondence to Yaojen Tu.

Ethics declarations

Competing interests

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Li, Y., Tu, Y., Li, G. et al. Chemical fractionation of heavy metals and zinc isotope source identification in sediments of the Huangpu River, Shanghai, China. Environ Sci Eur 36, 137 (2024). https://doi.org/10.1186/s12302-024-00951-4

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s12302-024-00951-4

Keywords
